IP65 FLANGED ENCLOSURE - EXWF series
IP65 FLANGED ENCLOSURE - EXWF series
IP65 FLANGED ENCLOSURE - EXWF series
IP65 FLANGED ENCLOSURE - EXWF series
IP65 FLANGED ENCLOSURE - EXWF series
IP65 FLANGED ENCLOSURE - EXWF series
IP65 FLANGED ENCLOSURE - EXWF series
IP65 FLANGED ENCLOSURE - EXWF series

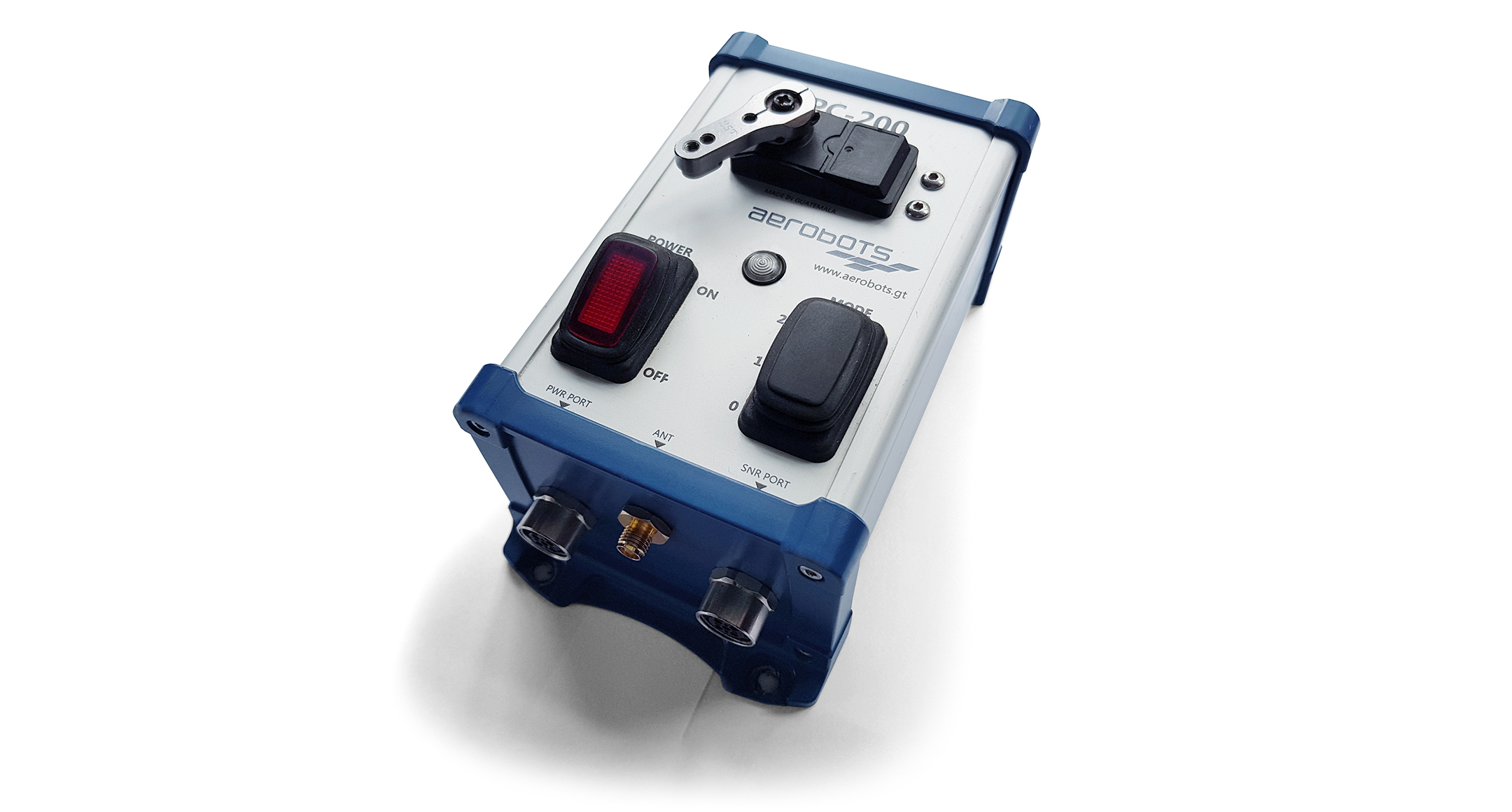

IP65 FLANGED ENCLOSURE - EXWF series1

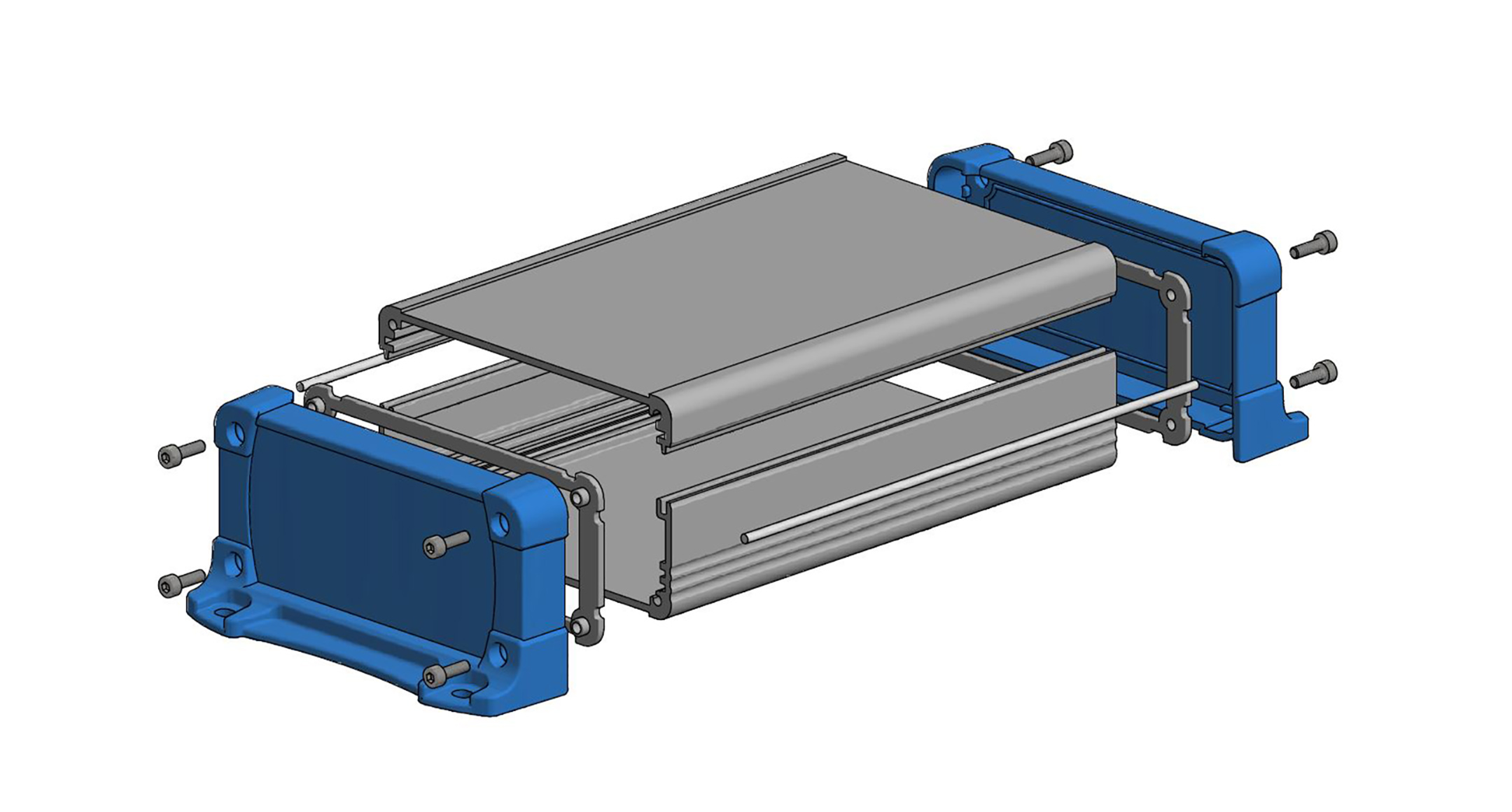

IP65 FLANGED ENCLOSURE - EXWF series2
IP65 FLANGED ENCLOSURE - EXWF series3
IP65 FLANGED ENCLOSURE - EXWF series4

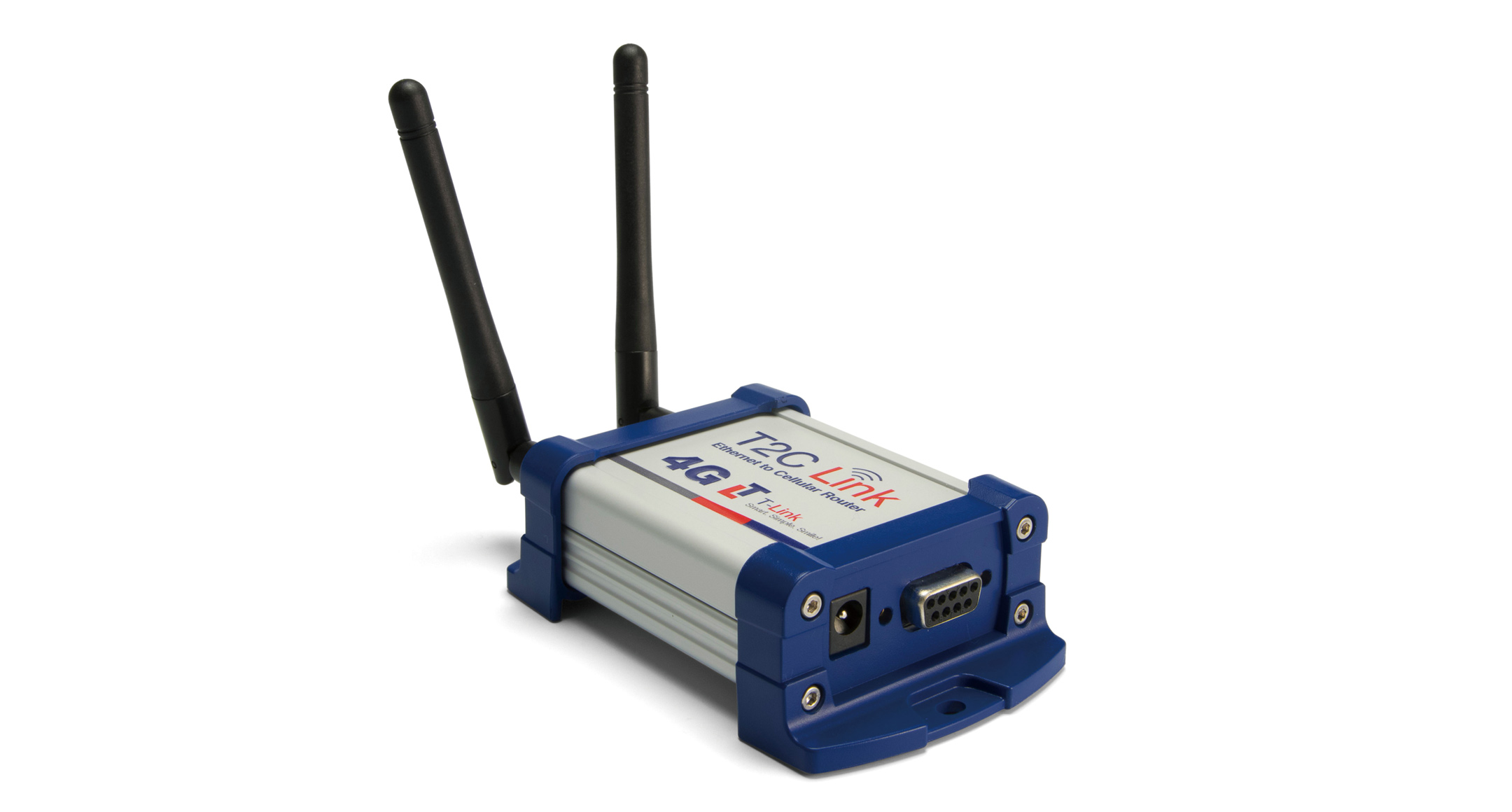

IP65 FLANGED ENCLOSURE - EXWF series5

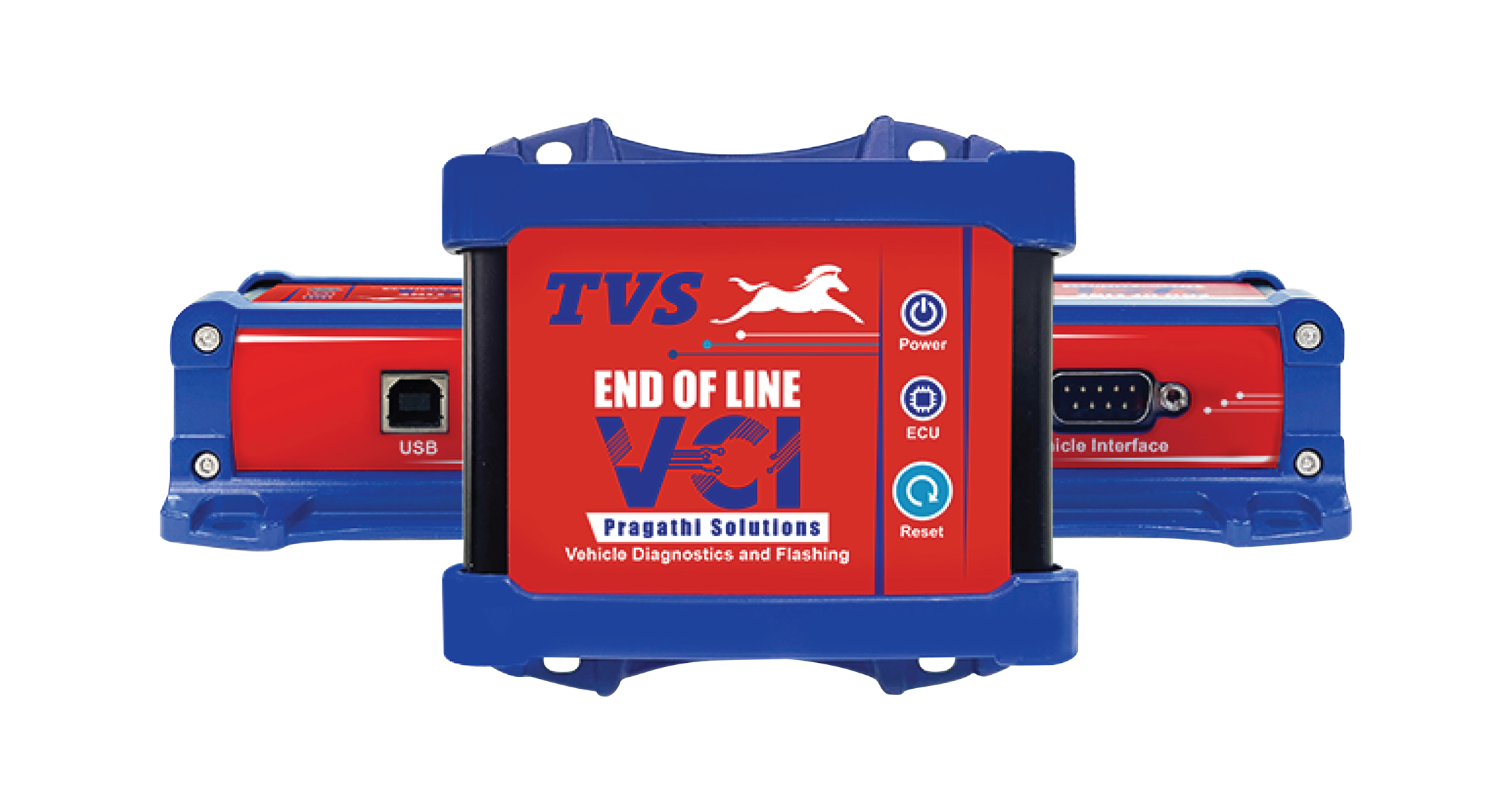

IP65 FLANGED ENCLOSURE - EXWF series6
IP65 FLANGED ENCLOSURE - EXWF series7

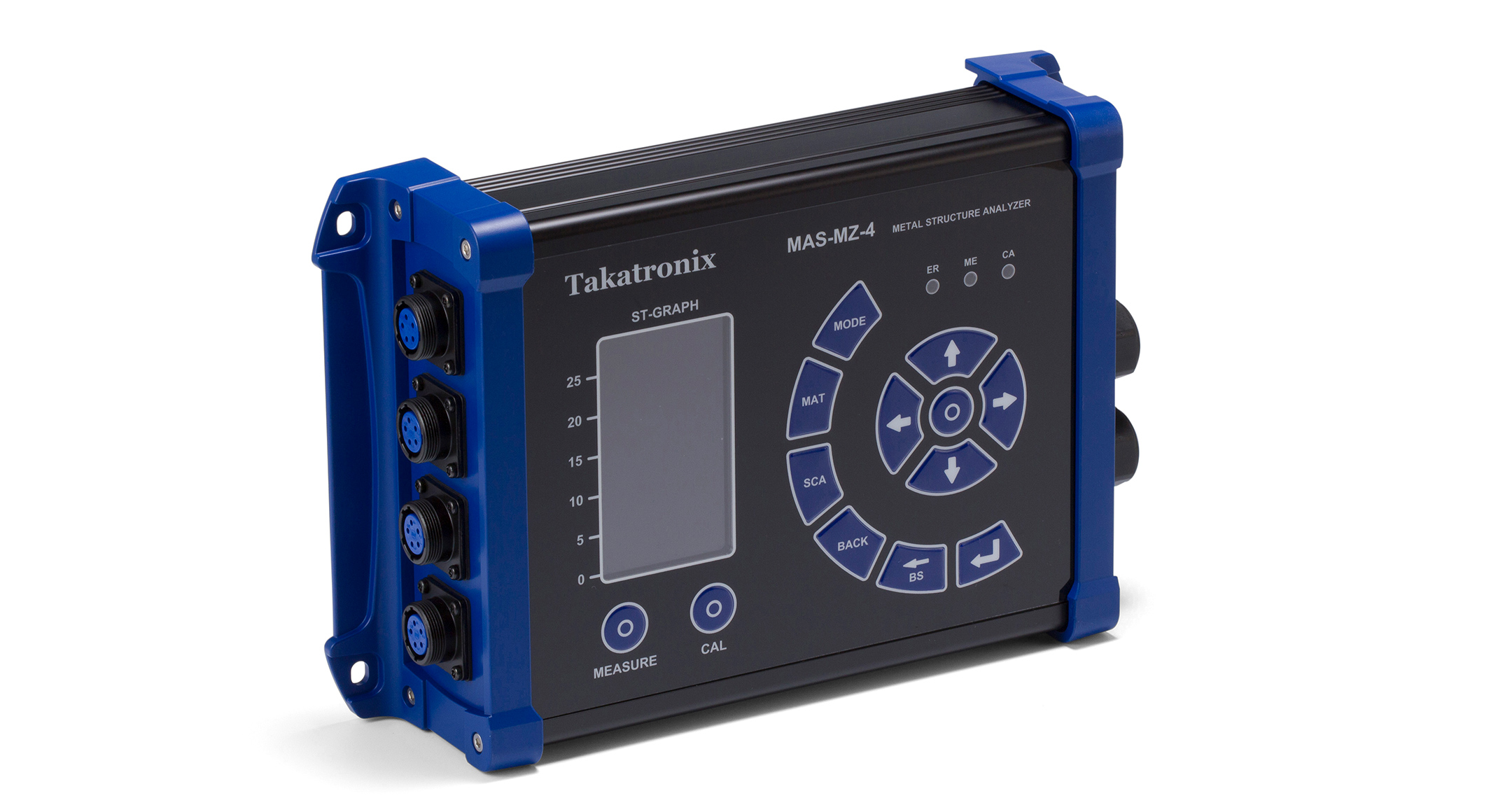

IP65 FLANGED ENCLOSURE - EXWF series8

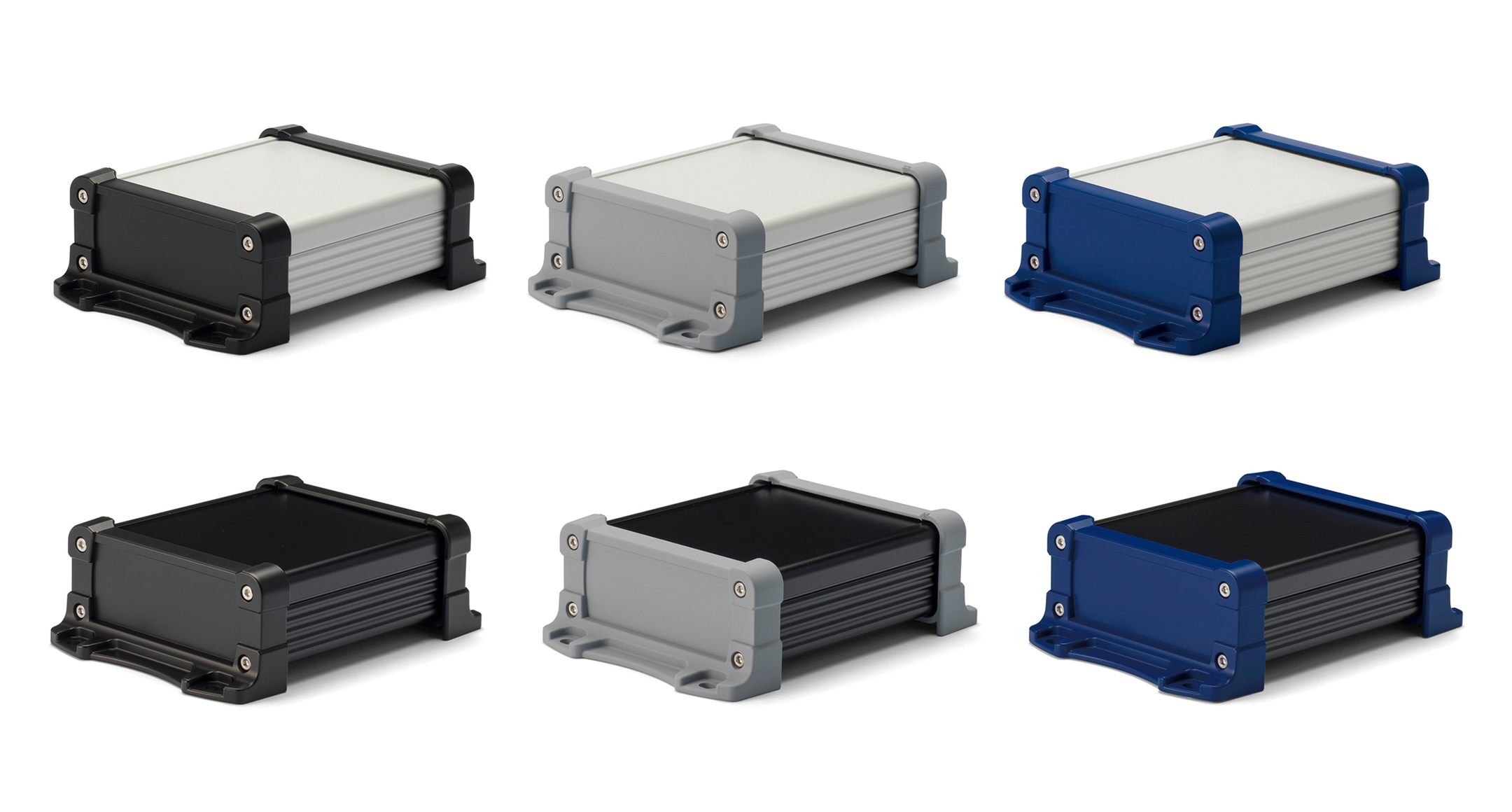

COLOR TYPE

SBSilver/Black

IP65 FLANGED ENCLOSURE - EXWF series:Silver/Black

SGSilver/Gray

IP65 FLANGED ENCLOSURE - EXWF series:Silver/Gray

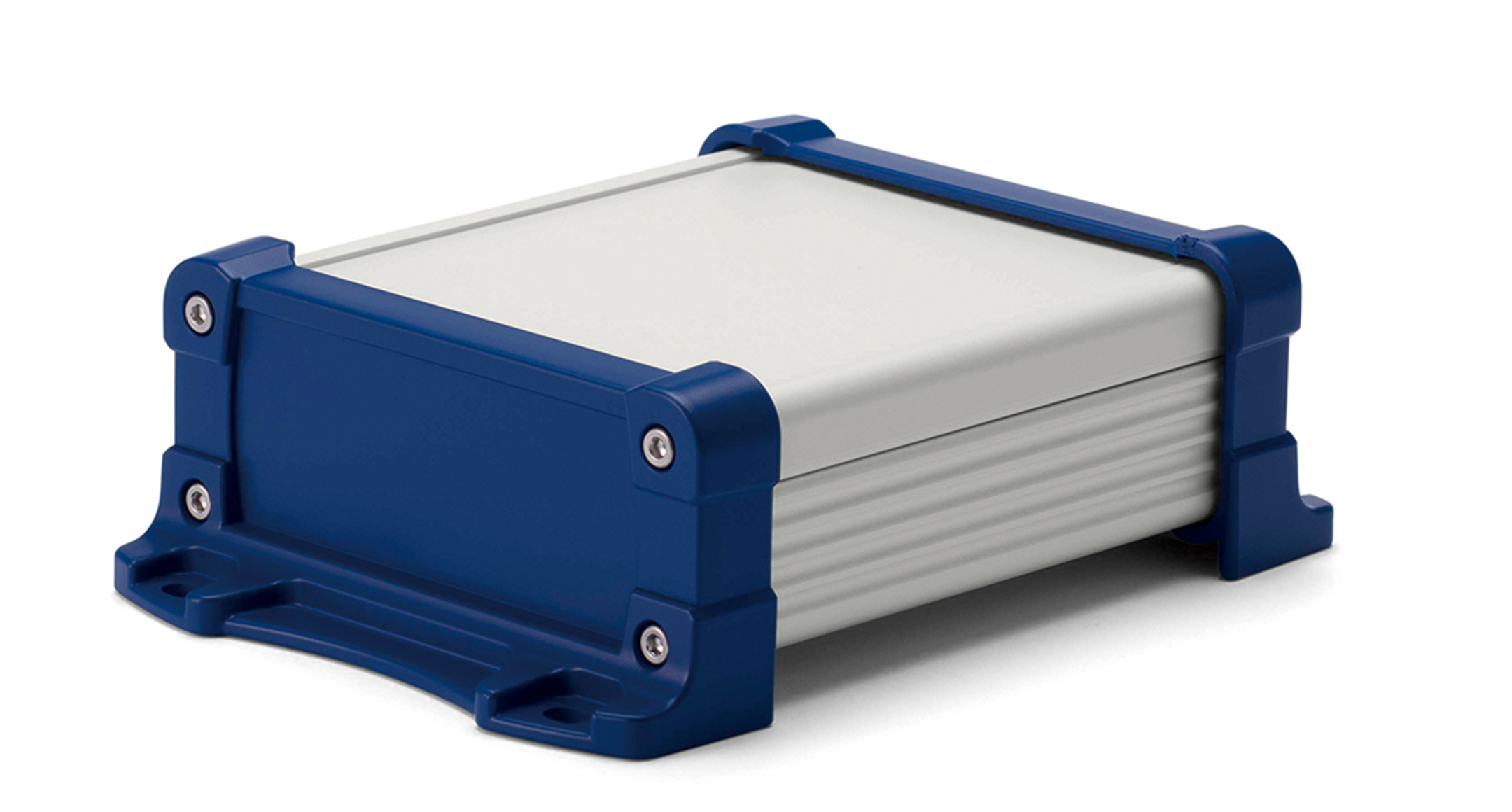

SNSilver/Navy

IP65 FLANGED ENCLOSURE - EXWF series:Silver/Navy

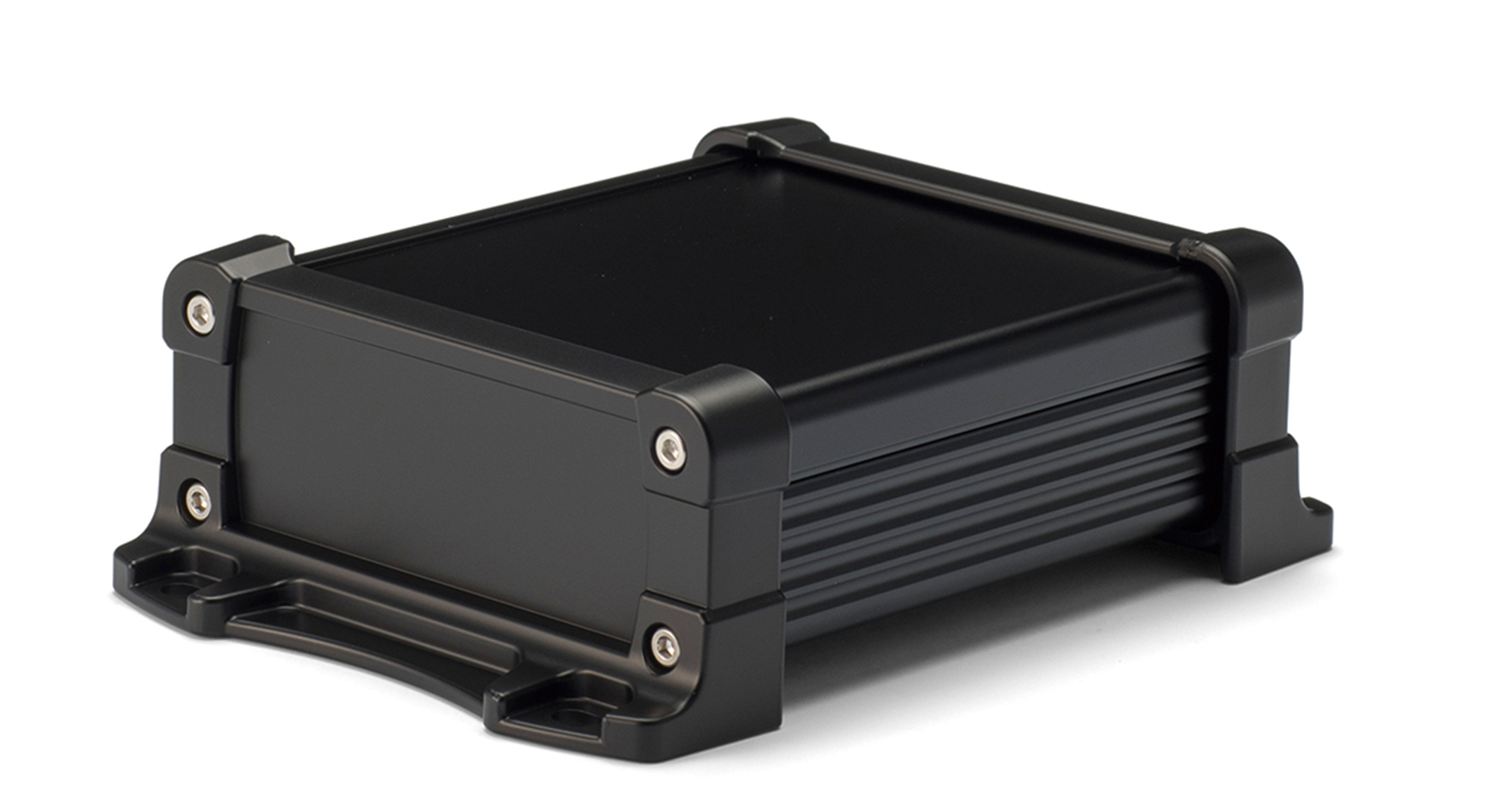

BBBlack/Black

IP65 FLANGED ENCLOSURE - EXWF series:Black/Black

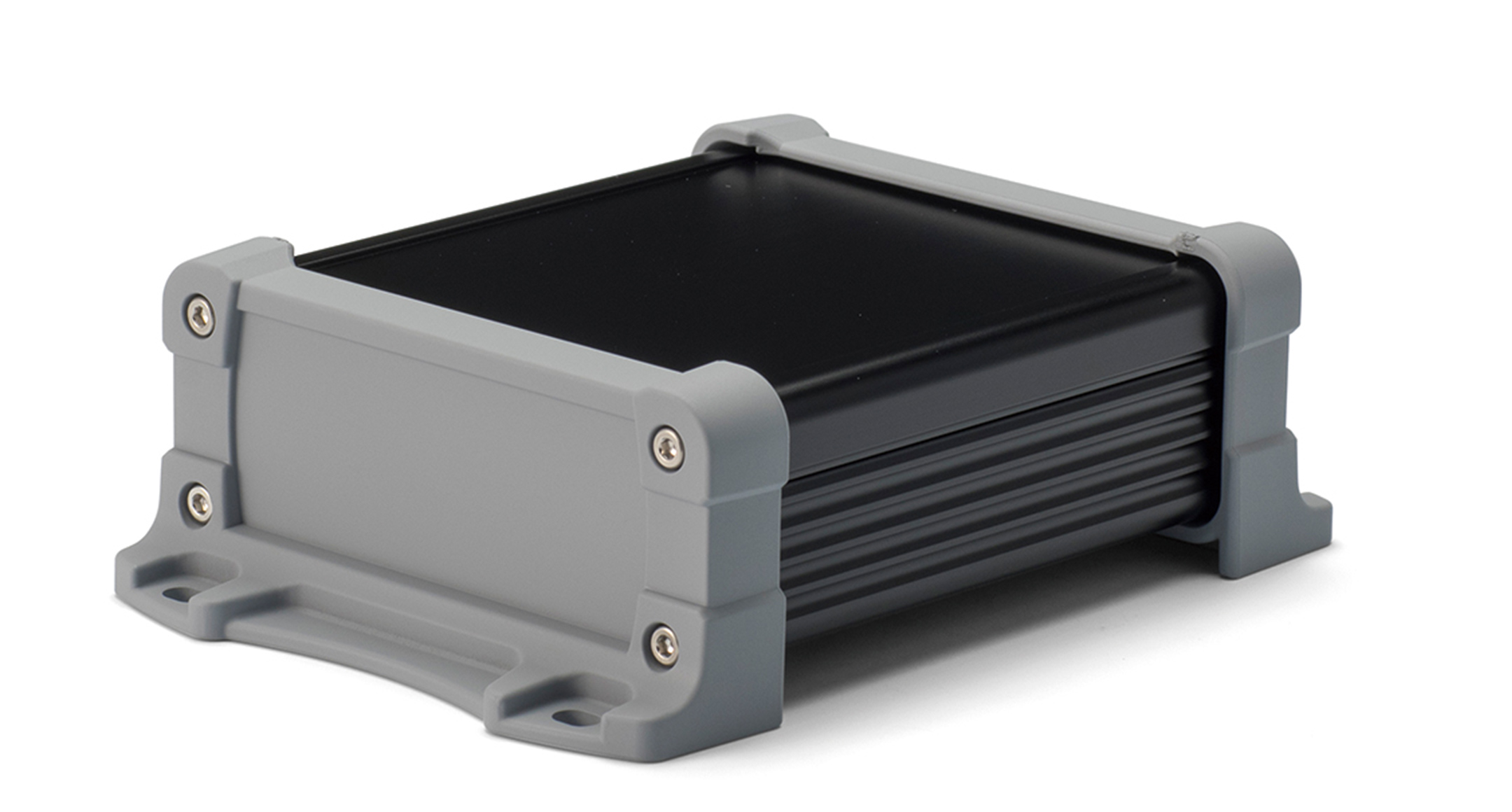

BGBlack/Gray

IP65 FLANGED ENCLOSURE - EXWF series:Black/Gray

BNBlack/Navy

IP65 FLANGED ENCLOSURE - EXWF series:Black/Navy
IP65 FLANGED ENCLOSURE - EXWF series:Silver/Black
IP65 FLANGED ENCLOSURE - EXWF series:Silver/Gray
IP65 FLANGED ENCLOSURE - EXWF series:Silver/Navy
IP65 FLANGED ENCLOSURE - EXWF series:Black/Black
IP65 FLANGED ENCLOSURE - EXWF series:Black/Gray
IP65 FLANGED ENCLOSURE - EXWF series:Black/Navy

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Protection class Weight (g) PDF DXF DWG STP
W H D w h d
EXWF7-3-6□ 66 34 58 47 20 46 IP65 76 PDF DXF DWG
EXWF7-3-9□ 66 34 85 47 20 73 IP65 99 PDF DXF DWG
EXWF7-3-11□ 66 34 108 47 20 96 IP65 118.5 PDF DXF DWG
EXWF7-4-6□ 66 44 58 47 30 46 IP65 88 PDF DXF DWG
EXWF7-4-9□ 66 44 85 47 30 73 IP65 114.5 PDF DXF DWG
EXWF7-4-11□ 66 44 108 47 30 96 IP65 136.5 PDF DXF DWG
EXWF7-6-6□ 66 59 58 47 45 46 IP65 102.5 PDF DXF DWG
EXWF7-6-9□ 66 59 85 47 45 73 IP65 132.5 PDF DXF DWG
EXWF7-6-11□ 66 59 108 47 45 96 IP65 158.5 PDF DXF DWG
EXWF9-4-7□ 86 39 69 67 25 56 IP65 119.5 PDF DXF DWG
EXWF9-4-10□ 86 39 99 67 25 86 IP65 156.5 PDF DXF DWG
EXWF9-4-13□ 86 39 129 67 25 116 IP65 193.5 PDF DXF DWG
EXWF9-5-7□ 86 49 69 67 35 56 IP65 134 PDF DXF DWG
EXWF9-5-10□ 86 49 99 67 35 86 IP65 175 PDF DXF DWG
EXWF9-5-13□ 86 49 129 67 35 116 IP65 215.5 PDF DXF DWG
EXWF9-6-7□ 86 64 69 67 50 56 IP65 155 PDF DXF DWG
EXWF9-6-10□ 86 64 99 67 50 86 IP65 200 PDF DXF DWG
EXWF9-6-13□ 86 64 129 67 50 116 IP65 245 PDF DXF DWG
EXWF11-4-9□ 113 41.5 88 89 24 74 IP65 213.5 PDF DXF DWG
EXWF11-4-13□ 113 41.5 128 89 24 114 IP65 281 PDF DXF DWG
EXWF11-4-17□ 113 41.5 174 89 24 160 IP65 358.5 PDF DXF DWG
EXWF11-6-9□ 113 56.5 88 89 39 74 IP65 242 PDF DXF DWG
EXWF11-6-13□ 113 56.5 128 89 39 114 IP65 316 PDF DXF DWG
EXWF11-6-17□ 113 56.5 174 89 39 160 IP65 401 PDF DXF DWG
EXWF11-7-9□ 113 71.5 88 89 54 74 IP65 266 PDF DXF DWG
EXWF11-7-13□ 113 71.5 128 89 54 114 IP65 347.5 PDF DXF DWG
EXWF11-7-17□ 113 71.5 174 89 54 160 IP65 441.5 PDF DXF DWG
EXWF15-5-11□ 148 47 107 107 29 93 IP65 322.5 PDF DXF DWG
EXWF15-5-15□ 148 47 147 107 29 133 IP65 414 PDF DXF DWG
EXWF15-5-20□ 148 47 197 107 29 183 IP65 527.5 PDF DXF DWG
EXWF15-6-11□ 148 62 107 107 44 93 IP65 376 PDF DXF DWG
EXWF15-6-15□ 148 62 147 107 44 133 IP65 474 PDF DXF DWG
EXWF15-6-20□ 148 62 197 107 44 183 IP65 596 PDF DXF DWG
EXWF15-8-11□ 148 82 107 107 64 93 IP65 424 PDF DXF DWG
EXWF15-8-15□ 148 82 147 107 64 133 IP65 529 PDF DXF DWG
EXWF15-8-20□ 148 82 197 107 64 183 IP65 660 PDF DXF DWG
EXWF15-10-11□ 148 102 107 107 84 93 IP65 467.5 PDF DXF DWG
EXWF15-10-15□ 148 102 147 107 84 133 IP65 582.5 PDF DXF DWG
EXWF15-10-20□ 148 102 197 107 84 183 IP65 725.5 PDF DXF DWG
EXWF20-6-14□ 195 57 138 132 35 120 IP54 686.5 PDF DXF DWG
EXWF20-6-19□ 195 57 190 132 35 172 IP54 877 PDF DXF DWG
EXWF20-6-25□ 195 57 243 132 35 225 IP54 1071.5 PDF DXF DWG
EXWF20-6-30□ 195 57 298 132 35 280 IP54 1270 PDF DXF DWG
EXWF20-8-14□ 195 75 138 132 53 120 IP54 749 PDF DXF DWG
EXWF20-8-19□ 195 75 190 132 53 172 IP54 953.5 PDF DXF DWG
EXWF20-8-25□ 195 75 243 132 53 225 IP54 1158 PDF DXF DWG
EXWF20-8-30□ 195 75 298 132 53 280 IP54 1373.5 PDF DXF DWG
EXWF20-10-14□ 195 95 138 132 73 120 IP54 821.5 PDF DXF DWG
EXWF20-10-19□ 195 95 190 132 73 172 IP54 1046 PDF DXF DWG
EXWF20-10-25□ 195 95 243 132 73 225 IP54 1266.5 PDF DXF DWG
EXWF20-10-30□ 195 95 298 132 73 280 IP54 1498 PDF DXF DWG
EXWF20-12-14□ 195 120 138 132 98 120 IP54 935.5 PDF DXF DWG
EXWF20-12-19□ 195 120 190 132 98 172 IP54 1161 PDF DXF DWG
EXWF20-12-25□ 195 120 243 132 98 225 IP54 1408.5 PDF DXF DWG
EXWF20-12-30□ 195 120 298 132 98 280 IP54 1651 PDF DXF DWG
EXWF24-7-17□ 240 65 165 177 43 147 IP54 1036.5 PDF DXF DWG
EXWF24-7-23□ 240 65 225 177 43 207 IP54 1327 PDF DXF DWG
EXWF24-7-29□ 240 65 285 177 43 267 IP54 1623 PDF DXF DWG
EXWF24-7-35□ 240 65 345 177 43 327 IP54 1917.5 PDF DXF DWG
EXWF24-9-17□ 240 90 165 177 68 147 IP54 1140.5 PDF DXF DWG
EXWF24-9-23□ 240 90 225 177 68 207 IP54 1450 PDF DXF DWG
EXWF24-9-29□ 240 90 285 177 68 267 IP54 1759 PDF DXF DWG
EXWF24-9-35□ 240 90 345 177 68 327 IP54 2094.5 PDF DXF DWG
EXWF24-12-17□ 240 115 165 177 93 147 IP54 1274.5 PDF DXF DWG
EXWF24-12-23□ 240 115 225 177 93 207 IP54 1618.5 PDF DXF DWG
EXWF24-12-29□ 240 115 285 177 93 267 IP54 1960 PDF DXF DWG
EXWF24-12-35□ 240 115 345 177 93 327 IP54 2319.5 PDF DXF DWG
