SCREWS・BOLTS・WASHERS

SCREWS・BOLTS・WASHERS -PDF

CATEGORY: SCREW・PCB MOUNTING SCREW・SELF TAPPING SCREW・TORX SCREW・NUT

Screws in various styles including countersunk-head, pan-head, truss-head, binding-head, and tapping models, nuts and washers are available.
Use them for your spare or other applications.
TORX screws for tamper-proof purpose are also available.

PCB MOUNTING SCREW - EM series
  • PCB MOUNTING SCREW - EM series
  • Self tapping screws for PCB bosses on the plastic cases.
  • Use them to install your PCB onto bosses on the plastic cases.
  • Available for M1.6, M2, M2.3, M2.6, and M3 screws.
    DETAILS
    CONDUCTIVE SCREW - EV
    • CONDUCTIVE SCREW - EV
    • Conductive screws for metal enclosures.
    • Conductivity is achieved via underside protrusions.
    • Sold in 20 pcs pack.
      DETAILS
      HEXALOBULAR SOCKET HEAD SCREW - MR series
      • HEXALOBULAR SOCKET HEAD SCREW - MR series
      • Hexalobular (TORX) screws for enclosures.
      • Recommended to be used for tamper resistance.
      • Also can give a robust exterior.
      • Requires the use of a torx screwdriver.
        DETAILS

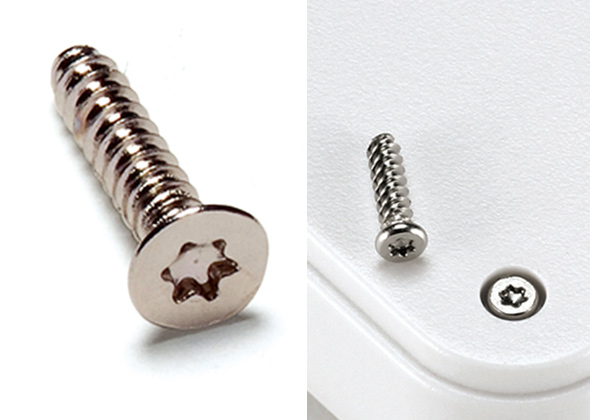

        TORX DRIVE SCREW for PLASTIC CASES - MR series
        • TORX DRIVE SCREW for PLASTIC CASES - MR series
        • Hexalobular (TORX) screws for plastic enclosures.
        • Fit to CS・CSS・LC・PF・PFF・TW・TWN・TWF series.
        • Recommended to be used for tamper resistance.
          DETAILS

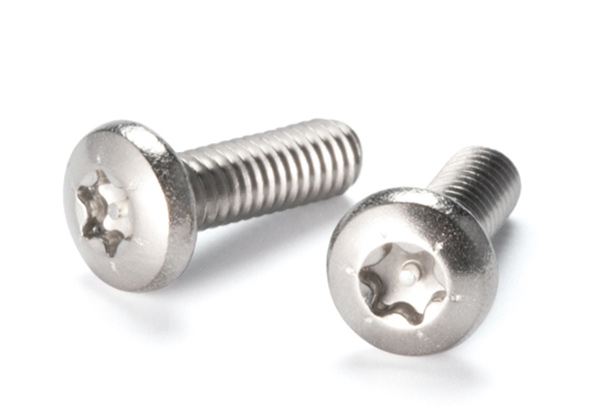

          TORX DRIVE SCREW for WP・WSC series
          • TORX DRIVE SCREW for WP・WSC series
          • Hexalobular (TORX) screws for WP and WSC series.
          • Recommended to be used for tamper resistance.
          • Material : Stainless steel
          • Sold in 20 pcs pack.
            DETAILS
            MOUNTING SCREW for RPSP2.5-11
            • MOUNTING SCREW for RPSP2.5-11
            • Mounting screw for RPSP2.5-11 hexagonal standoff.
            • Thread size =M2.5, Length=4mm
            • Pack of 4 pcs
            • NEW PRODUCT
            DETAILS

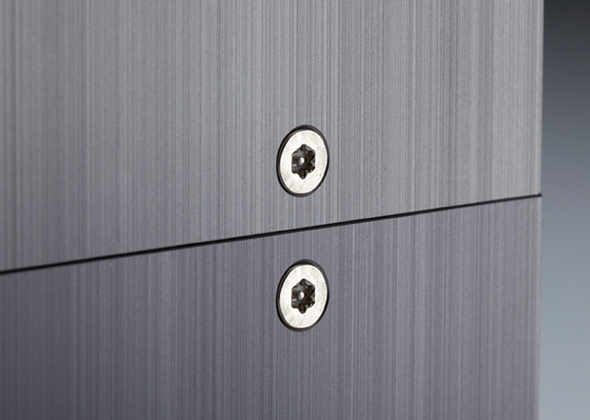

            TORX DRIVE SCREW for UC・UCG - MR-1
            • TORX DRIVE SCREW for UC・UCG - MR-1
            • Hexalobular (TORX) screws for UC・UCG series.
            • Recommended to be used for tamper resistance.
            • Sold in 20 pcs pack.
              DETAILS

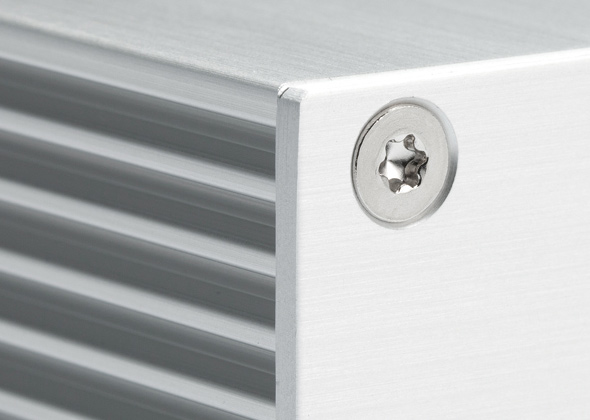

              TORX DRIVE SCREW for HEN - MR-2S
              • TORX DRIVE SCREW for HEN - MR-2S
              • Hexalobular (TORX) screws for HEN series.
              • Recommended to be used for tamper resistance.
              • Also can give a robust exterior.
              • Sold in 20 pcs pack.
                DETAILS

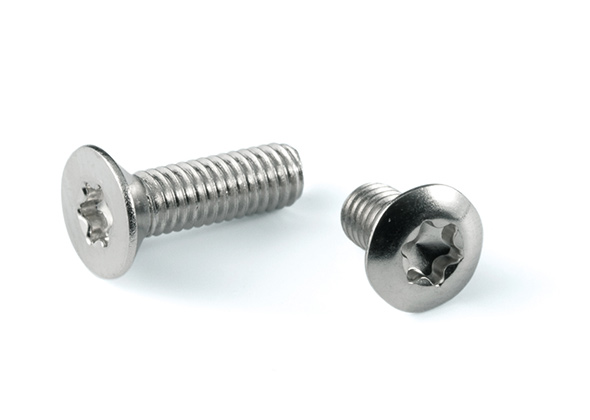

                TORX DRIVE SCREW for CF・CH - MR-3CS・MR-4CS
                • TORX DRIVE SCREW for CF・CH - MR-3CS・MR-4CS
                • Hexalobular (TORX) screws for CF and CH series.
                • Recommended to be used for tamper resistance,.
                • Also can give a robust exterior.
                  DETAILS

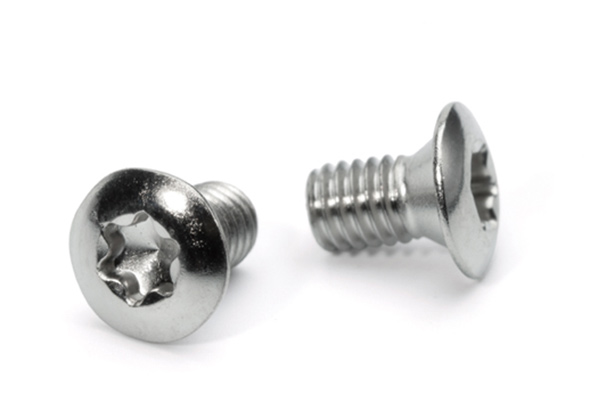

                  SLOTTED RAISED COUNTERSUNK TORX SCREW - MR3-5Z
                  • SLOTTED RAISED COUNTERSUNK TORX SCREW - MR3-5Z
                  • Hexalobular (TORX) screws for aluminium enclosures.
                  • Fit to FC・FCH・HY・HS・CH・CF・HYR・HYRH・YM・MB series.
                  • Recommended to be used for tamper resistance.
                  • Also can give a robust exterior.
                    DETAILS

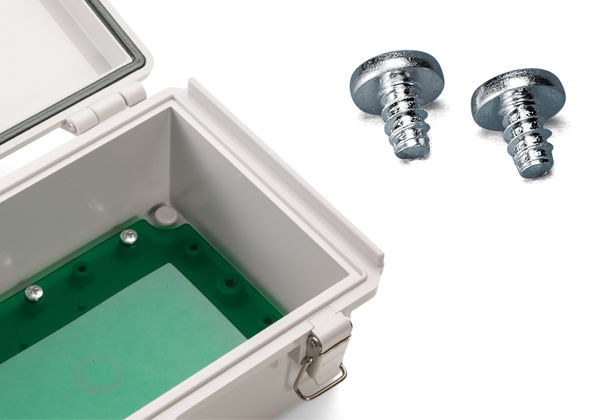

                    PCB MOUNTING SCREW for HINGED PLASTIC BOX - MT4-8T・MT5-8T
                    • PCB MOUNTING SCREW for HINGED PLASTIC BOX - MT4-8T・MT5-8T
                    • Self tapping PCB mounting screw.
                    • Can be used for BCAP・BCPC・BCPK・BCAR・BCPR series.
                    • Sold in 20 pcs pack.
                      DETAILS

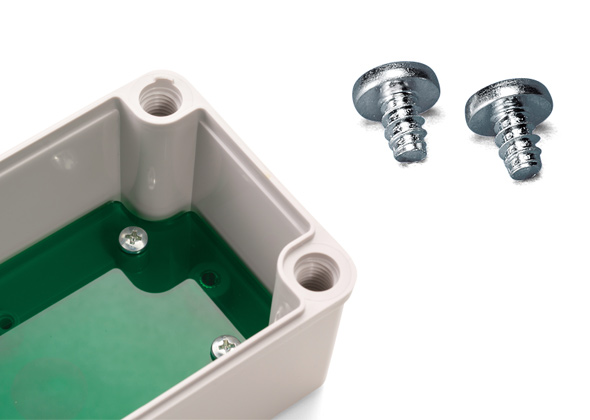

                      PCB MOUNTING SCREW for BCAS・BCAL - MT4-8T・MT5-8T
                      • PCB MOUNTING SCREW for BCAS・BCAL - MT4-8T・MT5-8T
                      • Self tapping PCB mounting screw.
                      • Can be used for BCAS・BCAL series.
                      • Sold in 20 pcs pack.
                        DETAILS
                        PCB MOUNTING SCREW for HQ - MT3.5-8K
                        • PCB MOUNTING SCREW for HQ - MT3.5-8K
                        • Self tapping PCB mounting screw for HQ series.
                        • Can be used for mounting on PCB, mounting plate, and DIN rail.
                        • Sold in 4 pcs pack.
                          DETAILS

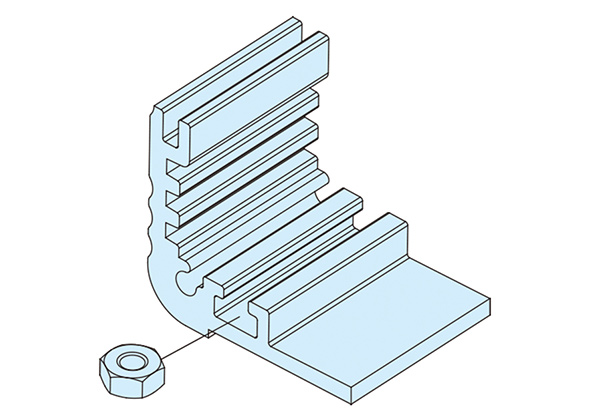

                          SLIDING NUT for EX□ series - MT-3N
                          • SLIDING NUT for EX□ series - MT-3N
                          • Slide nut can be used to install PCBs or standoffs.
                          • For EXP・EXPE・EXW・EXPF・EXEF・EXWF・EX・EXH・EXHF series.
                            DETAILS
                            TAPPING STANDOFF - TPS series
                            • TAPPING STANDOFF - TPS series
                            • Female standoff with tapping screw.
                            • Easy installation onto existing enclosure boss mount.
                            • M2.3・M2.6・M3・thread in 4~12mm length and M4 thread
                            • in 6~20mm lengths are available.
                            • NEW SIZE
                            DETAILS
                            ADHESIVE STANDOFF - AST series
                            • ADHESIVE STANDOFF - AST series
                            • Quick and easy installation adhesive standoffs.
                            • Steel nut is installed, it has sufficient thread strength.
                            • Convenient parts for installing PCBs into enclosures.
                            • 8 different sizes are available.
                            • NEW PRODUCT
                            DETAILS
                            ADHESIVE PCB STANDOFF - ASR series
                            • ADHESIVE PCB STANDOFF - ASR series
                            • M3 tapping screw use adhesive standoff.
                            • Double-sided adhesive tape for easy mounting.
                            • 10 different heights available.
                            • Sold in 10 pcs pack.
                              DETAILS

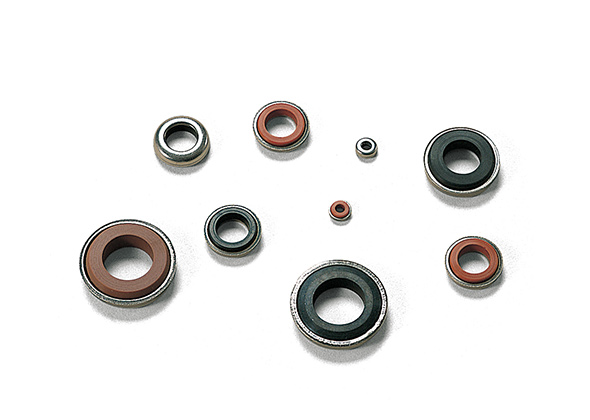

                              WATERPROOF SEALING WASHER SZ series
                              • WATERPROOF SEALING WASHER SZ series
                              • Waterproof washer for screwing onto waterproof boxes.
                              • Oil resistant NBR sealing material on N models.
                              • Superior water resistant silicone sealing material on S models.
                              • 8 sizes in M3, M4, M5, M6, M8, M10, M12, and M16.
                                DETAILS
                                CAPTIVE SCREW PM series
                                • CAPTIVE SCREW PM series
                                • Captive screw use with MTS・PLS series captive fastener
                                • for making detachable panels.
                                  DETAILS
                                  PLASTIC CAPTIVE FASTENER PLS-1G
                                  • PLASTIC CAPTIVE FASTENER PLS-1G
                                  • Plastic captive fastener use with PM series captive screw
                                  • for making detachable panels.
                                    DETAILS
                                    STEEL CAPTIVE FASTENER - MTS series
                                    • STEEL CAPTIVE FASTENER - MTS series
                                    • Steel captive fastener use with PM series captive screw
                                    • for making detachable panels.
                                    • NEW PRODUCT
                                    DETAILS
