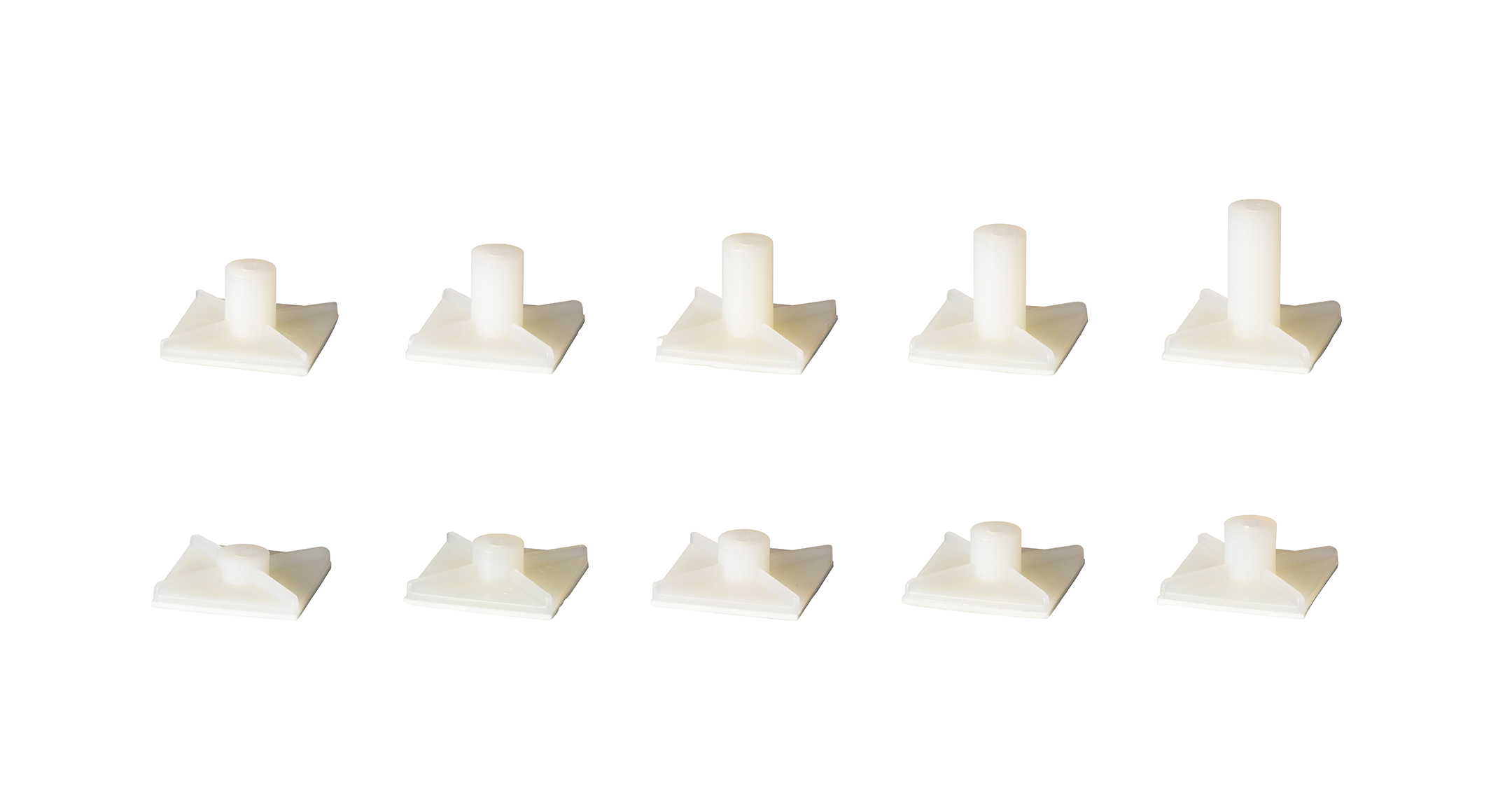

CATEGORY：PCB standoff, PCB spacer, PCB pillar, Adhesive PCB support
Double-sided adhesive tape allows the standoff to be mounted easily;

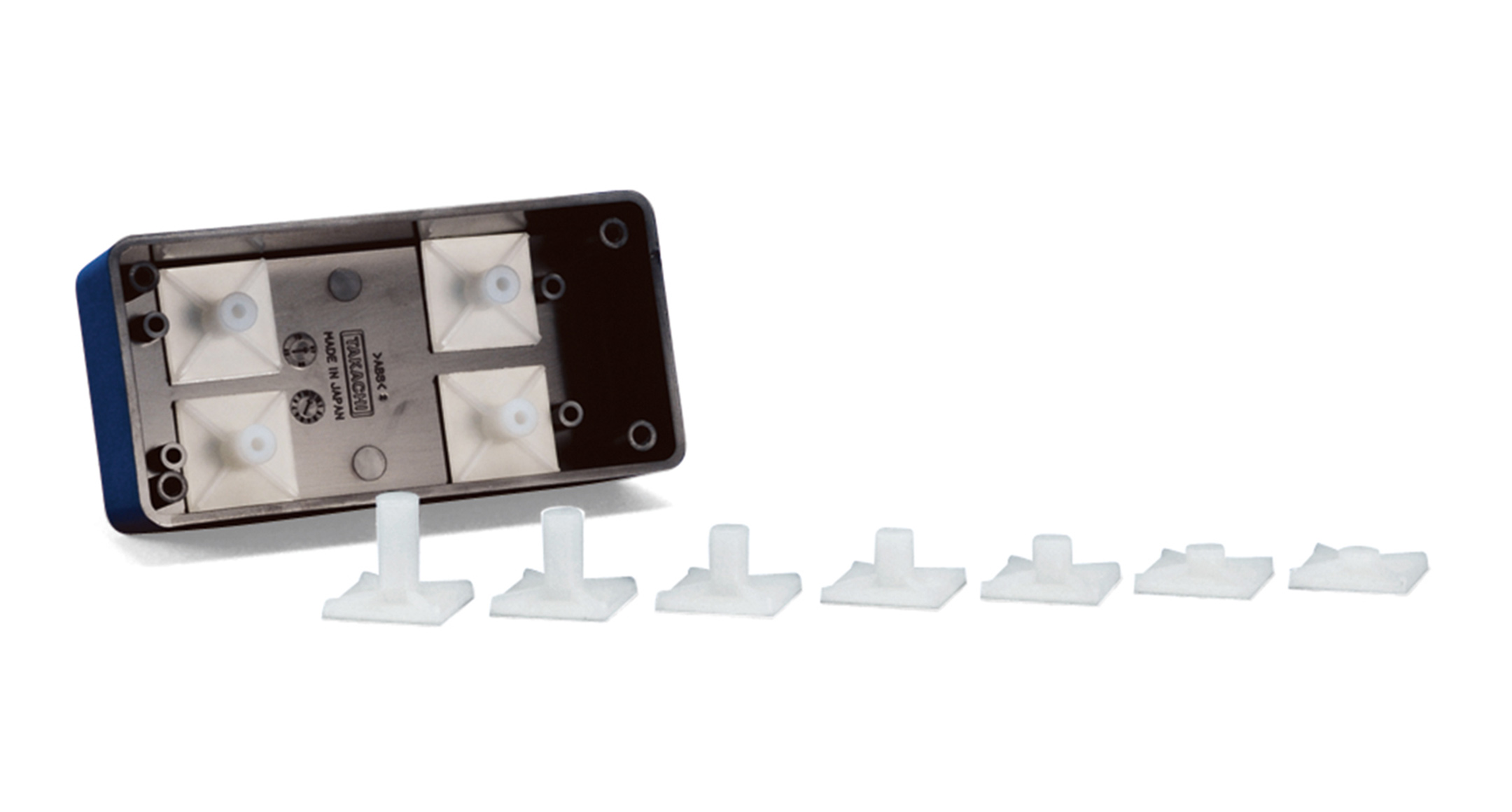

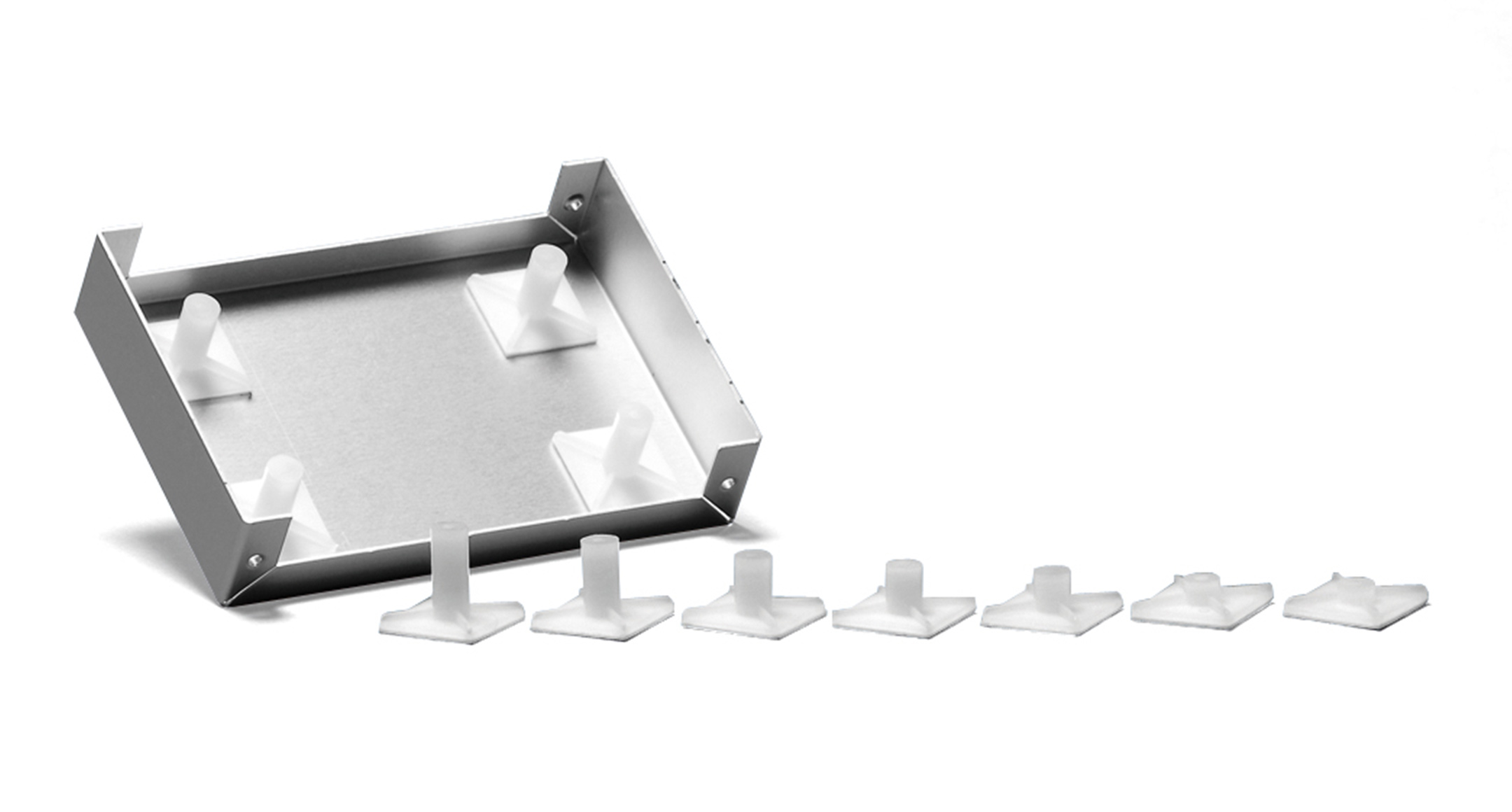

allows PCB mounting in non-boss enclosures.
M3 tapping screw use adhesive standoff.
Recommended to be used with EM-3 or EM-3-6 tapping screws.
Please ensure the surface is cleaned and grease-free before adhering.
Once removed, it cannot be adhered on again.
Recommended screw torque: 4kgf・cm (0.4N・m).
Sold in 10 pcs pack.
allows PCB mounting in non-boss enclosures.
M3 tapping screw use adhesive standoff.
Recommended to be used with EM-3 or EM-3-6 tapping screws.
Please ensure the surface is cleaned and grease-free before adhering.
Once removed, it cannot be adhered on again.
Recommended screw torque: 4kgf・cm (0.4N・m).
Sold in 10 pcs pack.
PRODUCT NO. / DIMENSIONS
| Product No. | Height (mm) | Weight (g) / 1pc | Pack of | DXF | DWG | |
|---|---|---|---|---|---|---|
| ASR-5 | 5.1 | 0.9 | 10 pcs | DXF | DWG | |
| ASR-6 | 6.4 | 1 | 10 pcs | DXF | DWG | |
| ASR-7 | 7.2 | 0.9 | 10 pcs | DXF | DWG | |
| ASR-8 | 8.1 | 0.9 | 10 pcs | DXF | DWG | |
| ASR-9 | 9 | 1 | 10 pcs | DXF | DWG | |
| ASR-11 | 11 | 1 | 10 pcs | DXF | DWG | |
| ASR-13 | 12.7 | 1.2 | 10 pcs | DXF | DWG | |
| ASR-14.5 | 14.7 | 1.1 | 10 pcs | DXF | DWG | |
| ASR-16 | 15.9 | 1.3 | 10 pcs | DXF | DWG | |
| ASR-19 | 19.1 | 1.4 | 10 pcs | DXF | DWG |
