Short lead-time and low initial cost is possible for overlay sheet and embossing manufacture.
Orders for overlay sheets only is also possible.

3 reasons for low initial costs

  1. 1. Due to utilizing inkjet printing, the initial tooling cost may be eliminated.
  2. 2. Eliminating the cost of cutting-die manufacture by utilizing our cutting plotter machine.

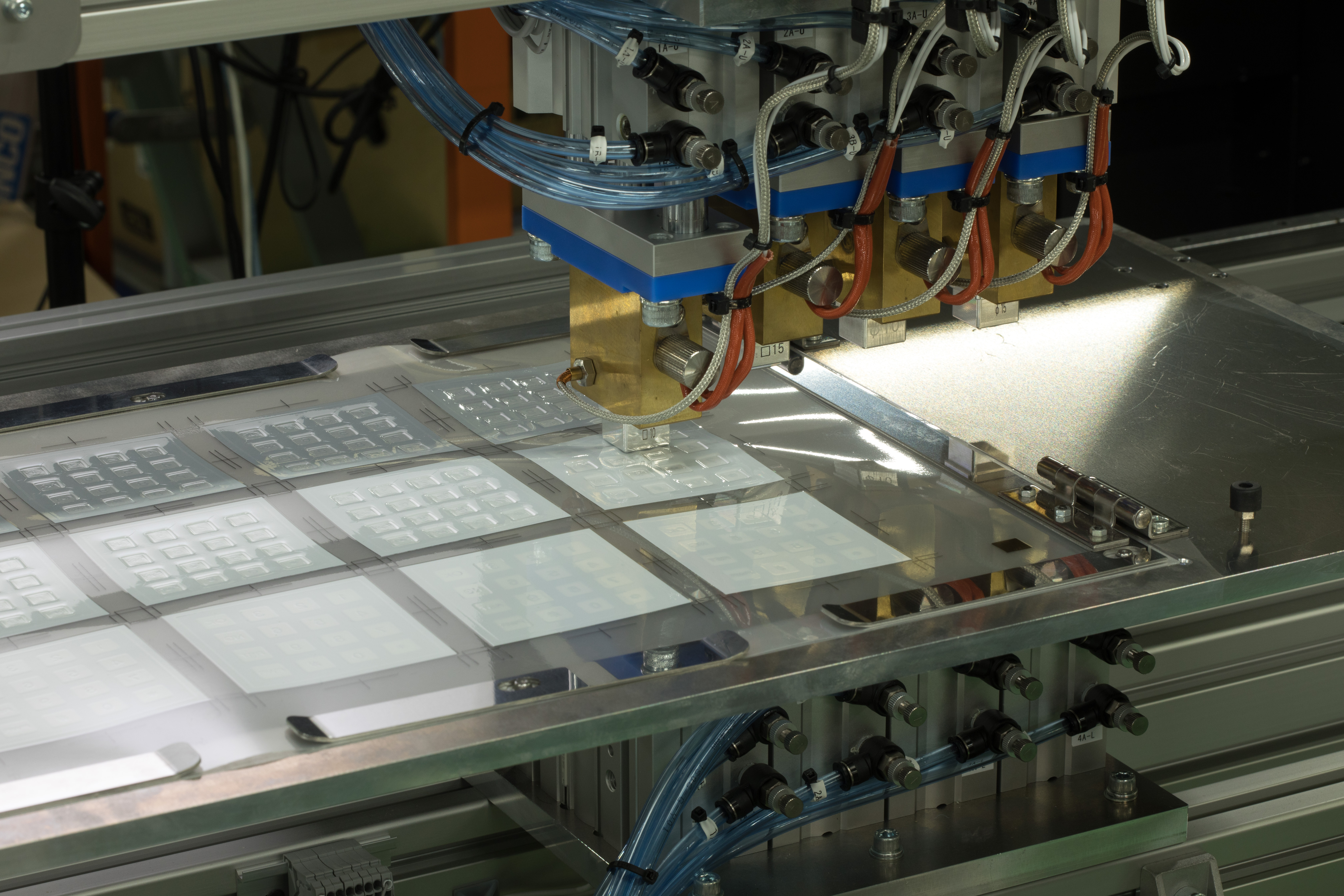

  3. 3. The cost for embossing is lower due to our original method and materials.
  • INQUIRY
  • E-mail : ◆ Please type the e-mail address in manually.

Comparison of current and previous manufacturing methods

manufacturing_methods_comparison

OVERLAY MANUFACTURING - VIDEOS

Handheld enclosure - Overlay

Control box - Overlay

Instrument case - Overlay

ACRYLIC FASCIA PANEL MOUNTING

Acrylic display window mounting service is possible, but requires milling to be performed on the enclosures.
Transparent and Smoke Gray acrylic types are available. *Notes : Ask for other colors.

ACRYLIC FACE MOUNTING - PDF

3 Different mounting finishes

acrylic_window_mounting_01
  • Standard installation.
  • Suitable for enclosures with material thickness from 1.0mm to 2.0mm
  • Cost efficient.
acrylic_window_mounting_02
  • Flat finish can be achieved regardless of the panel thickness of the enclosure
  • Suitable for enclosures with higher material thickness.
acrylic_window_mounting_03
  • A flushed display design can be achieved with sloped edges.
  • Suitable the enclosures with higher material thickness.
