LEAD-FREE UNIVERSAL PCB - TNF series


TNF Series -PDF

CATEGORY:Universal PCB, Printed circuit board, Prototype PCB, 2.54mm universal pcb, Universal double-sided PCB

LEAD-FREE UNIVERSAL PCB - TNF series
LEAD-FREE UNIVERSAL PCB - TNF series
LEAD-FREE UNIVERSAL PCB - TNF series

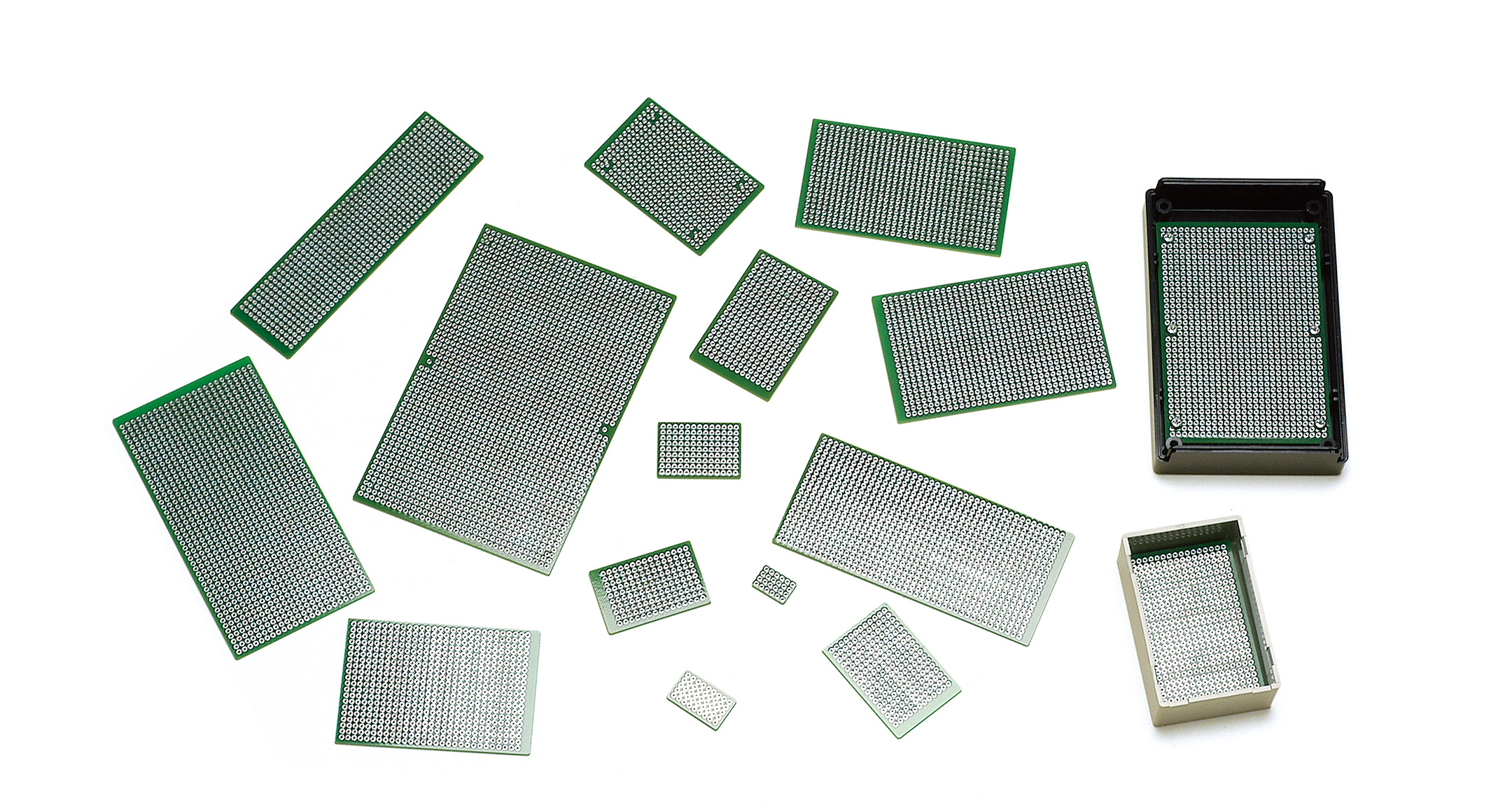

LEAD-FREE UNIVERSAL PCB - TNF series1

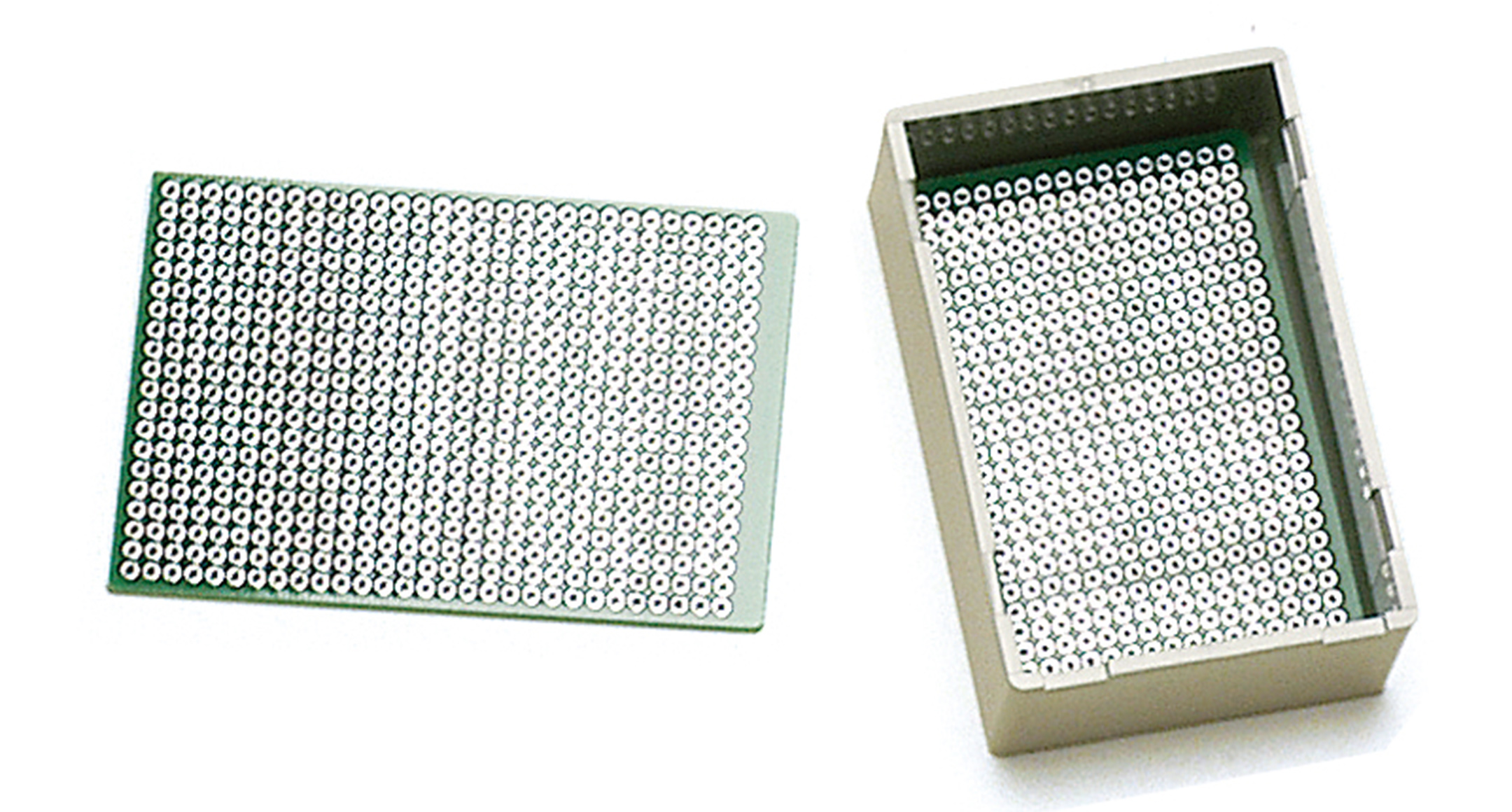

LEAD-FREE UNIVERSAL PCB - TNF series2

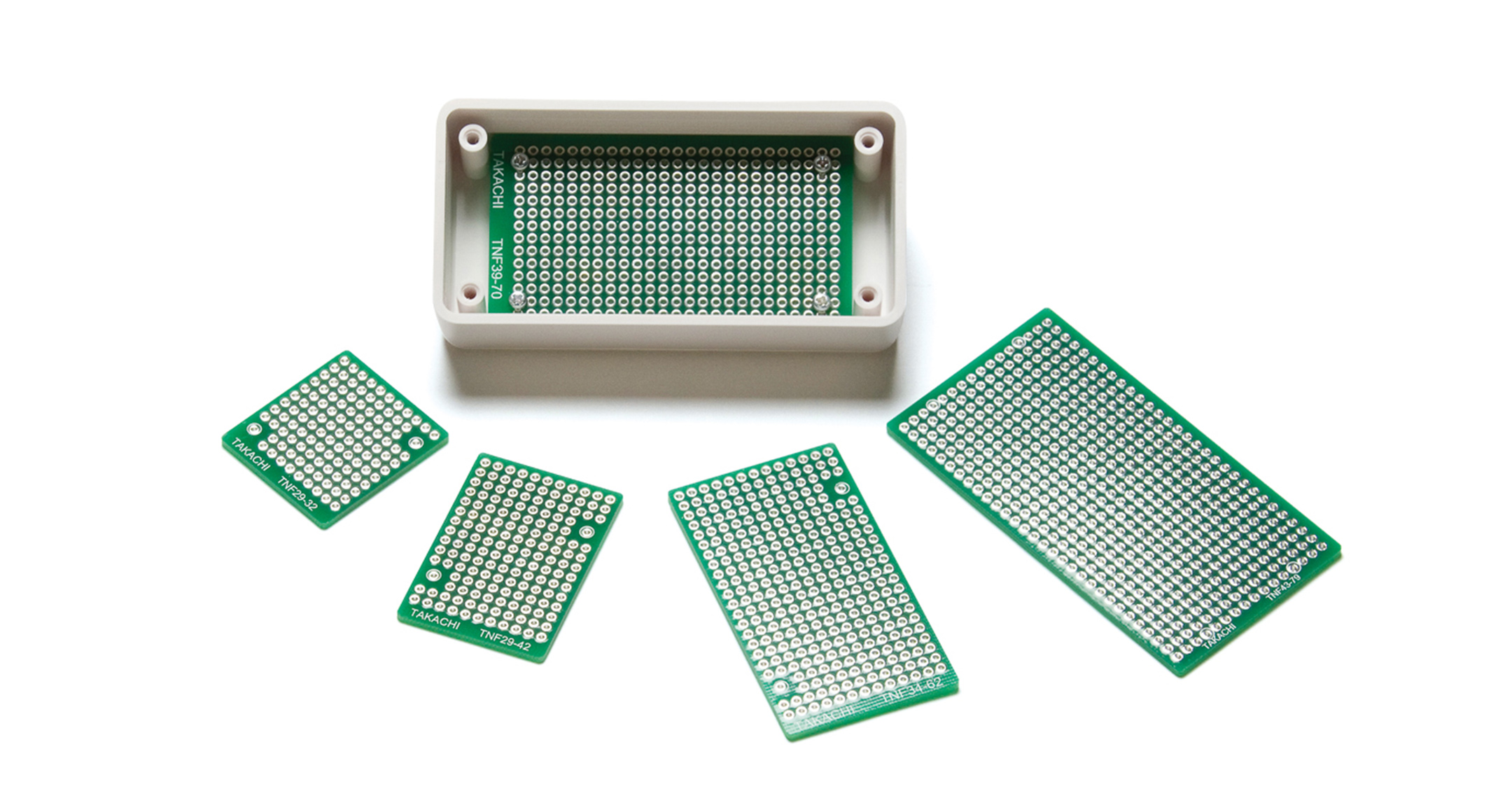

LEAD-FREE UNIVERSAL PCB - TNF series3
Universal PCB with environmentally friendly lead-free solder.
25 different sizes available.
Match to our SW・TW series.
TNF160-240 is for multi-size use.

PRODUCT NO. / DIMENSIONS

Product No. Dimensions (W×D×T) mm Suitable case Weight (g) Pack of PDF DXF DWG
TNF11-16 10.7×15.8×1.6 SW-20 0.5 1 pcs PDF DXF DWG
TNF15-25 15×25×1.6 SW-30 1 1 pcs PDF DXF DWG
TNF25-35 25×35×1.6 SW-40 2.5 1 pcs PDF DXF DWG
TNF29-32 29.5×32.5×1.6 TW/TWN4-2-5 2.5 1 pcs PDF DXF DWG
TNF29-42 29.5×42.5×1.6 TW/TWN4-2-6 3.5 1 pcs PDF DXF DWG
TNF29-44 29×44×1.6 SW-50・53 4 1 pcs PDF DXF DWG
TNF34-49 34×49×1.6 SW-55 5 1 pcs PDF DXF DWG
TNF34-62 34.5×62.5×1.6 TW/TWN4-2-8 6.5 1 pcs PDF DXF DWG
TNF34-124 34×124×1.6 SW-130 13 1 pcs PDF DXF DWG
TNF39-59 39×59×1.6 SW-65 6.5 1 pcs PDF DXF DWG
TNF39-70 39.5×70×1.6 TW/TWN5-3-9 8 1 pcs PDF DXF DWG
TNF43-66 43×66×1.6 SS-90 8.5 1 pcs PDF DXF DWG
TNF43-79 43.5×79.5×1.6 TW5-3-10 9.5 1 pcs PDF DXF DWG
TNF44-69 44×69×1.6 SW-75 9 1 pcs PDF DXF DWG
TNF52-89 52×89×1.6 SW-95 13 1 pcs PDF DXF DWG
TNF53-79 53×79×1.6 SW-85 ・ TW/TWN7-〇-11 12 1 pcs PDF DXF DWG
TNF53-114 53×114×1.6 SW-120 16 1 pcs PDF DXF DWG
TNF59-94 59×94×1.6 SW-100 16 1 pcs PDF DXF DWG
TNF63-119 63×119×1.6 SW-125 21 1 pcs PDF DXF DWG
TNF69-101 69×101×1.6 SS-125 19 1 pcs PDF DXF DWG
TNF89-136 89×136×1.6 SS-160 33 1 pcs PDF DXF DWG
TNF96-98 96×98×1.6 SY-110 26 1 pcs PDF DXF DWG
TNF122-99 122×99×1.6 35 1 pcs PDF DXF DWG
TNF128-136 136×128×1.6 51 1 pcs PDF DXF DWG
TNF160-240 160×240×1.6 114 1 pcs PDF DXF DWG
