WATERPROOF WASHER - SZ series


SZ Series -PDF

CATEGORY：Sealing washer, Stainless steel waterproof washer

WATERPROOF WASHER - SZ series
WATERPROOF WASHER - SZ series1

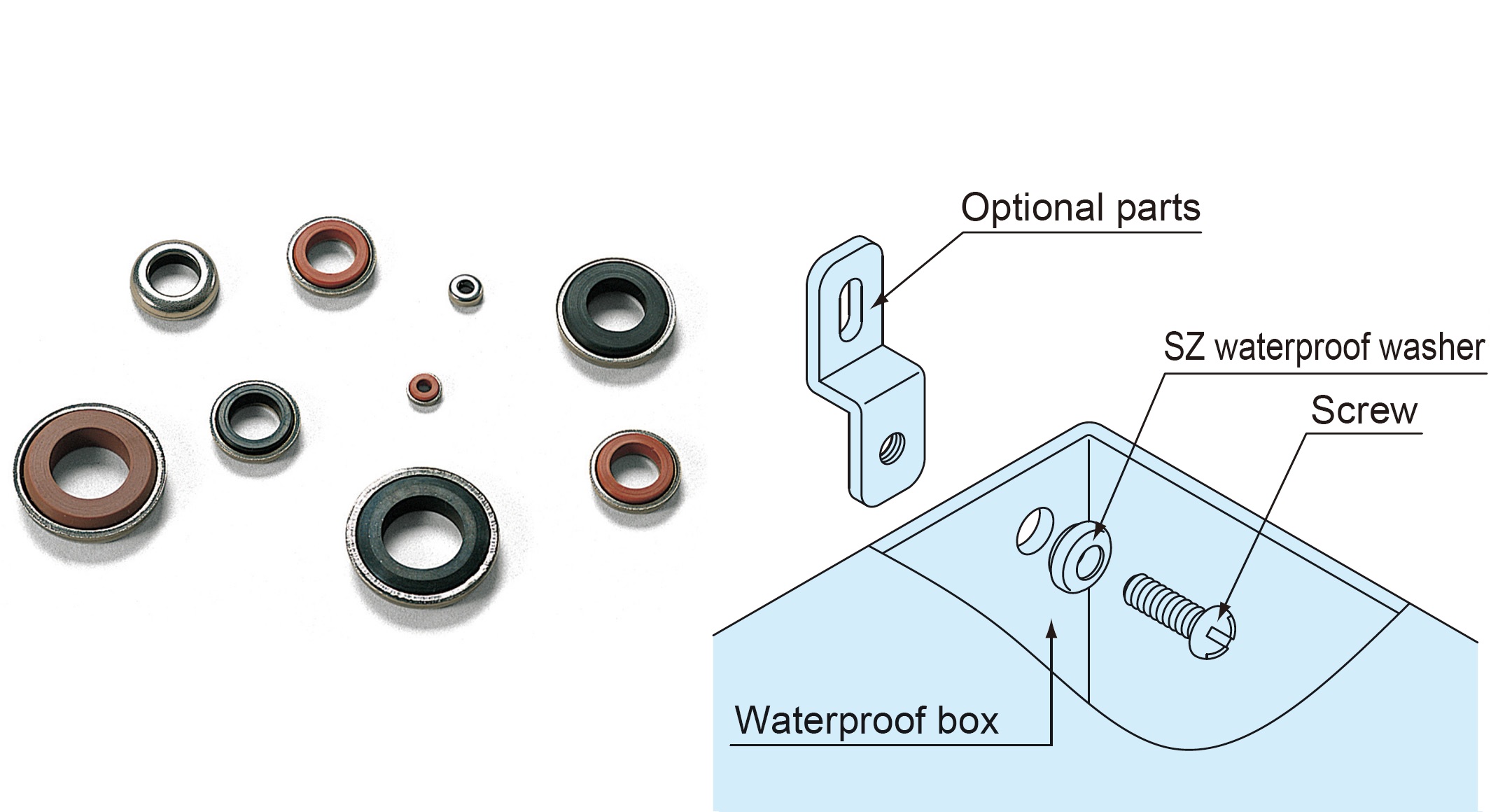

Waterproof washer for screwing onto waterproof boxes.
NBR sealing material has superior oil resistance (N models only).
Silicone sealing material has wider operating temperature with superior temperature and water resistance (S models only).

8 sizes in M3, M4, M5, M6, M8, M10, M12, and M16 are available.

Water pressure resistance
M3 ~ M16 : 0.98MPa (10kgf/cm2) / 1 hour

PRODUCT NO. / DIMENSIONS

Product No. Suitable screw Rubber material Weight (g) Pack of PDF DXF DWG
SZ-3N M3 NBR 1 1 pc
SZ-3S M3 Silicone 1 1 pc
SZ-4N M4 NBR 1.1 1 pc
SZ-4S M4 Silicone 1.1 1 pc
SZ-5N M5 NBR 1.5 1 pc
SZ-5S M5 Silicone 1.5 1 pc
SZ-6N N6 NBR 1.8 1 pc
SZ-6S N6 Silicone 1.8 1 pc
SZ-8N M8 NBR 2.6 1 pc
SZ-8S M8 Silicone 2.6 1 pc
SZ-10N M10 NBR 4 1 pc
SZ-10S M10 Silicone 4 1 pc
SZ-12N M12 NBR 7.5 1 pc
SZ-12S M12 Silicone 7.5 1 pc
SZ-16N M16 NBR 12.3 1 pc
SZ-16S M16 Silicone 12.3 1 pc
SZ-3N-P M3 NBR 1 50 pcs
SZ-3S-P M3 Silicone 1 50 pcs
SZ-4N-P M4 NBR 1.1 50 pcs
SZ-4S-P M4 Silicone 1.1 50 pcs
SZ-5N-P M5 NBR 1.5 50 pcs
SZ-5S-P M5 Silicone 1.5 50 pcs
