IP68 / IP67 SCREWED PLASTIC ENCLOSURES・WATERPROOF PLASTIC BOXES・WEATHERPROOF ENCLOSURE・NEMA6 ENCLOSURE
IP68, IP67 and IP65 SCREWED PLASTIC ENCLOSURES・WATERPROOF PLASTIC BOXES・WEATHERPROOF ENCLOSURE・NEMA6 ENCLOSURE -PDFCATEGORY： IP68, IP67 and IP65 WEATHERPROOF PLASTIC ENCLOSURE・WATERTIGHT PLASTIC BOX・OUTDOOR ENCLOSURE・ELECTRICAL PLASTIC BOX
IP68, IP67 and IP65 Waterproof plastic boxes with secure screw fixing construction.
Suitable to be uses as WiFi outdoor access points, outdoor IoT gateways, LoRaWAN devices, sensor boxes, controllers, and junction boxes.
- IP68 WATERPROOF PC+ASA BOX - WGPC series
- IP68 high performance waterproof plastic enclosure.
- Protected from immersion 24 hours at 1m depth.
- PC/ASA material allows superior heat and flame resistance.
- Perfect for use as outdoor gateway / network devices.
- NEW PRODUCT
- IP68 WATERPROOF BOX - WG・WGPC series
- IP68 high performance waterproof plastic enclosure.
- Protected from immersion 24 hours at 1m depth.
- Made of UV-resistant ASA material.
- Perfect for use as outdoor gateway / network devices.
- NEW SIZE
- IP68 PLASTIC ENCLOSURE with VENTILATION PLUG - WGV series
- IP68 waterproof plastic enclosure with protective vent.
- Protected from immersion 24 hours at 1m depth.
- Made of UV-resistant ASA material.
- Perfect for use as outdoor gateway / network devices.
- NEW SIZE
- IP68 / IP67 NETWORK PLASTIC BOX - WP series
- IP68 / IP67 waterproof plastic enclosure.
- Easy pole mounting with optional mounting bracket.
- Suitable for wireless instruments, LoRa WAN, and access points.
- 24 different selectable sizes are available.
- NEW SIZE
- ECONOMICAL OUTDOOR NETWORK BOX - OB series
- Low price type outdoor network enclosure.
- Integrated pole mount bracket on the back side.
- Suitable for access point, IoT gateway, outdoor sensor.
- 3 sizes are available.
- NEW PRODUCT
- IP67 SLOPED PLASTIC ENCLOSURE - WSC series
- Streamlined plastic case based upon ergonomic design.
- 2 different inclined angles, 13° and 18° are available.
- Suitable to medical, research equipment or card reader.
- 6 different sizes in off-white and black colors are available.
- IP65 PLASTIC SWITCH BOX - BCSB series
- IP65 switch box with 1 ~ 4 Φ22 hole(s) on the top cover.
- Flame retardant UL94V-0 polycarbonate material.
- Φ22 knock-outs on 2 opposite ends for easy wiring access.
- 4 different sizes available.
- IP65 PLASTIC BOX SMALL TYPE - BCAS series
- Low-cost and small-sized waterproof ABS plastic box.
- Application : Junction box, Switch box, Controller etc.
- Protection class: IP65
- 39 different sizes available.
- IP65 PLASTIC BOX LARGE TYPE - BCAL series
- Large-sized screw fastening waterproof ABS plastic box.
- Protection class: IP65
- White gray cover and Transparent cover are available.
- 11 different sizes available.
- NEMA 6 POLYCARBONATE BOX - SPCP.U series
- UL certified polycarbonate enclosure.
- Equivalent to IP67 protection rating.
- 22 different sizes available and selectable from.
- *UL certified products are built to order.
- NEW PRODUCT
- IP66/67 POLYCARBONATE ENCLOSURE - SPCP series
- Waterproof polycarbonate enclosure for severe environment.
- Protection class : IP66/67
- For controller, network devices, outdoor measuring instrument.
- 28 different sizes with 2 different cover types.
- NEMA 6 POLYCARBONATE BOX with KNOCK-OUTS - SPCM.U series
- UL certified polycarbonate enclosure.
- Molded with metric knock-outs.
- 15 different sizes available and selectable from.
- *UL certified products are built to order.
- NEW PRODUCT
- IP66/67 JUNCTION BOX with KNOCKOUTS - SPCM series
- Waterproof polycarbonate junction box with knockouts.
- Protection class : IP66/67
- For junction box, control box, and wireless network devices.
- 28 different sizes with 2 different cover types.
- NEW SIZE
- TERMINAL BLOCK - STB series
- Double level terminal block for SPCM・SPCP series.
- Electrical Rating : 300V 30A
- 12 different models in 2P ～ 10P are available.
- TERMINAL JUNCTION BOX - TMB series
- Junction box with built-in terminal block.
- Made of flame-resistant ABS plastic (UL94V-0).
- Terminal block spec : 400V 17.5A
- 4, 6, 10, 15, 20, and 10P×2 pole types are available.
- TERMINAL JUNCTION BOX - TMC series
- Integrated junction box of cable glands and terminal block.
- IP65 protection class with high oil resistant PBT material.
- Terminal block spec : 250V 15A
- 3, 4, and 6 pole types are available.
- IP68 HINGED TERMINAL BLOCK JUNCTION BOX - JW series
- IP68 hinged terminal juction box allows easy access for
- maintenance or replacement of components.
- 2, 3 and 4 way types are available.
- 4P pole models and no terminal models are available.
- NEW PRODUCT
- IP68 JUNCTION BOX - THA209 series
- IP68 relay junction box with easy screw connection with
- an integrated cable gland and terminal block structure.
- 3 and 4 ways types are available. 3P, 5P, 8P, 3WP, 4WP,
- 3LP pole models and no terminal model are available.
- NEW PRODUCT
- IP68 WATER PROTECTION CABLE GLAND - AG series
- High water protection IP68 cable gland.
- Tough and heat resistant PA6FG material (-20°C to +100°C)
- Wide selection for M8 ~ M50 thread
- Selectable in 15 sizes. (Φ2.5mm ~ Φ42 mm cable.)
- POLYAMIDE CABLE GLAND - RM series
- Low cost cable glands made from polyamide material.
- Wide selection, for M8 ~ M63 and Φ1mm ~ Φ44 mm cable.
- Protection class : IP67
- High oil resistant NBR rubber sealing and O-ring.
- WEATHERPROOF CABLE GLAND - RMW series
- Weatherproof cable glands for long-term outdoor use.
- High degradation resistant silicone sealing insert and O-ring.
- Protection class : IP67
- Thread size M8 ~ M50, Cable range Φ1mm ~ Φ38 mm.
- IP67 SPLIT INSERT CABLE GLAND - RSC series
- Waterproof split insert cable gland.
- Sealing insert can protect cables with connector.
- Selectable from M25 and M32 thread size.
- IP67 (In-house test) protection class.
- NEW PRODUCT
- MULTI-HOLE CABLE GLAND - RMH series
- Multi-hole cable gland with M type threads
- Up to a maximum of 6 cables can be used with 1 cable gland
- 5 thread sizes for M12・M16・M20・M25・M32
- Cable range : φ1.5mm～φ11mm
- NEW PRODUCT
- IP68 SEAMLESS CABLE GLAND - THA45 series
- Seamless construction of connector and sealing insert
- for superb waterproof performance.
- NEW PRODUCT
- STRAIN RELIEF CABLE GLAND - AGSP series
- Stain relief cable gland. (Spiral cable gland.)
- Protection class : IP67
- 4 sizes for M12・M16・M20. (φ3.5mm～φ12mm cable)
- *Discontinued in 2025
- STRAIN RELIEF CABLE GLAND - RSP series
- Strain relief cable gland for protecting cables.
- Protecting class : IP67
- 7 sizes for M8・M10・M12・M16・M20・M25 in light gray / black
- Cable range : φ1mm～φ16mm
- NEW SIZE
- INTERCHANGEABLE HEAD TORQUE WRENCH - TWH series
- Torque wrench with interchangeable head.
- Suitable for the tightening of cable glands
- Open end interchangeable head (spanner head)
- TWE series available separately.
- VENTILATION PLUG - CVP series
- Economical IP68 ventilation plug
- Protects enclosures from deformation by
- equalizing in/out side pressure
- Available in M6, M12, M16, and M24 sizes
- NEW PRODUCT
- METAL VENTILATION PLUG - CVP-M series
- Economical IP68 Metal ventilation plug
- Protects enclosures from deformation by
- equalizing in/out side pressure
- Available in M6, M12 and M20 sizes
- NEW PRODUCT
- PROTECTIVE VENT - PMF series
- Screw in protective vent plugs.
- Built-in membrane filter plugs with IP68 waterproof and airflow.
- Equalize pressure and reduce condensation.
- 5 different models are available.
- ADHESIVE PROTECTIVE VENT FILTER - VE8 series
- Adhesive type vent filter sheet.
- Equalize pressure and reduce condensation.
- 4 different sizes from φ7.6, φ14, φ21.5 and
- φ29mm are available.
- ADHESIVE PROTECTIVE VENT FILTER - VSC series
- Adhesive type vent filter sheet.
- Equalize pressure and reduce condensation.
- 3 different sizes from φ7.5, φ13 and φ24mm are available.
- *Discontinued in 2021.
- VENTILATION LOUVER - V series
- Ventilation louver for outdoor enclosure.
- Effective for preventing condensation and heat dissipation.
- Can also be used for enclosures other than TAKACHI boxes.
- 2 different sizes in 2 colors are available.

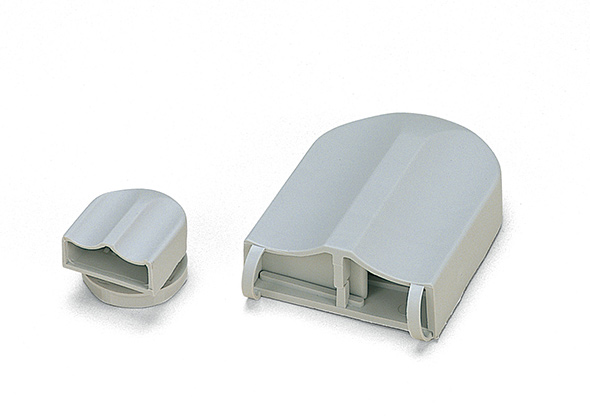

- VENTILATION PARTS - VF series
- Hooded ventilation parts.
- Effective for preventing condensation and heat dissipation.
- 2 sizes are available.
- POLE MOUNTING BRACKET - WPMB-M4-3
- Bracket to mount enclosures onto a pole.
- Made from weather resistant ASA material.
- Suitable for both for vertical and horizontal mounting.
- Hole milling is required for bracket installation.
- POLE MOUNTING BRACKET - WGMB-2SW
- Pole mount bracket made from robust diecast aluminium.
- Bracket can be mounted on both vertically, and horizontally.
- Sealing washers enables the installation to have a protection
- class equivalent to IPX7, X5.
- NEW PRODUCT
- DIECAST ALUMINIUM POLE MOUNTING BRACKET for WG・WGPC・WGV
- Diecast aluminium pole mount bracket
- Can be attached without hole milling
- Available with W or D direction install
- Advised to use with SNB, PKB, SCT mounting belt
- NEW PRODUCT
- STAINLESS STEEL TIES for POLE MOUNTING - SCT series
- Corrosion resistant stainless steel cable tie.
- Can be used to bundle cables or mounting enclosures to poles.
- Self-locking bracket allows easy mounting / cable bundling.
- For firm tightening, use of Tighten gun G3388 is recommended.
- NEW PRODUCT
- TIGHTEN GUN for STAINLESS STEEL TIE
- Tool for cutting and tightening stainless steel strap.
- *Be careful of the sharp cut-edge of strap.
- Note: this product is not subject to RoHS regulations.
- NEW PRODUCT
- STAINLESS STEEL POLE MOUNTING STRAP - SNB series
- Screw adjustable type stainless steel pole mounting belt.
- Belt material : SUS304
- Wide lineup of 18 sizes from 52 mm to 308 mm.
- Use with mounting bracket SSK・WGMB・WPMB series
- POLE MOUNTING BELT- PKB series
- Universal pole mounting belt for outdoor enclosures.
- Stainless steel type and plastic type are available.
- Use SSK mounting bracket for installation onto a pole.
- DIN-RAIL TERMINAL BLOCK END STOPPER - TKR series
- Stopper bracket for use with 35mm DIN Rail.
- Can be used to fix terminal blocks or modules.
- TKR-TWE1 for smaller attachment parts.
- TKR35-1 for larger / higher attachment parts.
- NEW TYPE
- ECONOMICAL DIN RAIL END STOPPER - DRS series
- Economically priced end stopper bracket.
- Can be used to fix terminal blocks or modules.
- Included screws allow affixing of stopper brackets firmly
- at a fixed location.
- NEW PRODUCT
- DIN RAIL MOUNTING BASE - DRP series
- Mounting base for enclosures and others onto 35mm DIN Rail.
- Easy mounting and dismounting using the pull lever.
- Replacement product for the discontinued DRA series.
- NEW SIZE
- DIN RAIL MOUNTING BASE - DRA series
- DIN Rail mounting base for 35mm DIN Rail.
- Simple installation and removal via the pull lever.
- Max load : 5kg.
- 3 different sizes available.
- DIN RAIL MOUNTING BASE - DRT series
- Low cost DIN rail mounting plate for 35mm DIN Rail.
- Simple installation and removal by tilting action.
- Max load : 1 kg
- Material : PBT UL94V-0
- DIN RAIL MOUNTING BRACKET - DRF series
- Mounting bracket for 35mm DIN Rail.
- Can be easily detached.
- Bulk packaging is available.
- Replacement product of CKD-80
- NEW PRODUCT
- DIN RAIL MOUNTING FEET - CKD series
- Mounting bracket for 35mm DIN rail.
- Max load : 3kg, Can be easily detached.
- Material : Polyamide
- 3 sizes are available.
- DIN RAIL - FDR series
- 35mm aluminium DIN Rail.
- For installation of terminal blocks, circuit breakers, or devices.
- Available in 53 different lengths.
- NEW SIZE
- WATERPROOF WASHER - SZ series
- Waterproof washer for screwing onto waterproof boxes.
- Oil resistant NBR sealing material on N models.
- Superior water resistant silicone sealing material on S models.
- 8 sizes in M3, M4, M5, M6, M8, M10, M12, and M16.
