DIN RAIL MOUNTING BRACKET - CKD series


CKD Series -PDF

CATEGORY:DIN Rail bracket, DIN Rail mounting feet, DIN Rail adapter

DIN RAIL MOUNTING BRACKET - CKD series
DIN RAIL MOUNTING BRACKET - CKD series1

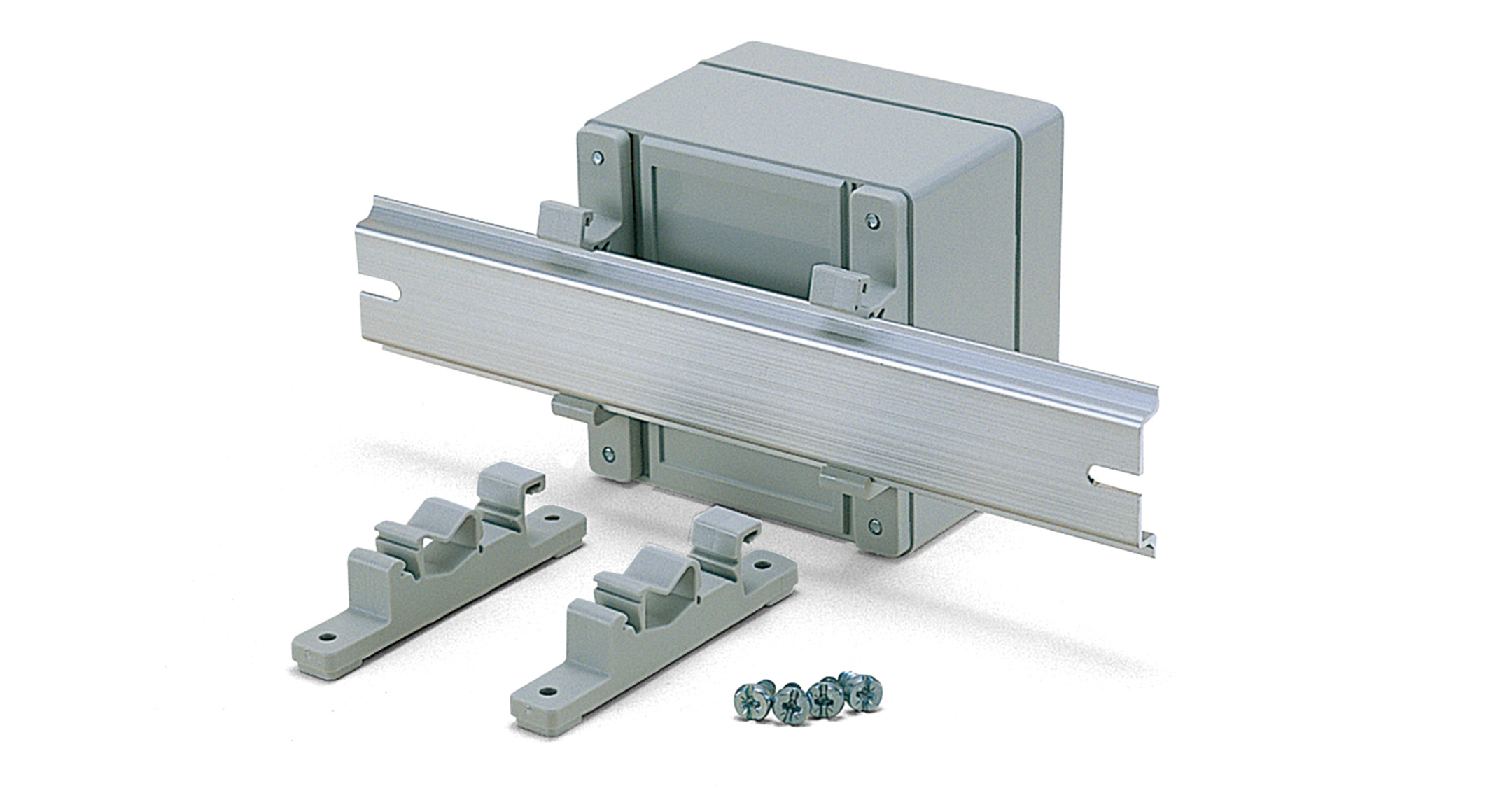

Mounting bracket for installation of enclosures, PCB and other modules onto a 35mm DIN rail.
Can be easily detached.
Color: White gray / Similar to RAL7035

Max load : 3kg
3 sizes are available.

PRODUCT NO. / DIMENSIONS

Product No. Bracket length Weight (g) / 2pcs Pack of Stock status PDF DXF DWG
CKD-80 77mm 17.5 2 pcs Limited inventory. PDF DXF DWG
CKD-120 117mm 21 2 pcs PDF DXF DWG
CKD-160 157mm 24 2 pcs PDF DXF DWG
