DIN RAIL - FDR series


FDR Series -PDF

CATEGORY:DIN rail, 35mm DIN rail

DIN RAIL - FDR series
DIN RAIL - FDR series1

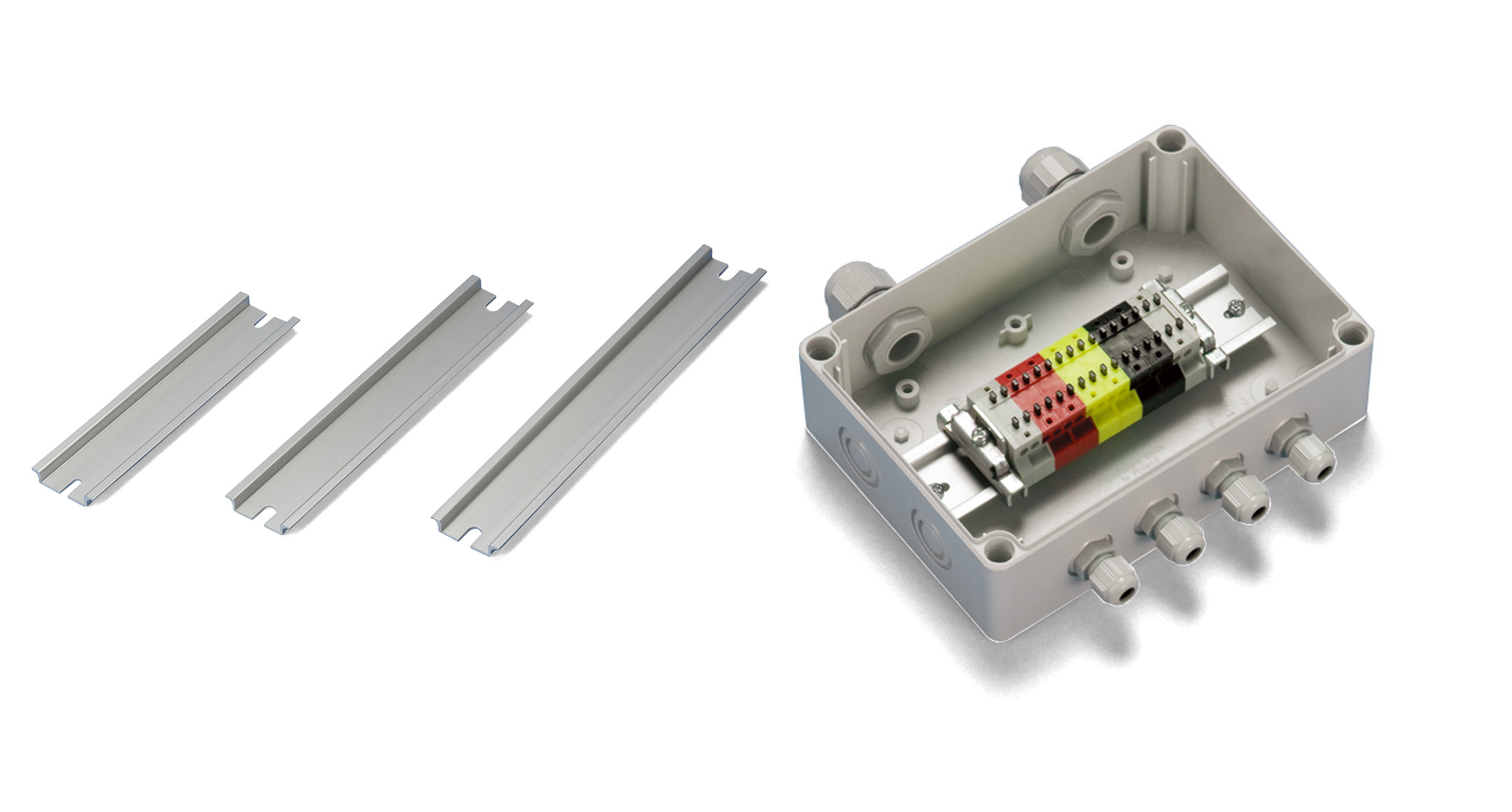

35mm DIN rail for installation of terminal blocks, circuit breakers, relays or switches inside enclosures.
Available in different models and lengths to fit a wide variety of mounting boss pitch.

1,000mm long FDR-1000 is available if customized length is required.

PRODUCT NO. / DIMENSIONS

Product No. Length(mm) Weight (g) Inventory status PDF DXF DWG
FDR-50 50 8.6 PDF DXF DWG
FDR-57 57 9.5 PDF DXF DWG
FDR-66 66 10 PDF DXF DWG
FDR-77 77 12 PDF DXF DWG
FDR-80 80 13 PDF DXF DWG
FDR-87 87 14 PDF DXF DWG
FDR-92 92 15 PDF DXF DWG
FDR-100 100 17.8 PDF DXF DWG
FDR-106 106 19 PDF DXF DWG
FDR-110 110 20 PDF DXF DWG
FDR-120 120 21 PDF DXF DWG
FDR-128 128 23 PDF DXF DWG
FDR-137 137 24 PDF DXF DWG
FDR-142 142 25 PDF DXF DWG
FDR-146 146 26 PDF DXF DWG
FDR-150 150 25.8 PDF DXF DWG
FDR-168 168 30 PDF DXF DWG
FDR-170 170 30 PDF DXF DWG
FDR-186 186 32 PDF DXF DWG
FDR-202 202 37 PDF DXF DWG
FDR-205 205 36 PDF DXF DWG
FDR-223 223 39.3 PDF DXF DWG
FDR-226 226 39 PDF DXF DWG
FDR-235 235 42 PDF DXF DWG
FDR-242 242 43 PDF DXF DWG
FDR-249 249 43 PDF DXF DWG
FDR-283 283 49 PDF DXF DWG
FDR-300 300 52 PDF DXF DWG
FDR-350 350 60 PDF DXF DWG
FDR-450 450 78 PDF DXF DWG
FDR-550 550 94 PDF DXF DWG
FDR-B102 102 16 Discontinued - Sold out. PDF DXF DWG
FDR-B124 124 21.4 PDF DXF DWG
FDR-B126 126 21 Discontinued - Sold out. PDF DXF DWG
FDR-B142 142 24 PDF DXF DWG
FDR-B160 160 28 PDF DXF DWG
FDR-B165 165 28 PDF DXF DWG
FDR-B176 176 30 PDF DXF DWG
FDR-B183 183 30 PDF DXF DWG
FDR-B196 196 33 PDF DXF DWG
FDR-B223 223 37 PDF DXF DWG
FDR-B256 256 43 PDF DXF DWG
FDR-B260 260 45 PDF DXF DWG
FDR-B283 283 47 Discontinued - Sold out. PDF DXF DWG
FDR-B303 303 52 PDF DXF DWG
FDR-B338 338 57 PDF DXF DWG
FDR-B360 360 63 PDF DXF DWG
FDR-B376 376 64 PDF DXF DWG
FDR-B383 383 65 PDF DXF DWG
FDR-B463 463 87 PDF DXF DWG
FDR-B560 560 92 Discontinued - Sold out. PDF DXF DWG
FDR-B623 623 100.4 Discontinued - Sold out. PDF DXF DWG
FDR-1000 1000 169.5 PDF DXF DWG

OPTIONAL PARTS

1
DIN RAIL MOUNTING BASE - DRA series
DETAILS
1
LOW COST DIN-RAIL MOUNTING PLATE - DRT series
DETAILS
1
DIN RAIL MOUNTING BRACKET - CKD series
DETAILS
1
DIN-RAIL TERMINAL BLOCK END STOPPER - TKR series
DETAILS
