DIN-RAIL TERMINAL BLOCK END STOPPER - TKR series


TKR Series -PDF

CATEGORY：DIN rail end stopper, Terminal block stopper, DIN rail end clamp

DIN-RAIL TERMINAL BLOCK END STOPPER - TKR series

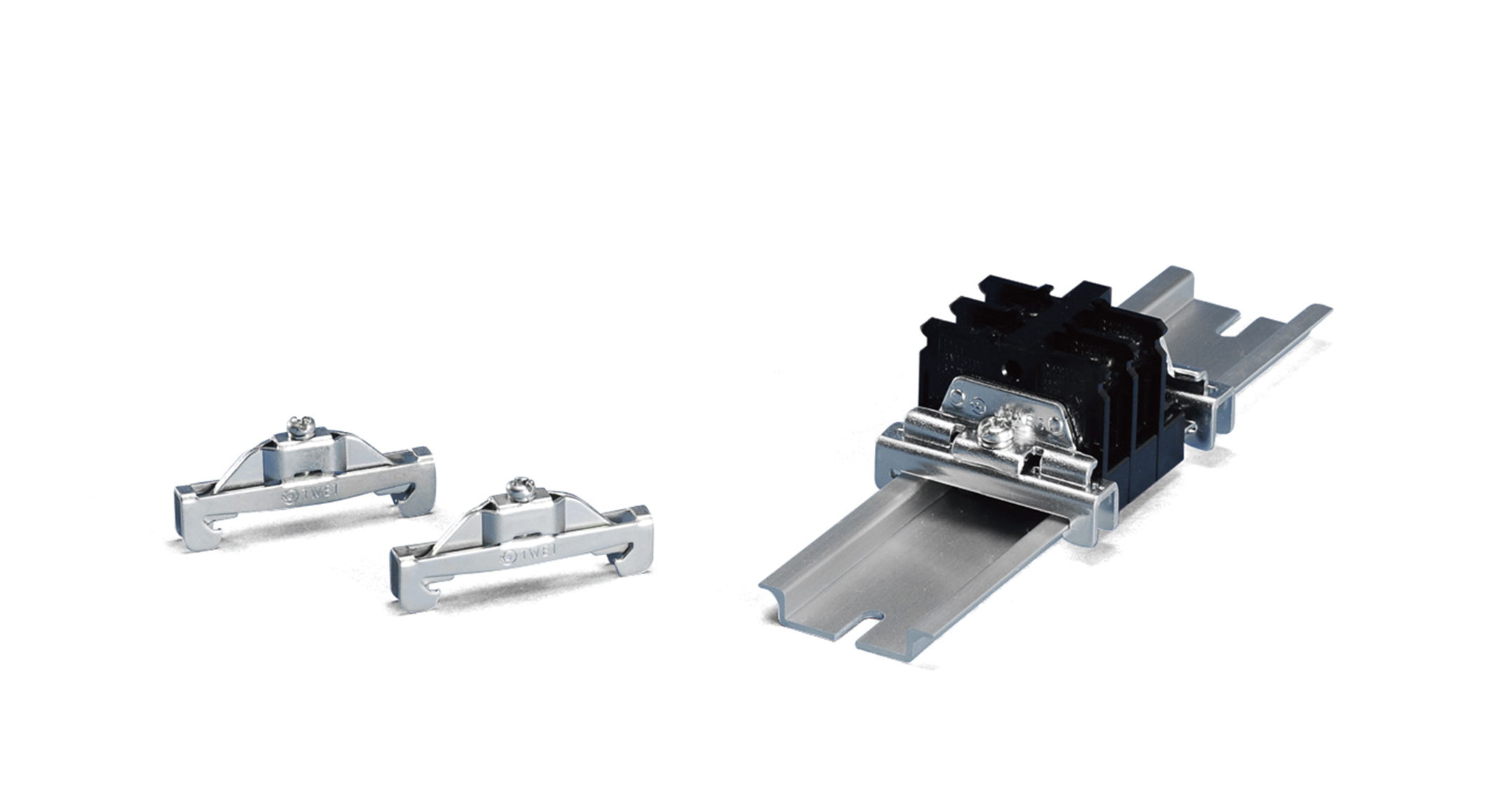

DIN-RAIL TERMINAL BLOCK END STOPPER - TKR series1
Stopper bracket for use with 35mm DIN-rail.
Can be used to fix terminal blocks or modules.

TKR-TWE1 is used with small DIN rail attachment parts.
For larger / higher attachment parts, TKR35-1 is recommended for providing additional support.

PRODUCT NO. / DIMENSIONS

Product No. Dimensions (ｍｍ) Weight(g) / 2pcs Pack of PDF DXF DWG
TKR-TWE1 47×21.3×6 20 2 pcs PDF DXF DWG
TKR-JTXE3 45×22×9.1 34 2 pcs PDF DXF DWG
TKR35-1 46×23.5×9.4 38 2 pcs PDF DXF DWG
TKR35-1-P 46×23.5×9.4 38 50 pcs PDF DXF DWG
