IP68 WATERPROOF ENCLOSURE with VENTILATION PLUG - WGV series


WGV Series -PDF

CATEGORY:IP68 waterproof plastic enclosure, Weatherproof enclosure, UV-protect enclosure, Pole mount enclosure, Access point enclosure, IOT gateway enclosure, LoRaWAN enclosure, Protective vent enclosure

IP68 WATERPROOF ENCLOSURE with VENTILATION PLUG - WGV series
IP68 WATERPROOF ENCLOSURE with VENTILATION PLUG - WGV series
IP68 WATERPROOF ENCLOSURE with VENTILATION PLUG - WGV series
IP68 WATERPROOF ENCLOSURE with VENTILATION PLUG - WGV series
IP68 WATERPROOF ENCLOSURE with VENTILATION PLUG - WGV series
IP68 WATERPROOF ENCLOSURE with VENTILATION PLUG - WGV series
IP68 WATERPROOF ENCLOSURE with VENTILATION PLUG - WGV series
IP68 WATERPROOF ENCLOSURE with VENTILATION PLUG - WGV series
IP68 WATERPROOF ENCLOSURE with VENTILATION PLUG - WGV series
IP68 WATERPROOF ENCLOSURE with VENTILATION PLUG - WGV series1
IP68 WATERPROOF ENCLOSURE with VENTILATION PLUG - WGV series2
IP68 WATERPROOF ENCLOSURE with VENTILATION PLUG - WGV series3
IP68 WATERPROOF ENCLOSURE with VENTILATION PLUG - WGV series4
IP68 WATERPROOF ENCLOSURE with VENTILATION PLUG - WGV series5
IP68 WATERPROOF ENCLOSURE with VENTILATION PLUG - WGV series6
IP68 WATERPROOF ENCLOSURE with VENTILATION PLUG - WGV series7
IP68 WATERPROOF ENCLOSURE with VENTILATION PLUG - WGV series8
IP68 WATERPROOF ENCLOSURE with VENTILATION PLUG - WGV series9

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) PDF 3D PDF DXF DWG STP
W D H w d h
WGV10-15-6W 100 150 55 63 115 43 171 PDF DXF DWG
WGV10-15-8W 100 150 75 62 114 63 193.5 PDF DXF DWG
WGV15-16-6W 145 155 55 107 120 43 233.5 PDF DXF DWG
WGV15-16-8W 145 155 80 105 118 68 268 PDF DXF DWG
WGV15-21-6W 145 210 60 107 174 48 135.5 PDF DXF DWG
WGV15-21-9W 145 210 90 105 172 78 368.5 PDF DXF DWG

OPTIONAL PARTS

1
MOUNTING PLATE for WG・WGV
DETAILS
1
TERMINAL BLOCK WTB series
DETAILS
1

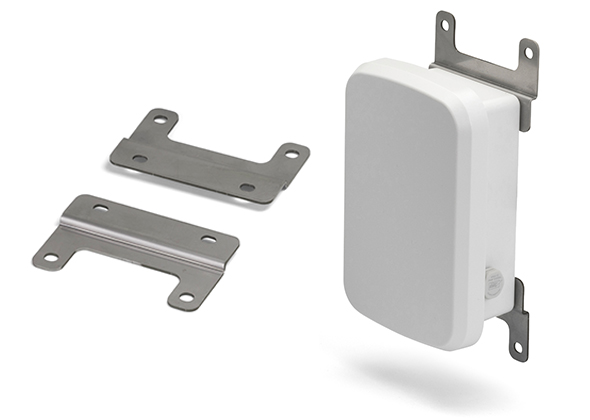

WALL MOUNTING BRACKET for WG・WGV
DETAILS
1

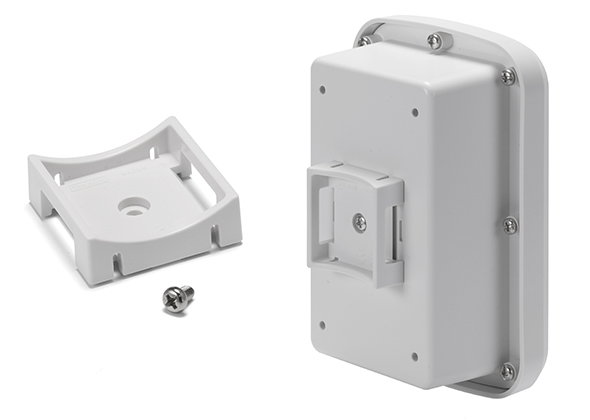

POLE MOUNTING BRACKET for WG・WGV
DETAILS
1
POLE MOUNTING BRACKET for WP - WPMB series
DETAILS
1
POLE MOUNTING BELT - SNB series
DETAILS
1
POLE MOUNTING BELT- PKB series
DETAILS
1
GORETEX PROTECTIVE VENT - PMF series
DETAILS
1
IP68 WATER PROTECTION CABLE GLAND - AG series
DETAILS
1
WEATHERPROOF CABLE GLAND - RMW series
DETAILS
1
STRAIN RELIEF CABLE GLAND - RSP series
DETAILS
1

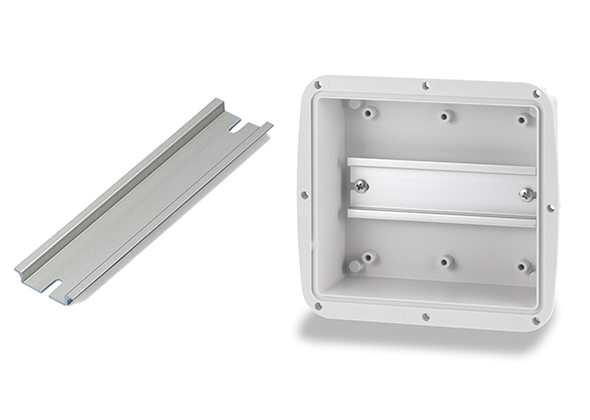

DIN RAIL for WG・WGV series
DETAILS
1

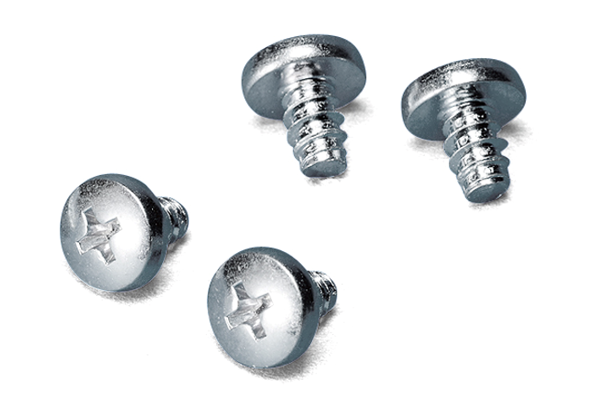

PCB MOUNTING SCREW for WG・WGV - MT4-8T
DETAILS
1
TAPPING STANDOFF - TPS series
DETAILS
1
ADHESIVE STANDOFF - AST series
DETAILS

SIMILAR PRODUCT

1
IP68 HIGH PERFORMANCE WATARPROOF ENCLOSURE WG series
DETAILS
1
IP67 NETWORK PLASTIC BOX - WP series
DETAILS
1
ECONOMICAL OUTDOOR NETWORK BOX - OB series
DETAILS
1
IP67 POLYCARBONATE ENCLOSURE - SPCP series
DETAILS
1
IP65 LATCH-HINGED POLYCARBONATE BOX - BCPC series
DETAILS
1
NETWORK PLASTIC BOX - PF series
DETAILS
1
FLANGED NETWORK PLASTIC BOX - PFF series
DETAILS
1
FLANGED PLASTIC ENCLOSURE - TWF series
DETAILS
1
WALL MOUNT IoT SMALL PLASTIC ENCLOSURE - SIM series
DETAILS
