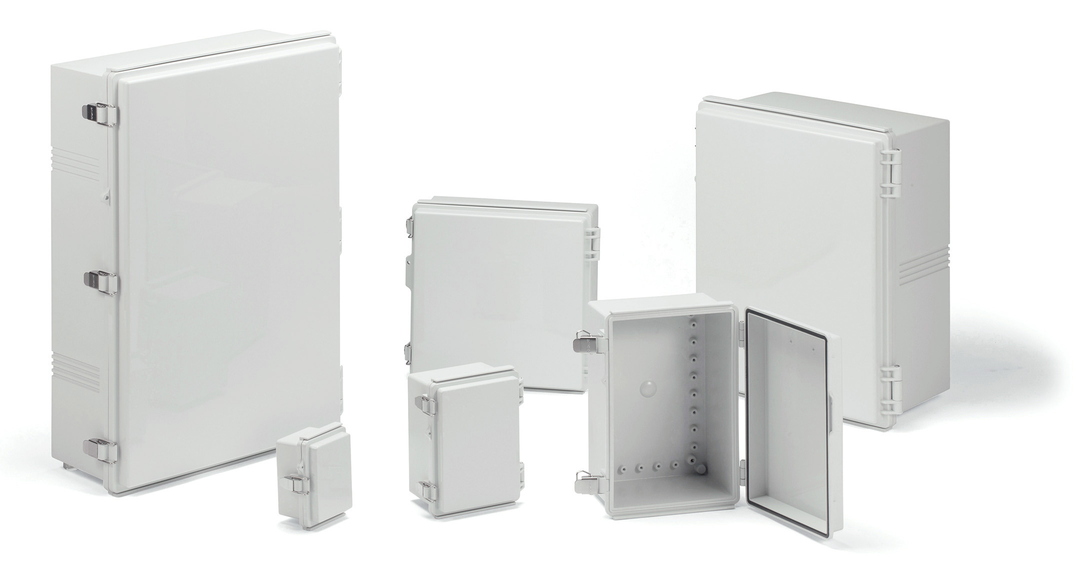

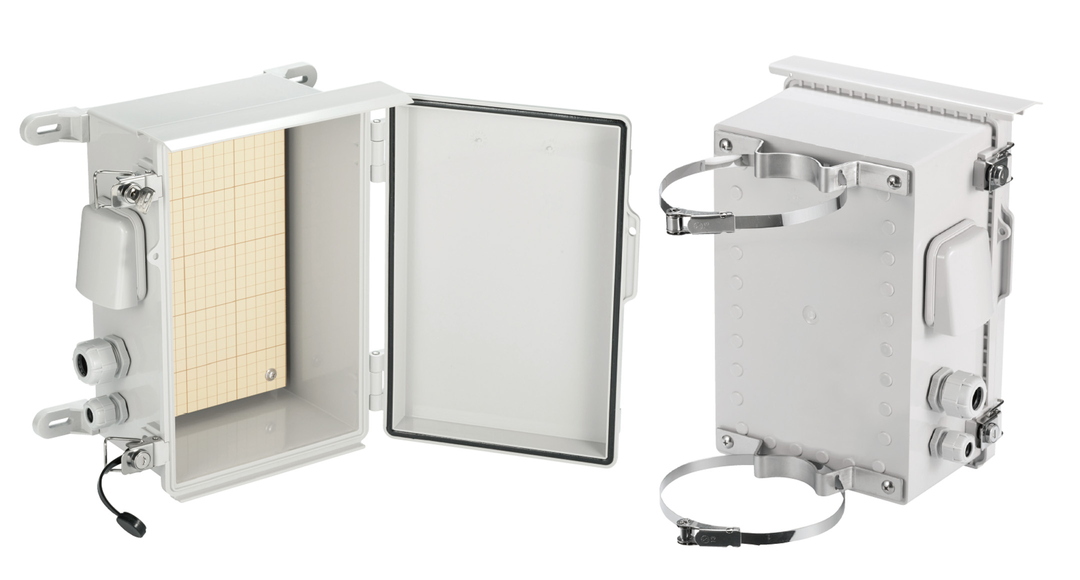

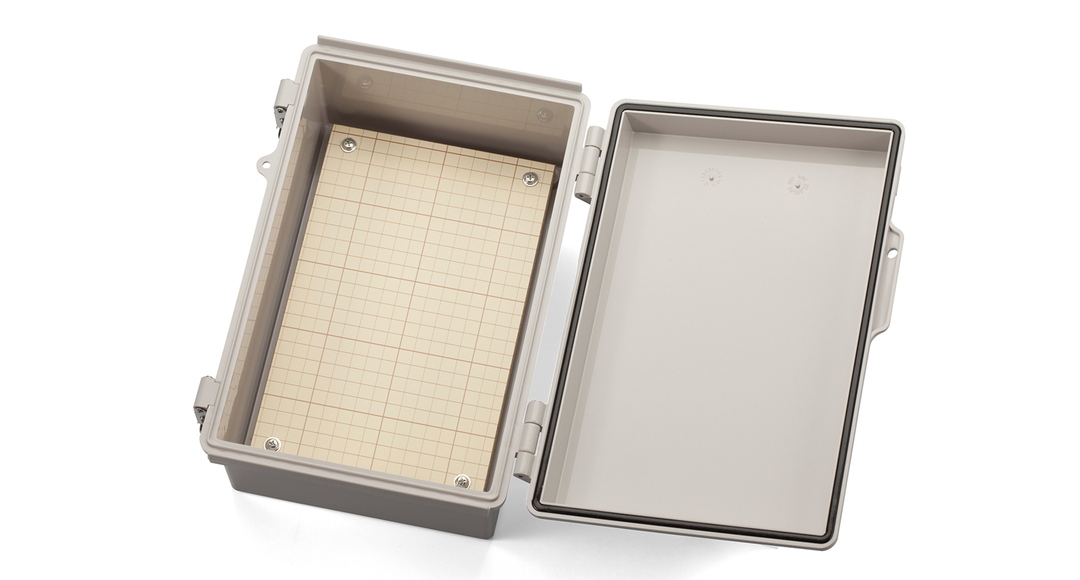

IP65 waterproof polycarbonate enclosure with latch/hinged cover.
Made of UL94V-0 polycarbonate, which has good heat resistance properties.

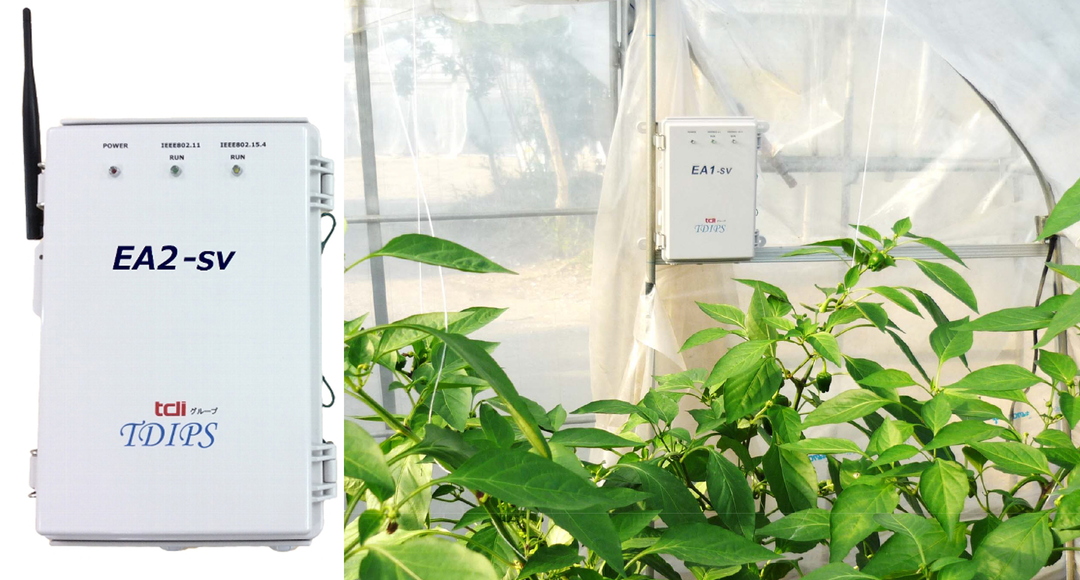

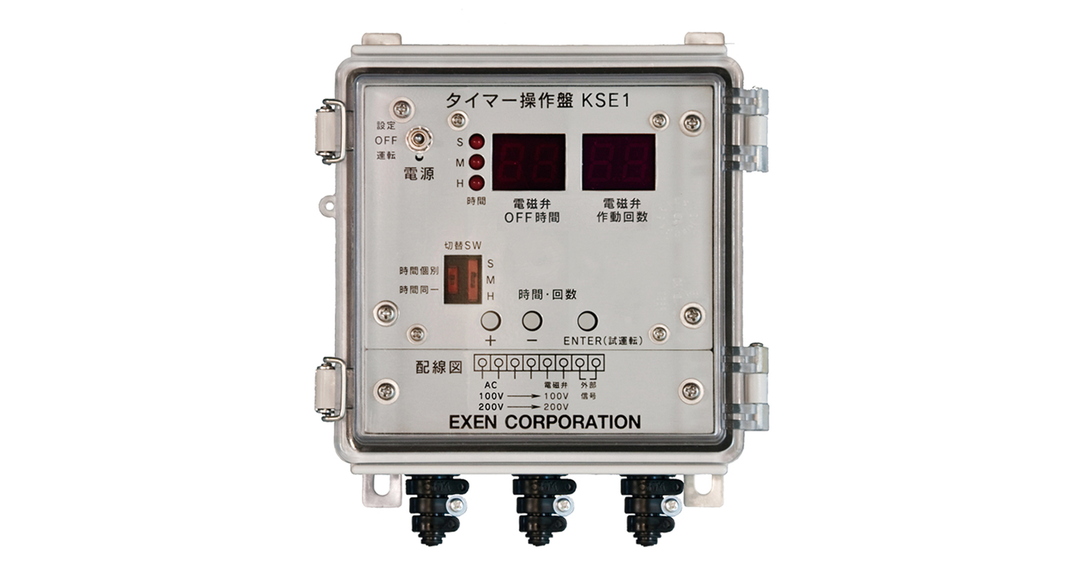

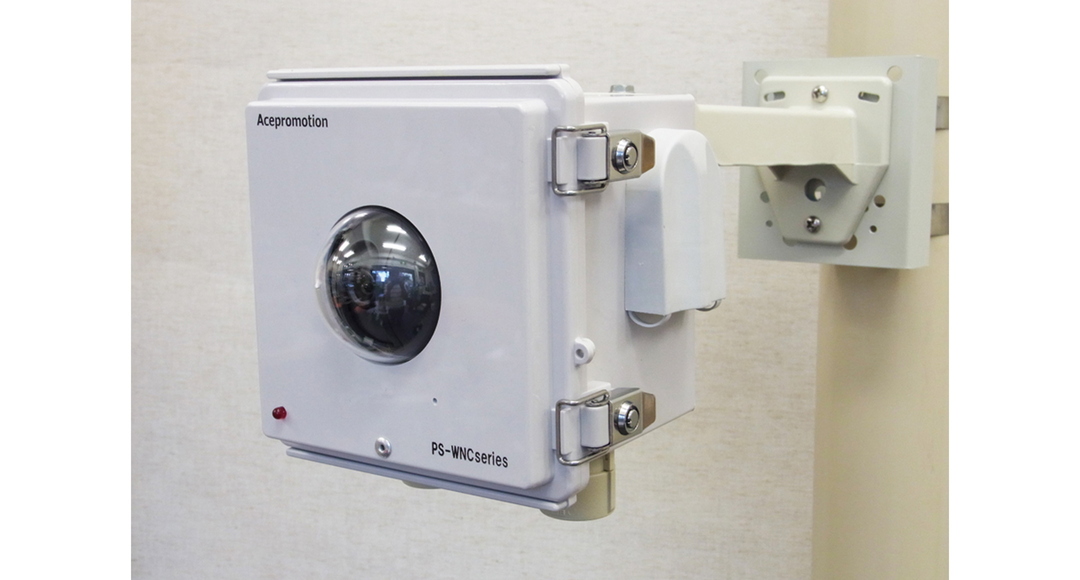

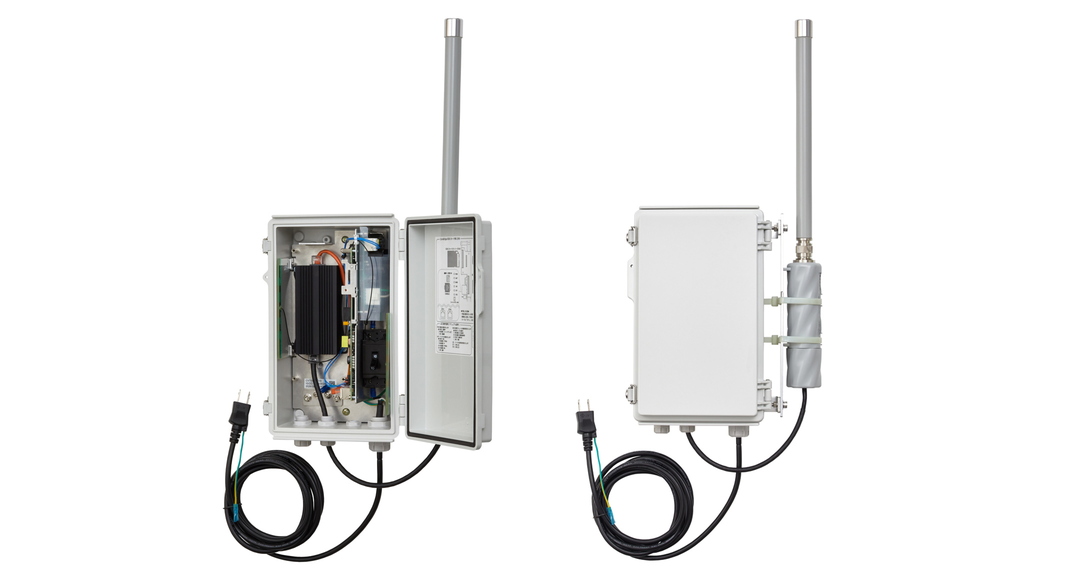

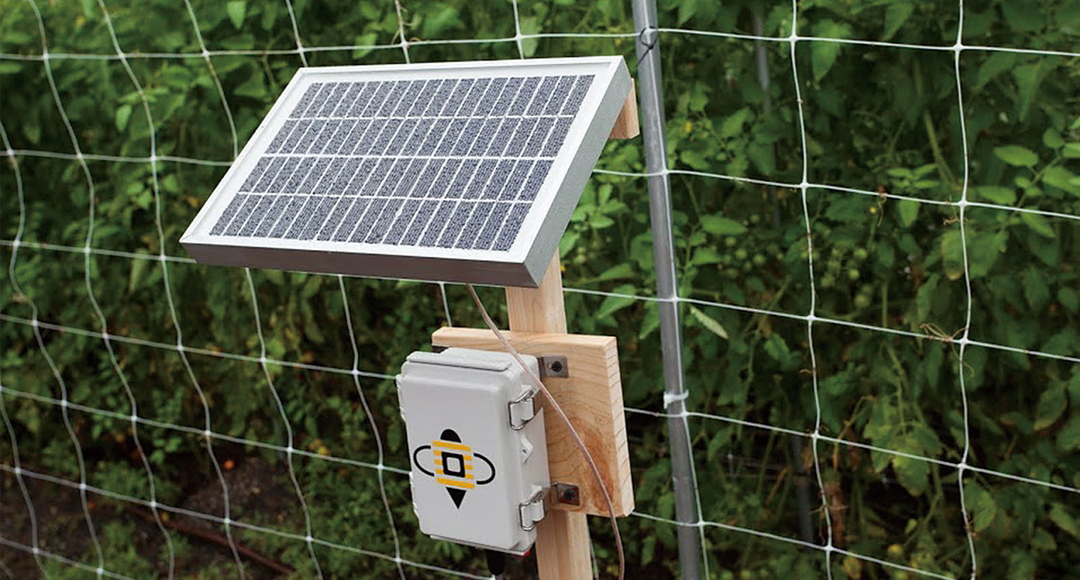

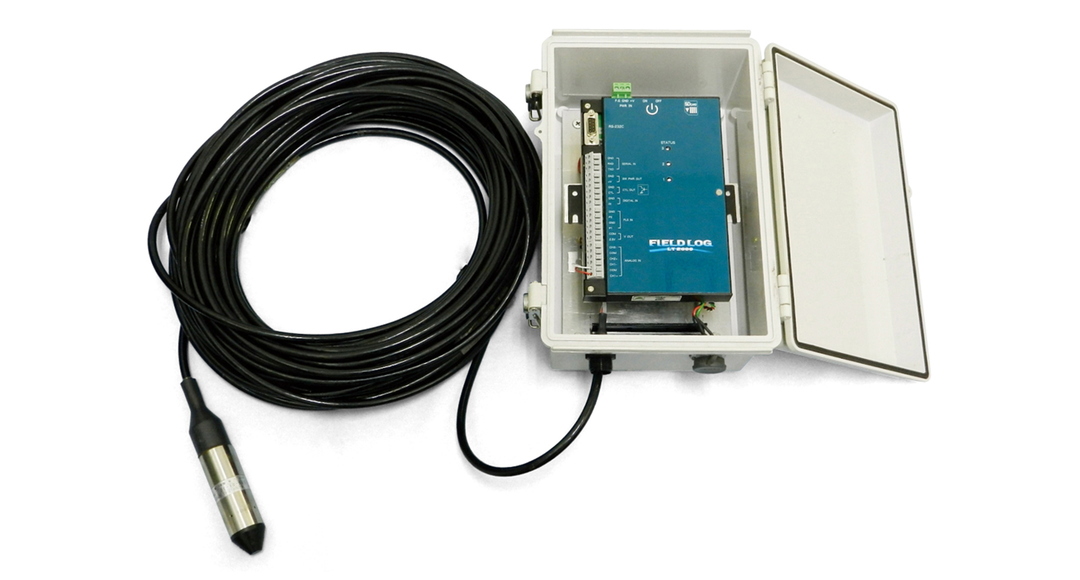

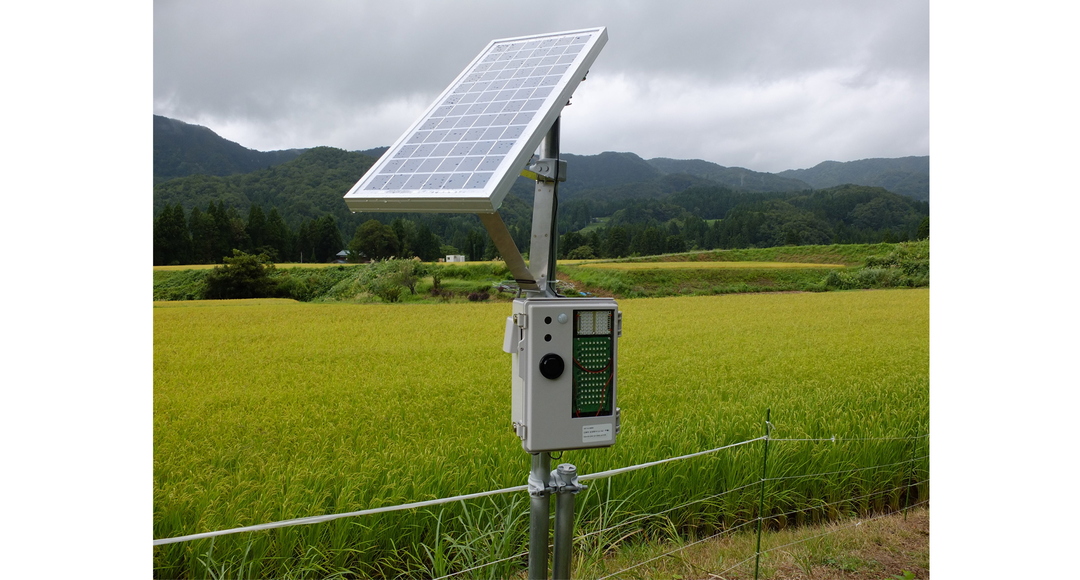

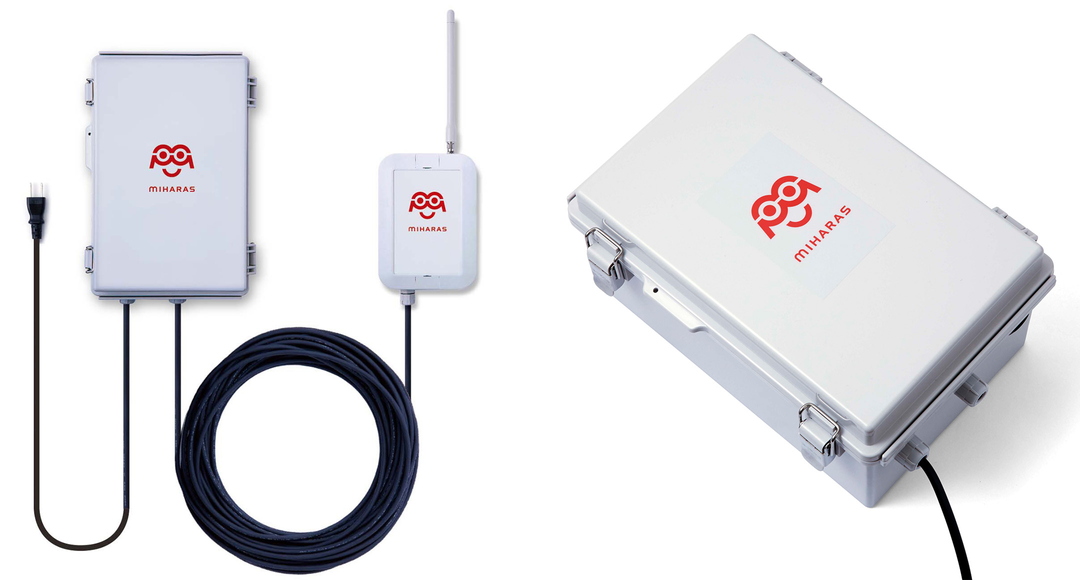

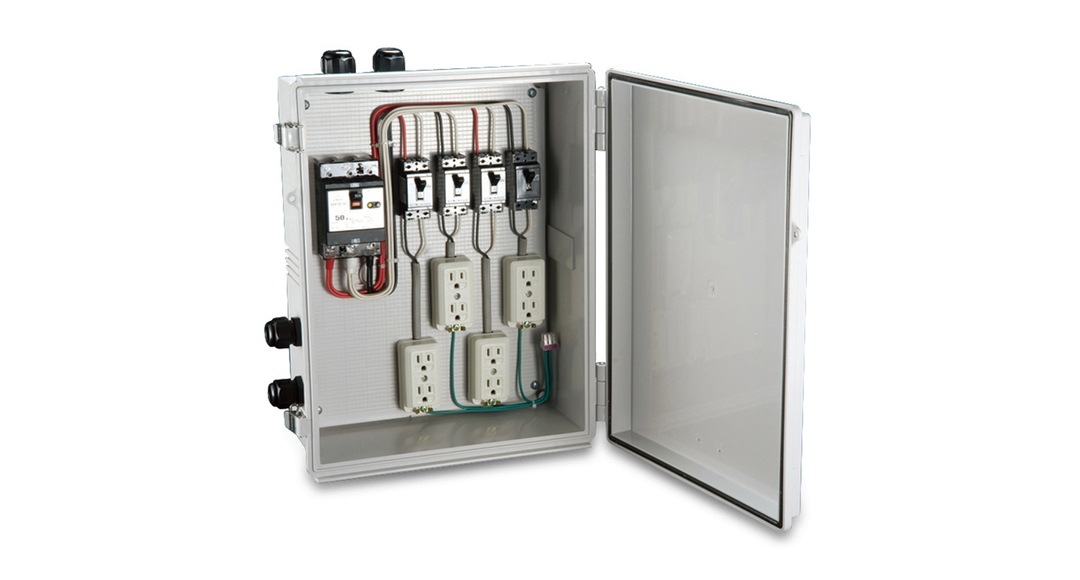

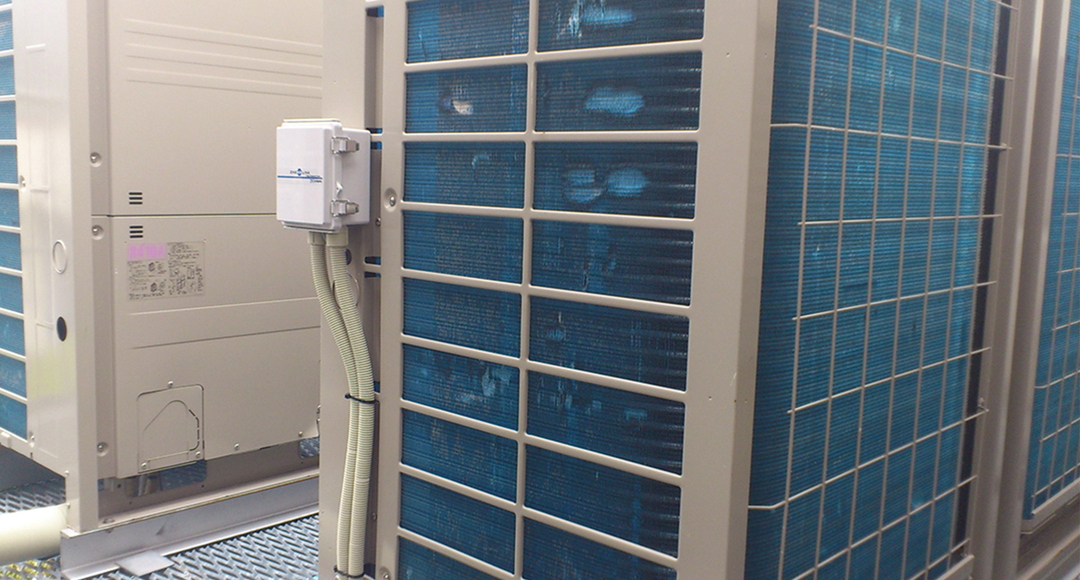

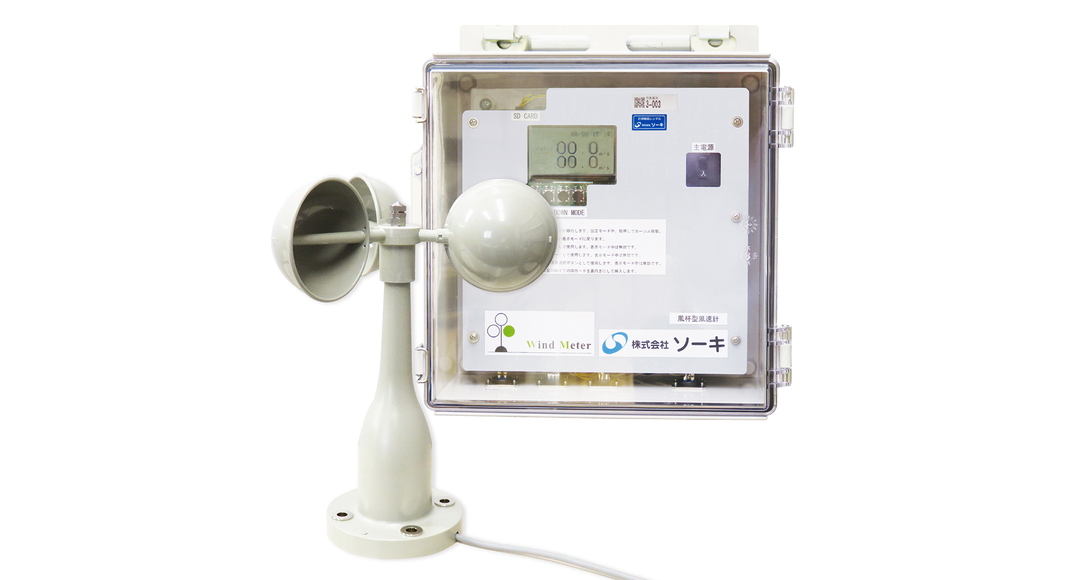

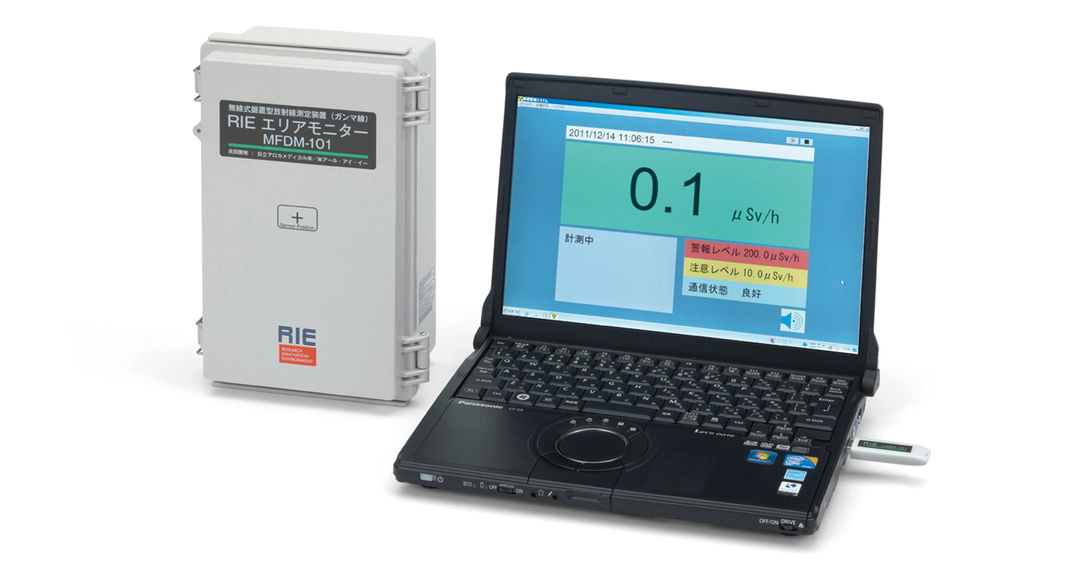

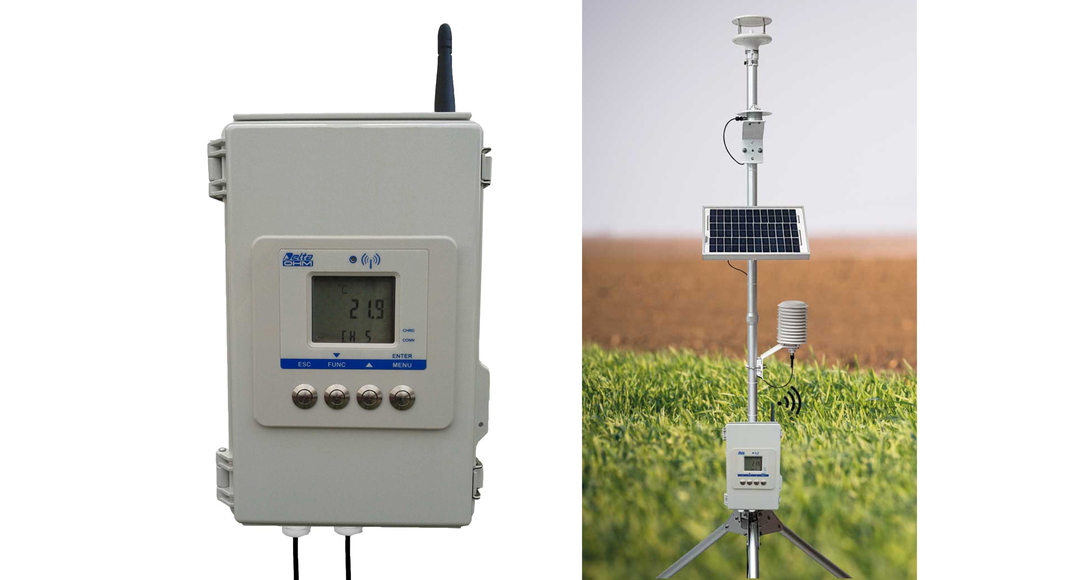

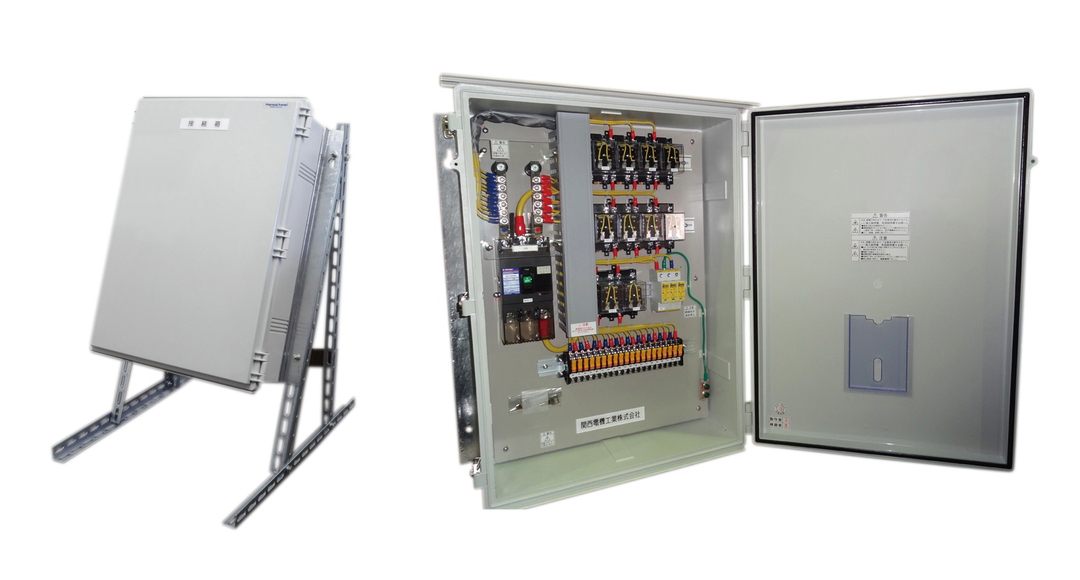

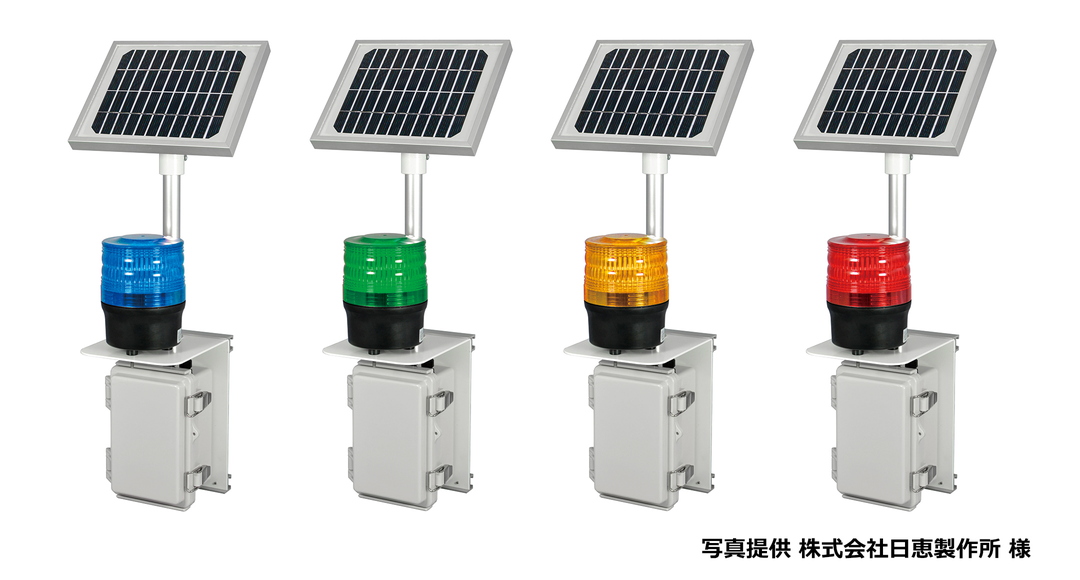

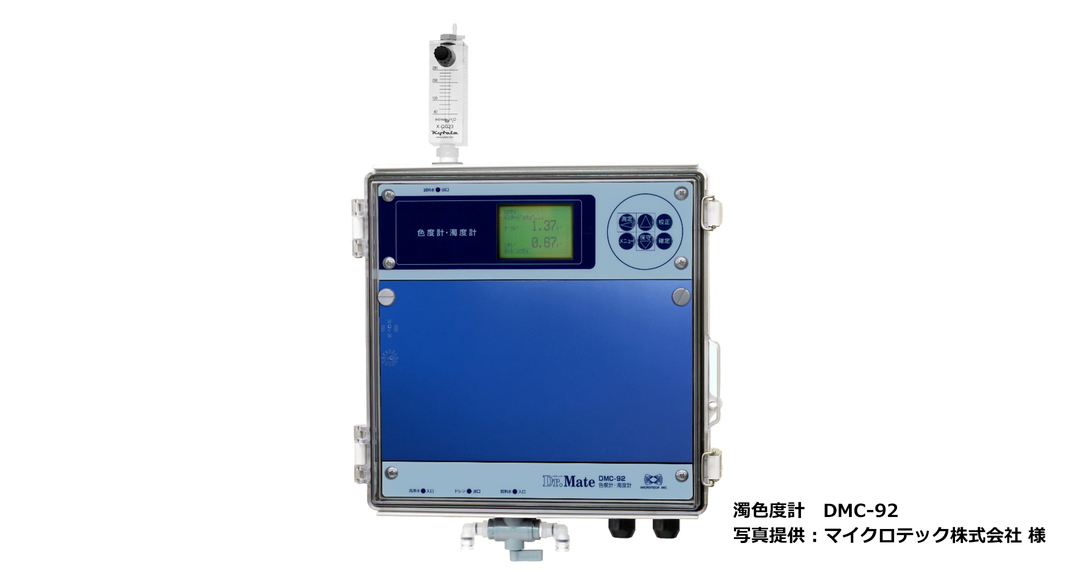

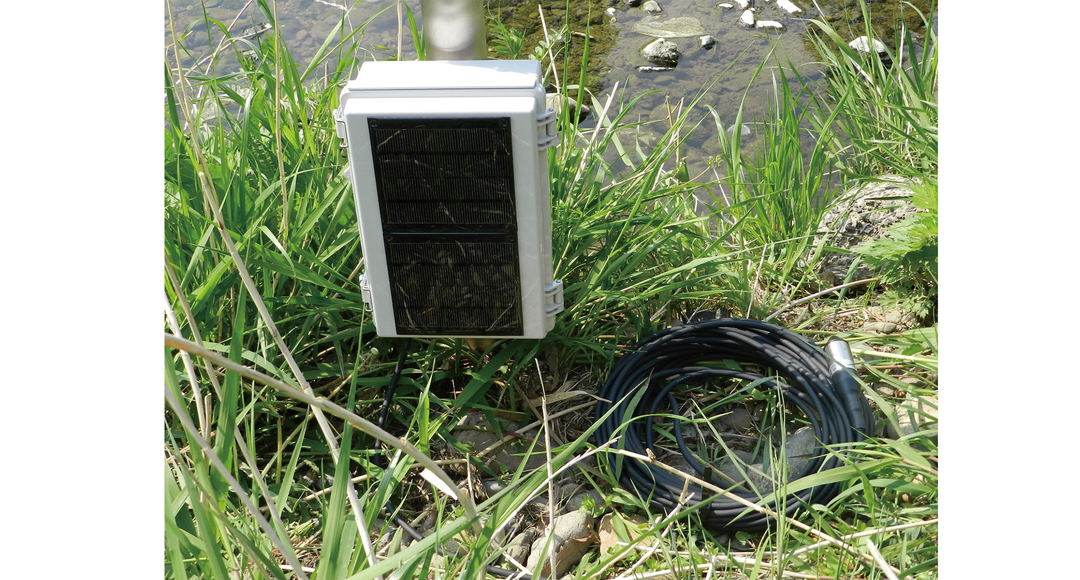

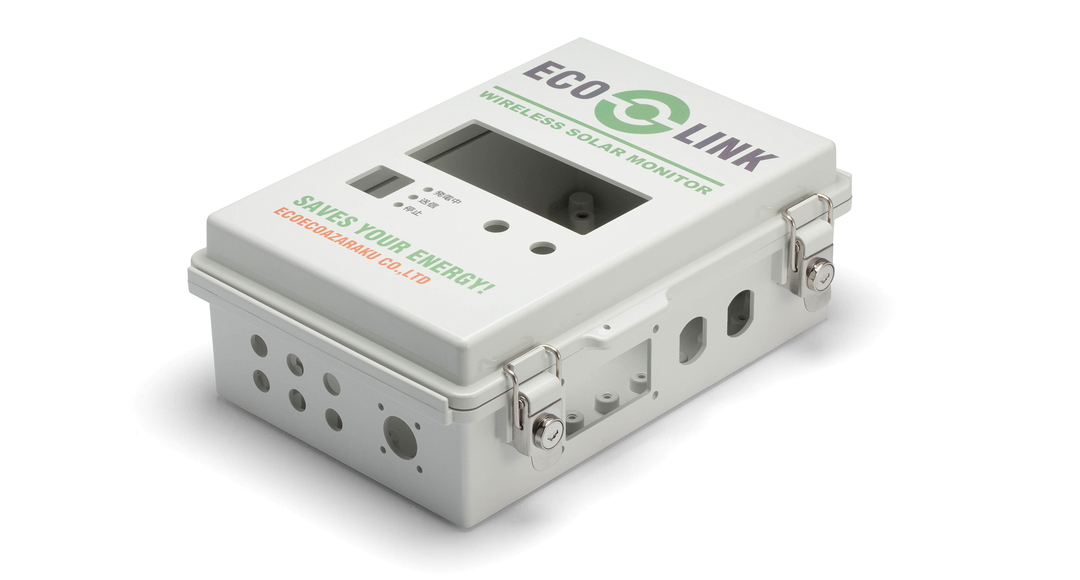

Applicable for various uses in fields such as Network communication, PV junction box, Power switchboard, FA, and so on.

50 different sizes available.

Protection Class : IP65 (equivalent to NEMA6 rating)
Operating Temperature:-20℃~+75℃
Flammability:UL94V-0
Material : Polycarbonate, Polyurethane gasket, Stainless steel latch

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) Color Sale status PDF DXF DWG
W H D w h d
BCPC091207S 90 120 70 66 96 56.6 226 Light gray PDF DXF DWG
BCPC091208S 90 120 85 66 96 71.6 247 Light gray PDF DXF DWG
BCPC101507S 100 150 70 76 126 56.6 312 Light gray PDF DXF DWG
BCPC101508S 100 150 85 75.5 125.5 71.6 336 Light gray PDF DXF DWG
BCPC112107S 110 210 75 85.8 185.8 61.6 420 Light gray PDF DXF DWG
BCPC112110S 110 210 100 84.9 184.9 86.6 473 Light gray PDF DXF DWG
BCPC112607S 110 260 75 85.8 235.8 61.6 493 Light gray PDF DXF DWG
BCPC112610S 110 260 100.5 85.1 234.9 86.5 569 Light gray PDF DXF DWG
BCPC131508S 135 155 85 110.4 130.4 71.5 406 Light gray PDF DXF DWG
BCPC131808S 135 185 85.5 110.4 160.4 72.1 452 Light gray PDF DXF DWG
BCPC131810S 135 185 100.5 110.4 160.4 87.1 448 Light gray PDF DXF DWG
BCPC151509S 150 150 90 125.7 125.7 75.6 395 Light gray PDF DXF DWG
BCPC151512S 150 150 120.5 124 124 106.1 482 Light gray PDF DXF DWG
BCPC162110S 160 210 100 134 184 86.6 556 Light gray PDF DXF DWG
BCPC162113S 160 210 130 134 184 116.6 611 Light gray PDF DXF DWG
BCPC162610S 160 260 100 135.1 235.1 86.6 671 Light gray PDF DXF DWG
BCPC162613S 160 260 130 134 234 116.6 779 Light gray PDF DXF DWG
BCPC172210S 170 220 105 144.9 194.9 90.8 649 Light gray PDF DXF DWG
BCPC172211S 170 220 110.5 144.9 194.9 96.1 649 Light gray Limited inventory. PDF DXF DWG
BCPC172711S 170 270 110.5 144.9 244.9 96.1 775 Light gray PDF DXF DWG
BCPC192810S 190 280 100.5 164.4 253.9 84.1 858 Light gray PDF DXF DWG
BCPC192814S 190 280 140 164.1 253.9 124.6 1028 Light gray PDF DXF DWG
BCPC203013S 200 300 130 173.5 273.6 113.6 1053 Light gray PDF DXF DWG
BCPC203015S 200 300 151.5 173.5 273.5 135.1 1127 Light gray PDF DXF DWG
BCPC203018S 200 300 180.5 172.4 272.3 164.1 1258 Light gray PDF DXF DWG
BCPC212110S 210 210 100 185.1 185.1 86.6 742 Light gray PDF DXF DWG
BCPC212113S 210 210 130 184 184 116.6 827 Light gray PDF DXF DWG
BCPC253515S 250 350 150 222.5 322.5 135.3 1491 Light gray PDF DXF DWG
BCPC253518S 250 350 181.5 222.5 322.5 165.8 1676 Light gray PDF DXF DWG
BCPC282813S 280 280 130.5 253.9 253.9 113.6 1371 Light gray PDF DXF DWG
BCPC283813S 280 380 130 253.9 353.9 113.6 1695 Light gray PDF DXF DWG
BCPC303015S 300 300 151 272.9 272.9 134.3 1610 Light gray PDF DXF DWG
BCPC303018S 300 300 181 272.5 272.5 164.3 1760 Light gray PDF DXF DWG
BCPC304012S 300 400 121 274.1 374.5 104.5 1846 Light gray PDF DXF DWG
BCPC304015S 300 400 150 273.5 373.5 133.6 1862 Light gray PDF DXF DWG
BCPC304018S 300 400 181 272.5 372.5 164.6 2030 Light gray PDF DXF DWG
BCPC353515S 350 350 150 323.5 323.5 133.6 2045 Light gray PDF DXF DWG
BCPC353518S 350 350 181 322.5 322.5 164.6 2142 Light gray PDF DXF DWG
BCPC354512S 350 450 120 316.7 416.7 103.5 2397 Light gray PDF DXF DWG
BCPC354516S 350 450 160 308.7 414.7 142.6 2826 Light gray PDF DXF DWG
BCPC354520S 350 450 201 306.9 412.8 183.6 3151 Light gray PDF DXF DWG
BCPC405016S 400 500 160 360.4 466.6 144 3188 Light gray PDF DXF DWG
BCPC405020S 400 500 201 359.4 465.5 184 3811 Light gray PDF DXF DWG
BCPC406018S 400 600 181 358.6 565.9 163.8 4153 Light gray PDF DXF DWG
BCPC406023S 400 600 231 356.9 564.1 213.8 4637 Light gray PDF DXF DWG
BCPC506018S 530 630 185 476.8 576.8 163.6 6305 Light gray PDF DXF DWG
BCPC506025S 530 630 255 474.6 574.6 233.6 7213 Light gray PDF DXF DWG
BCPC507018S 530 730 185 477 677 166.1 7410 Light gray PDF DXF DWG
BCPC507025S 530 730 255 475 676.2 236 8200 Light gray PDF DXF DWG
BCPC608018S 630 830 185 575 777 165.6 9820 Light gray PDF DXF DWG
BCPC608028S 630 830 285 573.5 773.5 265.8 11550 Light gray PDF DXF DWG

OPTIONAL PARTS

1
取付ベース BMPシリーズ (BCAP・BCPC・BCPK・BCAR・BCPRシリーズ用)
DETAILS
1
MOUNTING BRACKET for HINGED PLASTIC BOX - BFL series
DETAILS
1
STAINLESS STEEL BRACKET for HINGED BOX - CK series
DETAILS
1

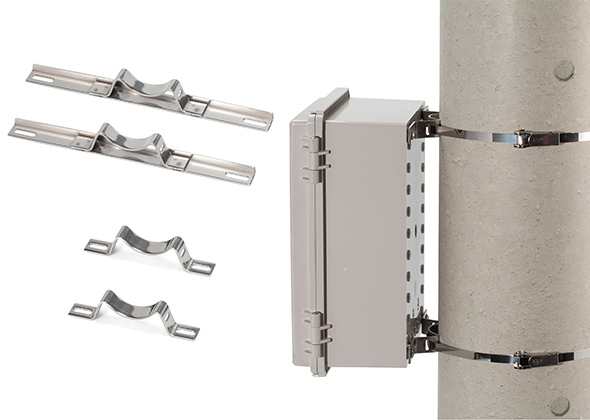

POLE MOUNT BRACKET for HINGED PLASTIC BOX
DETAILS
1
OUTDOOR ROOF for HINGED PLASTIC BOX
DETAILS
1
GORETEX PROTECTIVE VENT - PMF series
DETAILS
1

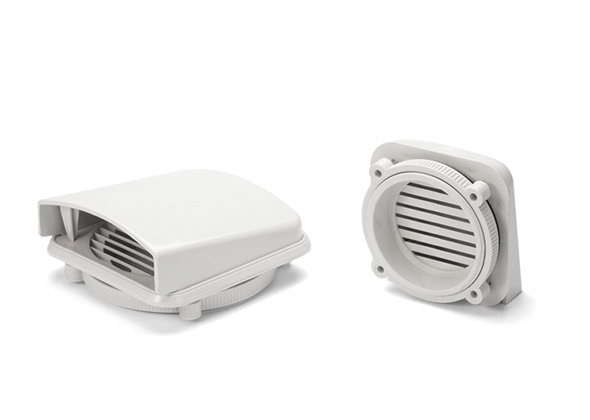

VENTILATION LOUVER - V series
DETAILS
1
DIN RAIL for BCAP・BCAR・BCPC・BCPK・BCPR series
DETAILS
1
POLYAMIDE CABLE GLAND - RM series
DETAILS
1
WEATHERPROOF CABLE GLAND - RMW series
DETAILS
1
IP68 WATER PROTECTION CABLE GLAND - AG series
DETAILS
1
STRAIN RELIEF CABLE GLAND - RSP series
DETAILS

SIMILAR PRODUCT

1
IP65 LATCH-HINGED ABS PLASTIC BOX - BCAP series
DETAILS
1
IP65 POLYCARBONATE BOX with KEY LOCK - BCPK series
DETAILS
1
IP65 PLASTIC BOX with OUTDOOR ROOF - BCAR series
DETAILS
1
IP65 POLYCARBONATE BOX with OUTDOOR ROOF - BCPR series
DETAILS
1
IP65 HINGED STAINLESS STEEL BOX - SSM series
DETAILS
1
ALUMINIUM BOX WITH HINGED DOOR - FCW series
DETAILS
1
WATERPROOF PROTECTOR CASE - NK series
DETAILS

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

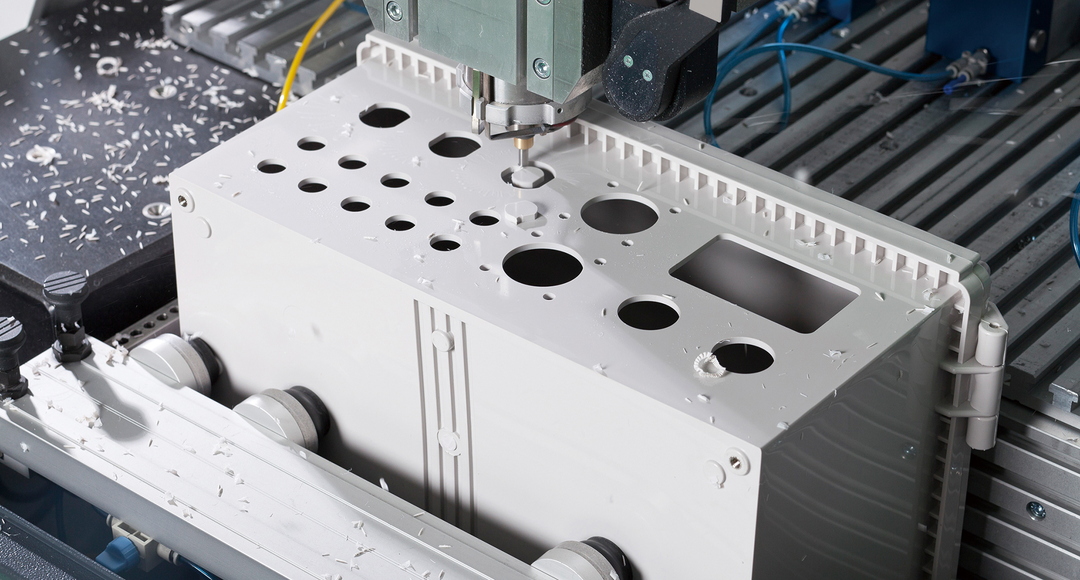

High speed CNC milling
