MOUNTING PLATE for HINGED PLASTIC BOX - BMP series


BMP_BCAP Series -PDF

CATEGORY：Mounting plate, Mount plate, Mounting base

MOUNTING PLATE for HINGED PLASTIC BOX - BMP series
MOUNTING PLATE for HINGED PLASTIC BOX - BMP series
MOUNTING PLATE for HINGED PLASTIC BOX - BMP series1
MOUNTING PLATE for HINGED PLASTIC BOX - BMP series2

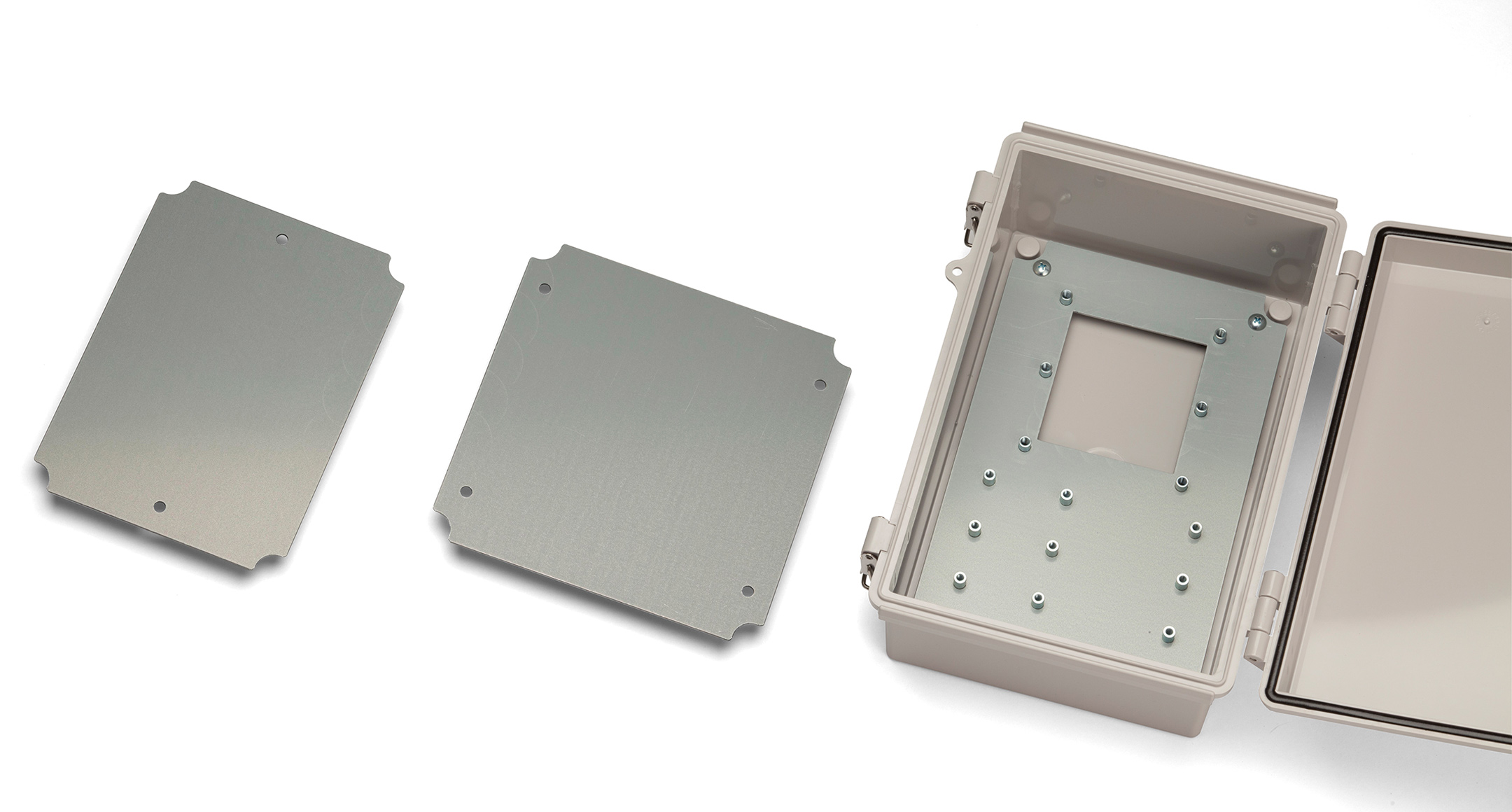

Mounting plate for BCAP・BCPC・BCPK・BCAR・BCPR series.
Plastic, steel and wooden mounting plates are available.

PRODUCT NO. / DIMENSIONS

Product No. Material Suitable boxes PDF DXF DWG
BMP0811P ABS Plastic BC**091207, 091208 PDF DXF DWG
BMP0813P ABS Plastic BC**101507, 101508 PDF DXF DWG
BMP1121P ABS Plastic BC**112107, 112110 PDF DXF DWG
BMP1126P ABS Plastic BC**112607, 112610 PDF DXF DWG
BMP1315P ABS Plastic BC**131508 PDF DXF DWG
BMP1217P ABS Plastic BC**131808, 131810 PDF DXF DWG
BMP1515P ABS Plastic BC**151509, 151512 PDF DXF DWG
BMP1520P ABS Plastic BC**162110, 162113, 172211 PDF DXF DWG
BMP1525P ABS Plastic BC**162610, 162613, 172711 PDF DXF DWG
BMP1928P ABS Plastic BC**192810, 192814 PDF DXF DWG
BMP2020P ABS Plastic BC**212110, 212113 PDF DXF DWG
BMP2030P ABS Plastic BC**203013, 203015, 203018 PDF DXF DWG
BMP2535P ABS Plastic BC**253515, 253518 PDF DXF DWG
BMP2828P ABS Plastic BC**282813 PDF DXF DWG
BMP2838P ABS Plastic BC**283813 PDF DXF DWG
BMP3030P ABS Plastic BC**303015, 303018 PDF DXF DWG
BMP3040P ABS Plastic BC**304012, 304015, 304018 PDF DXF DWG
BMP3535P ABS Plastic BC**353515, 353518 PDF DXF DWG
BMP3545P ABS Plastic BC**354512, 354516, 354520 PDF DXF DWG
BMP4050P ABS Plastic BC**405016, 405020 PDF DXF DWG
BMP0813W Wooden board BC**101507, 101508 PDF DXF DWG
BMP0912W Wooden board BC**091207, 091208 PDF DXF DWG
BMP1121W Wooden board BC**112107, 112110 PDF DXF DWG
BMP1126W Wooden board BC**112607, 112610 PDF DXF DWG
BMP1217W Wooden board BC**131808, 131810 PDF DXF DWG
BMP1315W Wooden board BC**131508 PDF DXF DWG
BMP1515W Wooden board BC**151509, 151512 PDF DXF DWG
BMP1520W Wooden board BC**162110, 162113 PDF DXF DWG
BMP1525W Wooden board BC**162610, 162613 PDF DXF DWG
BMP1722W Wooden board BC**172211 PDF DXF DWG
BMP1727W Wooden board BC**172711 PDF DXF DWG
BMP1928W Wooden board BC**192810, 192814 PDF DXF DWG
BMP2020W Wooden board BC**212110, 212113 PDF DXF DWG
BMP2030W Wooden board BC**203013, 203015, 203018 PDF DXF DWG
BMP2535W Wooden board BC**253515, 253518 PDF DXF DWG
BMP2828W Wooden board BC**282813 PDF DXF DWG
BMP2838W Wooden board BC**283813 PDF DXF DWG
BMP3030W Wooden board BC**303015, 303018 PDF DXF DWG
BMP3040W Wooden board BC**304012, 304015, 304018 PDF DXF DWG
BMP3535W Wooden board BC**353515, 353518 PDF DXF DWG
BMP3545W Wooden board BC**354512, 354516, 354520 PDF DXF DWG
BMP4050W Wooden board BC**405016, 405020 PDF DXF DWG
BMP4060W Wooden board BC**406018, 406023 PDF DXF DWG
BMP5060W Wooden board BC**506018, 506025 PDF DXF DWG
BMP5070W Wooden board BC**507018, 507025 PDF DXF DWG
BMP6080W Wooden board BC**608018, 608028 PDF DXF DWG
BMP0813Z Steel (Zinc coated) BC**101507, 101508 PDF DXF DWG
BMP0912Z Steel (Zinc coated) BC**091207, 091208 PDF DXF DWG
BMP1121Z Steel (Zinc coated) BC**112107, 112110 PDF DXF DWG
BMP1126Z Steel (Zinc coated) BC**112607, 112610 PDF DXF DWG
BMP1217Z Steel (Zinc coated) BC**131808, 131810 PDF DXF DWG
BMP1315Z Steel (Zinc coated) BC**131508 PDF DXF DWG
BMP1515Z Steel (Zinc coated) BC**151509, 151512 PDF DXF DWG
BMP1520Z Steel (Zinc coated) BC**162110, 162113 PDF DXF DWG
BMP1525Z Steel (Zinc coated) BC**162610, 162613 PDF DXF DWG
BMP1722Z Steel (Zinc coated) BC**172211 PDF DXF DWG
BMP1727Z Steel (Zinc coated) BC**172711 PDF DXF DWG
BMP1928Z Steel (Zinc coated) BC**192810, 192814 PDF DXF DWG
BMP2020Z Steel (Zinc coated) BC**212110, 212113 PDF DXF DWG
BMP2030Z Steel (Zinc coated) BC**203013, 203015, 203018 PDF DXF DWG
BMP2535Z Steel (Zinc coated) BC**253515, 253518 PDF DXF DWG
BMP2828Z Steel (Zinc coated) BC**282813 PDF DXF DWG
BMP2838Z Steel (Zinc coated) BC**283813 PDF DXF DWG
BMP3030Z Steel (Zinc coated) BC**303015, 303018 PDF DXF DWG
BMP3040Z Steel (Zinc coated) BC**304012, 304015, 304018 PDF DXF DWG
BMP3535Z Steel (Zinc coated) BC**353515, 353518 PDF DXF DWG
BMP3545Z Steel (Zinc coated) BC**354512, 354516, 354520 PDF DXF DWG
BMP4050Z Steel (Zinc coated) BC**405016, 405020 PDF DXF DWG
BMP4060Z Steel (Zinc coated) BC**406018, 406023 PDF DXF DWG
BMP5060Z Steel (Zinc coated) BC**506018, 506025 PDF DXF DWG
BMP5070Z Steel (Zinc coated) BC**507018, 507025 PDF DXF DWG
BMP6080Z Steel (Zinc coated) BC**608018, 608028 PDF DXF DWG
