MOUNTING BRACKET for HINGED PLASTIC BOX - BFL series


BFL Series -PDF

CATEGORY:Plastic mounting bracket, Wall mount bracket

MOUNTING BRACKET for HINGED PLASTIC BOX - BFL series
MOUNTING BRACKET for HINGED PLASTIC BOX - BFL series
MOUNTING BRACKET for HINGED PLASTIC BOX - BFL series1
MOUNTING BRACKET for HINGED PLASTIC BOX - BFL series2

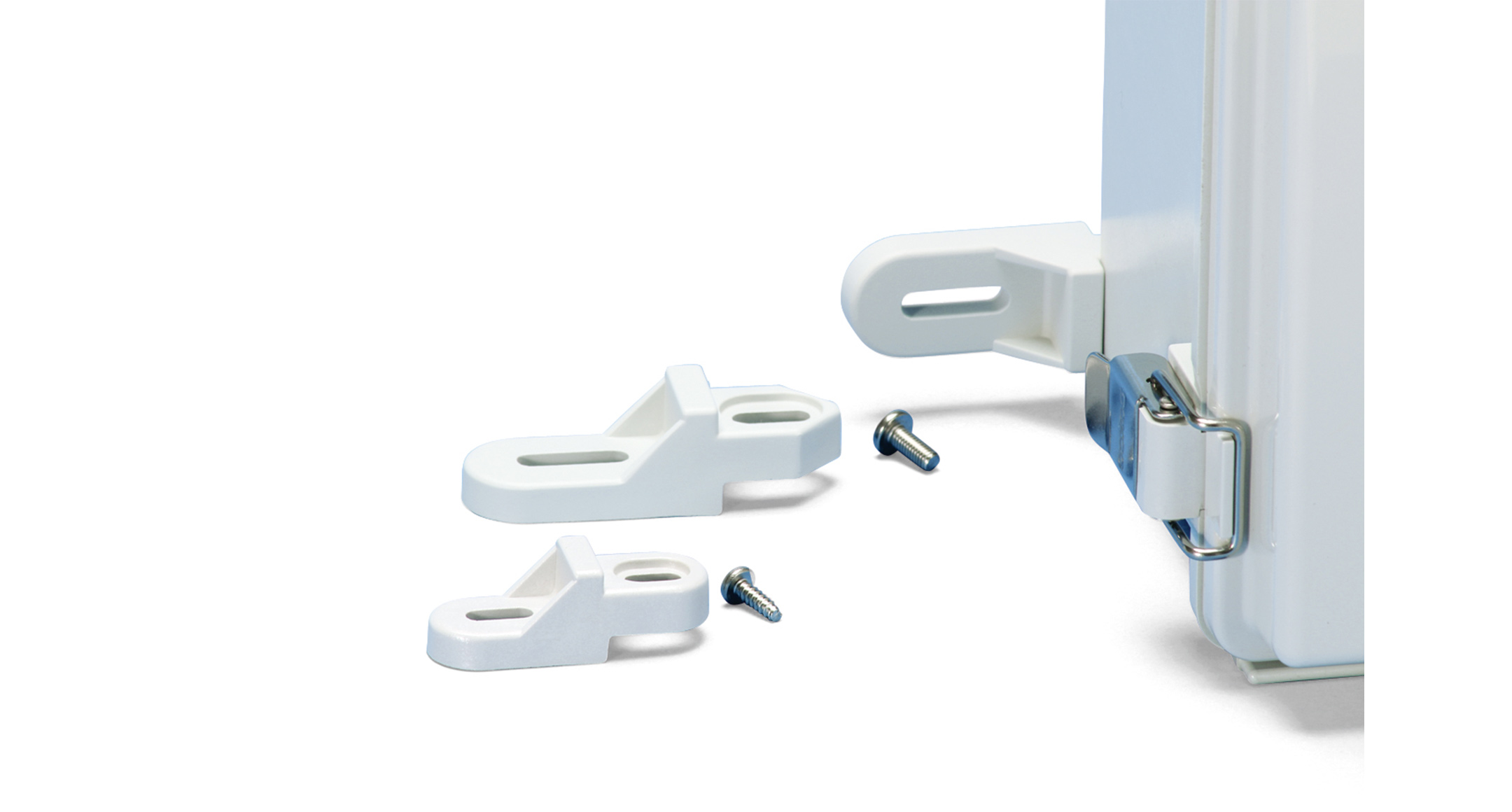

Plastic mounting brackets for BCAP・BCPC・BCPK・BCAR・BCPR, IP65 latch-hinged plastic boxes.
Tough and strong glass fiber filled polycarbonate.

2 different sizes, 2 colored types to match box colors.

PRODUCT NO. / DIMENSIONS

Product No. Suitable box Color / Similar matching Weight (g) 4pcs Pack of PDF DXF DWG
BFL-1G BCAP・BCAR 0912, 1015, 1121, 1126, 1315, 1318, 1621, 1626, 1722, 1727, 212113 White gray / Munsell 5R8/0.5 37.6 4 pcs PDF DXF DWG
BFL-1S BCPC・BCPK・BCPR 0912, 1015, 1121, 1126, 1315, 1318, 1621, 1626, 1722, 1727, 212113 Light gray / Munsell 5GY8.5/0.5 37.6 4 pcs PDF DXF DWG
BFL-2G BCAP・BCAR 1928, 2030, 2535, 2828, 2838, 3030, 3040, 3535, 3545, 4050, 4060, 5060 White gray / Munsell 5R8/0.5 66.7 4 pcs PDF DXF DWG
BFL-2S BCPC・BCPK・BCPR 1928, 2030, 2535, 2828, 2838, 3030, 3040, 3535, 3545, 4050, 4060, 5060 Light gray / Munsell 5GY8.5/0.5 66.7 4 pcs PDF DXF DWG
BFL-2-21G BCAP・BCAR 212110 White gray / Munsell 5R8/0.5 62.1 4 pcs PDF DXF DWG
BFL-2-21S BCPC・BCPK・BCPR 212110 Light gray / Munsell 5GY8.5/0.5 62.1 4 pcs PDF DXF DWG
