POLE MOUNT BRACKET for HINGED PLASTIC BOX


SSK_BCAP Series -PDF

CATEGORY：Pole mounting bracket, Stainless steel bracket

POLE MOUNT BRACKET for HINGED PLASTIC BOX
POLE MOUNT BRACKET for HINGED PLASTIC BOX
POLE MOUNT BRACKET for HINGED PLASTIC BOX
POLE MOUNT BRACKET for HINGED PLASTIC BOX1
POLE MOUNT BRACKET for HINGED PLASTIC BOX2
POLE MOUNT BRACKET for HINGED PLASTIC BOX3

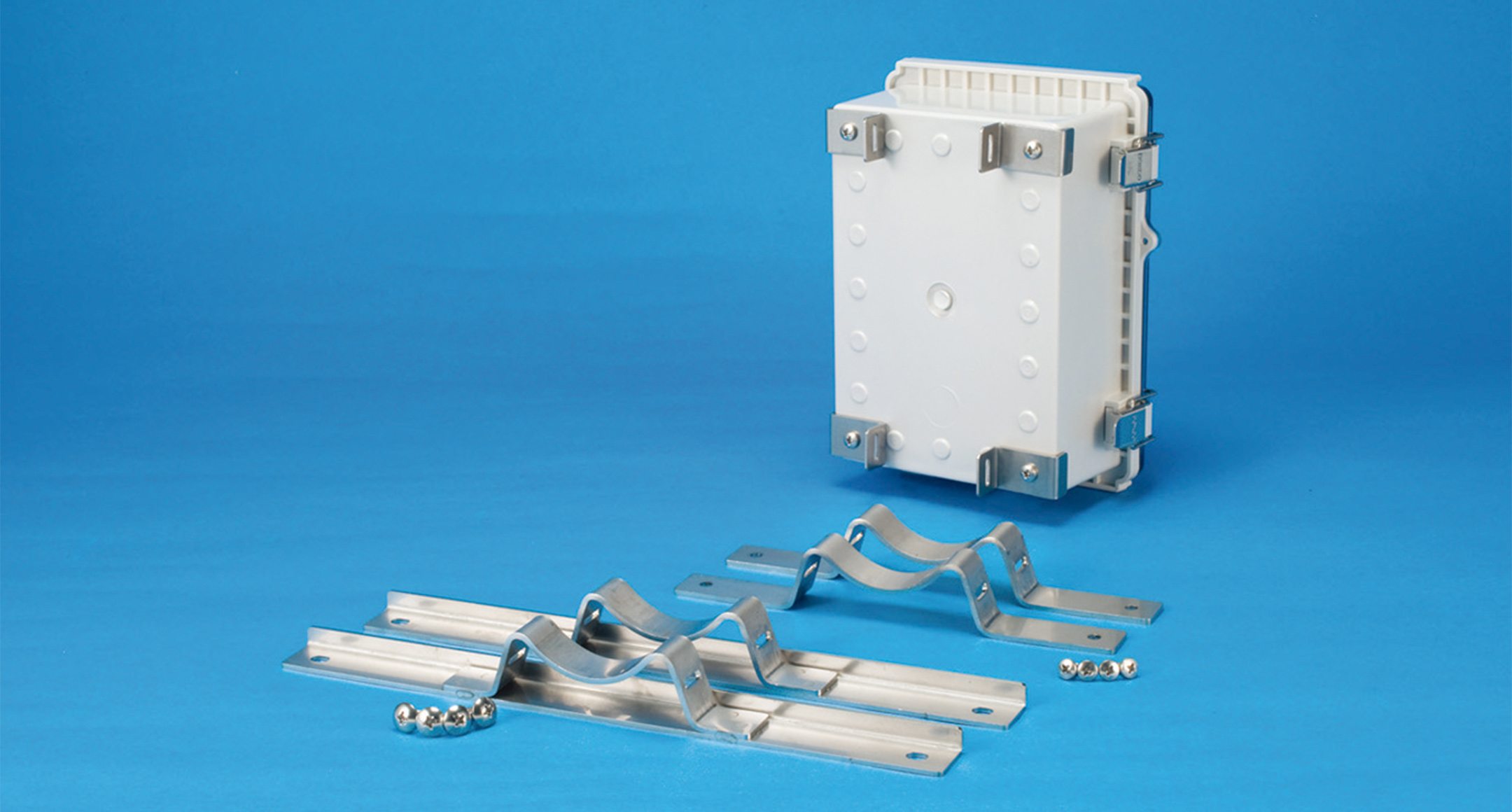

Stainless steel pole mount bracket for BCAP・BCPC・BCPK・BCAR・BCPR series.
No hole milling is required for maintaining the IP rating of the box.

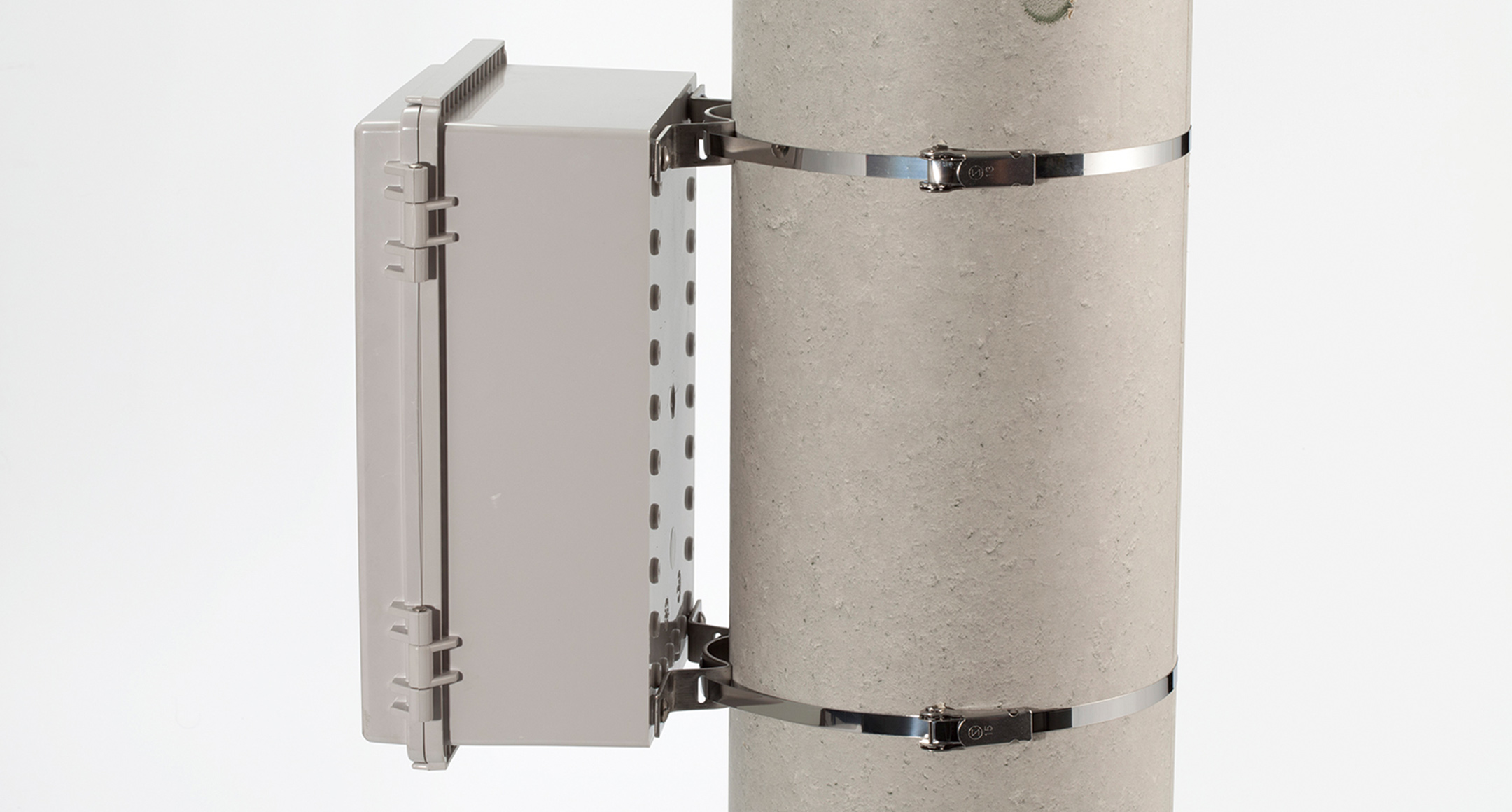

Use PKB mounting belt to install onto a pole.

PRODUCT NO. / DIMENSIONS

Product No. Suitable box Belt to use with (Option) Weight (g) (1set ) Pack of PDF DXF DWG
SSK-S1 BC**0912-1727, 2121 PKB-10P ・ PKB-10S 50.5 4 pcs PDF DXF DWG
SSK-P60 BC**0912 PKB-10P ・ PKB-10S 33.7 2 pcs PDF DXF DWG
SSK-P75 BC**1015 PKB-10P ・ PKB-10S 38.5 2 pcs PDF DXF DWG
SSK-P80 BC**1121, 1126 PKB-10P ・ PKB-10S 40.7 2 pcs PDF DXF DWG
SSK-P120 BC**1315, 1318 PKB-10P ・ PKB-10S 55.1 2 pcs PDF DXF DWG
SSK-160 BC**1515, 1621, 1626 PKB-10P ・ PKB-10S 134 2 pcs PDF DXF DWG
SSK-170 BC**1722, 1727 PKB-10P ・ PKB-10S 141.5 2 pcs PDF DXF DWG
SSK-200 BC**1928, 2030 PKB-10P ・ PKB-10S 160.6 2 pcs PDF DXF DWG
SSK-210 BC**2121 PKB-10P ・ PKB-10S 171.7 2 pcs PDF DXF DWG
SSK-250 BC**2535 PKB-10P ・ PKB-10S 198.9 2 pcs PDF DXF DWG
SSK-280 BC**2828, 2838 PKB-10P ・ PKB-10S 339.2 2 pcs PDF DXF DWG
SSK-300 BC**3030, 3040 PKB-10P ・ PKB-10S 356.1 2 pcs PDF DXF DWG
SSK-350 BC**3535, 3545 PKB-10P ・ PKB-10S 389.4 2 pcs PDF DXF DWG
SSK-400 BC**4050, 4060 PKB-20S 1026.2 2 pcs PDF DXF DWG
SSK-530 BC**5060, 5070 PKB-20S 1252.4 2 pcs PDF DXF DWG
SSK-630 BC**6080 PKB-20S 1438.4 2 pcs PDF DXF DWG
