POLE MOUNTING BRACKET for WG・WGV


WGMB Series -PDF

CATEGORY：Pole mounting bracket, Pole mount bracket, Pole bracket

POLE MOUNTING BRACKET for WG・WGV
POLE MOUNTING BRACKET for WG・WGV
POLE MOUNTING BRACKET for WG・WGV
POLE MOUNTING BRACKET for WG・WGV1
POLE MOUNTING BRACKET for WG・WGV2
POLE MOUNTING BRACKET for WG・WGV3

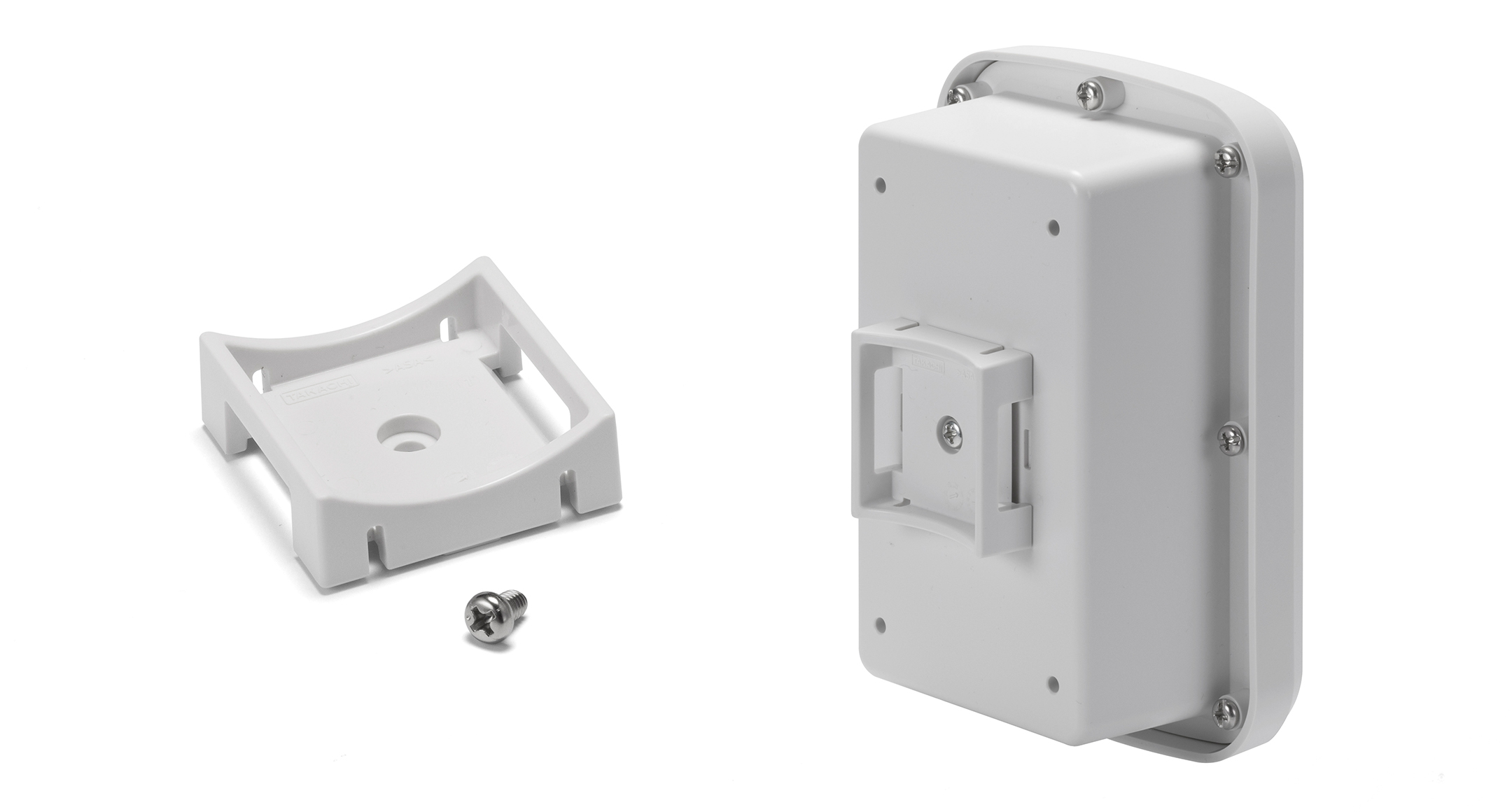

Pole mount bracket made from weather resistant ASA material.
Hole milling is not required when installing the mount bracket, thus allowing the enclosure to maintain its IP rating.

WG・WGV10-15-□ and 15-16-□ can be installed in both the W or D direction.

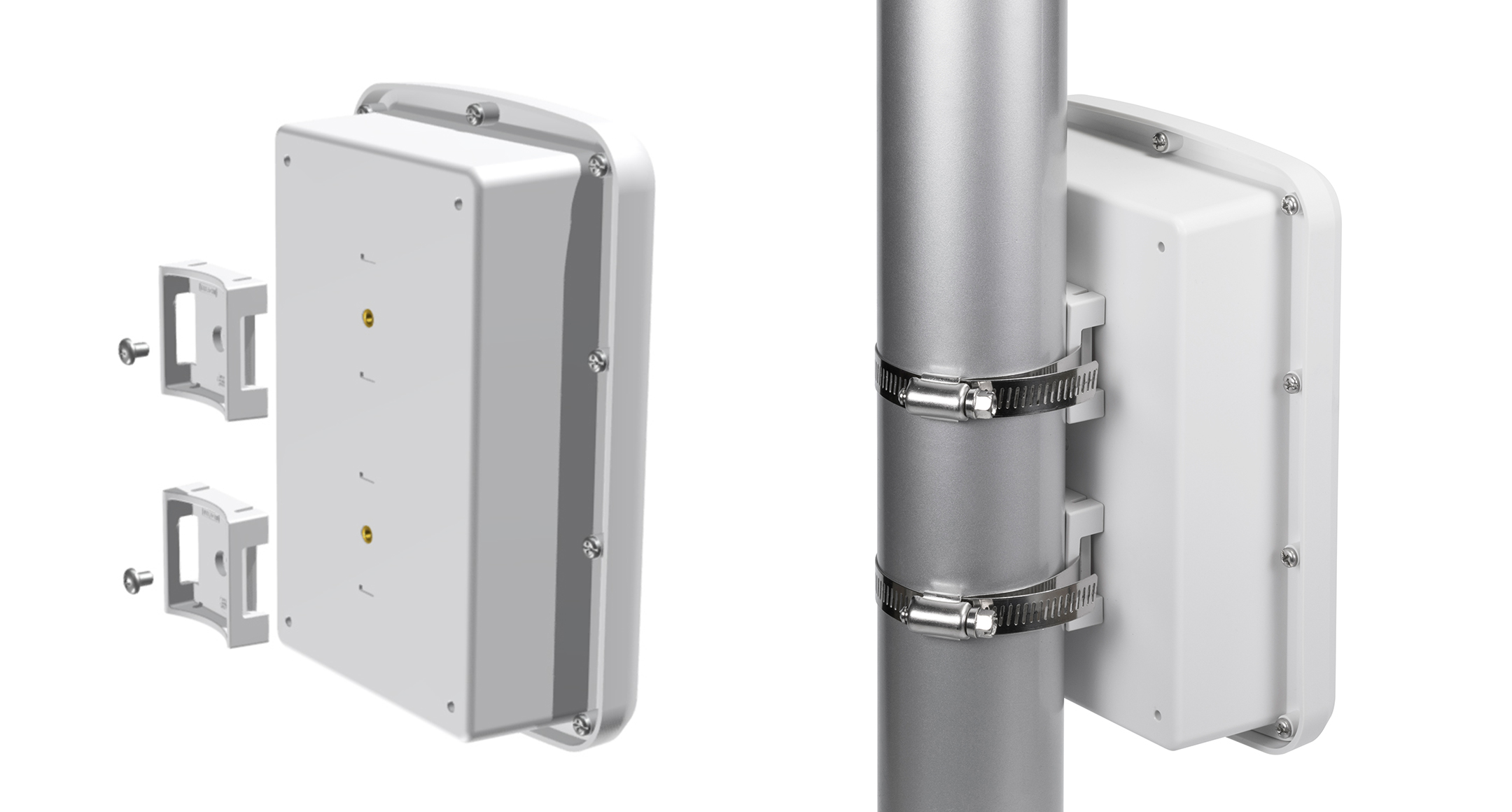

Pole mount is possible with the use of SNB or PKB series mounting belt.

Color: Off white / similar to Munsell N8.75
3D View - 1 Bracket  3D View - 2 Bracket 

PRODUCT NO. / DIMENSIONS

Product No. Suitable enclosure Weight (g) Pack of PDF DXF DWG STP
WGMB-1W WG・WGV10-15-□, WG・WGV15-16-□ = 1pcs / WG・WGV15-21-□ = 2pcs 9 1 pcs PDF DXF DWG
