IP67 HINGED TERMINAL BLOCK JUNCTION BOX - JW series
IP67 HINGED TERMINAL BLOCK JUNCTION BOX - JW series
IP67 HINGED TERMINAL BLOCK JUNCTION BOX - JW series
IP67 HINGED TERMINAL BLOCK JUNCTION BOX - JW series
IP67 HINGED TERMINAL BLOCK JUNCTION BOX - JW series
IP67 HINGED TERMINAL BLOCK JUNCTION BOX - JW series1
IP67 HINGED TERMINAL BLOCK JUNCTION BOX - JW series2
IP67 HINGED TERMINAL BLOCK JUNCTION BOX - JW series3
IP67 HINGED TERMINAL BLOCK JUNCTION BOX - JW series4
IP67 HINGED TERMINAL BLOCK JUNCTION BOX - JW series5

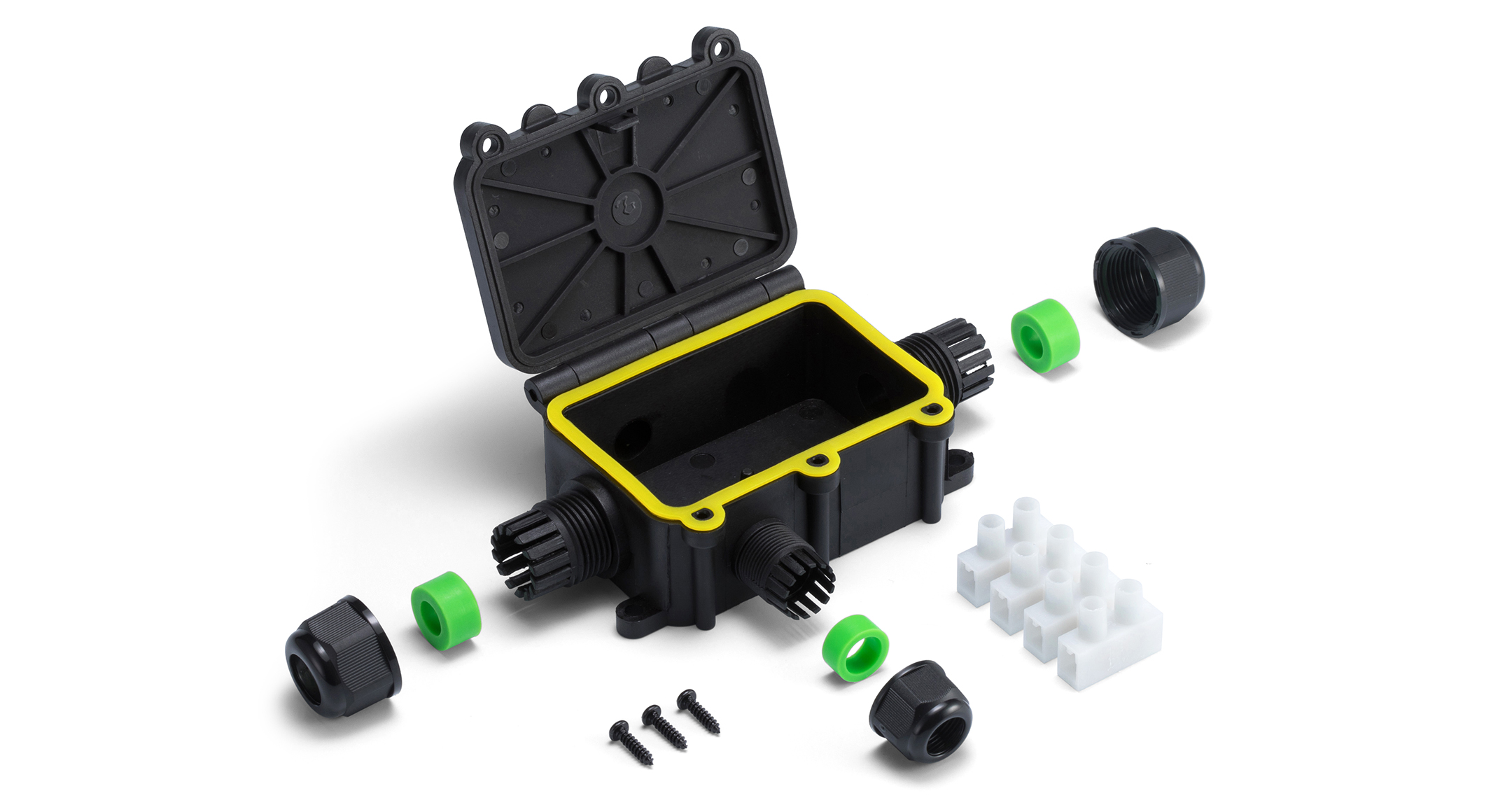

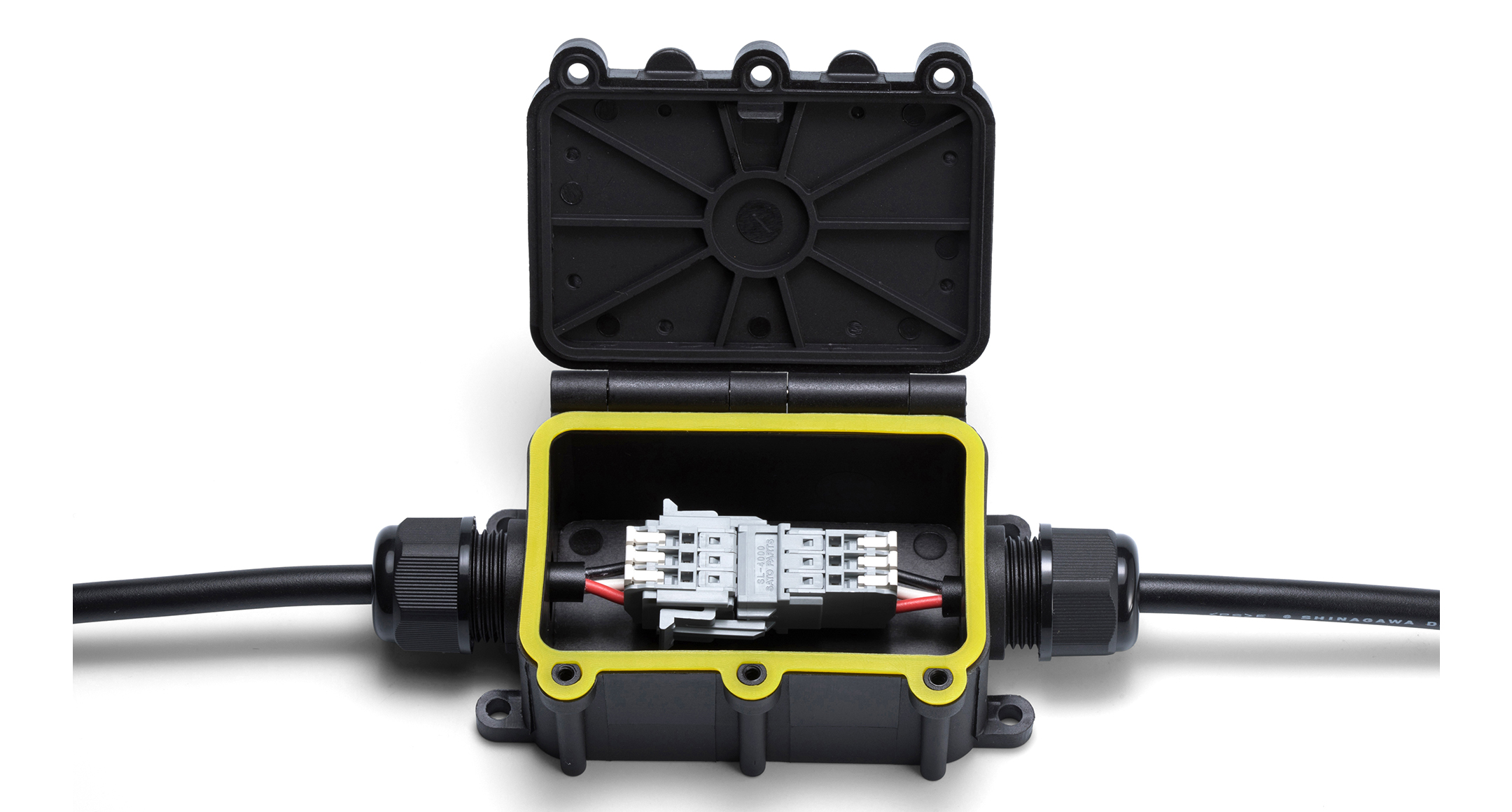

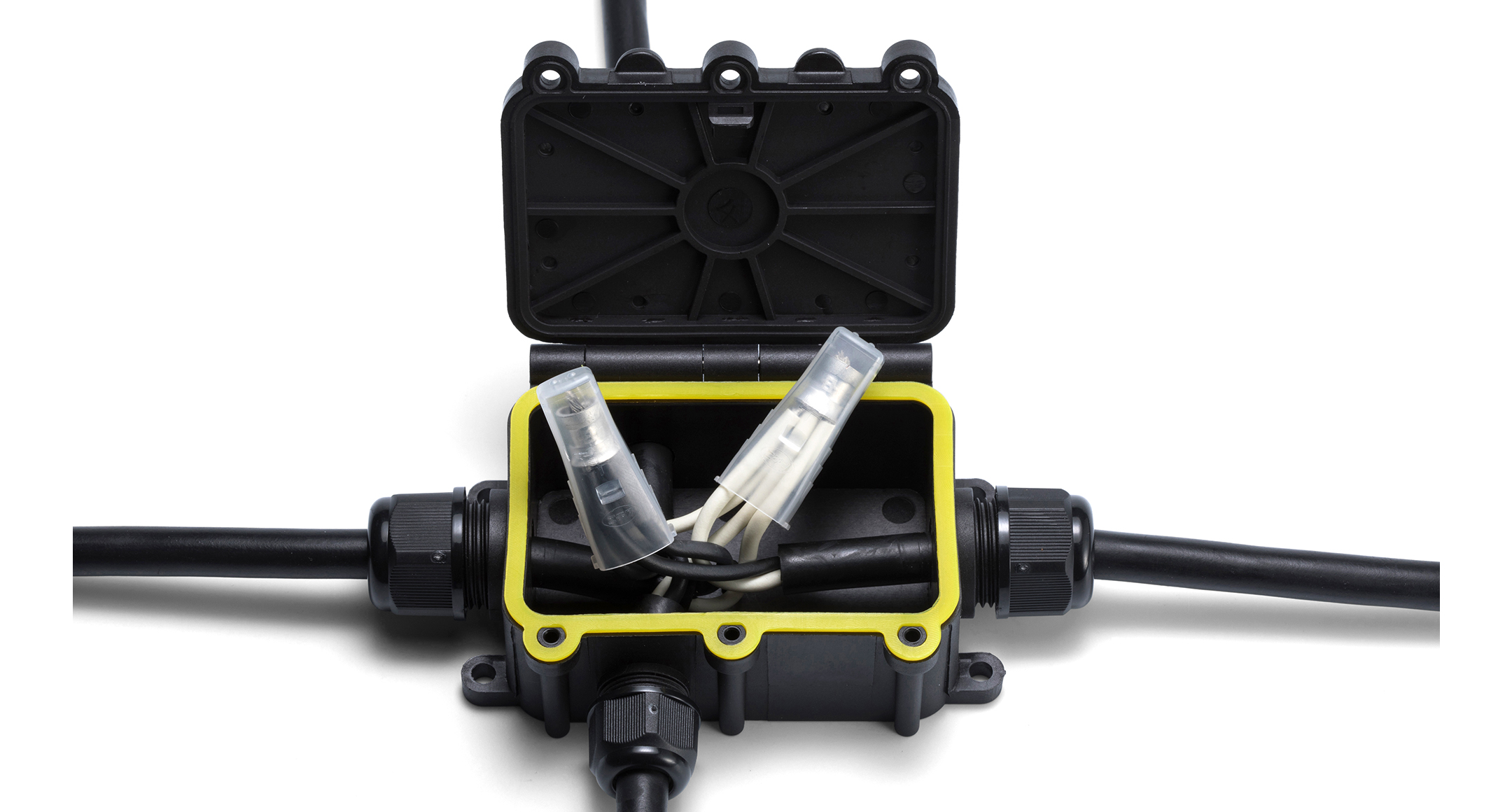

Hinged structure allows easy access for maintenance or replacement of components.

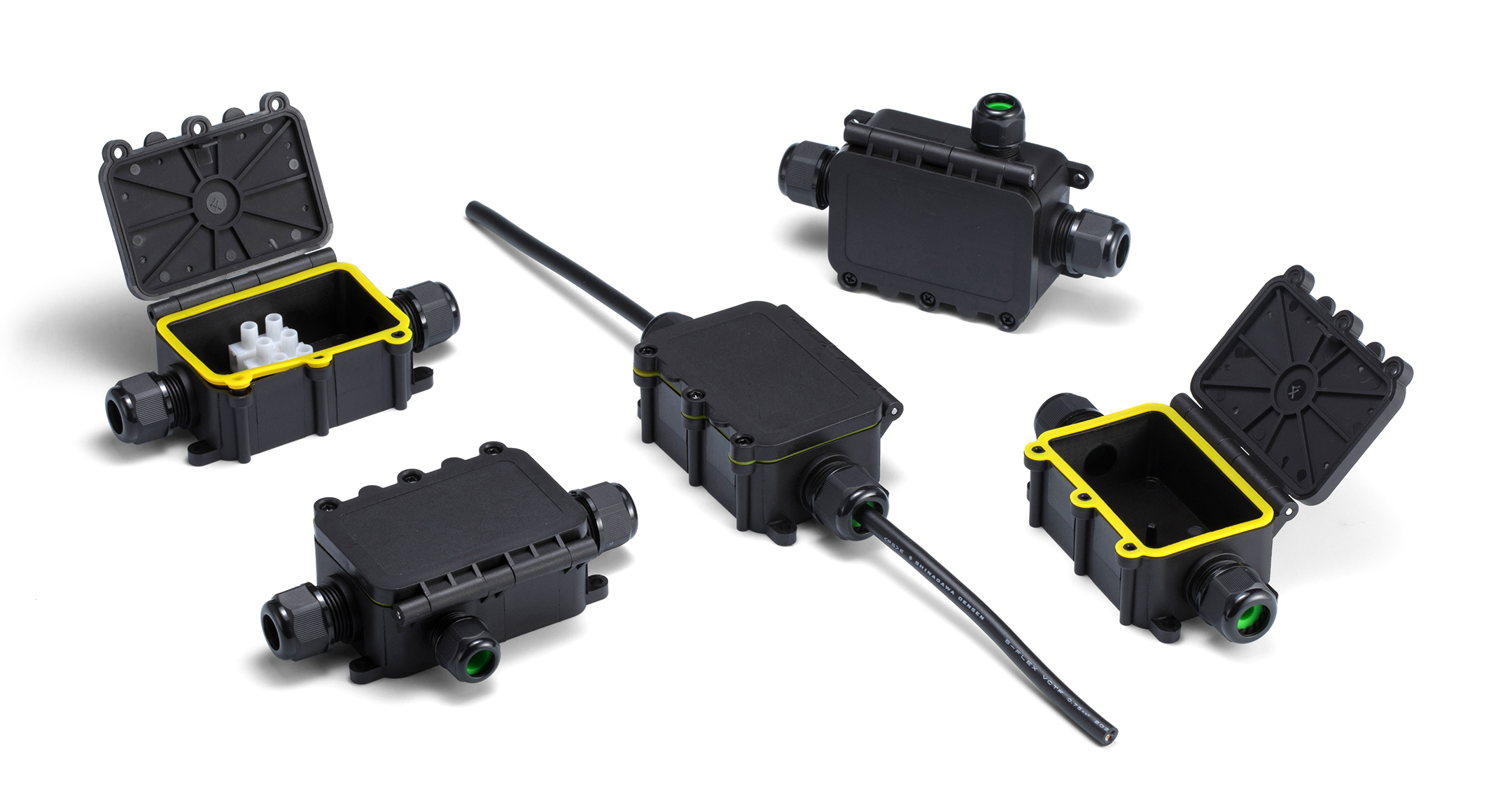

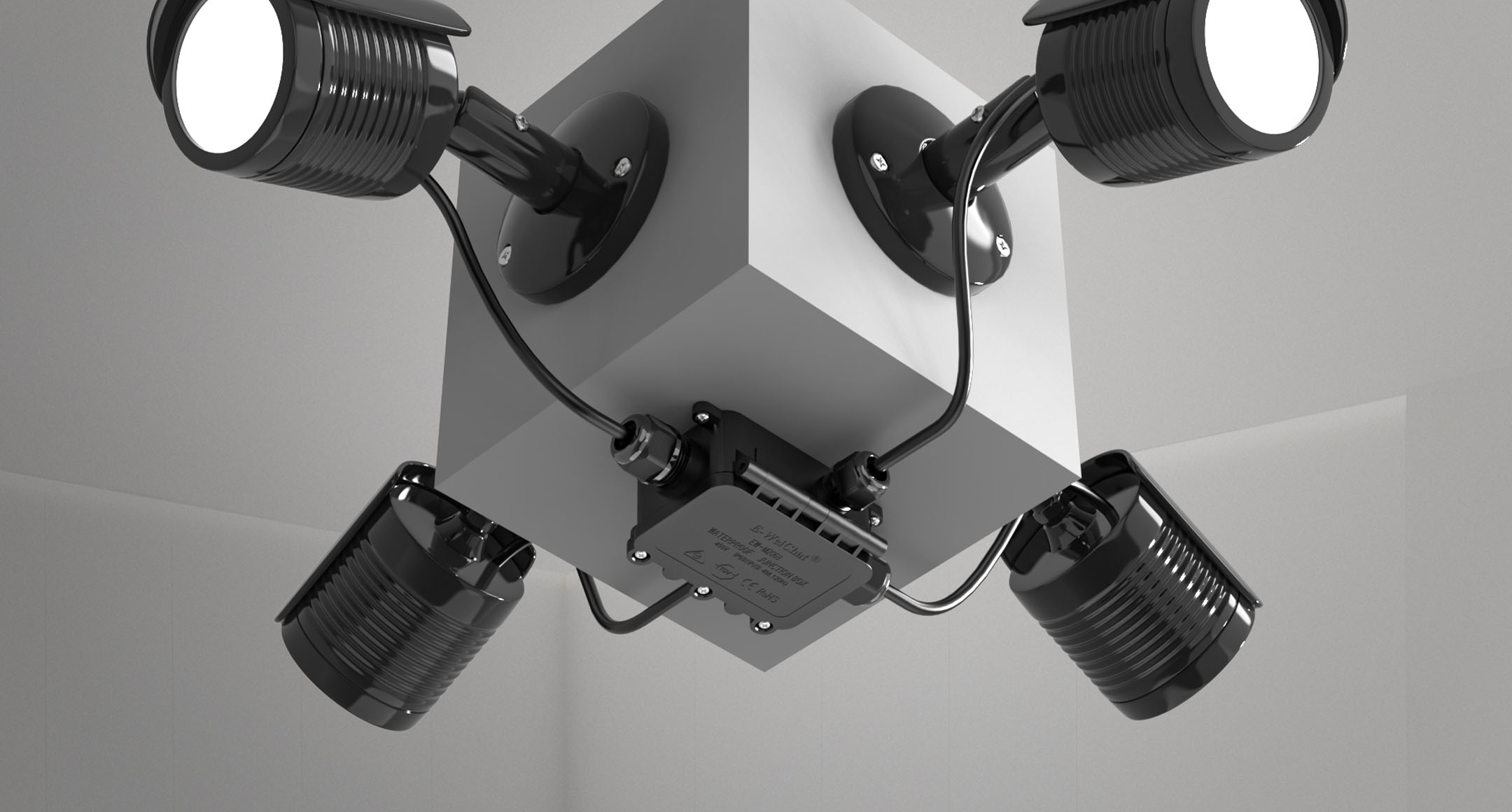

2, 3 and 4 way types are available.

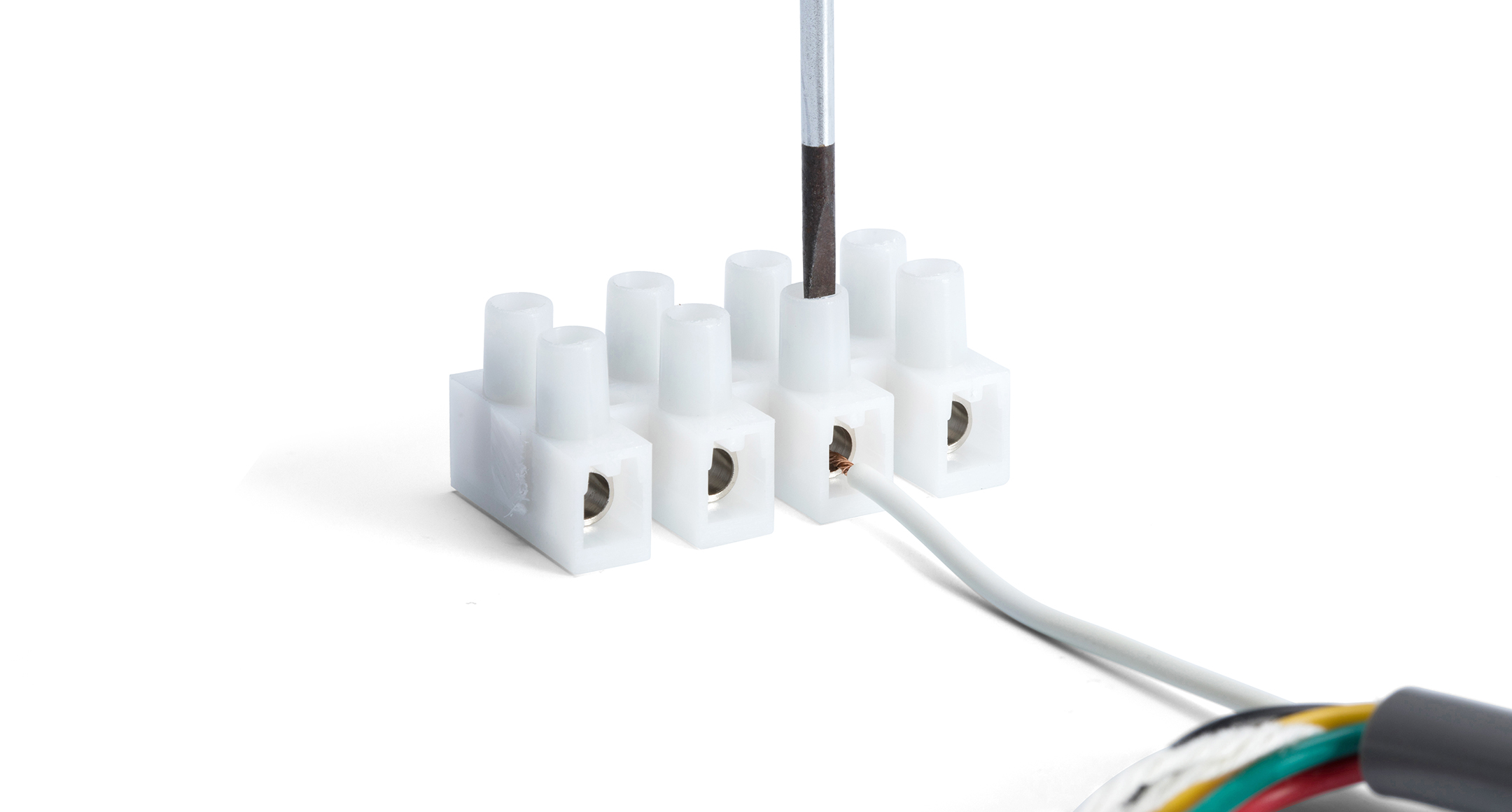

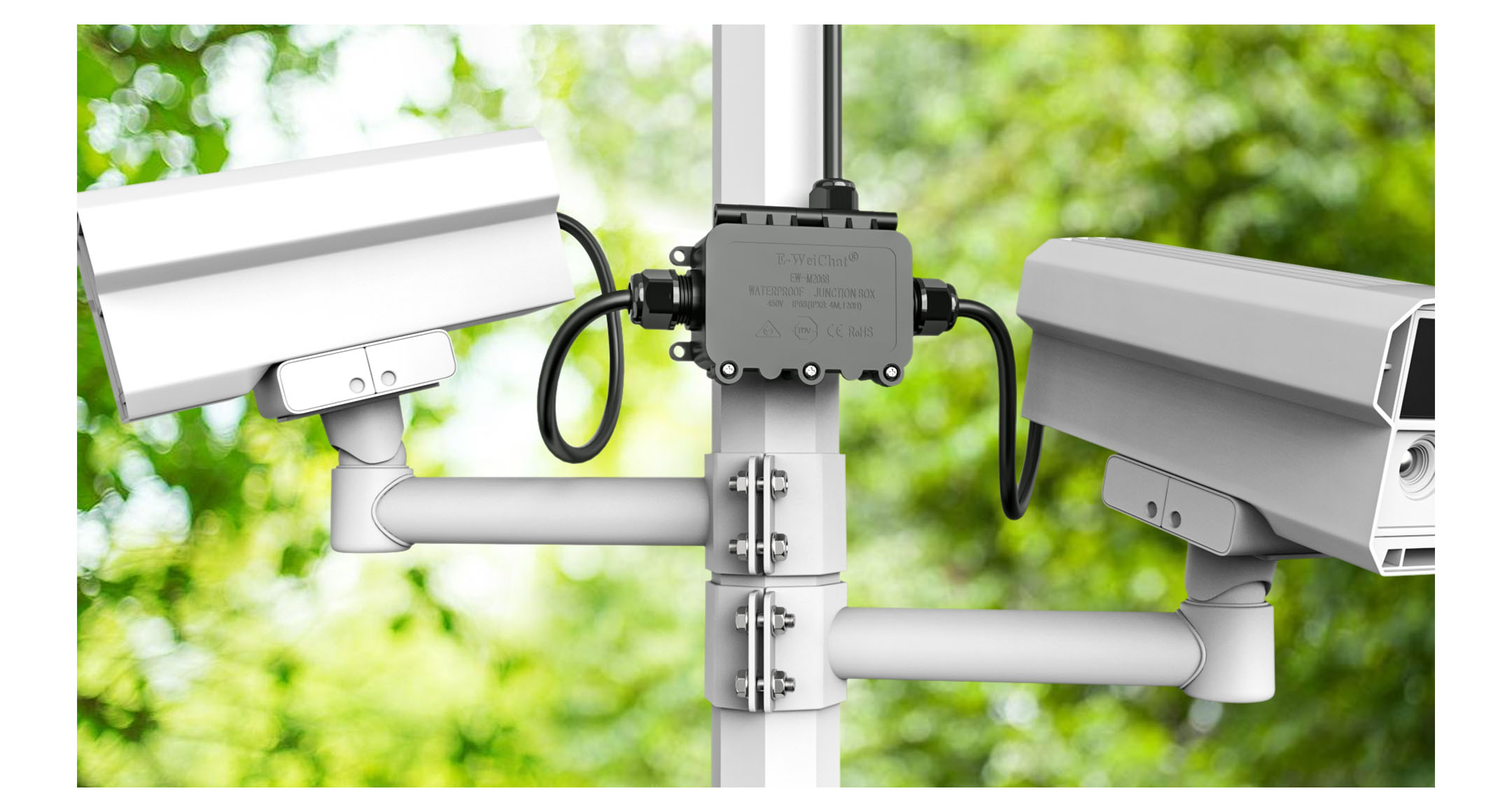

A screw type wiring connection is adopted; allowing for easy installation and removal.
4P pole models and no terminal models are available.

【Technical Data】
Protection class : Equivalent to IP67
Operating temperature : -25°C ~ +60°C
Recommended cover tightening torque : 0.5 ~ 0.6N・m

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Number of Poles Branches Applicable cable diameter Weight (g) PDF DXF DWG
W H D
JW-2W-N 136 37.5 68 None 2 M20:φ5~φ9 94.5 PDF DXF DWG
JW-2W-4P 136 37.5 68 4P 2 M20:φ5~φ9 110.5 PDF DXF DWG
JW-3W-N 136 37.5 81 None 3 M20:φ5~φ9 / M16:φ7~φ10 98 PDF DXF DWG
JW-3W-4P 136 37.5 81 4P 3 M20:φ5~φ9 / M16:φ7~φ10 114 PDF DXF DWG
JW-4W-N 136 37.5 97 None 4 M20:φ5~φ9 / M16:φ7~φ10 101 PDF DXF DWG
JW-4W-4P 136 37.5 97 4P 4 M20:φ5~φ9 / M16:φ7~φ10 117 PDF DXF DWG
