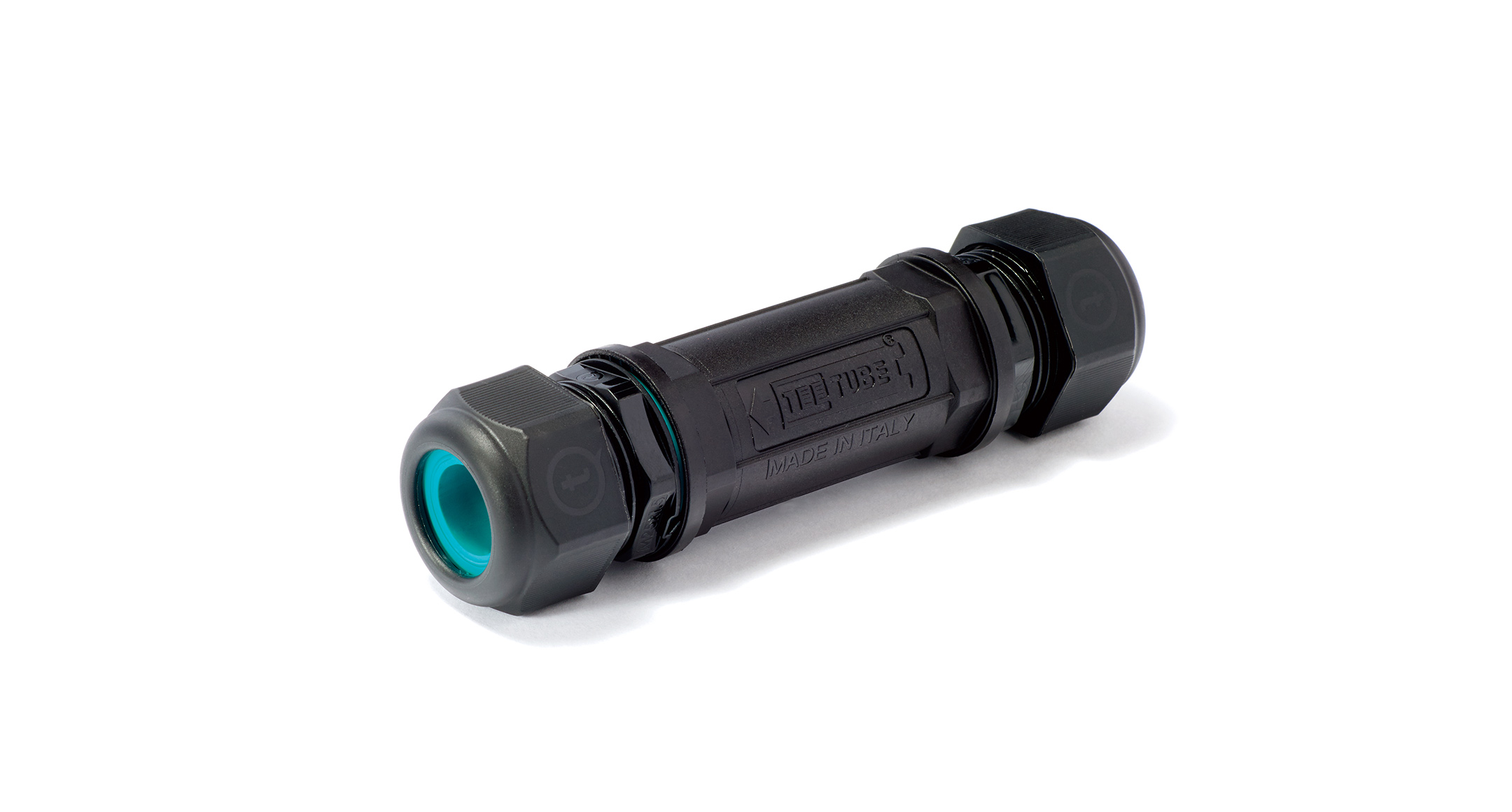

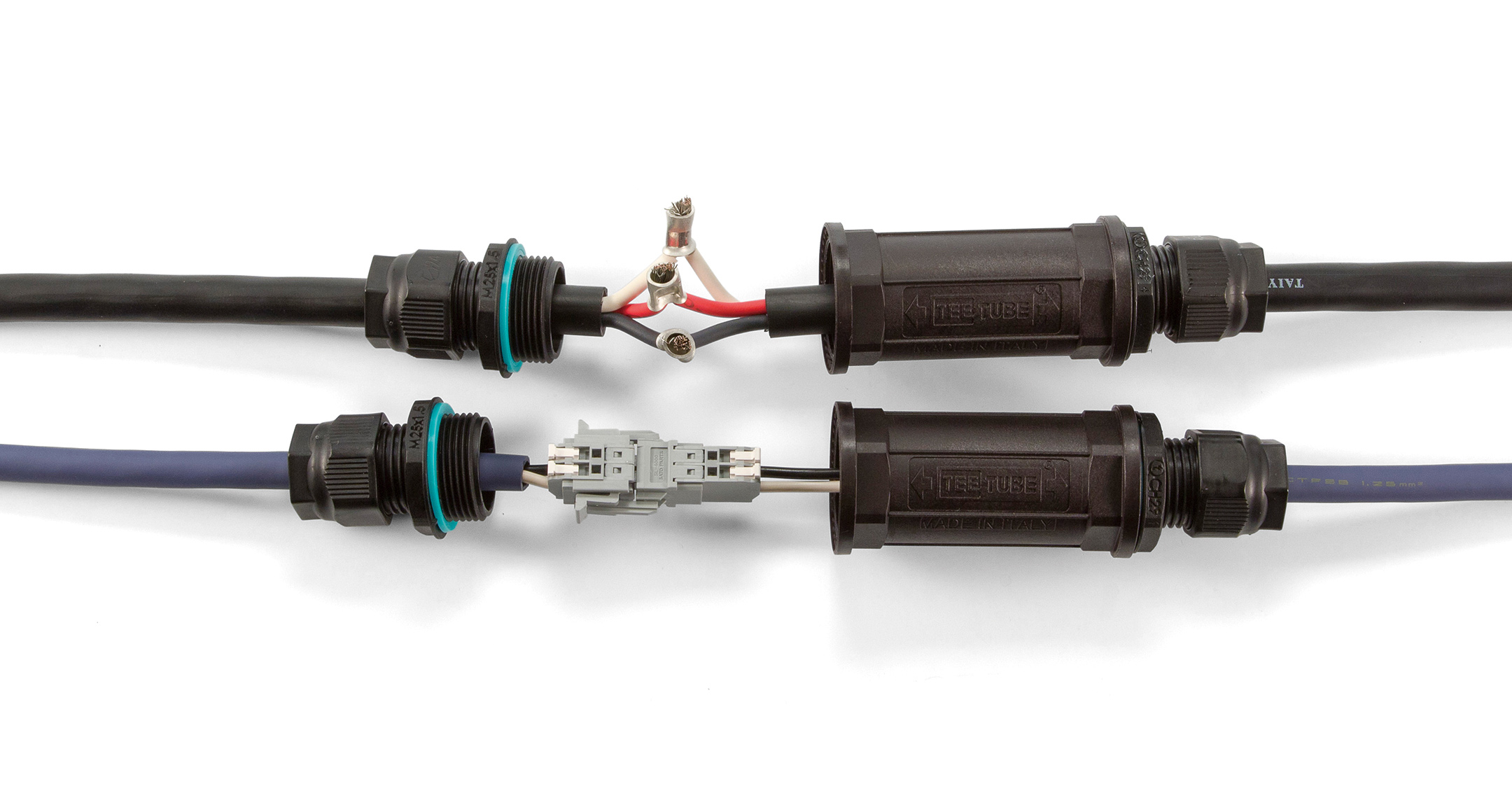

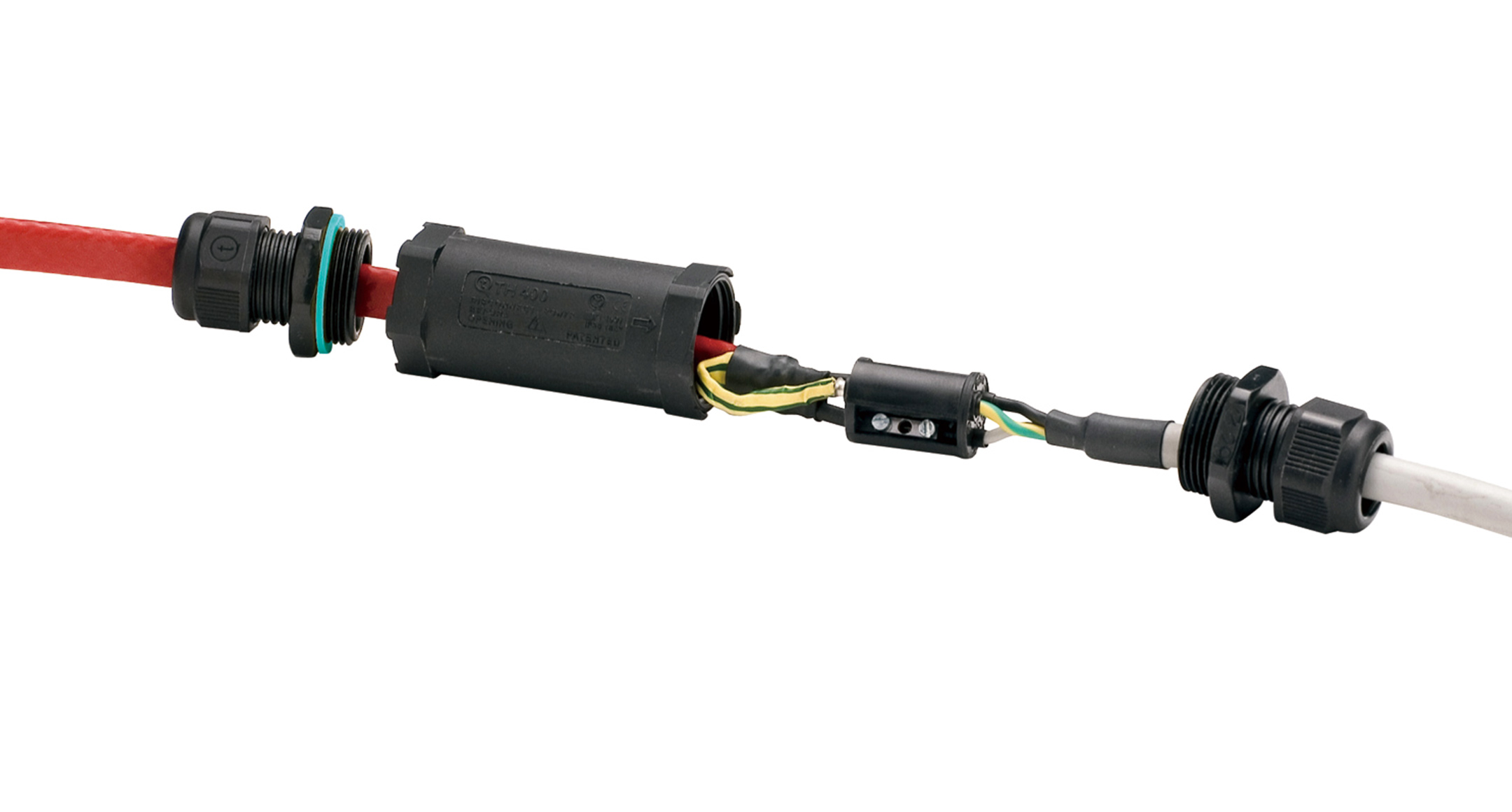

IP68 relay connector with screw type wiring connection for easy installation and removal.
3P, 6P, 2WP and 3WP pole models and no terminal model are available.
No terminal model can be used to protect the connector.

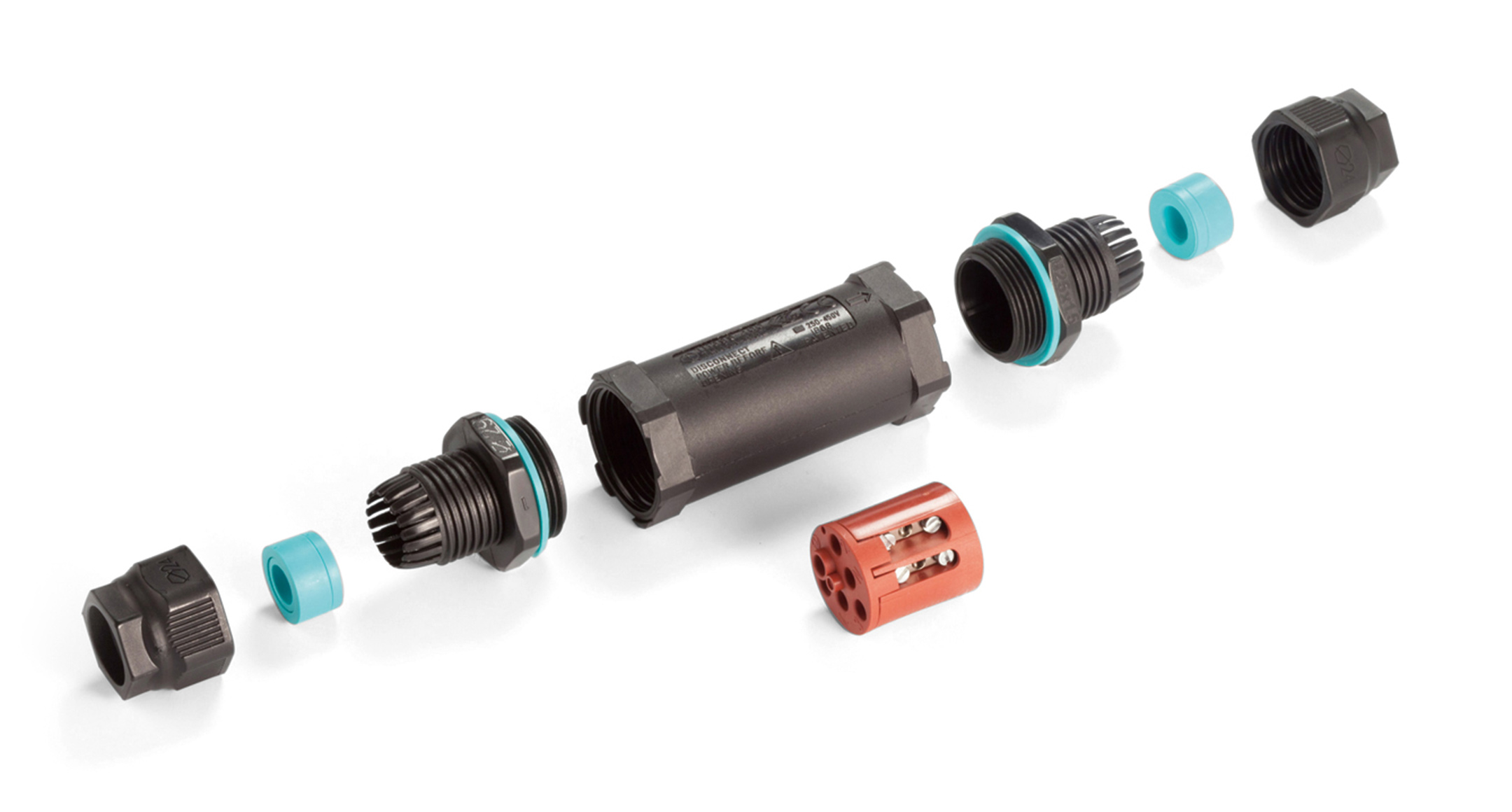

Possible to adopt wide cable range with the optional sealing insert.

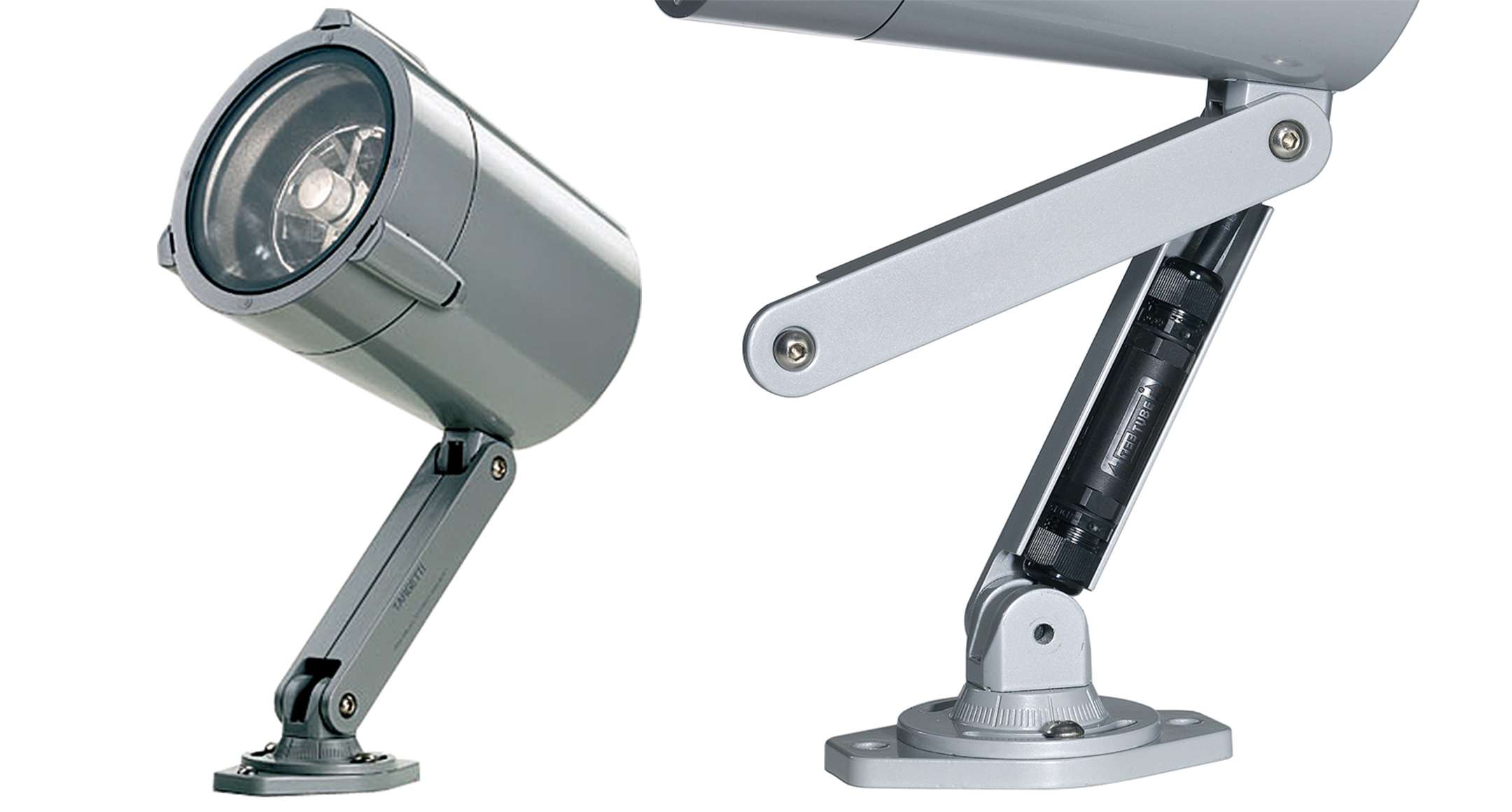

Suitable for use as power or sensor signal relay of ndustrial plant, machining instrument, outdoor LED lighting, underground wiring, marine equipment where waterproof is required.

Technical Data
Protection class : IP68 5bar/1h (1 hour / 50m depth)
Operating temperature : -40°C ~ +125°C
EN60529 : 1991＋A1：2000, EN60998-1：2004 and EN60998-2-1：2004 compliant

Specifications
3P・4P・6P models
Rated voltage : AC450V
Rated current：24A
Applicable wire : 0.5m㎡～2.5m㎡ (stranded)

2WP・3WP models : Two poles are divided into two. (Each is common.)
Rated voltage : AC250V
Rated current：32A
Applicable wire : 0.5m㎡～4.0m㎡ (stranded)

D4P model
Rated voltage : AC750V
Rated current：41A
Applicable wire : 2.5m㎡～6.0m㎡ (stranded)

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Cable range No. of poles Rated voltage Reted current Applicable wire Weight (g) PDF DXF DWG
THB390-3P-13 φ32×90mm φ7～13.5 3P AC450V 24A 0.5～2.5m㎡ (Stranded) 42.4 PDF DXF DWG
THB400-N-13 φ35×134mm φ7～13.5 None - - - 48.6 PDF DXF DWG
THB400-4P-13 φ35×134mm φ7～13.5 4P AC450V 24A 0.5～2.5m㎡ (Stranded) 61.8 PDF DXF DWG
THB400-6P-13 φ35×134mm φ7～13.5 6P AC450V 24A 0.5～2.5m㎡ (Stranded) 66 PDF DXF DWG
THB400-2WP-13 φ35×134mm φ7～13.5 2WP AC250V 32A 0.5～4.0m㎡ (Stranded) 63.2 PDF DXF DWG
THB400-3WP-13 φ35×134mm φ7～13.5 3WP AC250V 32A 0.5～4.0m㎡ (Stranded) 63.8 PDF DXF DWG
THB400-D4P-13 φ35×134mm φ7～13.5 Ｄ4P AC750V 41A 2.5～6.0m㎡ (Stranded) 79.4 PDF DXF DWG
THB400-D4P-15 φ37×134mm φ13.5～15.5 Ｄ4P AC750V 41A 2.5～6.0m㎡ (Stranded) 92.8 PDF DXF DWG
THB400-N-17 φ35×137mm φ8～17 None - - - 57.5 PDF DXF DWG
THB400-4P-17 φ35×137mm φ8～17 4P AC450V 24A 0.5～2.5m㎡ (Stranded) 70.7 PDF DXF DWG
THB400-6P-17 φ35×137mm φ8～17 6P AC450V 24A 0.5～2.5m㎡ (Stranded) 75 PDF DXF DWG
THB400-N-20 φ37×134mm φ16～20 None - - - 61.8 PDF DXF DWG
THB400-D4P-20 φ37×134mm φ16～20 Ｄ4P AC750V 41A 2.5～6.0m㎡ (Stranded) 93.1 PDF DXF DWG
