SEALING INSERT for THA・THB ・THS


60_THB400_bush Series -PDF

CATEGORY:Sealing inssert for THA209・THB387L・387LE・389・389E・390・399Y・400・402T・405・406,・THS389・389E, 2-hole sealing insert, 3-hole sealing insert

SEALING INSERT for THA・THB ・THS
SEALING INSERT for THA・THB ・THS
SEALING INSERT for THA・THB ・THS1
SEALING INSERT for THA・THB ・THS2
Optional sealing insert for THA209, THB387L, 387LE, 389, 389E, 390, 399Y, 400, 402T, 405, 406, THS389 and 389E.
*Not applicable to be used for THB381, 381E, 387, 387E, 391 and 392 series.

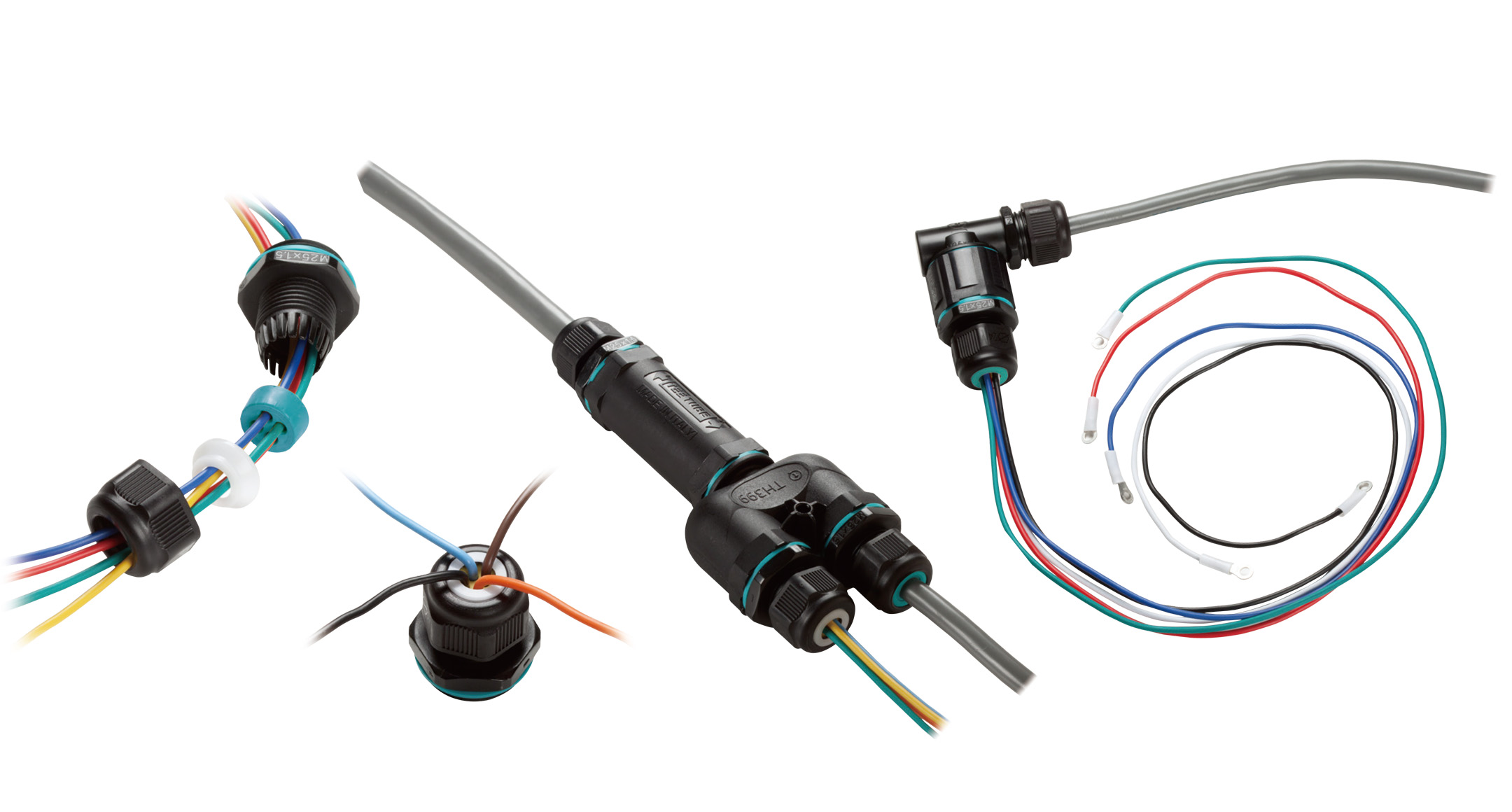

Recommended to be used to change the compatible wire diameter, or for installation of multiple wires.

6000087LF cap can be used to prevent the rubber bushing from protruding, as well as stabilizing the waterproof performance when using wire of diameter 7.0mm or smaller.

Material:TPE
Color:Green PANTONE 326C

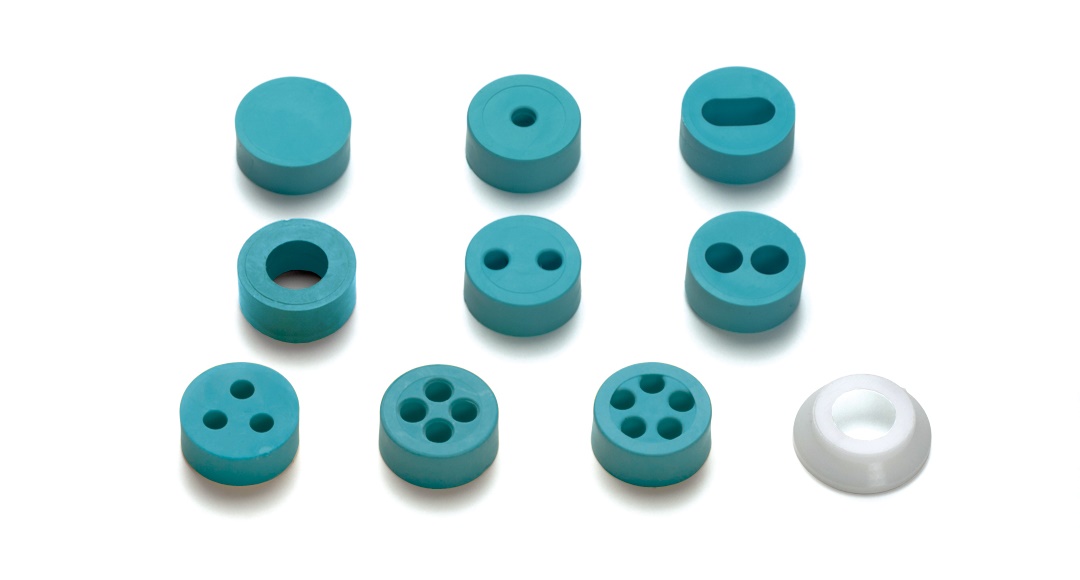

PRODUCT NO. / DIMENSIONS

Product No. Cable range Weight (g / 1 pcs) Pack of PDF DXF DWG
600013700 Blind insert without hole 2 10 pcs PDF DXF DWG
600012700 11㎜×5.5㎜ 1.1 10 pcs
600013600 φ2.0~φ4.0㎜ 2.6 10 sets PDF DXF DWG
600037000 φ4.0~φ6.5㎜ 2.5 10 sets PDF DXF DWG
604001100 φ5.5~φ9.5㎜ 2 10 sets PDF DXF DWG
600012500 φ2.0~φ4.0㎜ ×2 holes 2.5 10 sets PDF DXF DWG
600030600 φ4.5~φ6.0㎜ ×2 holes 2.6 10 pcs PDF DXF DWG
600012600 φ2.0~φ4.0㎜ ×3 holes 2 10 pcs
600018200 φ2.0~φ3.5㎜ ×4 holes 1.2 10 pcs
600022400 φ2.5~φ3.5㎜ ×5 holes 1.2 10 pcs
6000087LF Cap for cables sized φ7.0mm or smaller 0.5 10 pcs
