ADHESIVE PROTECTIVE VENT FILTER - VSC series


VE8 Series -PDF

CATEGORY:Adhesive vent, PTFE venting membrane, PTFE waterproof membrane vent

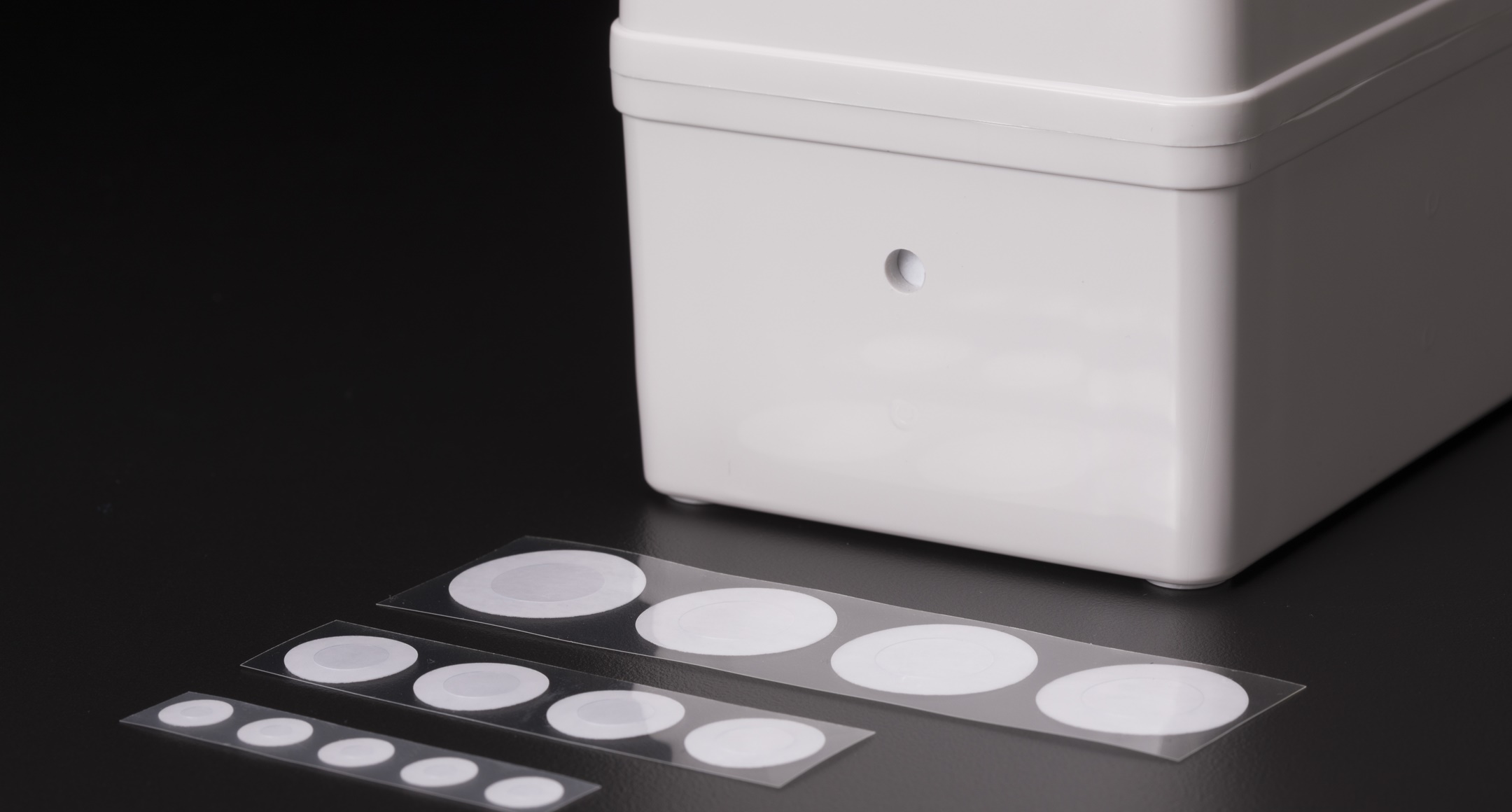

ADHESIVE PROTECTIVE VENT FILTER - VSC series
ADHESIVE PROTECTIVE VENT FILTER - VSC series1
Adhesive type vent filter sheet.
Prevents ingression of a variety of contaminants, such as water, dust and other particles.
Allows water vapor molecules to diffuse through the microporous membrane.
Recommended to be adhered onto flat plastic or metallic surfaces.

Surface must be wiped dry before adhering.
An initial period of a few hours is required for the adhesive to properly bond to the surface.
Please do not adhere onto the top-side of enclosures. Rain water etc. will collect on the filter, which will weaken the adhesive seal and prevent ventilation.

Protection class : Solid IP6X / Liquid IPX4, IPX7
Airflow: 3,300ml/cm2 ・ min at 7Kpa
Operating temperature: -40°C ~ +100°C

3 different sizes from φ7.6, φ14 and φ21.5mm are available.

PRODUCT NO. / DIMENSIONS

Product No. Outer diameter Filter effective diameter Thickness (mm) Sales unit PDF DXF DWG
VE80308 φ7.6 φ3.3 0.26 8pcs / pack
VE80814 φ14 φ8.0 0.26 4pcs / pack
VE81221 φ21.5 φ12.5 0.26 4pcs / pack
VE82029S φ29.0 φ20.0 0.35 2 pcs / pack
VE80308-S φ7.6 φ3.3 0.26 96pcs / sheet
VE80814-S φ14 φ8.0 0.26 56pcs / sheet
VE81221-S φ21.5 φ12.5 0.26 20pcs / sheet
VE82029S-S φ29.0 φ20.0 0.35 10pcs / sheet
