CATEGORY：Carrying case, Aluminium enclosure with handle, Portable box, Control box

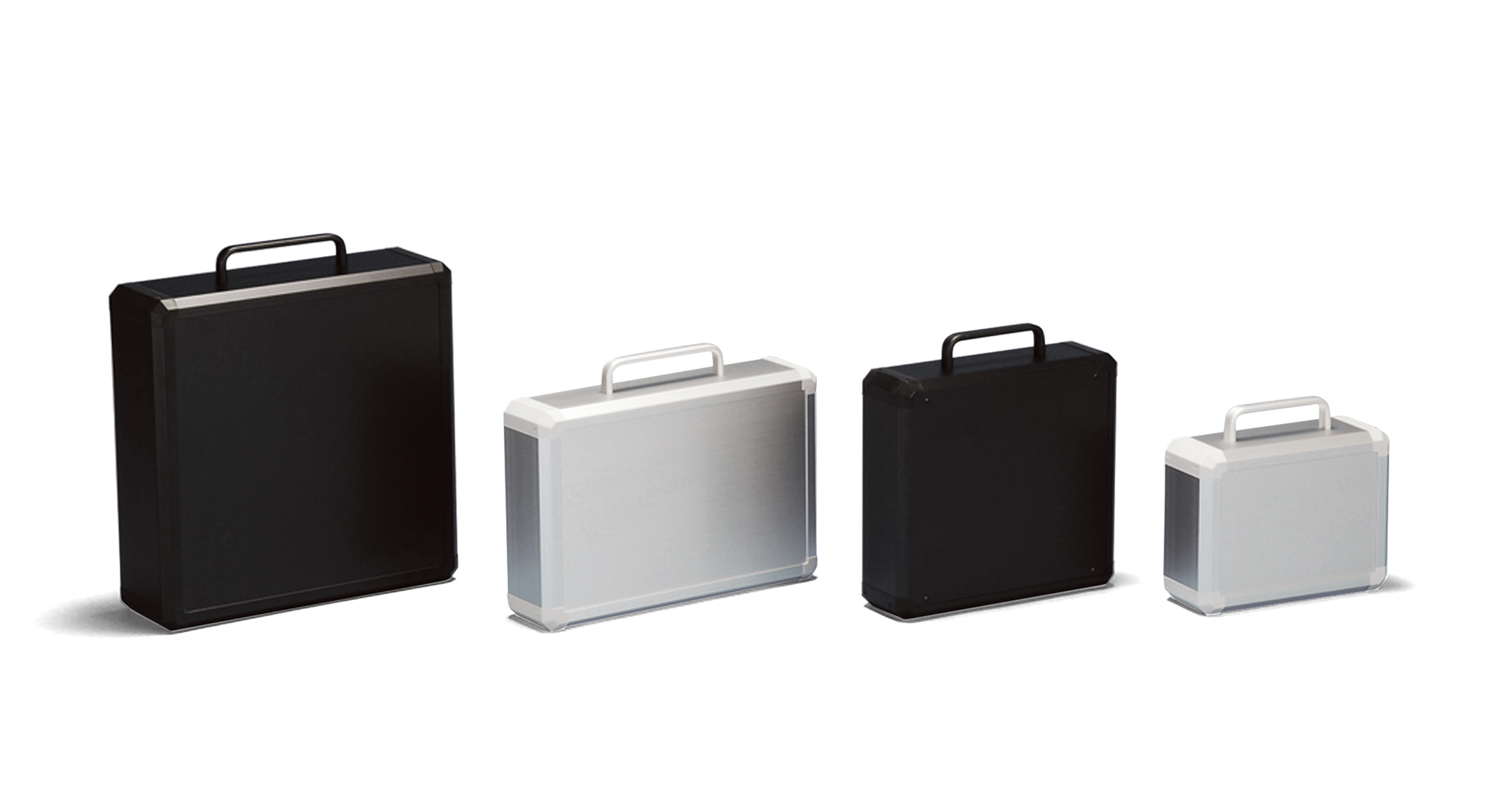

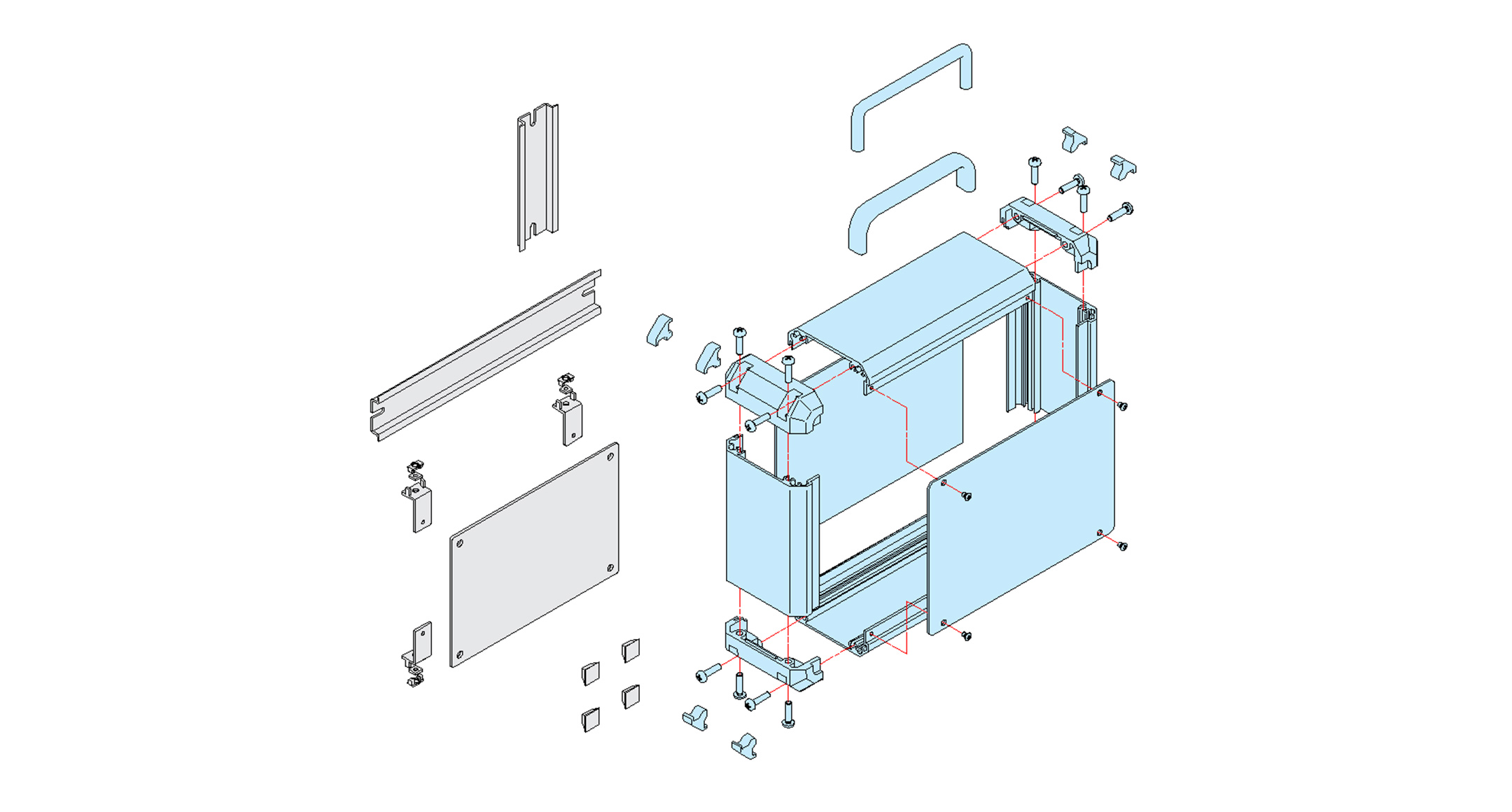

Stylish aluminium carrying case designed with beveled edges, composed of extruded aluminium frames, aluminium panels and ABS corner joints.
Equipped with an aluminium carrying handle for mobile use.
Comes with a 25kg maximum load carrying handle attachment.
23 different sizes in GS and BB, 2 color types are available.
Discontinued product notice
This product will be discontinued at the end of 2025.
Remaining inventory will be available for purchase in 2026 until sold out.
See AUGH series for replacement product.
Equipped with an aluminium carrying handle for mobile use.
Comes with a 25kg maximum load carrying handle attachment.
23 different sizes in GS and BB, 2 color types are available.
Discontinued product notice
This product will be discontinued at the end of 2025.
Remaining inventory will be available for purchase in 2026 until sold out.
See AUGH series for replacement product.
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal dimensions | Weight (g) | Inventory status | DXF | DWG | STP | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | |||||||
| FCH8-20-15GS | 200 | 75.4 | 150 | 154 | 69 | 104 | 650 | Discontinued / Sold-out. | DXF | DWG | ||
| FCH8-20-15BB | 200 | 75.4 | 150 | 154 | 69 | 104 | 650 | Limited inventory. | DXF | DWG | ||
| FCH8-20-20GS | 200 | 75.4 | 200 | 154 | 69 | 154 | 790 | Discontinued / Sold-out. | DXF | DWG | ||
| FCH8-20-20BB | 200 | 75.4 | 200 | 154 | 69 | 154 | 790 | Limited inventory. | DXF | DWG | ||
| FCH8-25-15GS | 250 | 75.4 | 150 | 204 | 69 | 104 | 770 | Discontinued / Sold-out. | DXF | DWG | ||
| FCH8-25-15BB | 250 | 75.4 | 150 | 204 | 69 | 104 | 770 | Discontinued / Sold-out. | DXF | DWG | ||
| FCH8-25-20GS | 250 | 75.4 | 200 | 204 | 69 | 154 | 930 | Discontinued / Sold-out. | DXF | DWG | ||
| FCH8-25-20BB | 250 | 75.4 | 200 | 204 | 69 | 154 | 930 | Discontinued / Sold-out. | DXF | DWG | ||
| FCH8-25-25GS | 250 | 75.4 | 250 | 204 | 69 | 204 | 1100 | Discontinued / Sold-out. | DXF | DWG | ||
| FCH8-25-25BB | 250 | 75.4 | 250 | 204 | 69 | 204 | 1100 | Discontinued / Sold-out. | DXF | DWG | ||
| FCH8-30-20GS | 300 | 75.4 | 200 | 254 | 69 | 154 | 1070 | Discontinued / Sold-out. | DXF | DWG | ||
| FCH8-30-20BB | 300 | 75.4 | 200 | 254 | 69 | 154 | 1070 | Limited inventory. | DXF | DWG | ||
| FCH8-30-25GS | 300 | 75.4 | 250 | 254 | 69 | 204 | 1260 | Discontinued / Sold-out. | DXF | DWG | ||
| FCH8-30-25BB | 300 | 75.4 | 250 | 254 | 69 | 204 | 1260 | Limited inventory. | DXF | DWG | ||
| FCH8-30-30GS | 300 | 75.4 | 300 | 254 | 69 | 254 | 1450 | Discontinued / Sold-out. | DXF | DWG | ||
| FCH8-30-30BB | 300 | 75.4 | 300 | 254 | 69 | 254 | 1450 | Limited inventory. | DXF | DWG | ||
| FCH8-35-20GS | 350 | 75.4 | 200 | 304 | 69 | 154 | 1220 | Limited inventory. | DXF | DWG | ||
| FCH8-35-20BB | 350 | 75.4 | 200 | 304 | 69 | 154 | 1220 | Limited inventory. | DXF | DWG | ||
| FCH8-35-25GS | 350 | 75.4 | 250 | 304 | 69 | 204 | 1420 | Limited inventory. | DXF | DWG | ||
| FCH8-35-25BB | 350 | 75.4 | 250 | 304 | 69 | 204 | 1420 | Limited inventory. | DXF | DWG | ||
| FCH8-35-30GS | 350 | 75.4 | 300 | 304 | 69 | 254 | 1540 | Limited inventory. | DXF | DWG | ||
| FCH8-35-30BB | 350 | 75.4 | 300 | 304 | 69 | 254 | 1540 | Limited inventory. | DXF | DWG | ||
| FCH8-40-25GS | 400 | 75.4 | 250 | 354 | 69 | 204 | 1490 | Limited inventory. | DXF | DWG | ||
| FCH8-40-25BB | 400 | 75.4 | 250 | 354 | 69 | 204 | 1490 | Limited inventory. | DXF | DWG | ||
| FCH8-40-30GS | 400 | 75.4 | 300 | 354 | 69 | 254 | 1810 | Limited inventory. | DXF | DWG | ||
| FCH8-40-30BB | 400 | 75.4 | 300 | 354 | 69 | 254 | 1810 | Limited inventory. | DXF | DWG | ||
| FCH8-40-40GS | 400 | 75.4 | 400 | 354 | 69 | 354 | 2270 | Limited inventory. | DXF | DWG | ||
| FCH8-40-40BB | 400 | 75.4 | 400 | 354 | 69 | 354 | 2270 | Limited inventory. | DXF | DWG | ||
| FCH10-30-20GS | 300 | 100.4 | 200 | 254 | 94 | 154 | 1190 | Discontinued / Sold-out. | DXF | DWG | ||
| FCH10-30-20BB | 300 | 100.4 | 200 | 254 | 94 | 154 | 1190 | Limited inventory. | DXF | DWG | ||
| FCH10-30-25GS | 300 | 100.4 | 250 | 254 | 94 | 204 | 1390 | Discontinued / Sold-out. | DXF | DWG | ||
| FCH10-30-25BB | 300 | 100.4 | 250 | 254 | 94 | 204 | 1390 | Limited inventory. | DXF | DWG | ||
| FCH10-30-30GS | 300 | 100.4 | 300 | 254 | 94 | 254 | 1600 | Discontinued / Sold-out. | DXF | DWG | ||
| FCH10-30-30BB | 300 | 100.4 | 300 | 254 | 94 | 254 | 1600 | Limited inventory. | DXF | DWG | ||
| FCH10-35-20GS | 350 | 100.4 | 200 | 304 | 94 | 154 | 1350 | Limited inventory. | DXF | DWG | ||
| FCH10-35-20BB | 350 | 100.4 | 200 | 304 | 94 | 154 | 1350 | Limited inventory. | DXF | DWG | ||
| FCH10-35-25GS | 350 | 100.4 | 250 | 304 | 94 | 204 | 1570 | Limited inventory. | DXF | DWG | ||
| FCH10-35-25BB | 350 | 100.4 | 250 | 304 | 94 | 204 | 1570 | Limited inventory. | DXF | DWG | ||
| FCH10-35-30GS | 350 | 100.4 | 300 | 304 | 94 | 254 | 1800 | Limited inventory. | DXF | DWG | ||
| FCH10-35-30BB | 350 | 100.4 | 300 | 304 | 94 | 254 | 1800 | Limited inventory. | DXF | DWG | ||
| FCH10-40-25GS | 400 | 100.4 | 250 | 354 | 94 | 204 | 1750 | Limited inventory. | DXF | DWG | ||
| FCH10-40-25BB | 400 | 100.4 | 250 | 354 | 94 | 204 | 1750 | Limited inventory. | DXF | DWG | ||
| FCH10-40-30GS | 400 | 100.4 | 300 | 354 | 94 | 254 | 1990 | Limited inventory. | DXF | DWG | ||
| FCH10-40-30BB | 400 | 100.4 | 300 | 354 | 94 | 254 | 1990 | Limited inventory. | DXF | DWG | ||
| FCH10-40-40GS | 400 | 100.4 | 400 | 354 | 94 | 354 | 2480 | Limited inventory. | DXF | DWG | ||
| FCH10-40-40BB | 400 | 100.4 | 400 | 354 | 94 | 354 | 2480 | Limited inventory. | DXF | DWG | ||

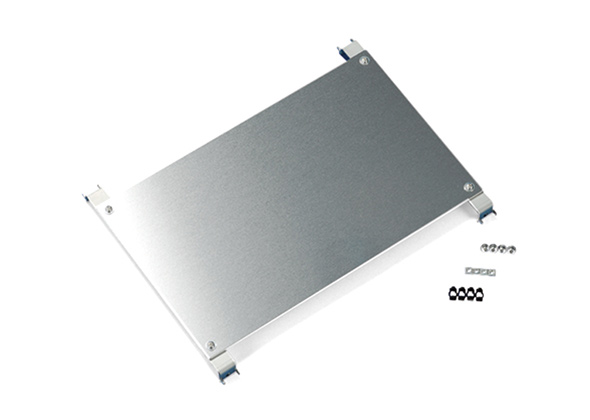

| Mounting plate(Option) | DXF | DWG | STP | |
|---|---|---|---|---|
| FCC20-15-1 | DXF | DWG | ||
| FCC20-15-1 | DXF | DWG | ||
| FCC20-20-1 | DXF | DWG | ||
| FCC20-20-1 | DXF | DWG | ||
| FCC25-15-1 | DXF | DWG | ||
| FCC25-15-1 | DXF | DWG | ||
| FCC25-20-1 | DXF | DWG | ||
| FCC25-20-1 | DXF | DWG | ||
| FCC25-25-1 | DXF | DWG | ||
| FCC25-25-1 | DXF | DWG | ||
| FCC30-20-1 | DXF | DWG | ||
| FCC30-20-1 | DXF | DWG | ||
| FCC30-25-1 | DXF | DWG | ||
| FCC30-25-1 | DXF | DWG | ||
| FCC30-30-1 | DXF | DWG | ||
| FCC30-30-1 | DXF | DWG | ||
| FCC35-20-1 | DXF | DWG | ||
| FCC35-20-1 | DXF | DWG | ||
| FCC35-25-1 | DXF | DWG | ||
| FCC35-25-1 | DXF | DWG | ||
| FCC35-30-1 | DXF | DWG | ||
| FCC35-30-1 | DXF | DWG | ||
| FCC40-25-1 | DXF | DWG | ||
| FCC40-25-1 | DXF | DWG | ||
| FCC40-30-1 | DXF | DWG | ||
| FCC40-30-1 | DXF | DWG | ||
| FCC40-40-1 | DXF | DWG | ||
| FCC40-40-1 | DXF | DWG | ||
| FCC30-20-1 | DXF | DWG | ||
| FCC30-20-1 | DXF | DWG | ||
| FCC30-25-1 | DXF | DWG | ||
| FCC30-25-1 | DXF | DWG | ||
| FCC30-30-1 | DXF | DWG | ||
| FCC30-30-1 | DXF | DWG | ||
| FCC35-20-1 | DXF | DWG | ||
| FCC35-20-1 | DXF | DWG | ||
| FCC35-25-1 | DXF | DWG | ||
| FCC35-25-1 | DXF | DWG | ||
| FCC35-30-1 | DXF | DWG | ||
| FCC35-30-1 | DXF | DWG | ||
| FCC40-25-1 | DXF | DWG | ||
| FCC40-25-1 | DXF | DWG | ||
| FCC40-30-1 | DXF | DWG | ||
| FCC40-30-1 | DXF | DWG | ||
| FCC40-40-1 | DXF | DWG | ||
| FCC40-40-1 | DXF | DWG |
