MOUNTING BRACKET for FC・FCW - FCK series


FCK Series -PDF

CATEGORY：Mount bracket, Mounting bracket, PCB bracket

MOUNTING BRACKET for FC・FCW - FCK series
MOUNTING BRACKET for FC・FCW - FCK series1

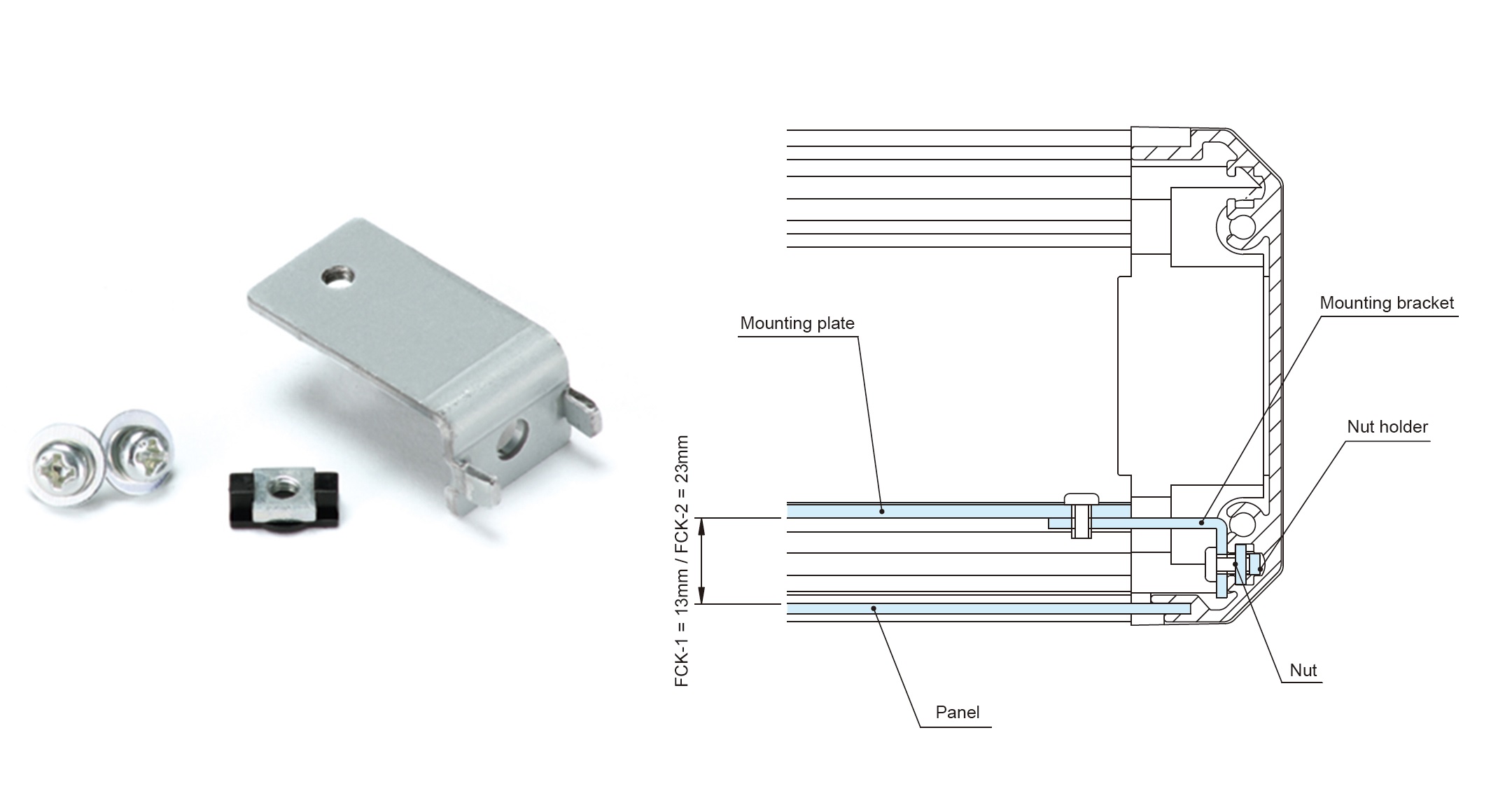

2 mounting brackets for PCB or DIN Rail.
2 different height versions, 12mm and 22mmm are available.

Sold in 10 pcs pack.

FCK mounting brackets come with FCC mounting plate.
Additional FCK is not necessary when purchasing FCC series.

PRODUCT NO. / DIMENSIONS

Product No. Ｈ (mm) Weight (g) / 1pcs Pack of PDF DXF DWG
FCK-1 12 8.3 10 pcs PDF DXF DWG
FCK-2 22 10.1 10 pcs PDF DXF DWG
