IP68 waterproof and heat dissipation enclosure design.
Selectable in both Normal or EMC Shielded type.
The extruded aluminum frame and diecast aluminum panels makes it extremely suitable to be used in harsh environments where waterproofing and heat dissipation is essential.

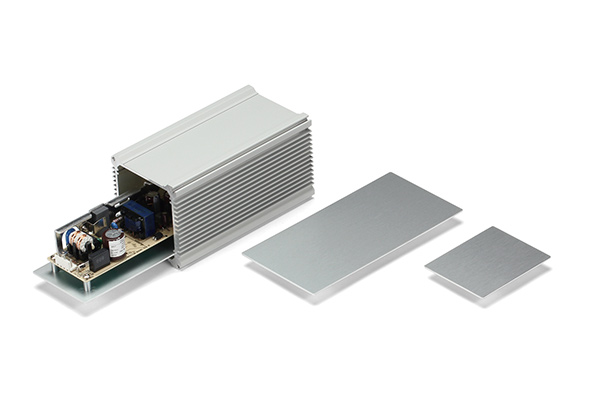

PCB or chassis can be mounted by sliding it horizontally into inner-grooved body frame.
Suitable for measuring instruments, industrial control boxes, industrial camera housings, and other applications.

Protection class : IP68 (24 hours / 1m depth)
Operating temperature : -40℃ ~ +105℃

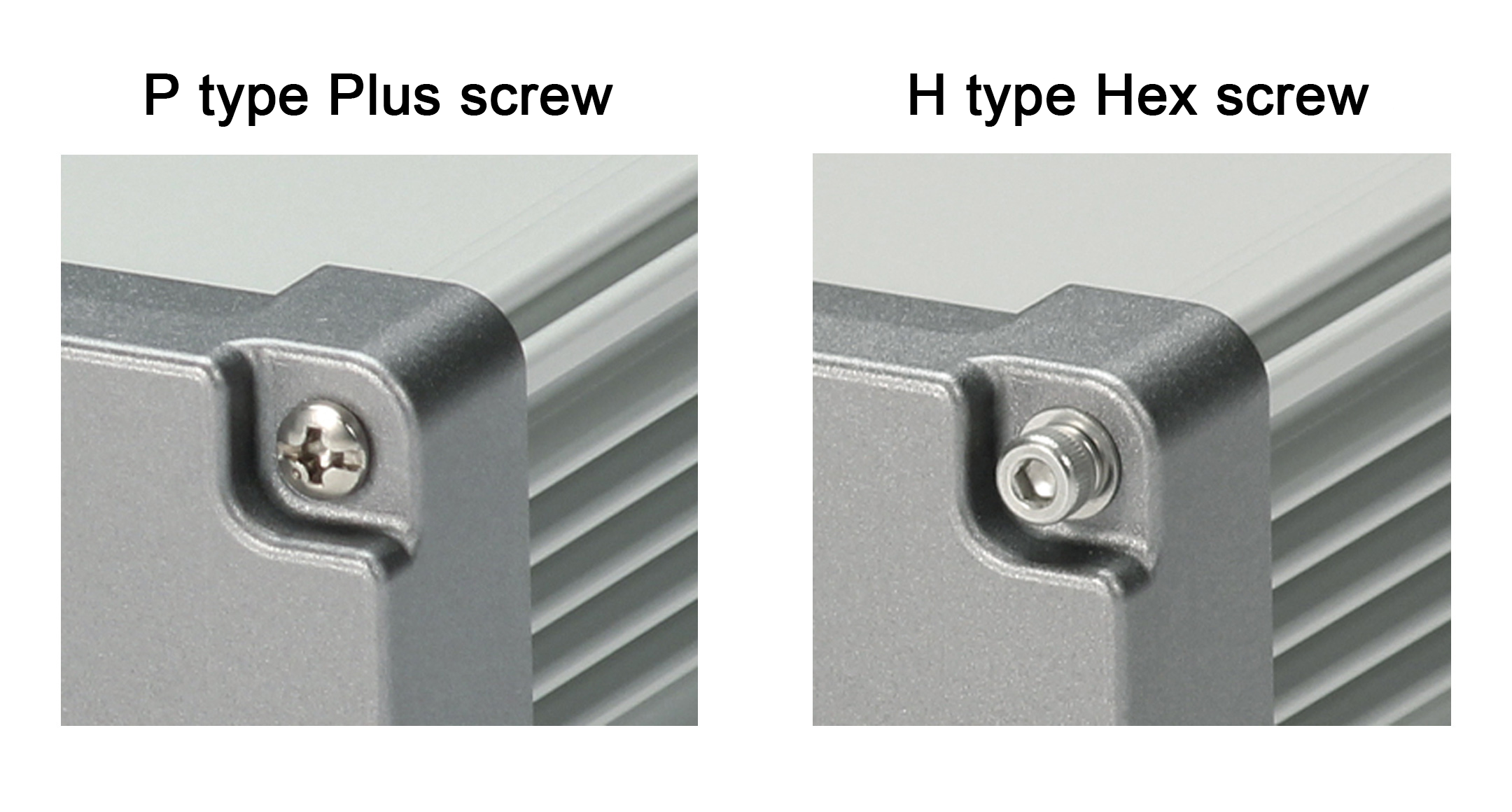

Recommended torque : 1.0N・m (10kgf・cm)


Custom length is available.
↓See AWNS series page for the custom length (depth) order from 50～700mm in 1mm intervals.
CUSTOM LENGTH ENCLOSURE - AWNS series  3D View (Silver & Gray)  3D View (Black)  3D View (Silver & Black)  3D View - 4 color types  Exploded view  IP68 Test Certificate 

COLOR TYPE

GSMetallic gray/Silver

IP68 HEATSINK ALUMINUM ENCLOSURE - AWN series:Metallic gray/Silver

SSSilver/Silver

IP68 HEATSINK ALUMINUM ENCLOSURE - AWN series:Silver/Silver

BSBlack/Silver

IP68 HEATSINK ALUMINUM ENCLOSURE - AWN series:Black/Silver

BBBlack/Black

IP68 HEATSINK ALUMINUM ENCLOSURE - AWN series:Black/Black
IP68 HEATSINK ALUMINUM ENCLOSURE - AWN series:Metallic gray/Silver
IP68 HEATSINK ALUMINUM ENCLOSURE - AWN series:Silver/Silver
IP68 HEATSINK ALUMINUM ENCLOSURE - AWN series:Black/Silver
IP68 HEATSINK ALUMINUM ENCLOSURE - AWN series:Black/Black

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Type Weight (g) PDF DXF DWG STP
W H D w h d
AWN5-4-7N□ 54.6 34.6 65 31.2 14.7 60.4 Normal 118.5 PDF DXF DWG
AWN5-4-9N□ 54.6 34.6 85 31.2 14.7 80.4 Normal 139 PDF DXF DWG
AWN5-4-11N□ 54.6 34.6 110 31.2 14.7 105.4 Normal 165 PDF DXF DWG
AWN5-4-14N□ 54.6 34.6 135 31.2 14.7 130.4 Normal 191.5 PDF DXF DWG
AWN7-7-8N□ 65.8 65.8 80 40.8 30.8 75 Normal 272.5 PDF DXF DWG
AWN7-7-11N□ 65.8 65.8 110 40.8 30.8 105 Normal 328 PDF DXF DWG
AWN7-7-15N□ 65.8 65.8 150 40.8 30.8 145 Normal 402.5 PDF DXF DWG
AWN7-7-20N□ 65.8 65.8 200 40.8 30.8 195 Normal 495 PDF DXF DWG
AWN7-7-25N□ 65.8 65.8 250 40.8 30.8 245 Normal 588 PDF DXF DWG
AWN8-5-9N□ 80.8 45.8 90 41.8 24.8 85 Normal 259.5 PDF DXF DWG
AWN8-5-12N□ 80.8 45.8 115 41.8 24.8 110 Normal 300.5 PDF DXF DWG
AWN8-5-14N□ 80.8 45.8 140 41.8 24.8 135 Normal 342 PDF DXF DWG
AWN8-5-18N□ 80.8 45.8 175 41.8 24.8 170 Normal 399.5 PDF DXF DWG
AWN9-9-10N□ 86.3 86.3 100 44.8 59.4 94 Normal 521.5 PDF DXF DWG
AWN9-9-13N□ 86.3 86.3 125 44.8 59.4 119 Normal 594.5 PDF DXF DWG
AWN9-9-17N□ 86.3 86.3 170 44.8 59.4 164 Normal 725.5 PDF DXF DWG
AWN9-9-22N□ 86.3 86.3 220 44.8 59.4 214 Normal 871.5 PDF DXF DWG
AWN9-9-28N□ 86.3 86.3 275 44.8 59.4 269 Normal 1032 PDF DXF DWG
AWN11-6-11N□ 106.3 56.3 110 64.3 28.7 104 Normal 479.5 PDF DXF DWG
AWN11-6-15N□ 106.3 56.3 150 64.3 28.7 144 Normal 578 PDF DXF DWG
AWN11-6-19N□ 106.3 56.3 190 64.3 28.7 184 Normal 676.5 PDF DXF DWG
AWN11-6-24N□ 106.3 56.3 240 64.3 28.7 234 Normal 800 PDF DXF DWG
AWN12-8-11N□ 120 71.3 105 77.9 43.7 99 Normal 590.5 PDF DXF DWG
AWN12-8-14N□ 120 71.3 140 77.9 43.7 134 Normal 696.5 PDF DXF DWG
AWN12-8-17N□ 120 71.3 179.5 77.9 43.7 173.5 Normal 816 PDF DXF DWG
AWN12-8-22N□ 120 71.3 215 77.9 43.7 209 Normal 923.5 PDF DXF DWG
AWN16-9-14N□ 156.3 81.3 135 114.8 54.4 129 Normal 871.5 PDF DXF DWG
AWN16-9-18N□ 156.3 81.3 175 114.8 54.4 169 Normal 1018.5 PDF DXF DWG
AWN16-9-23N□ 156.3 81.3 225 114.8 54.4 219 Normal 1201.5 PDF DXF DWG
AWN16-9-28N□ 156.3 81.3 275 114.8 54.4 269 Normal 1385 PDF DXF DWG
AWN21-9-17N□ 206.3 81.3 170 164.7 54.4 164 Normal 1261 PDF DXF DWG
AWN21-9-21N□ 206.3 81.3 210 164.7 54.4 204 Normal 1431.5 PDF DXF DWG
AWN21-9-26N□ 206.3 81.3 260 164.7 54.4 254 Normal 1644.5 PDF DXF DWG
AWN21-9-31N□ 206.3 81.3 310 164.7 54.4 304 Normal 1857.5 PDF DXF DWG
AWN5-4-7E□ 54.6 34.6 65 31.2 14.7 60.4 Shielded 118.5 PDF DXF DWG
AWN5-4-9E□ 54.6 34.6 85 31.2 14.7 80.4 Shielded 139 PDF DXF DWG
AWN5-4-11E□ 54.6 34.6 110 31.2 14.7 105.4 Shielded 165 PDF DXF DWG
AWN5-4-14E□ 54.6 34.6 135 31.2 14.7 130.4 Shielded 191.5 PDF DXF DWG
AWN7-7-8E□ 65.8 65.8 80 40.8 30.8 75 Shielded 272.5 PDF DXF DWG
AWN7-7-11E□ 65.8 65.8 110 40.8 30.8 105 Shielded 328 PDF DXF DWG
AWN7-7-15E□ 65.8 65.8 150 40.8 30.8 145 Shielded 402.5 PDF DXF DWG
AWN7-7-20E□ 65.8 65.8 200 40.8 30.8 195 Shielded 495 PDF DXF DWG
AWN7-7-25E□ 65.8 65.8 250 40.8 30.8 245 Shielded 588 PDF DXF DWG
AWN8-5-9E□ 80.8 45.8 90 41.8 24.8 85 Shielded 259.5 PDF DXF DWG
AWN8-5-12E□ 80.8 45.8 115 41.8 24.8 110 Shielded 300.5 PDF DXF DWG
AWN8-5-14E□ 80.8 45.8 140 41.8 24.8 135 Shielded 342 PDF DXF DWG
AWN8-5-18E□ 80.8 45.8 175 41.8 24.8 170 Shielded 399.5 PDF DXF DWG
AWN9-9-10E□ 86.3 86.3 100 44.8 59.4 94 Shielded 521.5 PDF DXF DWG
AWN9-9-13E□ 86.3 86.3 125 44.8 59.4 119 Shielded 594.5 PDF DXF DWG
AWN9-9-17E□ 86.3 86.3 170 44.8 59.4 164 Shielded 725.5 PDF DXF DWG
AWN9-9-22E□ 86.3 86.3 220 44.8 59.4 214 Shielded 871.5 PDF DXF DWG
AWN9-9-28E□ 86.3 86.3 275 44.8 59.4 269 Shielded 1032 PDF DXF DWG
AWN11-6-11E□ 106.3 56.3 110 64.3 28.7 104 Shielded 479.5 PDF DXF DWG
AWN11-6-15E□ 106.3 56.3 150 64.3 28.7 144 Shielded 578 PDF DXF DWG
AWN11-6-19E□ 106.3 56.3 190 64.3 28.7 184 Shielded 676.5 PDF DXF DWG
AWN11-6-24E□ 106.3 56.3 240 64.3 28.7 234 Shielded 800 PDF DXF DWG
AWN12-8-11E□ 120 71.3 105 77.9 43.7 99 Shielded 590.5 PDF DXF DWG
AWN12-8-14E□ 120 71.3 140 77.9 43.7 134 Shielded 696.5 PDF DXF DWG
AWN12-8-17E□ 120 71.3 179.5 77.9 43.7 173.5 Shielded 816 PDF DXF DWG
AWN12-8-22E□ 120 71.3 215 77.9 43.7 209 Shielded 923.5 PDF DXF DWG
AWN16-9-14E□ 156.3 81.3 135 114.8 54.4 129 Shielded 871.5 PDF DXF DWG
AWN16-9-18E□ 156.3 81.3 175 114.8 54.4 169 Shielded 1018.5 PDF DXF DWG
AWN16-9-23E□ 156.3 81.3 225 114.8 54.4 219 Shielded 1201.5 PDF DXF DWG
AWN16-9-28E□ 156.3 81.3 275 114.8 54.4 269 Shielded 1385 PDF DXF DWG
AWN21-9-17E□ 206.3 81.3 170 164.7 54.4 164 Shielded 1261 PDF DXF DWG
AWN21-9-21E□ 206.3 81.3 210 164.7 54.4 204 Shielded 1431.5 PDF DXF DWG
AWN21-9-26E□ 206.3 81.3 260 164.7 54.4 254 Shielded 1644.5 PDF DXF DWG
AWN21-9-31E□ 206.3 81.3 310 164.7 54.4 304 Shielded 1857.5 PDF DXF DWG
