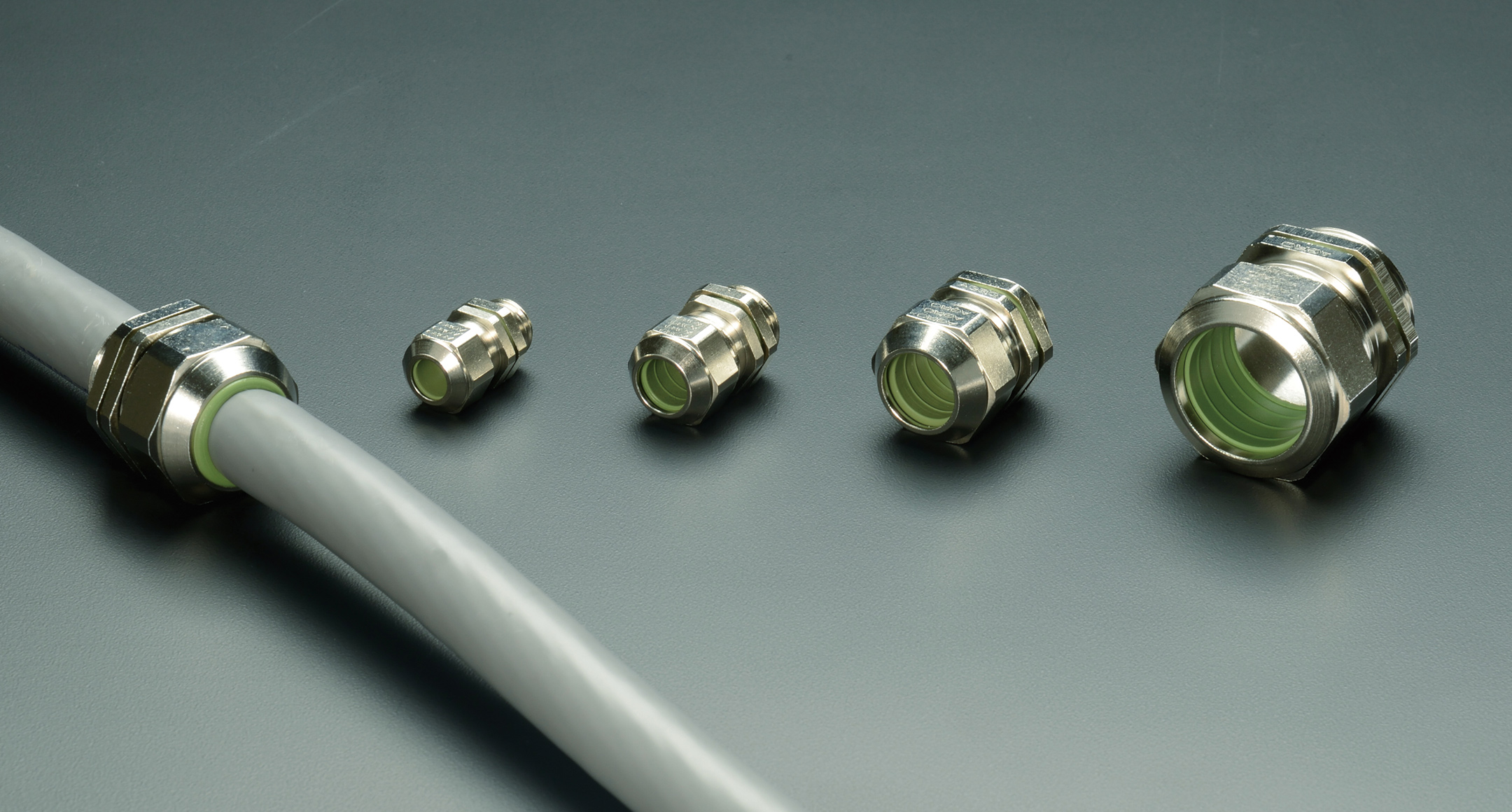

HEAT RESISTANT CABLE GLAND - AGH series


AGH Series -PDF

CATEGORY：Heat resistance 200℃ cable gland, Metal cable gland, IP68 cable gland

HEAT RESISTANT CABLE GLAND - AGH series
HEAT RESISTANT CABLE GLAND - AGH series
HEAT RESISTANT CABLE GLAND - AGH series
HEAT RESISTANT CABLE GLAND - AGH series
HEAT RESISTANT CABLE GLAND - AGH series1
HEAT RESISTANT CABLE GLAND - AGH series2
HEAT RESISTANT CABLE GLAND - AGH series3
HEAT RESISTANT CABLE GLAND - AGH series4

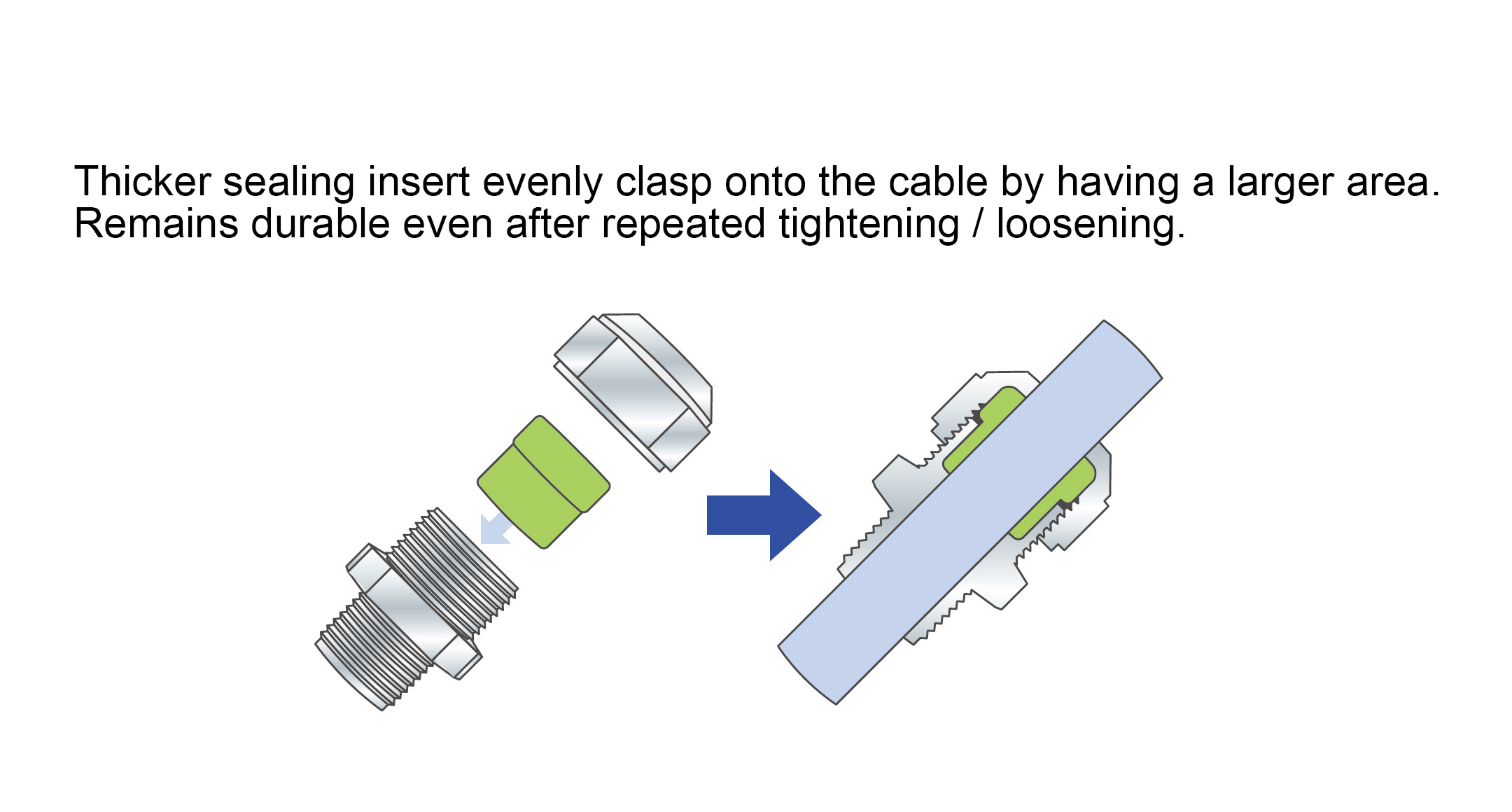

Heat resistant sealing insert made of FPM material. Resistant up to 200℃
IP68 1bar / 30min high performance waterproof cable gland.


Protection class : IP68 1bar / 30min
10m depth immersion in 30 minutes
Operating temperature : -40℃ ~ +200℃
Compliant with EN50262 Var. A
Recommended Torque REFERENCE TABLE 

PRODUCT NO. / DIMENSIONS

Product No. Thread size Mounting hole Cable range Weight (g) Pack of PDF DXF DWG
AGH10-6 M10×1.5 φ10.2 φ4.0 - 6.0 mm 12.1 1 pcs PDF DXF DWG
AGH12-8 M12×1.5 φ12.2 φ6.5 - 8.0 mm 15.5 1 pcs PDF DXF DWG
AGH16-10.5 M16×1.5 φ16.2 φ8.0 - 10.5 mm 23.6 1 pcs PDF DXF DWG
AGH20-15 M20×1.5 φ20.2 φ11.0 - 15.0 mm 39.6 1 pcs PDF DXF DWG
AGH25-20 M25×1.5 φ25.2 φ16.0 - 20.0 mm 69.1 1 pcs PDF DXF DWG
AGH32-25.5 M32×1.5 φ32.3 φ21.0 - 25.5 mm 104.1 1 pcs PDF DXF DWG
