MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series


TW Series -PDF

CATEGORY:PCB enclosure, Plastic project box, Universal plastic enclosure, ABS enclosure, Multi purpose enclosure, DIY plastic case

MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series
MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series
MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series
MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series
MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series
MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series
MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series
MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series
MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series
MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series
MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series
MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series
MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series
MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series
MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series
MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series
MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series
MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series
MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series1

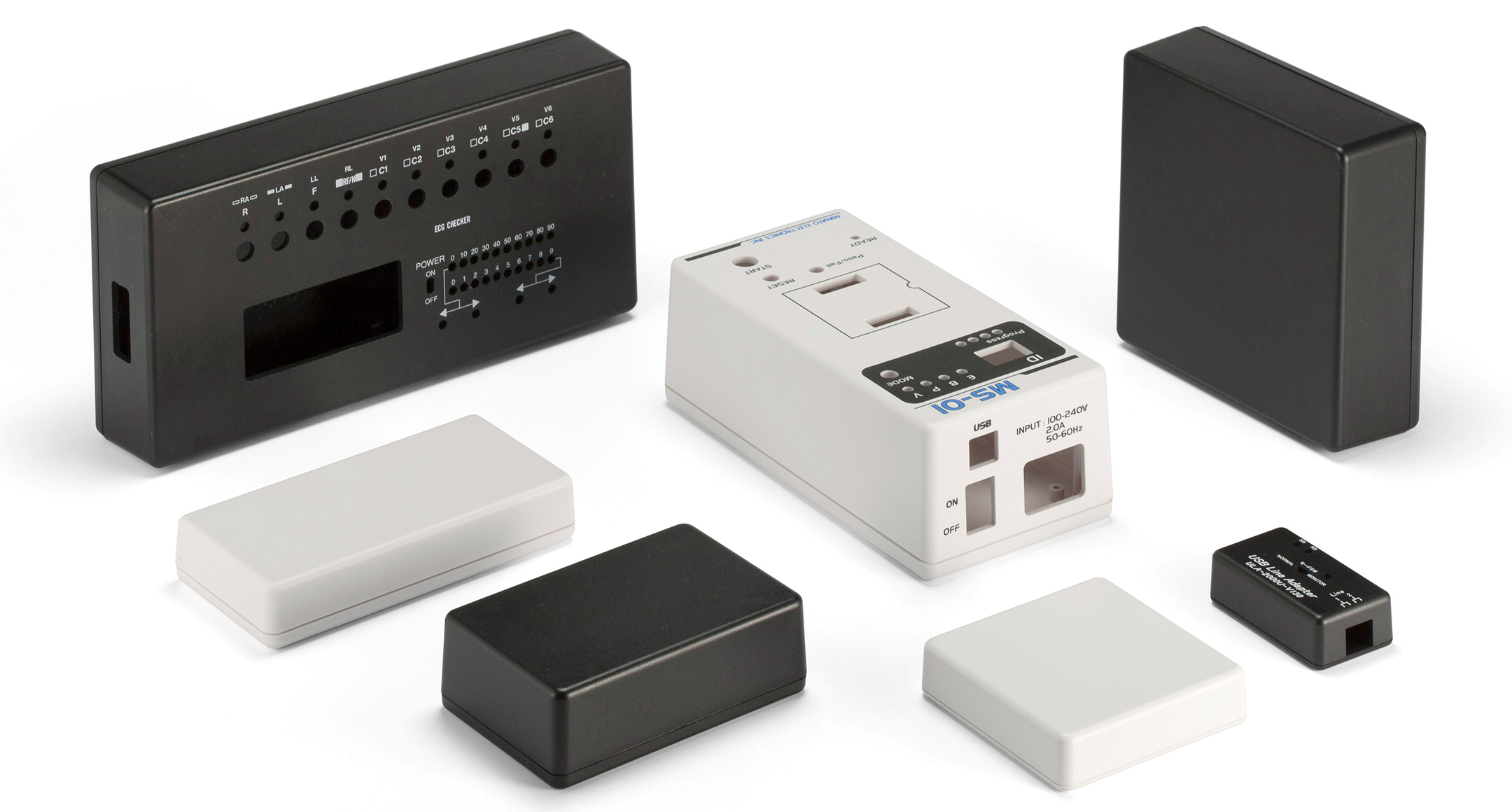

MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series2
MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series3

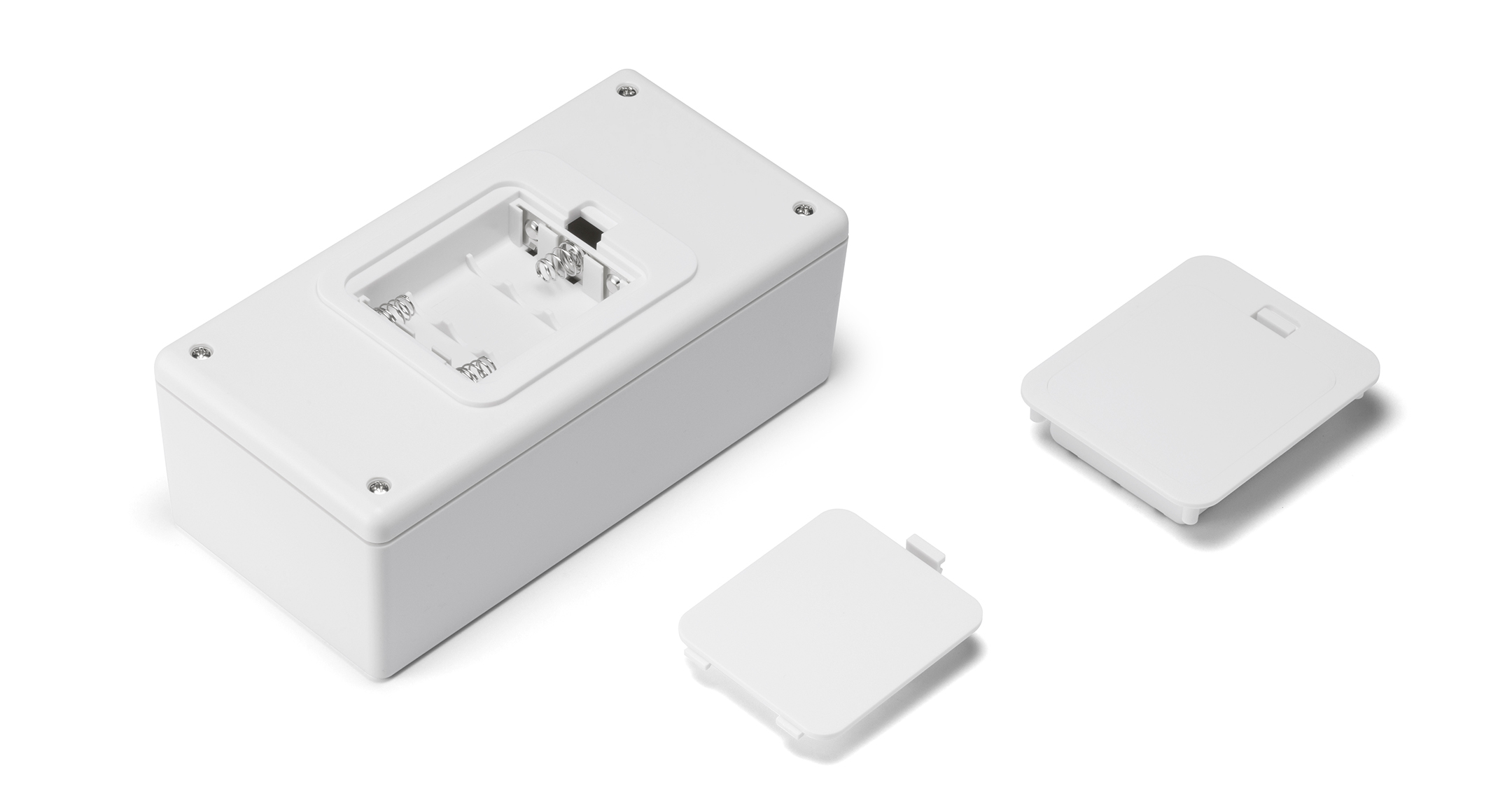

MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series4

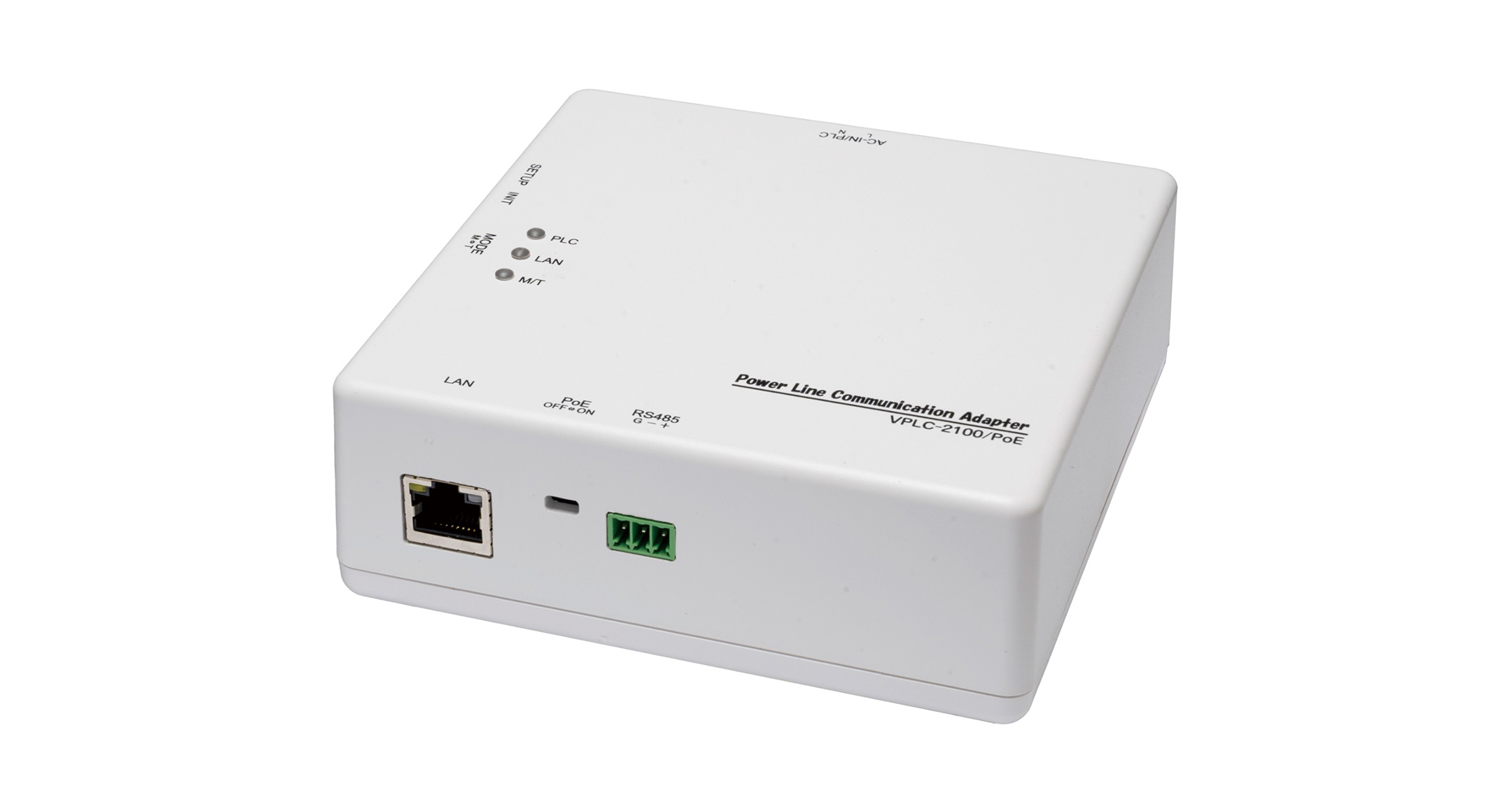

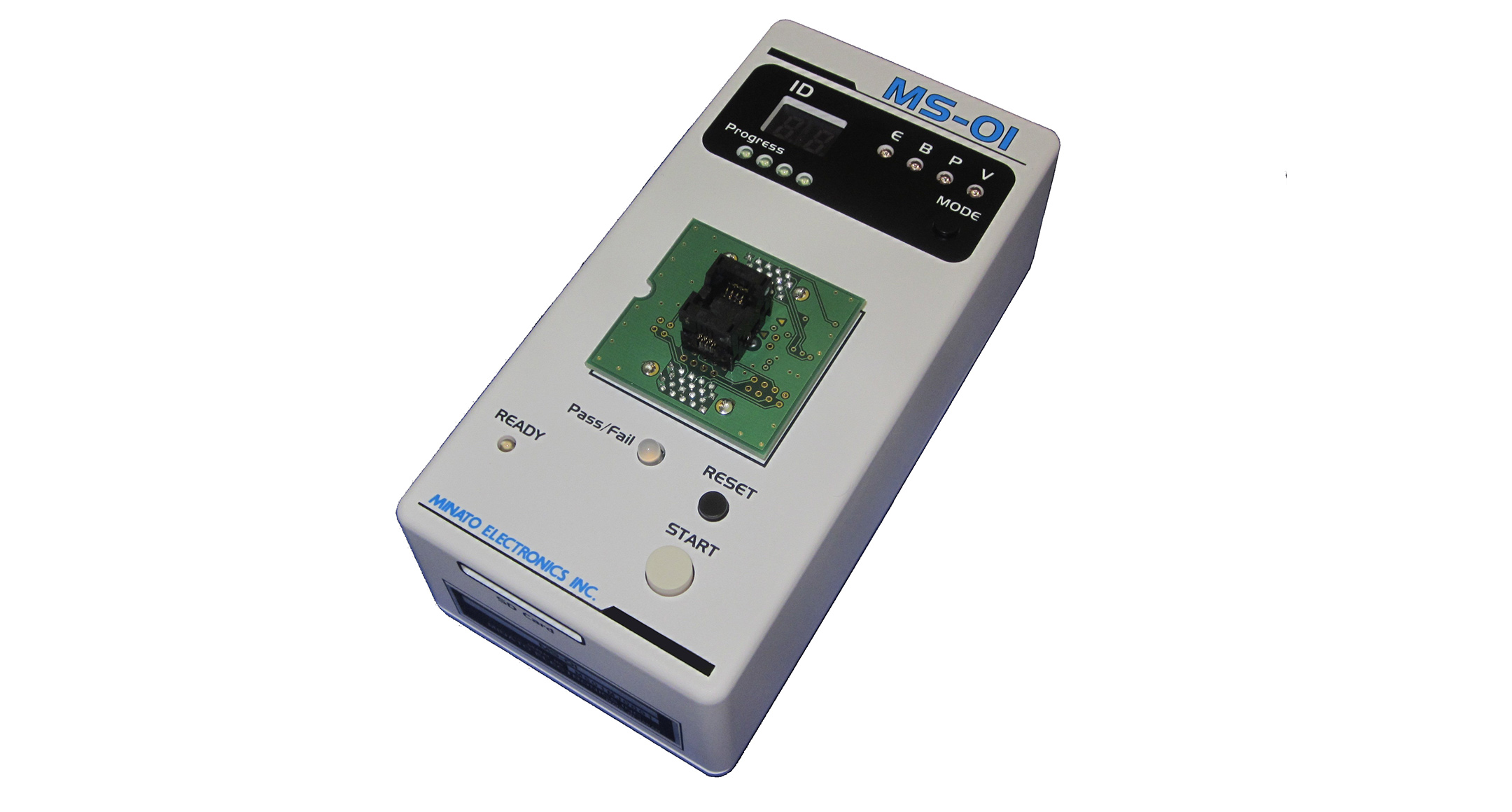

MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series5

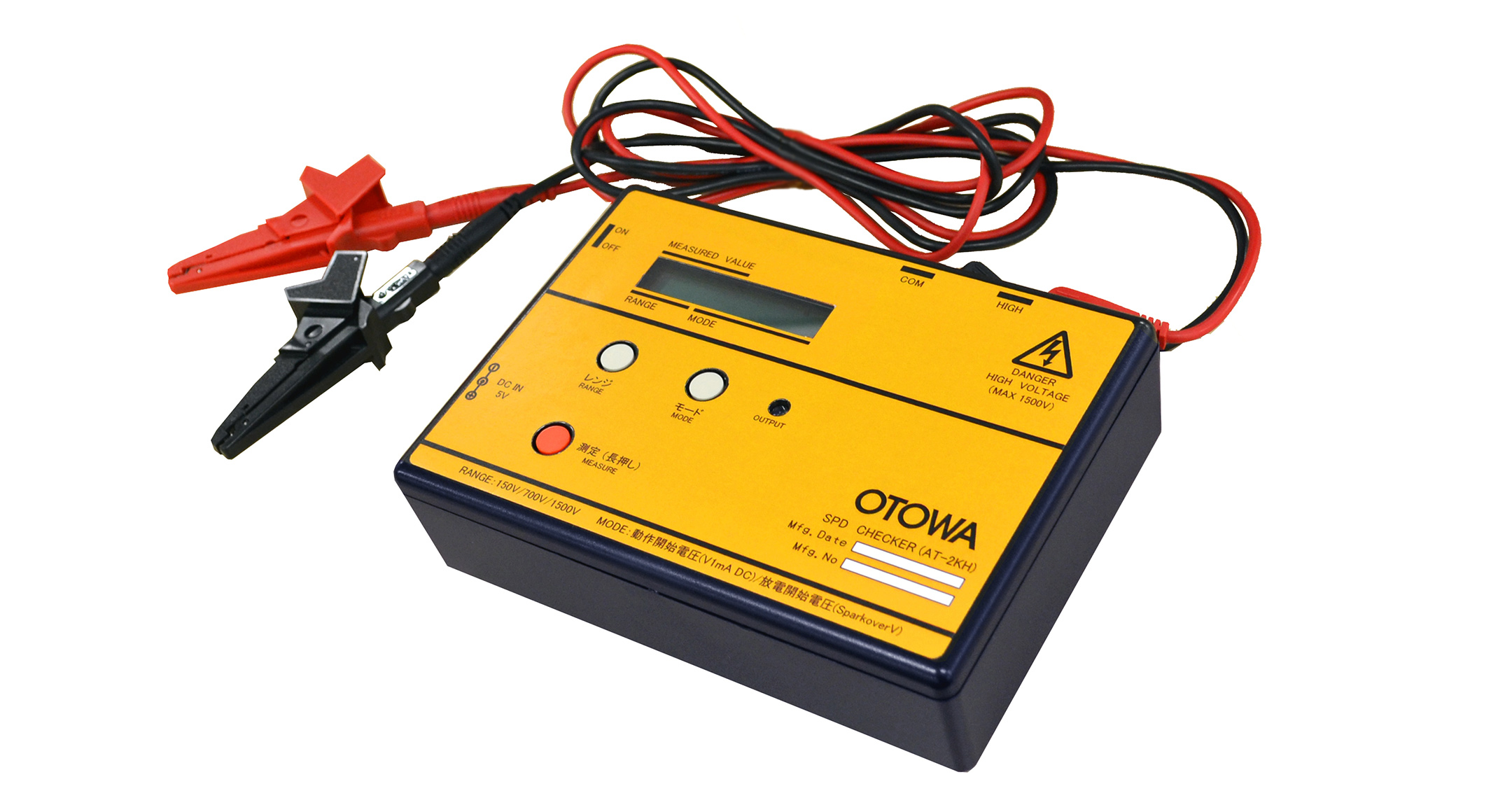

MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series6

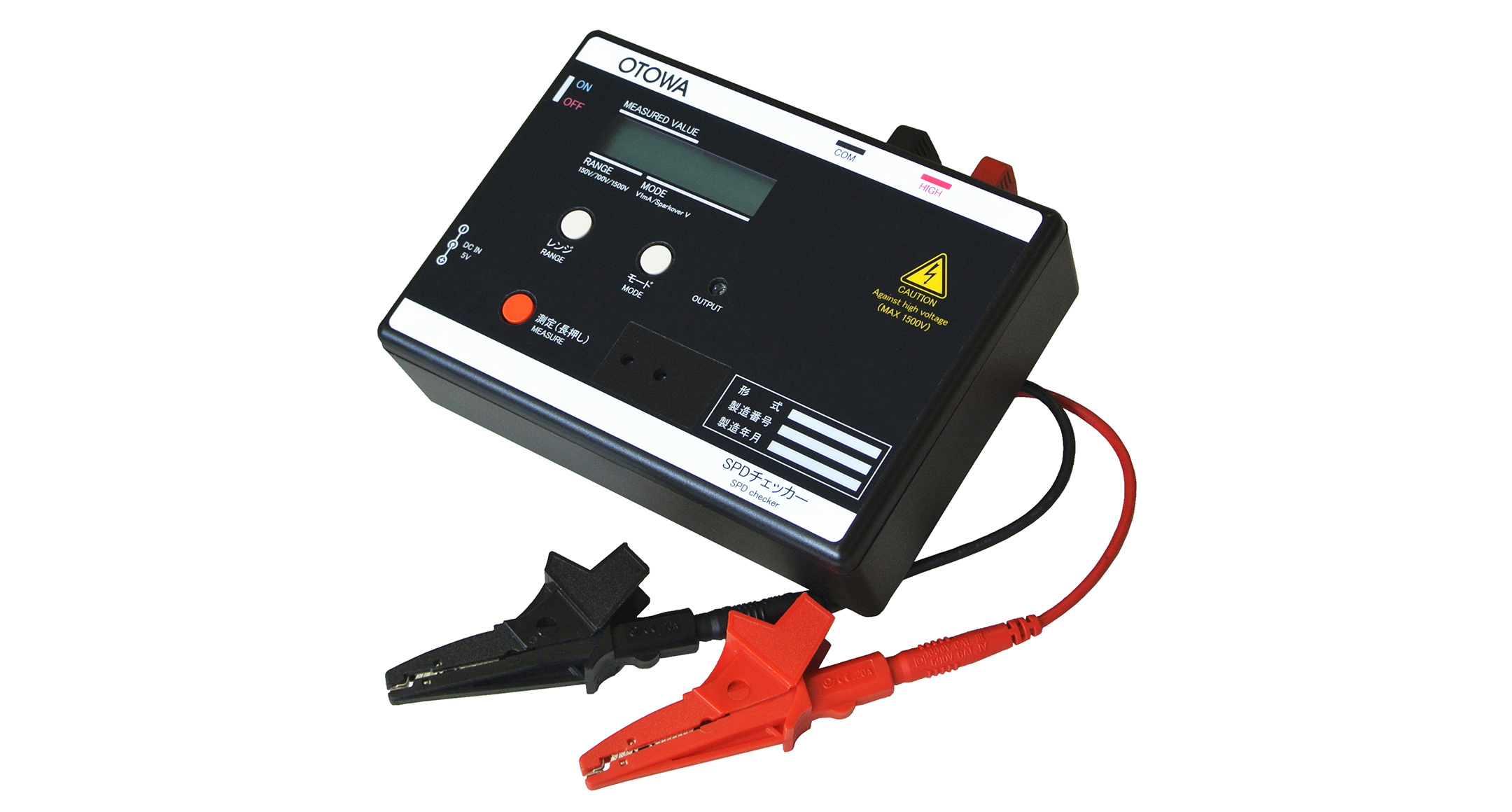

MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series7

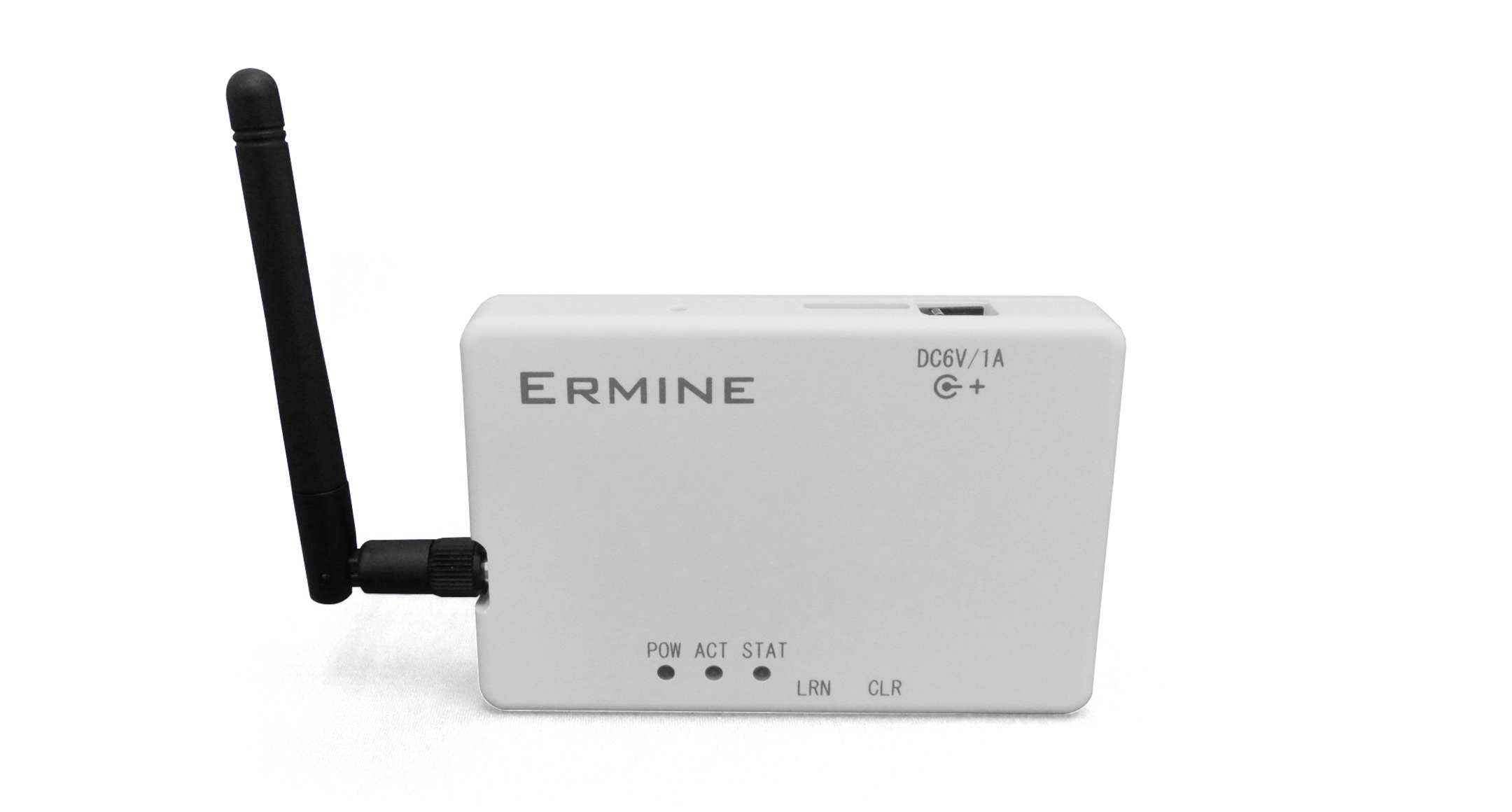

MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series8

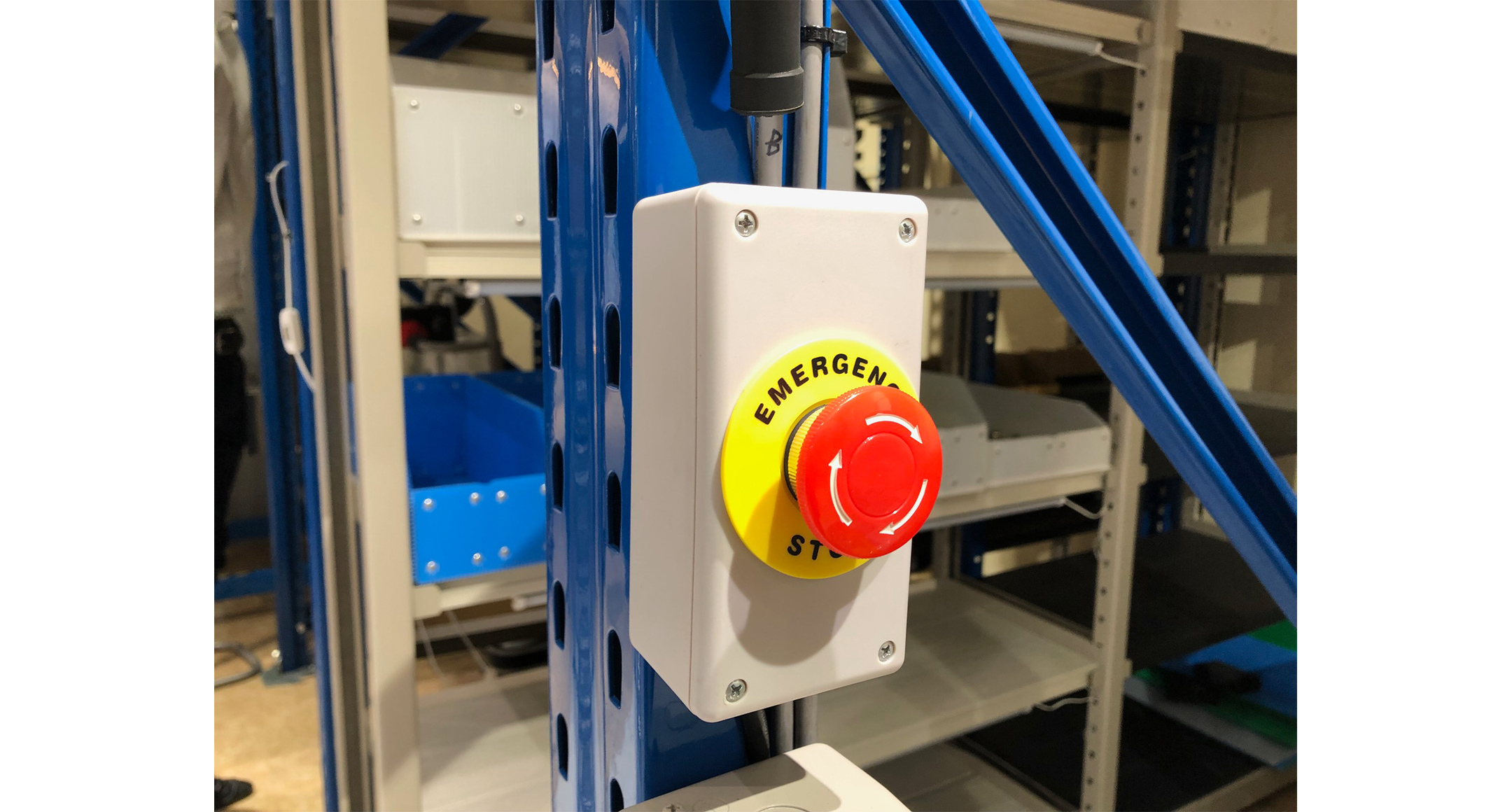

MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series9

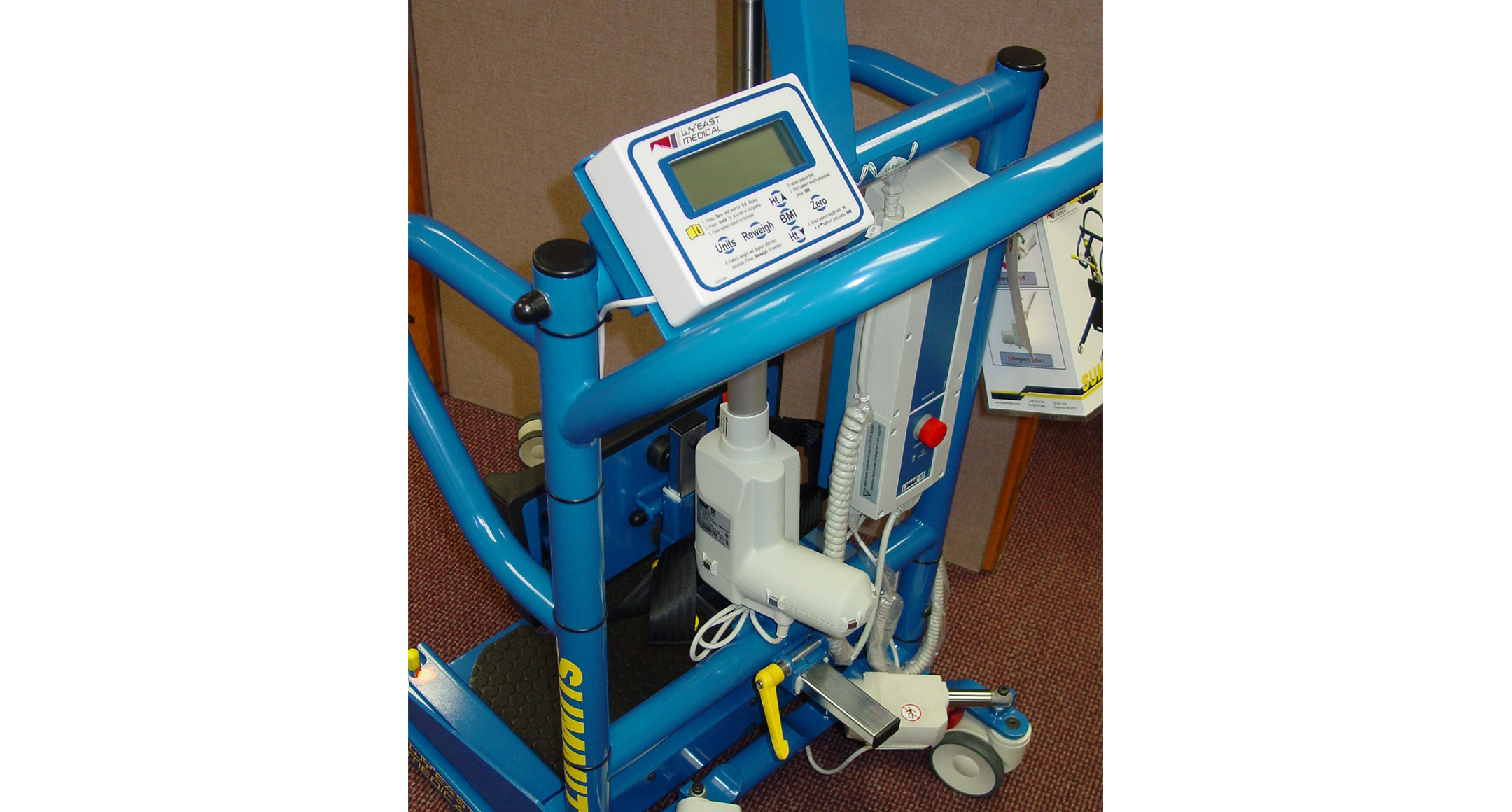

MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series10

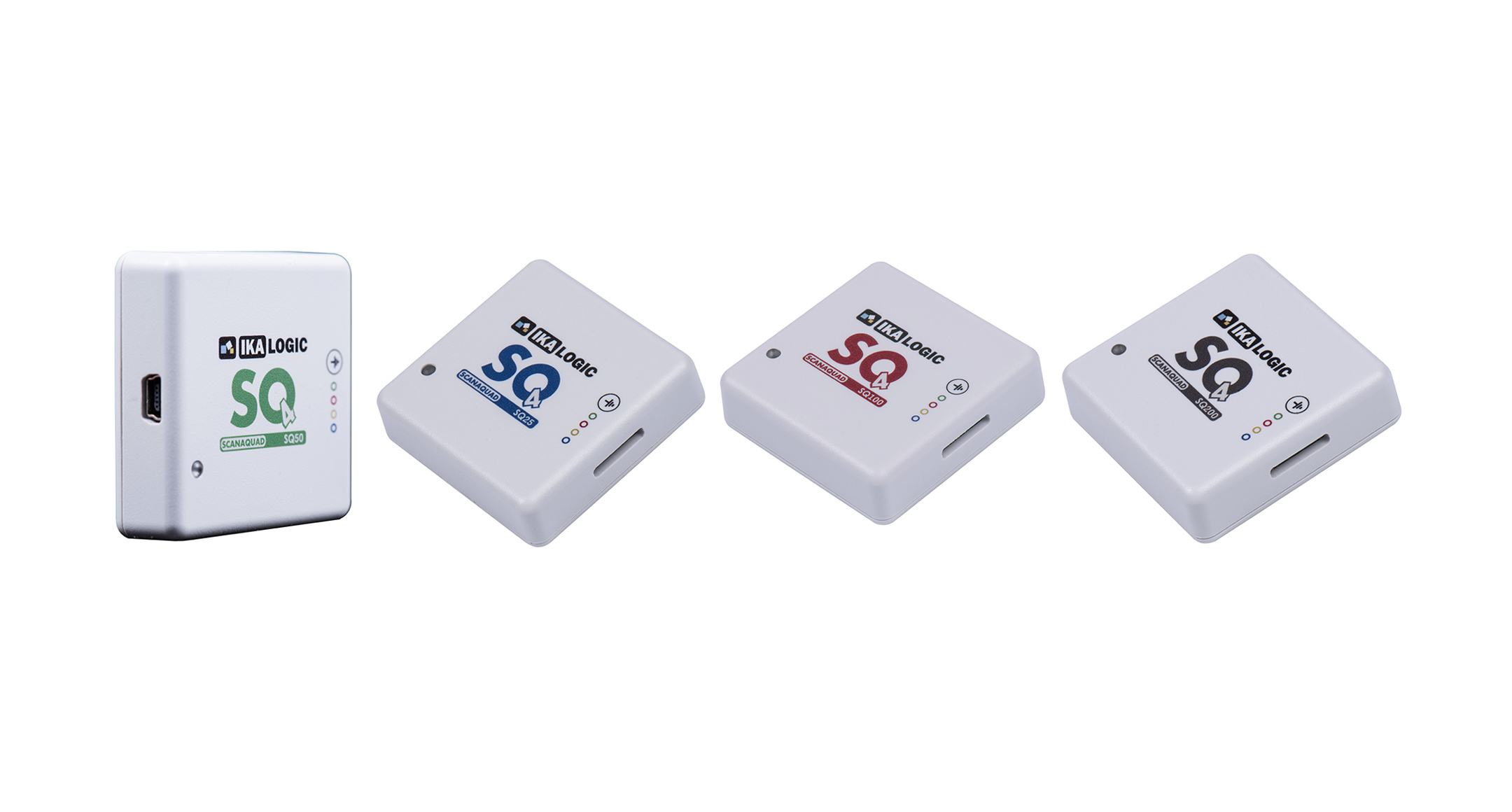

MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series11

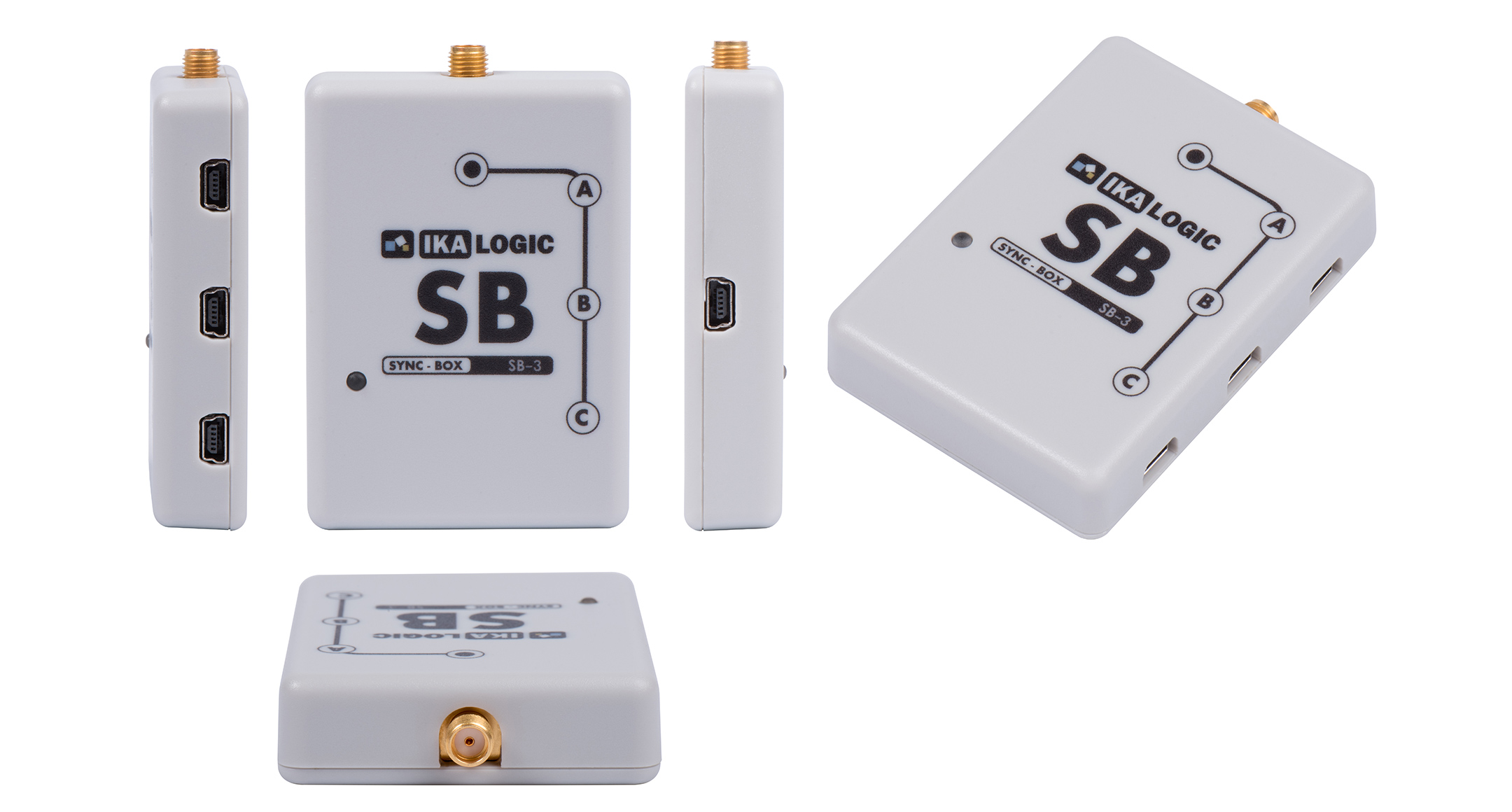

MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series12

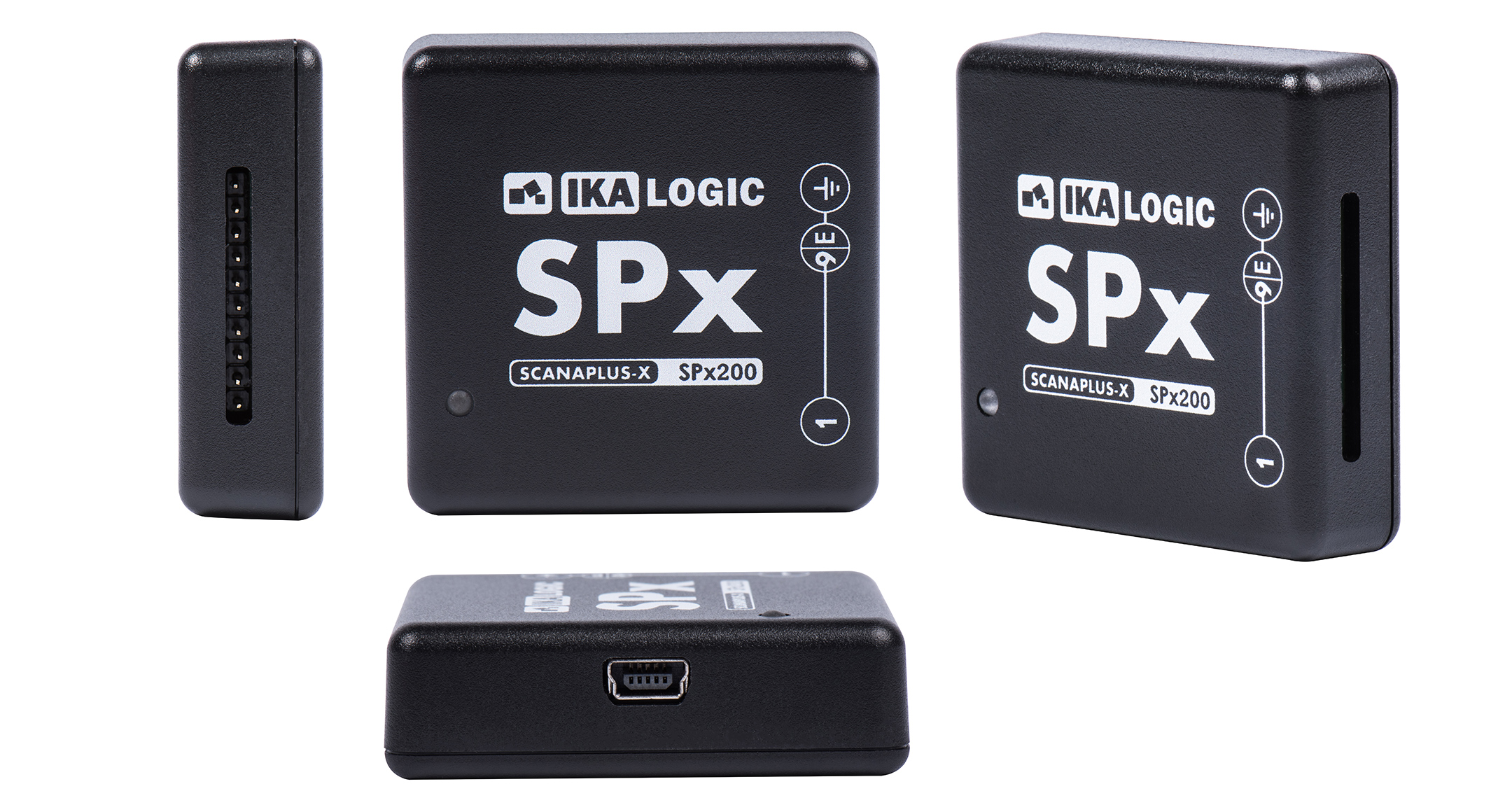

MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series13

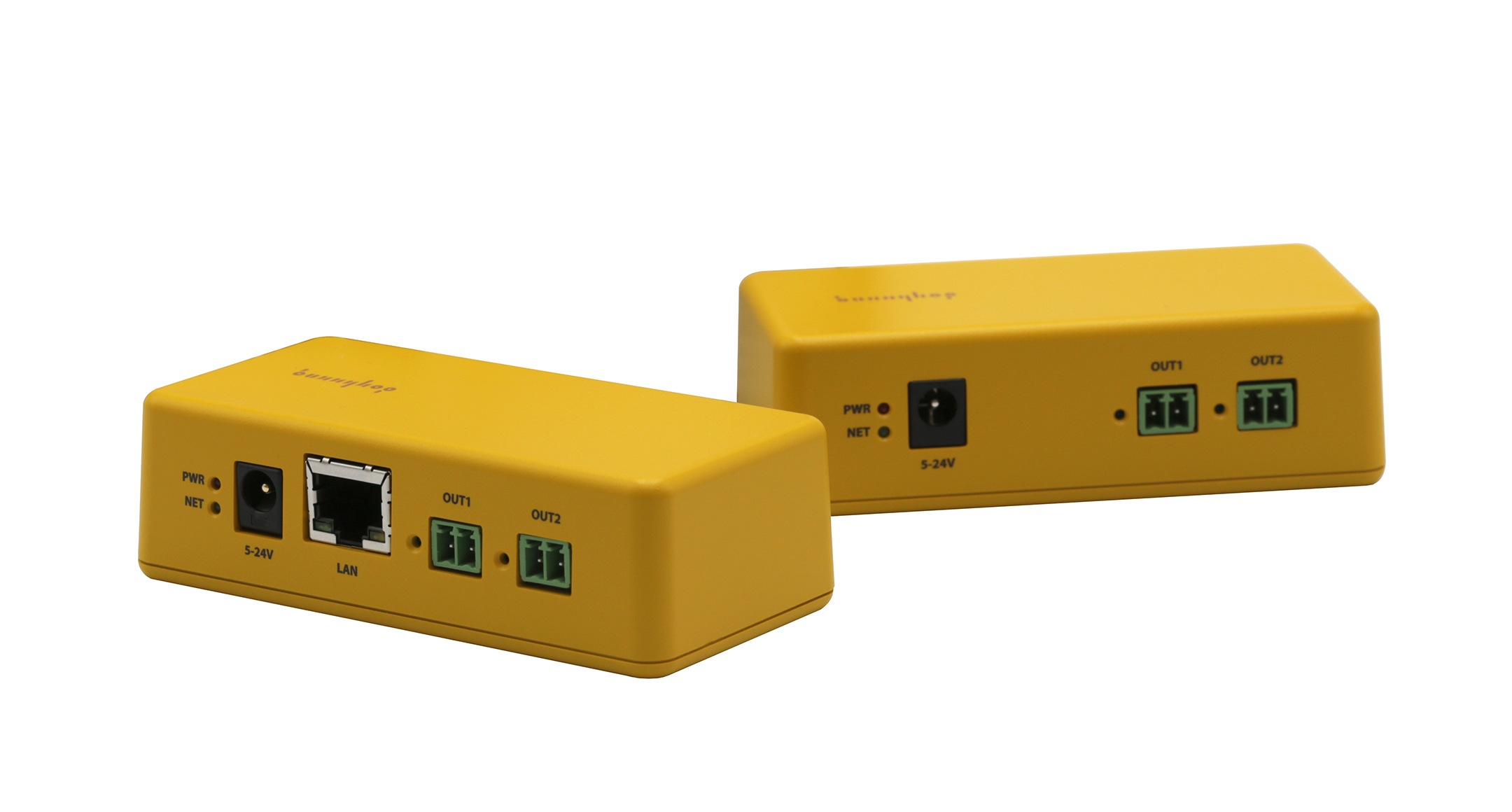

MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series14

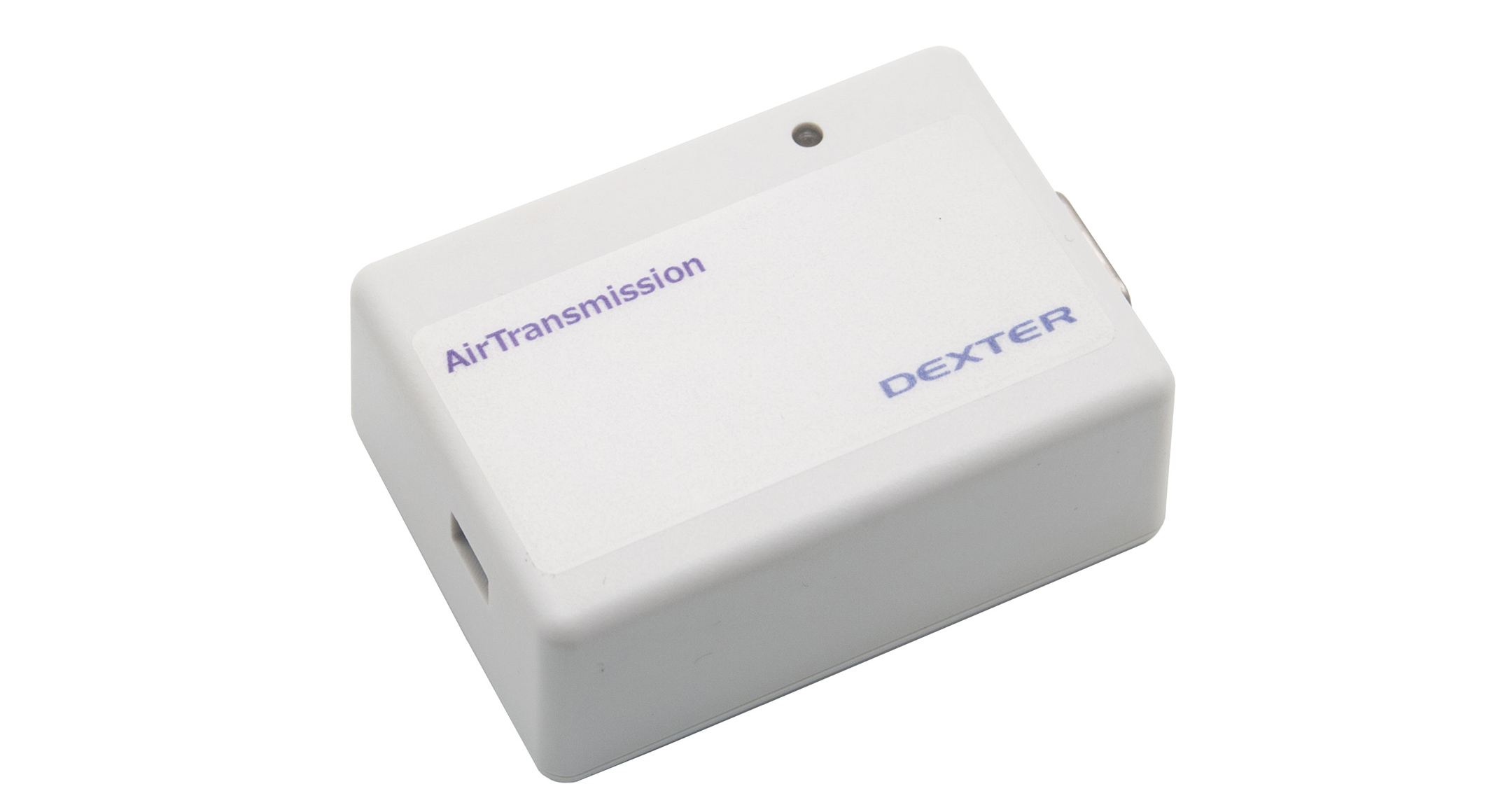

MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series15

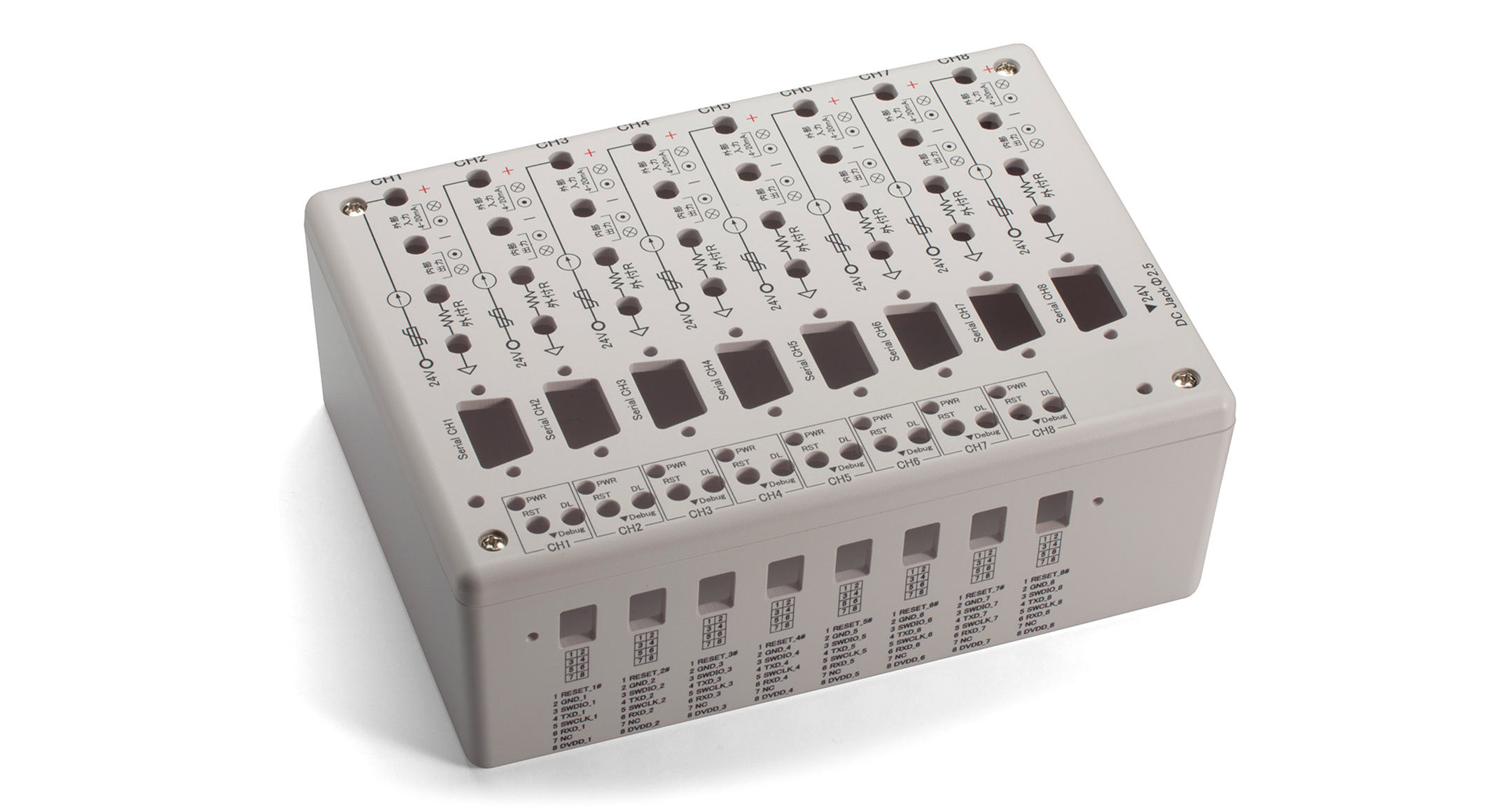

MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series16

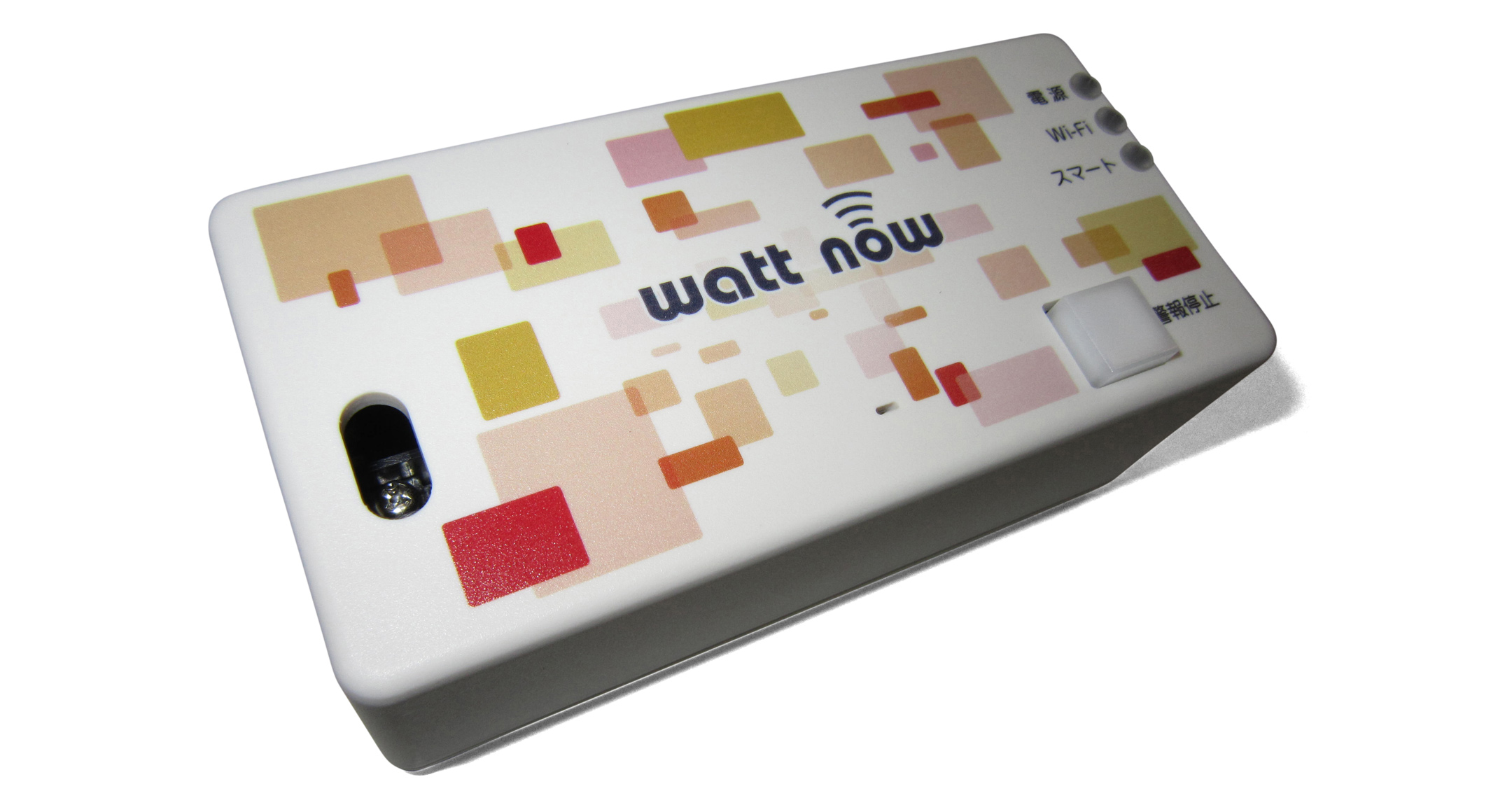

MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series17

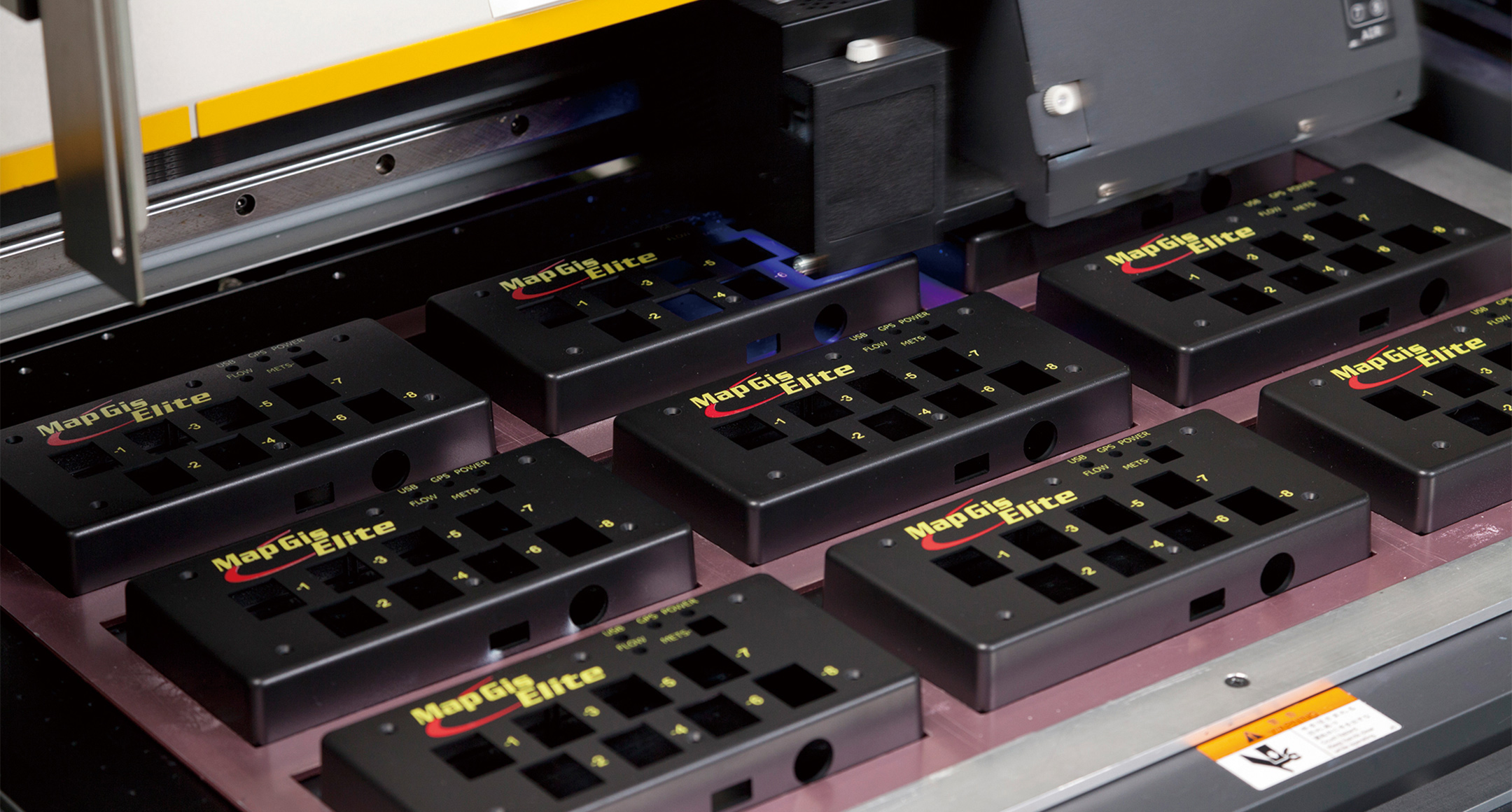

MULTIPURPOSE PLASTIC ENCLOSURE - TW・TWN series18

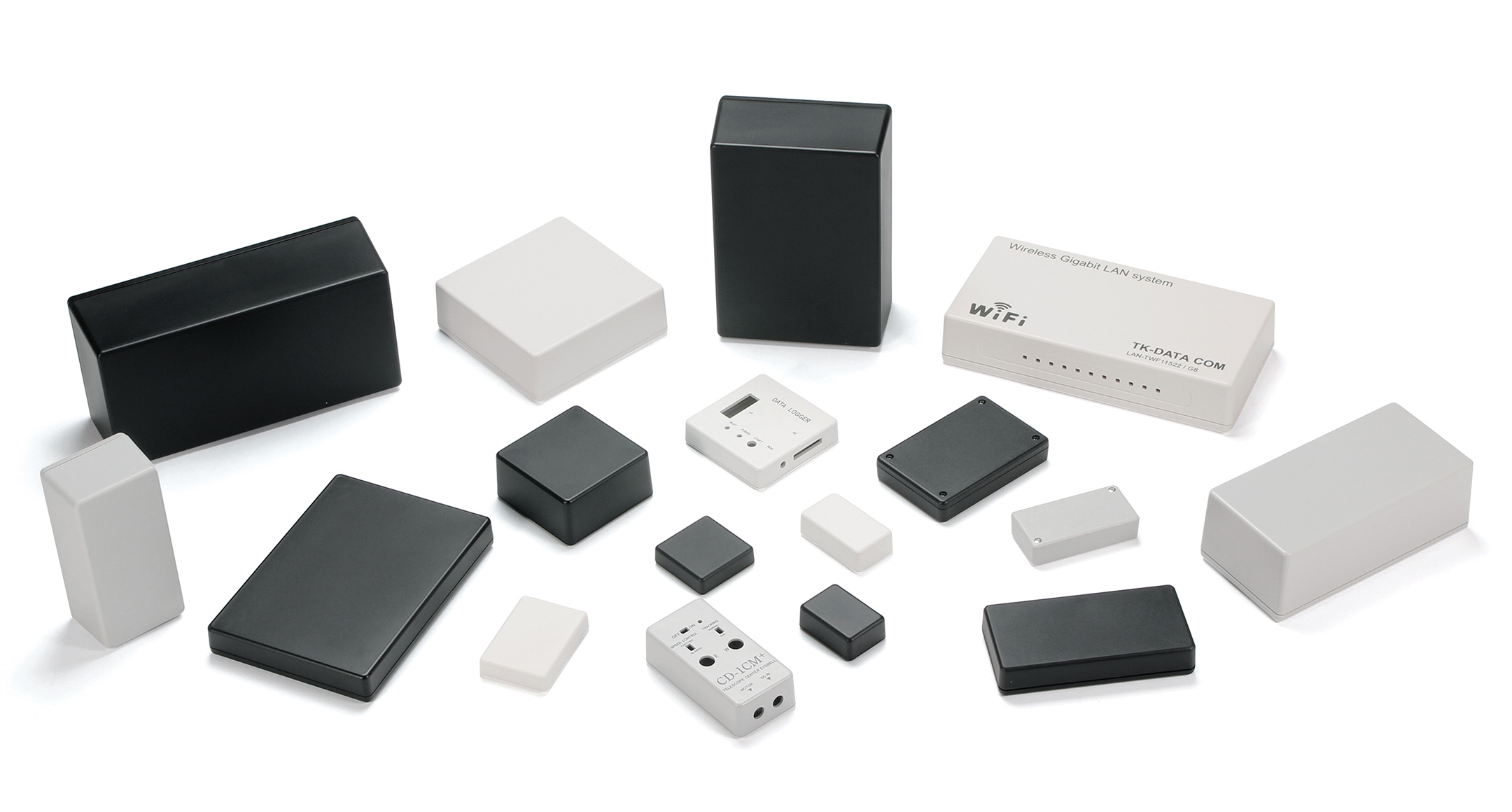

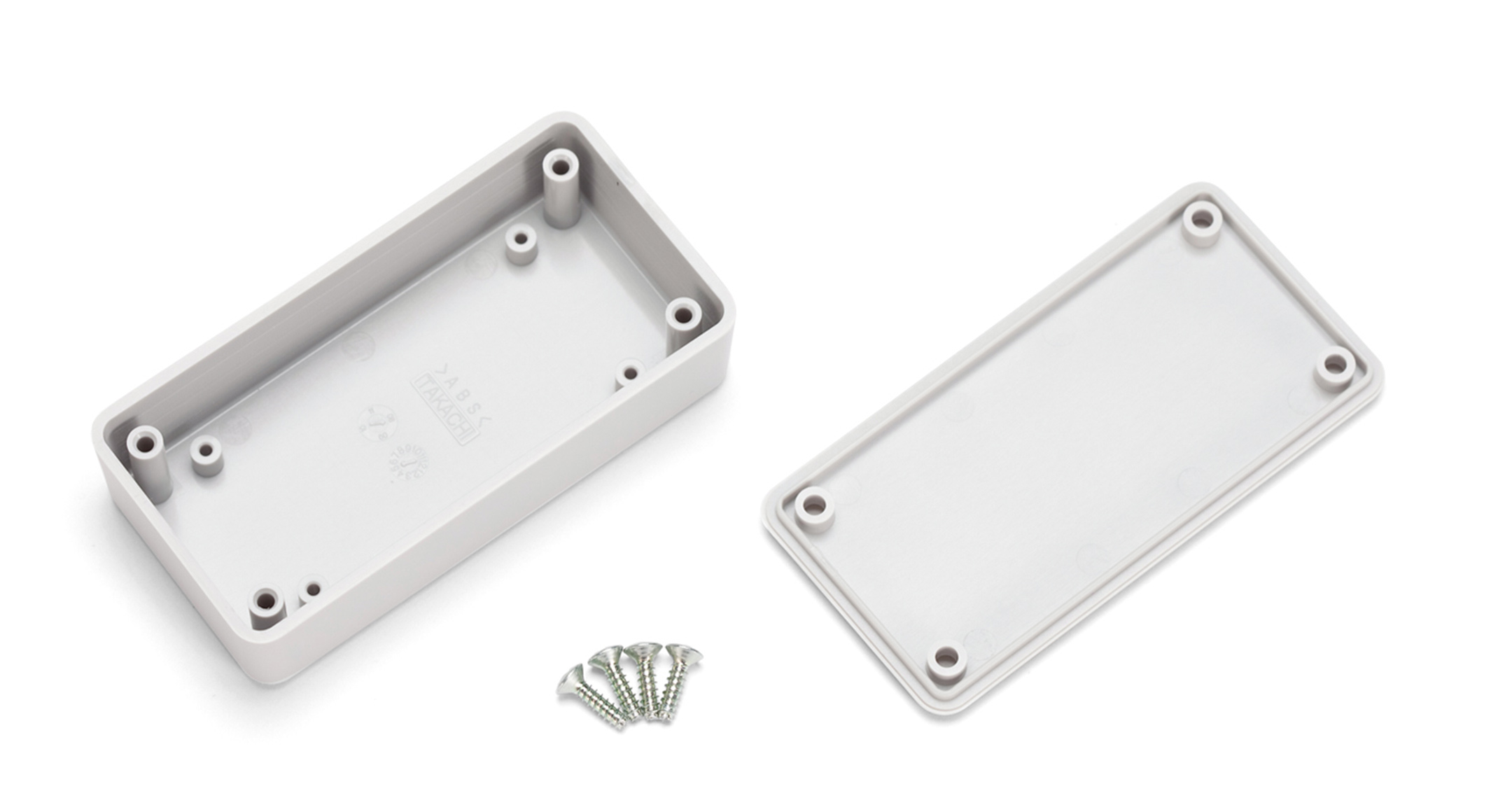

Universal plastic enclosure with screw fastening.
ABS (UL94HB) material : Available in 26 sizes / Black, Light gray color
ABS (UL94V-0) material : Available in 26 sizes / Off-white color

Multi purpose enclosure for handheld, desk-top, wall-mounting.
Suitable for controllers, sensor devices, testing devices, wireless network devices, electronics hobby and so on.

Protection class: IP40
Operating temperature: -10℃ ~ +60℃

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Material Color Weight (g) Stock status PDF DXF DWG STP
W H D w h d
TW4-2-5B 35 20 50 28.2 12 32.6 ABS(UL94HB) Black 13.5 PDF DXF DWG
TW4-2-5G 35 20 50 28.2 12 32.6 ABS(UL94HB) Light gray 13.5 Limited inventory. PDF DXF DWG
TW4-2-6B 35 20 60 28.2 12 42.6 ABS(UL94HB) Black 15.5 PDF DXF DWG
TW4-2-6G 35 20 60 28.2 12 42.6 ABS(UL94HB) Light gray 15.5 Limited inventory. PDF DXF DWG
TW4-2-8B 40.3 20 80.3 33.5 12 62.5 ABS(UL94HB) Black 22 PDF DXF DWG
TW4-2-8G 40.3 20 80.3 33.5 12 62.5 ABS(UL94HB) Light gray 22 Limited inventory. PDF DXF DWG
TW5-2-5B 50 15 50 42.8 7 31.9 ABS(UL94HB) Black 18 PDF DXF DWG
TW5-2-5G 50 15 50 42.8 7 31.9 ABS(UL94HB) Light gray 18 Limited inventory. PDF DXF DWG
TW5-3-5B 50 25 50 42.8 17 31.9 ABS(UL94HB) Black 22 PDF DXF DWG
TW5-3-5G 50 25 50 42.8 17 31.9 ABS(UL94HB) Light gray 22 Limited inventory. PDF DXF DWG
TW5-2-7B 50 15 70 43.2 7 52.9 ABS(UL94HB) Black 22 PDF DXF DWG
TW5-2-7G 50 15 70 43.2 7 52.9 ABS(UL94HB) Light gray 22 Limited inventory. PDF DXF DWG
TW5-3-7B 50 27.5 70 43.2 19.5 52.9 ABS(UL94HB) Black 29 PDF DXF DWG
TW5-3-7G 50 27.5 70 43.2 19.5 52.9 ABS(UL94HB) Light gray 29 Limited inventory. PDF DXF DWG
TW5-4-7B 50 40 70 42.5 32 52.9 ABS(UL94HB) Black 35 PDF DXF DWG
TW5-4-7G 50 40 70 42.5 32 52.9 ABS(UL94HB) Light gray 35 Limited inventory. PDF DXF DWG
TW5-3-9B 45 25 90 37.7 16 69.4 ABS(UL94HB) Black 30.5 PDF DXF DWG
TW5-3-9G 45 25 90 37.7 16 69.4 ABS(UL94HB) Light gray 30.5 Limited inventory. PDF DXF DWG
TW5-3-10B 50 30 100 42.3 21 79.4 ABS(UL94HB) Black 45.5 PDF DXF DWG
TW5-3-10G 50 30 100 42.3 21 79.4 ABS(UL94HB) Light gray 45.5 Limited inventory. PDF DXF DWG
TW7-2-11B 70 20 105 61.2 10.5 83 ABS(UL94HB) Black 56.5 PDF DXF DWG
TW7-2-11G 70 20 105 61.2 10.5 83 ABS(UL94HB) Light gray 56.5 Limited inventory. PDF DXF DWG
TW7-4-11B 70 35 105 61.2 25.5 83 ABS(UL94HB) Black 70 PDF DXF DWG
TW7-4-11G 70 35 105 61.2 25.5 83 ABS(UL94HB) Light gray 70 Limited inventory. PDF DXF DWG
TW7-5-11B 70 50 105 61.1 40.5 83 ABS(UL94HB) Black 83 PDF DXF DWG
TW7-5-11G 70 50 105 61.1 40.5 83 ABS(UL94HB) Light gray 83 Limited inventory. PDF DXF DWG
TW7-3-13B 65 25.6 130 55.3 14.3 105 ABS(UL94HB) Black 76 PDF DXF DWG
TW7-3-13G 65 25.6 130 55.3 14.3 105 ABS(UL94HB) Light gray 76 Limited inventory. PDF DXF DWG
TW7-5-13B 65 50.1 130 55.3 38.8 105 ABS(UL94HB) Black 100 PDF DXF DWG
TW7-5-13G 65 50.1 130 55.3 38.8 105 ABS(UL94HB) Light gray 100 Limited inventory. PDF DXF DWG
TW8-2-8B 80 20 80 71.6 10.5 59 ABS(UL94HB) Black 49 PDF DXF DWG
TW8-2-8G 80 20 80 71.6 10.5 59 ABS(UL94HB) Light gray 49 Limited inventory. PDF DXF DWG
TW8-4-8B 80 40 80 71.6 30.5 59 ABS(UL94HB) Black 65 PDF DXF DWG
TW8-4-8G 80 40 80 71.6 30.5 59 ABS(UL94HB) Light gray 65 Limited inventory. PDF DXF DWG
TW9-4-17B 85.5 35.5 170 75.7 24 143 ABS(UL94HB) Black 133 PDF DXF DWG
TW9-4-17G 85.5 35.5 170 75.7 24 143 ABS(UL94HB) Light gray 133 Limited inventory. PDF DXF DWG
TW9-6-17B 85.5 60.5 170 75.7 49 143 ABS(UL94HB) Black 168 PDF DXF DWG
TW9-6-17G 85.5 60.5 170 75.7 49 143 ABS(UL94HB) Light gray 168 Limited inventory. PDF DXF DWG
TW11-5-22B 110 45.3 220 100.1 33.8 191 ABS(UL94HB) Black 223 PDF DXF DWG
TW11-5-22G 110 45.3 220 100.1 33.8 191 ABS(UL94HB) Light gray 223 Discontinued / Sold-out. PDF DXF DWG
TW11-8-22B 110 75.3 220 99.3 63.8 191 ABS(UL94HB) Black 277 PDF DXF DWG
TW11-8-22G 110 75.3 220 99.3 63.8 191 ABS(UL94HB) Light gray 277 Limited inventory. PDF DXF DWG
TW13-3-13B 125 25 125 114.5 13.7 100 ABS(UL94HB) Black 135 PDF DXF DWG
TW13-3-13G 125 25 125 114.5 13.7 100 ABS(UL94HB) Light gray 135 Limited inventory. PDF DXF DWG
TW13-5-13B 125 45 125 114.5 33.7 100 ABS(UL94HB) Black 165.5 PDF DXF DWG
TW13-5-13G 125 45 125 114.5 33.7 100 ABS(UL94HB) Light gray 165.5 Discontinued / Sold-out. PDF DXF DWG
TW13-3-18B 125 25 175 114.5 13.7 148 ABS(UL94HB) Black 184.5 PDF DXF DWG
TW13-3-18G 125 25 175 114.5 13.7 148 ABS(UL94HB) Light gray 184.5 Limited inventory. PDF DXF DWG
TW13-5-18B 125 45 175 114.5 33.7 148 ABS(UL94HB) Black 218 PDF DXF DWG
TW13-5-18G 125 45 175 114.5 33.7 148 ABS(UL94HB) Light gray 218 Limited inventory. PDF DXF DWG
TW13-7-18B 125 65 175 114.2 53.7 148 ABS(UL94HB) Black 254 PDF DXF DWG
TW13-7-18G 125 65 175 114.2 53.7 148 ABS(UL94HB) Light gray 254 Limited inventory. PDF DXF DWG
TWN4-2-5W 35 20 50 28.2 12 32.6 ABS(UL94V-0) Off-white 16.5 PDF DXF DWG
TWN4-2-6W 35 20 60 28.2 12 42.6 ABS(UL94V-0) Off-white 18 PDF DXF DWG
TWN4-2-8W 40.3 20 80.3 33.5 12 62.5 ABS(UL94V-0) Off-white 26 PDF DXF DWG
TWN5-2-5W 50 15 50 42.8 7 31.9 ABS(UL94V-0) Off-white 20 PDF DXF DWG
TWN5-2-7W 50 15 70 43.2 7 52.9 ABS(UL94V-0) Off-white 24.5 PDF DXF DWG
TWN5-3-5W 50 25 50 42.8 17 31.9 ABS(UL94V-0) Off-white 26 PDF DXF DWG
TWN5-3-7W 50 27.5 70 43.2 19.5 52.9 ABS(UL94V-0) Off-white 33 PDF DXF DWG
TWN5-4-7W 50 40 70 42.5 32 52.9 ABS(UL94V-0) Off-white 39.5 PDF DXF DWG
TWN5-3-9W 45 25 90 37.7 16 69.4 ABS(UL94V-0) Off-white 35 PDF DXF DWG
TWN5-3-10W 50 30 100 42.3 21 79.4 ABS(UL94V-0) Off-white 46.5 PDF DXF DWG
TWN7-2-11W 70 20 105 61.2 10.5 83 ABS(UL94V-0) Off-white 64.5 PDF DXF DWG
TWN7-4-11W 70 35 105 61.2 25.5 83 ABS(UL94V-0) Off-white 80 PDF DXF DWG
TWN7-5-11W 70 50 105 61.1 40.5 83 ABS(UL94V-0) Off-white 94.5 PDF DXF DWG
TWN7-3-13W 65 25.6 130 55.3 14.3 105 ABS(UL94V-0) Off-white 85 PDF DXF DWG
TWN7-5-13W 65 50.1 130 55.3 38.8 105 ABS(UL94V-0) Off-white 115.5 PDF DXF DWG
TWN8-2-8W 80 20 80 71.6 10.5 59 ABS(UL94V-0) Off-white 55.5 PDF DXF DWG
TWN8-4-8W 80 40 80 71.6 30.5 59 ABS(UL94V-0) Off-white 75 PDF DXF DWG
TWN9-4-17W 85.5 35.5 170 75.7 24 143 ABS(UL94V-0) Off-white 151 PDF DXF DWG
TWN9-6-17W 85.5 60.5 170 75.7 49 143 ABS(UL94V-0) Off-white 191 PDF DXF DWG
TWN11-5-22W 110 45.3 220 100.1 33.8 191 ABS(UL94V-0) Off-white 254 PDF DXF DWG
TWN11-8-22W 110 75.3 220 99.3 63.8 191 ABS(UL94V-0) Off-white 316 PDF DXF DWG
TWN13-3-13W 125 25 125 114.5 13.7 100 ABS(UL94V-0) Off-white 156.5 PDF DXF DWG
TWN13-5-13W 125 45 125 114.5 33.7 100 ABS(UL94V-0) Off-white 190 PDF DXF DWG
TWN13-3-18W 125 25 175 114.5 13.7 148 ABS(UL94V-0) Off-white 206.5 PDF DXF DWG
TWN13-5-18W 125 45 175 114.5 33.7 148 ABS(UL94V-0) Off-white 249 PDF DXF DWG
TWN13-7-18W 125 65 175 114.2 53.7 148 ABS(UL94V-0) Off-white 290.5 PDF DXF DWG
