PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series


PF-P Series -PDF

CATEGORY：Plastic enclosure, Network enclosure, IOT enclosure, Wireless router enclosure, Access point box, Sensor box

PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series
PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series
PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series
PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series
PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series
PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series
PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series
PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series
PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series
PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series
PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series
PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series
PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series
PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series
PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series
PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series

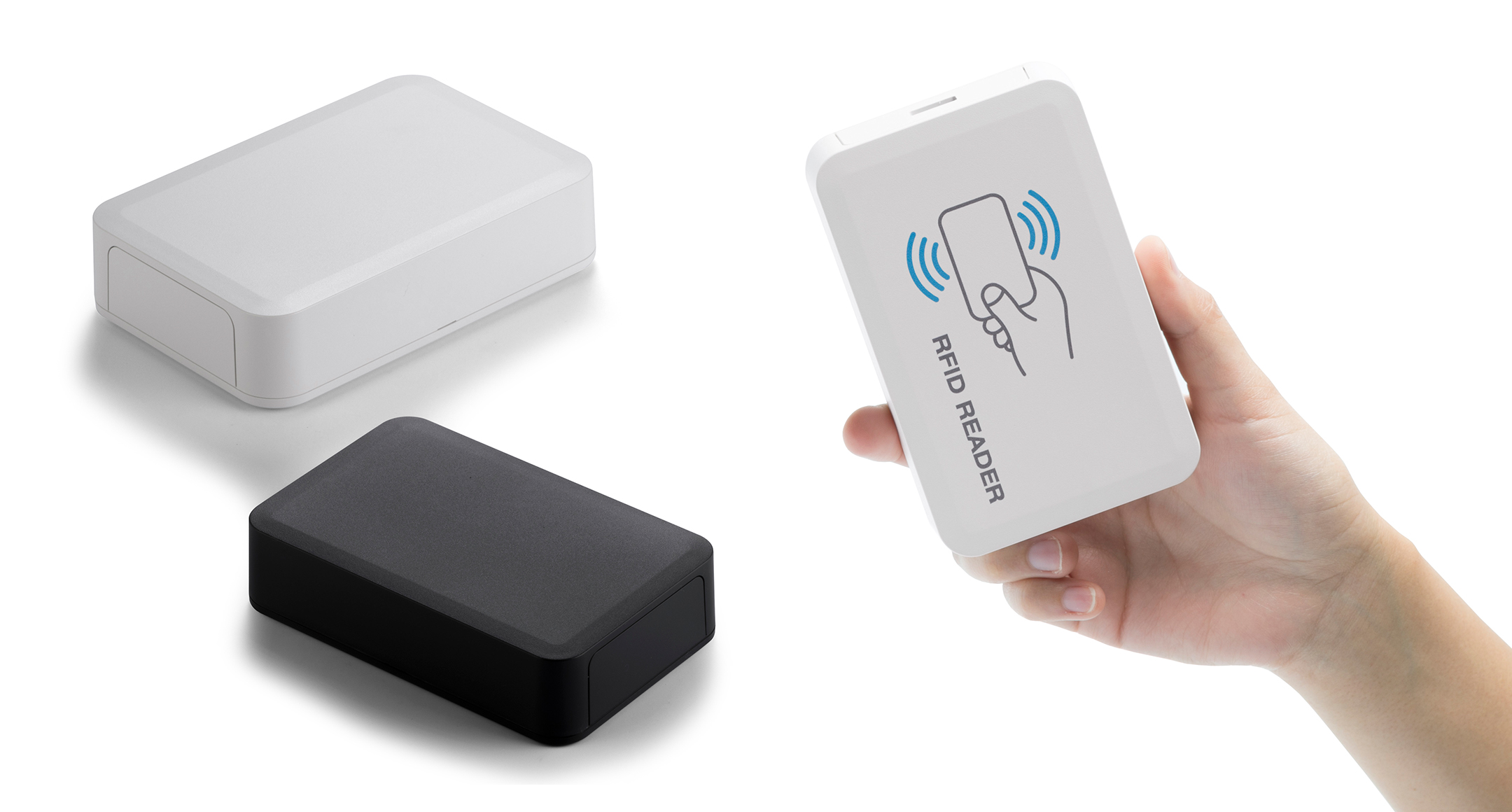

PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series1
PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series2
PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series3

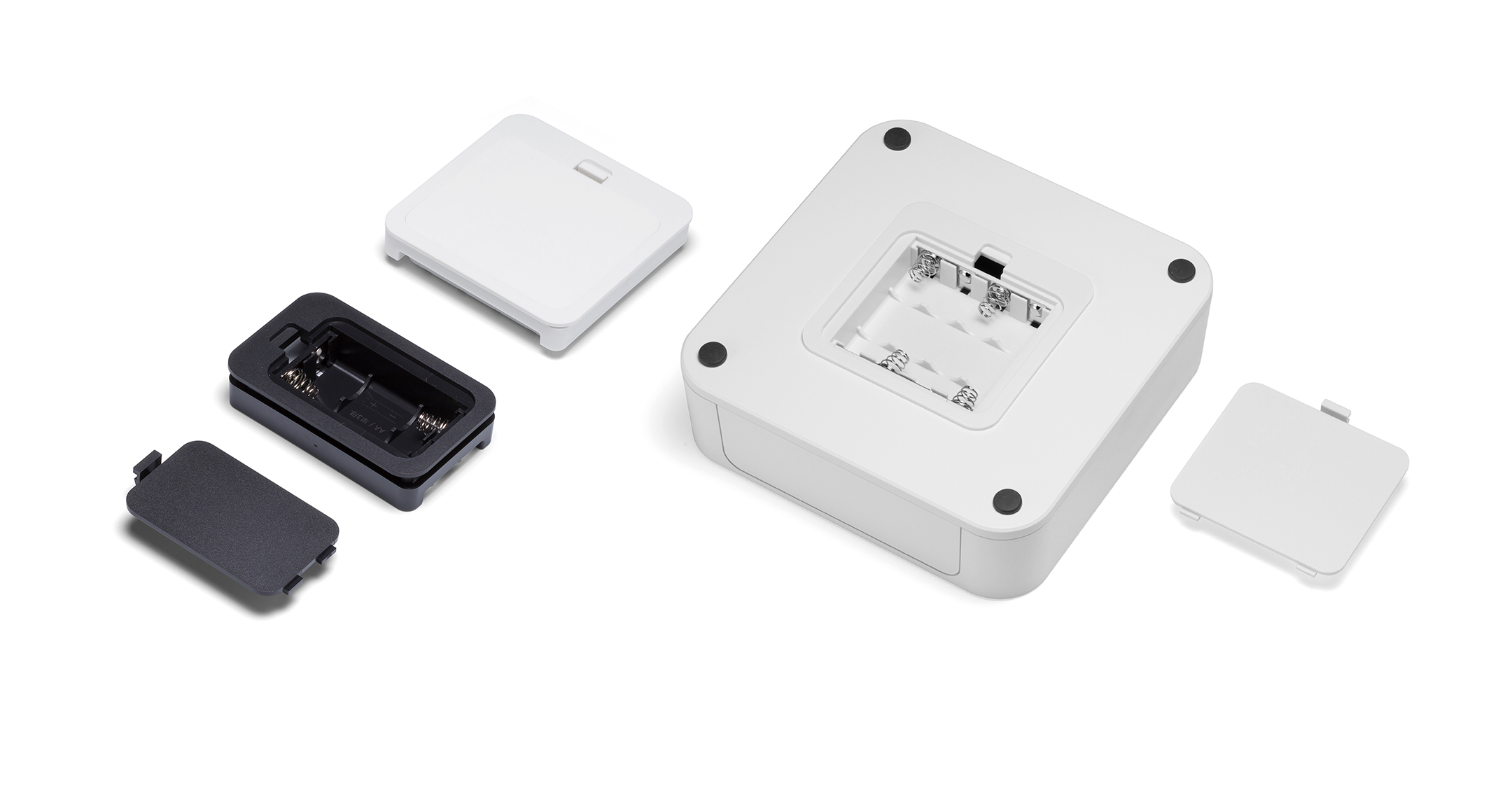

PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series4
PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series5

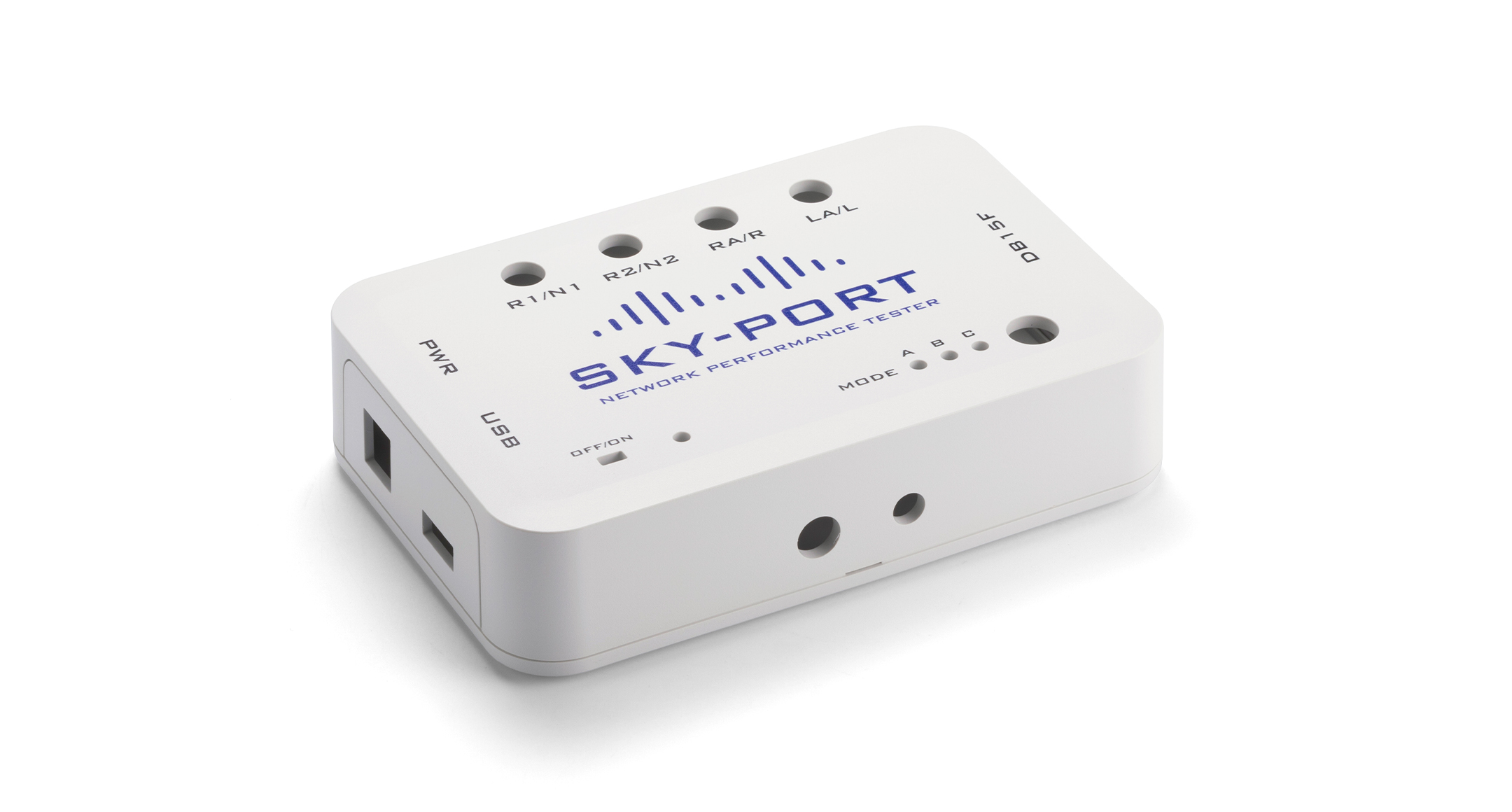

PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series6

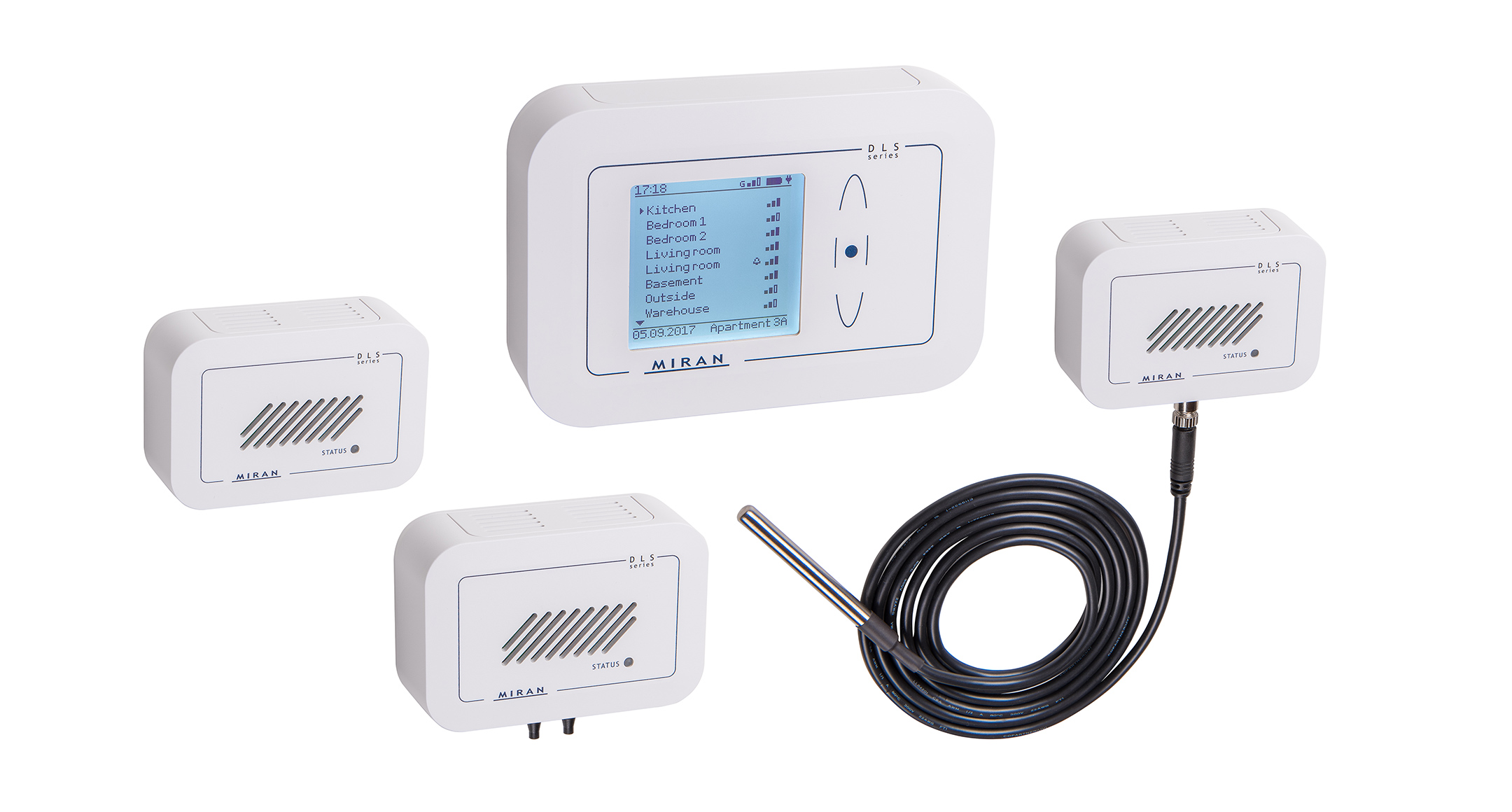

PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series7

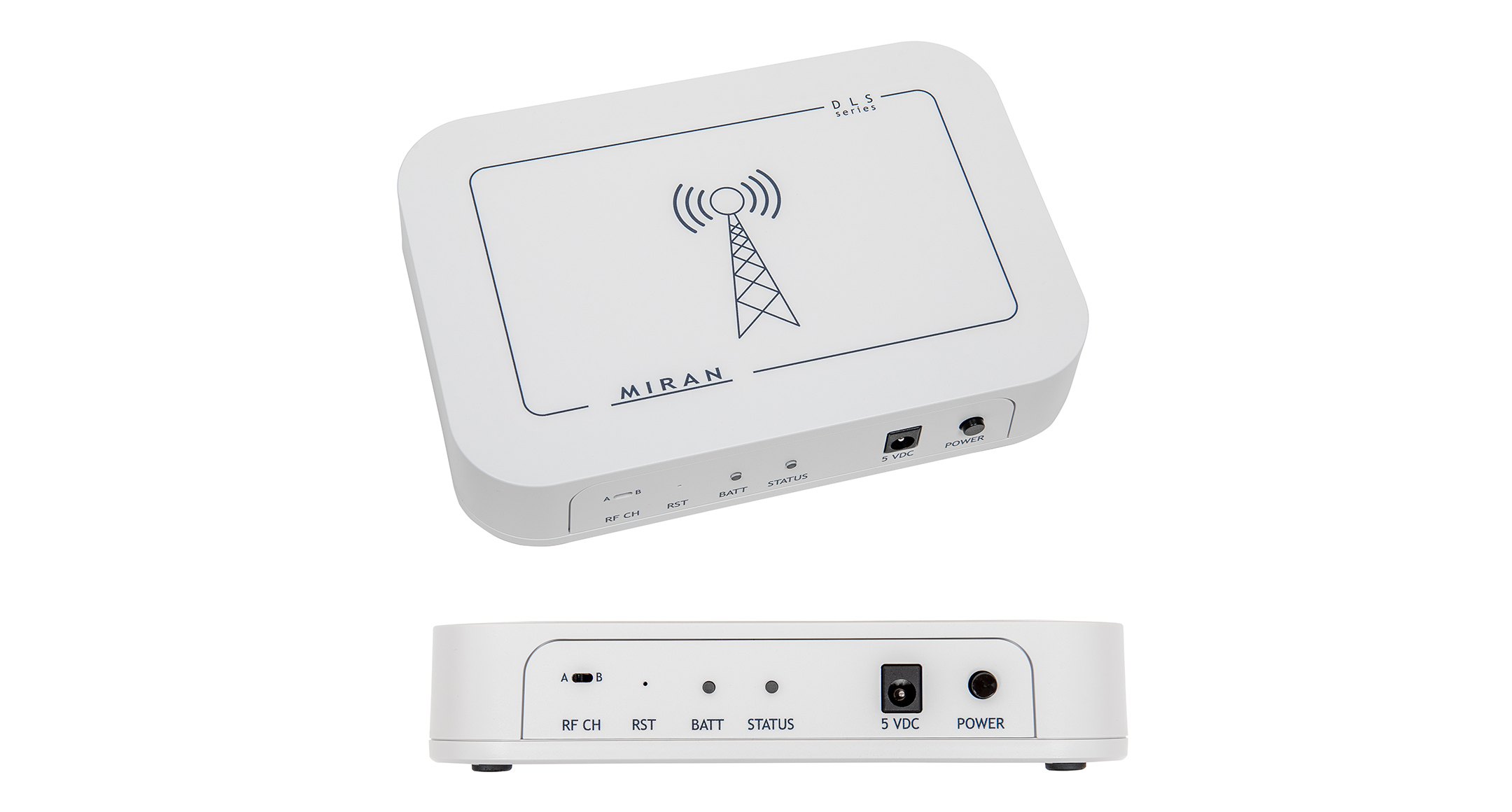

PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series8

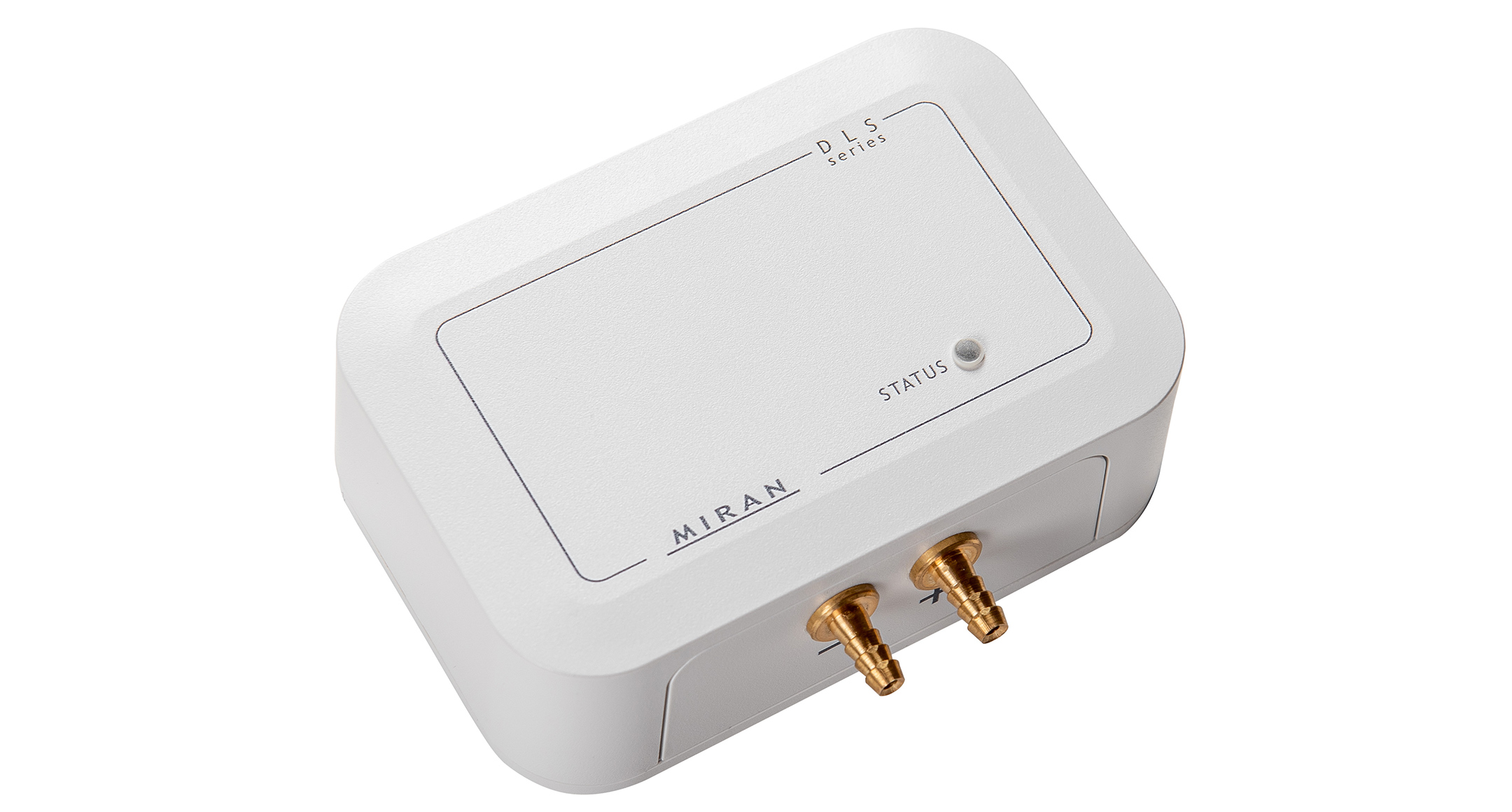

PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series9

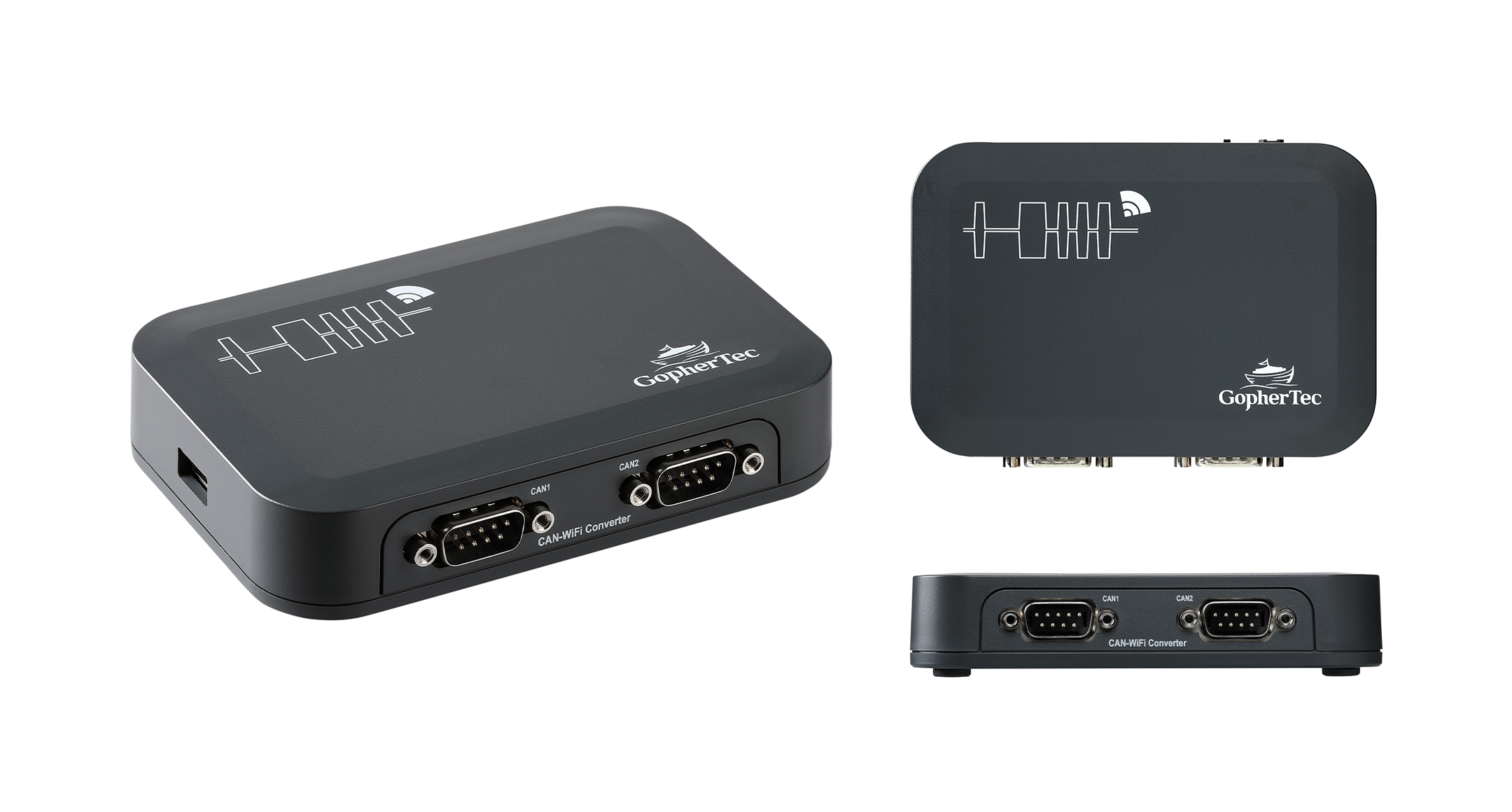

PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series10

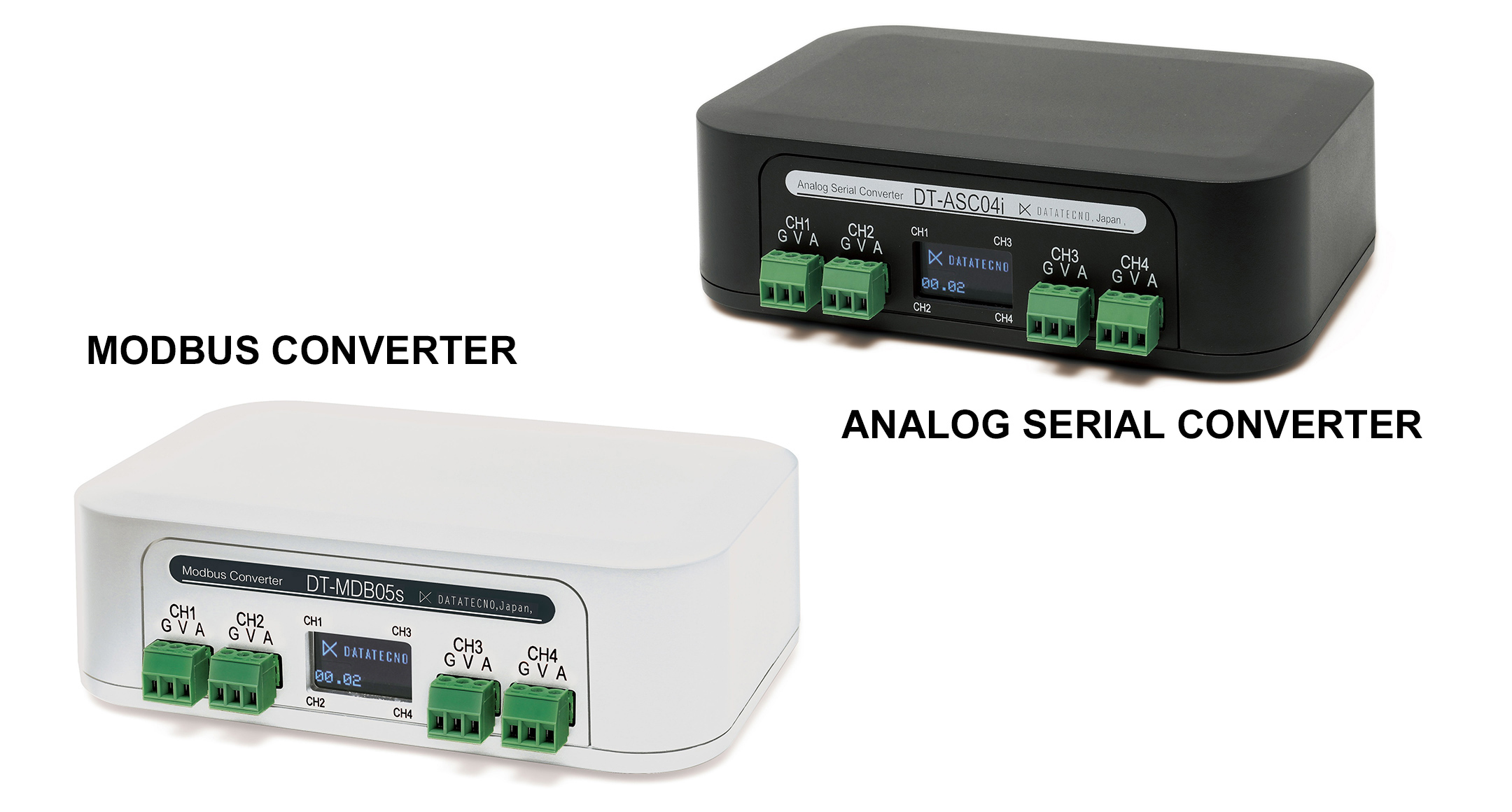

PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series11

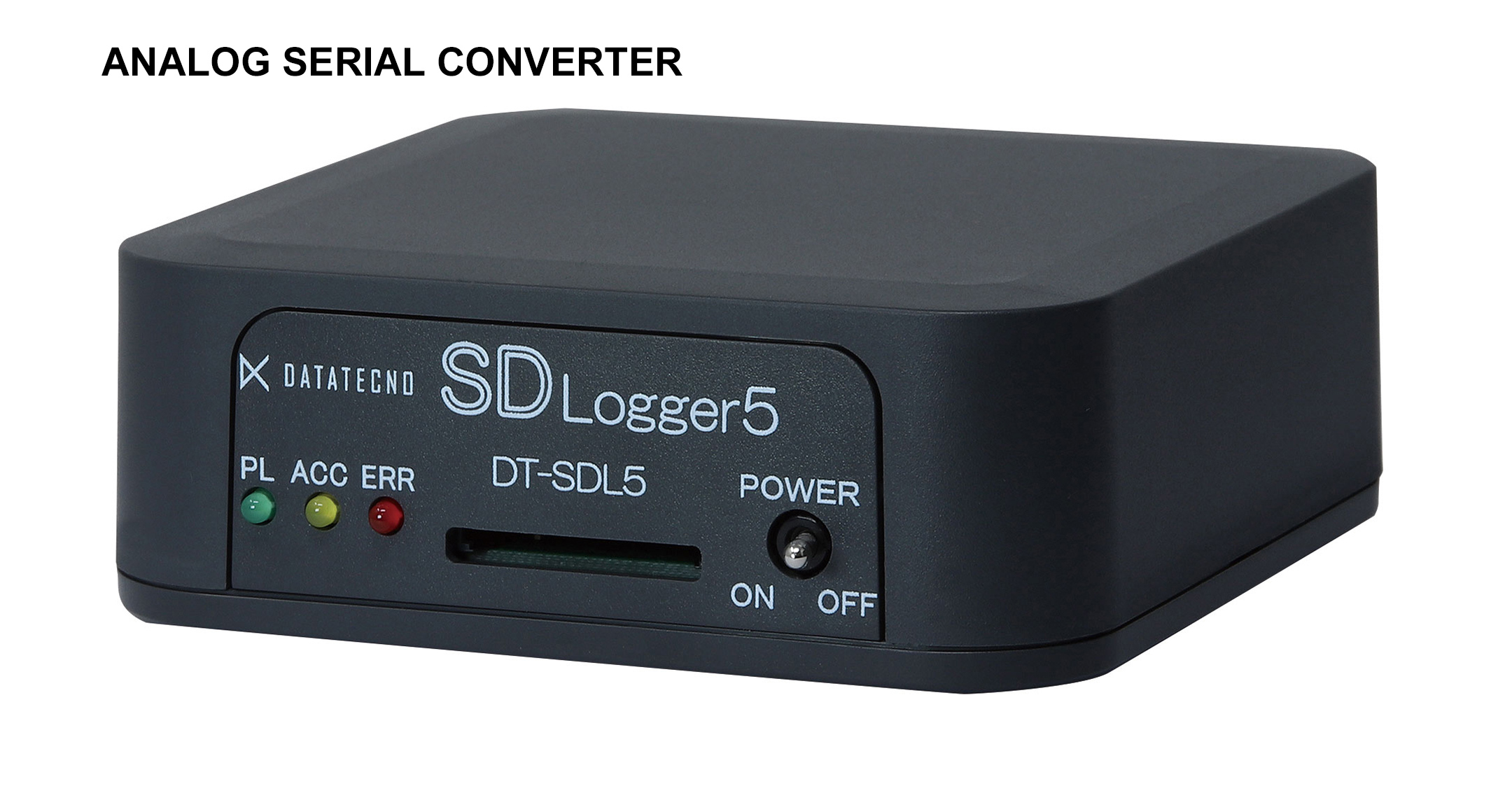

PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series12

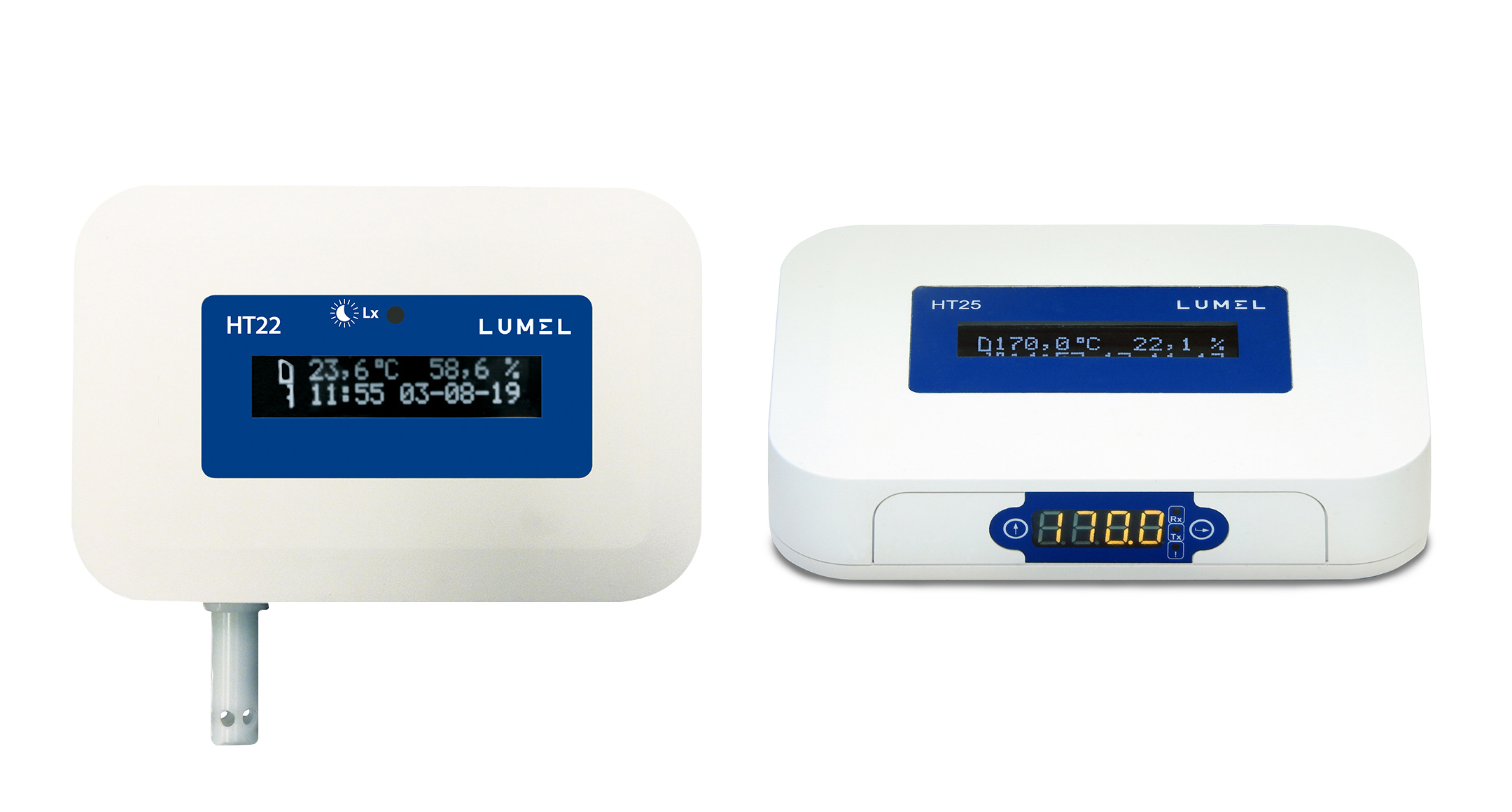

PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series13

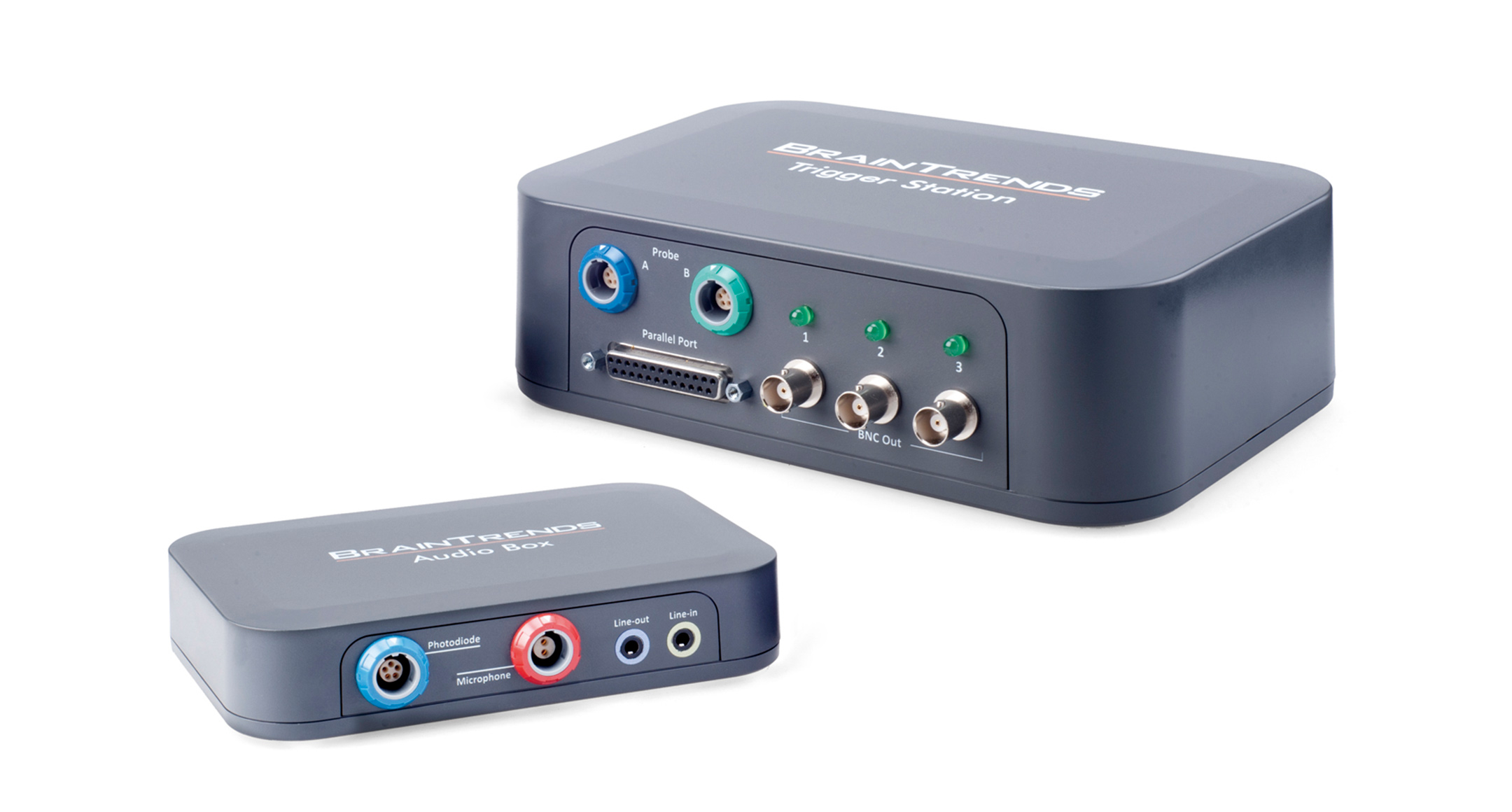

PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series14

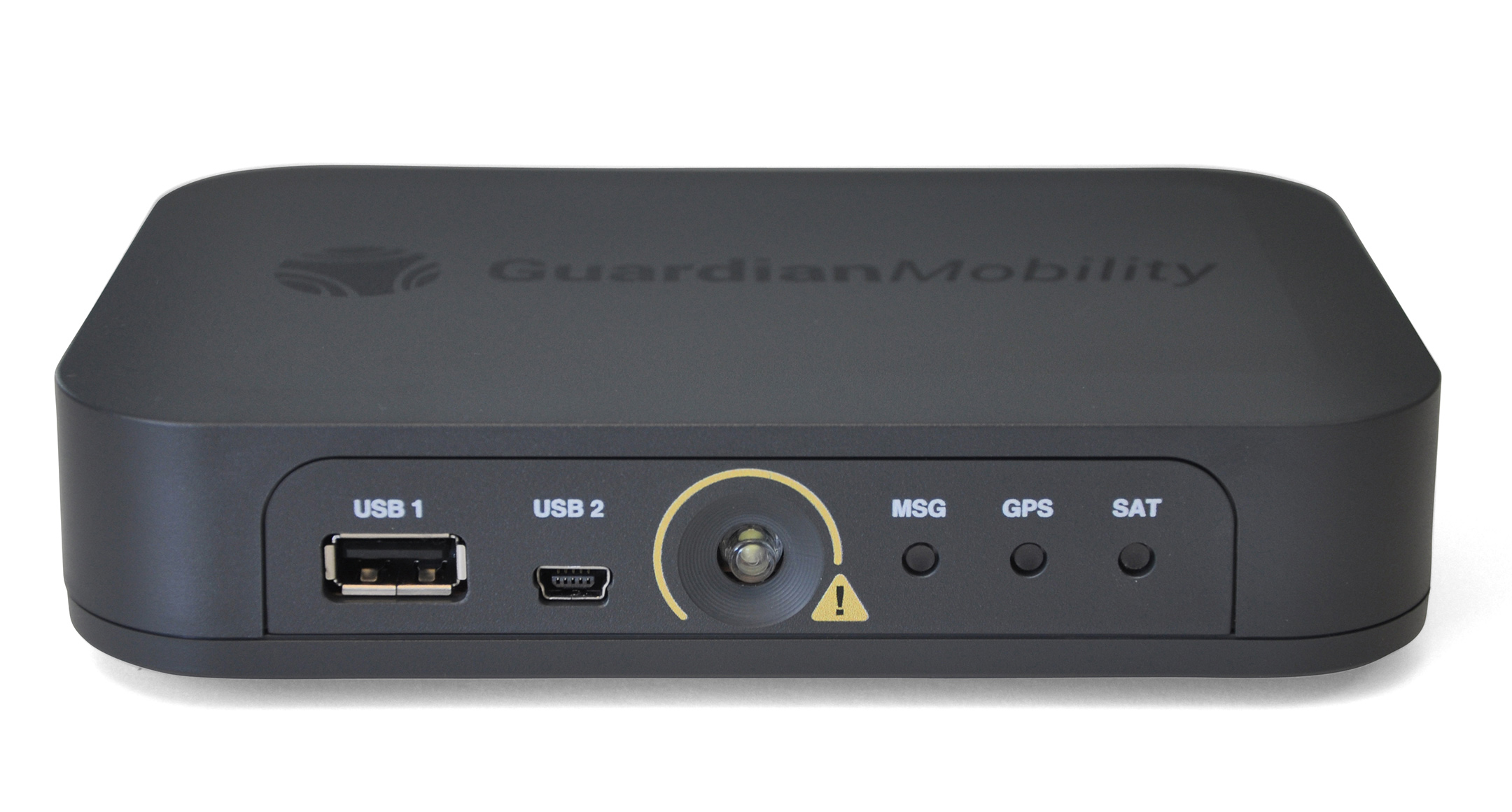

PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series15
PLASTIC ENCLOSURE - FRONT/REAR PANEL TYPE - PF series16
General purpose plastic enclosure with front and rear detachable panel construction.
Flat and neat design can be used as a handheld gadget, as a desktop device, or for a variety of other uses.
A rich lineup of 41 sizes from small to large sizes in off-white and dark gray colors are available.

Suitable for communication equipment, network devices, wireless applications, LoRa gateways, access points, controllers, sensor boxes,
HUB boxes, data loggers and much more.

Protection class: IP40
Plastic material : Flame-resistant ABS UL94V-0
Operating temperature: -10℃ ~ +60℃

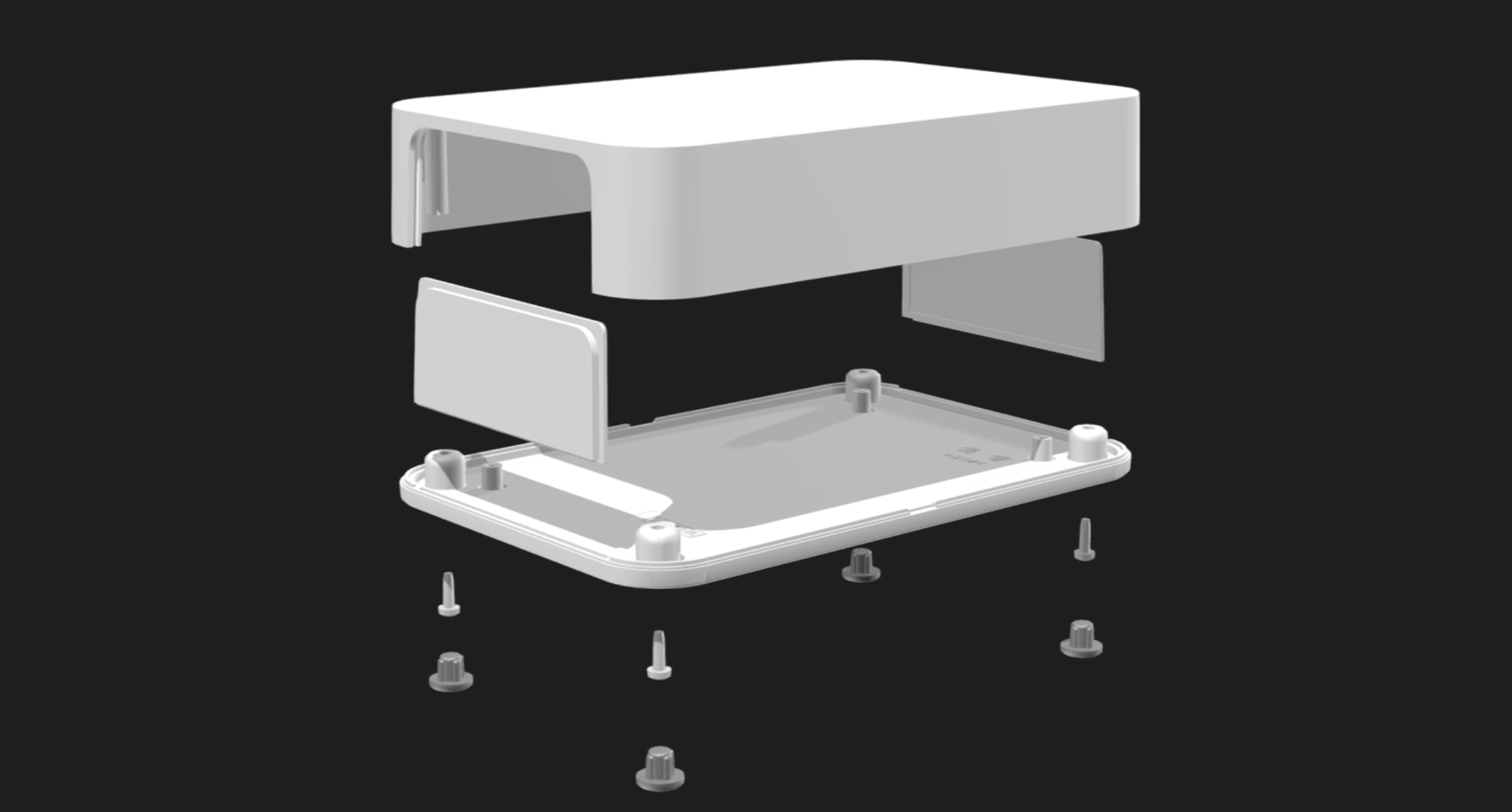

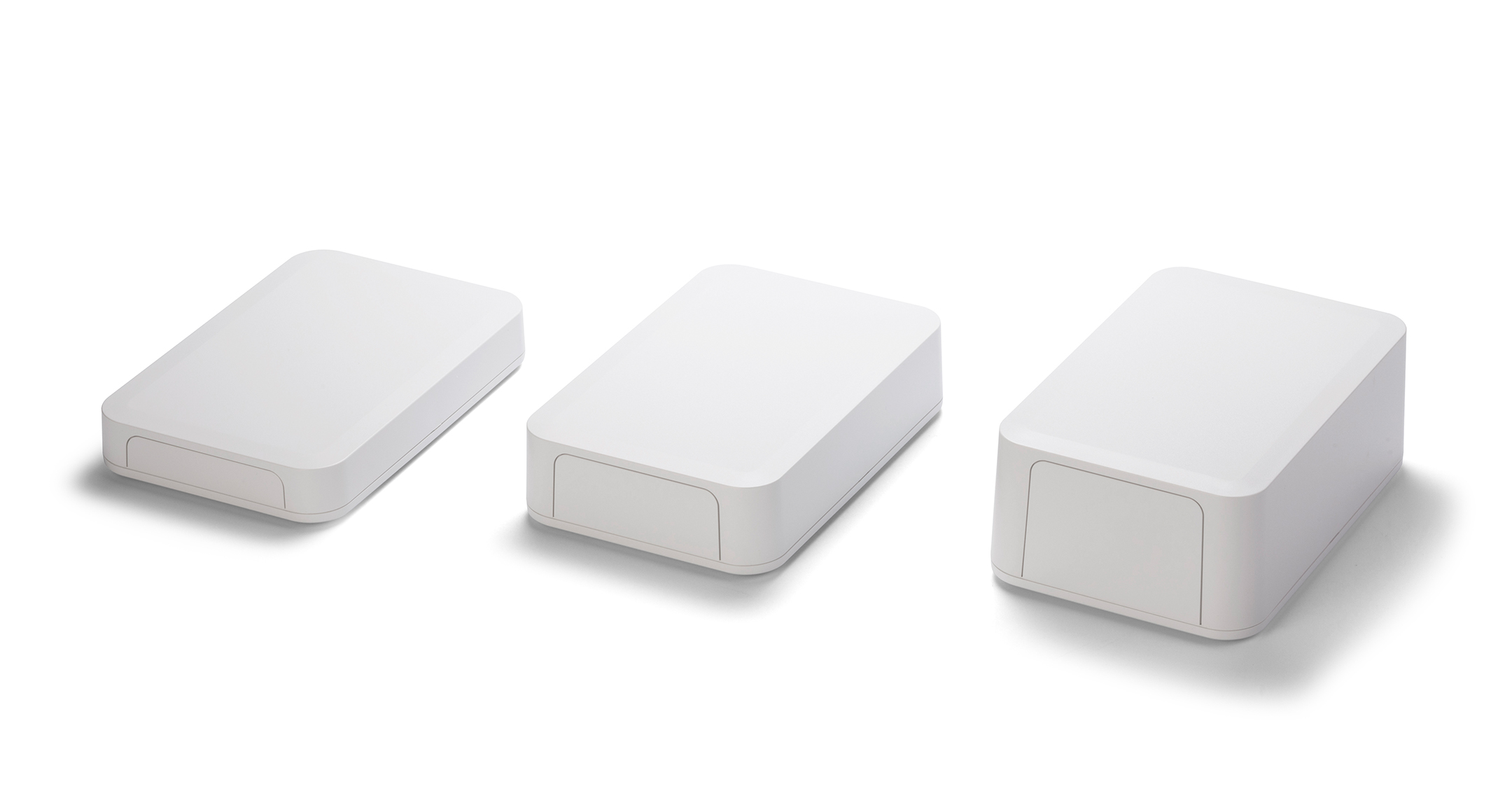

3D view - Small size  3D view - Slim size  3D view - Middle size  3D view - Thick size  Exploded view 

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Color / Similar matching Weight (g) PDF DXF DWG STP
W H D w h d
PF8-2-5 D 80 22.5 50 55.5 13.5 42.8 Dark gray / Munsell N3 36.2 PDF DXF DWG
PF8-2-5 W 80 22.5 50 55.5 13.5 42.8 Off-white / Munsell N8.75 36.2 PDF DXF DWG
PF8-2-8 D 80 22.5 80 55.5 13.5 72.8 Dark gray / Munsell N3 53.3 PDF DXF DWG
PF8-2-8 W 80 22.5 80 55.5 13.5 72.8 Off-white / Munsell N8.75 53.3 PDF DXF DWG
PF8-3-5 D 80 30 50 55.5 21 42.3 Dark gray / Munsell N3 41.6 PDF DXF DWG
PF8-3-5 W 80 30 50 55.5 21 42.3 Off-white / Munsell N8.75 41.6 PDF DXF DWG
PF8-3-8 D 80 30 80 55.5 21 72.3 Dark gray / Munsell N3 60.1 PDF DXF DWG
PF8-3-8 W 80 30 80 55.5 21 72.3 Off-white / Munsell N8.75 60.1 PDF DXF DWG
PF8-3-13 D 80 30 125 55.5 21 117.3 Dark gray / Munsell N3 87.3 PDF DXF DWG
PF8-3-13 W 80 30 125 55.5 21 117.3 Off-white / Munsell N8.75 87.3 PDF DXF DWG
PF10-2-7 D 100 22.5 67 67.4 11.1 58.4 Dark gray / Munsell N3 60 PDF DXF DWG
PF10-2-7 W 100 22.5 67 67.4 11.1 58.4 Off-white / Munsell N8.75 60 PDF DXF DWG
PF10-2-10 D 100 22.5 100 67.4 11.1 91.4 Dark gray / Munsell N3 82.9 PDF DXF DWG
PF10-2-10 W 100 22.5 100 67.4 11.1 91.4 Off-white / Munsell N8.75 82.9 PDF DXF DWG
PF10-2-15 D 100 22.5 150 67.4 11.1 141.4 Dark gray / Munsell N3 120.2 PDF DXF DWG
PF10-2-15 W 100 22.5 150 67.4 11.1 141.4 Off-white / Munsell N8.75 120.2 PDF DXF DWG
PF10-4-7 D 100 35 67 67.4 23.6 57.5 Dark gray / Munsell N3 65 PDF DXF DWG
PF10-4-7 W 100 35 67 67.4 23.6 57.5 Off-white / Munsell N8.75 65 PDF DXF DWG
PF10-4-10 D 100 35 100 67.4 23.6 90.5 Dark gray / Munsell N3 97.1 PDF DXF DWG
PF10-4-10 W 100 35 100 67.4 23.6 90.5 Off-white / Munsell N8.75 97.1 PDF DXF DWG
PF10-4-15 D 100 35 150 67.4 23.6 140.5 Dark gray / Munsell N3 132.6 PDF DXF DWG
PF10-4-15 W 100 35 150 67.4 23.6 140.5 Off-white / Munsell N8.75 132.6 PDF DXF DWG
PF10-6-15 D 100 55 150 67.4 43.6 139.1 Dark gray / Munsell N3 169.1 PDF DXF DWG
PF10-6-15 W 100 55 150 67.4 43.6 139.1 Off-white / Munsell N8.75 169.1 PDF DXF DWG
PF13-3-9 D 125 25 85 92.4 13.5 76.2 Dark gray / Munsell N3 90.8 PDF DXF DWG
PF13-3-9 W 125 25 85 92.4 13.5 76.2 Off-white / Munsell N8.75 90.8 PDF DXF DWG
PF13-3-13 D 125 25 125 92.4 13.5 116.2 Dark gray / Munsell N3 127.5 PDF DXF DWG
PF13-3-13 W 125 25 125 92.4 13.5 116.2 Off-white / Munsell N8.75 127.5 PDF DXF DWG
PF13-3-19 D 125 25 190 92.4 13.5 181.2 Dark gray / Munsell N3 186.8 PDF DXF DWG
PF13-3-19 W 125 25 190 92.4 13.5 181.2 Off-white / Munsell N8.75 186.8 PDF DXF DWG
PF13-4-9 D 125 40 85 92.4 28.5 75.2 Dark gray / Munsell N3 108.4 PDF DXF DWG
PF13-4-9 W 125 40 85 92.4 28.5 75.2 Off-white / Munsell N8.75 108.4 PDF DXF DWG
PF13-4-13 D 125 40 125 92.4 28.5 115.2 Dark gray / Munsell N3 151.4 PDF DXF DWG
PF13-4-13 W 125 40 125 92.4 28.5 115.2 Off-white / Munsell N8.75 151.4 PDF DXF DWG
PF13-4-19 D 125 40 190 92.4 28.5 180.2 Dark gray / Munsell N3 214.9 PDF DXF DWG
PF13-4-19 W 125 40 190 92.4 28.5 180.2 Off-white / Munsell N8.75 214.9 PDF DXF DWG
PF13-6-19 D 125 60 190 92.4 48.5 178.8 Dark gray / Munsell N3 250.4 PDF DXF DWG
PF13-6-19 W 125 60 190 92.4 48.5 178.8 Off-white / Munsell N8.75 250.4 PDF DXF DWG
PF15-3-10 D 150 30 100 112.4 17.8 90 Dark gray / Munsell N3 145.5 PDF DXF DWG
PF15-3-10 W 150 30 100 112.4 17.8 90 Off-white / Munsell N8.75 145.5 PDF DXF DWG
PF15-3-15 D 150 30 150 112.4 17.8 140 Dark gray / Munsell N3 207.5 PDF DXF DWG
PF15-3-15 W 150 30 150 112.4 17.8 140 Off-white / Munsell N8.75 207.5 PDF DXF DWG
PF15-5-10 D 150 45 100 112.4 32.8 88.9 Dark gray / Munsell N3 166 PDF DXF DWG
PF15-5-10 W 150 45 100 112.4 32.8 88.9 Off-white / Munsell N8.75 166 PDF DXF DWG
PF15-5-15 D 150 45 150 112.4 32.8 138.9 Dark gray / Munsell N3 233.5 PDF DXF DWG
PF15-5-15 W 150 45 150 112.4 32.8 138.9 Off-white / Munsell N8.75 233.5 PDF DXF DWG
PF18-4-12 D 175 35 120 132.4 22.4 110.3 Dark gray / Munsell N3 188.7 PDF DXF DWG
PF18-4-12 W 175 35 120 132.4 22.4 110.3 Off-white / Munsell N8.75 188.7 PDF DXF DWG
PF18-4-18 D 175 35 175 132.4 22.4 165.3 Dark gray / Munsell N3 266.8 PDF DXF DWG
PF18-4-18 W 175 35 175 132.4 22.4 165.3 Off-white / Munsell N8.75 266.8 PDF DXF DWG
PF18-5-12 D 175 50 120 132.4 37.4 109.3 Dark gray / Munsell N3 213.6 PDF DXF DWG
PF18-5-12 W 175 50 120 132.4 37.4 109.3 Off-white / Munsell N8.75 213.6 PDF DXF DWG
PF18-5-18 D 175 50 175 132.4 37.4 164.3 Dark gray / Munsell N3 302.1 PDF DXF DWG
PF18-5-18 W 175 50 175 132.4 37.4 164.3 Off-white / Munsell N8.75 302.1 PDF DXF DWG
PF20-4-13 D 200 40 135 151.6 27.3 124.4 Dark gray / Munsell N3 264 PDF DXF DWG
PF20-4-13 W 200 40 135 151.6 27.3 124.4 Off-white / Munsell N8.75 264 PDF DXF DWG
PF20-4-20 D 200 40 200 151.6 27.3 189.4 Dark gray / Munsell N3 368.5 PDF DXF DWG
PF20-4-20 W 200 40 200 151.6 27.3 189.4 Off-white / Munsell N8.75 368.5 PDF DXF DWG
PF20-6-13 D 200 60 135 151.6 47.3 123 Dark gray / Munsell N3 302.5 PDF DXF DWG
PF20-6-13 W 200 60 135 151.6 47.3 123 Off-white / Munsell N8.75 302.5 PDF DXF DWG
PF20-6-20 D 200 60 200 151.6 47.3 188 Dark gray / Munsell N3 417 PDF DXF DWG
PF20-6-20 W 200 60 200 151.6 47.3 188 Off-white / Munsell N8.75 417 PDF DXF DWG
PF24-4-17 D 240 42.5 165 187.6 29.5 154.5 Dark gray / Munsell N3 370.4 PDF DXF DWG
PF24-4-17 W 240 42.5 165 187.6 29.5 154.5 Off-white / Munsell N8.75 370.4 PDF DXF DWG
PF24-4-24 D 240 42.5 240 187.6 29.5 229.5 Dark gray / Munsell N3 521.4 PDF DXF DWG
PF24-4-24 W 240 42.5 240 187.6 29.5 229.5 Off-white / Munsell N8.75 521.4 PDF DXF DWG
PF24-6-17 D 240 60 165 187.6 47 153.2 Dark gray / Munsell N3 408.8 PDF DXF DWG
PF24-6-17 W 240 60 165 187.6 47 153.2 Off-white / Munsell N8.75 408.8 PDF DXF DWG
PF24-6-24 D 240 60 240 187.6 47 228.2 Dark gray / Munsell N3 568.7 PDF DXF DWG
PF24-6-24 W 240 60 240 187.6 47 228.2 Off-white / Munsell N8.75 568.7 PDF DXF DWG
PF28-5-20 D 280 45 200 223.6 31.4 189.3 Off-white / Munsell N8.75 564.1 PDF DXF DWG
PF28-5-20 W 280 45 200 223.6 31.4 189.3 Dark gray / Munsell N3 564.1 PDF DXF DWG
PF28-7-20 D 280 65 200 223.6 51.4 187.9 Off-white / Munsell N8.75 618.4 PDF DXF DWG
PF28-7-20 W 280 65 200 223.6 51.4 187.9 Dark gray / Munsell N3 618.4 PDF DXF DWG
PF28-9-20 D 280 90 200 223.6 76.4 186.2 Off-white / Munsell N8.75 709.2 PDF DXF DWG
PF28-9-20 W 280 90 200 223.6 76.4 186.2 Dark gray / Munsell N3 709.2 PDF DXF DWG
PF32-5-23 D 320 45 225 259.6 31.3 214.3 Off-white / Munsell N8.75 697.1 PDF DXF DWG
PF32-5-23 W 320 45 225 259.6 31.3 214.3 Dark gray / Munsell N3 697.1 PDF DXF DWG
PF32-7-23 D 320 70 225 259.6 56.3 212.6 Off-white / Munsell N8.75 782.1 PDF DXF DWG
PF32-7-23 W 320 70 225 259.6 56.3 212.6 Dark gray / Munsell N3 782.1 PDF DXF DWG
PF32-10-23 D 320 100 225 259.6 86.3 210.5 Off-white / Munsell N8.75 899.8 PDF DXF DWG
PF32-10-23 W 320 100 225 259.6 86.3 210.5 Dark gray / Munsell N3 899.8 PDF DXF DWG
