NETWORK PLASTIC CASE - SU series


SU Series -PDF

CATEGORY:Round edge plastic enclosure, Snap-in plastic enclosure, Network plastic enclosure

NETWORK PLASTIC CASE - SU series
NETWORK PLASTIC CASE - SU series
NETWORK PLASTIC CASE - SU series
NETWORK PLASTIC CASE - SU series1
NETWORK PLASTIC CASE - SU series2
NETWORK PLASTIC CASE - SU series3

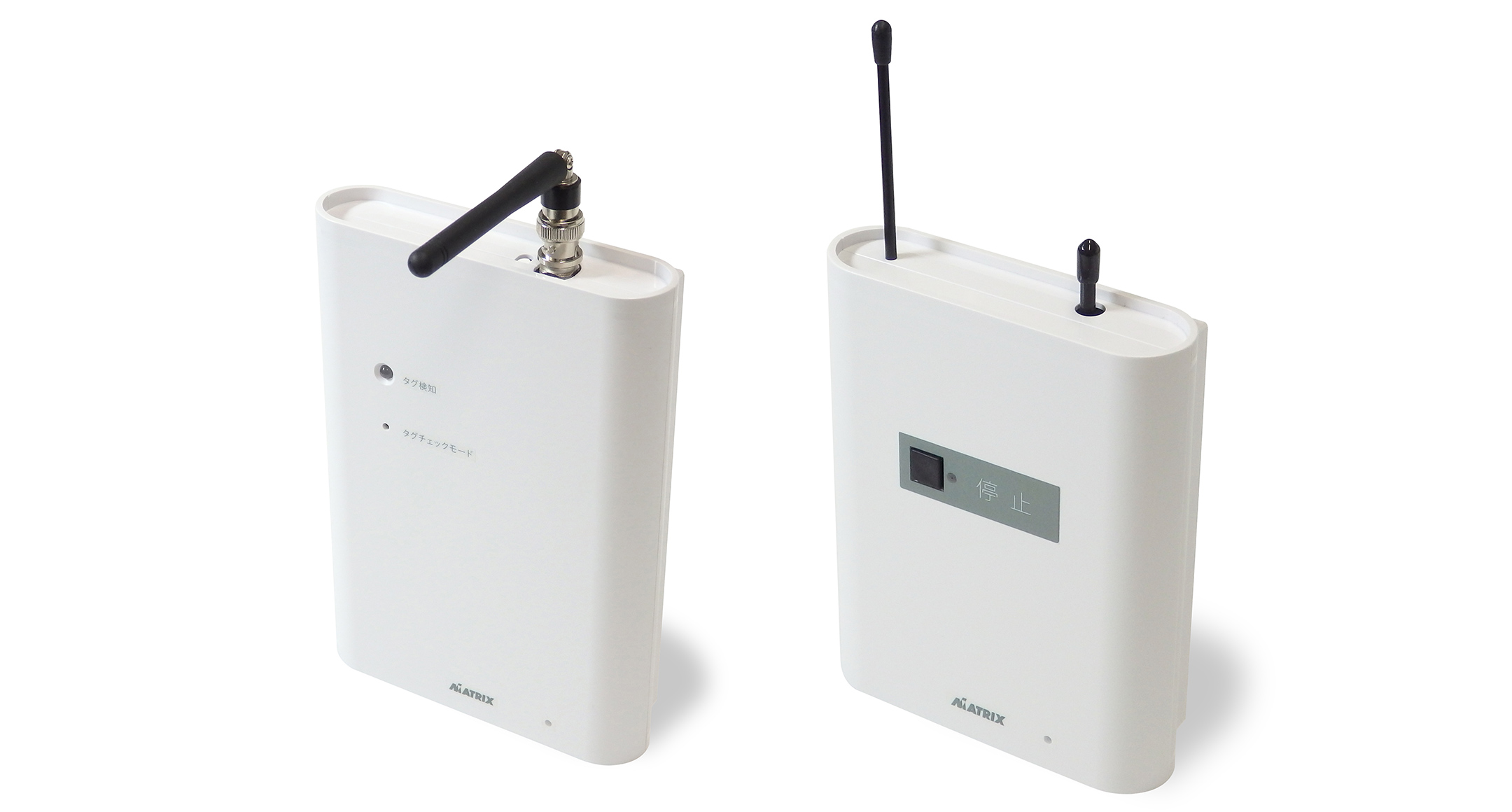

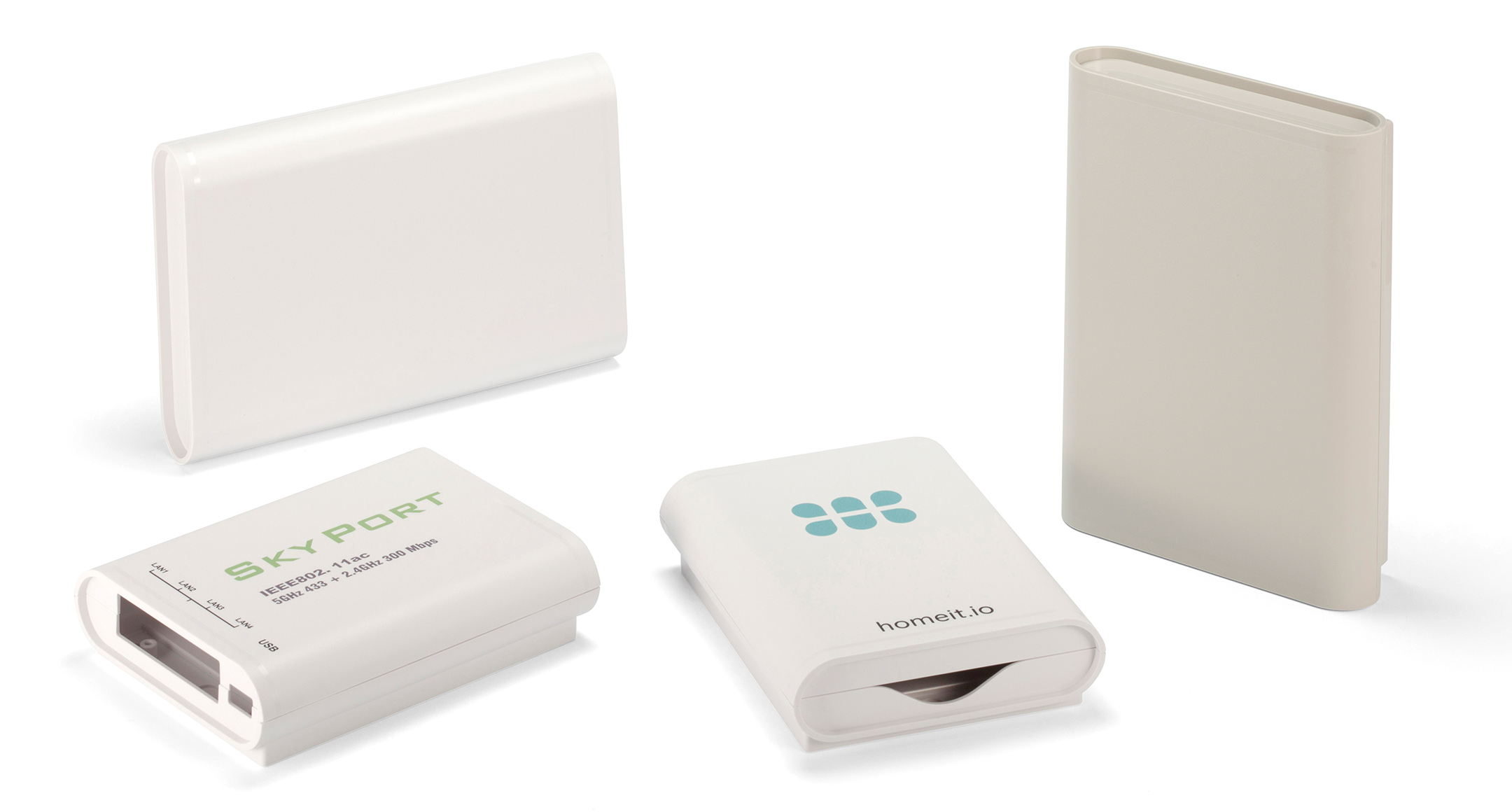

Rounded shape design plastic enclosure.
Suitable for wall-mount communication device usage.
Snap on / off cover. No screws are required

2 different sizes in white and light gray colors are available.

Protection class : IP40
Operating temperature : -10℃~+60℃

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Color Weight (g) PDF DXF DWG
W H D w h d
SU-140G 140 35 110 129.8 22.1 94 Light gray 100 PDF DXF DWG
SU-140W 140 35 110 129.8 22.1 94 White 100 PDF DXF DWG
SU-180G 180 35 125 166.5 22.1 109 Light gray 140 PDF DXF DWG
SU-180W 180 35 125 166.5 22.1 109 White 140 PDF DXF DWG
