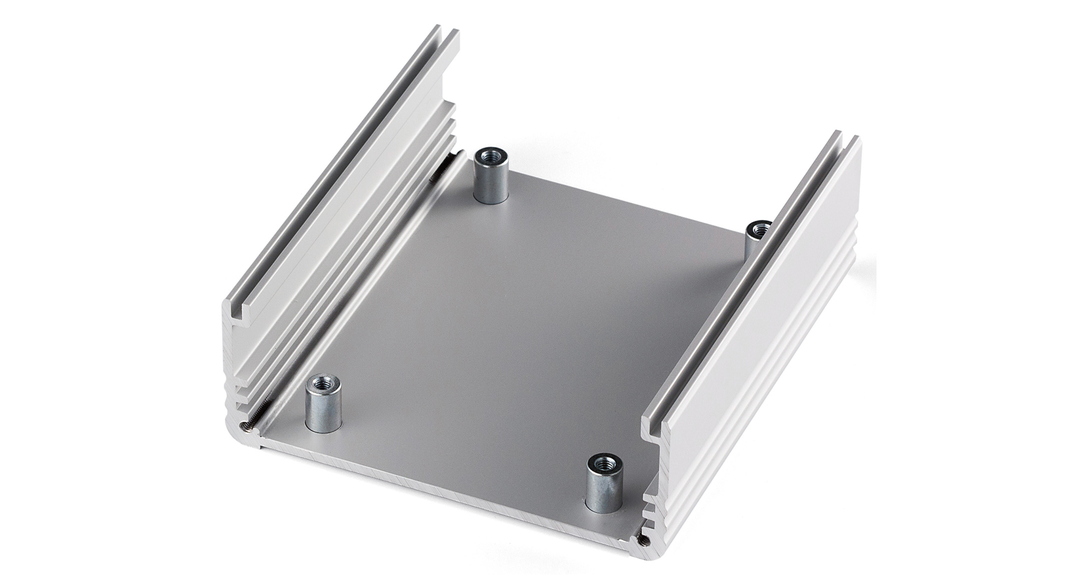

Simple yet beautifully designed aluminum extrusion enclosure.
Beautiful high-end finish is achieved by precision CNC finishing.
Suitable for industrial and audio interface equipment.

6 new sizes added in 2022.　Selectable in 73 different sizes and 4 color combinations.

Custom length is available.
↓Go EXS series page for the custom length (depth) order from 40～500mm by 1mm intervals.
CUSTOM LENGTH ENCLOSURE - EXS series  3D View (Silver)  3D View (Black)  3D View - 4 color types  Enclosure with Aluminium feets  Exploded View 

COLOR TYPE

SSSilver/Silver

EXTRUDED ALUMINUM ENCLOSURE - EX series:Silver/Silver

SBSilver/Black

EXTRUDED ALUMINUM ENCLOSURE - EX series:Silver/Black

BSBlack/Silver

EXTRUDED ALUMINUM ENCLOSURE - EX series:Black/Silver

BBBlack/Black

EXTRUDED ALUMINUM ENCLOSURE - EX series:Black/Black
EXTRUDED ALUMINUM ENCLOSURE - EX series:Silver/Silver
EXTRUDED ALUMINUM ENCLOSURE - EX series:Silver/Black
EXTRUDED ALUMINUM ENCLOSURE - EX series:Black/Silver
EXTRUDED ALUMINUM ENCLOSURE - EX series:Black/Black

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) PDF DXF DWG STP
W H D w h d
EX6-3-5□ 60.6 25.6 50 46 19.6 46 57 PDF DXF DWG
EX6-3-8□ 60.6 25.6 77 46 19.6 73 80 PDF DXF DWG
EX6-3-10□ 60.6 25.6 100 46 19.6 96 99.5 PDF DXF DWG
EX6-4-5□ 60.6 35.6 50 46 29.6 46 70 PDF DXF DWG
EX6-4-8□ 60.6 35.6 77 46 29.6 73 96.5 PDF DXF DWG
EX6-4-10□ 60.6 35.6 100 46 29.6 96 118.5 PDF DXF DWG
EX6-5-5□ 60.6 50.6 50 46 44.6 46 86 PDF DXF DWG
EX6-5-8□ 60.6 50.6 77 46 44.6 73 116 PDF DXF DWG
EX6-5-10□ 60.6 50.6 100 46 44.6 96 142 PDF DXF DWG
EX8-3-6□ 80.6 30.6 60 66 24.6 56 96.5 PDF DXF DWG
EX8-3-9□ 80.6 30.6 90 66 24.6 86 133 PDF DXF DWG
EX8-3-12□ 80.6 30.6 120 66 24.6 116 169.5 PDF DXF DWG
EX8-4-6□ 80.6 40.6 60 66 34.6 56 112.5 PDF DXF DWG
EX8-4-9□ 80.6 40.6 90 66 34.6 86 153 PDF DXF DWG
EX8-4-12□ 80.6 40.6 120 66 34.6 116 193 PDF DXF DWG
EX8-6-6□ 80.6 55.6 60 66 49.6 56 134 PDF DXF DWG
EX8-6-9□ 80.6 55.6 90 66 49.6 86 179 PDF DXF DWG
EX8-6-12□ 80.6 55.6 120 66 49.6 116 223.5 PDF DXF DWG
EX11-3-8□ 106 31 79 88 24 74 170 PDF DXF DWG
EX11-3-12□ 106 31 119 88 24 114 237 PDF DXF DWG
EX11-3-16□ 106 31 165 88 24 160 315 PDF DXF DWG
EX11-5-8□ 106 46 79 88 39 74 203.5 PDF DXF DWG
EX11-5-12□ 106 46 119 88 39 114 277 PDF DXF DWG
EX11-5-16□ 106 46 165 88 39 160 362 PDF DXF DWG
EX11-6-8□ 106 61 79 88 54 74 239 PDF DXF DWG
EX11-6-12□ 106 61 119 88 54 114 320 PDF DXF DWG
EX11-6-16□ 106 61 165 88 54 160 414 PDF DXF DWG
EX14-4-10□ 141 36 98 106.8 29 93 278 PDF DXF DWG
EX14-4-14□ 141 36 138 106.8 29 133 369 PDF DXF DWG
EX14-4-19□ 141 36 188 106.8 29 183 482 PDF DXF DWG
EX14-5-10□ 141 51 98 106.8 44 93 323 PDF DXF DWG
EX14-5-14□ 141 51 138 106.8 44 133 420.5 PDF DXF DWG
EX14-5-19□ 141 51 188 106.8 44 183 542.5 PDF DXF DWG
EX14-7-10□ 141 71 98 106.8 64 93 376.5 PDF DXF DWG
EX14-7-14□ 141 71 138 106.8 64 133 481 PDF DXF DWG
EX14-7-19□ 141 71 188 106.8 64 183 612 PDF DXF DWG
EX14-9-10□ 141 91 98 106.8 84 93 437.5 PDF DXF DWG
EX14-9-14□ 141 91 138 106.8 84 133 552 PDF DXF DWG
EX14-9-19□ 141 91 188 106.8 84 183 695 PDF DXF DWG
EX19-4-13□ 186.5 43.5 125 131 35 120 579 PDF DXF DWG
EX19-4-18□ 186.5 43.5 177 131 35 172 769 PDF DXF DWG
EX19-4-23□ 186.5 43.5 230 131 35 225 963 PDF DXF DWG
EX19-4-29□ 186.5 43.5 285 131 35 280 1161 PDF DXF DWG
EX19-6-13□ 186.5 61.5 125 131 53 120 649 PDF DXF DWG
EX19-6-18□ 186.5 61.5 177 131 53 172 853 PDF DXF DWG
EX19-6-23□ 186.5 61.5 230 131 53 225 1057 PDF DXF DWG
EX19-6-29□ 186.5 61.5 285 131 53 280 1272 PDF DXF DWG
EX19-8-13□ 186.5 81.5 125 131 73 120 729 PDF DXF DWG
EX19-8-18□ 186.5 81.5 177 131 73 172 953 PDF DXF DWG
EX19-8-23□ 186.5 81.5 230 131 73 225 1173 PDF DXF DWG
EX19-8-29□ 186.5 81.5 285 131 73 280 1404 PDF DXF DWG
EX19-11-13□ 186.5 106.5 125 131 98 120 853 PDF DXF DWG
EX19-11-18□ 186.5 106.5 177 131 98 172 1078 PDF DXF DWG
EX19-11-23□ 186.5 106.5 230 131 98 225 1325 PDF DXF DWG
EX19-11-29□ 186.5 106.5 285 131 98 280 1567 PDF DXF DWG
EX23-5-15□ 232 52 153 176 43 147 934.5 PDF DXF DWG
EX23-5-21□ 232 52 213 176 43 207 1224.5 PDF DXF DWG
EX23-5-27□ 232 52 273 176 43 267 1519.5 PDF DXF DWG
EX23-5-33□ 232 52 333 176 43 327 1813.5 PDF DXF DWG
EX23-8-15□ 232 77 153 176 68 147 1074.5 PDF DXF DWG
EX23-8-21□ 232 77 213 176 68 207 1383.5 PDF DXF DWG
EX23-8-27□ 232 77 273 176 68 267 1691.5 PDF DXF DWG
EX23-8-33□ 232 77 333 176 68 327 2026.5 PDF DXF DWG
EX23-10-15□ 232 102 153 176 93 147 1213.5 PDF DXF DWG
EX23-10-21□ 232 102 213 176 93 207 1556.5 PDF DXF DWG
EX23-10-27□ 232 102 273 176 93 267 1897.5 PDF DXF DWG
EX23-10-33□ 232 102 333 176 93 327 2256.5 PDF DXF DWG
EX29-8-23□ 287.5 77.5 234 230 68 228 1749 PDF DXF DWG
EX29-8-30□ 287.5 77.5 304 230 68 298 2173 PDF DXF DWG
EX29-8-38□ 287.5 77.5 384 230 68 378 2658 PDF DXF DWG
EX29-13-23□ 287.5 127.5 234 230 118 228 2161 PDF DXF DWG
EX29-13-30□ 287.5 127.5 304 230 118 298 2644 PDF DXF DWG
EX29-13-38□ 287.5 127.5 384 230 118 378 3195 PDF DXF DWG
