METAL ENCLOSURES・ALUMINIUM CHASSIS・DESKTOP ENCLOSURES

METAL ENCLOSURES・ALUMINIUM CHASSIS・DESKTOP ENCLOSURES -PDF

CATEGORY: SHEET METAL ENCLOSURE・STEEL ENCLOSURE・ELECTRONICS CHASSIS・ALUMINIUM INSTRUMENT ENCLOSURE

Sheet metal enclosures and aluminum enclosures utilize extruded aluminum parts.
Suitable for measuring instruments ,testing devices, power supply units, controllers, audio amplifiers.
Wide selection of sizes are available.

HIGH-END DESIGN ALUMINUM CASE - HD series
  • HIGH-END DESIGN ALUMINUM CASE - HD series
  • Distinctively designed aluminium case with bended feet part.
  • Elegant and sleek metallic silver finish.
  • For embedded system, analyzer, power supply, audio amplifier.
  • 12 different sizes available.
  • NEW PRODUCT
DETAILS
ARC DESIGN ALUMINIUM ENCLOSURE - ALR series
  • ARC DESIGN ALUMINIUM ENCLOSURE - ALR series
  • Curved arc designed aluminium enclosure.
  • Elegant design with columns at the corners.
  • For embedded computers, audio amplifiers or power supply.
  • 6 different sizes are available.
  • NEW PRODUCT
DETAILS
Raspberry Pi 4B ALUMINIUM CASE - RPI-4 series
  • Raspberry Pi 4B ALUMINIUM CASE - RPI-4 series
  • Raspberry Pi aluminium case.
  • Compatible with Raspberry Pi 4 Model B boards.
  • Superior heat dissipation all aluminium case.
  • Normal, double-layered, and flanged types are available.
  • NEW PRODUCT
DETAILS
Raspberry Pi 2B/3B ALUMINIUM CASE - RPI series
  • Raspberry Pi 2B/3B ALUMINIUM CASE - RPI series
  • Raspberry Pi aluminium case.
  • Suitable for Raspberry Pi 2B, 3B and 3B+ boards.
  • Superior heat dissipation all aluminium case.
  • Normal, double-layered, and flanged types are available.
    DETAILS
    EXTRUDED ALUMINUM ENCLOSURE - EX series
    • EXTRUDED ALUMINUM ENCLOSURE - EX series
    • Simple yet beautiful aluminum extrusion enclosure.
    • Front panel is high-end finish by CNC machining.
    • Suitable for industrial and audio interface equipment.
    • Selectable in 67 different sizes and 4 color combinations.
    • NEW SIZE
    DETAILS
    UNIVERSAL ALUMINUM ENCLOSURE - UC series
    • UNIVERSAL ALUMINUM ENCLOSURE - UC series
    • Simple structure and tough instrument case.
    • Top / bottom cover made by bending extruded aluminum.
    • Available in 36 sizes and 3 different colors.
      DETAILS

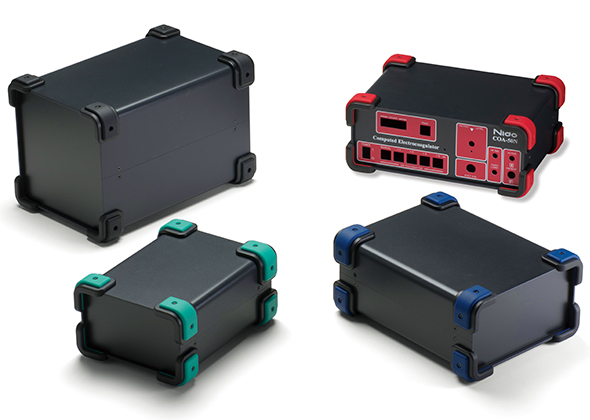

      INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series
      • INSTRUMENT ENCLOSURE with CORNER GUARD - UCG series
      • Aluminium desktop enclosure with corner guards.
      • Corner guards are effective for shockproof and anti-slip.
      • Suitable for measuring instrument, analyzer, and power supply.
      • Available in 8 sizes and 5 different corner guard color.
      • NEW PRODUCT
      DETAILS
      METAL CASE with CORNER GUARD - MCG series
      • METAL CASE with CORNER GUARD - MCG series
      • Shockproof metal enclosure with carrying handle.
      • Corner guards are effective for impact resistance and anti-slip.
      • Carrying handle maximum load : 30.0 kg
      • Available in 4 different sizes, 8 color combinations.
      • NEW PRODUCT
      DETAILS
      CORNER BUMPER GUARD - MG-1
      • CORNER BUMPER GUARD - MG-1
      • Spare corner guard part for MCG series.
      • Can be installed on other metal enclosures than MCG series.
      • Available in 4 different color variations.
      • NEW PRODUCT
      DETAILS
      HEATSINK ALUMINUM ENCLOSURE - HY series
      • HEATSINK ALUMINUM ENCLOSURE - HY series
      • Excellent cooling enclosure with the heatsink side plates.
      • Robust enclosure from using aluminum extrusion parts.
      • Stylish and elegantly designed with a hairline finish.
      • 56 different sizes in silver and black are available.
        DETAILS
        ALUMINUM PROJECT BOX - T series
        • ALUMINUM PROJECT BOX - T series
        • Simple aluminum project box with an flat aluminum cover.
        • Detachable top cover for easy assembly / maintenance access.
        • Wide use such as control box, switch box, and junction box.
        • 6 different sizes are available.
        • NEW PRODUCT
        DETAILS
        ALUMINUM PROJECT BOX - MB series
        • ALUMINUM PROJECT BOX - MB series
        • low-cost universal aluminum enclosure.
        • Simple structure sheet metal enclosure.
        • Available in 51 different selectable sizes.
        • Custom size is available.
        • NEW SIZE
        DETAILS
        FLANGED ALUMINIUM BOX - MBC series
        • FLANGED ALUMINIUM BOX - MBC series
        • Flanged aluminium box for easy wall mounting.
        • Suitable for switch box and controller.
        • Unfinished internal surface for conductivity and grounding.
        • 13 different sizes available.
          DETAILS
          VENTILATED ALUMINIUM ENCLOSURE - MBH series
          • VENTILATED ALUMINIUM ENCLOSURE - MBH series
          • Universal aluminium enclosure with ventilation holes.
          • Ventilation holes are punched for enhancing airflow.
          • Unfinished internal surface for conductivity and grounding.
          • 6 different sizes available.
            DETAILS
            CUSTOM SIZED ALUMINUM CASE - MBF series
            • CUSTOM SIZED ALUMINUM CASE - MBF series
            • Simple structure sheet metal aluminium enclosure.
            • W・D dimensions can be specified as 50~500mm
            • H dimensions can be specified as 20~250mm
              DETAILS
              CUSTOM SIZED FLANGED ALUMINUM ENCLOSURE - MBCF series
              • CUSTOM SIZED FLANGED ALUMINUM ENCLOSURE - MBCF series
              • Simple structure sheet metal wall mount enclosure.
              • W・D dimensions can be specified as 50~500mm
              • H dimensions can be specified as 20~250mm
                DETAILS
                UNIVERSAL ALUMINUM PROJECT BOX - CU-N series
                • UNIVERSAL ALUMINUM PROJECT BOX - CU-N series
                • Universal project box with steel top cover and aluminum base.
                • Unfinished internal surface for conductivity and grounding.
                • 15 different sizes are available.
                  DETAILS
                  UNIVERSAL ALUMINIUM PROJECT BOX - HU-N series
                  • UNIVERSAL ALUMINIUM PROJECT BOX - HU-N series
                  • Universal project box with steel top cover and aluminum base.
                  • Unfinished internal surface for conductivity and grounding.
                  • 3 different sizes are available.
                    DETAILS
                    傾斜ケース TSシリーズ
                    • 傾斜ケース TSシリーズ
                    • Desktop aluminum enclosure with inclined top.
                    • Simple sheet metal construction.
                    • Best suited for desktop operation with its sloped surface.
                    • 6 different sizes available.
                      DETAILS
                      FLAT ALUMINUM ENCLOSURE - YM series
                      • FLAT ALUMINUM ENCLOSURE - YM series
                      • Flat, low profile aluminum case.
                      • Simple, low-cost sheet metal enclosure.
                      • Cover is silver hairline brushed & anodized finish.
                      • 16 different sizes are available.
                        DETAILS
                        METAL INSTRUMENT ENCLOSURE  - MS series
                        • METAL INSTRUMENT ENCLOSURE - MS series
                        • Desktop instrument metal enclosure.
                        • Screws are hidden out of view for a sophisticated look.
                        • For measuring instrument, testing equipment, power supply.
                        • Available in 176 different sizes and 3 colors.
                          DETAILS

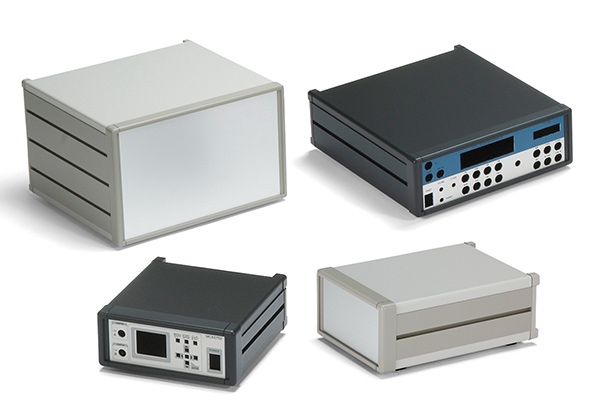

                          ALUMINUM DESKTOP ENCLOSURE - MO series
                          • ALUMINUM DESKTOP ENCLOSURE - MO series
                          • Lightweight aluminium desktop instrument cases.
                          • Screws are hidden out of view for a sophisticated look.
                          • For measuring instrument, testing equipment, power supply.
                          • Available in 176 different sizes and 3 colors.
                            DETAILS
                            INSTRUMENT ENCLOSURE with TIP-UP HANDLE - MSN series
                            • INSTRUMENT ENCLOSURE with TIP-UP HANDLE - MSN series
                            • Desktop metal enclosure with tip-up handle.
                            • Stand handle can be shifted and locked at 30° intervals.
                            • Suitable for use as measuring instruments, analyzer, etc.
                            • Available in 176 different sizes and 3 colors.
                              DETAILS

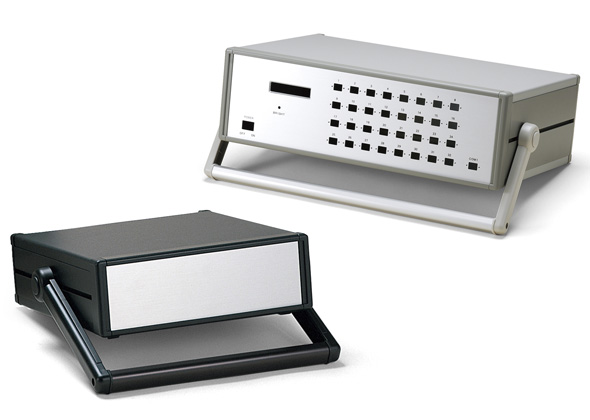

                              ALUMINUM ENCLOSURE with TIP-UP HANDLE - MON series
                              • ALUMINUM ENCLOSURE with TIP-UP HANDLE - MON series
                              • Aluminium desktop enclosure with tip-up handle.
                              • Stand handle can be shifted and locked at 30° intervals.
                              • For measuring instruments, analyzer, testing equipment.
                              • Available in 176 different sizes and 3 colors.
                                DETAILS
                                INSTRUMENT ENCLOSURE with CARRYING HANDLE - MSY series
                                • INSTRUMENT ENCLOSURE with CARRYING HANDLE - MSY series
                                • Metal instrument case with carrying handle.
                                • Suitable for measuring instruments, portable power supplies.
                                • Maximum load support of 20kg.
                                • Available in 160 different sizes and 3 colors.
                                  DETAILS
                                  ALUMINUM ENCLOSURE with CARRYING HANDLE - MOY series
                                  • ALUMINUM ENCLOSURE with CARRYING HANDLE - MOY series
                                  • Aluminium instrument case with carrying handle.
                                  • Suitable for measuring instruments, portable power supplies.
                                  • Maximum load support of 20kg.
                                  • Available in 160 different sizes and 3 colors.
                                    DETAILS
                                    TUBE AMPLIFIER CHASSIS - SRDSL series
                                    • TUBE AMPLIFIER CHASSIS - SRDSL series
                                    • Elegant design tube amplifier chassis.
                                    • Top cover is hairline brushed anodized finish.
                                    • Champagne gold and silver top cover types are available.
                                    • Available in 6 different sizes.
                                      DETAILS
                                      SLOPED ENCLOSURE - CF series
                                      • SLOPED ENCLOSURE - CF series
                                      • Desktop enclosure with 10°angle of inclination.
                                      • Side plate : Plastic / Frame & Panel : Aluminum.
                                      • 19 different sizes in 2 color types.
                                        DETAILS
                                        DIECAST ALUMINUM BOX - TD series
                                        • DIECAST ALUMINUM BOX - TD series
                                        • Tough diecast aluminum box.
                                        • Popular in electric guitar effect pedals. (Stomp box)
                                        • 13 different sizes in black painted and unfinished.
                                          DETAILS
                                          ALUMINIUM ISOLATION FEET -  AFM・AFS series
                                          • ALUMINIUM ISOLATION FEET - AFM・AFS series
                                          • Luxurious aluminum feet made by lathe machining.
                                          • Suitable for use in audio amplifier devices.
                                          • Available in both internal and external screw installation types.
                                          • 15 different sizes.
                                            DETAILS
                                            ALUMINUM COVERED FEET - TC series
                                            • ALUMINUM COVERED FEET - TC series
                                            • Aluminium material gives it a refined and elegant look.
                                            • Anti-slip pad is attached to the underside of the feet.
                                            • Suitable for audio equipment use.
                                            • 3 different sizes in silver and gold colors are available.
                                              DETAILS
                                              SCREW MOUNT RUBBER FEET - B-P series
                                              • SCREW MOUNT RUBBER FEET - B-P series
                                              • Screw mount type rubber feet.
                                              • Built-in washer and non-washer types are available.
                                              • Sold in 10 pcs pack.
                                                DETAILS
                                                LOW COST ADHESIVE RUBBER FEET - B series
                                                • LOW COST ADHESIVE RUBBER FEET - B series
                                                • Low cost moulded type adhesive rubber feet.
                                                • 12 sizes from φ6~φ26mm.
                                                • 2 colors as black and gray are available.
                                                • Sold in 10 pcs pack.
                                                  DETAILS
                                                  SQUARE ADHESIVE POLYURETHANE FEET - SJ series
                                                  • SQUARE ADHESIVE POLYURETHANE FEET - SJ series
                                                  • Square / rectangular shaped adhesive polyurethane feet.
                                                  • Strong adhesive strength rubber feet.
                                                  • Polyurethane material is resistant against color migration.
                                                  • Sold in 10 pcs pack.
                                                    DETAILS
                                                    TILT LEG - TLW series
                                                    • TILT LEG - TLW series
                                                    • Double shot injection molded tilt stand.
                                                    • Non-slip design with elastomer (TPE) part.
                                                    • Soft and well-designed rounded shape.
                                                    • Available in 3 different color combinations.
                                                    • NEW PRODUCT
                                                    DETAILS
                                                    TILT LEG - TL-45
                                                    • TILT LEG - TL-45
                                                    • Tilt leg kit for desktop enclosures.
                                                    • Useful for measuring instruments and controllers.
                                                    • Available in black, gray, and light gray colors.
                                                      DETAILS
                                                      EMBEDDED BATTERY BOX - BC series
                                                      • EMBEDDED BATTERY BOX - BC series
                                                      • Screw mount embedded battery box for material thickness of
                                                      • 1.0mm to 3.5mm. 5 different battery layouts : AA x 2, AA x 3,
                                                      • AA x 4, AAA x 2 and AAA x4. Each layout comes in 2 models:
                                                      • with lead-wire, and without lead-wire.
                                                      • NEW PRODUCT
                                                      DETAILS
                                                      CABLE HOOK - CBF-1
                                                      • CABLE HOOK - CBF-1
                                                      • Cable hook used for wrapping and securing cords and wires.
                                                      • Requires a panel thickness of between 1.0~3.0mm.
                                                      • Black and gray colors are available.
                                                        DETAILS
                                                        ADHESIVE STANDOFF - AST series
                                                        • ADHESIVE STANDOFF - AST series
                                                        • Quick and easy installation adhesive standoffs.
                                                        • Steel nut is installed, it has sufficient thread strength.
                                                        • Convenient parts for installing PCBs into enclosures.
                                                        • 8 different sizes are available.
                                                        • NEW PRODUCT
                                                        DETAILS
                                                        ADHESIVE PCB STANDOFF - ASR series
                                                        • ADHESIVE PCB STANDOFF - ASR series
                                                        • M3 tapping screw use adhesive standoff.
                                                        • Double-sided adhesive tape for easy mounting.
                                                        • 10 different heights available.
                                                        • Sold in 10 pcs pack.
                                                          DETAILS
                                                          SLOTTED RAISED COUNTERSUNK TORX SCREW - MR3-5Z
                                                          • SLOTTED RAISED COUNTERSUNK TORX SCREW - MR3-5Z
                                                          • Hexalobular (TORX) screws for aluminium enclosures.
                                                          • Fit to FC・FCH・HY・HS・CH・CF・HYR・HYRH・YM・MB series.
                                                          • Recommended to be used for tamper resistance.
                                                          • Also can give a robust exterior.
                                                            DETAILS
                                                            CONDUCTIVE SCREW - EV3-5S
                                                            • CONDUCTIVE SCREW - EV3-5S
                                                            • Conductive screws for metal enclosures.
                                                            • Conductivity is achieved via underside protrusions.
                                                            • Sold in 20 pcs pack.
                                                              DETAILS
