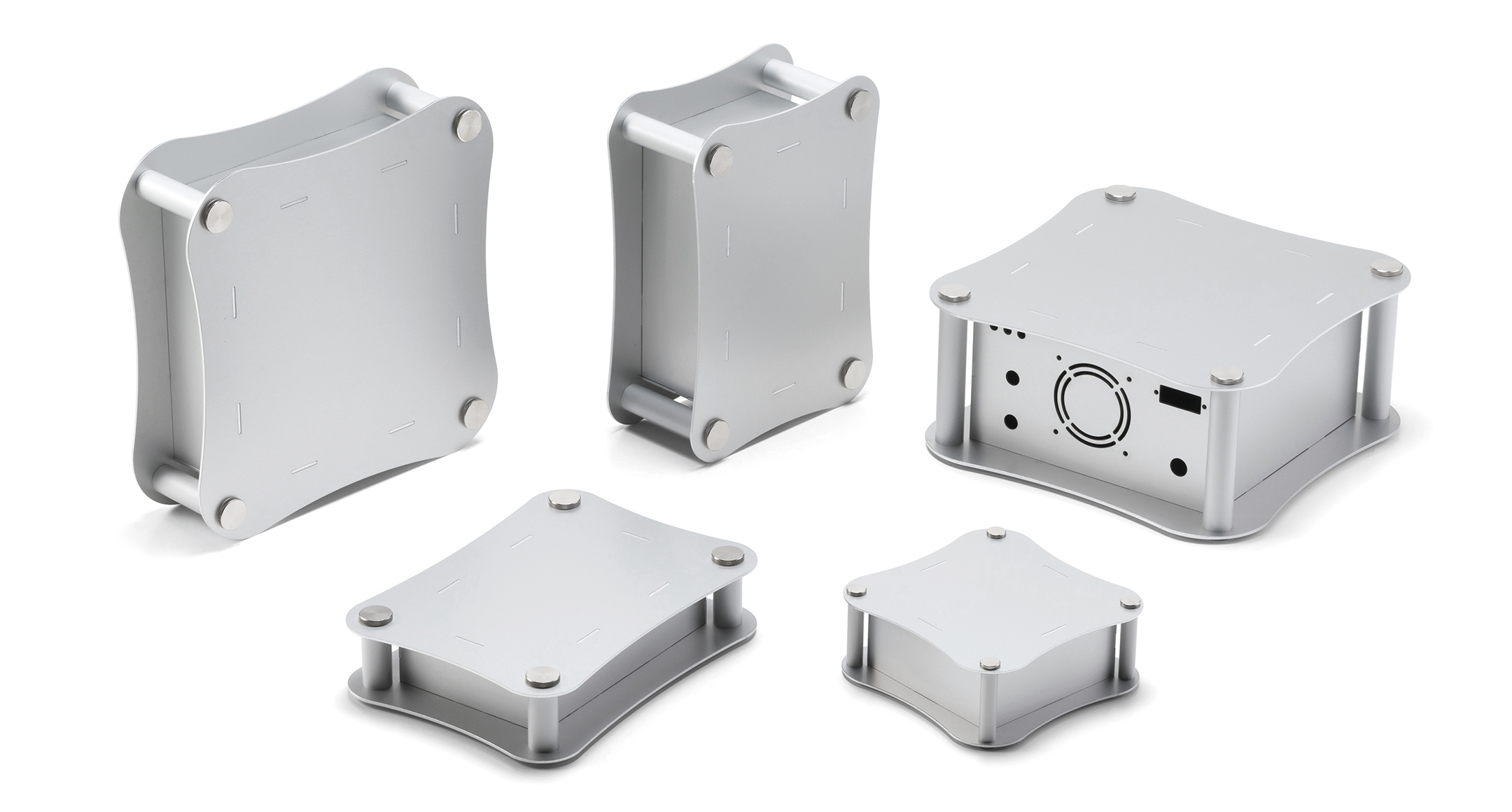

Curved arc designed aluminium case with corner support columns.

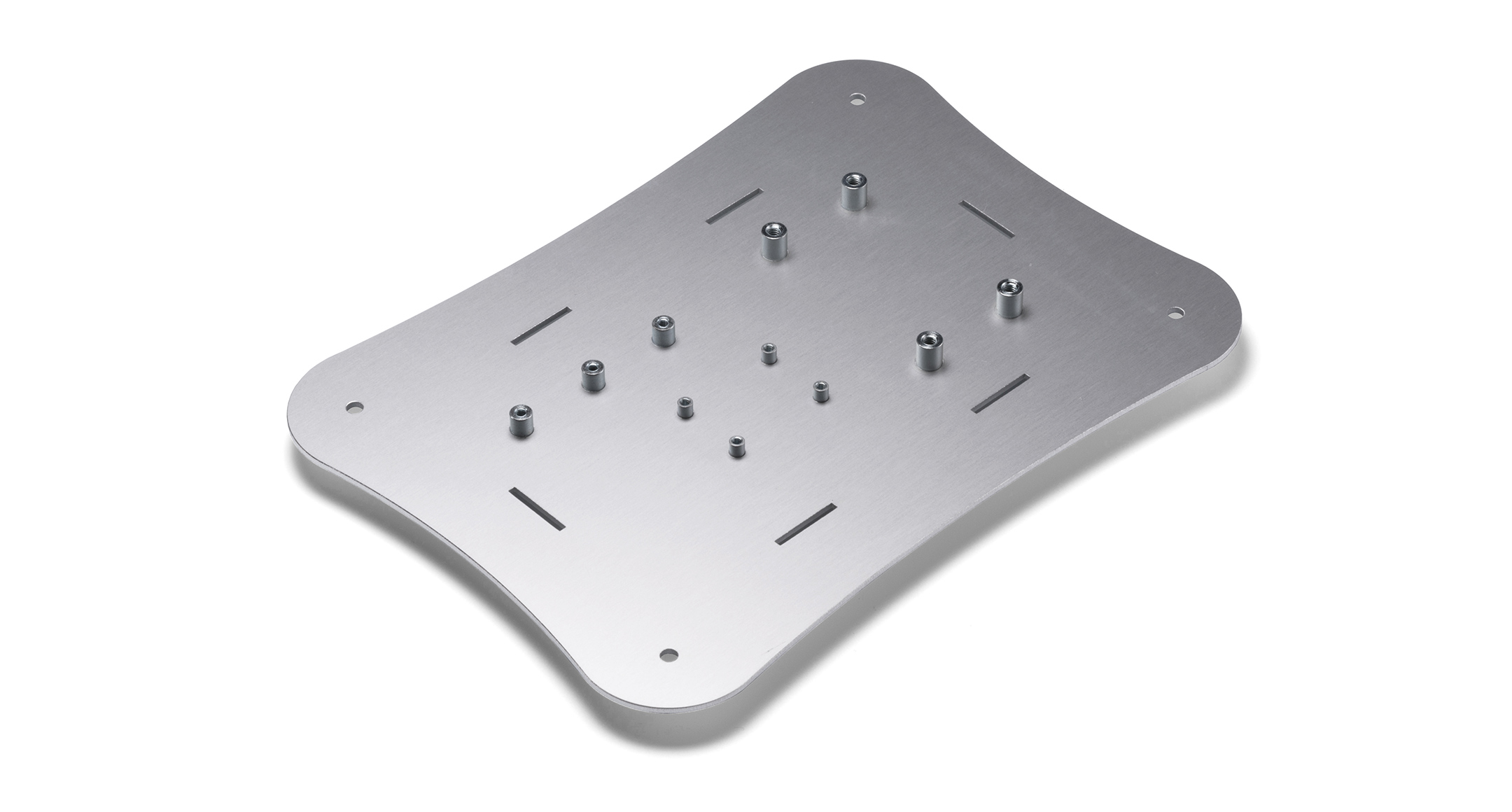

While elegantly designed, the flat panel structure allows for easy usage and customization.

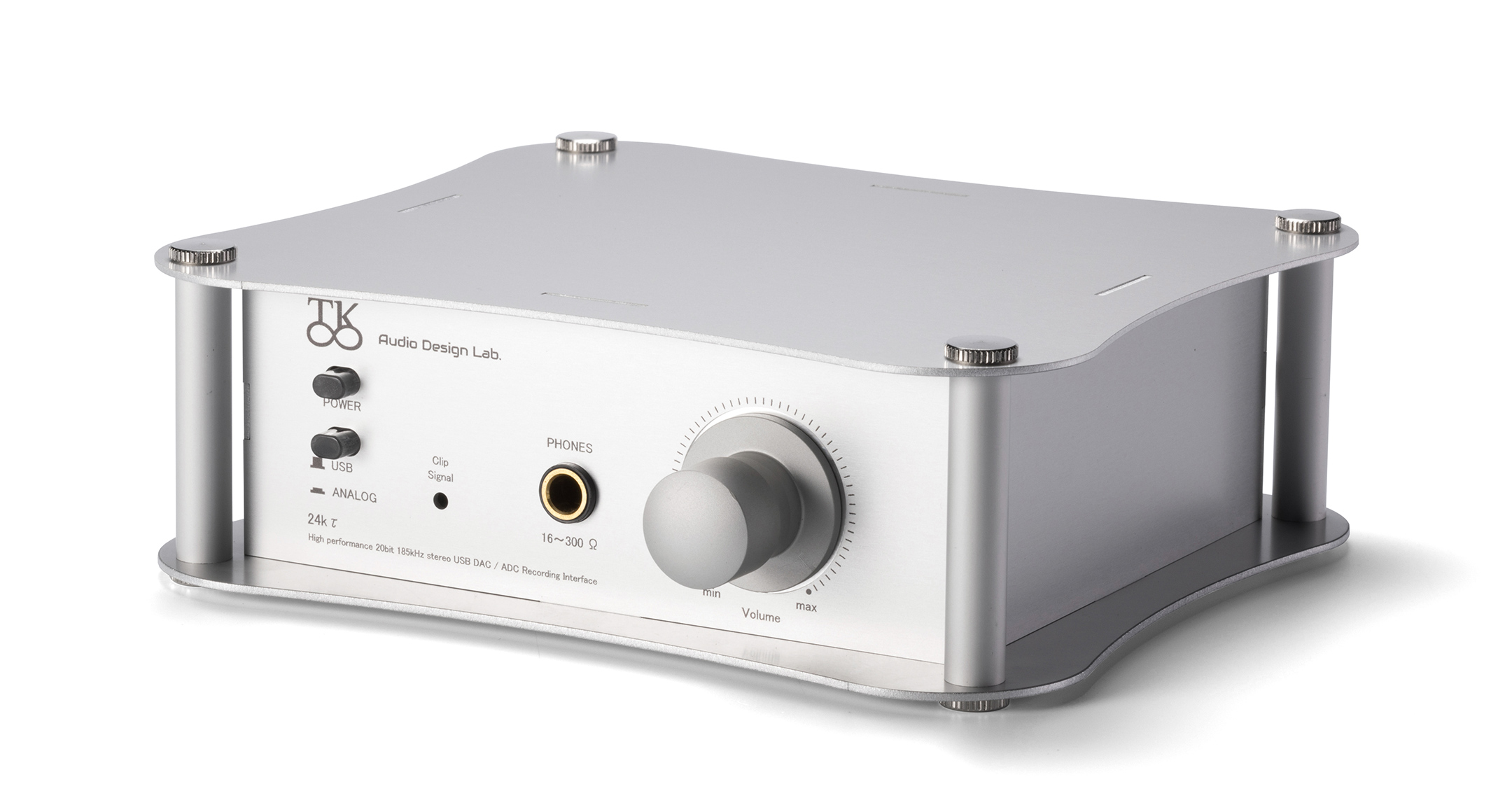

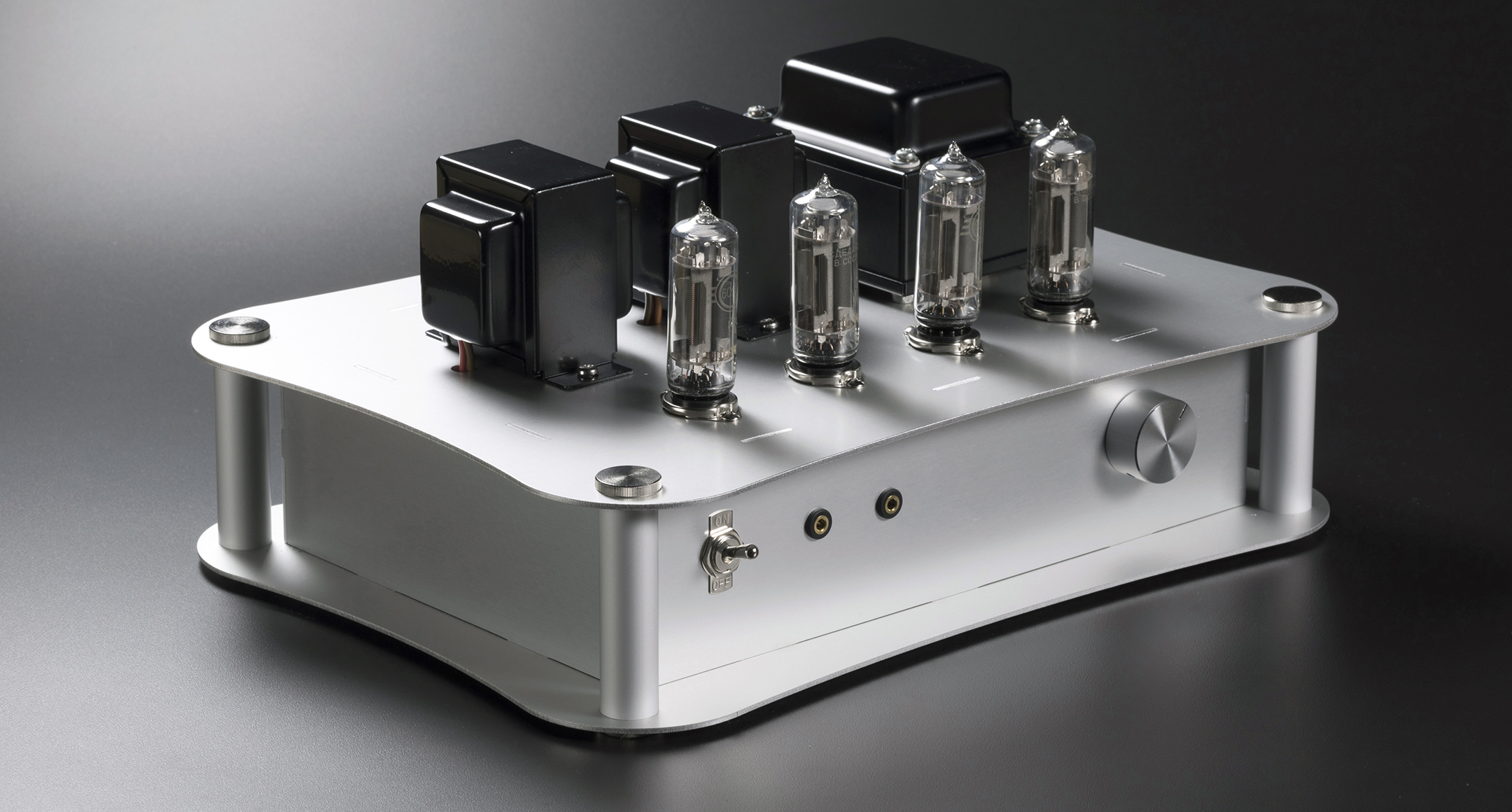

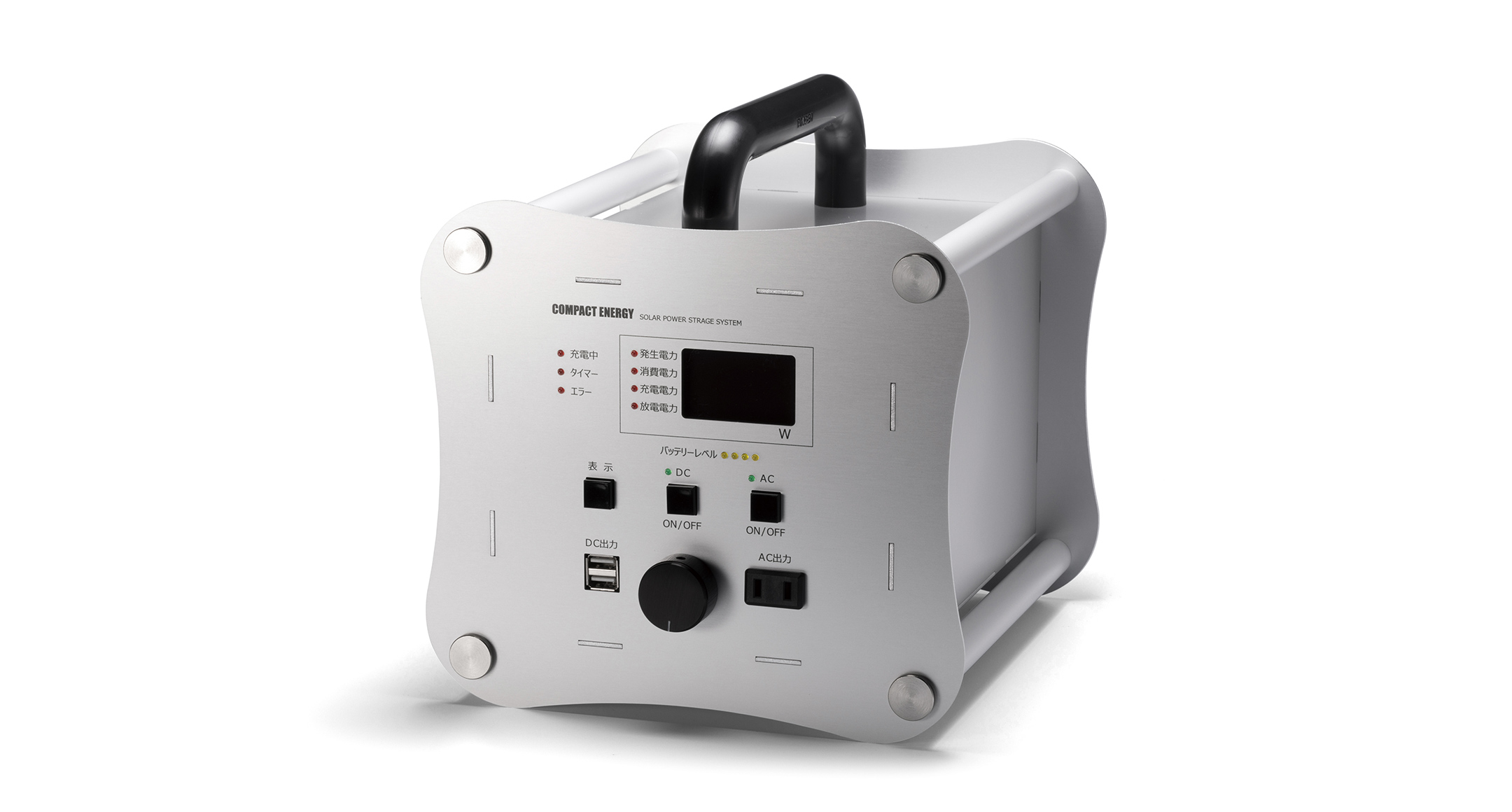

Suitable to be used for embedded computers, audio amplifiers and power supply enclosures.

ALR11-5-17 and 11-8-17 models are compatible with the Euro Board.

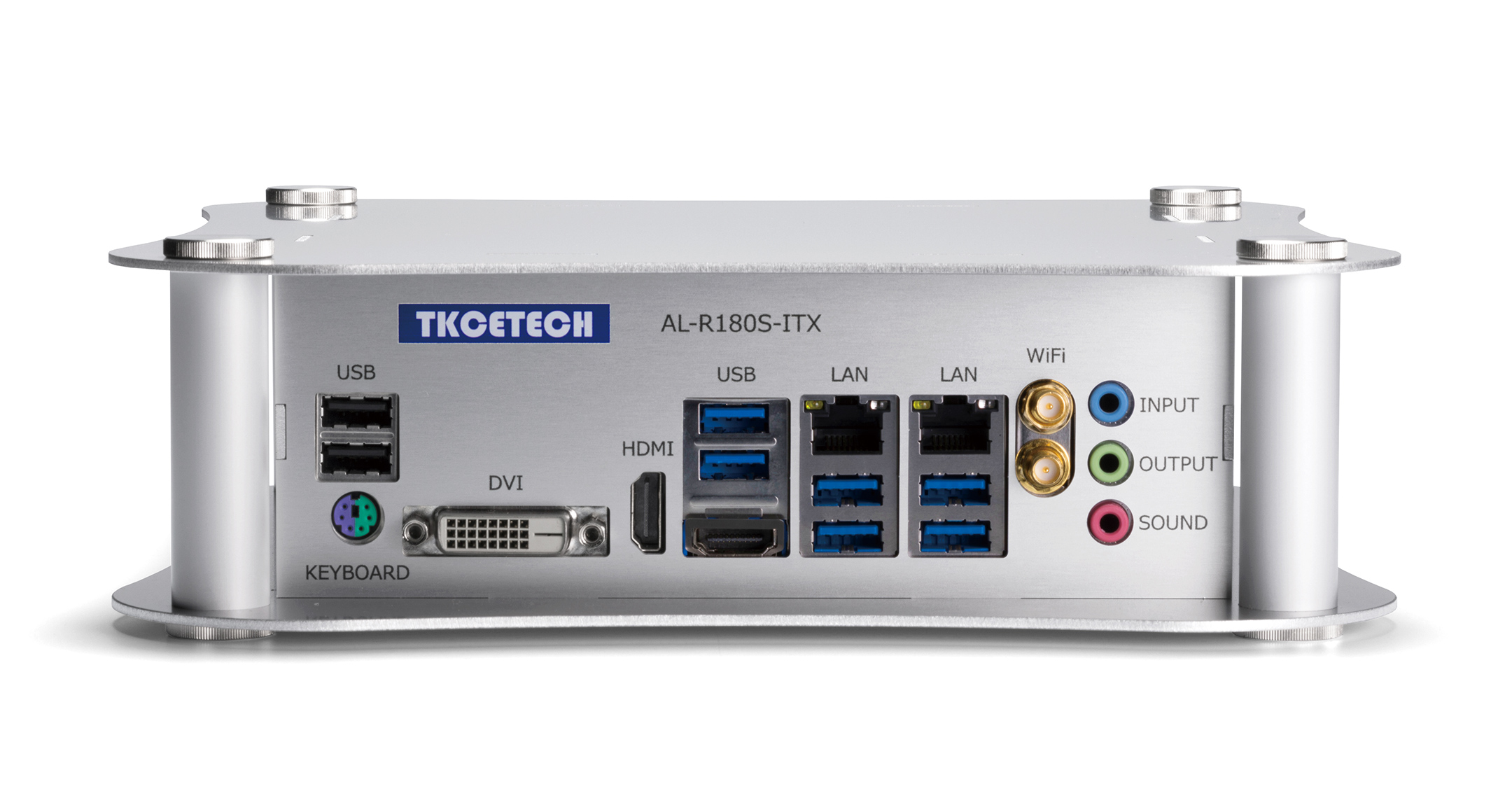

ALR18-7-18 and 18-10-18 models are compatible with the Mini ITX board.

6 different sizes are available.

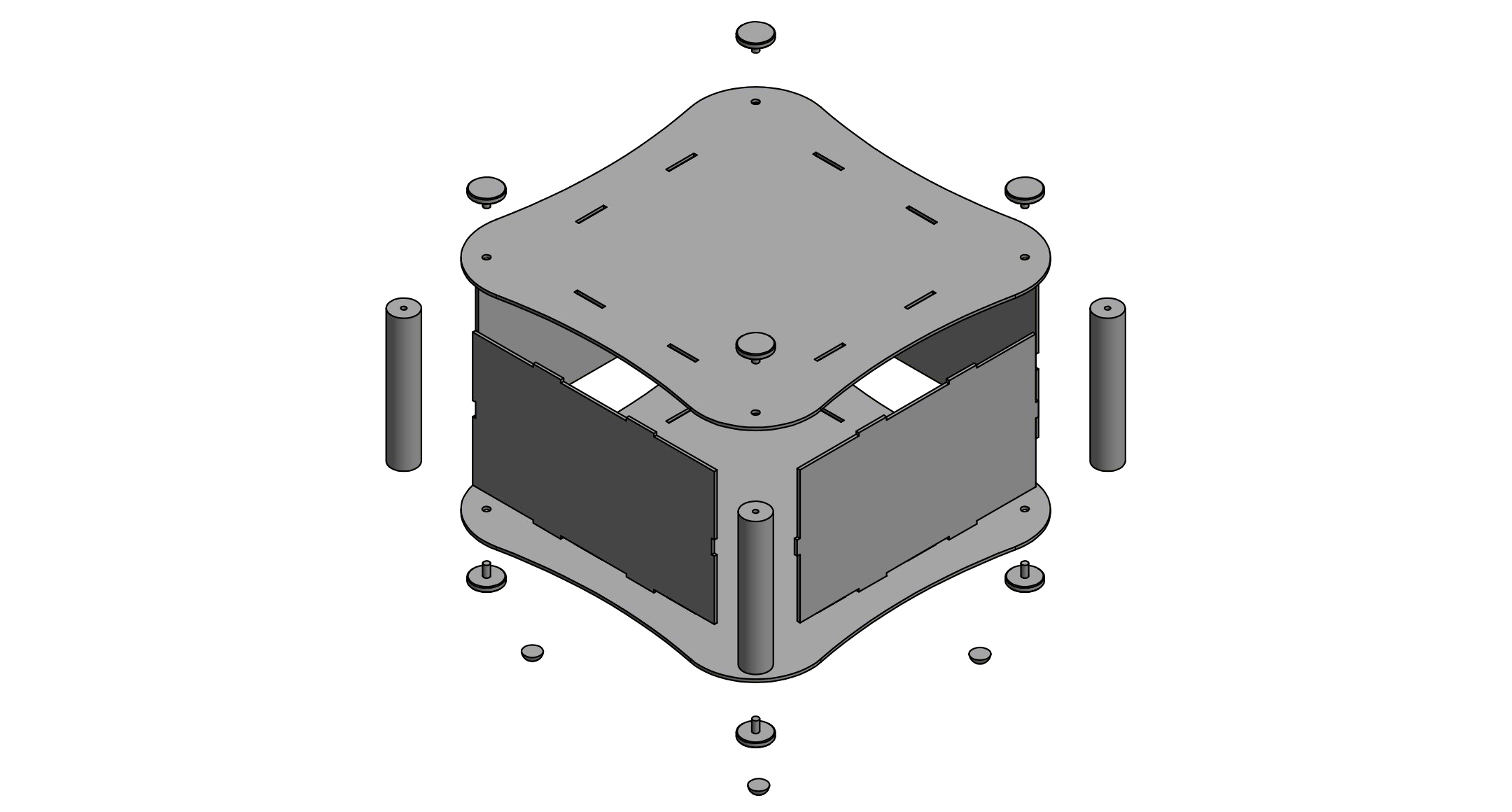

3D View - ALR10-5-10  3D View - ALR11-5-17  3D View - ALR18-7-18  3D View - ALR30-7-20  Exploded View 

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Panel thickness Weight (g) PDF DXF DWG STP
W H D w h d
ALR10-5-10 140 50 140 101 47 101 1.5mm 274 PDF DXF DWG
ALR11-5-17 163 45 223 101 41 161 2.0mm 653 PDF DXF DWG
ALR11-8-17 163 75 223 101 71 161 2.0mm 816.5 PDF DXF DWG
ALR18-7-18 237 65 237 171 61 171 2.0mm 1004 PDF DXF DWG
ALR18-10-18 237 100 237 171 96 171 2.0mm 1225 PDF DXF DWG
ALR30-7-20 362 70 264 296 66 196 2.0mm 1536 PDF DXF DWG
