SKELETON ACRYLIC CASE - SKL series

SKELETON ACRYLIC CASE - SKL series

SKL Series -PDF

CATEGORY：Skeleton case, Design acrylic case, Clear case, Transparent enclosure, Acrylic PC case

Curved transparent acrylic case with corner support columns.
Usable as a display enclosure for a unique and luxurious outlook.

Robust strcture by acrylic panels and extruded aluminium pillars.
Knurled thumb screws for easy hand assembly.

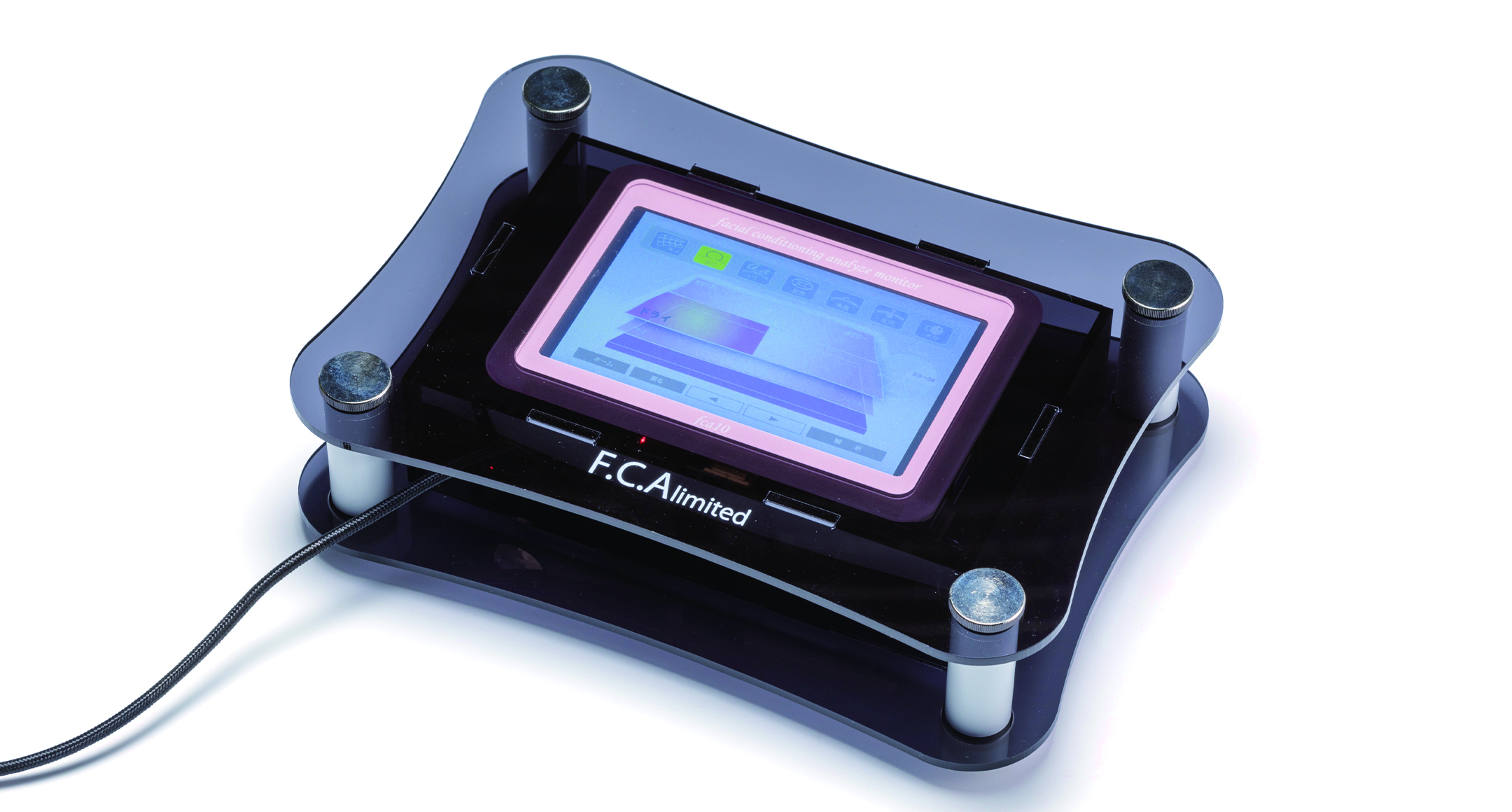

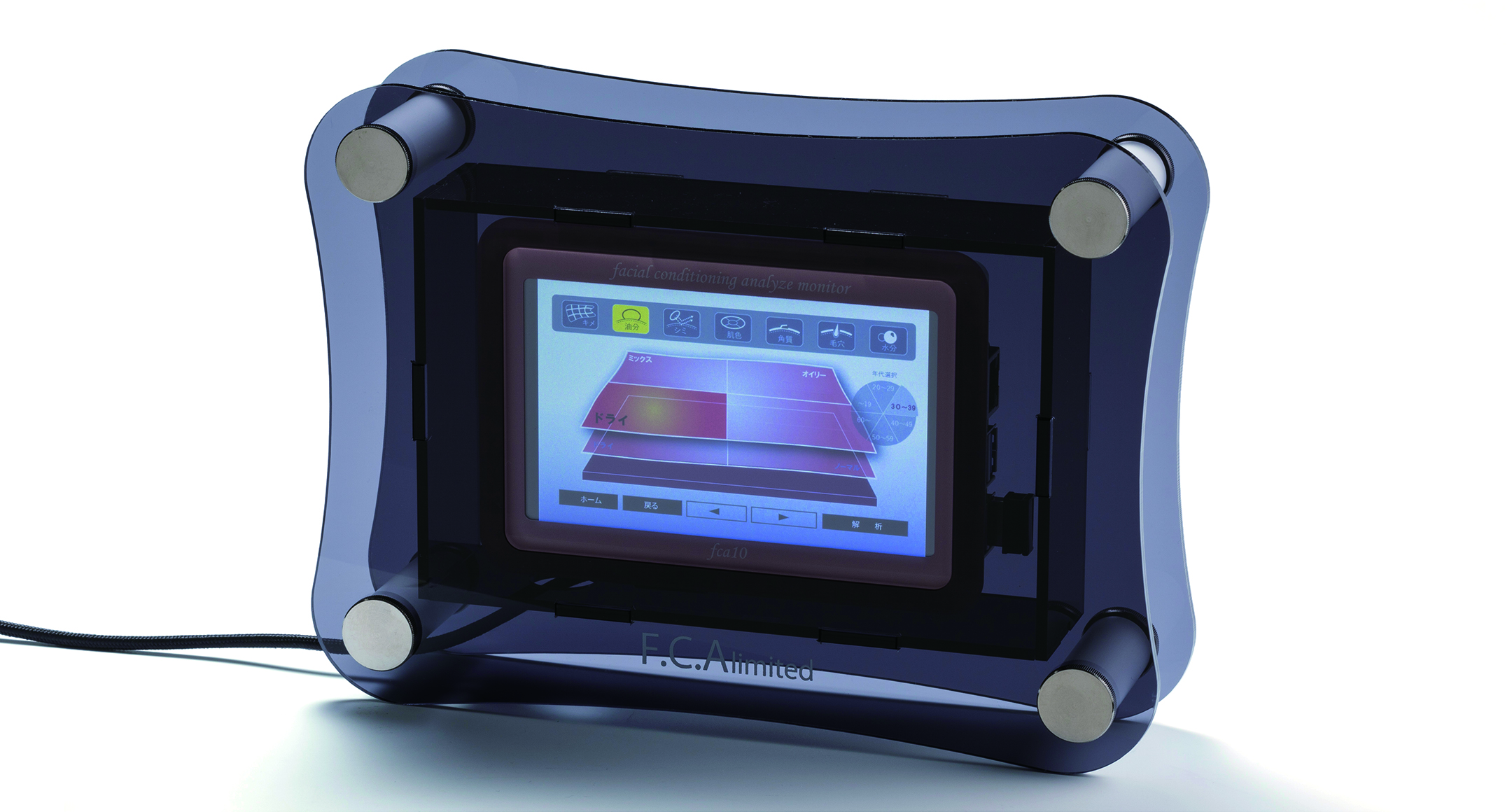

Possible to be used in a flat layout, or a standing layout.

SKL11-5-17 and 11-8-17 models are compatible with the Euro Board.

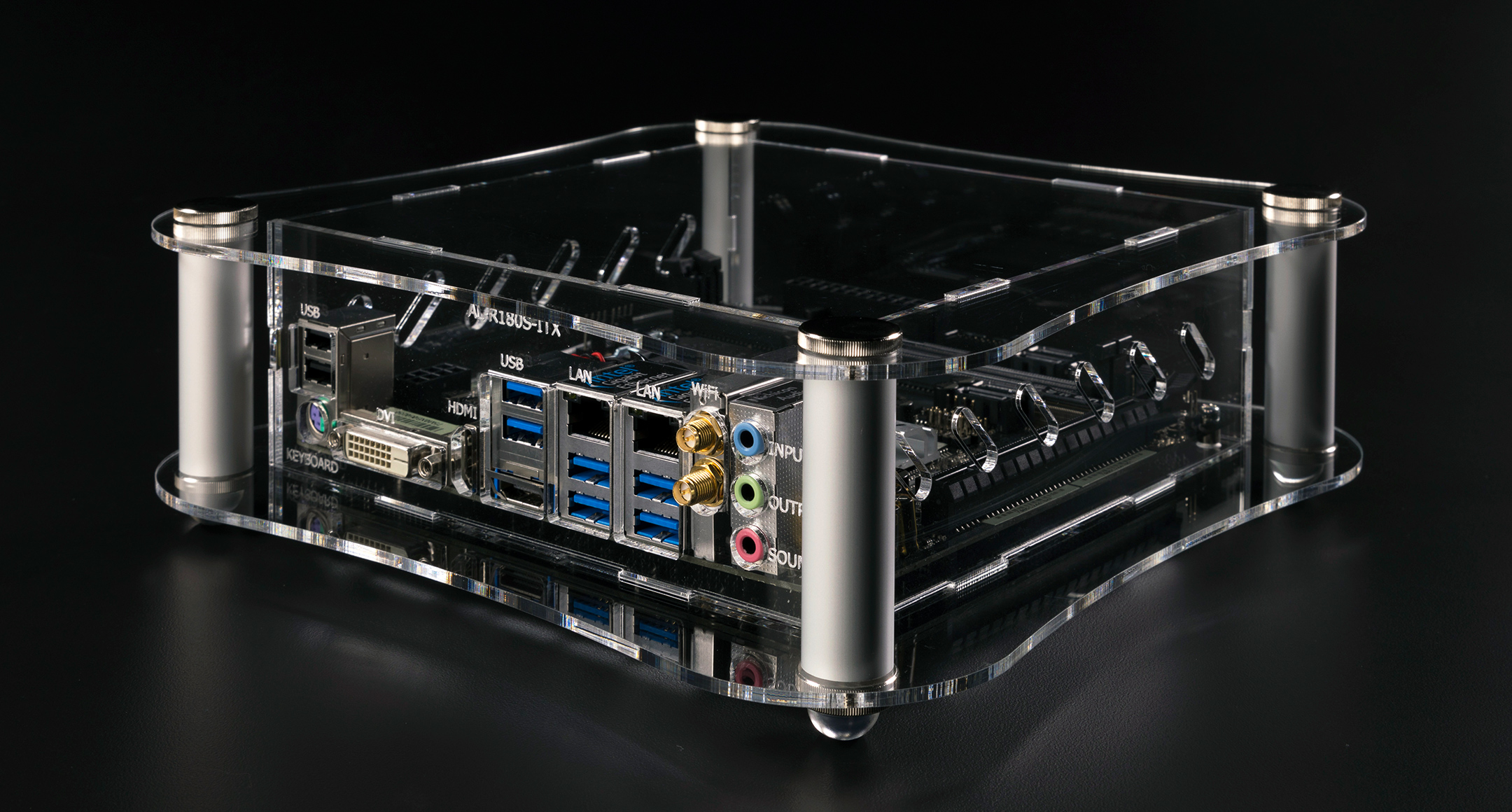

SKL18-7-18 and 18-10-18 models are compatible with the Mini ITX board.

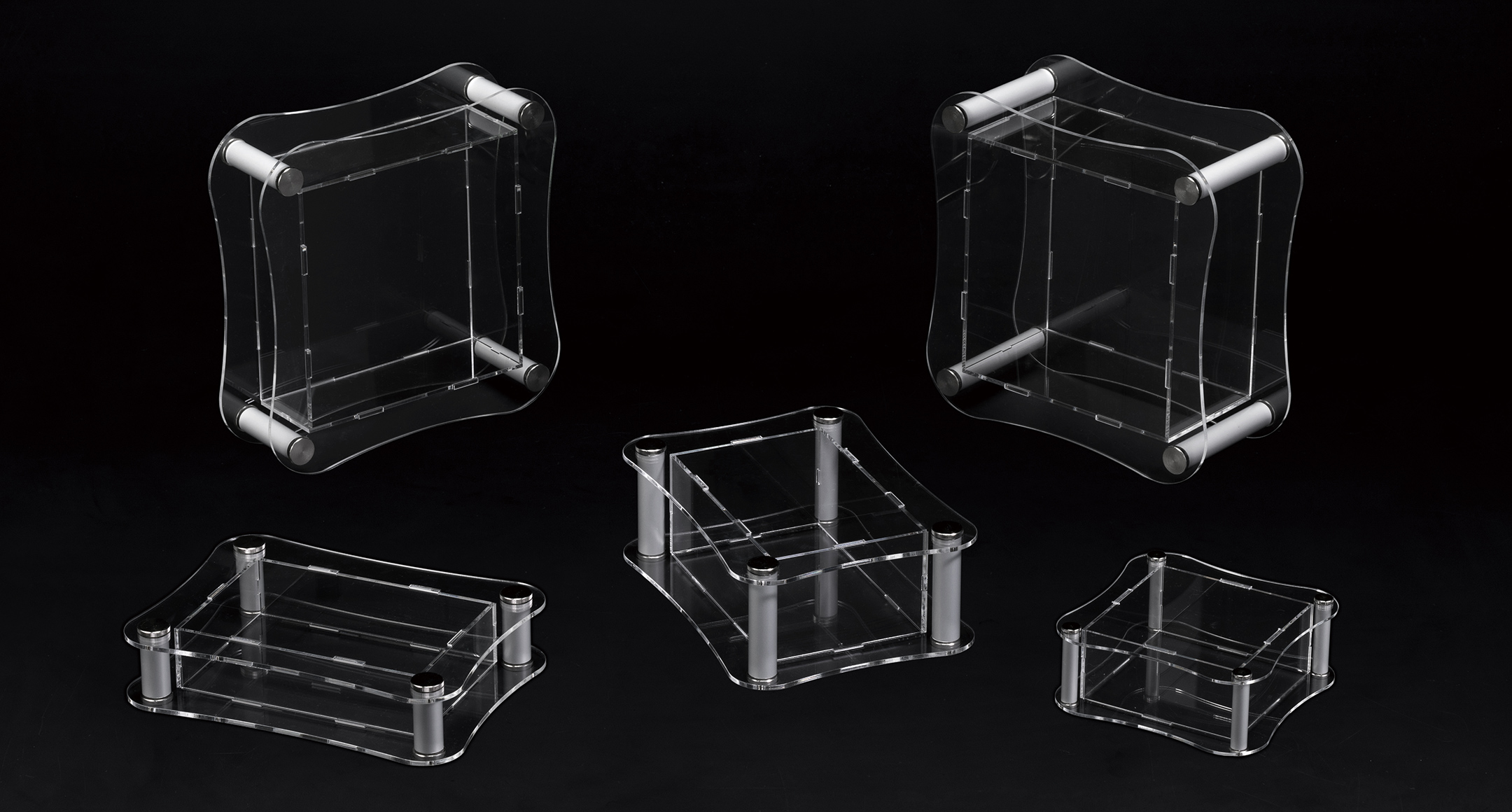

5 different sizes are available.

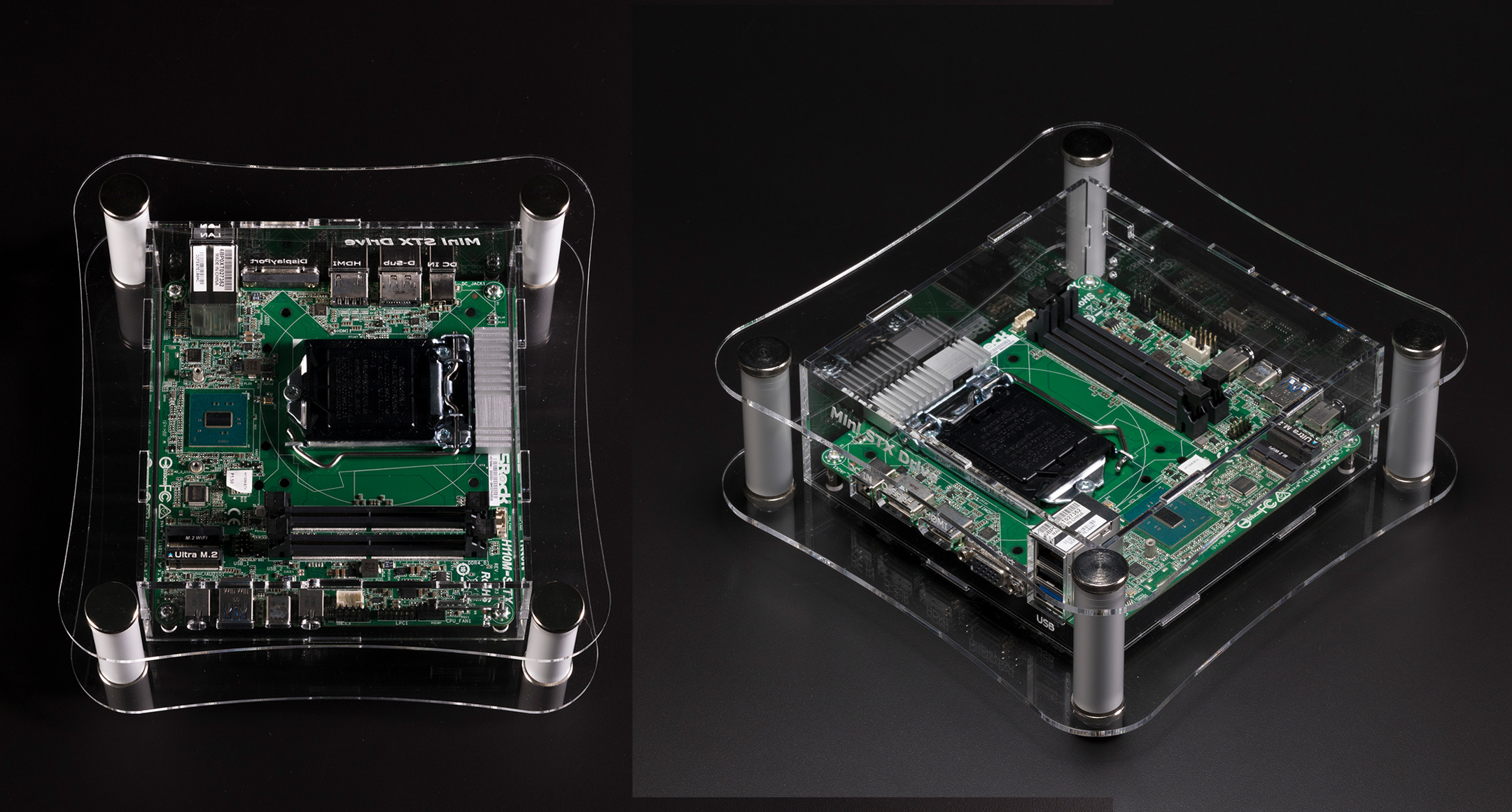

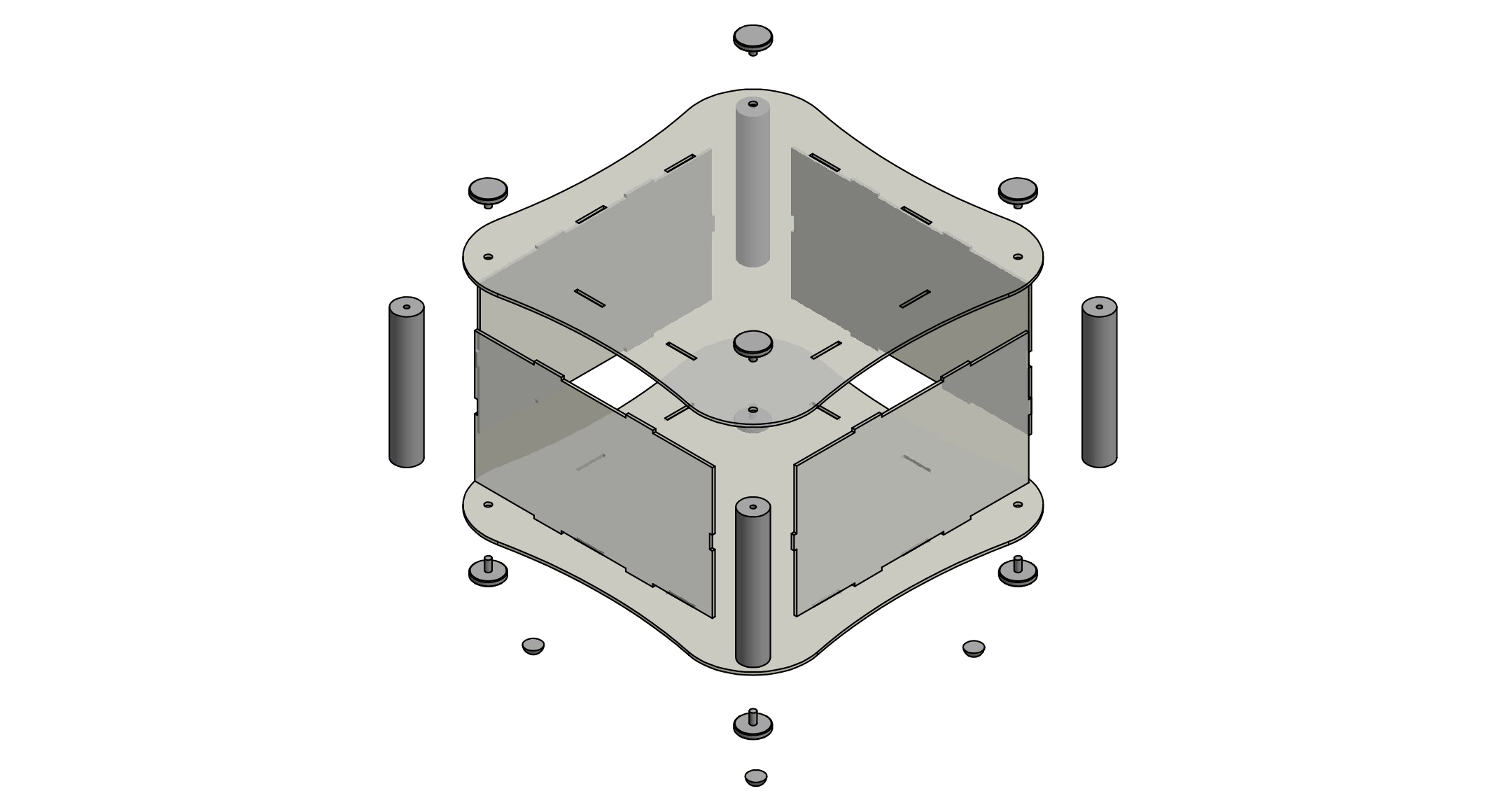

3D View - SKL11-5-17 3D View - SKL18-7-18 3D VIEW - PCB mounting image Exploded View Example - reinforcement by CUBE standoff

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Internal dimensions			Panel thickness	Weight (g)	PDF	DXF	DWG	STP
Product No.	W	H	D	w	h	d	Panel thickness	Weight (g)	PDF	DXF	DWG	STP
SKL10-5-10	141	51	141	101	47	101	2.0mm	191.5	PDF	DXF	DWG
SKL11-5-17	165	47	225	101	41	161	3.0mm	507	PDF	DXF	DWG
SKL11-8-17	165	77	225	101	71	161	3.0mm	643	PDF	DXF	DWG
SKL18-7-18	239	67	239	171	61	171	3.0mm	762	PDF	DXF	DWG
SKL18-10-18	239	102	239	171	96	171	3.0mm	940.5	PDF	DXF	DWG
