CUSTOM SIZED ACRYLIC CASE - SKSF series


SKSF Series -PDF

CATEGORY：Custom made acrylic case, Skeleton case, Acrylic box, Clear case, Transparent enclosure

CUSTOM SIZED ACRYLIC CASE - SKSF series
CUSTOM SIZED ACRYLIC CASE - SKSF series
CUSTOM SIZED ACRYLIC CASE - SKSF series
CUSTOM SIZED ACRYLIC CASE - SKSF series
CUSTOM SIZED ACRYLIC CASE - SKSF series
CUSTOM SIZED ACRYLIC CASE - SKSF series
CUSTOM SIZED ACRYLIC CASE - SKSF series1
CUSTOM SIZED ACRYLIC CASE - SKSF series2
CUSTOM SIZED ACRYLIC CASE - SKSF series3
CUSTOM SIZED ACRYLIC CASE - SKSF series4
CUSTOM SIZED ACRYLIC CASE - SKSF series5
CUSTOM SIZED ACRYLIC CASE - SKSF series6

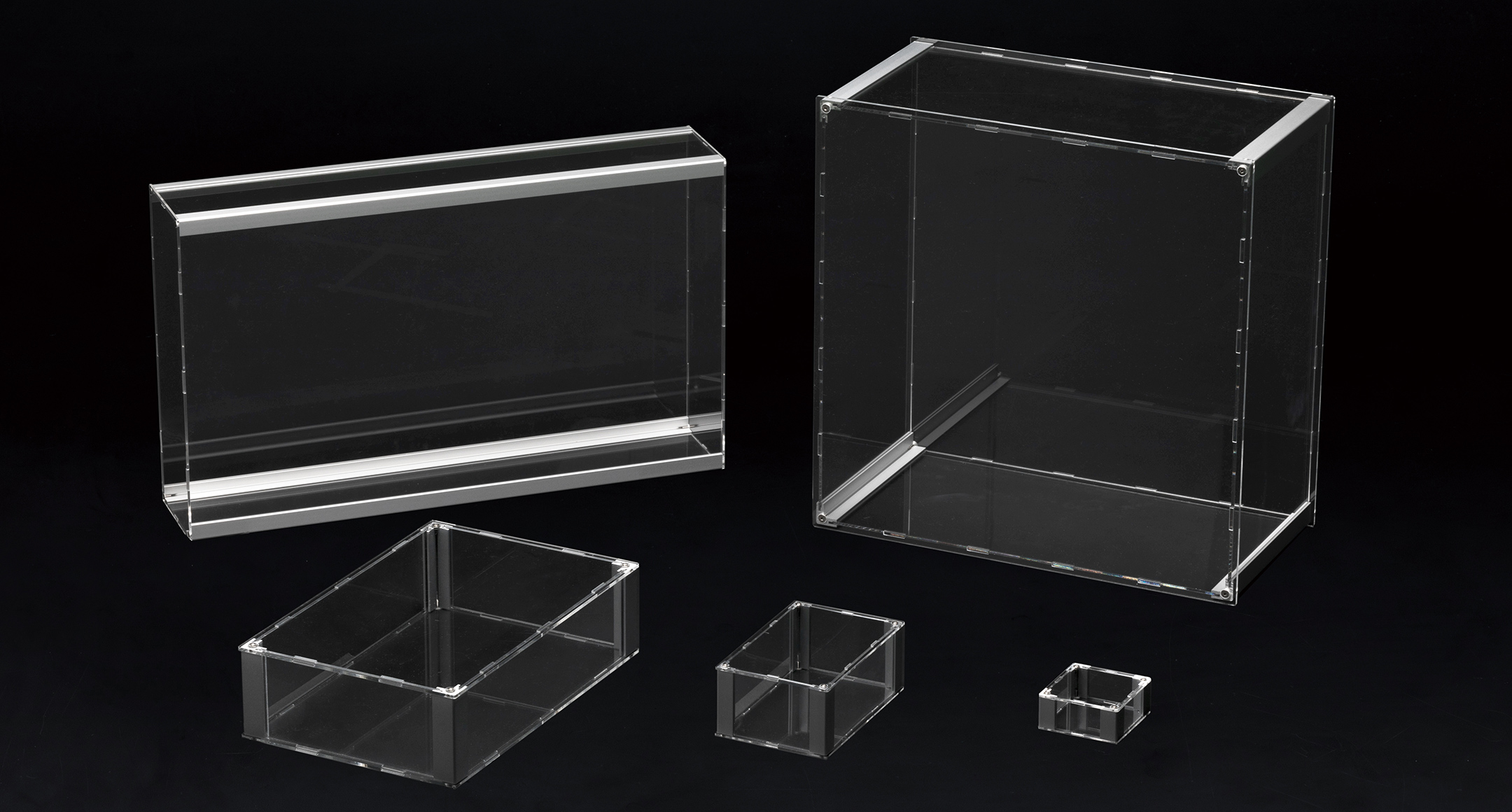

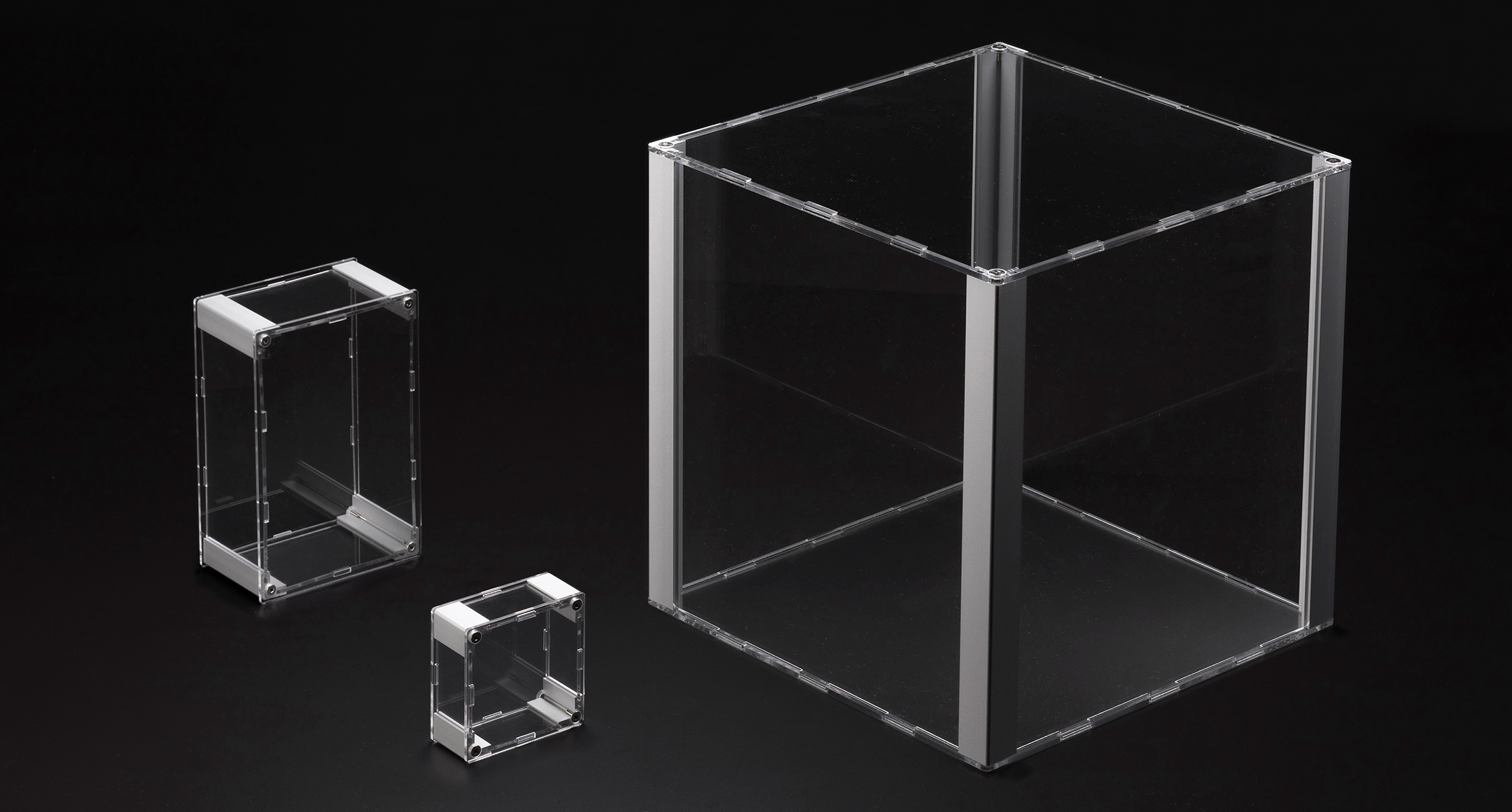

Transparent acrylic case with corner support frames.
Extruded aluminium corner frames enables the structure to be rigid when screwed.

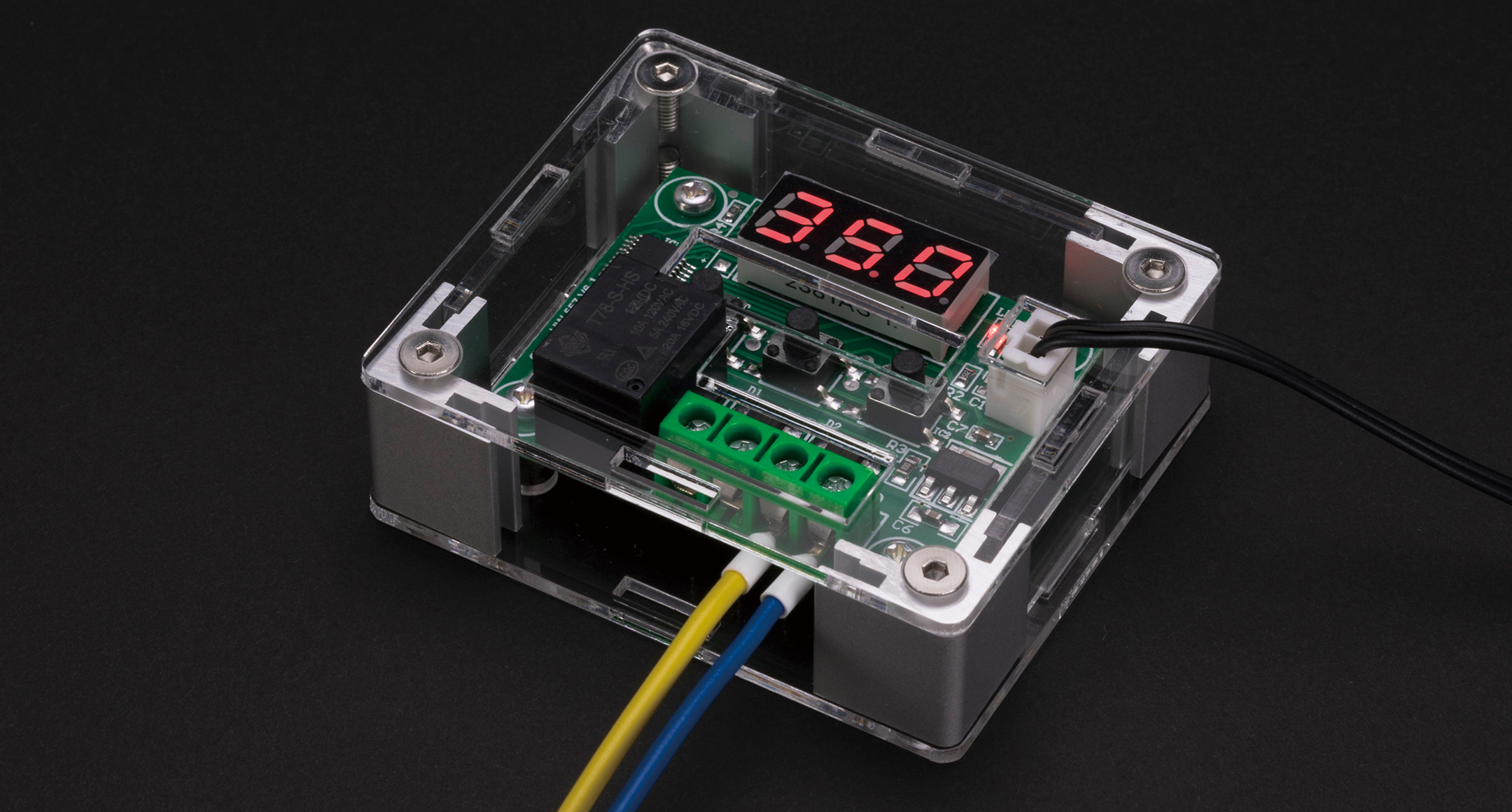

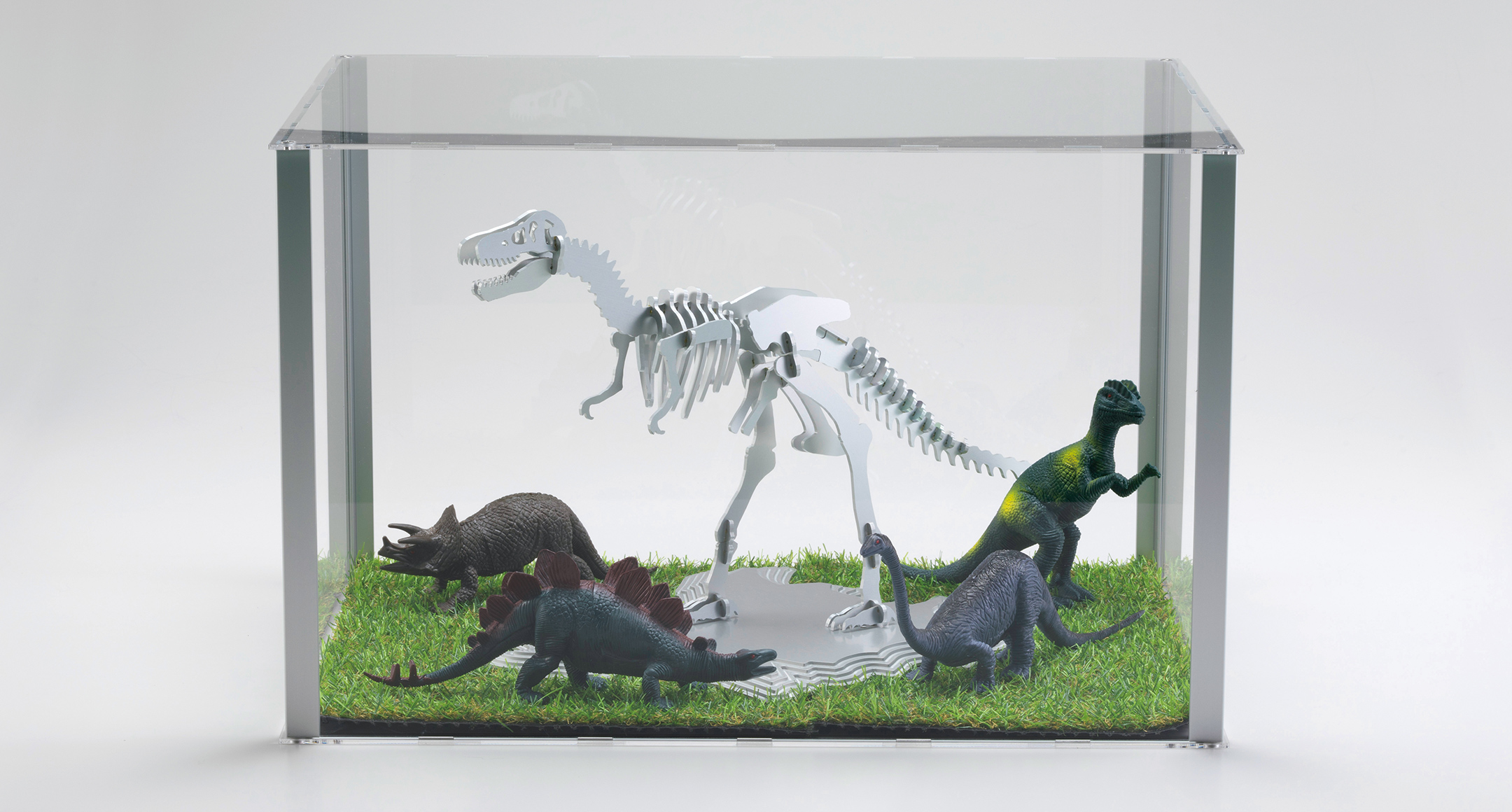

Perfect to be used as a display case to showcase a product’s internal components at trade shows or demonstration events, or as a touch screen monitor box.

Can be manufactured in a wide range of dimensions.
Adjustable sizes available in 1mm intervals, with W and D dimensions from 50 ~ 500mm, and H dimensions from 30 ~ 500mm.

Rubber feet can be provided if required in S (Φ11.2mm) or L (Φ15.7mm)

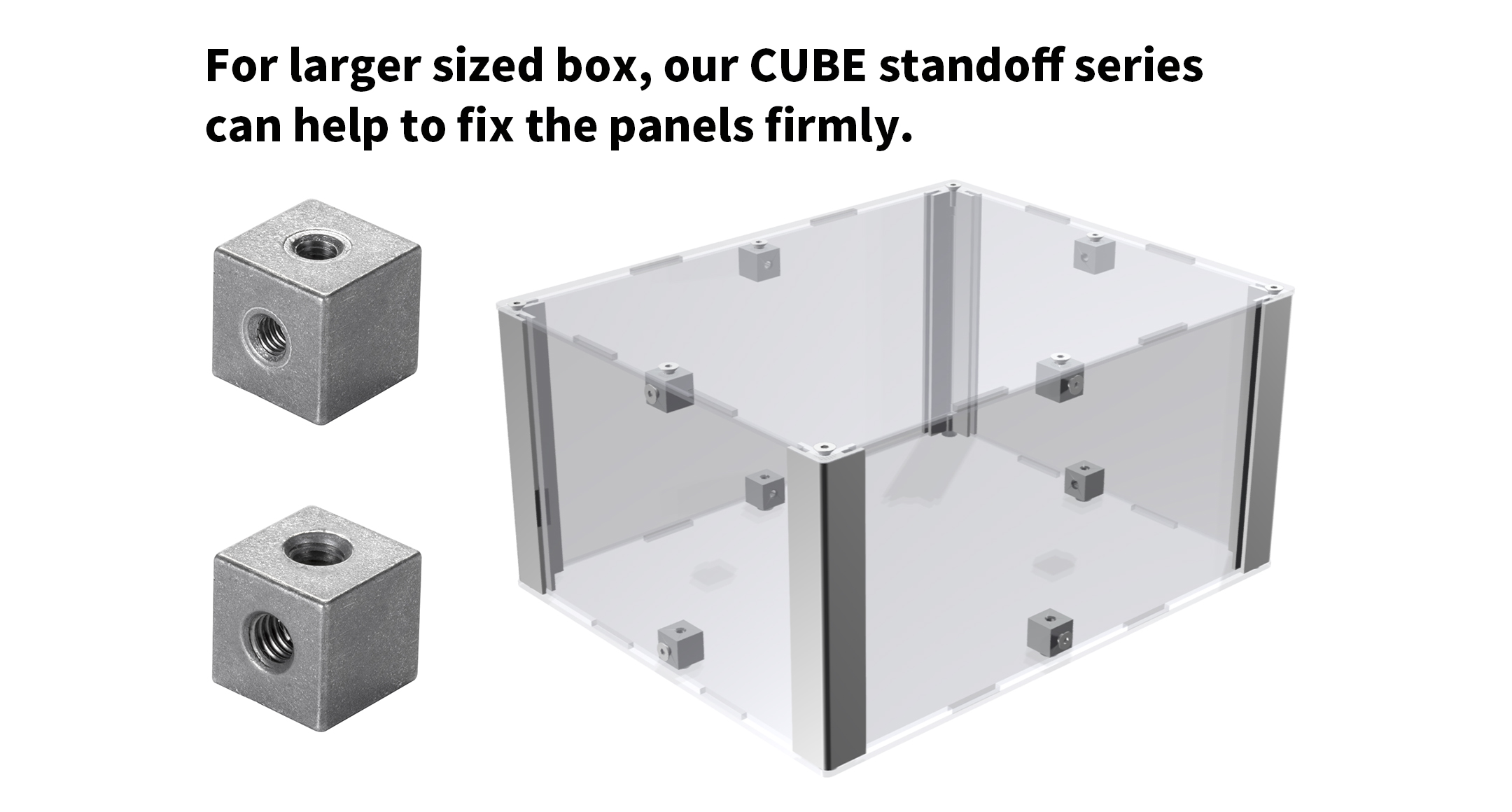

3D View - SKSF100-50-100  3D View - SKSF200-100-300  Exploded View  Example - reinforcement by CUBE standoff 

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Panel thickness PDF DXF DWG
W D H
SKSF□-□-□K15○・W50-100mm, D50-100mm 50～100mm 50～100mm 30～500mm 2.0mm PDF DXF DWG
SKSF□-□-□K15○・W50-100mm, D101-150mm 50～100mm 101～150mm 30～500mm 2.0mm PDF DXF DWG
SKSF□-□-□K15○・W50-100mm, D151-200mm 50～100mm 151～200mm 30～500mm 2.0mm PDF DXF DWG
SKSF□-□-□K15○・W50-100mm, D201-300mm 50～100mm 201～300mm 30～500mm 2.0mm PDF DXF DWG
SKSF□-□-□K15○・W101-150mm, D50-100mm 101～150mm 50～100mm 30～500mm 2.0mm PDF DXF DWG
SKSF□-□-□K15○・W101-150mm, D101-150mm 101～150mm 101～150mm 30～500mm 2.0mm PDF DXF DWG
SKSF□-□-□K15○・W101-150mm, D151-200mm 101～150mm 151～200mm 30～500mm 2.0mm PDF DXF DWG
SKSF□-□-□K15○・W101-150mm, D201-250mm 101～150mm 201～250mm 30～500mm 2.0mm PDF DXF DWG
SKSF□-□-□K15○・W151-200mm, D50-100mm 151～200mm 50～100mm 30～500mm 2.0mm PDF DXF DWG
SKSF□-□-□K15○・W151-200mm, D101-150mm 151～200mm 101～150mm 30～500mm 2.0mm PDF DXF DWG
SKSF□-□-□K15○・W151-200mm, D151-200mm 151～200mm 151～200mm 30～500mm 2.0mm PDF DXF DWG
SKSF□-□-□K15○・W201-250mm, D50-100mm 201～250mm 50～100mm 30～500mm 2.0mm PDF DXF DWG
SKSF□-□-□K15○・W201-250mm, D101-150mm 201～250mm 101～150mm 30～500mm 2.0mm PDF DXF DWG
SKSF□-□-□K15○・W251-300mm, D50-100mm 251～300mm 50～100mm 30～500mm 2.0mm PDF DXF DWG
SKSF□-□-□K20○・W50-100mm, D301-400mm 50～100mm 301～400mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W50-100mm, D401-500mm 50～100mm 401～500mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W101-150mm, D251-300mm 101～150mm 251～300mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W101-150mm, D301-400mm 101～150mm 301～400mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W101-150mm, D401-500mm 101～150mm 401～500mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W151-200mm, D201-300mm 151～200mm 201～300mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W151-200mm, D301-400mm 151～200mm 301～400mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W151-200mm, D401-500mm 151～200mm 401～500mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W201-250mm, D151-200mm 201～250mm 151～200mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W201-250mm, D201-300mm 201～250mm 201～300mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W201-250mm, D301-400mm 201～250mm 301～400mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W201-250mm, D401-500mm 201～250mm 401～500mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W251-300mm, D101-150mm 251～300mm 101～150mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W251-300mm, D151-200mm 251～300mm 151～200mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W251-300mm, D201-300mm 251～300mm 201～300mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W251-300mm, D301-400mm 251～300mm 301～400mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W251-300mm, D401-500mm 251～300mm 401～500mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W301-400mm, D50-100mm 301～400mm 50～100mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W301-400mm, D101-150mm 301～400mm 101～150mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W301-400mm, D151-200mm 301～400mm 151～200mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W301-400mm, D201-300mm 301～400mm 201～300mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W301-400mm, D301-400mm 301～400mm 301～400mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W301-400mm, D401-500mm 301～400mm 401～500mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W401-500mm, D50-100mm 401～500mm 50～100mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W401-500mm, D101-150mm 401～500mm 101～150mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W401-500mm, D151-200mm 401～500mm 151～200mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W401-500mm, D201-300mm 401～500mm 201～300mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W401-500mm, D301-400mm 401～500mm 301～400mm 30～500mm 3.0mm PDF DXF DWG
SKSF□-□-□K20○・W401-500mm, D401-500mm 401～500mm 401～500mm 30～500mm 3.0mm PDF DXF DWG
