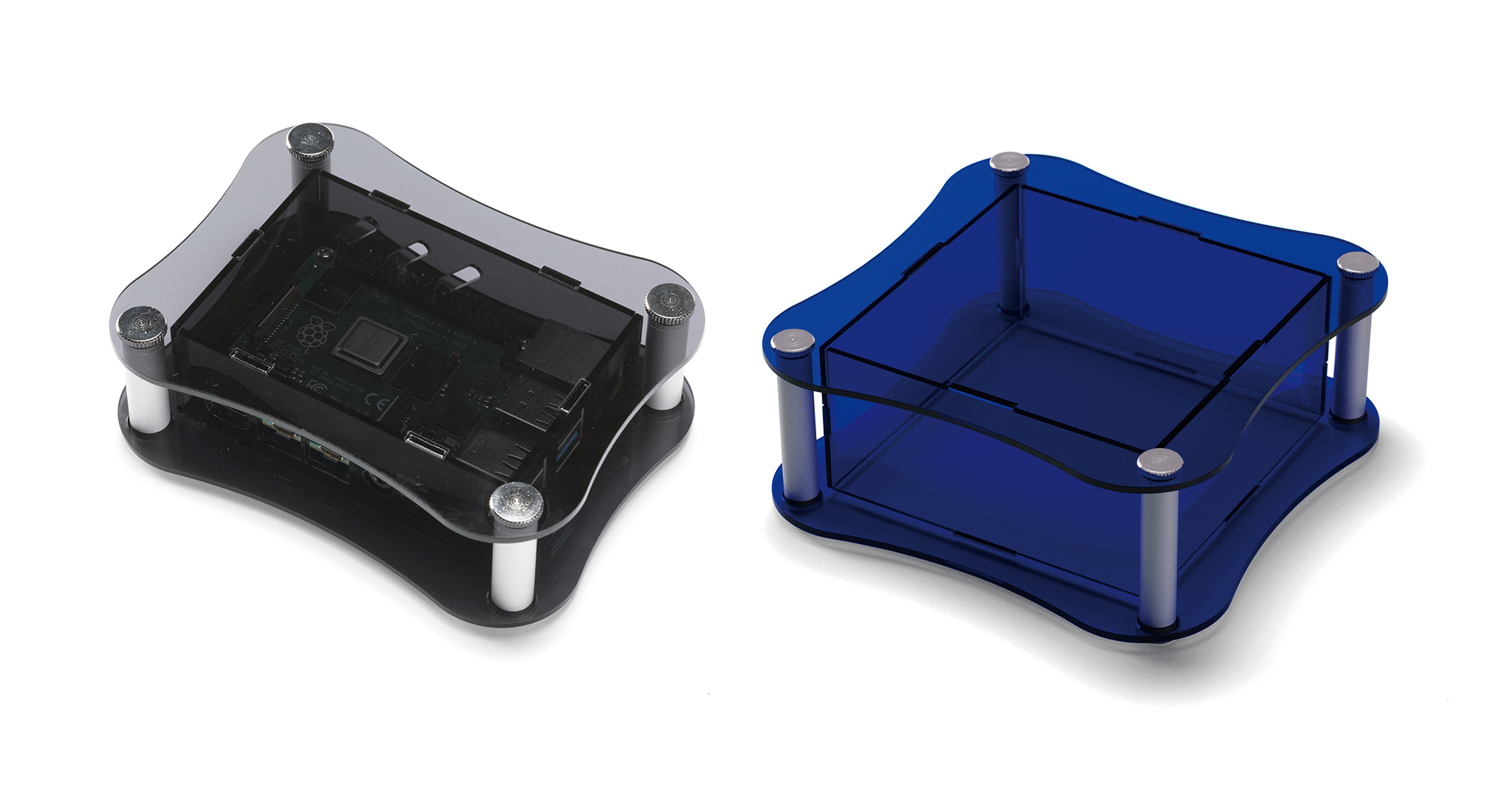

CATEGORY：Raspberry Pi 5 acrylic case, Raspberry pi clear case, Raspberry pi transparent case, Raspberry Pi 5 acrylic case
Exclusively for use with Raspberry Pi models.
3 different Single desktop, Dual desktop, and Single flanged are available.
New size for Raspberry Pi 5 is now available.
The panel power button part may easily bend when the board is not installed.
Raspberry Pi board is not included.
※Ethanol or other alcoholic solvents may cause the acrylic panel to crack.
Use a neutral cleaner or specialized acrylic cleaning solvent for cleaning.
3 different Single desktop, Dual desktop, and Single flanged are available.
New size for Raspberry Pi 5 is now available.
The panel power button part may easily bend when the board is not installed.
Raspberry Pi board is not included.
※Ethanol or other alcoholic solvents may cause the acrylic panel to crack.
Use a neutral cleaner or specialized acrylic cleaning solvent for cleaning.
PRODUCT NO. / DIMENSIONS
| Product No. | External dimensions | Internal | Suitable model | Type | Weight (g) | DXF | DWG | STP | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W | H | D | w | h | d | ||||||||

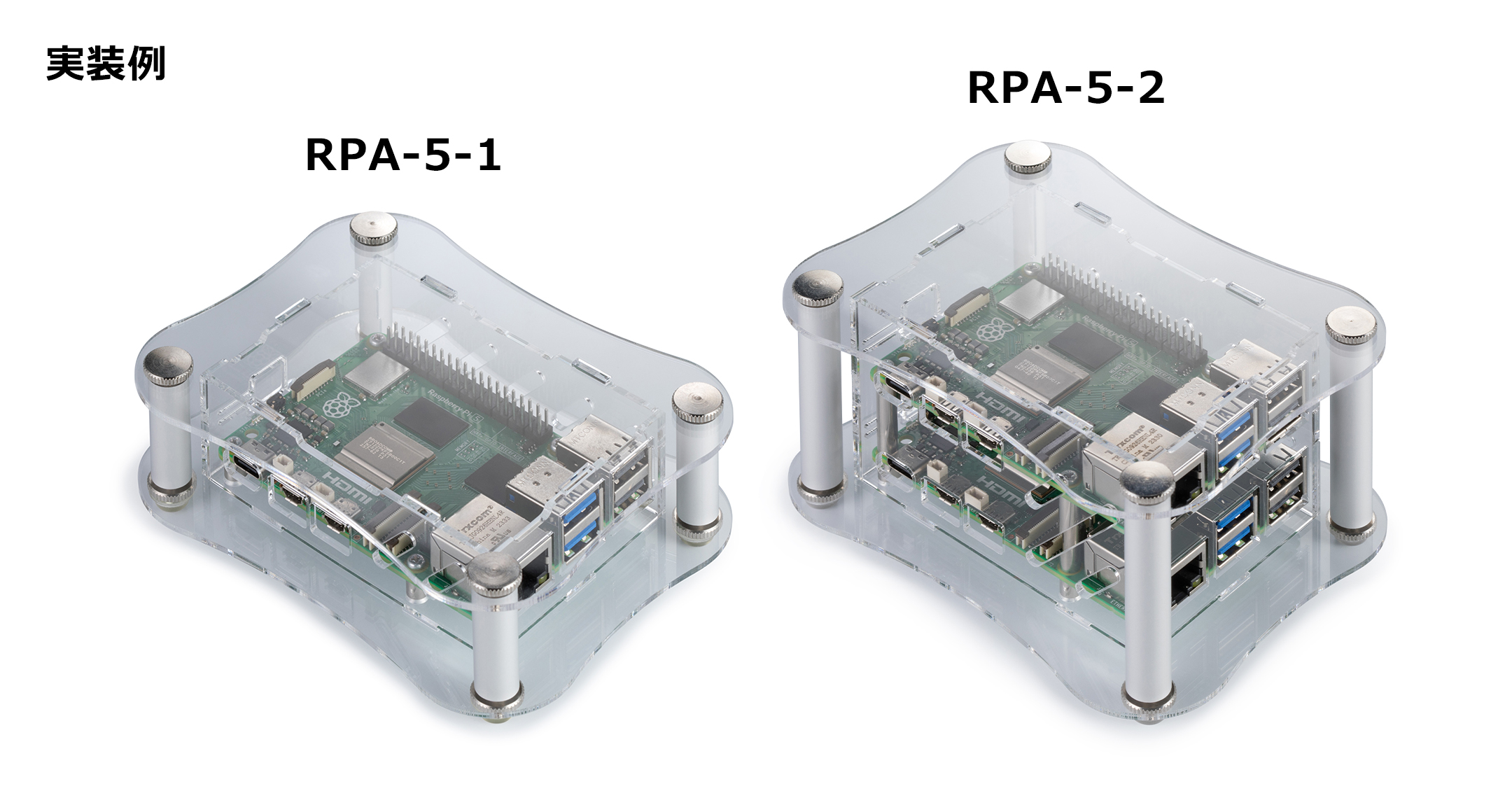

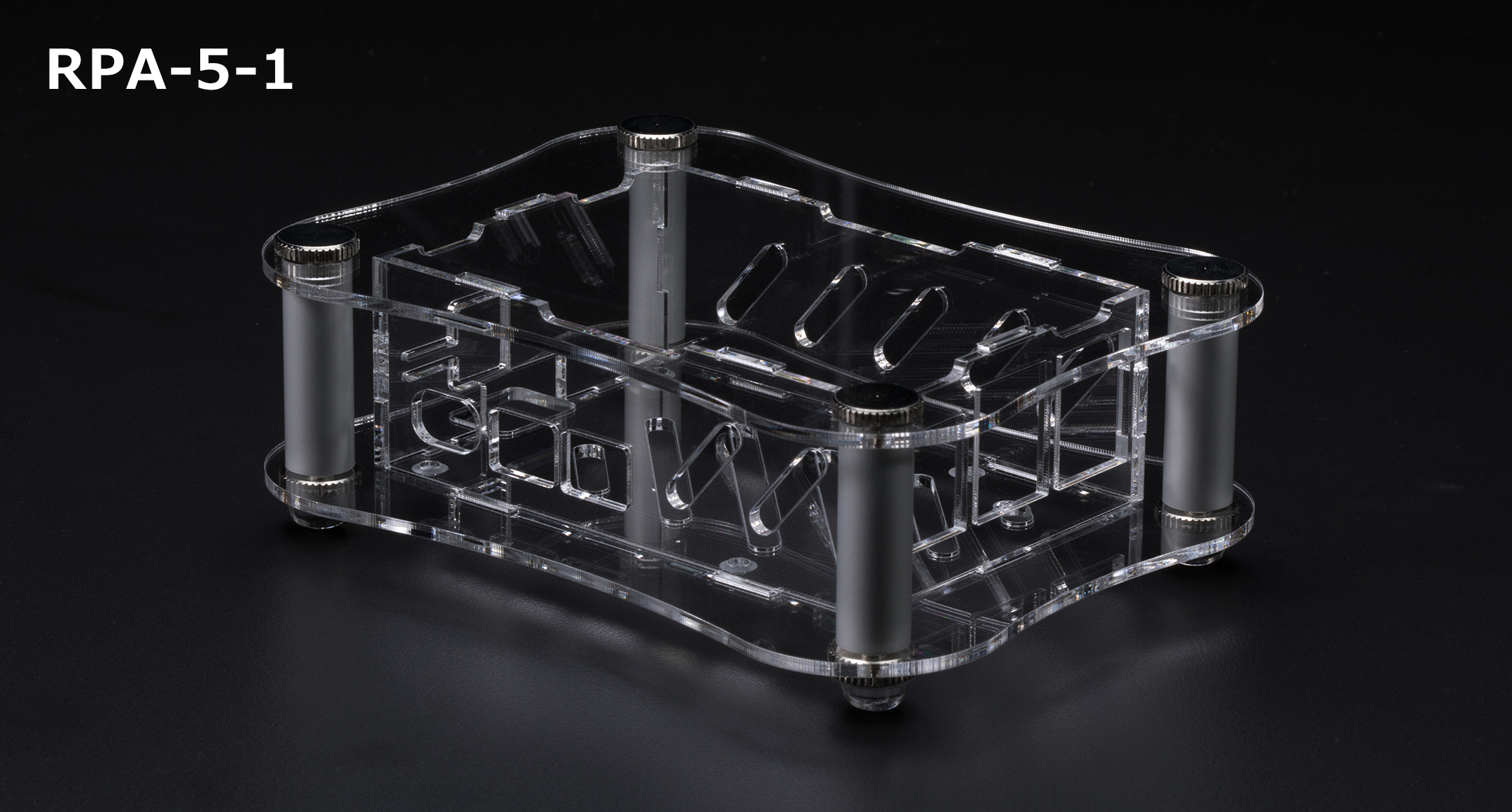

| RPA-5-1 | 95 | 34 | 125 | 58 | 23.5 | 88.5 | Raspberry Pi 5 | Single desktop | 113.5 | DXF | DWG | ||

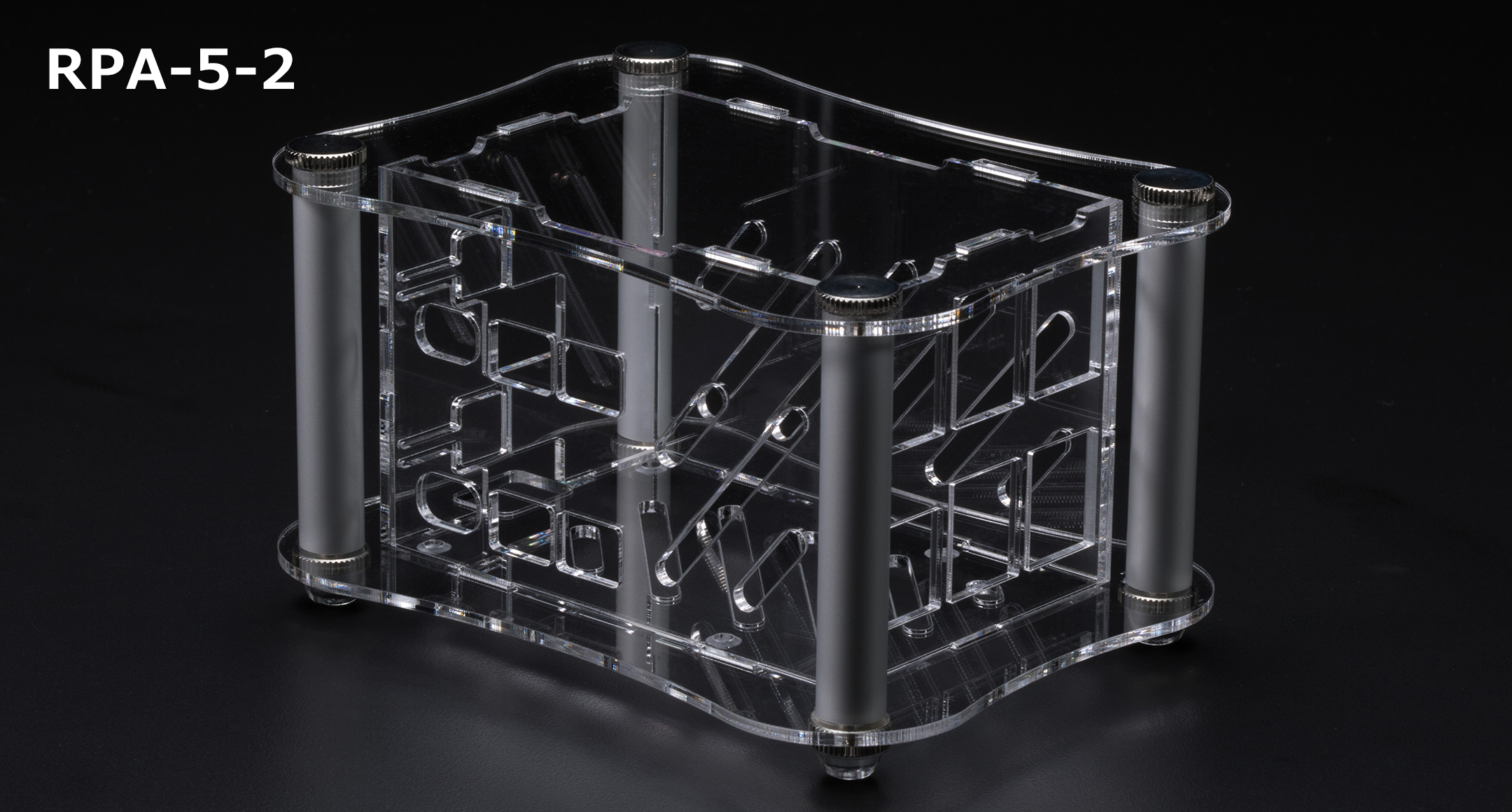

| RPA-5-2 | 95 | 62 | 125 | 58 | 51.5 | 88.5 | Raspberry Pi 5 | Dual desktop | 166.5 | DXF | DWG | ||

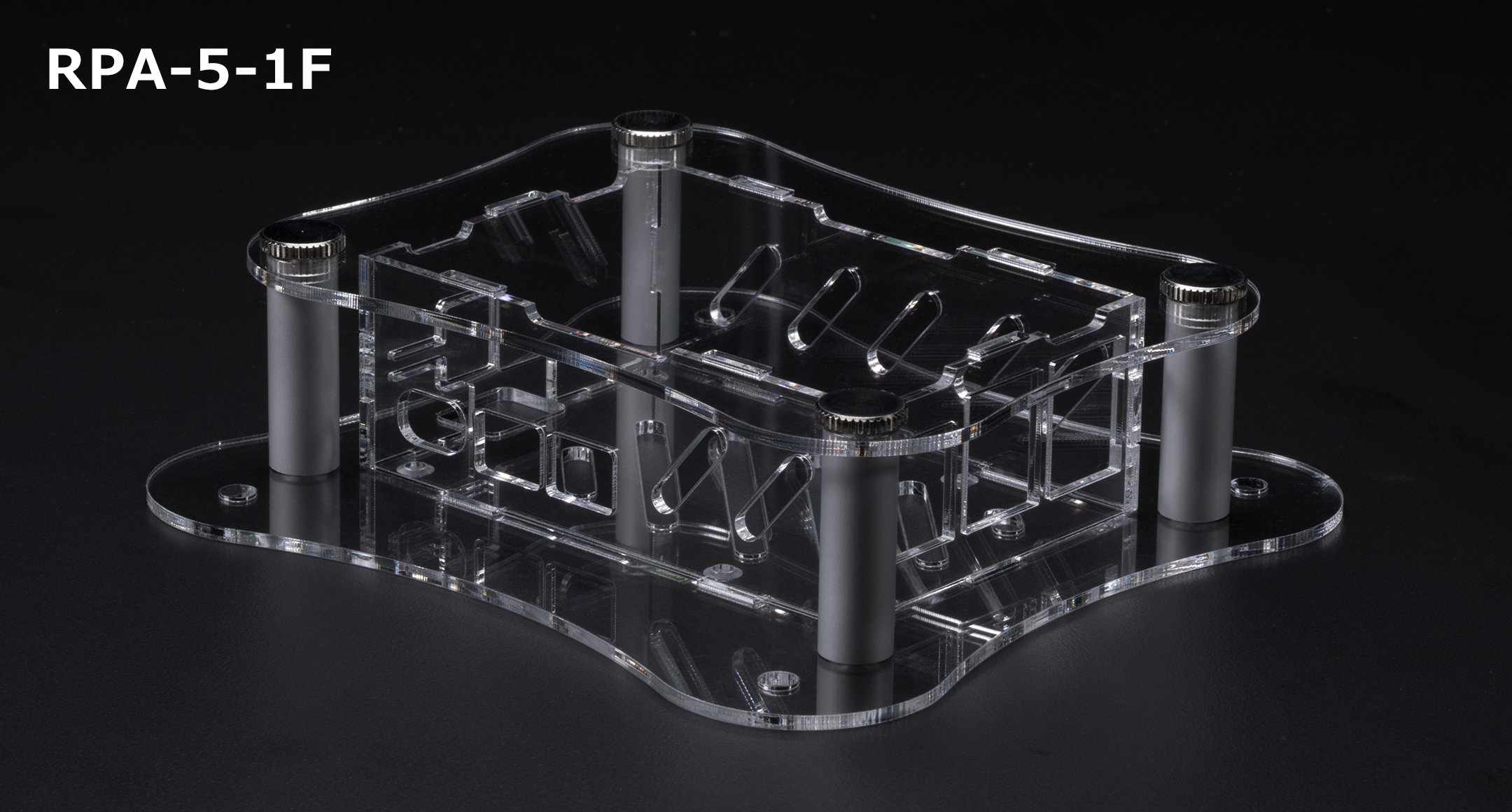

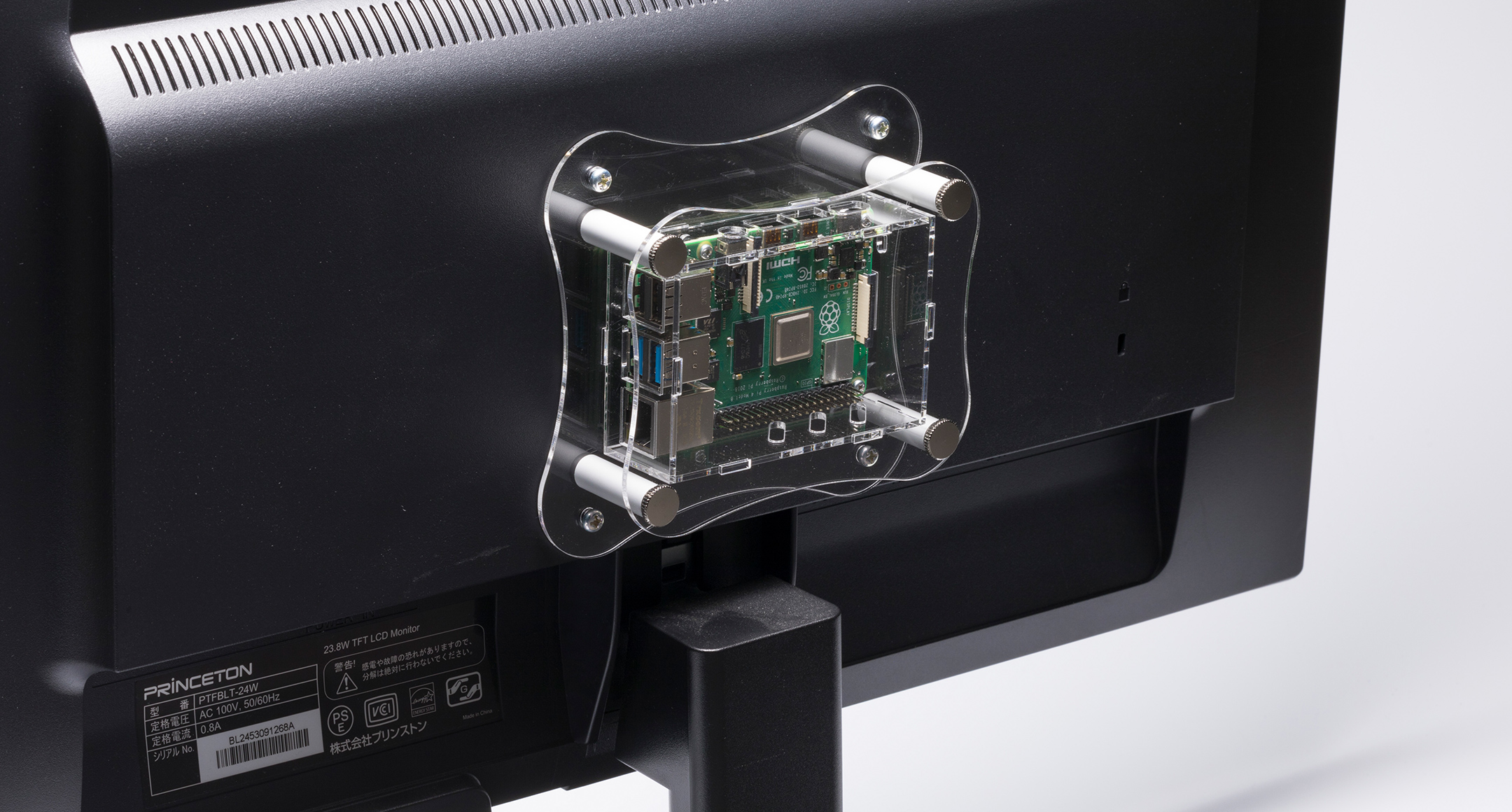

| RPA-5-1F | 95 | 34 | 125 | 58 | 23.5 | 88.5 | Raspberry Pi 5 | Single flanged | 113.5 | DXF | DWG | ||
OPTIONAL PARTS
SIMILAR PRODUCT
CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

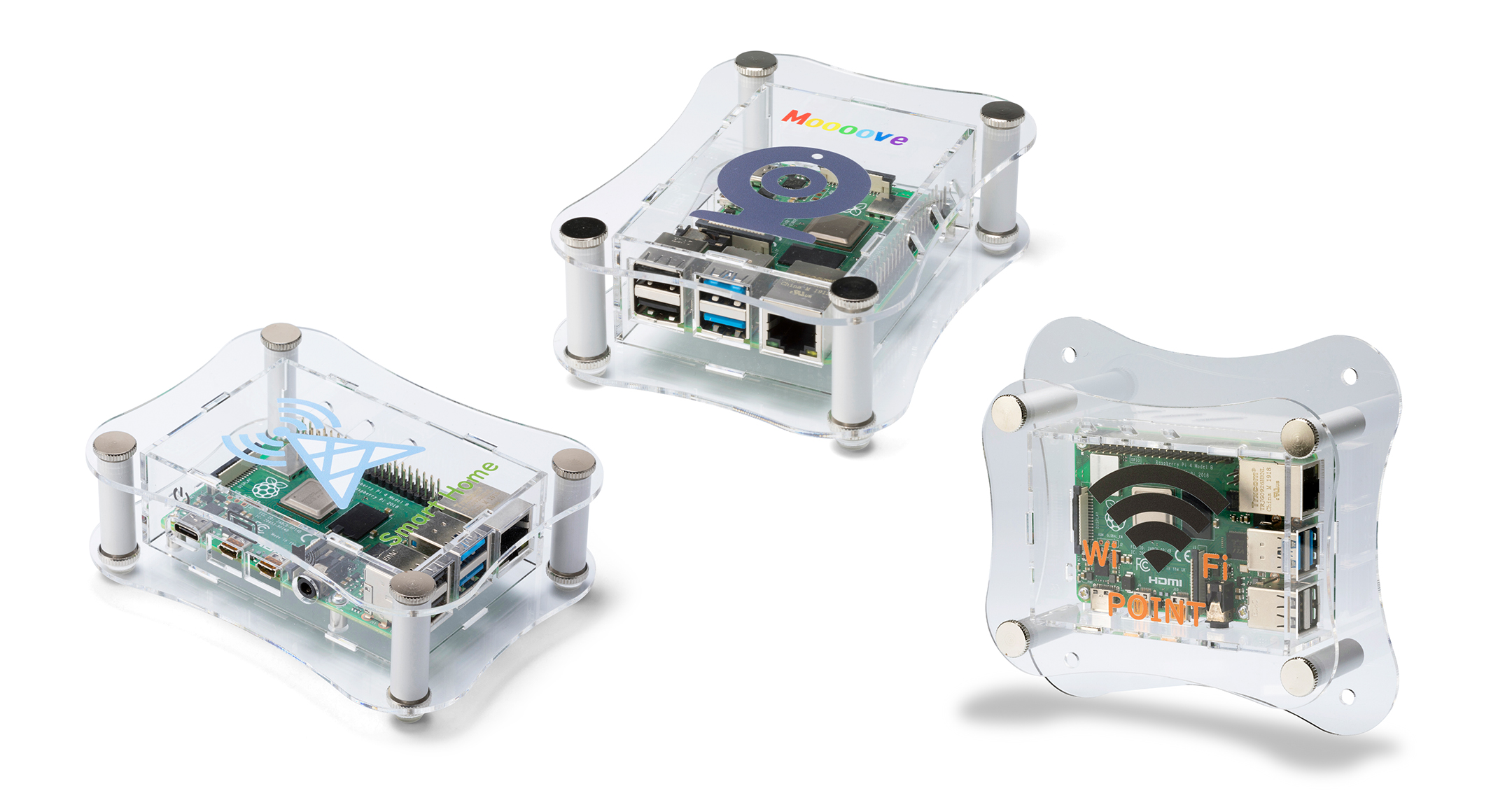

Digital inkjet printing
