DIN rail mount Raspberry Pi heatsink case - RPHD series


RPHD Series -PDF

CATEGORY：Raspberry Pi 4B heatsink case, Raspberry Pi cooling case, Raspberry pi aluminum enclosure, DIN rail mount case, DIN rail enclosure

DIN rail mount Raspberry Pi heatsink case - RPHD series
DIN rail mount Raspberry Pi heatsink case - RPHD series
DIN rail mount Raspberry Pi heatsink case - RPHD series
DIN rail mount Raspberry Pi heatsink case - RPHD series
DIN rail mount Raspberry Pi heatsink case - RPHD series
DIN rail mount Raspberry Pi heatsink case - RPHD series1
DIN rail mount Raspberry Pi heatsink case - RPHD series2
DIN rail mount Raspberry Pi heatsink case - RPHD series3
DIN rail mount Raspberry Pi heatsink case - RPHD series4
DIN rail mount Raspberry Pi heatsink case - RPHD series5
Heatsink DIN rail mount case exclusively for use with the Raspberry Pi 4 Model B.
Equipped with highly efficient heat-sink top cover.
Constructed using diecast aluminium for strength and rigidity.
2 types available : a efficient heat dissipation type, and a normal type.

Max load : 300g
Operating temperature : -20℃ ～ +80℃

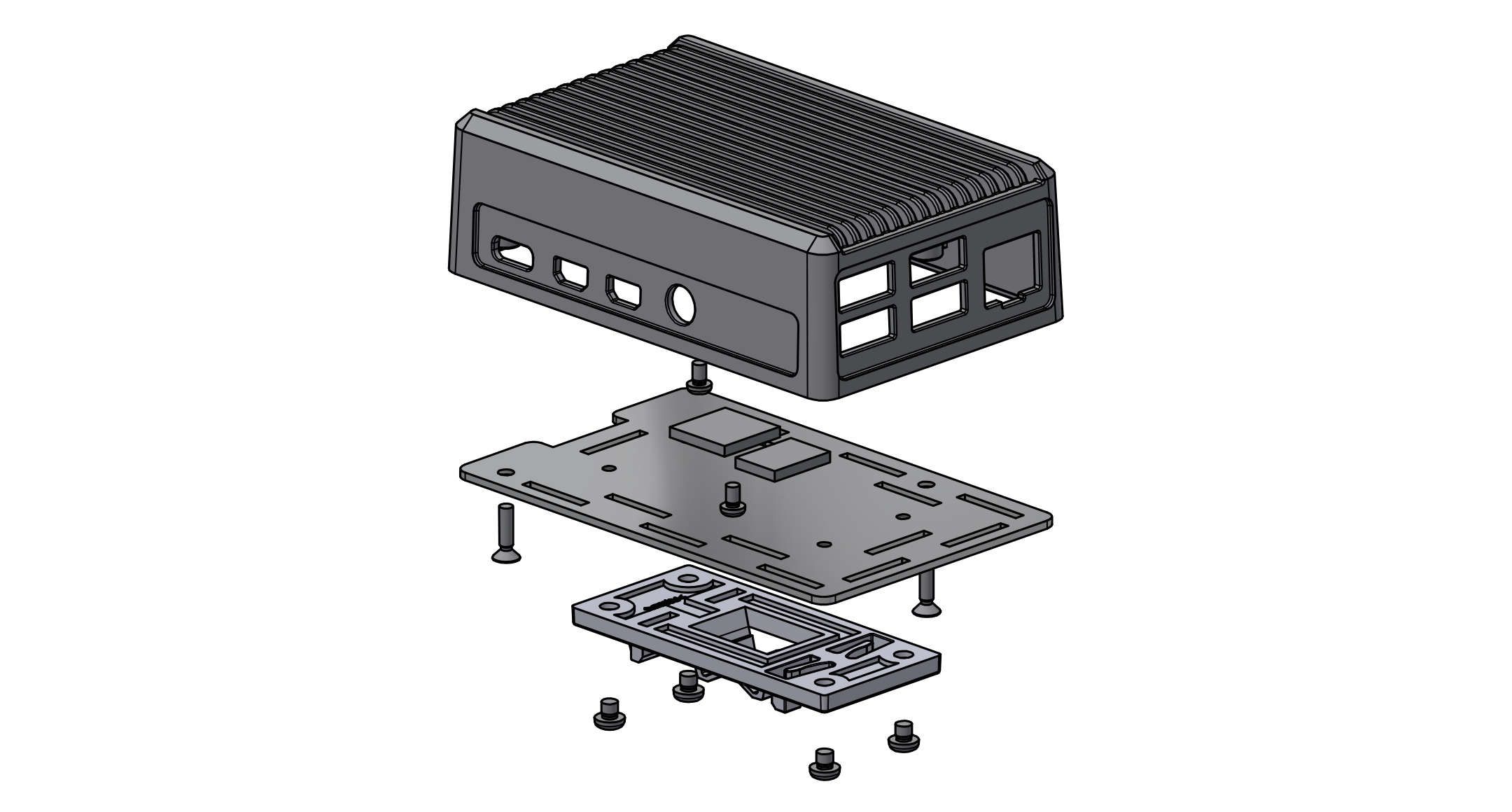

3D View  Exploded View - Heat Dissipation Type  Exploded View - Normal Type 

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Type Color Weight (g) PDF DXF DWG STP
W H D
RPHD-4B-H-S 63 30 98 Heat dissipation type Silver 168.2 PDF DXF DWG
RPHD-4B-N-S 63 30 98 Normal type Silver 150.7 PDF DXF DWG

OPTIONAL PARTS

１
EXPANSION PCB for Raspberry Pi 4B - RPCB-4B
DETAILS
１
PIN SOCKET CONNECTOR for RPCB-4B Raspberry Pi EXPANSION PCB
DETAILS
１
HEXAGONAL STANDOFF Raspberry Pi EXPANSION PCB
DETAILS
１
MOUNTING SCREW for RPSP2.5-11
DETAILS
１
DIN RAIL - FDR series
DETAILS
