Raspberry Pi 4B heatsink case - RPH series

Raspberry Pi 4B heatsink case - RPH series

CATEGORY：Raspberry Pi 4B heatsink case, Raspberry Pi cooling case, Raspberry Pi enclosure, Raspberry Pi 4 Model B Case, Raspberry Pi VESA mount case.

Raspberry Pi 4B heatsink case - RPH series1

Raspberry Pi 4B heatsink case - RPH series2

Raspberry Pi 4B heatsink case - RPH series3

Raspberry Pi 4B heatsink case - RPH series4

Raspberry Pi 4B heatsink case - RPH series5

Raspberry Pi 4B heatsink case - RPH series6

Raspberry Pi 4B heatsink case - RPH series7

Heatsink top cover case exclusively for use with the Raspberry Pi 4 Model B.

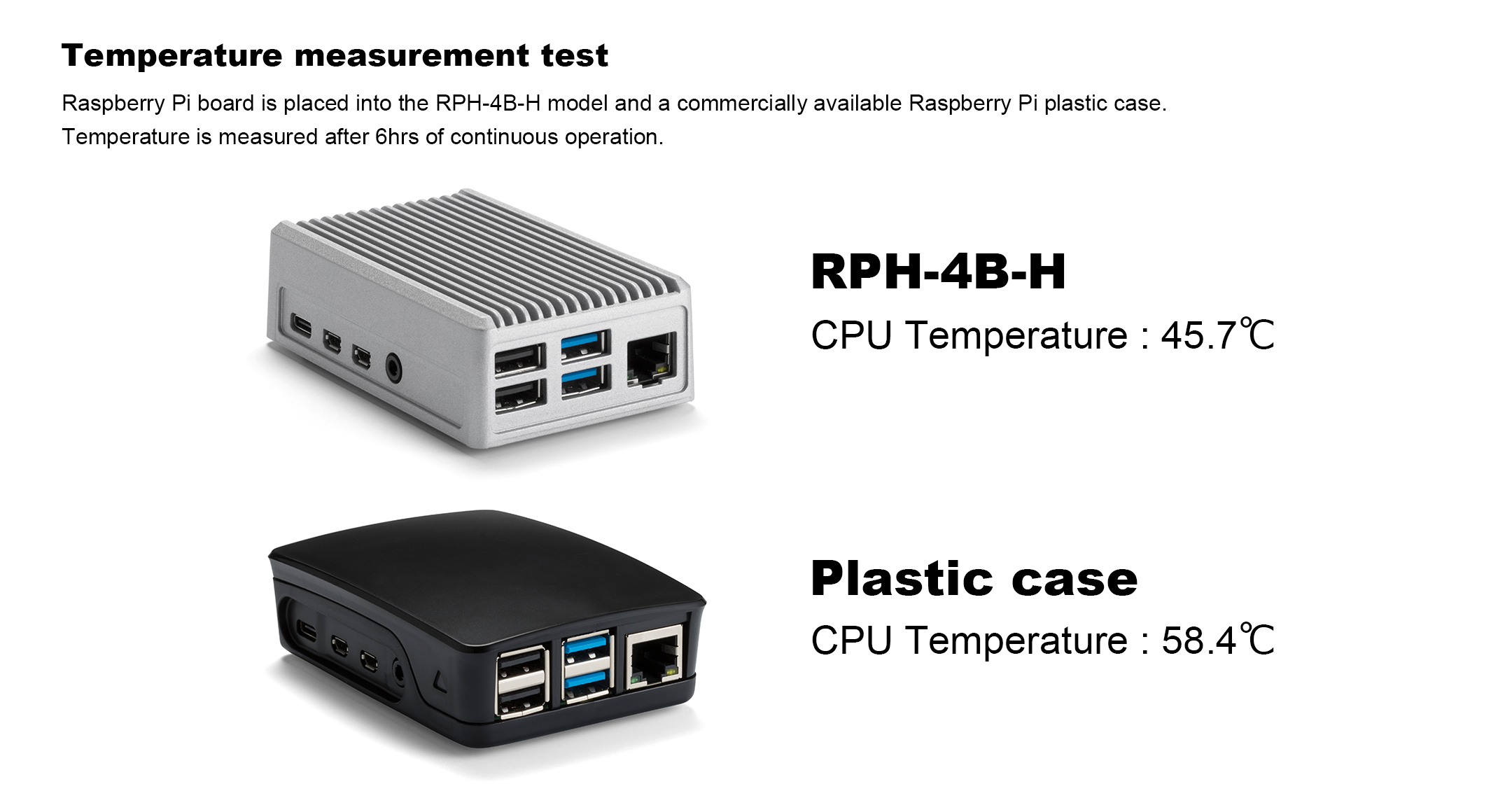

Equipped with highly efficient heat-sink top cover.
Constructed using diecast aluminium for strength and rigidity.

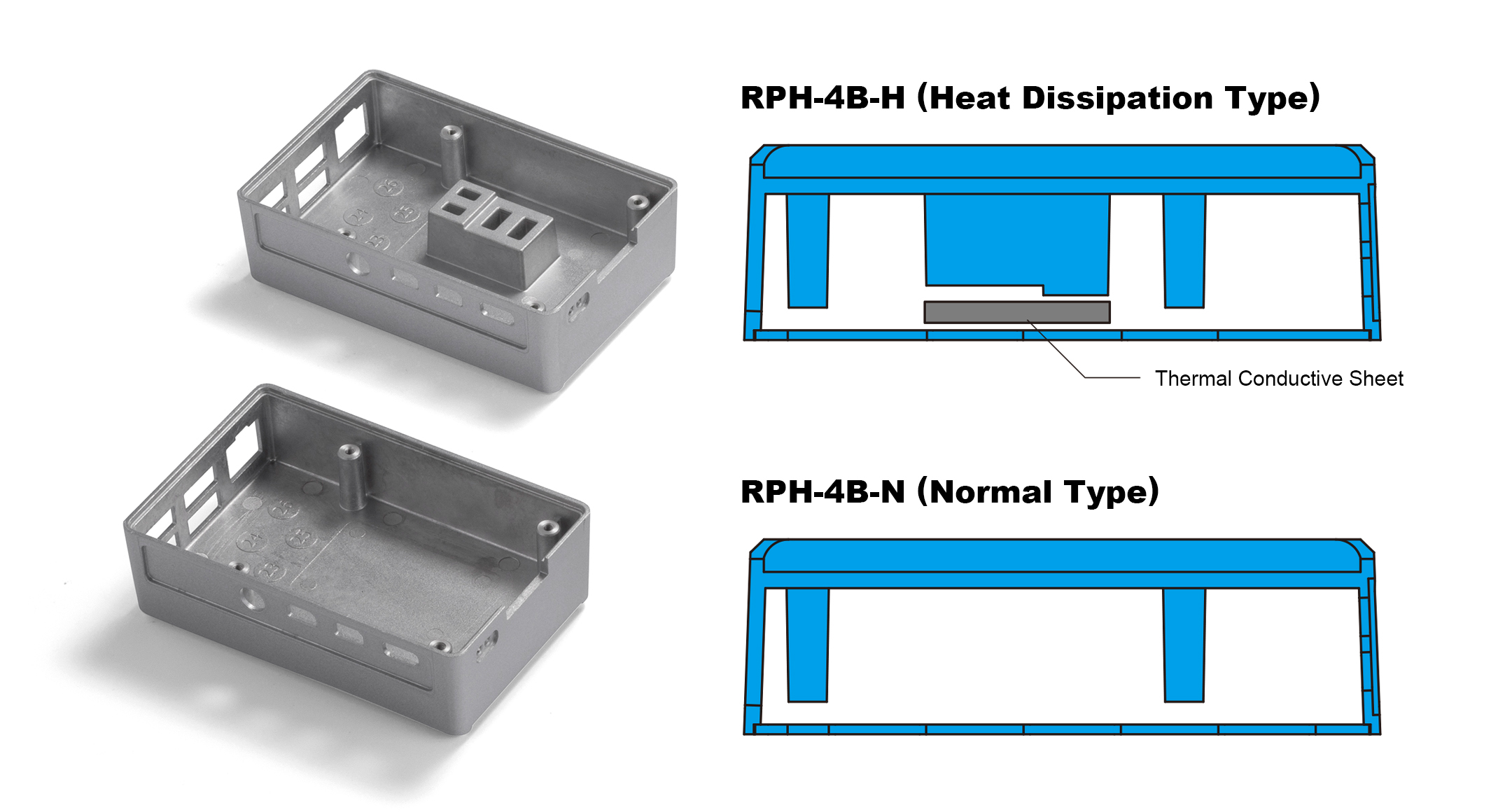

2 types are available : a efficient heat dissipation type, and a normal type.

It is a high-performance case yet low-price.

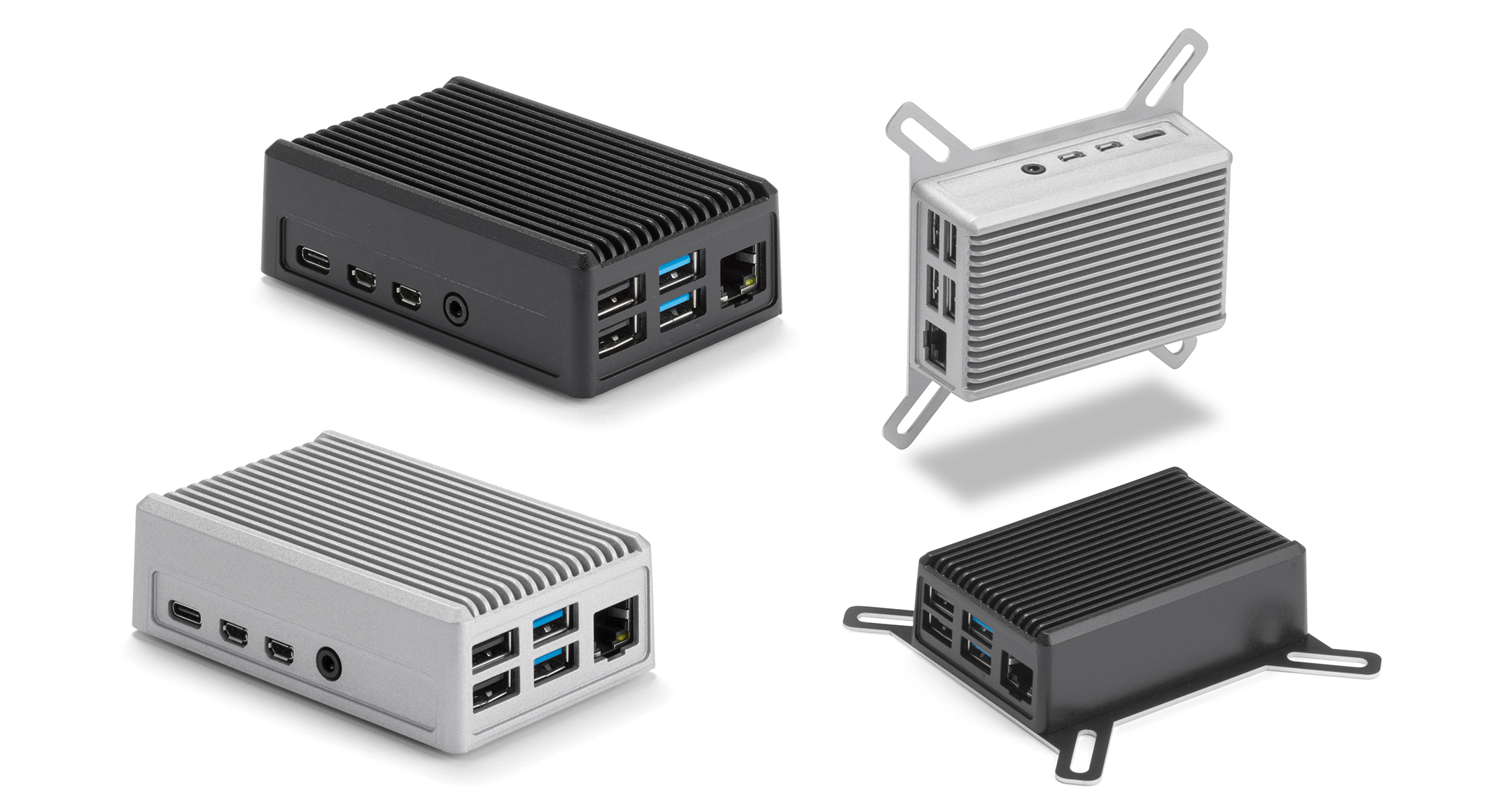

Available in 2 different models : Desktop and Flanged wall mount.

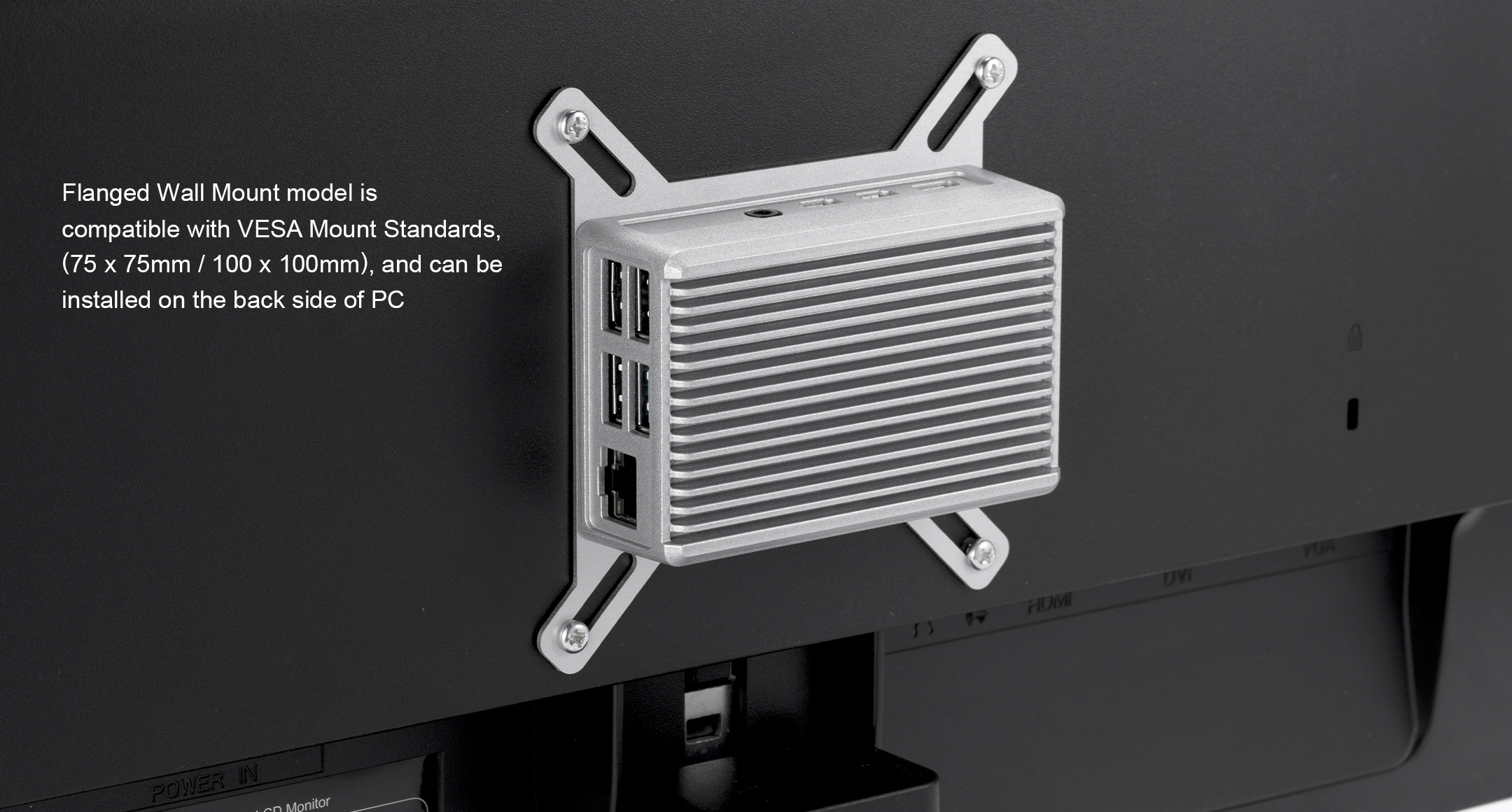

Flanged wall mount model is compatible with VESA mount standards,(75 x 75mm / 100 x 100mm),
and can be installed on the back side of PC displays, etc.

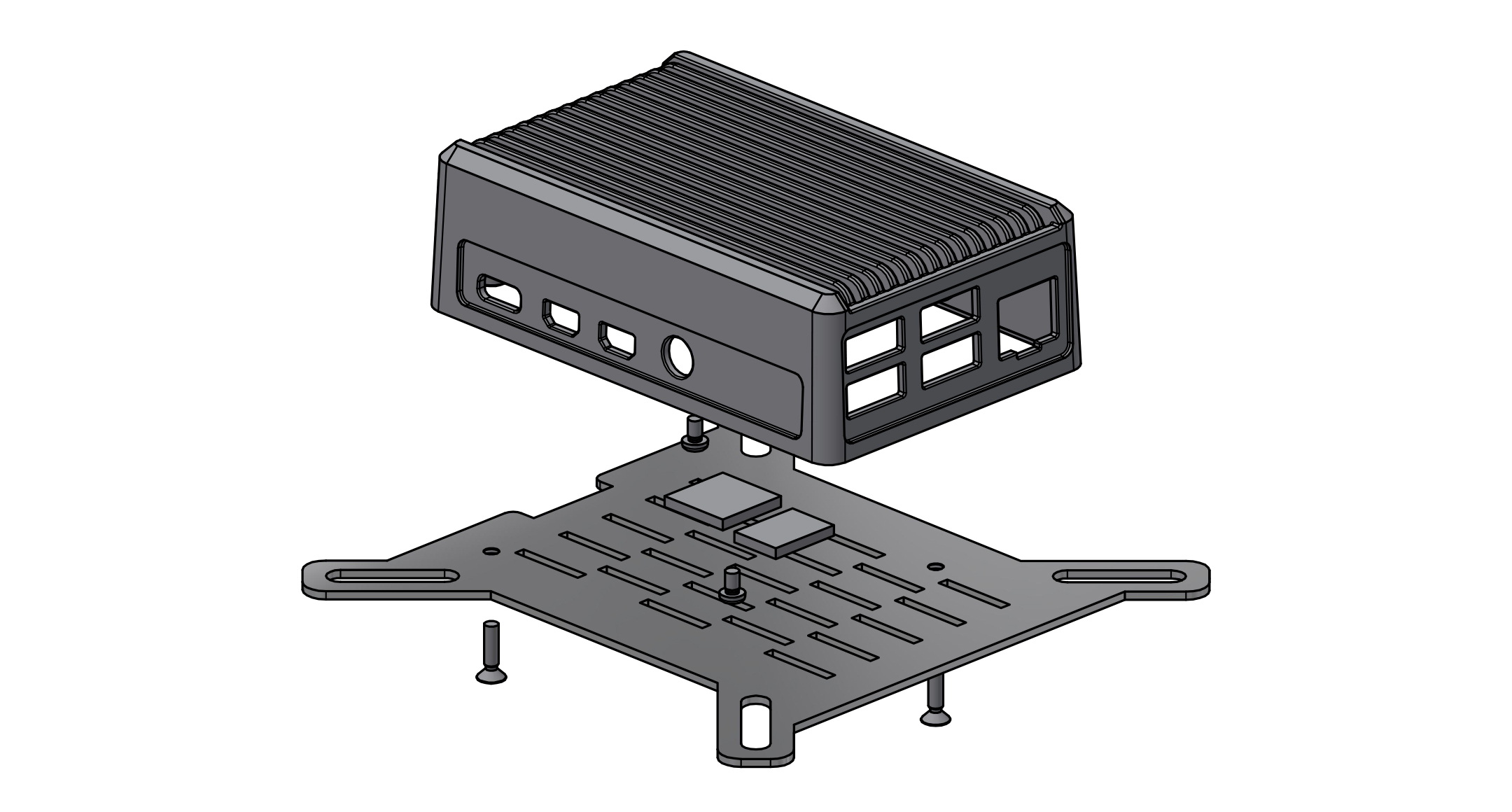

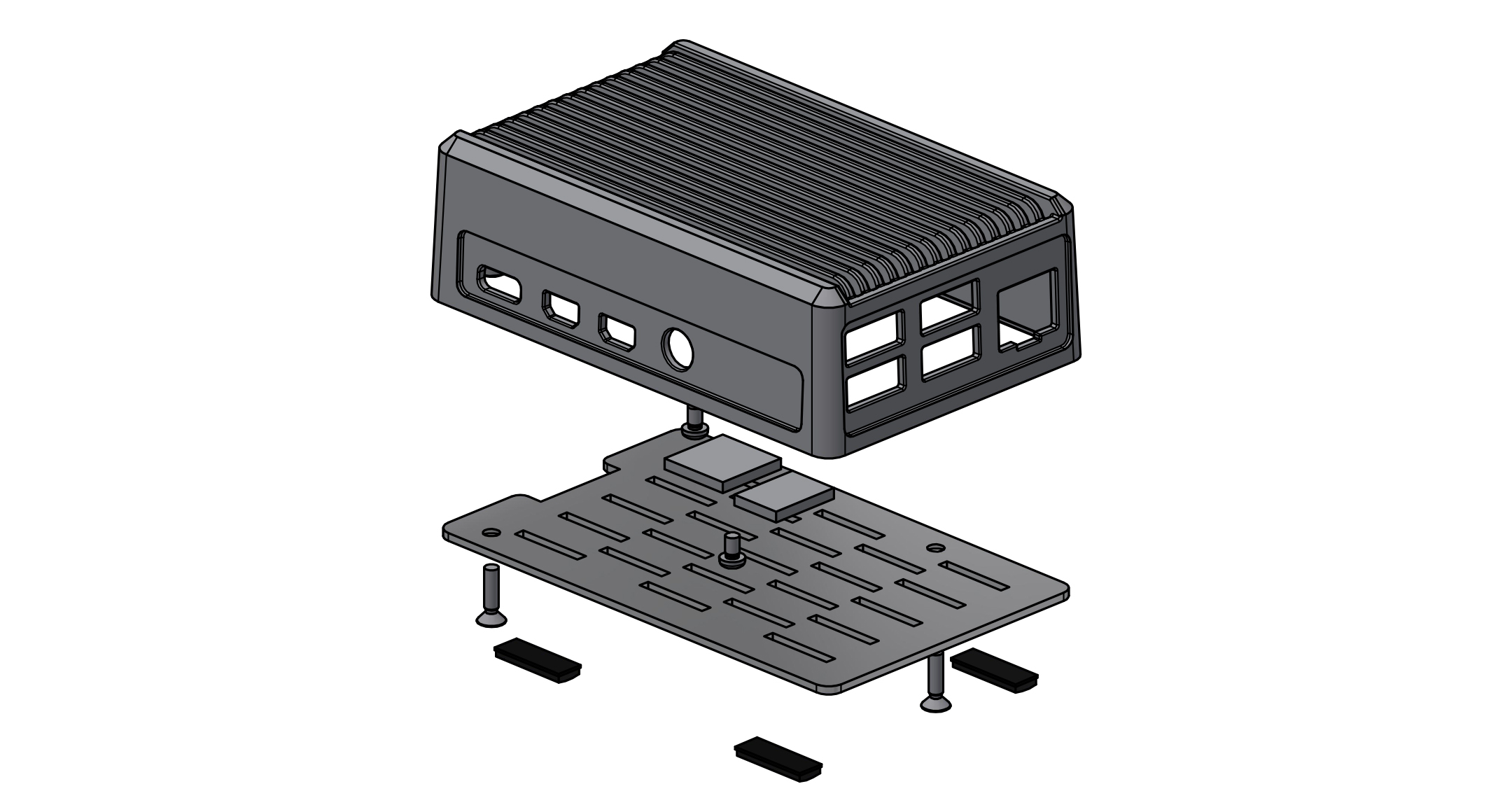

3D View - Desktop type 3D View - VESA Mount Type Exploded View - Heat Dissipation Type Exploded View - Normal Type

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Type	Color	Weight (g)	PDF	DXF	DWG	STP
Product No.	W	H	D	Type	Color	Weight (g)	PDF	DXF	DWG	STP
RPH-4B-H-S	63	30	98	Desktop, Heat dissipation type	Silver	159.9	PDF	DXF	DWG
RPH-4B-H-B	63	30	98	Desktop, Heat dissipation type	Black	159.9	PDF	DXF	DWG
RPH-4B-N-S	63	30	98	Desktop, Normal type	Silver	142	PDF	DXF	DWG
RPH-4B-N-B	63	30	98	Desktop, Normal type	Black	142	PDF	DXF	DWG
RPH-4B-FH-S	63	31.5	98	VESA mount, Heat dissipation type	Silver	168.2	PDF	DXF	DWG
RPH-4B-FH-B	63	31.5	98	VESA mount, Heat dissipation type	Black	168.2	PDF	DXF	DWG
RPH-4B-FN-S	63	31.5	98	VESA mount, Normal type	Silver	150.3	PDF	DXF	DWG
RPH-4B-FN-B	63	31.5	98	VESA mount, Normal type	Black	150.3	PDF	DXF	DWG

OPTIONAL PARTS

EXPANSION PCB for Raspberry Pi 4B - RPCB-4B

PIN SOCKET CONNECTOR for RPCB-4B Raspberry Pi EXPANSION PCB

HEXAGONAL STANDOFF Raspberry Pi EXPANSION PCB
