EXPANSION PCB for Raspberry Pi - RPCB series
EXPANSION PCB for Raspberry Pi - RPCB series
EXPANSION PCB for Raspberry Pi - RPCB series1
EXPANSION PCB for Raspberry Pi - RPCB series2
Expansion PCB for standard Raspberry Pi boards. Use to install expansion parts or components.

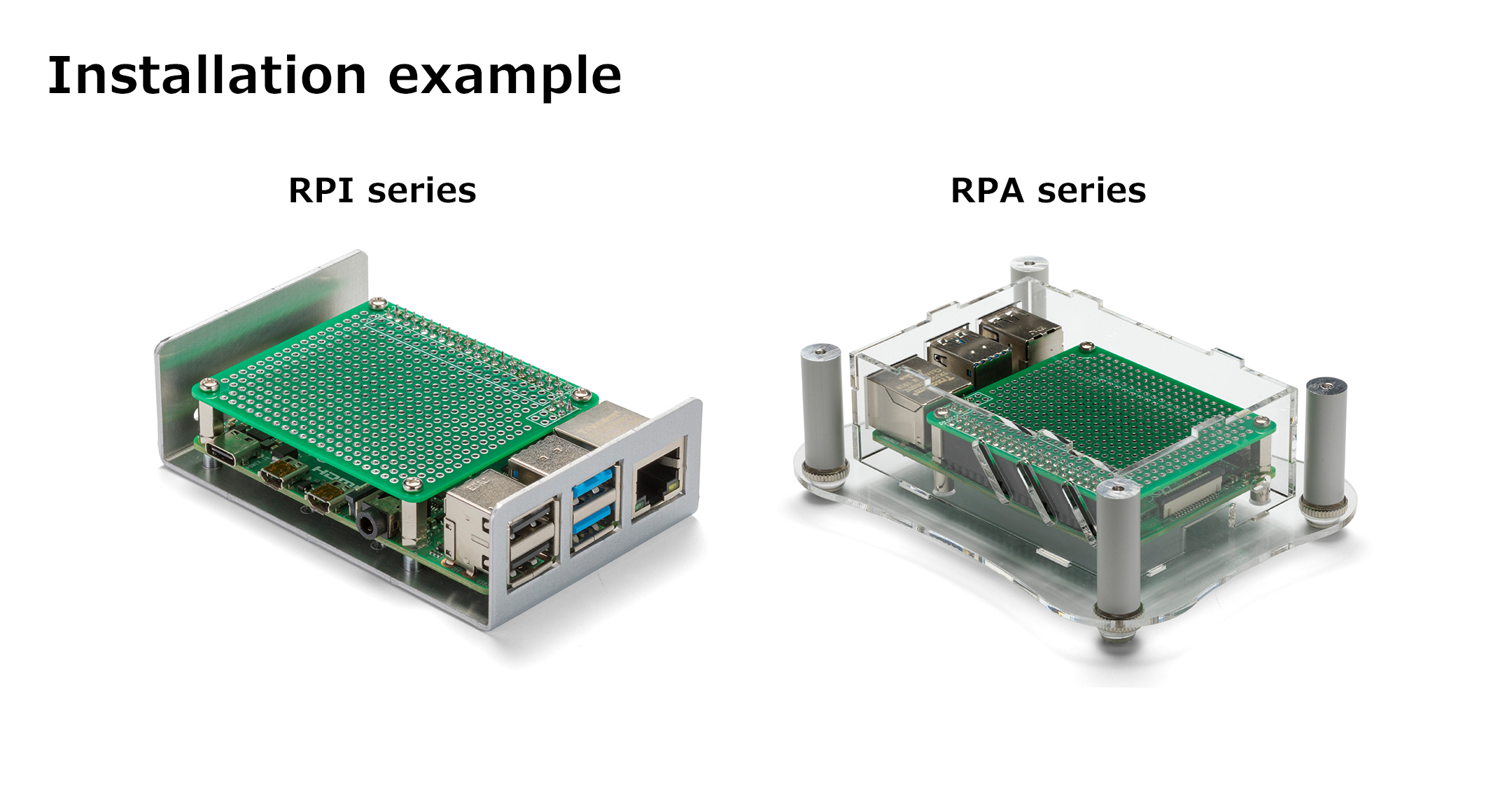

Expansion PCB can also be utilized on RPI-4B and RPA series cases.
Environmentally friendly lead-free solder. RoHS3 compliant.

Material / Finish : Glass epoxy (FR-4) / Through-hole - Lead-free solder resist
*Raspberry Pi Board is not included.

PRODUCT NO. / DIMENSIONS

Product No. Dimensions (W×D×T) mm Suitable model Pack of Weight (g) PDF DXF DWG
RPCB-4B 65×56×1.2 Raspberry Pi 4B 1 8.4 PDF DXF DWG
RPCB-5 65×56×1.2 Raspberry Pi 5 1 7.9 PDF DXF DWG
