VESA mount Raspberry Pi heatsink case - RPH-F series

CATEGORY：Raspberry Pi 4B heatsink case, Raspberry Pi cooling case, Raspberry Pi VESA mount case, Raspberry Pi enclosure, Raspberry Pi 4 Model B Case.

VESA mount Raspberry Pi heatsink case - RPH-F series1

VESA mount Raspberry Pi heatsink case - RPH-F series2

VESA mount Raspberry Pi heatsink case - RPH-F series3

VESA mount Raspberry Pi heatsink case - RPH-F series4

VESA mount Raspberry Pi heatsink case - RPH-F series5

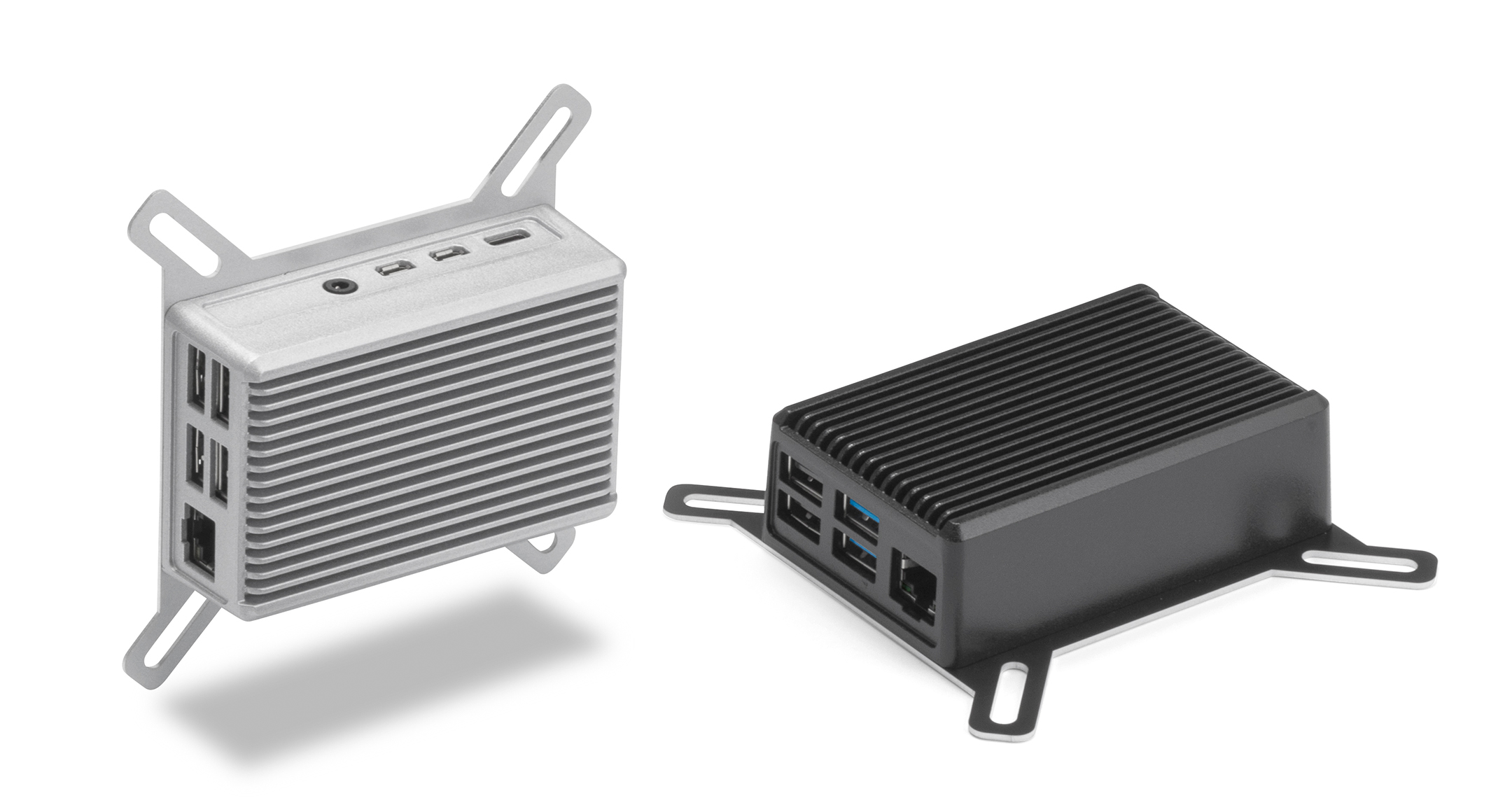

Heatsink top cover case exclusively for use with the Raspberry Pi 4 Model B.

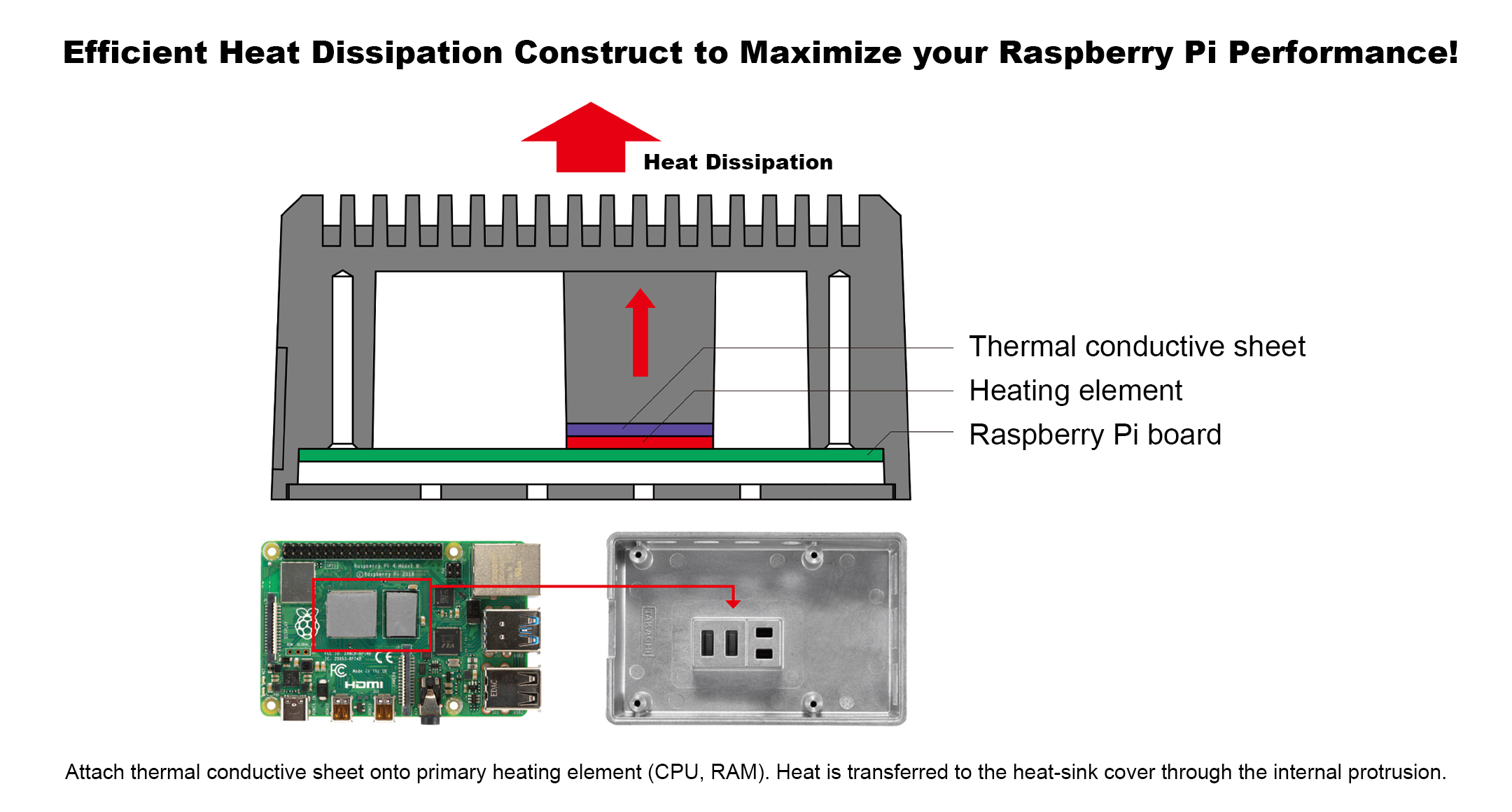

Equipped with highly efficient heat-sink top cover.
Constructed using diecast aluminium for strength and rigidity.
2 types are available : a efficient heat dissipation type, and a normal type.

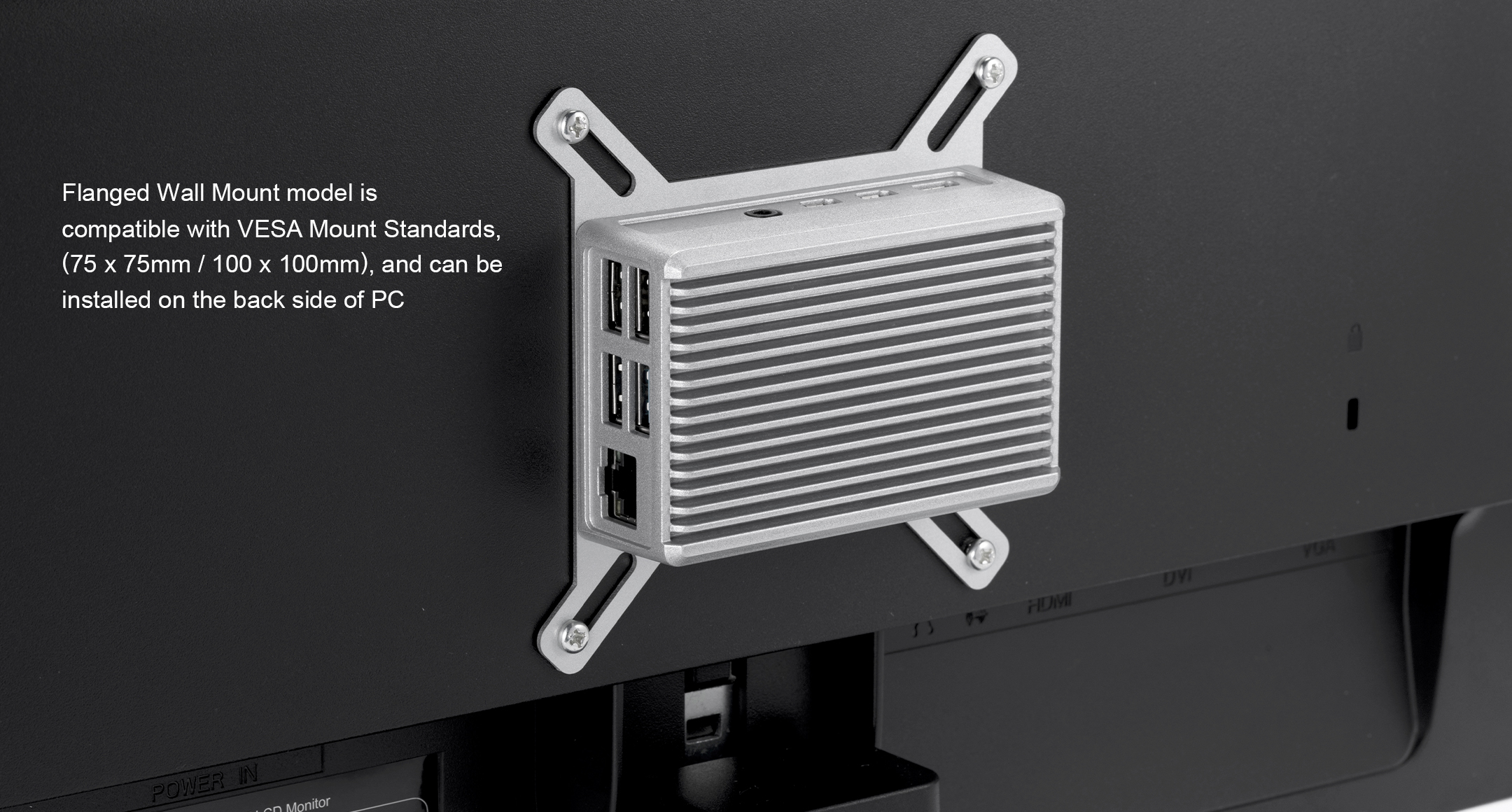

Wall mount flange is compatible with VESA mount standards,(75 x 75mm / 100 x 100mm),
and can be installed on the back side of PC displays, etc.

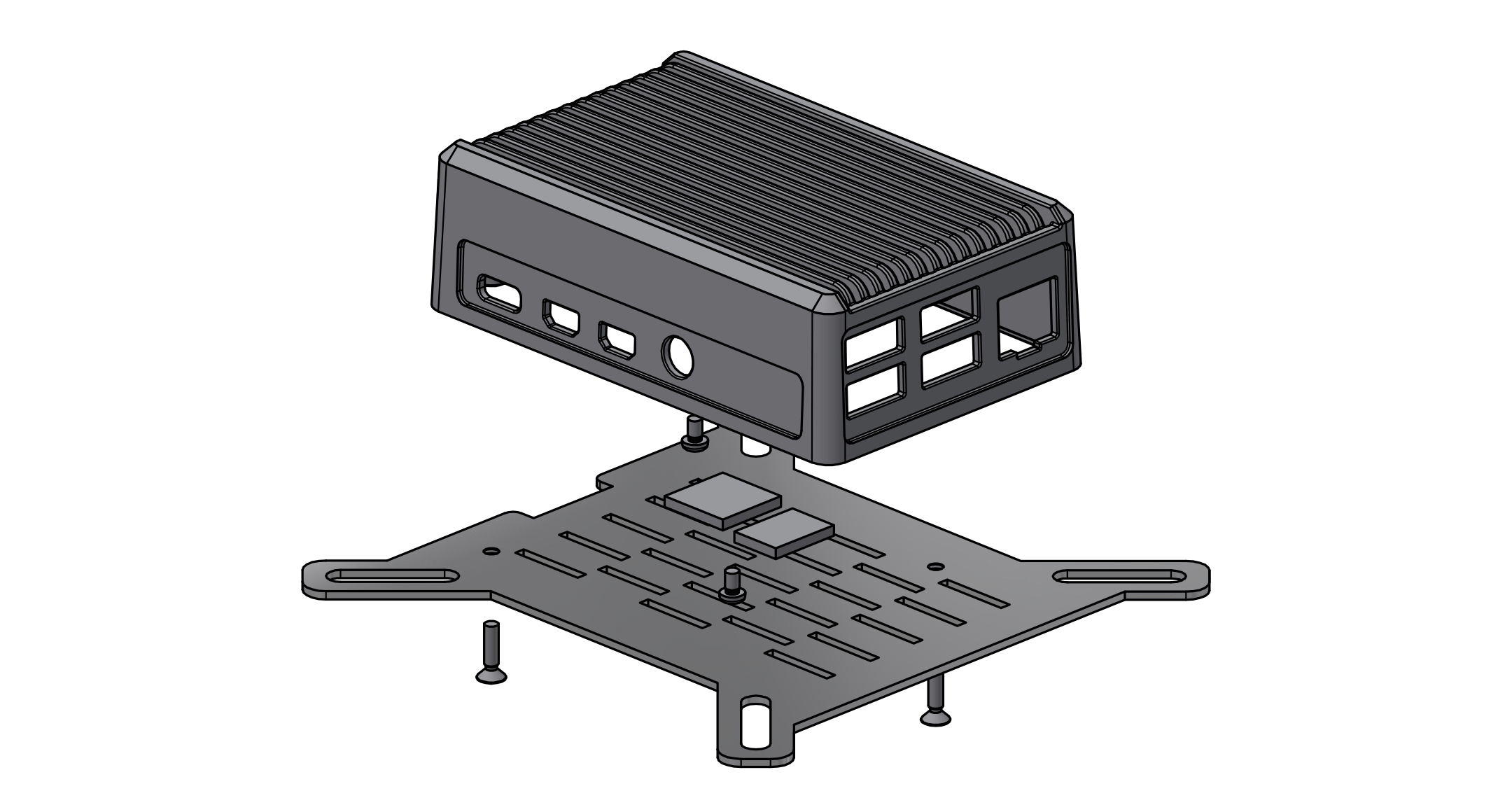

3D View Exploded View - Heat Dissipation Type Exploded View - Normal Type

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Type	Color	Weight (g)	PDF	DXF	DWG	STP
Product No.	W	H	D	Type	Color	Weight (g)	PDF	DXF	DWG	STP
RPH-4B-FH- S	63	31.5	98	VESA mount, Heat dissipation type	Silver	168.2	PDF	DXF	DWG
RPH-4B-FH- B	63	31.5	98	VESA mount, Heat dissipation type	Black	168.2	PDF	DXF	DWG
RPH-4B-FN- S	63	31.5	98	VESA mount, Normal type	Silver	150.3	PDF	DXF	DWG
RPH-4B-FN- B	63	31.5	98	VESA mount, Normal type	Black	150.3	PDF	DXF	DWG

OPTIONAL PARTS

EXPANSION PCB for Raspberry Pi 4B - RPCB-4B

PIN SOCKET CONNECTOR for RPCB-4B Raspberry Pi EXPANSION PCB

HEXAGONAL STANDOFF Raspberry Pi EXPANSION PCB

SIMILAR PRODUCT

DIN rail mount Raspberry Pi heatsink case - RPHD series

Raspberry Pi 4B ALUMINIUM CASE RPI-4 series

Raspberry Pi 4B ACRYLIC CASE - RPA series

VESA MOUNT Raspberry Pi CASE - RPI-F series

Raspberry Pi 2B/3B ALUMINIUM CASE - RPI series

HEATSINK ALUMINIUM ENCLOSURE - EXH series
