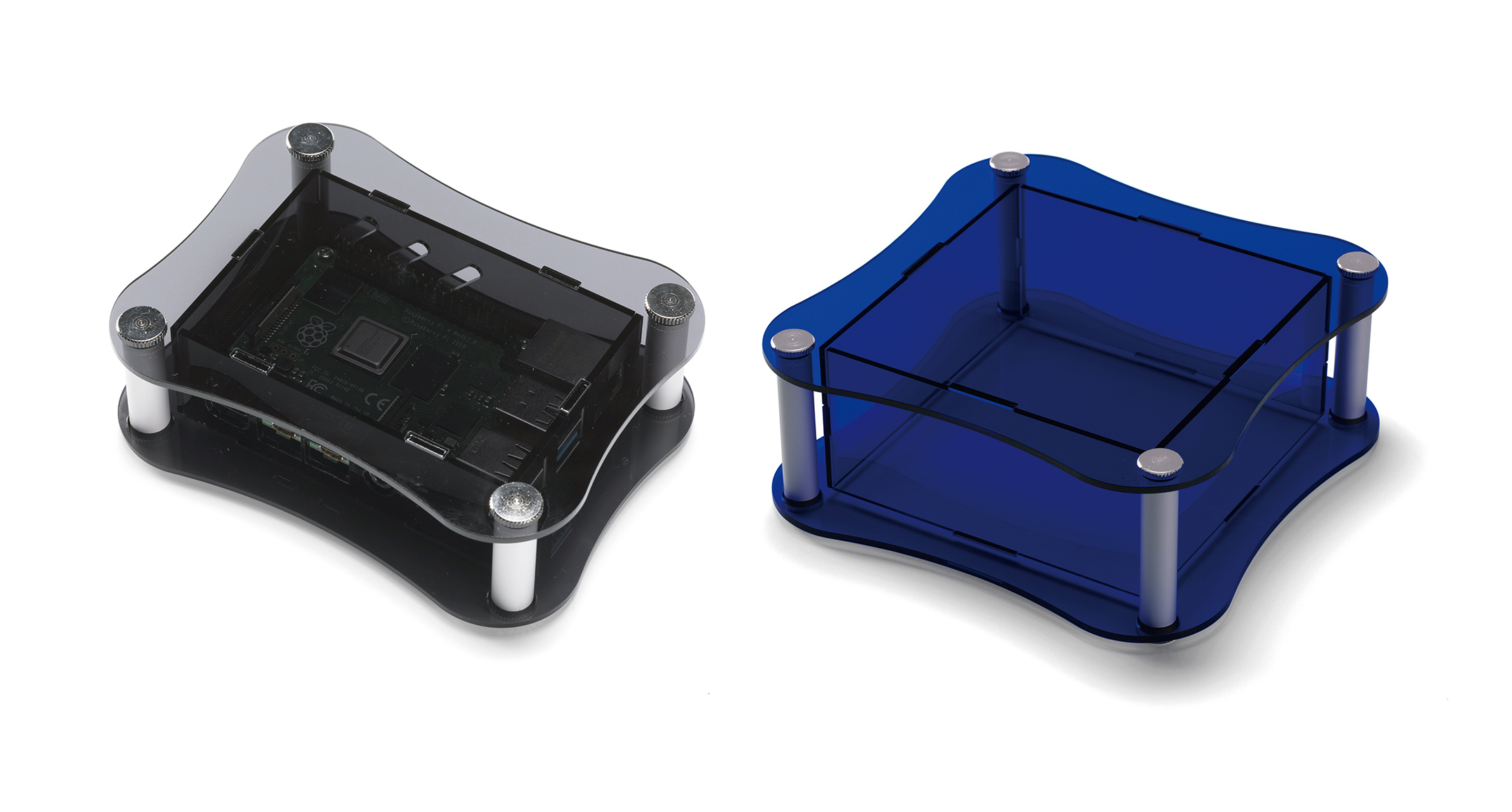

Curved transparent acrylic case with corner support columns, exclusively for use with Raspberry Pi series.
Usable as a display enclosure for a unique and luxurious outlook.

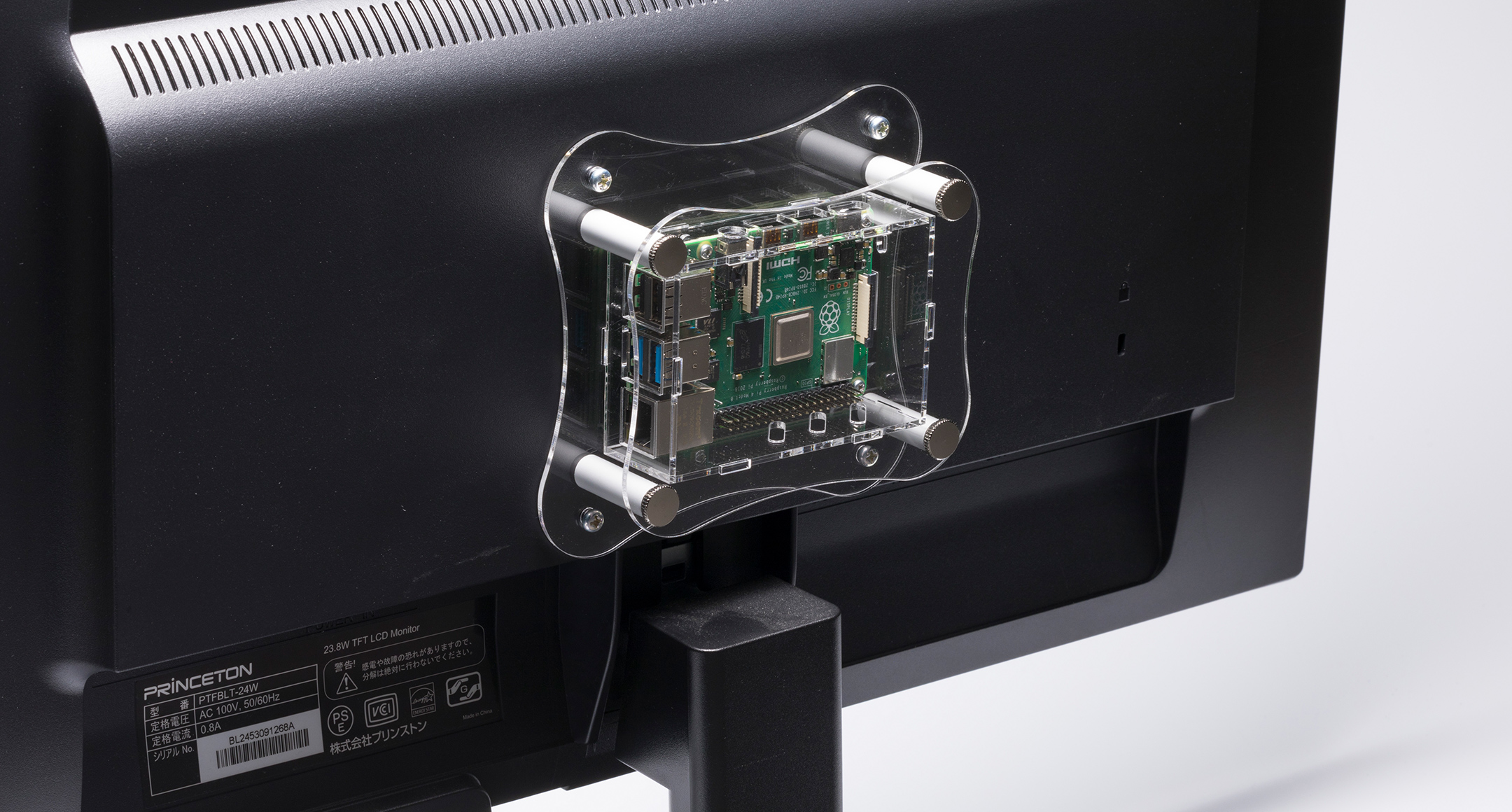

Flanged models are compliant with VESA100 (100x100) mounting standards,
therefore can be attached onto the backside of display monitors, among others.

Screws and standoffs to install Raspberry Pi Board are included.

Raspberry Pi Board is not included.

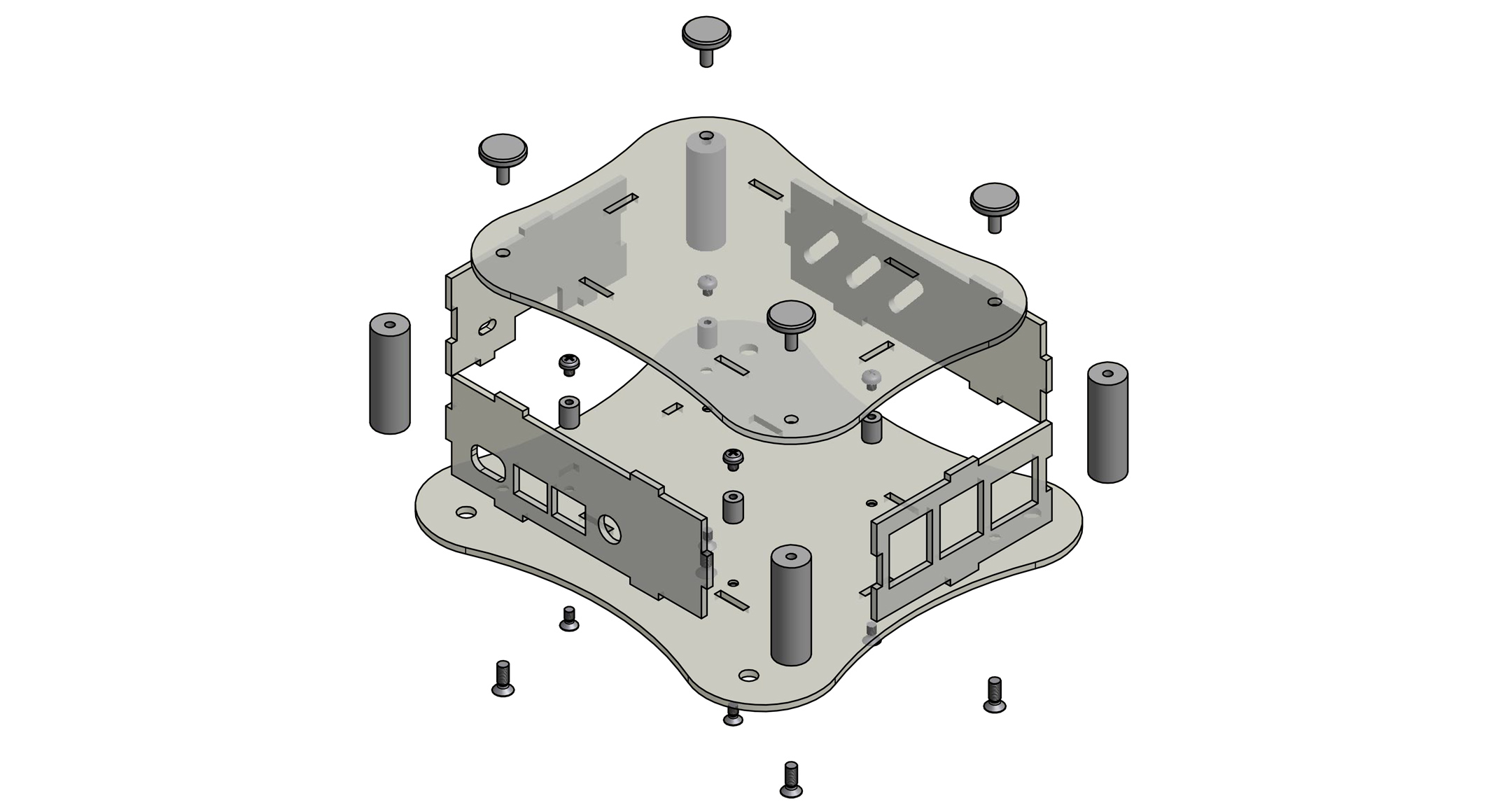

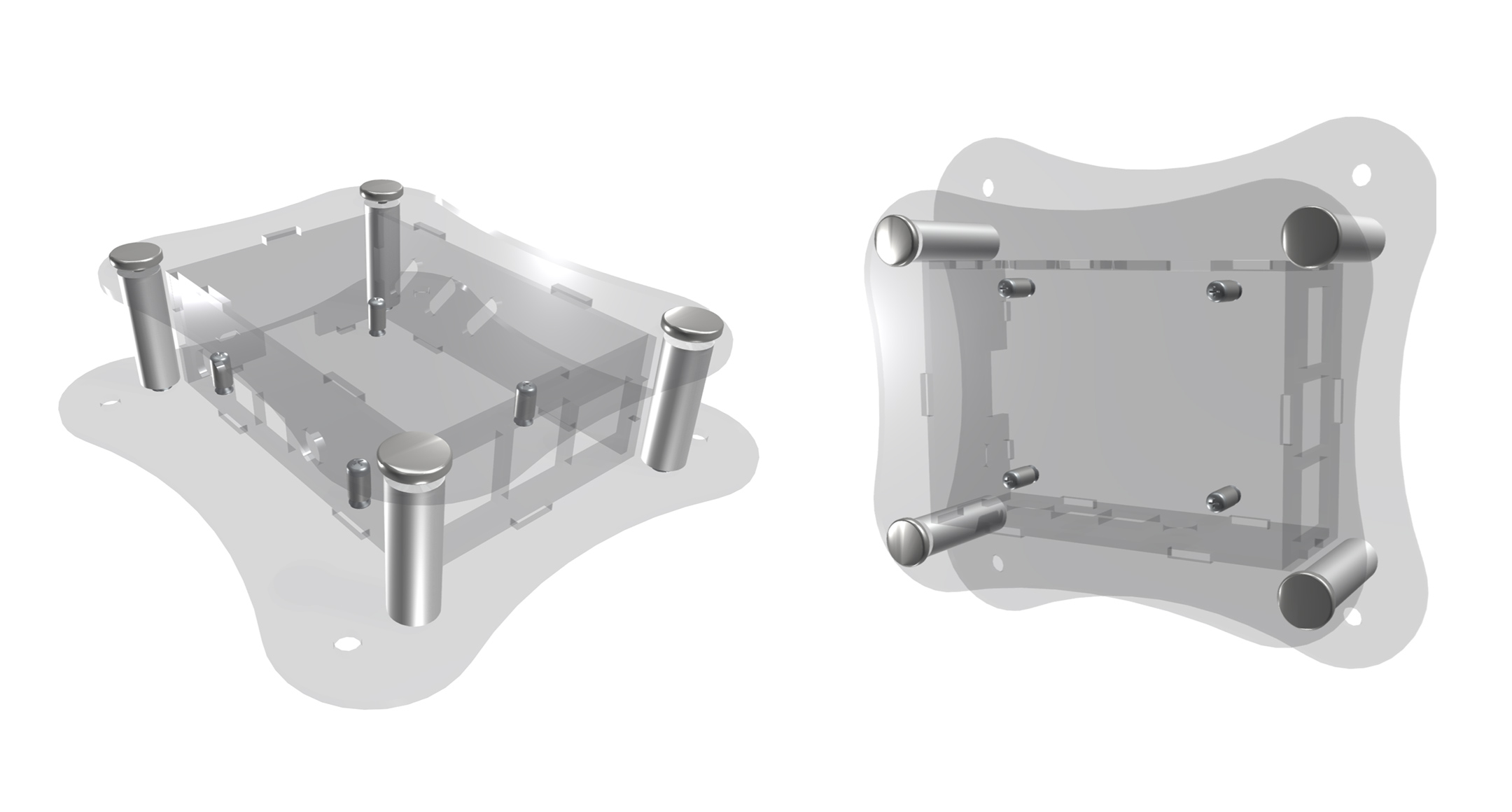

3D View  PCB mount image 

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Type Weight (g) PDF DXF DWG STP
W H D
RPA -4B-1F 95 34 125 Single flanged 118.5 PDF DXF DWG
RPA -5-1F 95 34 125 Single flanged 113.5 PDF DXF DWG
