SCREW MOUNT RUBBER FEET - B-P series


B_SCREW Series -PDF

CATEGORY:Rubber feet, Screw fixing rubber feet, Screw mount rubber feet, Rubber bumper feet

SCREW MOUNT RUBBER FEET - B-P series

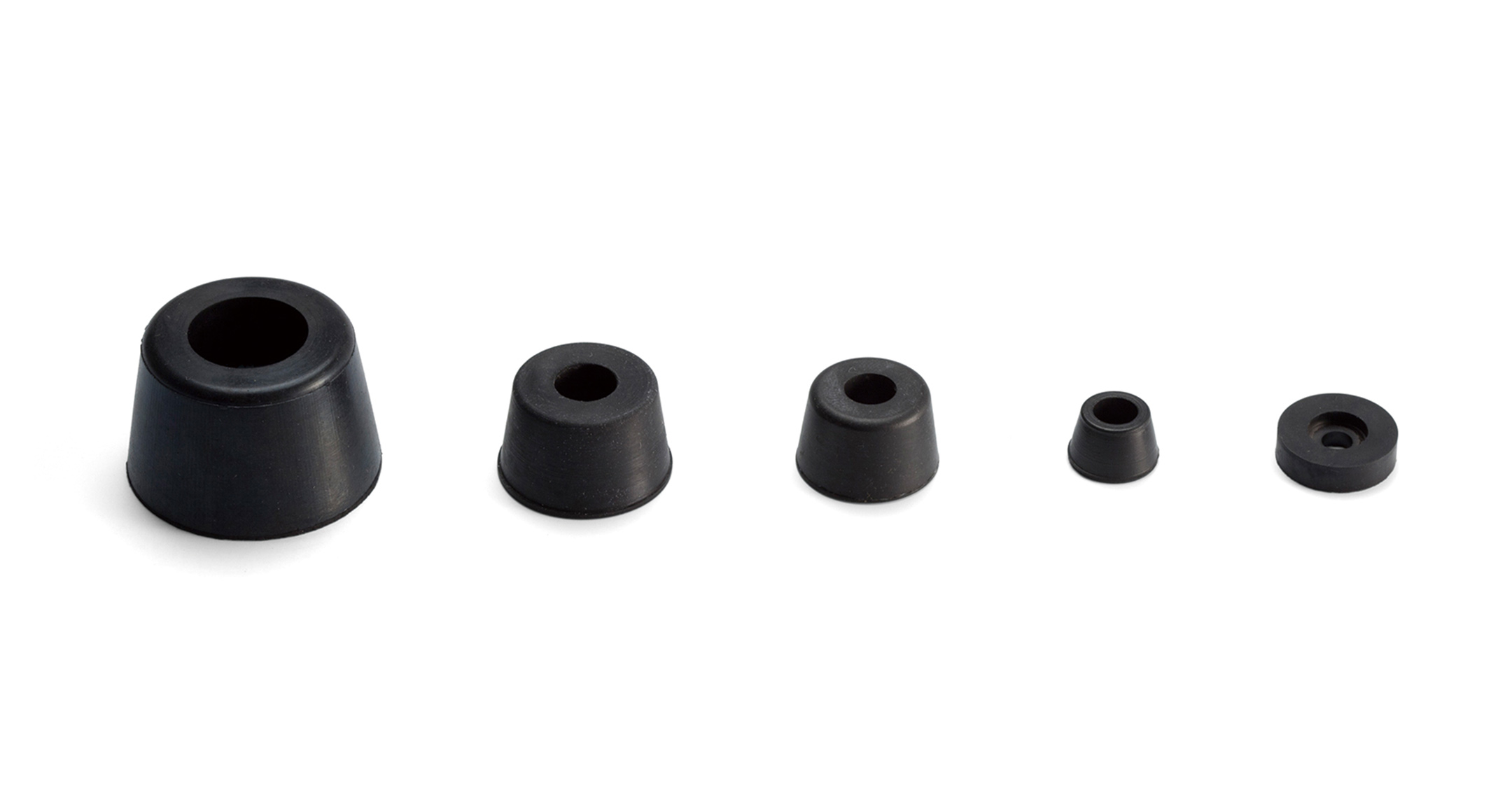

SCREW MOUNT RUBBER FEET - B-P series1
Screw mount type rubber feet.
Built-in washer and non-washer types are available.

Sold in 10 pcs pack.
*Mounting screws are not included.

PRODUCT NO. / DIMENSIONS

Product No. Diameter×Hight (mm) Washer Weight (g) / 1pc Pack of PDF DXF DWG
B-P1S φ11.5×7.2 With washer 0.8 10 pcs PDF DXF DWG
B-P1M φ15×4 With washer 1.3 10 pcs PDF DXF DWG
B-P1 φ15×7.7 None 1.6 10 pcs PDF DXF DWG
B-P1L φ16×7.8 With washer 1.7 10 pcs PDF DXF DWG
B-P2S φ18×11 With washer 3.9 10 pcs PDF DXF DWG
B-P2 φ19×8 None 2.5 10 pcs PDF DXF DWG
B-P3 φ22×13 None 4.6 10 pcs PDF DXF DWG
B-P4 φ32×20 With washer 15 10 pcs PDF DXF DWG
B-P5 φ32×15 With washer 12.4 10 pcs PDF DXF DWG
