SNAP-IN ELASTOMER FEET - TP series


TP Series -PDF

CATEGORY：Elastomer feet, Rivet feet, Releasable rivet feet, Snap-in feet, Plastic feet, TPE feet

SNAP-IN ELASTOMER FEET - TP series
SNAP-IN ELASTOMER FEET - TP series1

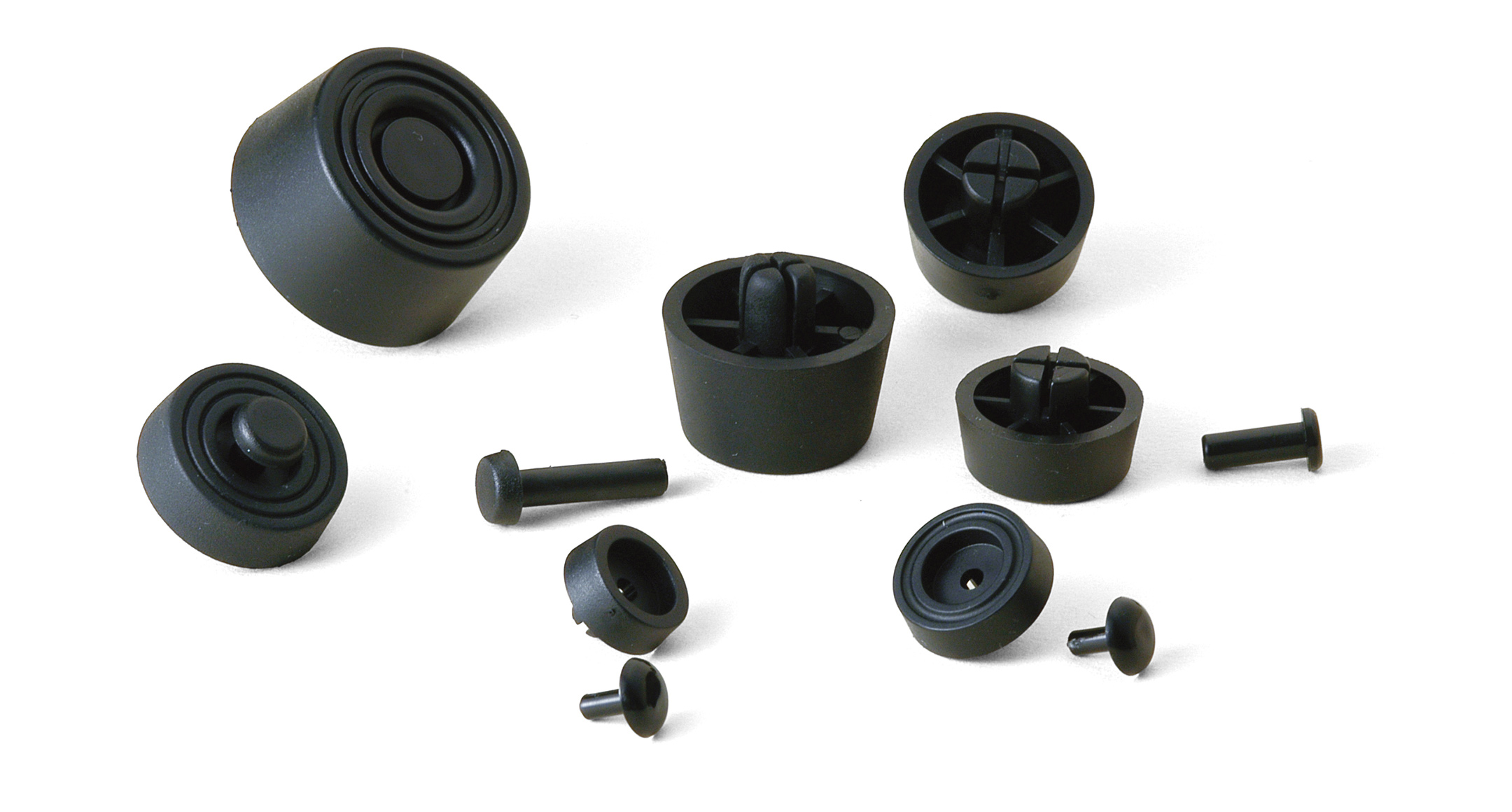

Snap-in elastomer feet.
Easy installation with rivet pin.
Elastomer material is resistant against color migration.
Require a hole for installation.

7 different sizes are available.

PRODUCT NO. / DIMENSIONS

Product No. Dimensions (Diameter×Hight) Weight(g) / 1pc Pack of PDF DXF DWG
TP-1 φ12.7×4.4mm 0.4 10 pcs PDF DXF DWG
TP-2 φ15.7×4.4mm 0.6 10 pcs PDF DXF DWG
TP-3 φ19.2×7.9mm 1.7 10 pcs PDF DXF DWG
TP-4 φ20×10mm 2.2 10 pcs PDF DXF DWG
TP-5 φ20.8×6.4mm 2.0 10 pcs PDF DXF DWG
TP-6 φ23.7×13.7mm 3.5 10 pcs PDF DXF DWG
TP-7 φ29.4×15mm 3.5 10 pcs PDF DXF DWG
