UNIVERSAL ALUMINUM PROJECT BOX - CU-N series


CU Series -PDF

CATEGORY:METAL CASE, SHEET METAL CASE, UNIVERSAL CASE, ALUMINUM PROJECT BOX

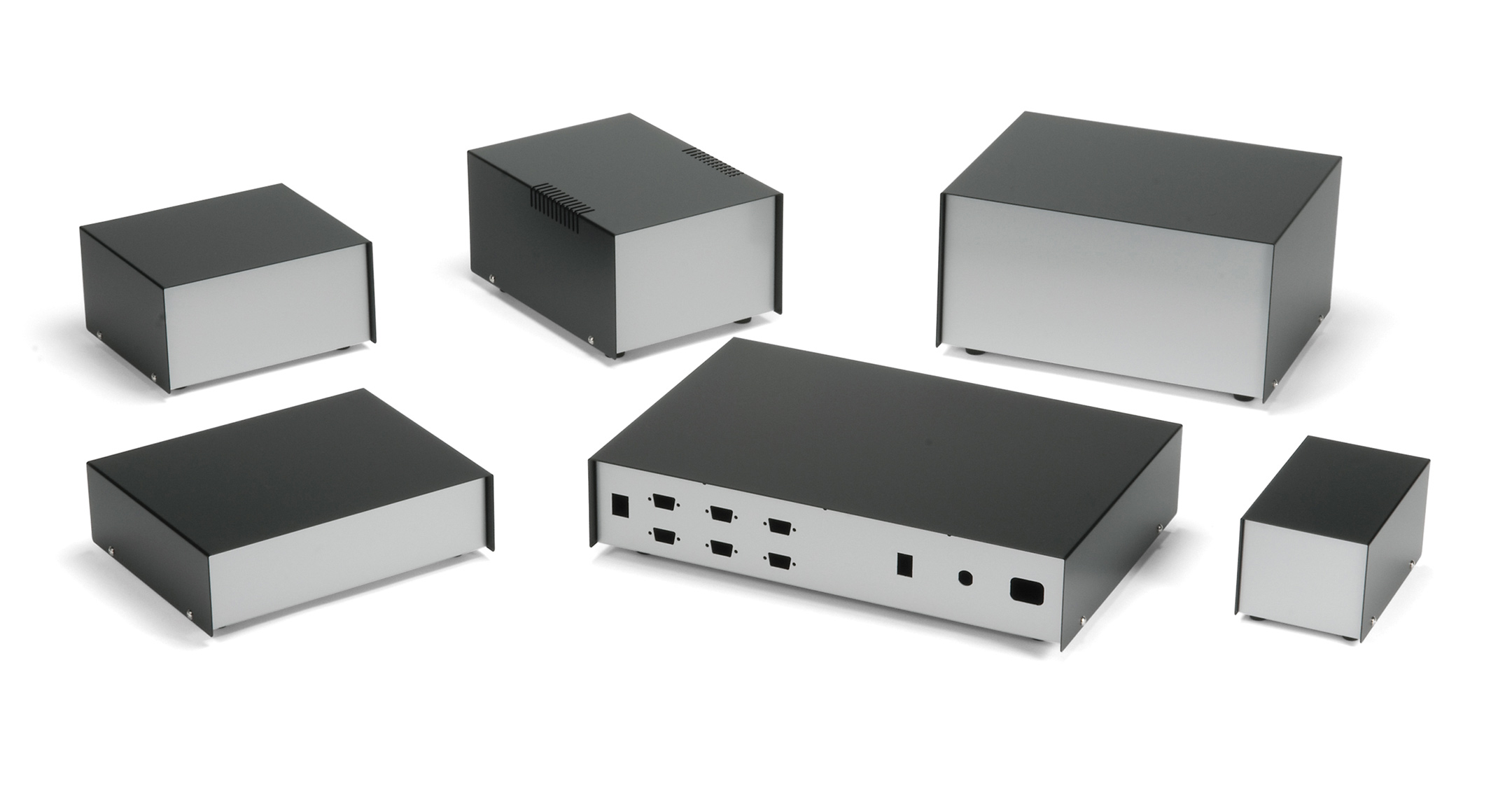

UNIVERSAL ALUMINUM PROJECT BOX - CU-N series
UNIVERSAL ALUMINUM PROJECT BOX - CU-N series1
Universal project box with steel top cover and aluminum base.

The internal surface is unfinished, making conductive and grounding possible.

Suitable for measuring equipment, power supply, controller and so on.

15 different sizes are available.

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) PDF DXF DWG STP
W H D w h d
CU-2N 160 50 150 155.4 47 132.4 415 PDF DXF DWG
CU-3N 200 60 170 195.4 56 150.8 635 PDF DXF DWG
CU-4N 250 70 200 245.4 66 175.8 905 PDF DXF DWG
CU-5N 300 85 220 295 80.8 195.4 1250 PDF DXF DWG
CU-6N 350 100 240 345 95.8 215.4 1620 PDF DXF DWG
CU-12N 90 60 110 85.4 57 97.4 250 PDF DXF DWG
CU-13N 120 75 140 115.4 72 127.4 400 PDF DXF DWG
CU-14N 160 90 150 155.4 86 130.8 600 PDF DXF DWG
CU-15N 200 100 170 195.4 96 150.8 785 PDF DXF DWG
CU-16N 250 120 200 245 115.8 175.6 1200 PDF DXF DWG
CU-17N 300 150 225 295 145.8 200.4 1620 PDF DXF DWG
CU-21N 100 85 165 95.4 82 152.4 450 PDF DXF DWG
CU-22N 150 90 220 145.4 86 200.8 775 PDF DXF DWG
CU-23N 180 120 250 175 115.8 225.4 1160 PDF DXF DWG
CU-33N 400 80 265 395 75.8 240.4 1820 PDF DXF DWG
