SNAP-IN BATTERY BOX - LD series
SNAP-IN BATTERY BOX - LD series
SNAP-IN BATTERY BOX - LD series1
SNAP-IN BATTERY BOX - LD series2

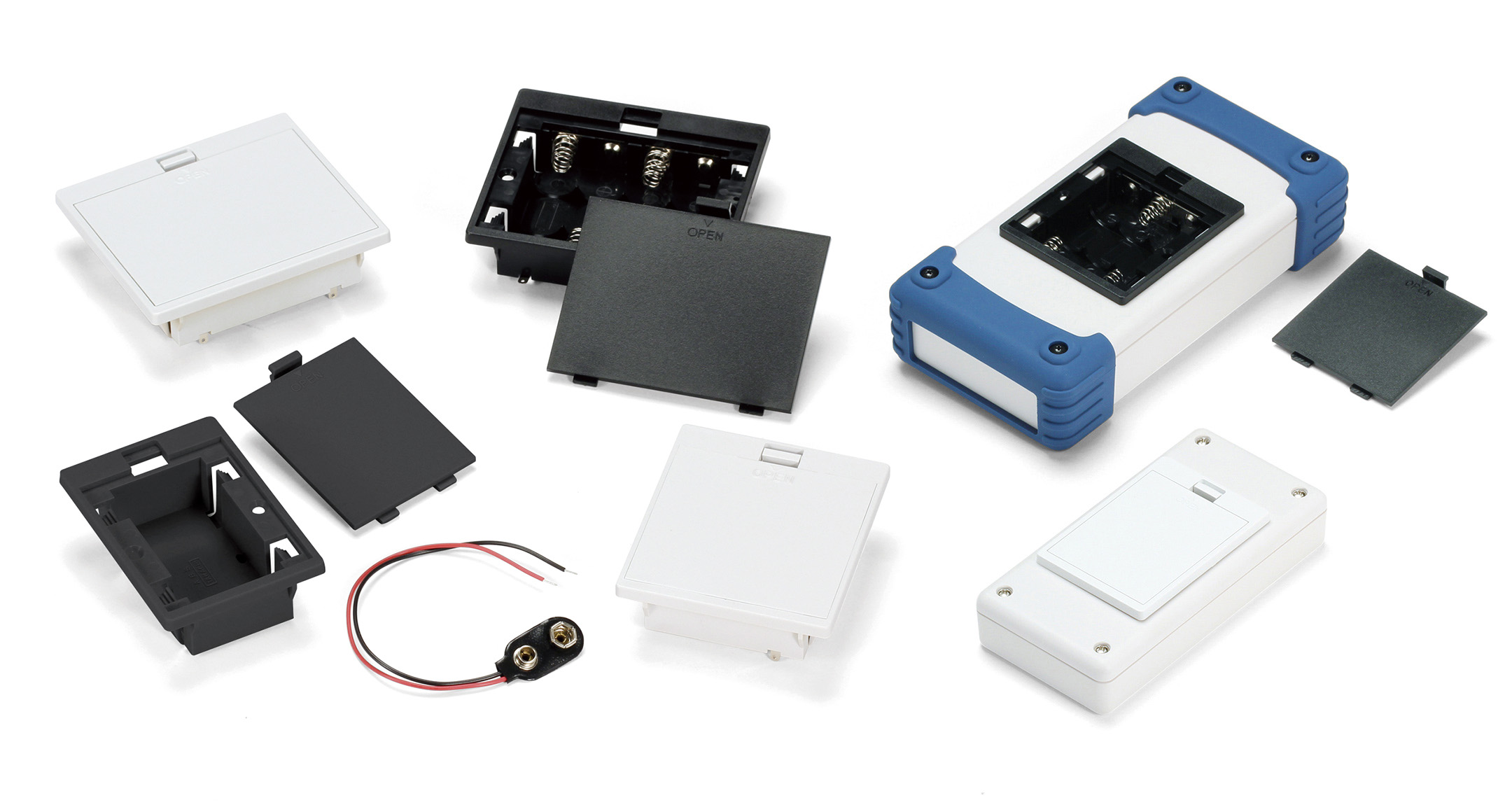

Snap-in panel mount battery box.
Suitable to be installed into enclosures with a panel thickness of 1.0mm to 3.0mm.
Screw mounting is also possible with built-in M3 countersunk holes.
Lead-free soldered lead wire (UL certified, L = 140mm).
+/- markings are available to avoid incorrect placement of the battery.

Available for AA x 2, AA x 4, and 9V (006P) batteries.
Available in 3 colors, black, white, and light gray.
Operating temperature: -10℃ ~ +60℃

Battery dimensions may vary depending on country and brand.
Use optional SCM battery cushion sponge to preventing rattling.

PRODUCT NO. / DIMENSIONS

Product No. Suitable battery Color Weight (g) Sales Status PDF DXF DWG
LD-006PB 9V x 1 Black 24 PDF DXF DWG
LD-006PG 9V x 1 Light gray 24 Limited inventory. PDF DXF DWG
LD-006PW 9V x 1 White 24 PDF DXF DWG
LD-2B AA x 2 Black 24 PDF DXF DWG
LD-2G AA x 2 Light gray 24 Discontinued - Sold out. PDF DXF DWG
LD-2W AA x 2 White 24 PDF DXF DWG
LD-3B AA x 3 Black 26 Limited inventory. PDF DXF DWG
LD-3G AA x 3 Light gray 26 PDF DXF DWG
LD-3W AA x 3 White 26 Limited inventory. PDF DXF DWG
LD-4B AA x 4 Black 35 PDF DXF DWG
LD-4G AA x 4 Light gray 35 Discontinued - Sold out. PDF DXF DWG
LD-4W AA x 4 White 35 PDF DXF DWG
