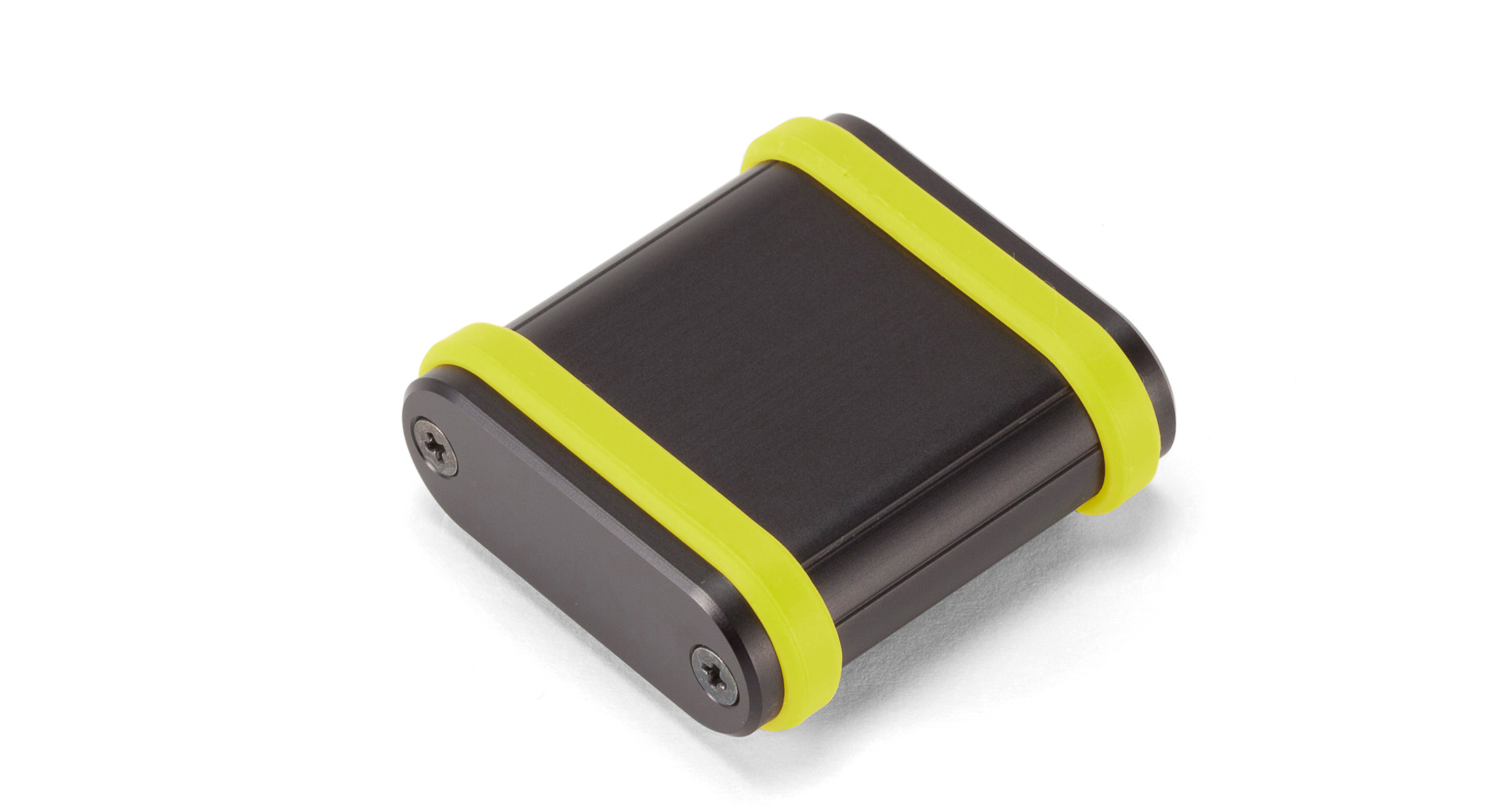

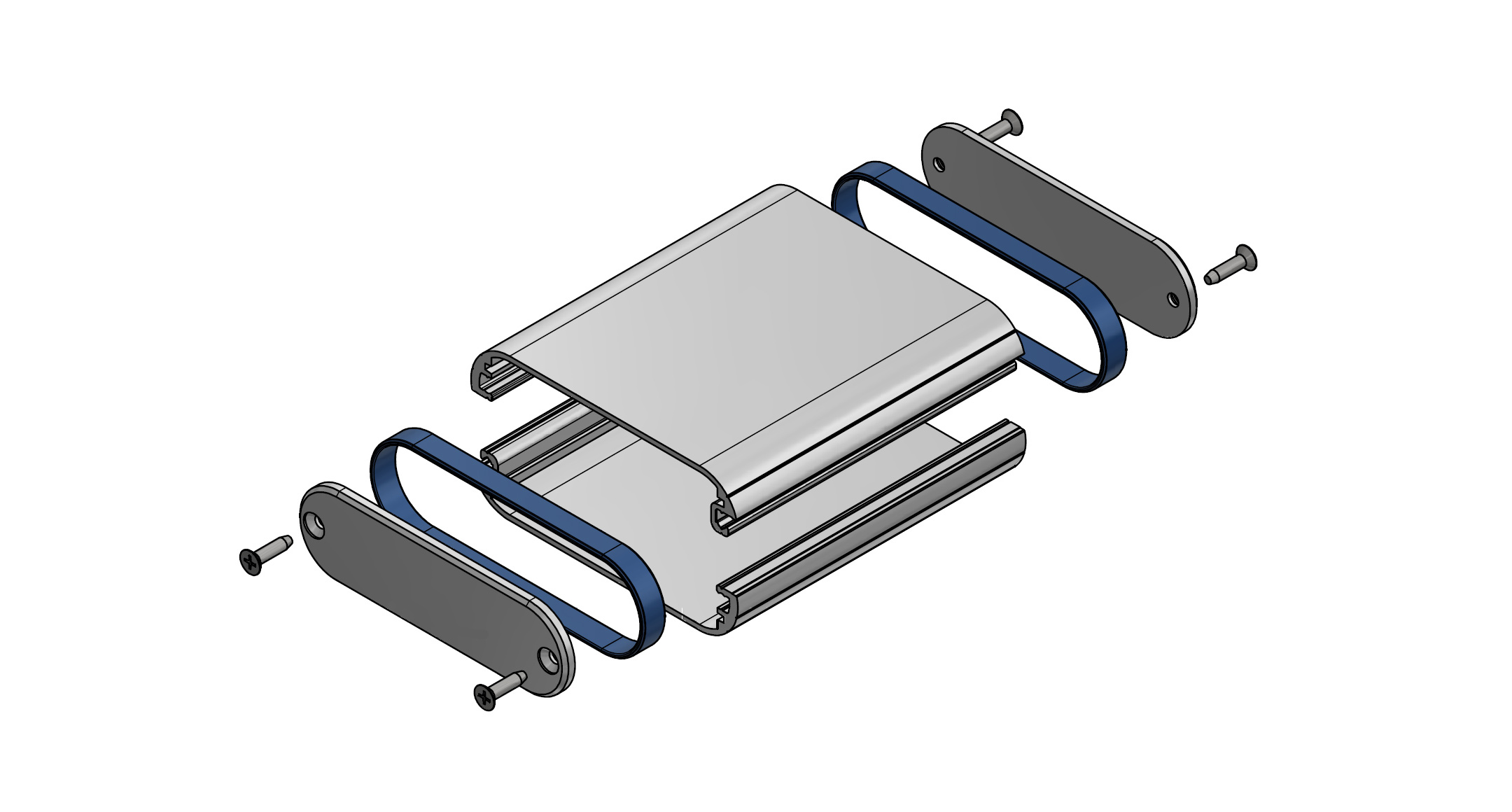

ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series


MXB Series -PDF

CATEGORY:Aluminium enclosure with silicone bumper, Round edge aluminium case, Extuded aluminum enclosure, IOT enclosure

ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series1
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series2
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series3
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series4
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series5

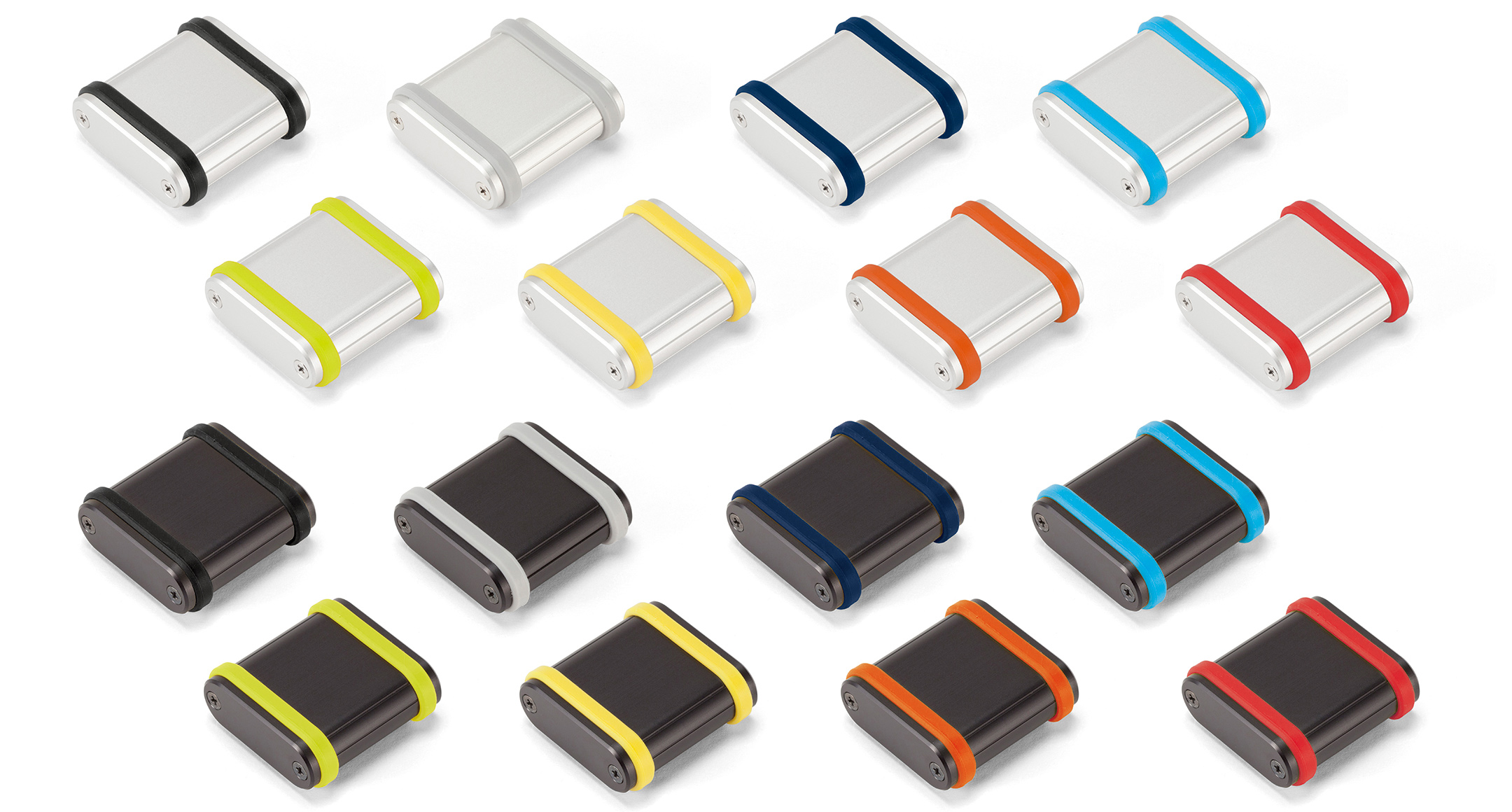

COLOR TYPE

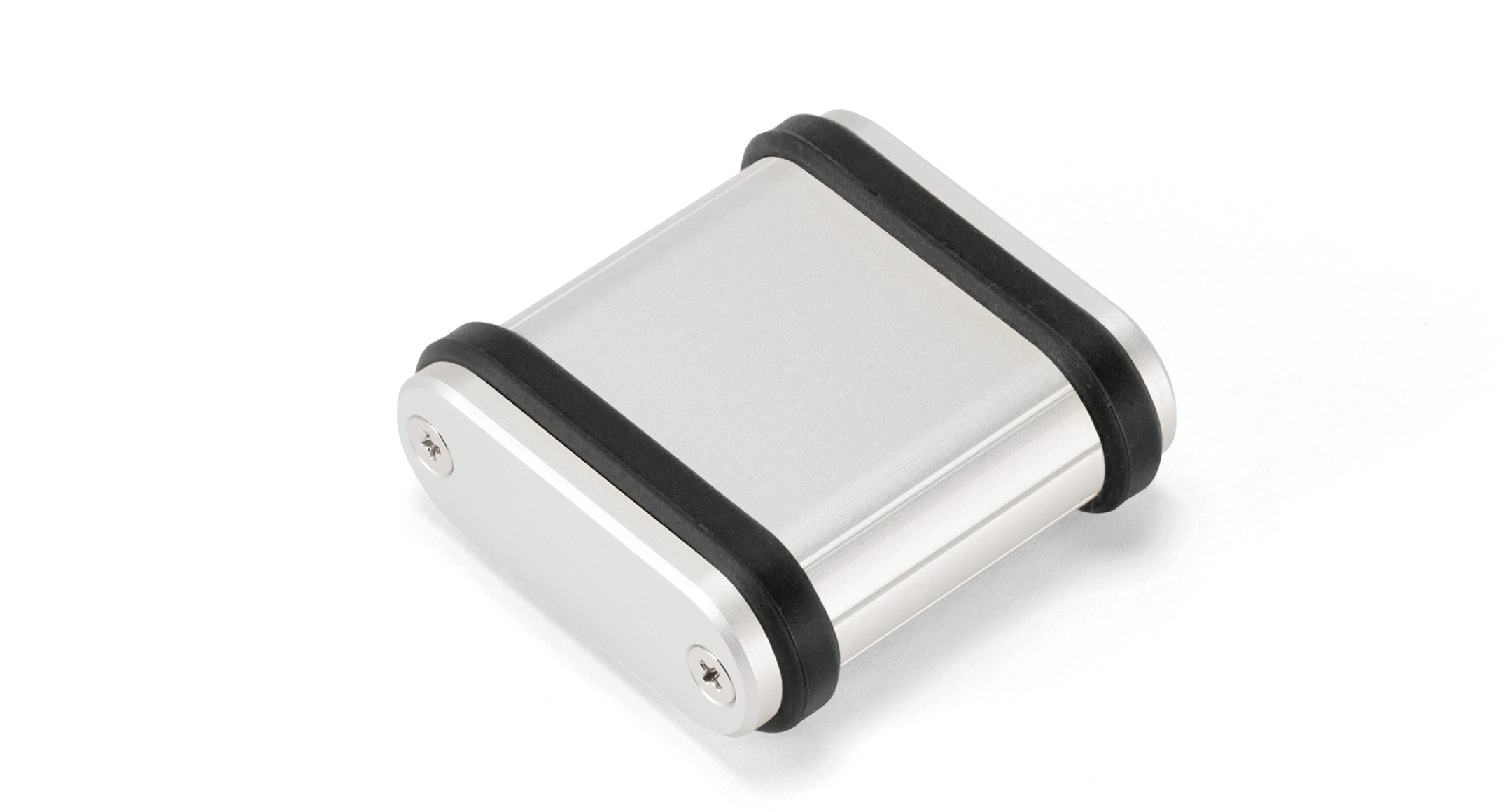

SBSilver/Black

ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Silver/Black

SLSilver/Light gray

ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Silver/Light gray

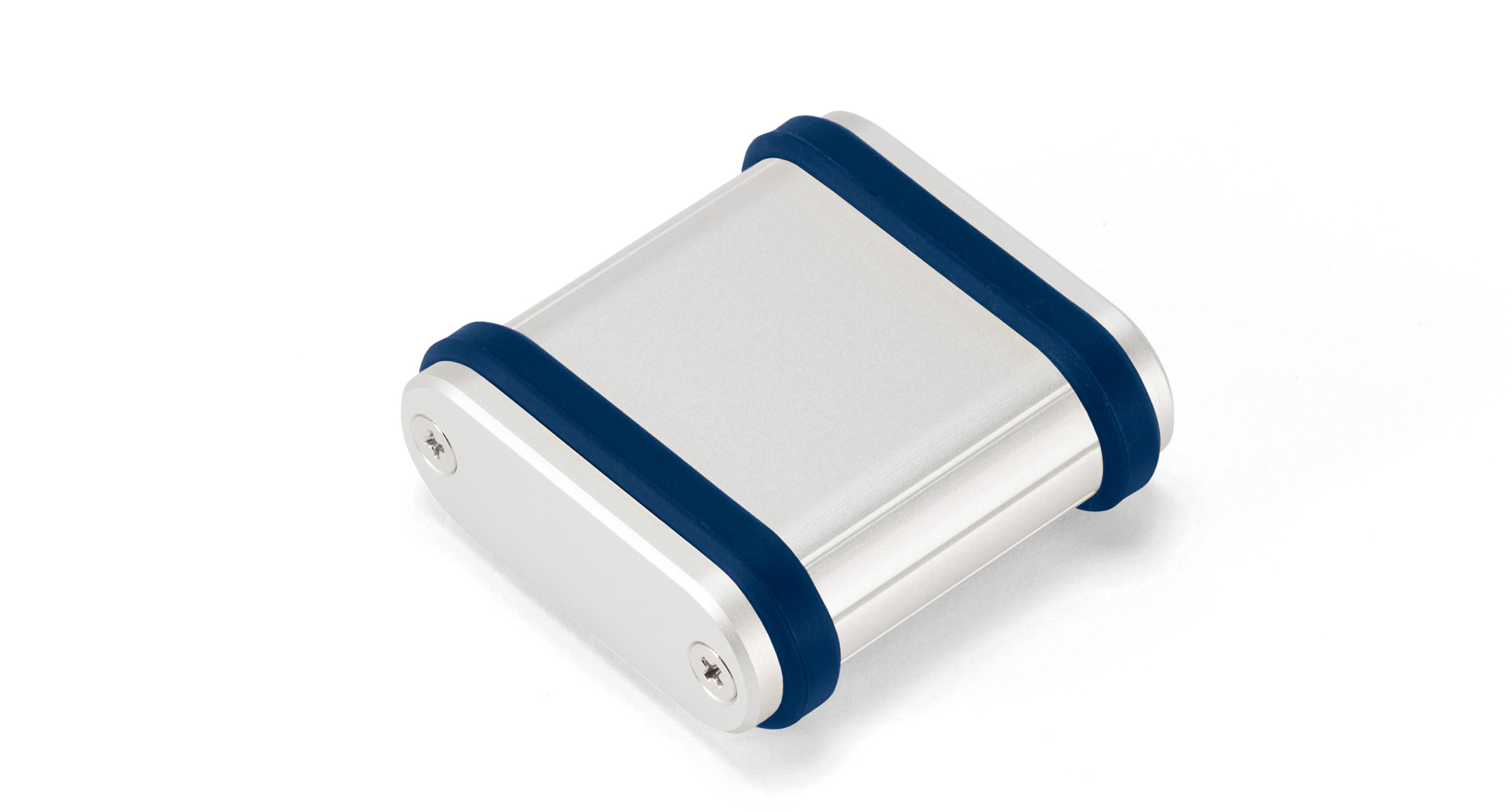

SNSilver/Navy

ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Silver/Navy

SCSilver/Cyan

ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Silver/Cyan

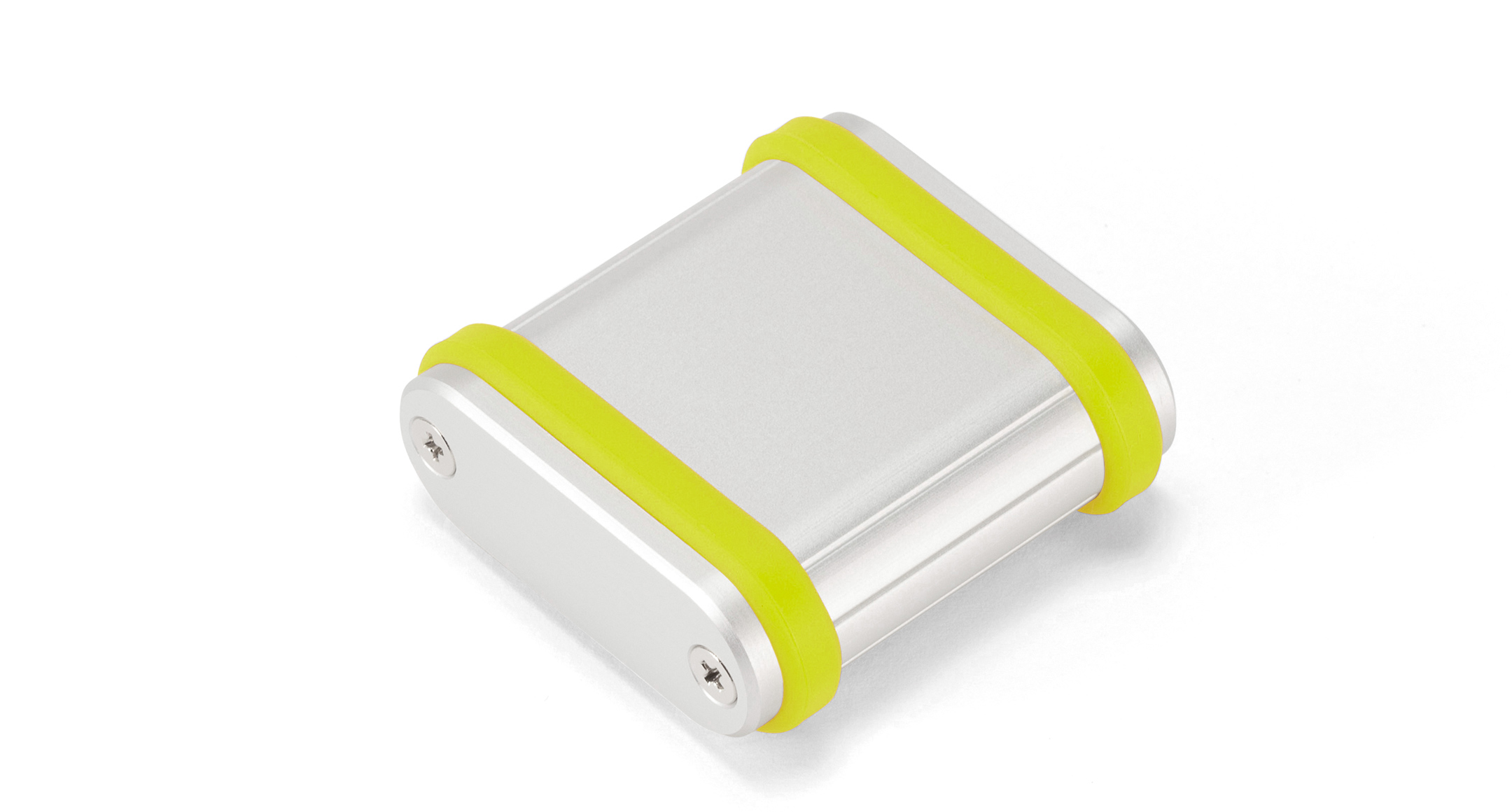

SGSilver/Green

ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Silver/Green

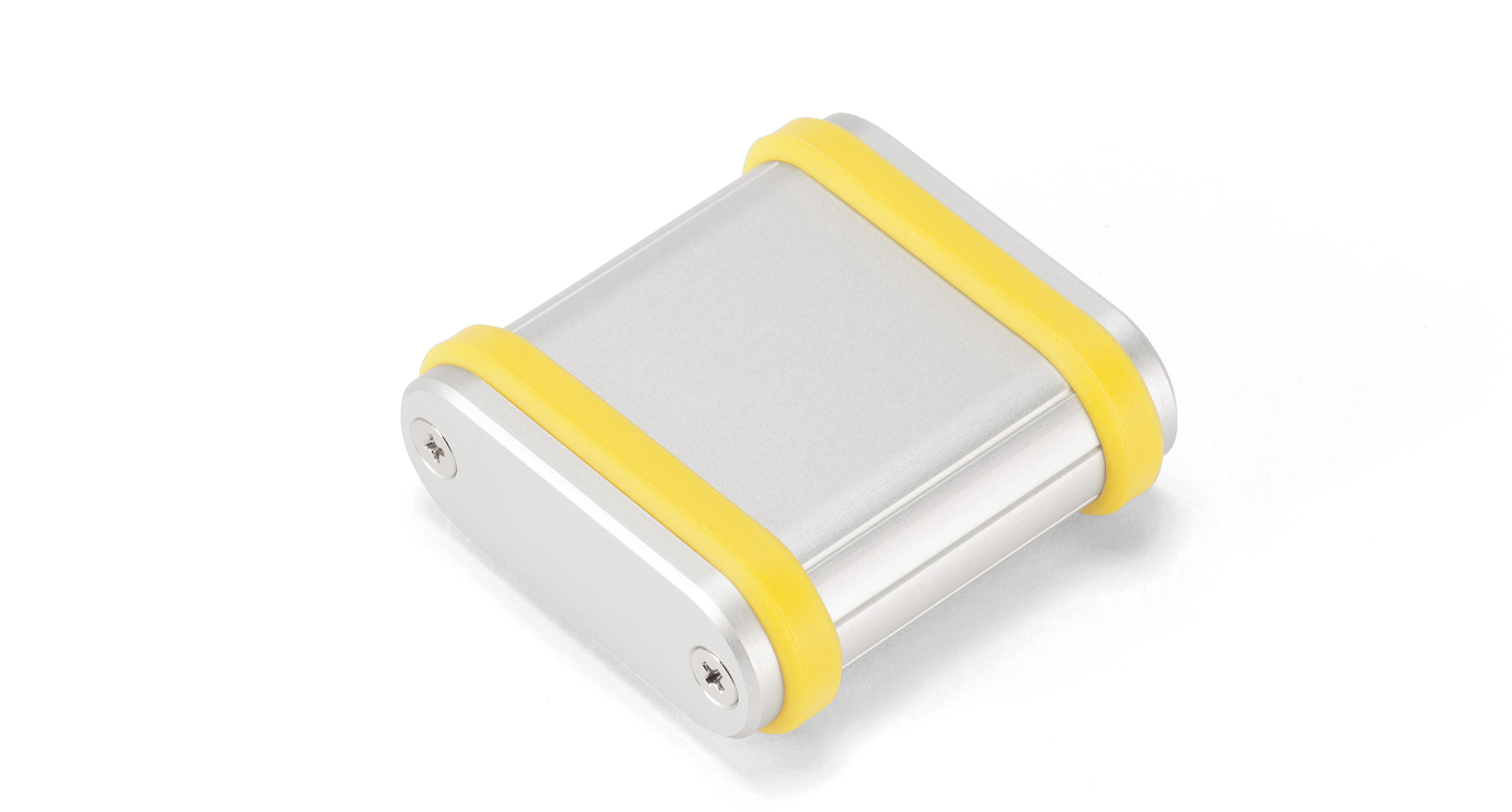

SYSilver/Yellow

ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Silver/Yellow

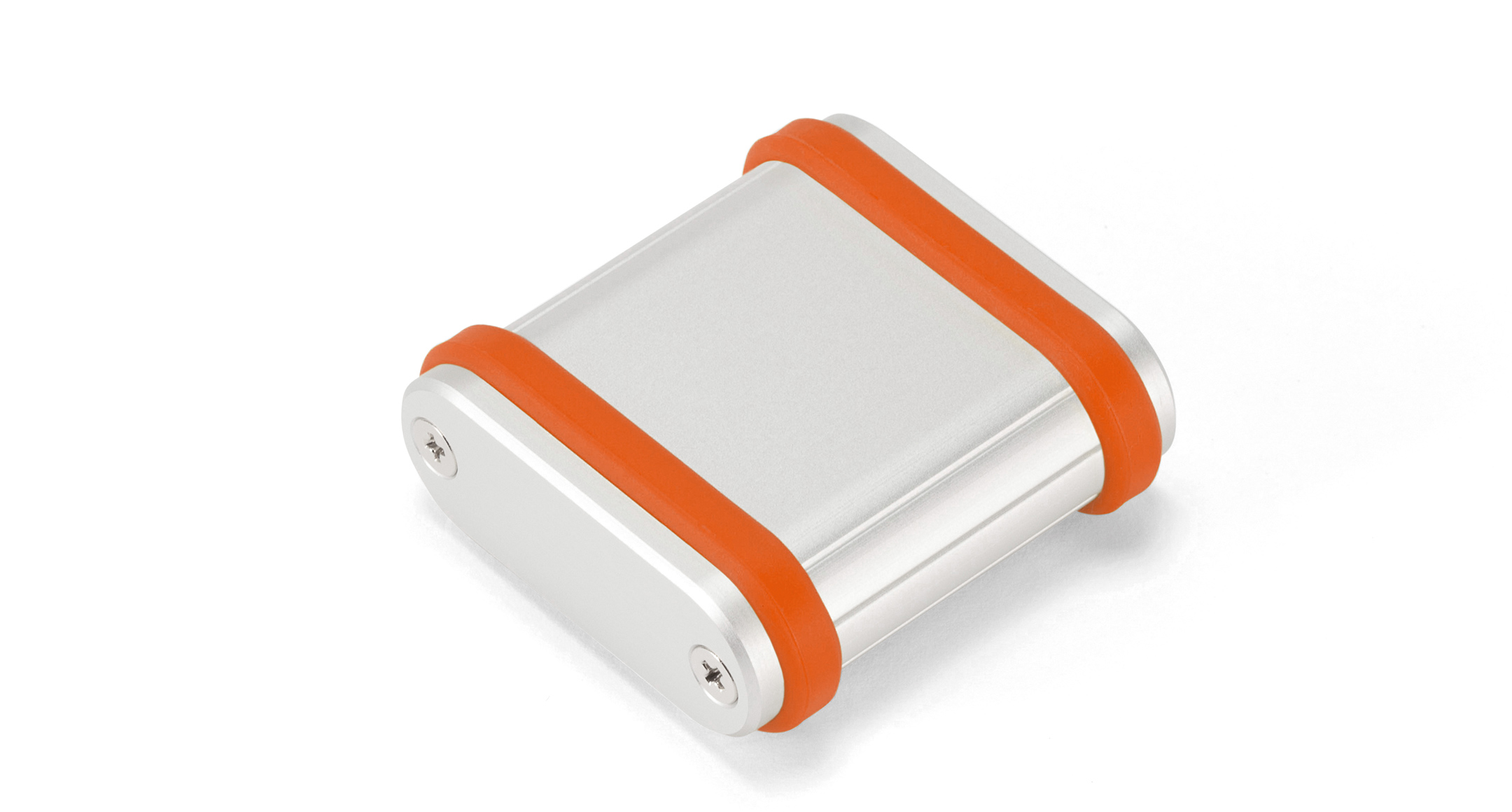

SOSilver/Orange

ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Silver/Orange

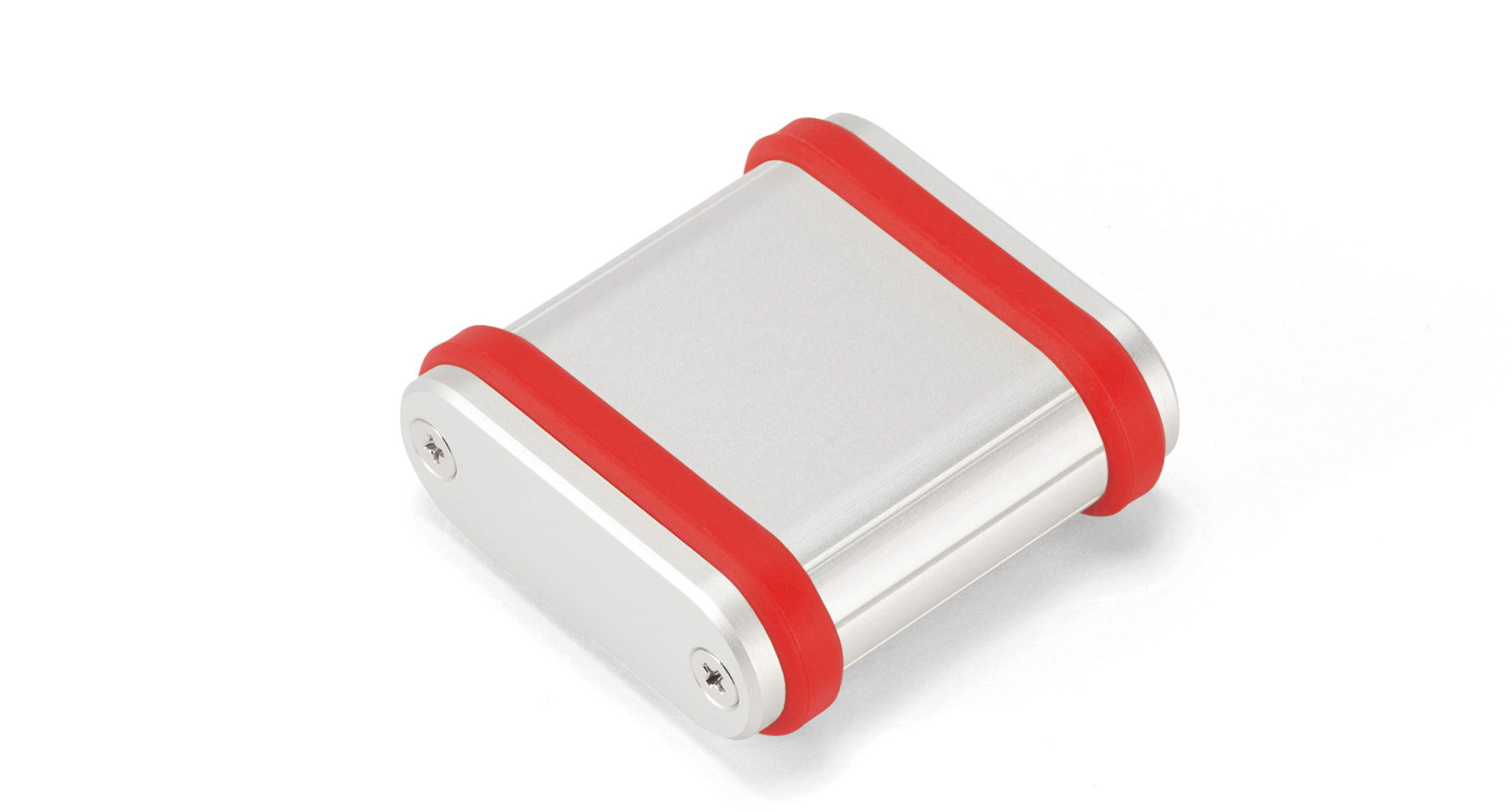

SRSilver/Red

ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Silver/Red

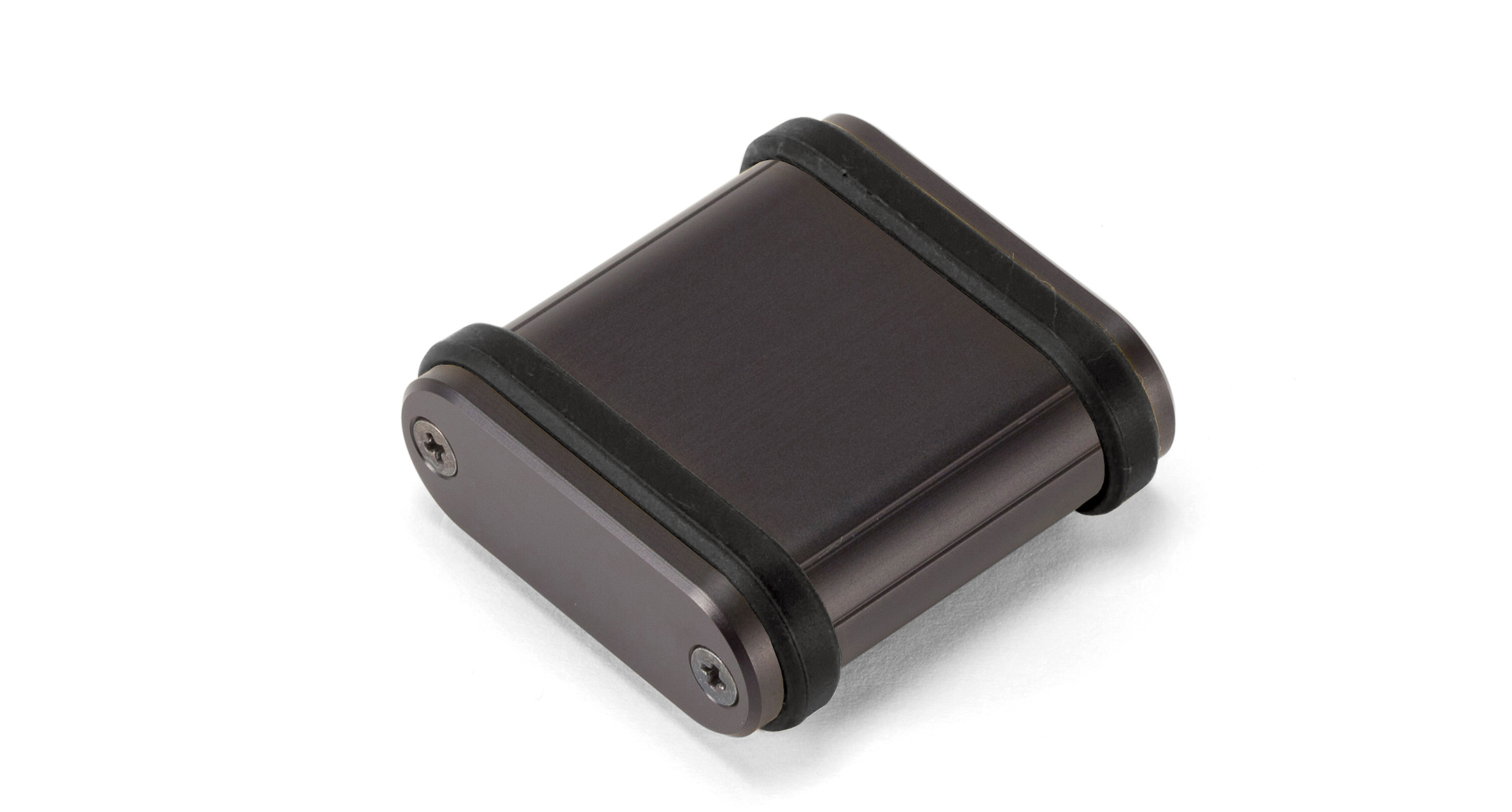

BBBlack/Black

ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Black/Black

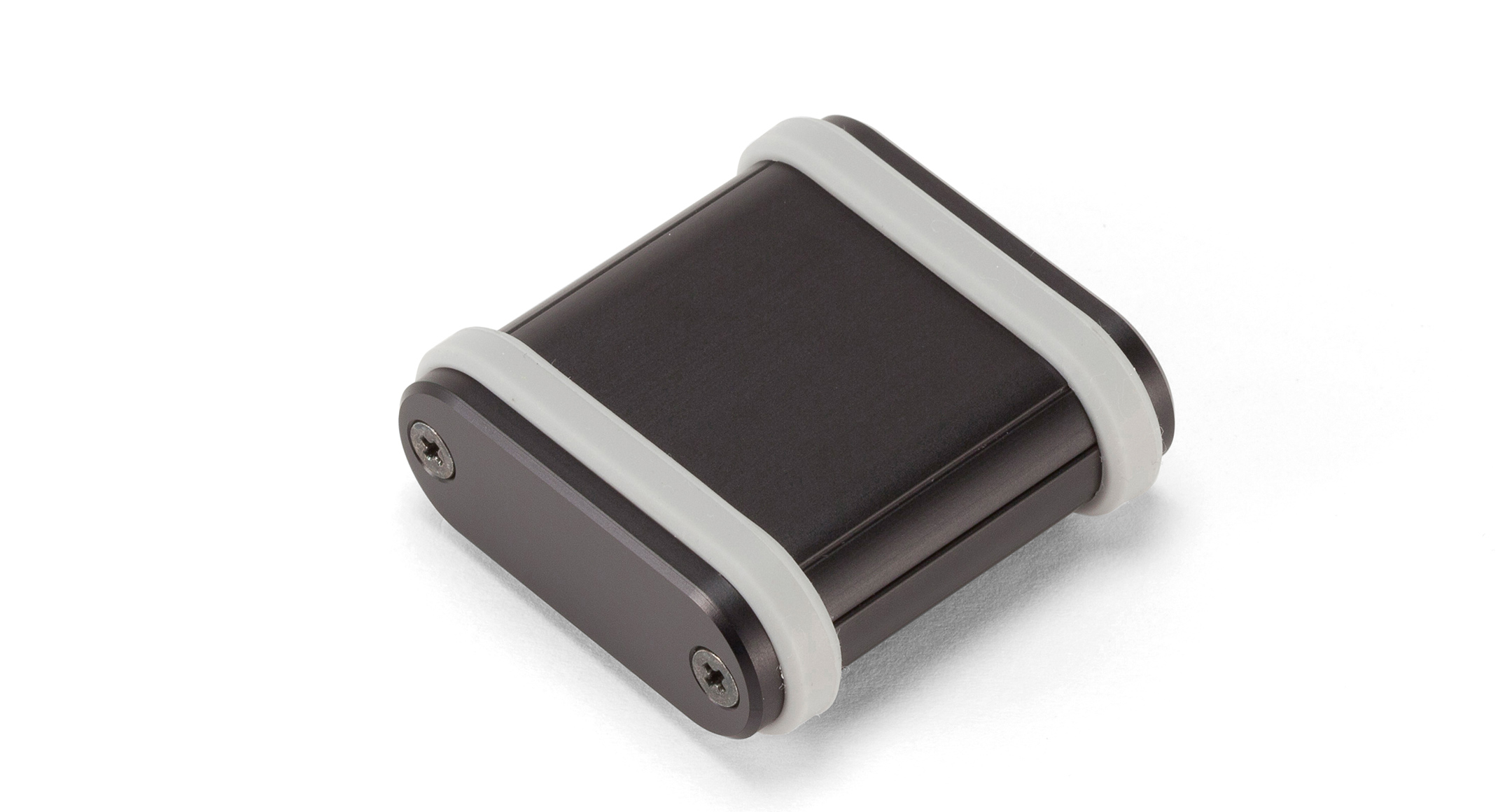

BLBlack/Light gray

ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Black/Light gray

BNBlack/Navy

ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Black/Navy

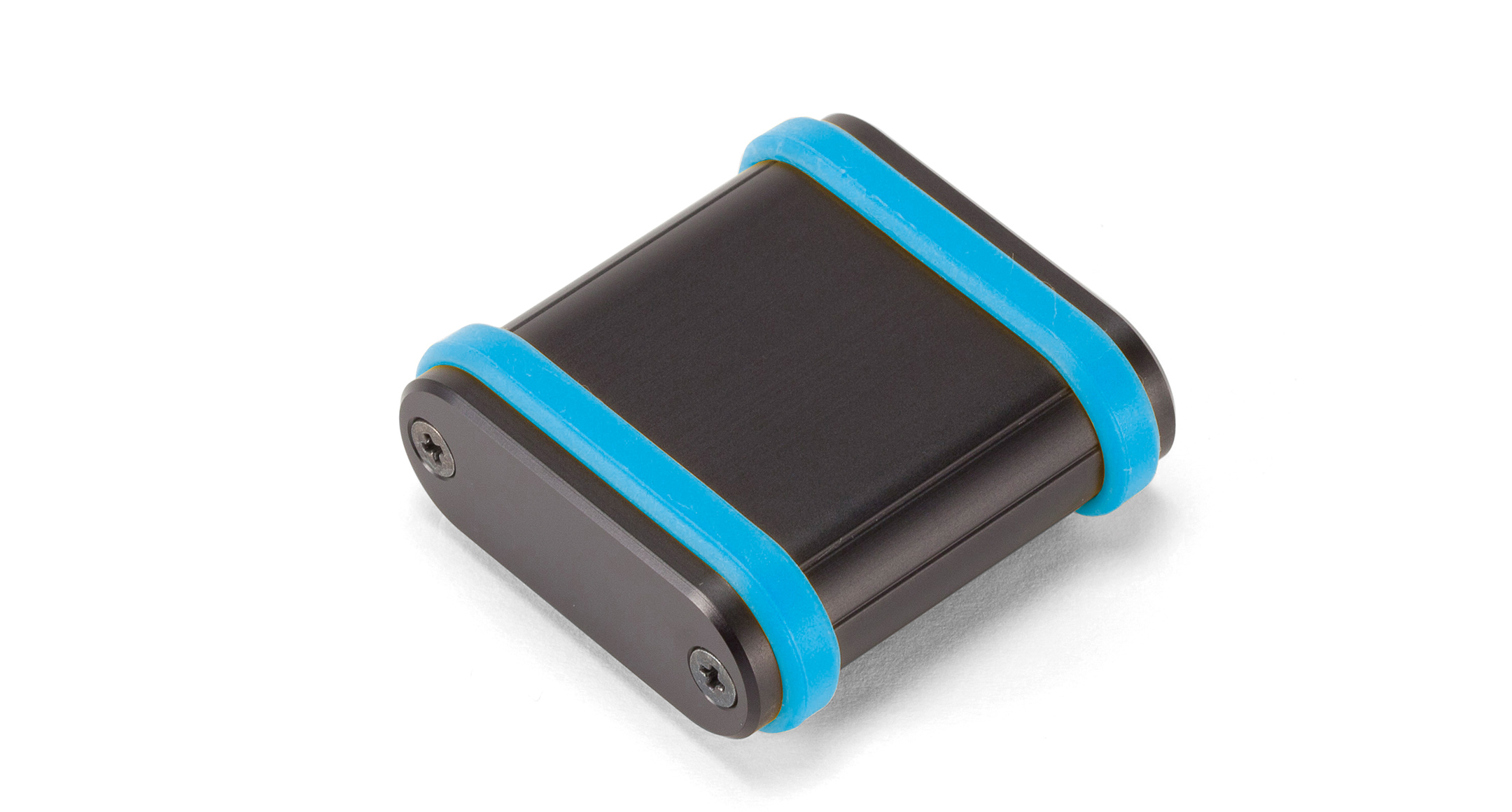

BCBlack/Cyan

ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Black/Cyan

BGBlack/Green

ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Black/Green

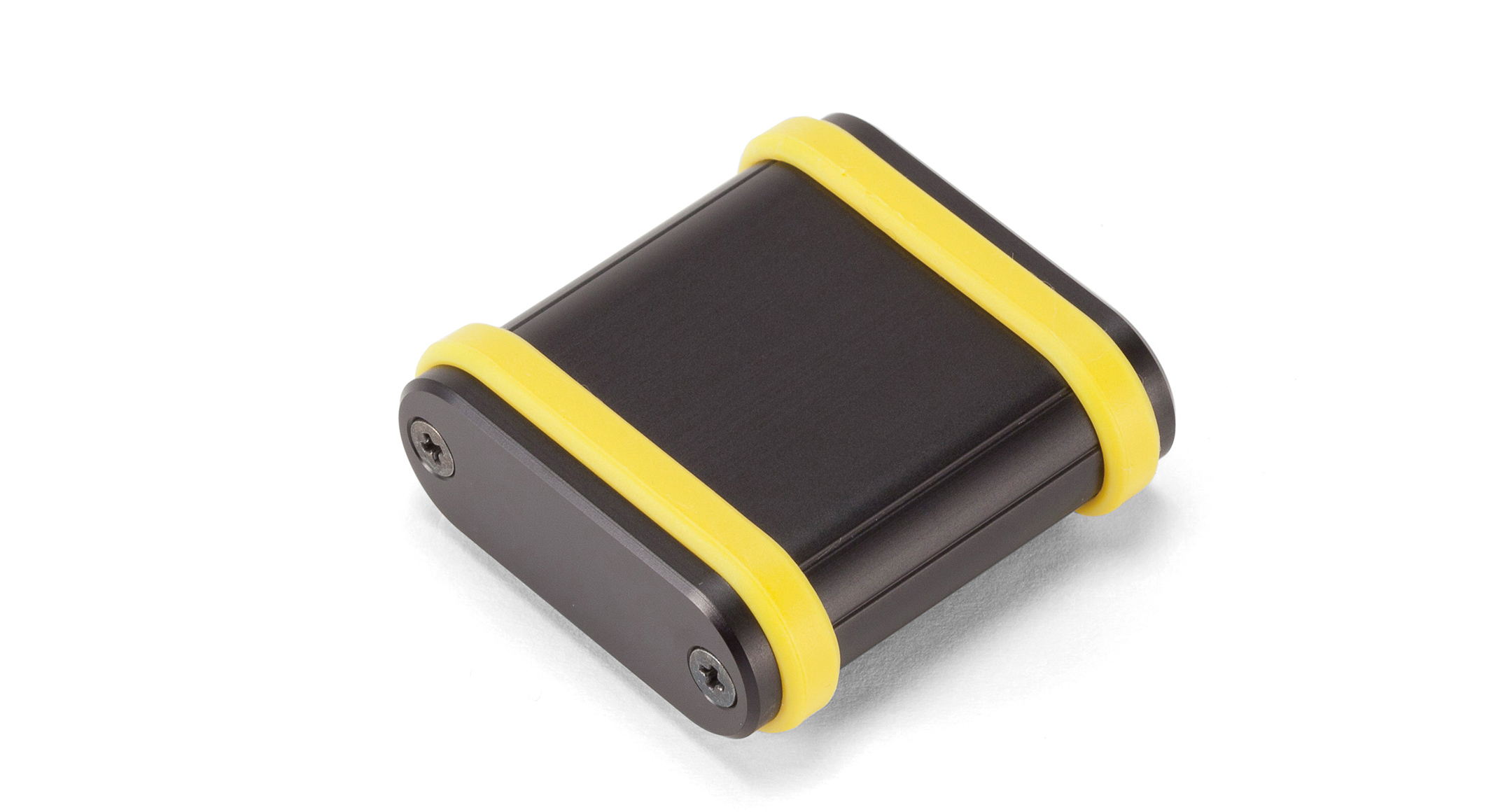

BYBlack/Yellow

ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Black/Yellow

BOBlack/Orange

ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Black/Orange

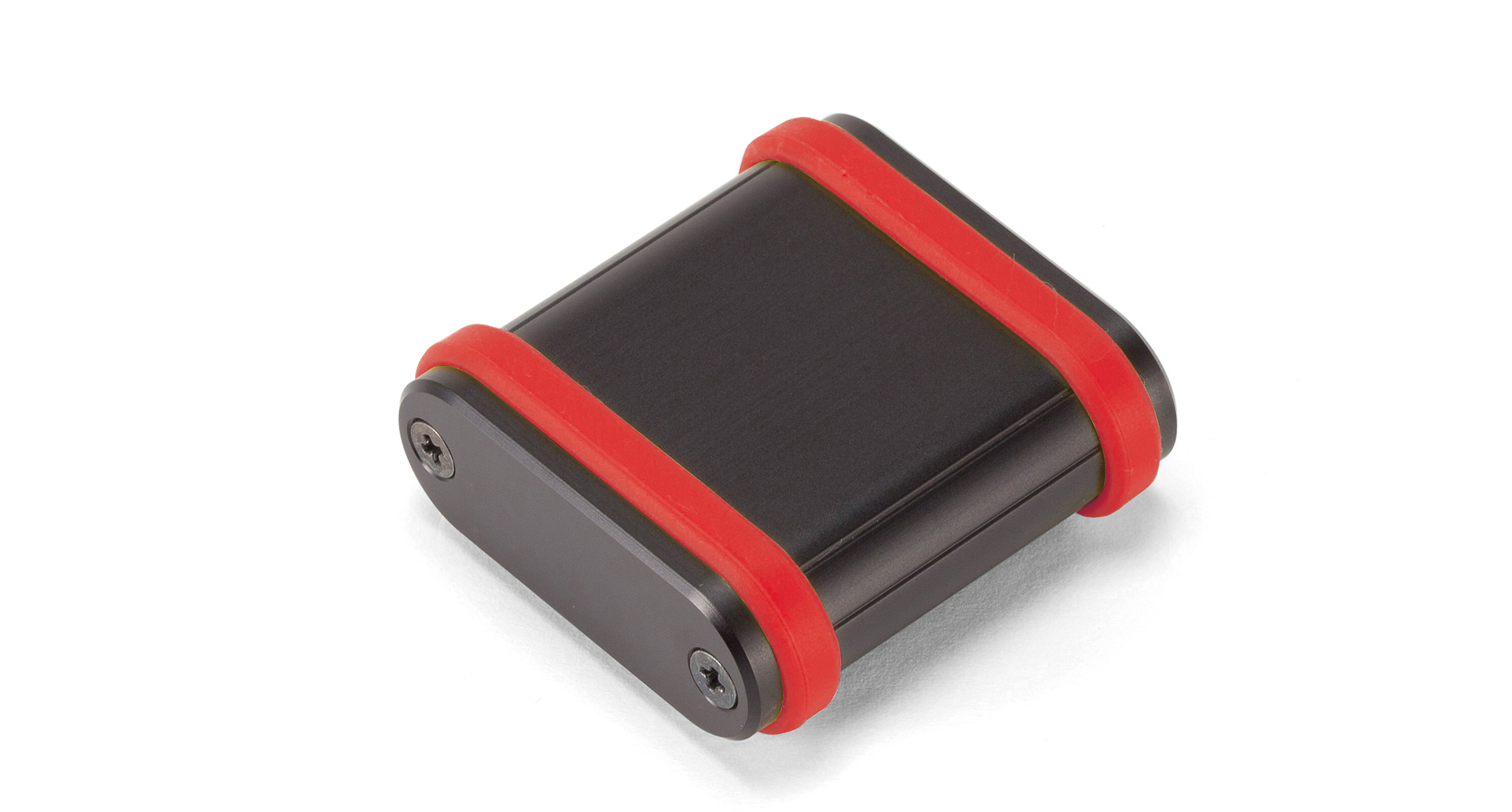

BRBlack/Red

ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Black/Red
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Silver/Black
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Silver/Light gray
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Silver/Navy
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Silver/Cyan
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Silver/Green
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Silver/Yellow
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Silver/Orange
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Silver/Red
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Black/Black
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Black/Light gray
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Black/Navy
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Black/Cyan
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Black/Green
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Black/Yellow
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Black/Orange
ALUMINIUM ENCLOSURE with SILICONE BAND - MXB series:Black/Red

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) PDF DXF DWG STP
W H D w h d
MXB1-5-5□ 50.4 15.8 49 33.6 10.2 43 26 PDF DXF DWG
MXB1-5-8□ 50.4 15.8 79 33.6 10.2 73 41 PDF DXF DWG
MXB1-5-11□ 50.4 15.8 109 33.6 10.2 103 56 PDF DXF DWG
MXB2-4-4□ 43.6 18 44 26.6 12.2 38 26 PDF DXF DWG
MXB2-4-7□ 43.6 18 74 26.6 12.2 68 41 PDF DXF DWG
MXB2-4-10□ 43.6 18 104 26.6 12.2 98 51 PDF DXF DWG
MXB2-6-5□ 59.6 20.3 46 42.5 15.1 40 36 PDF DXF DWG
MXB2-6-7□ 59.6 20.3 71 42.5 15.1 65 51 PDF DXF DWG
MXB2-6-10□ 59.6 20.3 96 42.5 15.1 90 66 PDF DXF DWG
MXB2-7-5□ 72.5 23.5 54 53.2 16.5 48 57 PDF DXF DWG
MXB2-7-8□ 72.5 23.5 84 53.2 16.5 78 82 PDF DXF DWG
MXB2-7-11□ 72.5 23.5 114 53.2 16.5 108 112 PDF DXF DWG
MXB2-8-6□ 84.8 26.5 64 65.2 20.5 58 77 PDF DXF DWG
MXB2-8-9□ 84.8 26.5 94 65.2 20.5 88 107 PDF DXF DWG
MXB2-8-12□ 84.8 26.5 124 65.2 20.5 118 137 PDF DXF DWG
MXB2-10-7□ 103.6 20.3 74 85.6 13.2 68 75 PDF DXF DWG
MXB2-10-10□ 103.6 20.3 104 85.6 13.2 98 105 PDF DXF DWG
MXB2-10-14□ 103.6 20.3 144 85.6 13.2 138 140 PDF DXF DWG
MXB3-11-7□ 113.9 33.5 72 93.2 26.5 66 120 PDF DXF DWG
MXB3-11-11□ 113.9 33.5 112 93.2 26.5 106 170 PDF DXF DWG
MXB3-11-16□ 113.9 33.5 162 93.2 26.5 156 240 PDF DXF DWG
MXB4-7-5□ 72 38.2 52 53.2 31.4 46 72 PDF DXF DWG
MXB4-7-8□ 72 38.2 82 53.2 31.4 76 102 PDF DXF DWG
MXB4-7-11□ 72 38.2 112 53.2 31.4 106 137 PDF DXF DWG
MXB4-10-7□ 97.9 44.7 70 78.2 36.4 64 125 PDF DXF DWG
MXB4-10-11□ 97.9 44.7 110 78.2 36.4 104 180 PDF DXF DWG
MXB4-10-14□ 97.9 44.7 140 78.2 36.4 134 225 PDF DXF DWG
MXB4-13-9□ 134 38.5 90 113.2 31 84 187 PDF DXF DWG
MXB4-13-14□ 134 38.5 140 113.2 31 134 272 PDF DXF DWG
MXB4-13-20□ 134 38.5 200 113.2 31 194 377 PDF DXF DWG
SAMPLE REQUEST FORM

This product series is available as a free sample.

OPTIONAL PARTS

1
TILT LEG - TLW series
DETAILS
1
EMBEDDED BATTERY BOX - BC series
DETAILS
1
STRAP WITH HOOK - STP series
DETAILS
1
ADHESIVE STANDOFF - AST series
DETAILS
