MOUNTING PLATE for BCAS - BMP series


BMP_BCAS Series -PDF

CATEGORY:Mounting plate, Mount plate, Mounting base

MOUNTING PLATE for BCAS - BMP series
MOUNTING PLATE for BCAS - BMP series
MOUNTING PLATE for BCAS - BMP series1
MOUNTING PLATE for BCAS - BMP series2

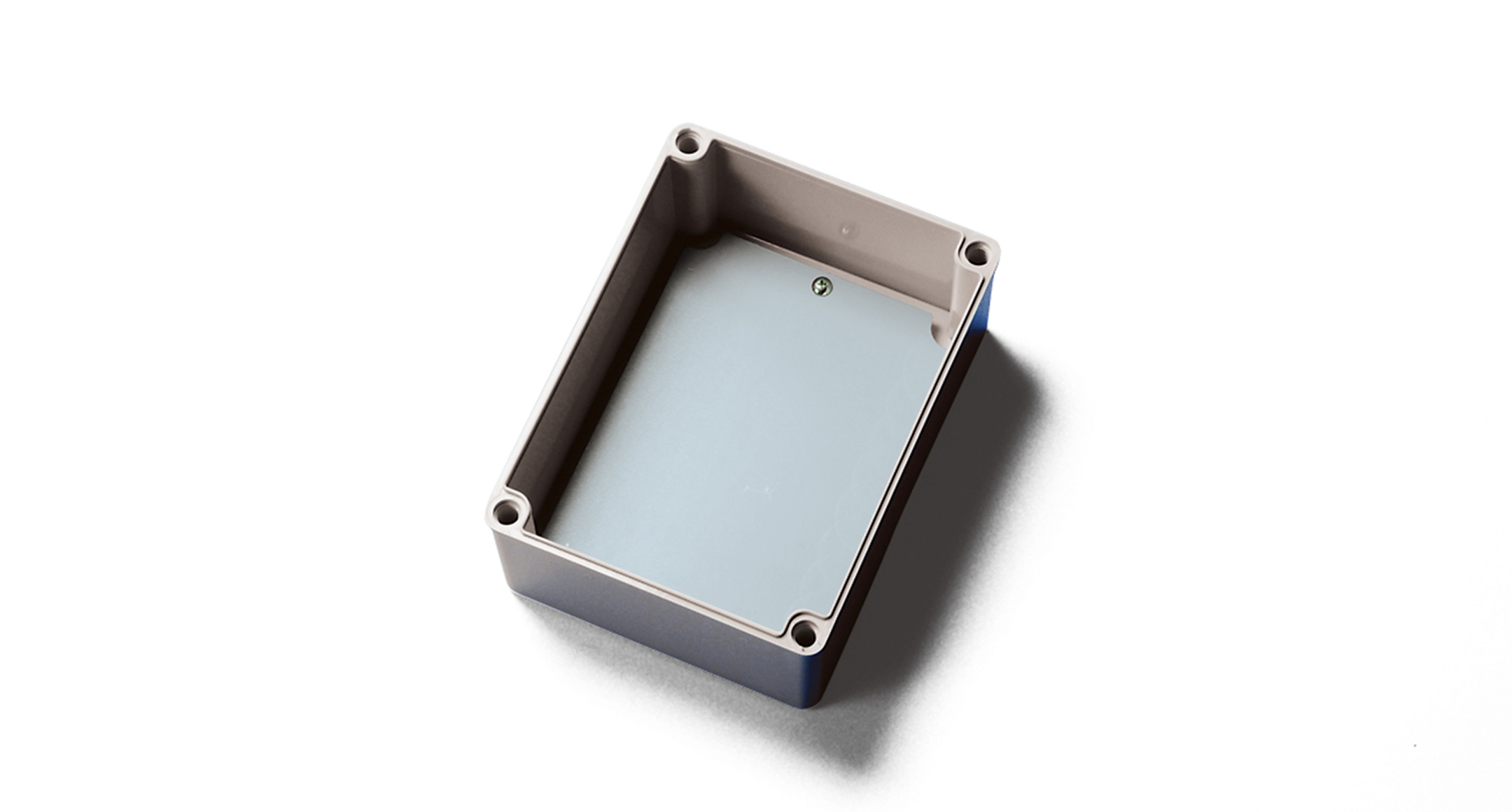

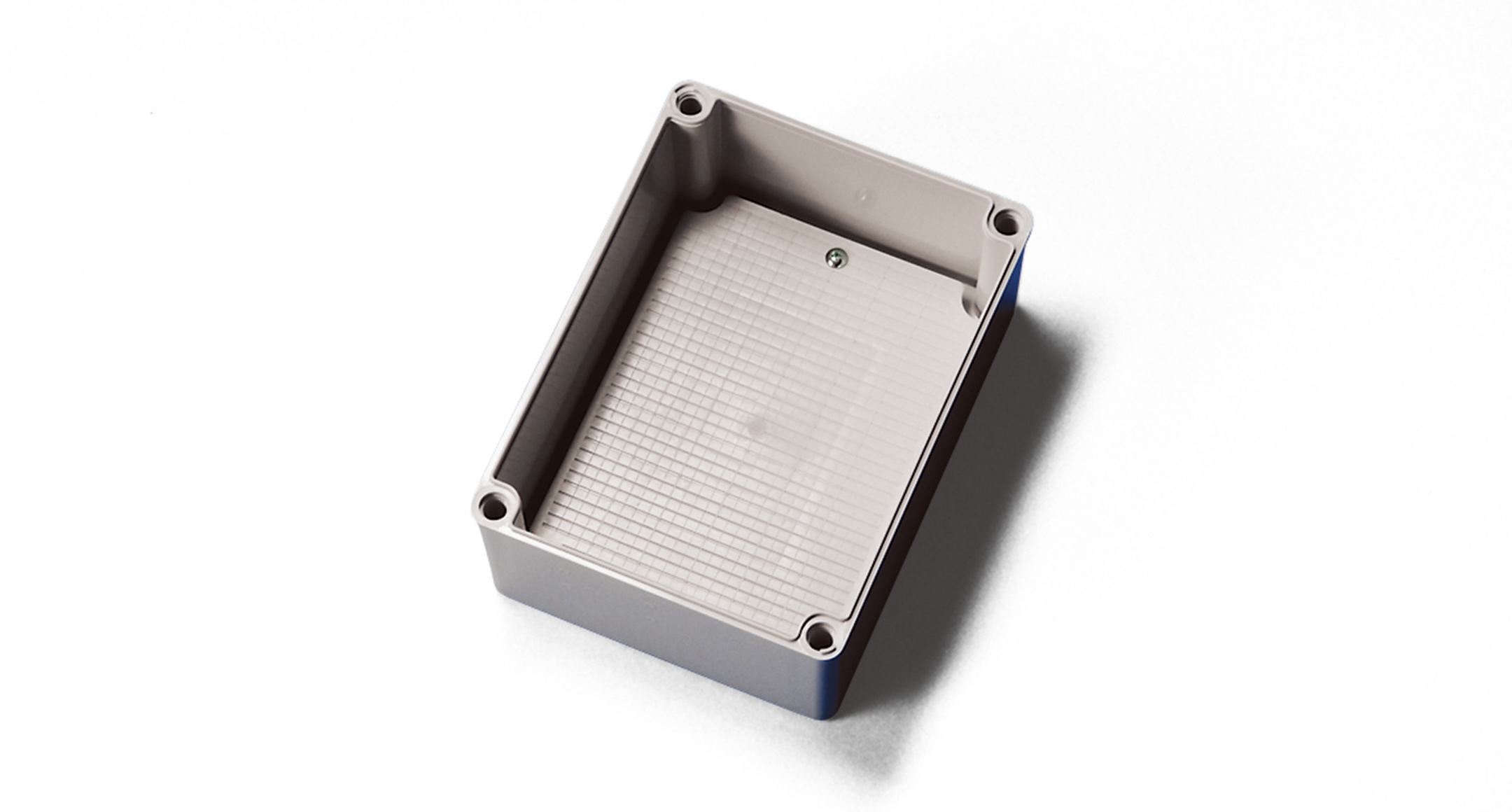

Mounting plate for BCAS IP65 plastic box series.
Plastic and steel mounting plates are available.

PRODUCT NO. / DIMENSIONS

Product No. Suitable boxes Material Weight (g) PDF DXF DWG
BMP0811P. BCAS081104, BCAS081107, BCAS081108, BCAS081110 ABS Plastic 21 PDF DXF DWG
BMP0813P. BCAS081307, BCAS081308 ABS Plastic 24 PDF DXF DWG
BMP0818P. BCAS081807, BCAS081808 ABS Plastic 37 PDF DXF DWG
BMP0825P. BCAS082507, BCAS082508 ABS Plastic 59 PDF DXF DWG
BMP1010P. BCAS101007, BCAS101010 ABS Plastic 22 PDF DXF DWG
BMP1121P. BCAS102007 ABS Plastic 40 PDF DXF DWG
BMP1212P. BCAS121207, BCAS121210 ABS Plastic 39 PDF DXF DWG
BMP1417P. BCAS141709 ABS Plastic 69 PDF DXF DWG
BMP1423P. BCAS142309 ABS Plastic 103.5 PDF DXF DWG
BMP1515P. BCAS151507, BCAS151510 ABS Plastic 52 PDF DXF DWG
BMP1520P. BCAS152004, BCAS152007, BCAS152010, BCAS152013, BCAS152016 ABS Plastic 92 PDF DXF DWG
BMP1525P. BCAS152510, BCAS152513 ABS Plastic 112 PDF DXF DWG
BMP1616P. BCAS161607 ABS Plastic 66 PDF DXF DWG
BMP2020P. BCAS202010, BCAS202013, BCAS202016, BCAS202019 ABS Plastic 125 PDF DXF DWG
BMP0506Z. BCAS050604, BCAS050605 Steel (Zinc coated) 23 PDF DXF DWG
BMP0609Z. BCAS060905 Steel (Zinc coated) 41 PDF DXF DWG
BMP0710Z. BCAS071005 Steel (Zinc coated) 63 PDF DXF DWG
BMP0808Z. BCAS080806 Steel (Zinc coated) 47 PDF DXF DWG
BMP0811Z. BCAS081104, BCAS081107, BCAS081108, BCAS081110 Steel (Zinc coated) 72 PDF DXF DWG
BMP0813Z. BCAS081307, BCAS081308 Steel (Zinc coated) 87 PDF DXF DWG
BMP0818Z. BCAS081807, BCAS081808 Steel (Zinc coated) 134 PDF DXF DWG
BMP0825Z. BCAS082507, BCAS082508 Steel (Zinc coated) 193 PDF DXF DWG
BMP1010Z. BCAS101007, BCAS101010 Steel (Zinc coated) 80 PDF DXF DWG
BMP1018Z. BCAS101807 Steel (Zinc coated) 177 PDF DXF DWG
BMP1023Z. BCAS102307 Steel (Zinc coated) 226 PDF DXF DWG
BMP1121Z. BCAS102007 Steel (Zinc coated) 159 PDF DXF DWG
BMP1212Z. BCAS121207, BCAS121210 Steel (Zinc coated) 151 PDF DXF DWG
BMP1417Z. BCAS141709 Steel (Zinc coated) 251 PDF DXF DWG
BMP1423Z. BCAS142309 Steel (Zinc coated) 305 PDF DXF DWG
BMP1515Z. BCAS151507, BCAS151510 Steel (Zinc coated) 172 PDF DXF DWG
BMP1520Z. BCAS152004, BCAS152007, BCAS152010, BCAS152013, BCAS152016 Steel (Zinc coated) 262 PDF DXF DWG
BMP1525Z. BCAS152510, BCAS152513 Steel (Zinc coated) 346 PDF DXF DWG
BMP1616Z. BCAS161607 Steel (Zinc coated) 237 PDF DXF DWG
BMP2020Z. BCAS202010, BCAS202013, BCAS202016, BCAS202019 Steel (Zinc coated) 371 PDF DXF DWG
BMP2123Z. BCAS212310 Steel (Zinc coated) 447 PDF DXF DWG
