CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series

CATEGORY：Aluminum enclosure with corner guard, Enclosure with corner bumper, Protective case, Rugged enclosure, Instrument enclosure

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series1

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series2

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series3

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series4

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series5

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series6

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series7

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series8

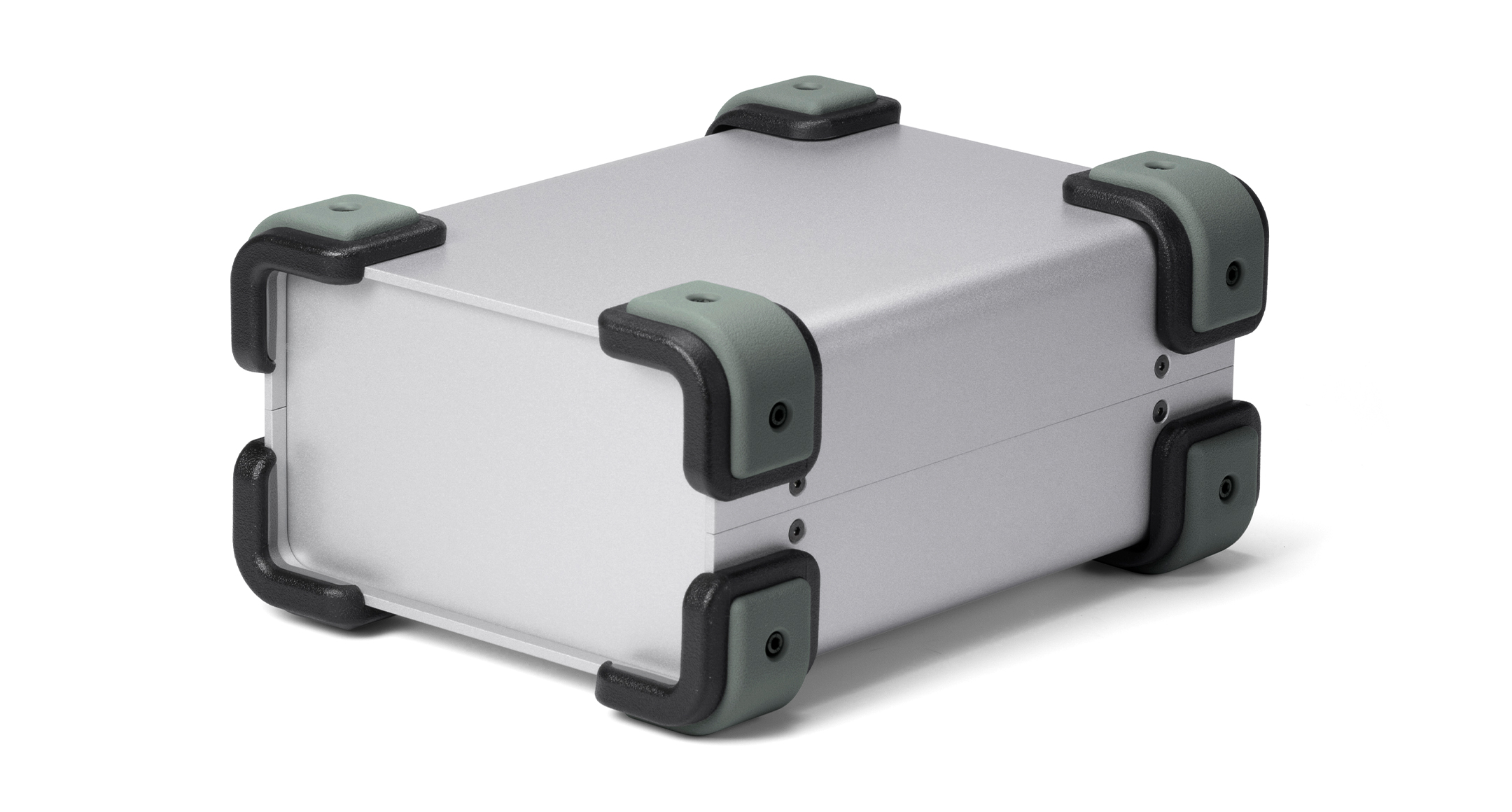

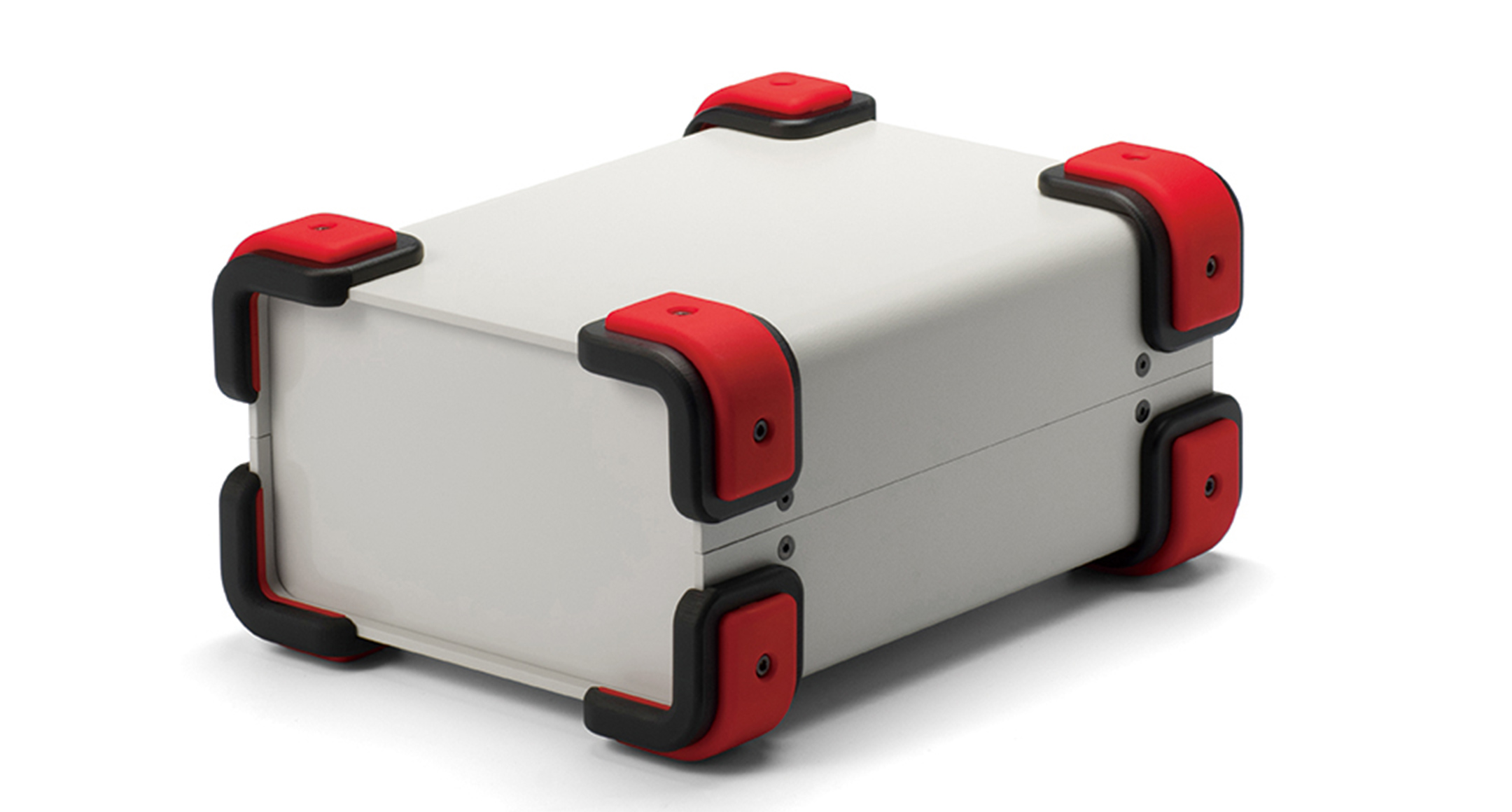

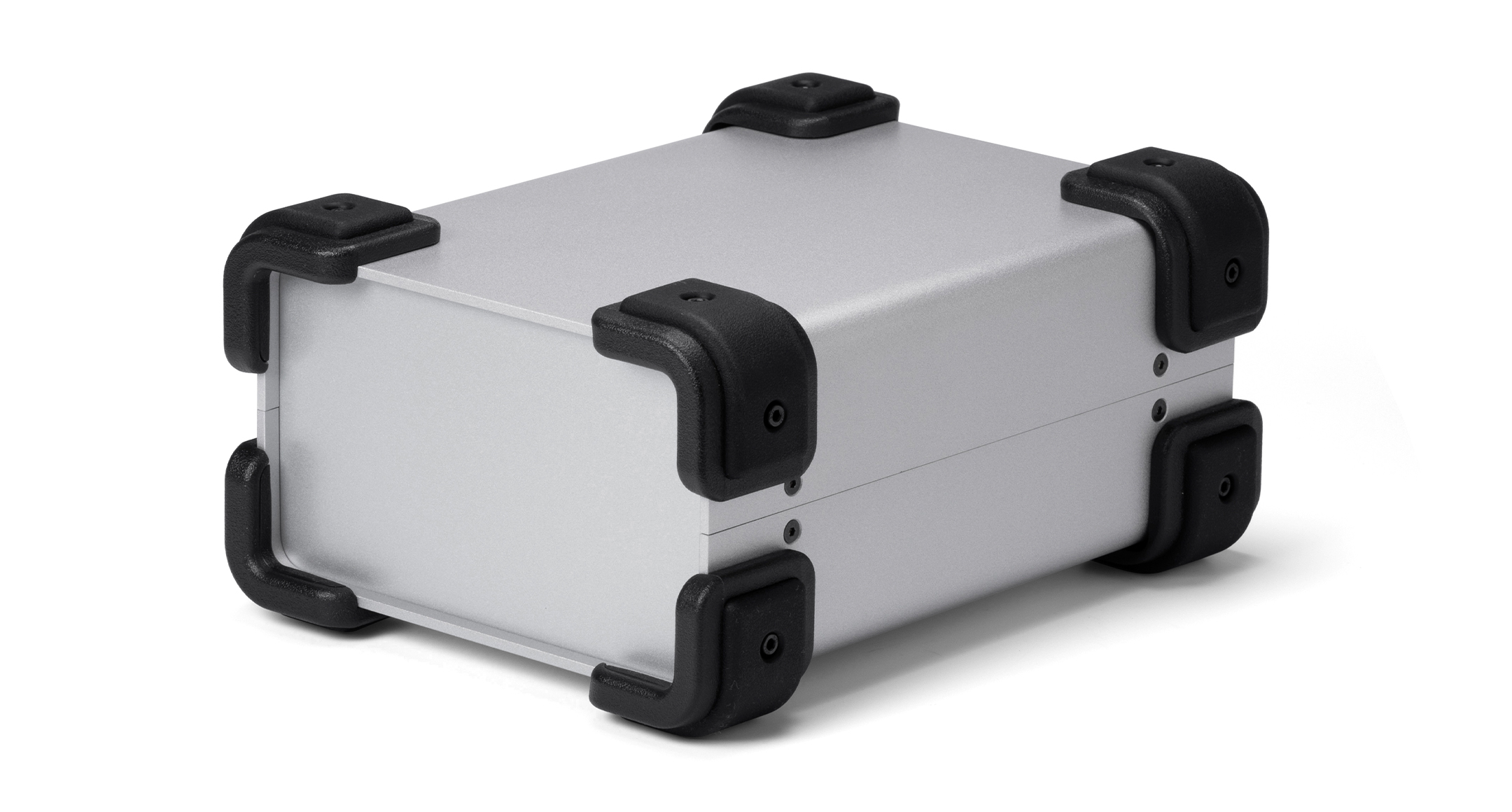

Custom sized aluminium desktop enclosure with corner guards.
Corner guards are effective for shockproof and anti-slip.

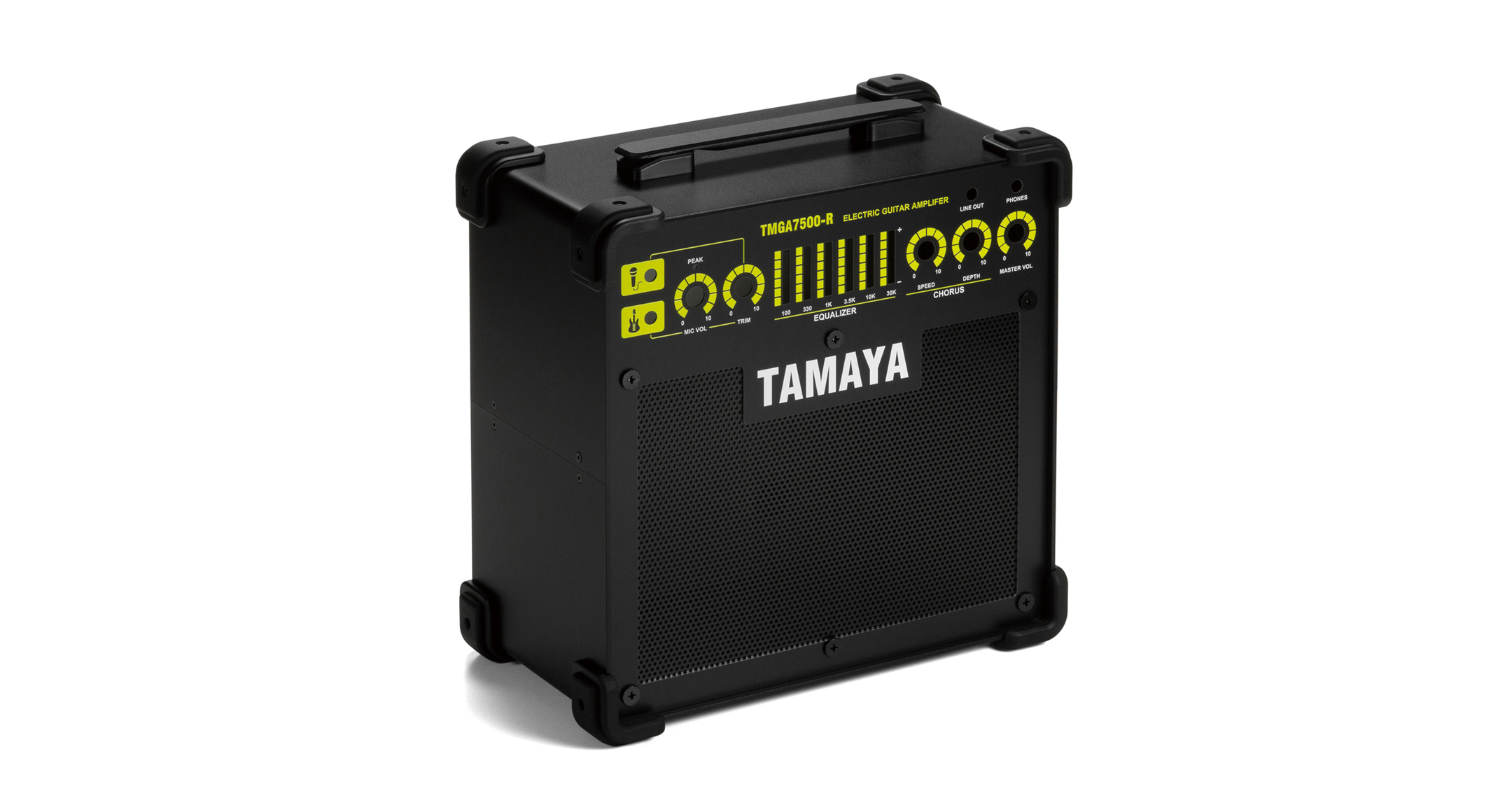

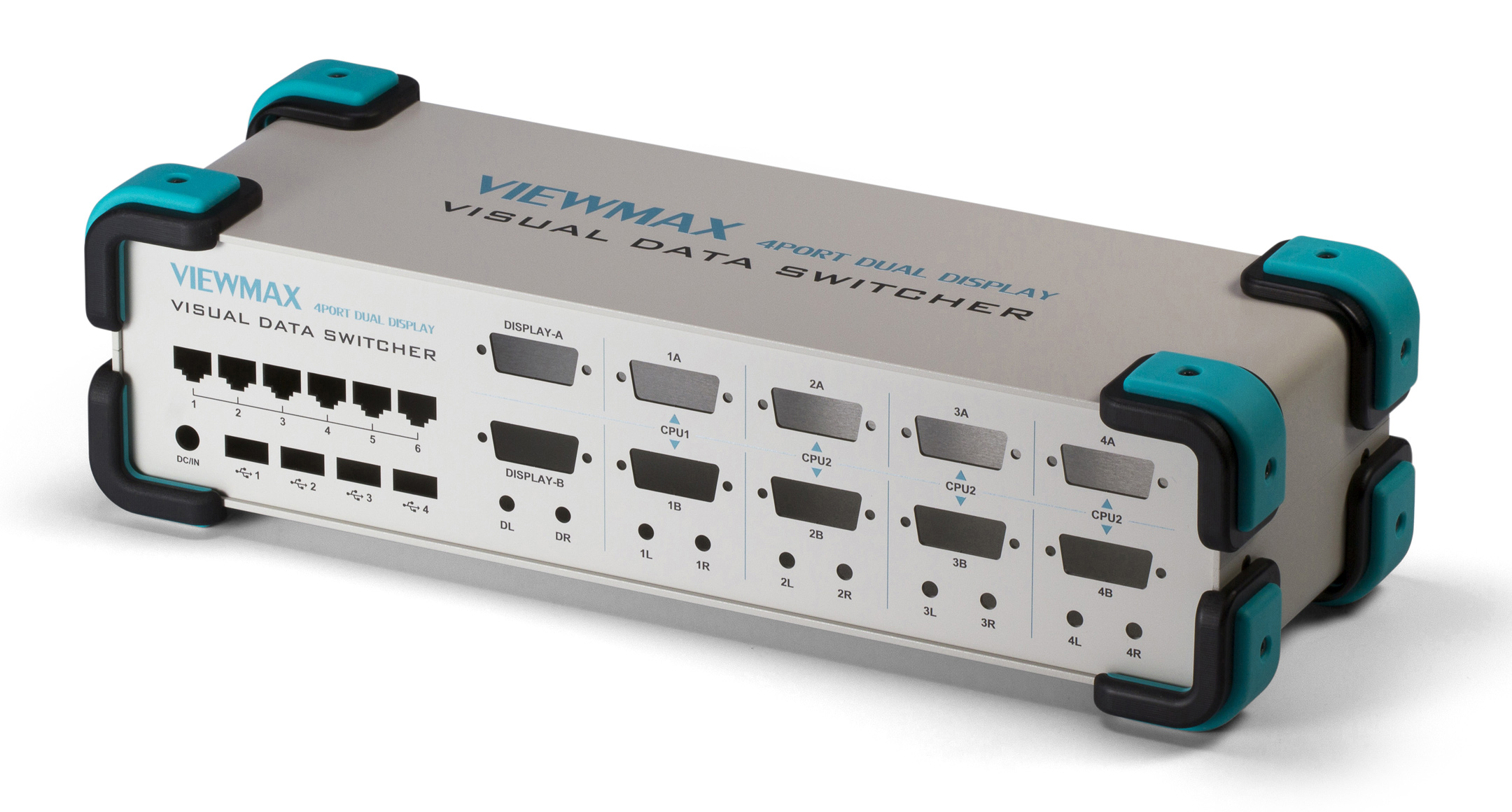

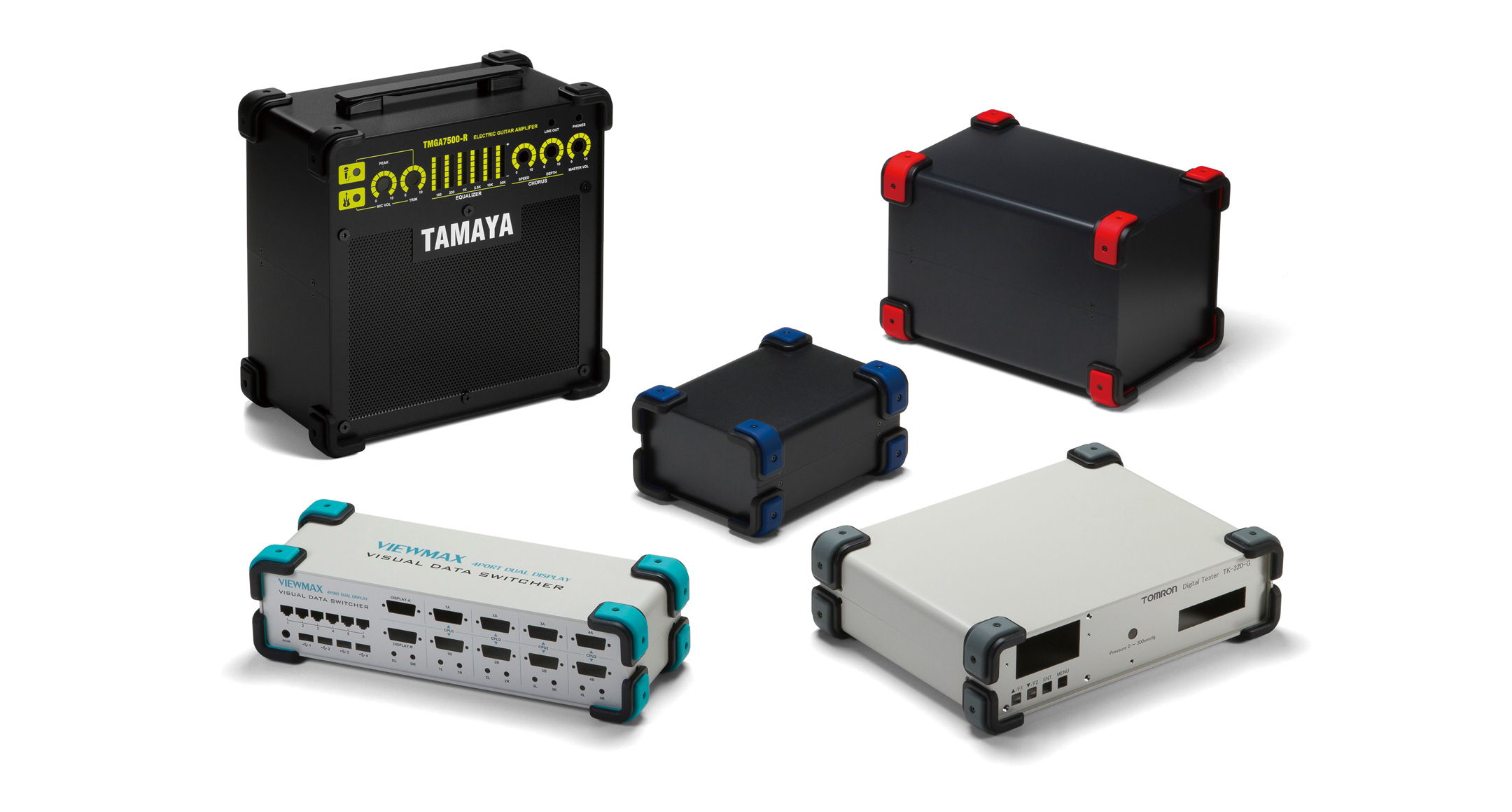

Suitable for measuring instrument, analyzer, and power supply.

Selectable 11 different depths. (lengths) and specified width from 100 to 450mm and height from 80 to 400mm by 1mm intervals.

Selectable 3 different color patterns of black or light gray or Silver case and 5 different comer guard colors.

Top / Bottom cover, panel color: Black(Similar to Munsell N1) / Light gray(Similar Munsell 5Y8/0.5) / Silver(no color code)

3D View 3D View - 10 color types Exploded view Color code

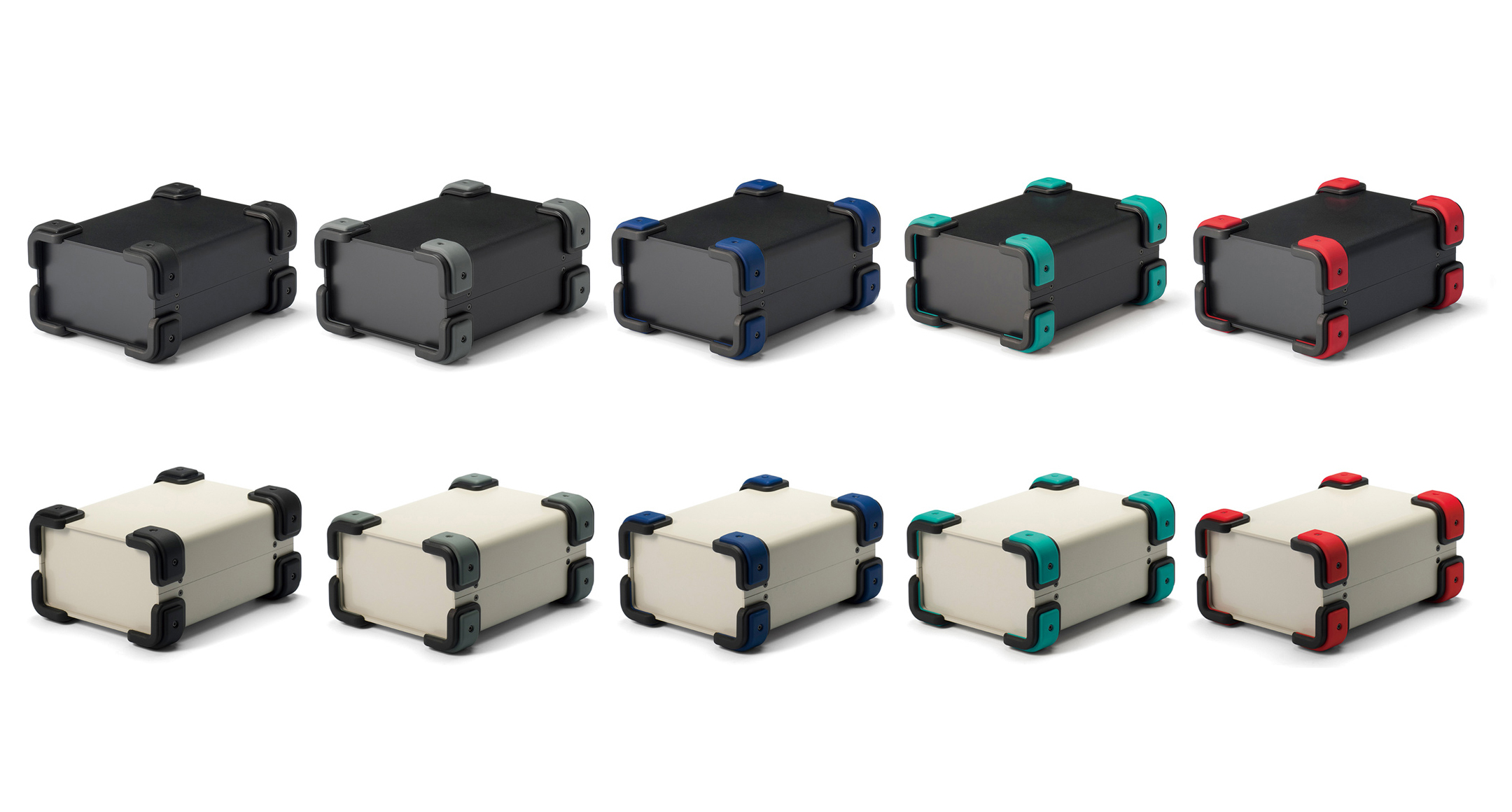

COLOR TYPE

BBBlack/Black

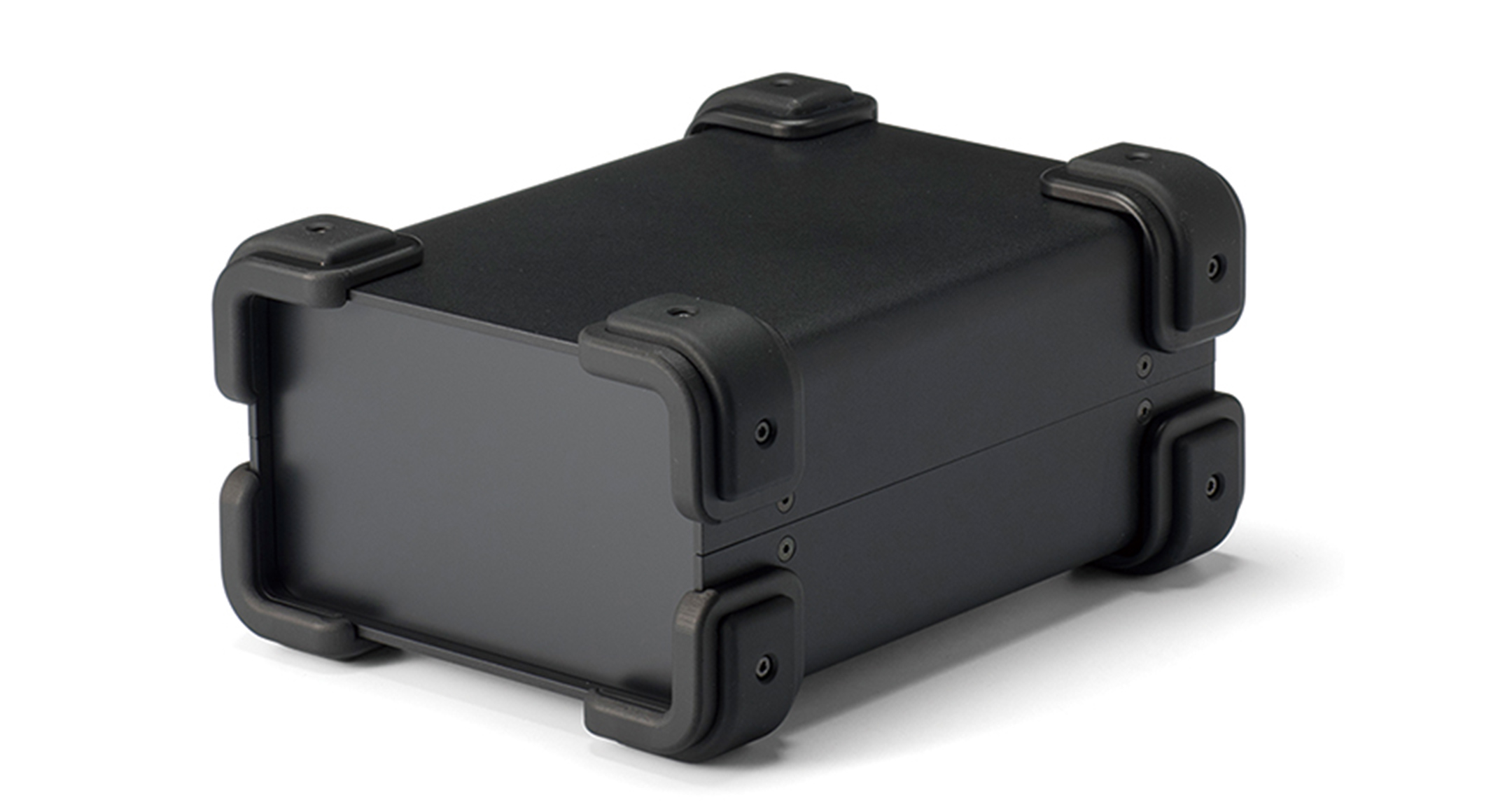

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series:Black/Black

BGBlack/Gray

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series:Black/Gray

BNBlack/Navy

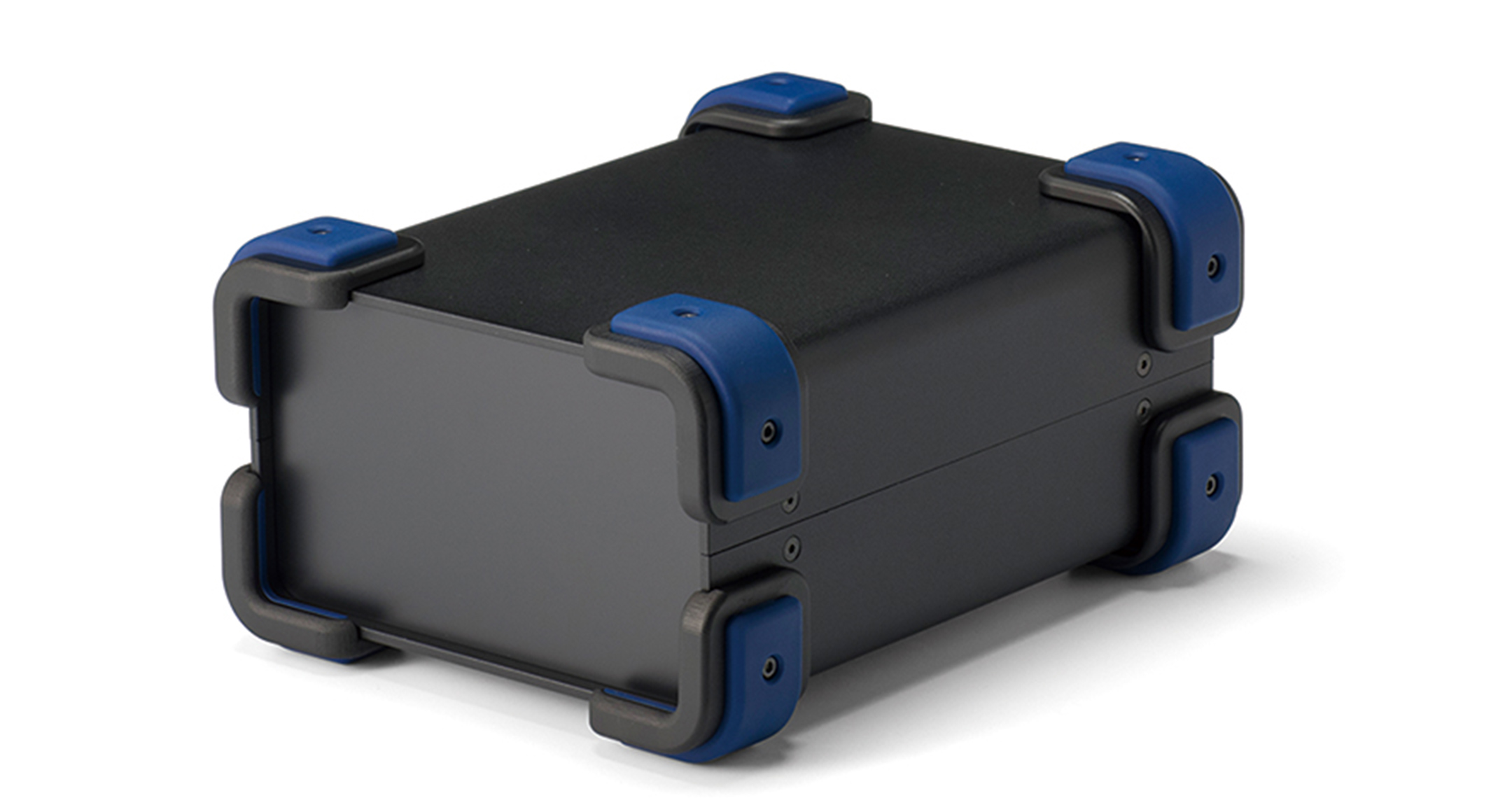

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series:Black/Navy

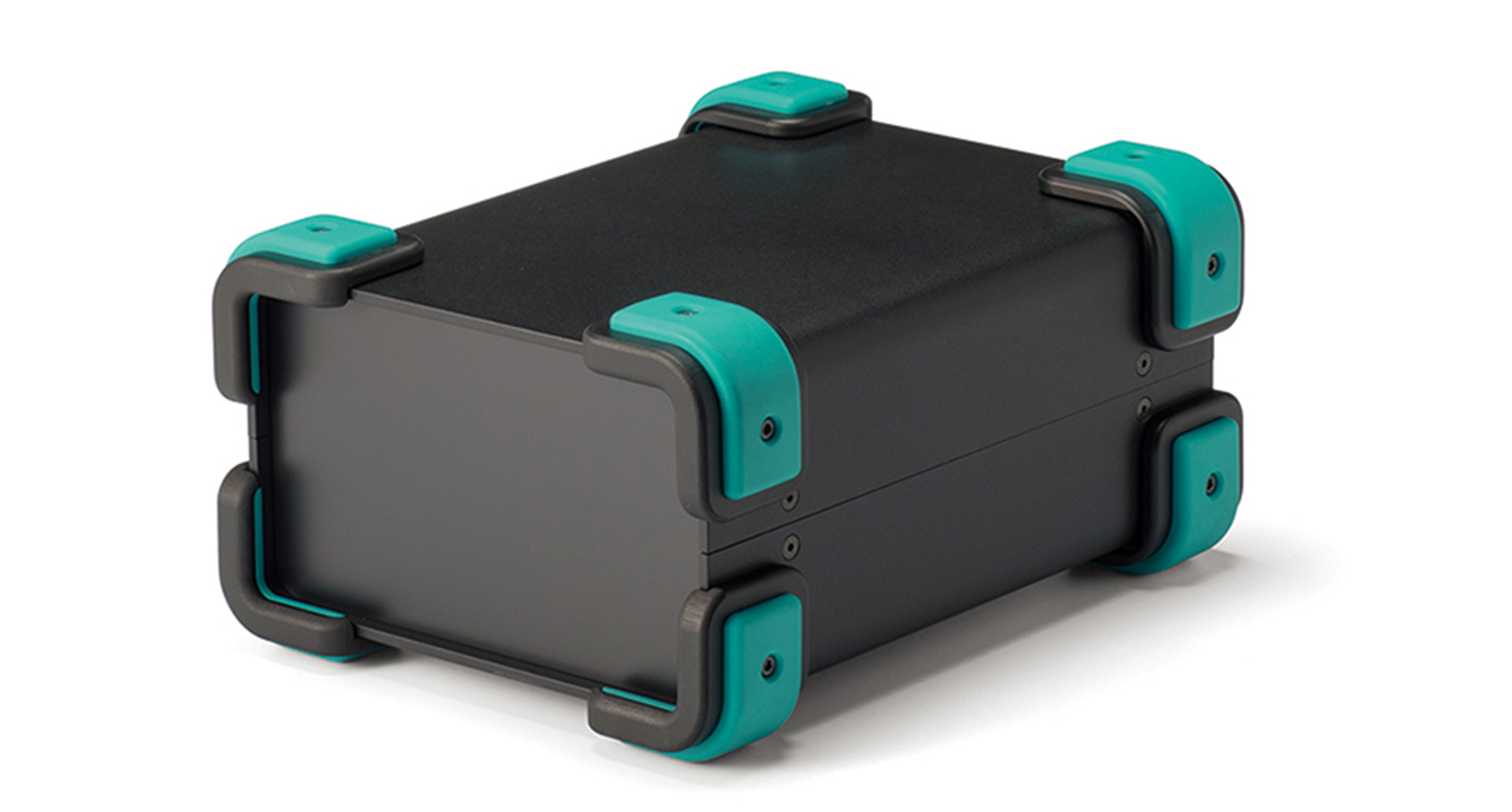

BEBlack/Emerald

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series:Black/Emerald

BRBlack/Red

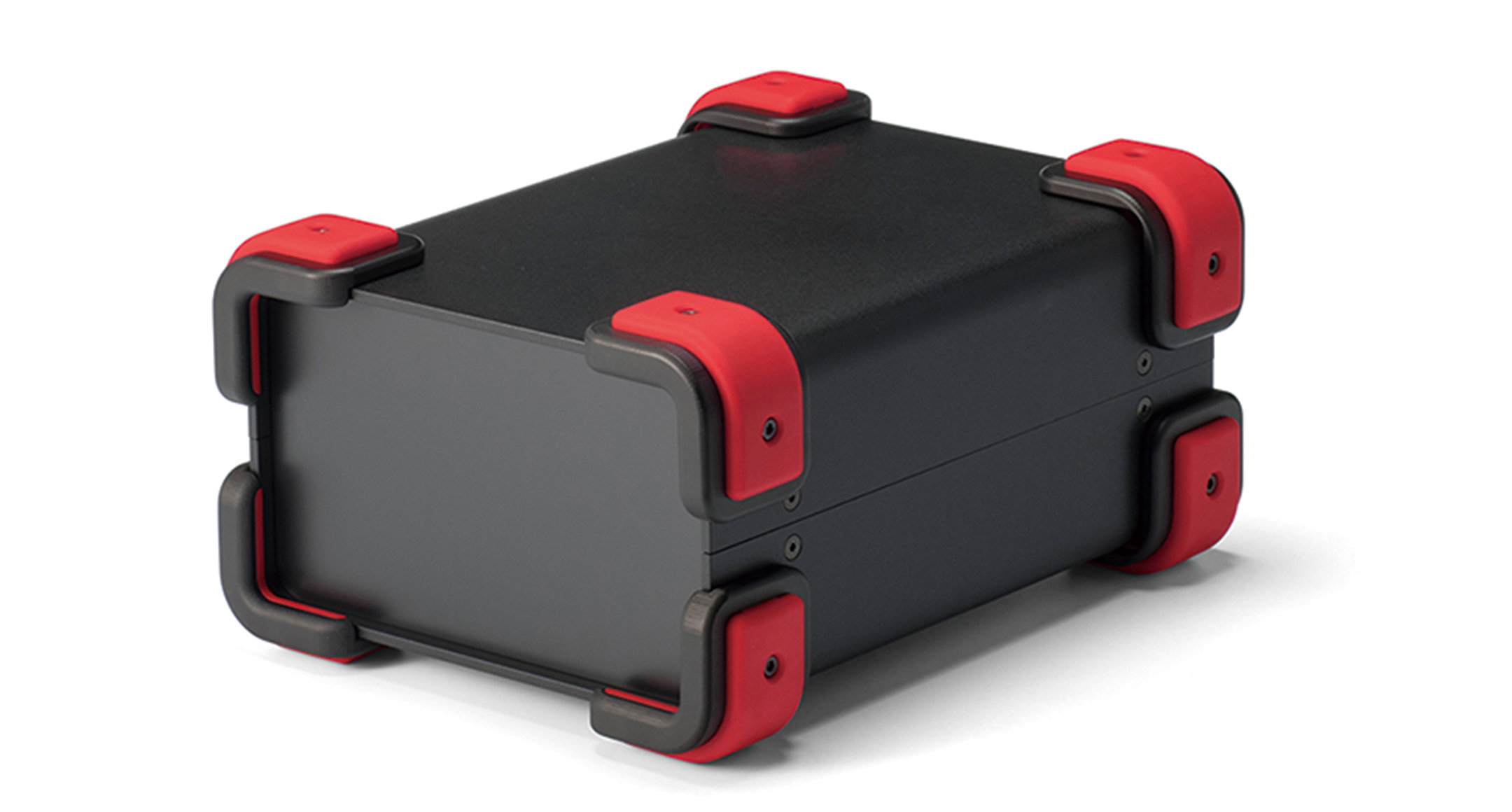

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series:Black/Red

GBLight gray/Black

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series:Light gray/Black

GGLight gray/Gray

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series:Light gray/Gray

GNLight gray/Navy

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series:Light gray/Navy

GELight gray/Emerald

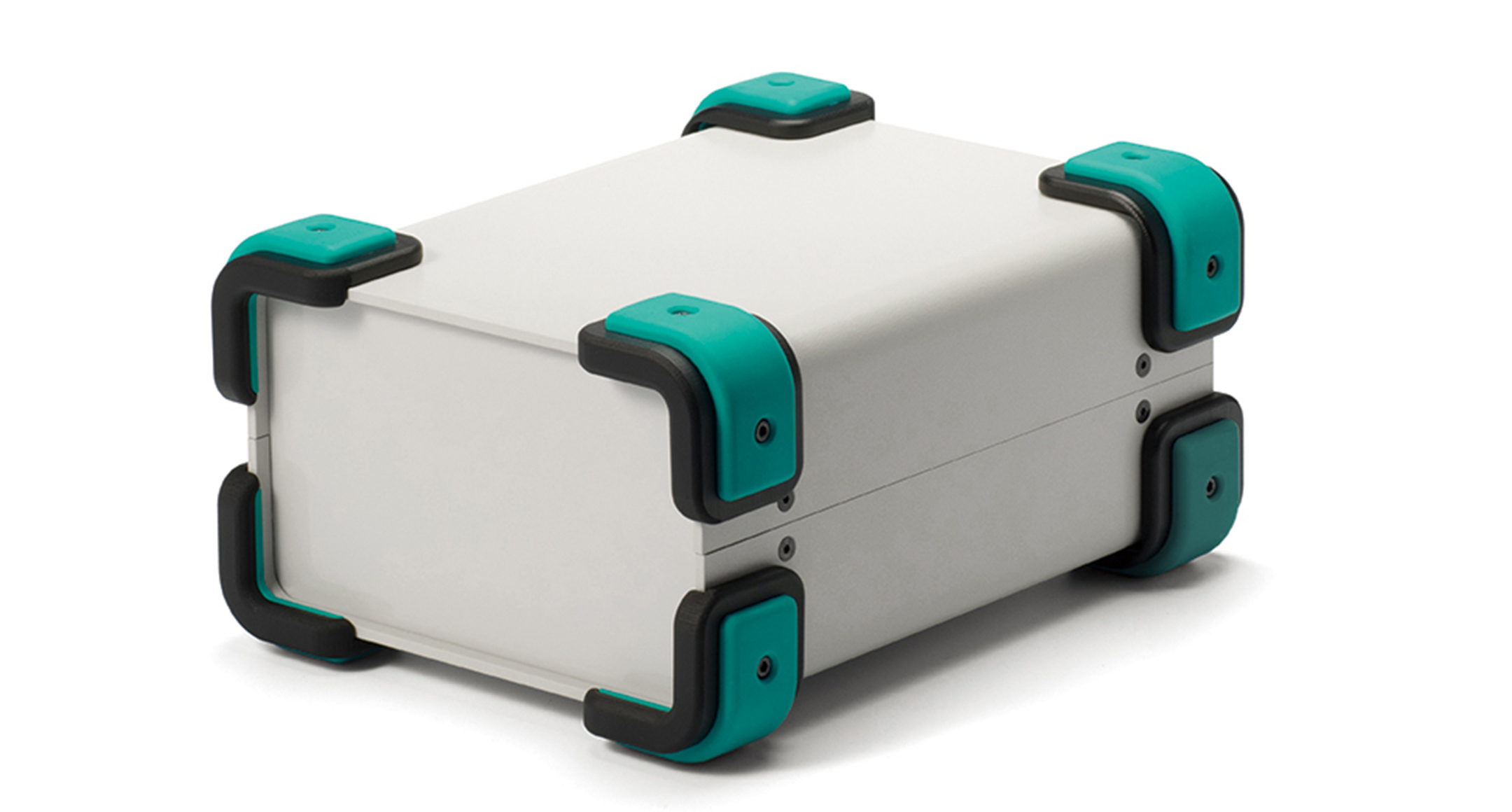

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series:Light gray/Emerald

GRLight gray/Red

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series:Light gray/Red

SBSilver/Black

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series:Silver/Black

SGSilver/Gray

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series:Silver/Gray

SNSilver/Navy

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series:Silver/Navy

SESilver/Emerald

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series:Silver/Emerald

SRSilver/Red

CUSTOM SIZED ENCLOSURE with CORNER GUARD - UCGS series:Silver/Red

PRODUCT NO. / DIMENSIONS

Product No.	External dimensions			Internal dimensions			PDF	DXF	DWG
Product No.	W	H	D	w	h	d	PDF	DXF	DWG
UCGS〇-〇-100□	Available 100 to 450mm	Available 80 to 450mm	100	Wー4mm	Ｈー4mm	92	PDF	DXF	DWG
UCGS〇-〇-120□	Available 100 to 450mm	Available 80 to 450mm	120	Wー5mm	Ｈー5mm	112	PDF	DXF	DWG
UCGS〇-〇-140□	Available 100 to 450mm	Available 80 to 450mm	140	Wー5mm	Ｈー5mm	130	PDF	DXF	DWG
UCGS〇-〇-160□	Available 100 to 450mm	Available 80 to 450mm	160	Wー6mm	Ｈー6mm	146	PDF	DXF	DWG
UCGS〇-〇-180□	Available 100 to 450mm	Available 80 to 450mm	180	Wー6mm	Ｈー6mm	166	PDF	DXF	DWG
UCGS〇-〇-200□	Available 100 to 450mm	Available 80 to 450mm	200	Wー6mm	Ｈー6mm	186	PDF	DXF	DWG
UCGS〇-〇-220□	Available 100 to 450mm	Available 80 to 450mm	220	Wー6mm	Ｈー6mm	206	PDF	DXF	DWG
UCGS〇-〇-240□	Available 100 to 450mm	Available 80 to 450mm	240	Wー6mm	Ｈー6mm	226	PDF	DXF	DWG
UCGS〇-〇-260□	Available 100 to 450mm	Available 80 to 450mm	260	Wー6mm	Ｈー6mm	246	PDF	DXF	DWG
UCGS〇-〇-280□	Available 100 to 450mm	Available 80 to 450mm	280	Wー6mm	Ｈー6mm	266	PDF	DXF	DWG
UCGS〇-〇-340□	Available 100 to 450mm	Available 80 to 450mm	340	Wー6.4mm	Ｈー6.4mm	326	PDF	DXF	DWG
