ALUMINIUM CONTROL BOX - CH series
ALUMINIUM CONTROL BOX - CH series
ALUMINIUM CONTROL BOX - CH series
ALUMINIUM CONTROL BOX - CH series
ALUMINIUM CONTROL BOX - CH series
ALUMINIUM CONTROL BOX - CH series
ALUMINIUM CONTROL BOX - CH series1
ALUMINIUM CONTROL BOX - CH series2
ALUMINIUM CONTROL BOX - CH series3
ALUMINIUM CONTROL BOX - CH series4
ALUMINIUM CONTROL BOX - CH series5
ALUMINIUM CONTROL BOX - CH series6

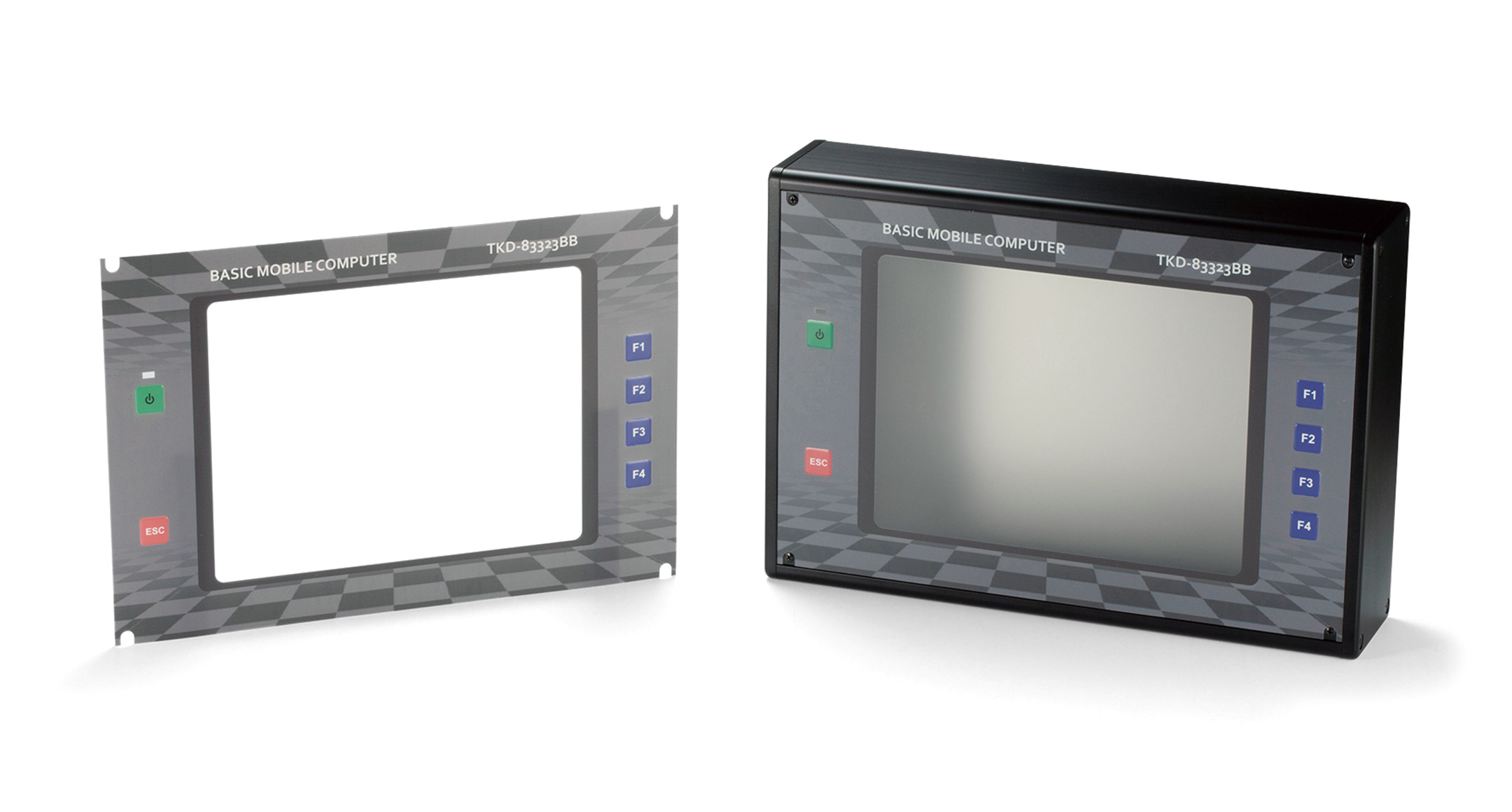

Simple and strong construction with diecast and extruded aluminum material.
Side plate is made of diecast aluminum and powder coated.

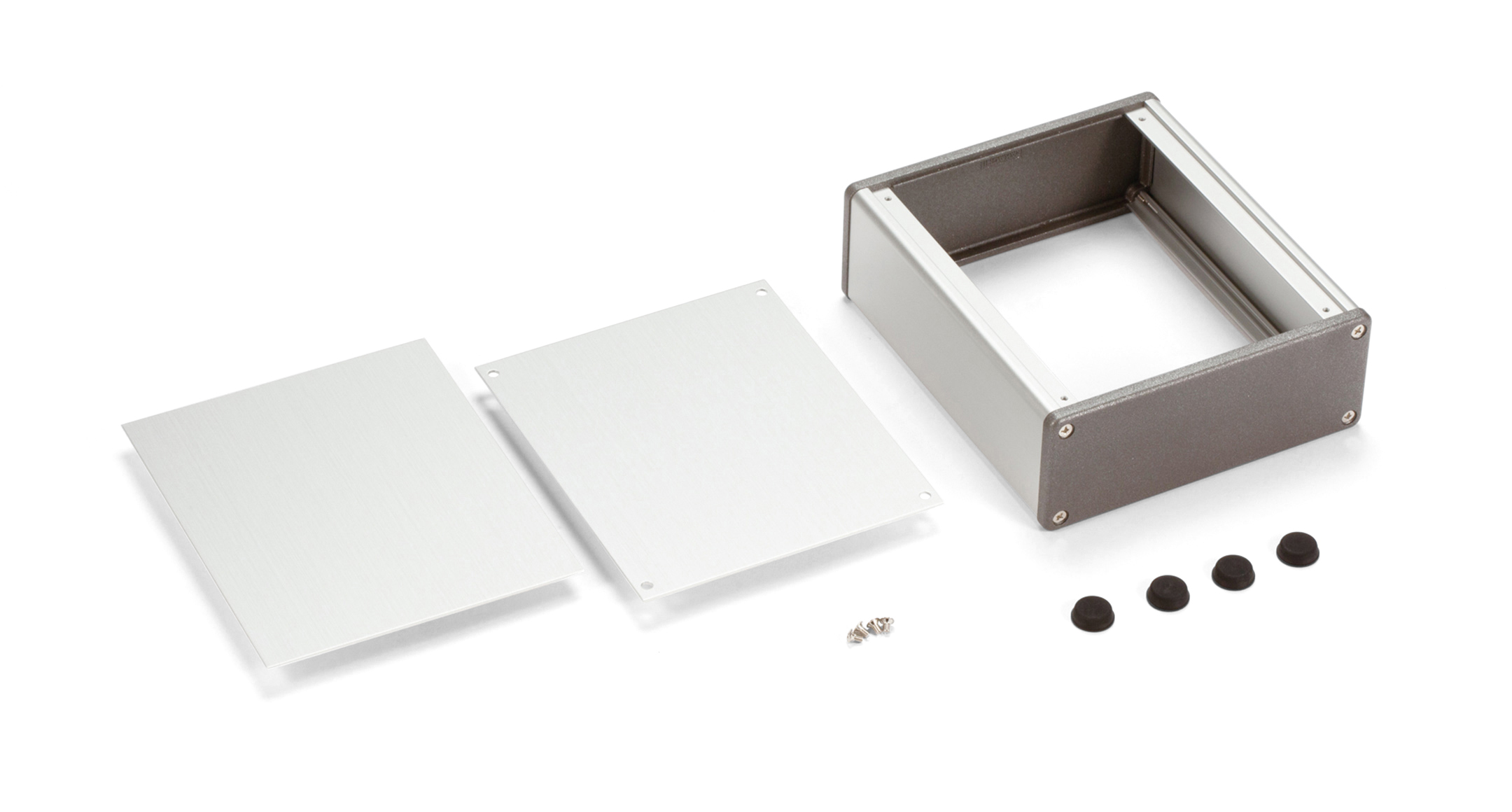

Both the slide and screwed panel can be utilized as the front panel.

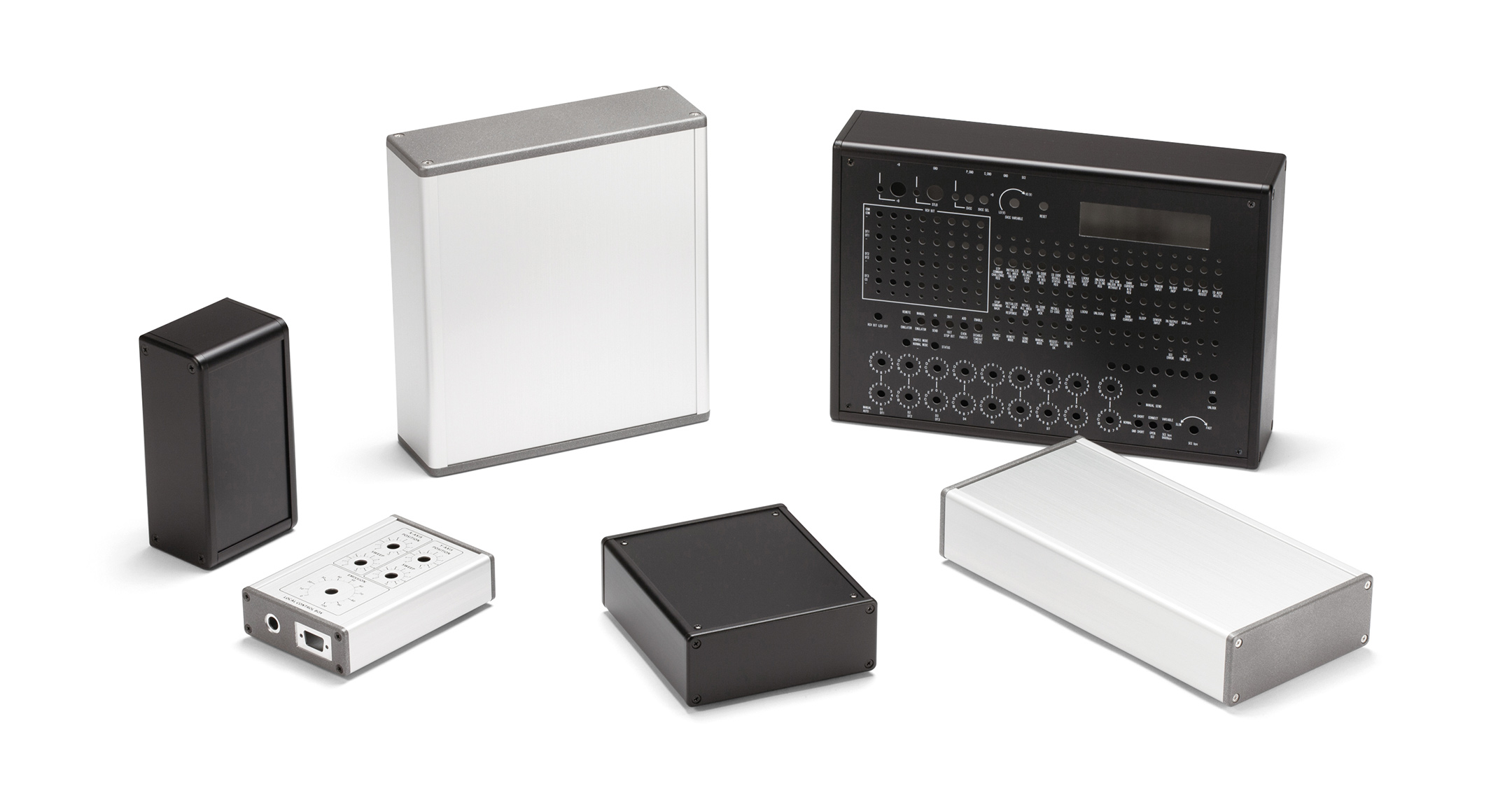

19 different sizes in 2 color types available.

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Color Weight (g) PDF DXF DWG
W H D w h d
CH4-7-10BBP 70 36.5 100.5 65.6 26.3 79.8 Black 150 PDF DXF DWG
CH4-7-10GSP 70 36.5 100.5 65.6 26.3 79.8 Gray/Silver 150 PDF DXF DWG
CH4-10-10BBP 100 36.5 100.5 95.6 26.3 79.8 Black 200 PDF DXF DWG
CH4-10-10GSP 100 36.5 100.5 95.6 26.3 79.8 Gray/Silver 200 PDF DXF DWG
CH4-15-10BBP 150 36.5 100.5 145.6 26.3 79.8 Black 270 PDF DXF DWG
CH4-15-10GSP 150 36.5 100.5 145.6 26.3 79.8 Gray/Silver 270 PDF DXF DWG
CH4-20-10BBP 200 36.5 100.5 195.6 26.3 79.8 Black 350 PDF DXF DWG
CH4-20-10GSP 200 36.5 100.5 195.6 26.3 79.8 Gray/Silver 350 PDF DXF DWG
CH4-25-10BBP 250 36.5 100.5 245.6 26.3 79.8 Black 420 PDF DXF DWG
CH4-25-10GSP 250 36.5 100.5 245.6 26.3 79.8 Gray/Silver 420 PDF DXF DWG
CH6-8-14BBP 80 55 140 75.6 44.4 117.7 Black 250 PDF DXF DWG
CH6-8-14GSP 80 55 140 75.6 44.4 117.7 Gray/Silver 250 PDF DXF DWG
CH6-11-14BBP 110 55 140 105.6 44.4 117.7 Black 310 PDF DXF DWG
CH6-11-14GSP 110 55 140 105.6 44.4 117.7 Gray/Silver 310 PDF DXF DWG
CH6-16-14BBP 160 55 140 155.6 44.4 117.7 Black 410 PDF DXF DWG
CH6-16-14GSP 160 55 140 155.6 44.4 117.7 Gray/Silver 410 PDF DXF DWG
CH6-22-14BBP 220 55 140 215.6 44.4 117.7 Black 530 PDF DXF DWG
CH6-22-14GSP 220 55 140 215.6 44.4 117.7 Gray/Silver 530 PDF DXF DWG
CH6-29-14BBP 290 55 140 285.6 44.4 117.7 Black 670 PDF DXF DWG
CH6-29-14GSP 290 55 140 285.6 44.4 117.7 Gray/Silver 670 PDF DXF DWG
CH7-9-17BBP 90 65.5 168.5 74 51.7 143.4 Black 500 PDF DXF DWG
CH7-9-17GSP 90 65.5 168.5 74 51.7 143.4 Gray/Silver 500 PDF DXF DWG
CH7-12-17BBP 120 65.5 168.5 104 51.7 143.4 Black 580 PDF DXF DWG
CH7-12-17GSP 120 65.5 168.5 104 51.7 143.4 Gray/Silver 580 PDF DXF DWG
CH7-17-17BBP 170 65.5 168.5 154 51.7 143.4 Black 720 PDF DXF DWG
CH7-17-17GSP 170 65.5 168.5 154 51.7 143.4 Gray/Silver 720 PDF DXF DWG
CH7-25-17BBP 250 65.5 168.5 234 51.7 143.4 Black 940 PDF DXF DWG
CH7-25-17GSP 250 65.5 168.5 234 51.7 143.4 Gray/Silver 940 PDF DXF DWG
CH7-33-17BBP 330 65.5 168.5 314 51.7 143.4 Black 1160 PDF DXF DWG
CH7-33-17GSP 330 65.5 168.5 314 51.7 143.4 Gray/Silver 1160 PDF DXF DWG
CH8-15-23BBP 150 75 230 144 64.3 200.6 Black 740 PDF DXF DWG
CH8-15-23GSP 150 75 230 144 64.3 200.6 Gray/Silver 740 PDF DXF DWG
CH8-25-23BBP 250 75 230 244 64.3 200.6 Black 1060 PDF DXF DWG
CH8-25-23GSP 250 75 230 244 64.3 200.6 Gray/Silver 1060 PDF DXF DWG
CH8-33-23BBP 330 75 230 324 64.3 200.6 Black 1310 PDF DXF DWG
CH8-33-23GSP 330 75 230 324 64.3 200.6 Gray/Silver 1310 PDF DXF DWG
CH8-43-23BBP 430 75 230 424 64.3 200.6 Black 1630 PDF DXF DWG
CH8-43-23GSP 430 75 230 424 64.3 200.6 Gray/Silver 1630 PDF DXF DWG

OPTIONAL PARTS

1
TORX DRIVE SCREW for CF・CH - MR-3CS・MR-4CS
DETAILS
1
ALUMINIUM ISOLATION FEET - AFM・AFS series
DETAILS

SIMILAR PRODUCT

1
ALUMINUM CONTROL BOX - FC series
DETAILS
1
IP65 EXTRUDED ALUMINUM ENCLOSURE - EXW series
DETAILS
1
ALUMINUM PROJECT BOX - T series
DETAILS
1
EXTRUDED ALUMINUM ENCLOSURE - EX series
DETAILS
1
SLOPED ENCLOSURE - CF series
DETAILS
