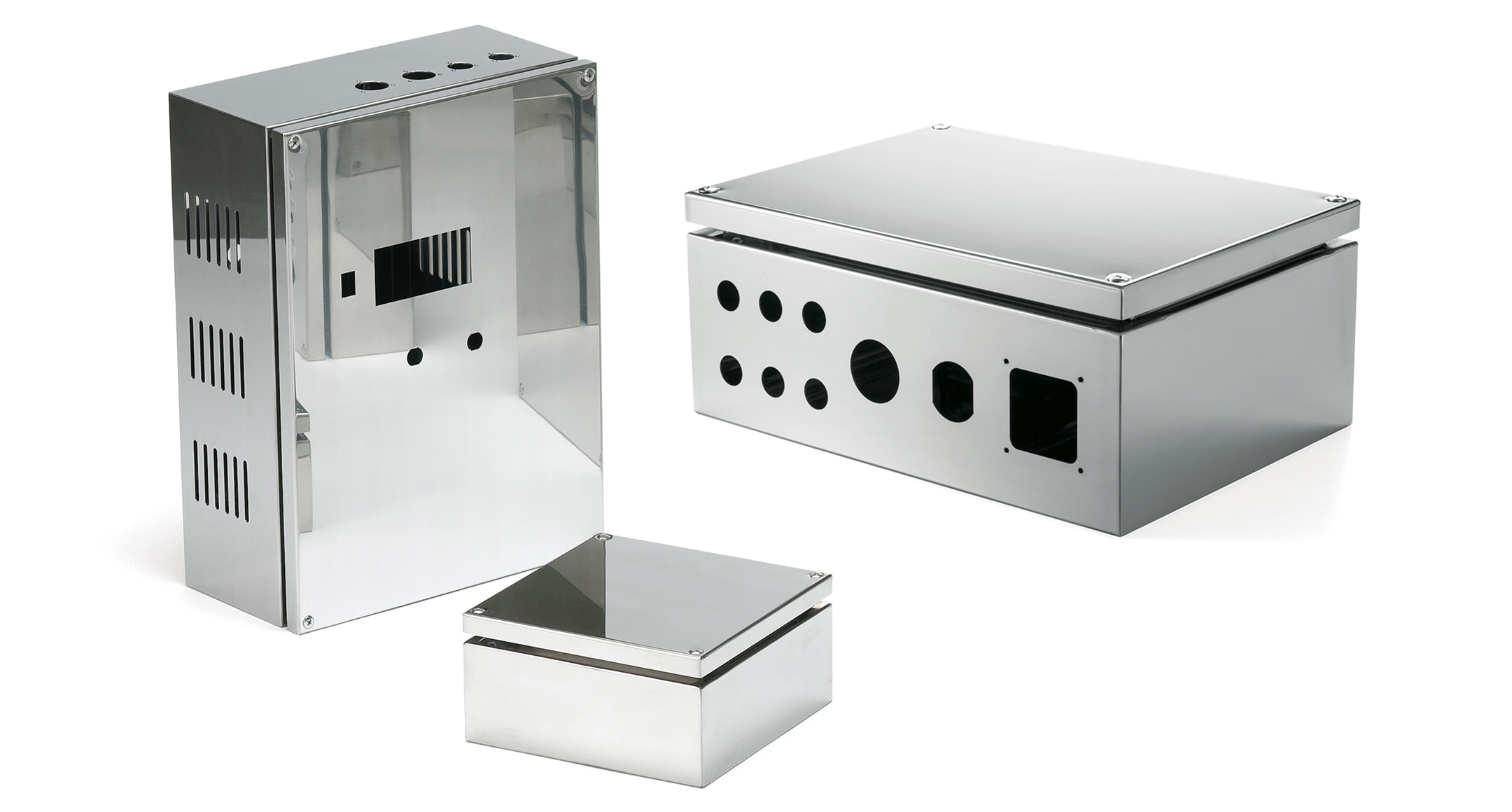

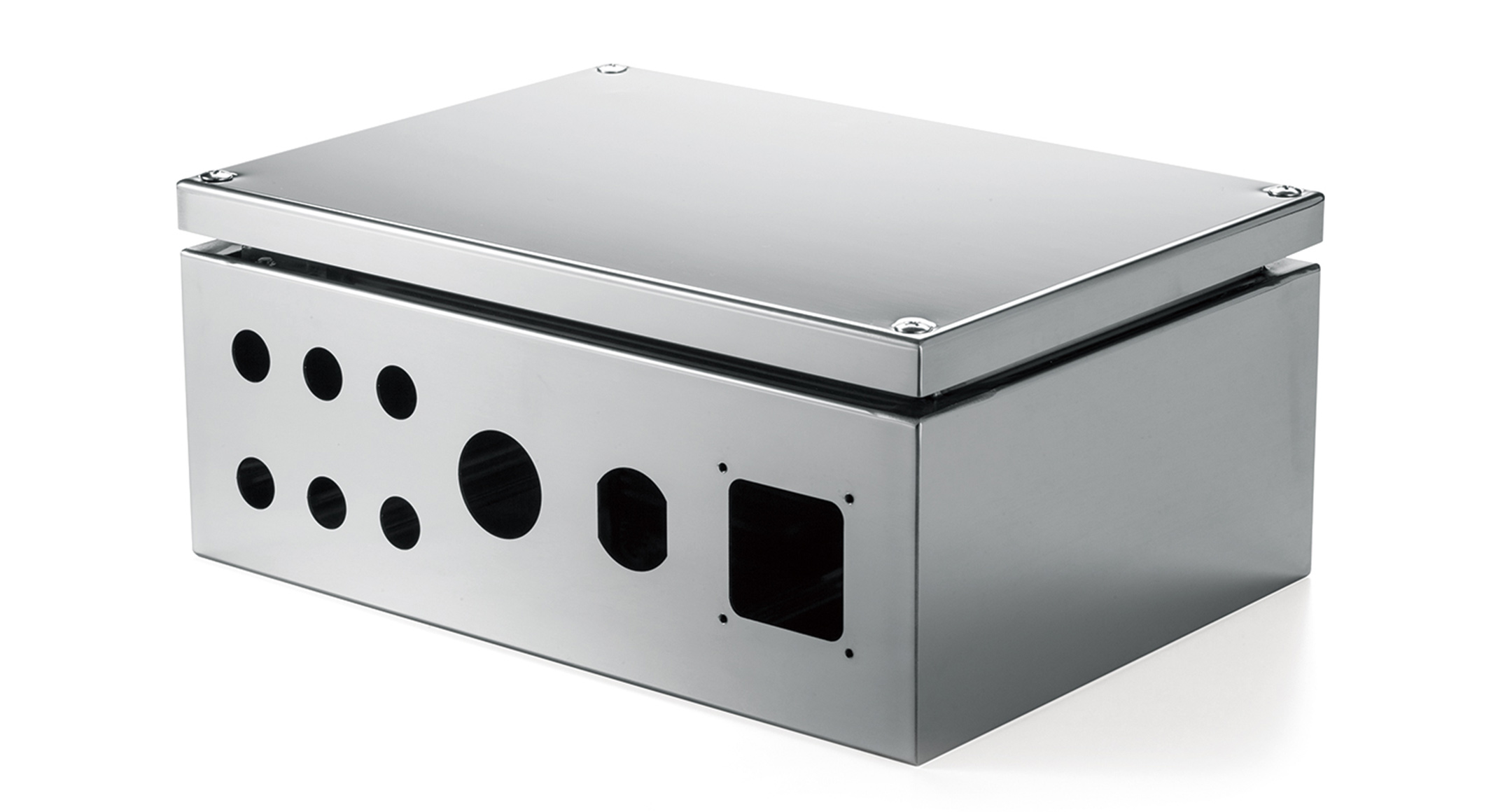

IP65 enclosure with screw fixing front door.
Made of SUS304 stainless steel for superior weather and corrosion resistance.
Conductive box for EMC shielding.

9 different sizes are available.

Surface finish : Polished finish
Protection class : IP65 (equivalent to NEMA6 rating)
Operating temperature : -40℃ ~ +90℃
3D View  Exploded View 

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) PDF DXF DWG STP
W H D w h d
SSB121508 120 80 150 80.5 67.6 130.5 900 PDF DXF DWG
SSB151508 150 80 150 110.5 67.6 130.5 1100 PDF DXF DWG
SSB152206 150 60 220 110.5 51.1 200.5 1300 PDF DXF DWG
SSB152210 150 100 220 110.5 87.6 200.5 1600 PDF DXF DWG
SSB202010 200 100 200 160.5 87.6 180.5 1800 PDF DXF DWG
SSB202806 200 60 280 160.5 51.1 260.5 1900 PDF DXF DWG
SSB202812 200 120 280 160.5 107.6 260.5 2500 PDF DXF DWG
SSB223312 220 120 330 180.5 107.6 310.5 2900 PDF DXF DWG
SSB304015 300 150 400 260.5 137.6 380.5 4700 PDF DXF DWG
Mounting plate (Option) PDF DXF DWG
SSC1215 PDF DXF DWG
SSC1515 PDF DXF DWG
SSC1522 PDF DXF DWG
SSC1522 PDF DXF DWG
SSC2020 PDF DXF DWG
SSC2028 PDF DXF DWG
SSC2028 PDF DXF DWG
SSC2233 PDF DXF DWG
SSC3040 PDF DXF DWG

OPTIONAL PARTS

１
MOUNTNG PLATE for STAINLESS STEEL BOX - SSC series
DETAILS
１
DIN RAIL for STAINLESS STEEL BOXES
DETAILS
１
POLE MOUNTING BRACKET - WGMB-2SW
DETAILS
１
POLE MOUNT BRACKET for STAINLESS STEEL BOX
DETAILS
１
WATERPROOF SEALING WASHER SZ series
DETAILS
１
LOW-COST METAL VENTILATION PLUG - CVP-M series
DETAILS
１
STAINLESS STEEL PROTECTIVE VENT - PMF-12M
DETAILS
１
IP68 METAL CABLE GLAND - AGM series
DETAILS
１
EMC CABLE GLAND - AGE series
DETAILS
１
IP68 WATER PROTECTION CABLE GLAND - AG series
DETAILS
１
WEATHERPROOF CABLE GLAND - RMW series
DETAILS

SIMILAR PRODUCT

１
IP65 WALL MOUNT STAINLESS STEEL BOX - SLB series
DETAILS
１
IP65 HINGED STAINLESS STEEL BOX - SSM series
DETAILS
１
IP67 DIECAST ALUMINUM BOX BDN series
DETAILS

CUSTOMIZATION VIDEO / PRODUCT INTRODUCTION VIDEO

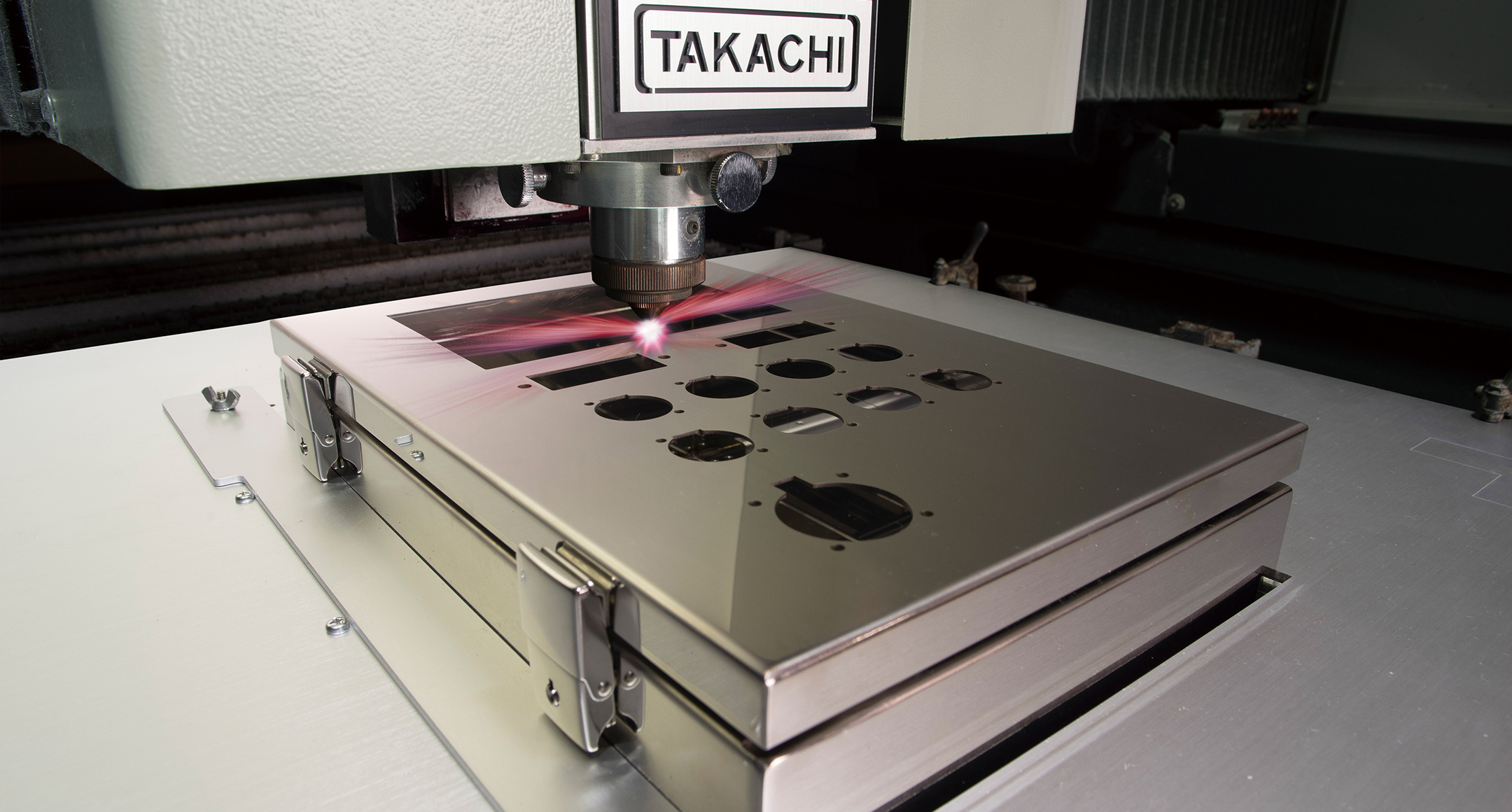

laser_cutting
