DIN RAIL for STAINLESS STEEL BOXES


FDR_SSB Series -PDF

CATEGORY：DIN rail, 35mm DIN rail

DIN RAIL for STAINLESS STEEL BOXES
DIN RAIL for STAINLESS STEEL BOXES
DIN RAIL for STAINLESS STEEL BOXES1
DIN RAIL for STAINLESS STEEL BOXES2

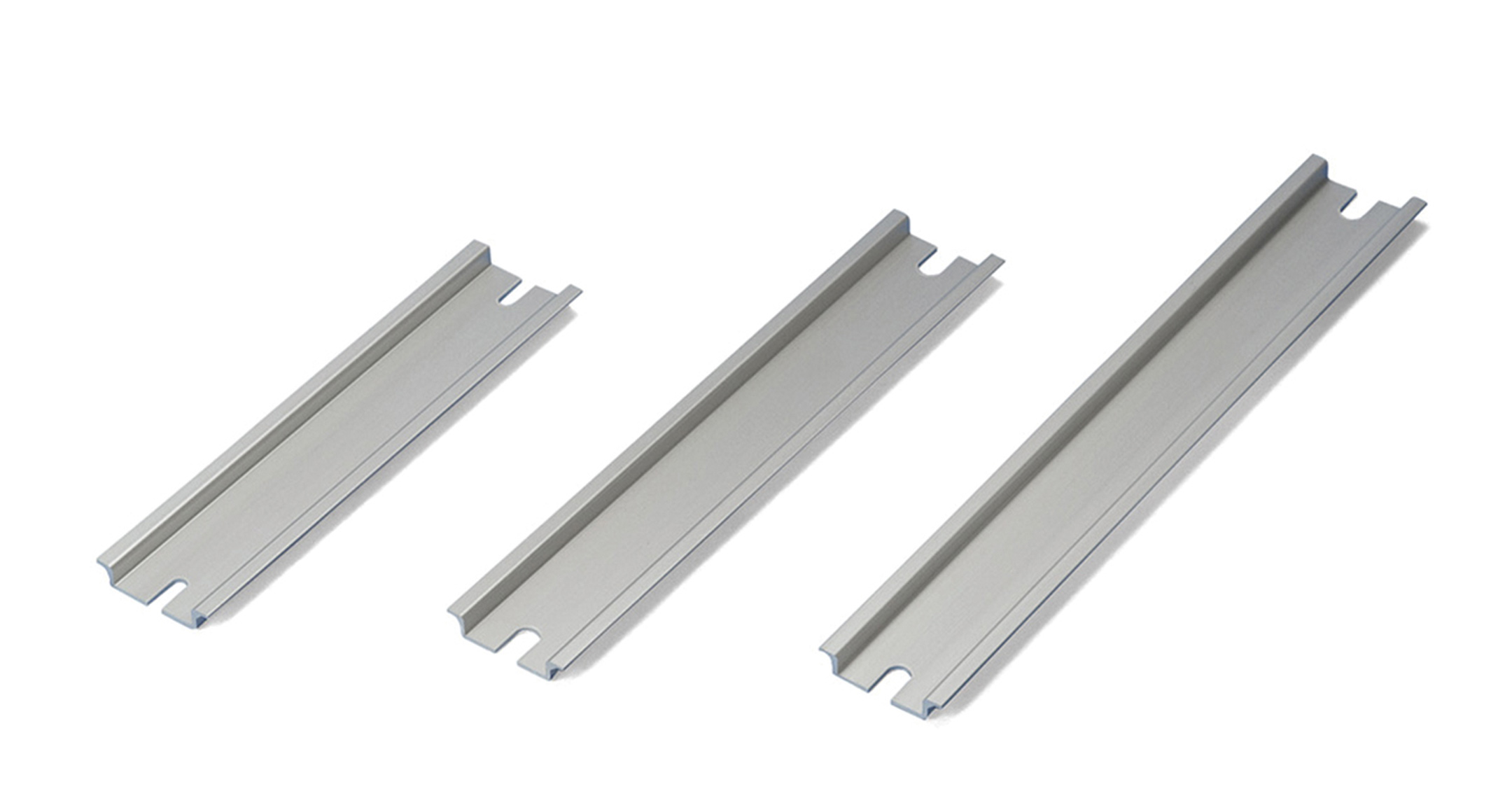

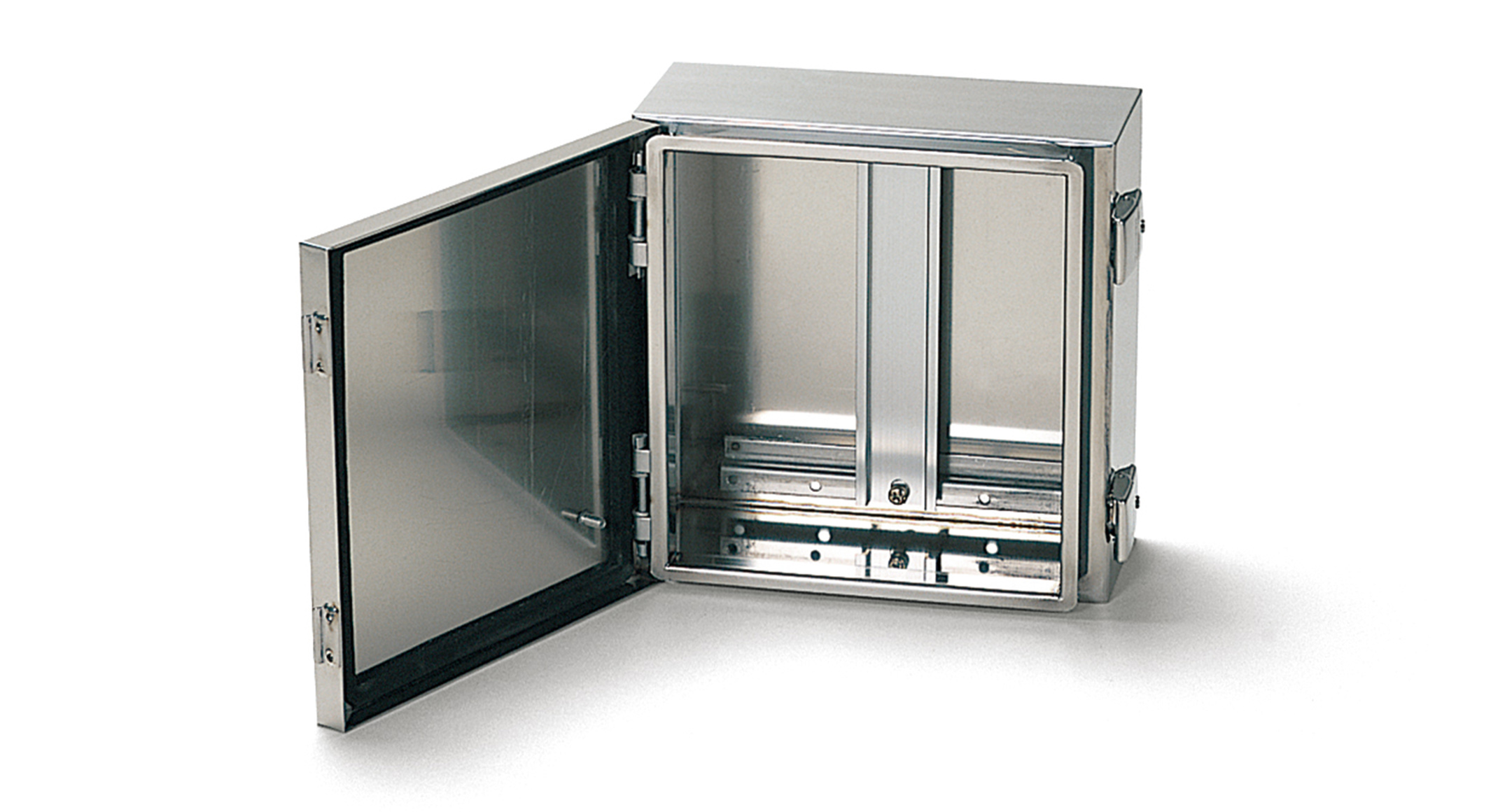

35mm DIN rail for installation of terminal blocks, circuit breakers, power supplys or relays inside SSM・SLM・SSB・SLB enclosures.
Available in different models and lengths to fit a wide variety of mounting boss pitch.

PRODUCT NO. / DIMENSIONS

Product No. Suitable box Length（mm） Weight (g) Inventory status PDF DXF DWG
FDR -77. KSB･KLB0810 / 1010 77 12 PDF DXF DWG
FDR -106. KSB･KLB1013 106 19 PDF DXF DWG
FDR -B126. SSM･SLM･SSB･SLB1215 / 1515 126 21 Discontinued - Sold out. PDF DXF DWG
FDR -B176. SSM･SLM･SSB･SLB2020 176 30 PDF DXF DWG
FDR -B196. SSM･SLM･SSB･SLB1522 196 33 PDF DXF DWG
FDR -B256. SSM･SLM･SSB･SLB2028 256 43 PDF DXF DWG
FDR -B303. SSM･SLM･SSB･SLB2233 303 52 PDF DXF DWG
FDR -B376. SSM･SLM･SSB･SLB3040 376 64 PDF DXF DWG
