IP65 WALL MOUNT STAINLESS STEEL BOX - SLB series


SLB Series -PDF

CATEGORY：IP65 wall mount stainless steel enclosure, SUS304 stainless steel box, Electrical box

IP65 WALL MOUNT STAINLESS STEEL BOX - SLB series
IP65 WALL MOUNT STAINLESS STEEL BOX - SLB series
IP65 WALL MOUNT STAINLESS STEEL BOX - SLB series
IP65 WALL MOUNT STAINLESS STEEL BOX - SLB series
IP65 WALL MOUNT STAINLESS STEEL BOX - SLB series1
IP65 WALL MOUNT STAINLESS STEEL BOX - SLB series2
IP65 WALL MOUNT STAINLESS STEEL BOX - SLB series3
IP65 WALL MOUNT STAINLESS STEEL BOX - SLB series4

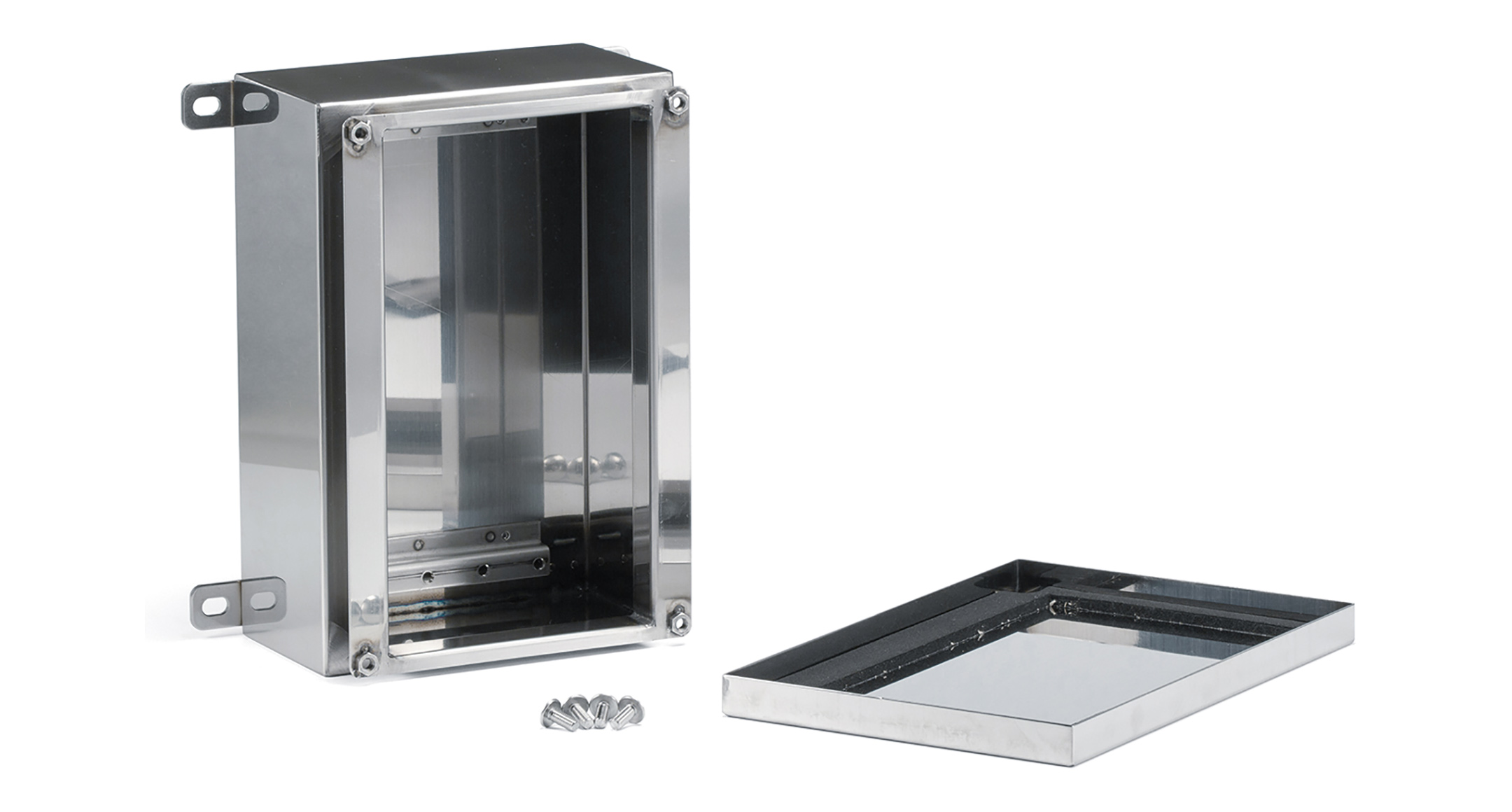

IP65 stainless steel enclosure with screw fixing cover.
Equipped with wall mounting bracket.
Made of SUS304 stainless steel for superior weather and corrosion resistance.
Conductive box for EMC shielding.
Key latch for tamper-proof purposes.

9 different sizes are available.

Surface finish : Polished finish.
Protection class : IP65
Operating temperature : -40℃ ~ +90℃
3D View  Exploded View 

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Weight (g) PDF DXF DWG STP
W H D w h d
SLB121508 120 80 150 80.5 67.6 130.5 900 PDF DXF DWG
SLB151508 150 80 150 110.5 67.6 130.5 1100 PDF DXF DWG
SLB152206 150 60 220 110.5 51.1 200.5 1300 PDF DXF DWG
SLB152210 150 100 220 110.5 87.6 200.5 1600 PDF DXF DWG
SLB202010 200 100 200 160.5 87.6 180.5 1800 PDF DXF DWG
SLB202806 200 60 280 160.5 51.1 260.5 1900 PDF DXF DWG
SLB202812 200 120 280 160.5 107.6 260.5 2500 PDF DXF DWG
SLB223312 220 120 330 180.5 107 310.5 3000 PDF DXF DWG
SLB304015 300 150 400 260.5 137 380.5 4800 PDF DXF DWG
Mounting plate (Option) PDF DXF DWG
SSC1215 PDF DXF DWG
SSC1515 PDF DXF DWG
SSC1522 PDF DXF DWG
SSC1522 PDF DXF DWG
SSC2020 PDF DXF DWG
SSC2028 PDF DXF DWG
SSC2028 PDF DXF DWG
SSC2233 PDF DXF DWG
SSC3040 PDF DXF DWG
