HEATSINK ALUMINUM ENCLOSURE - HS series


HS Series -PDF

CATEGORY:Heatsink enclosure, Heat sink case, Heat dissipating enclosure, Extruded aluminum enclosure, Amplifier case, Flanged enclosure

HEATSINK ALUMINUM ENCLOSURE - HS series
HEATSINK ALUMINUM ENCLOSURE - HS series
HEATSINK ALUMINUM ENCLOSURE - HS series
HEATSINK ALUMINUM ENCLOSURE - HS series
HEATSINK ALUMINUM ENCLOSURE - HS series1
HEATSINK ALUMINUM ENCLOSURE - HS series2
HEATSINK ALUMINUM ENCLOSURE - HS series3
HEATSINK ALUMINUM ENCLOSURE - HS series4

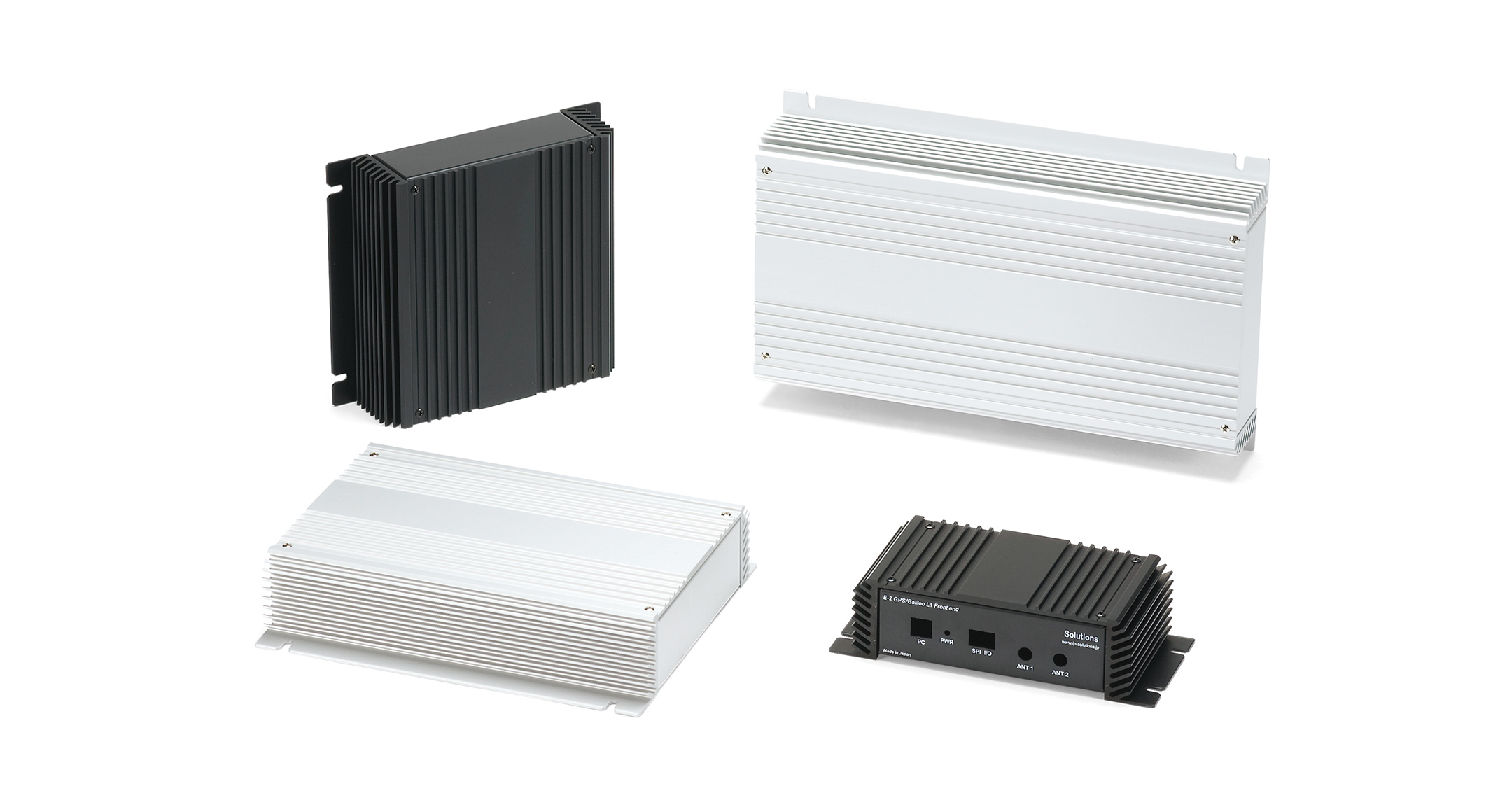

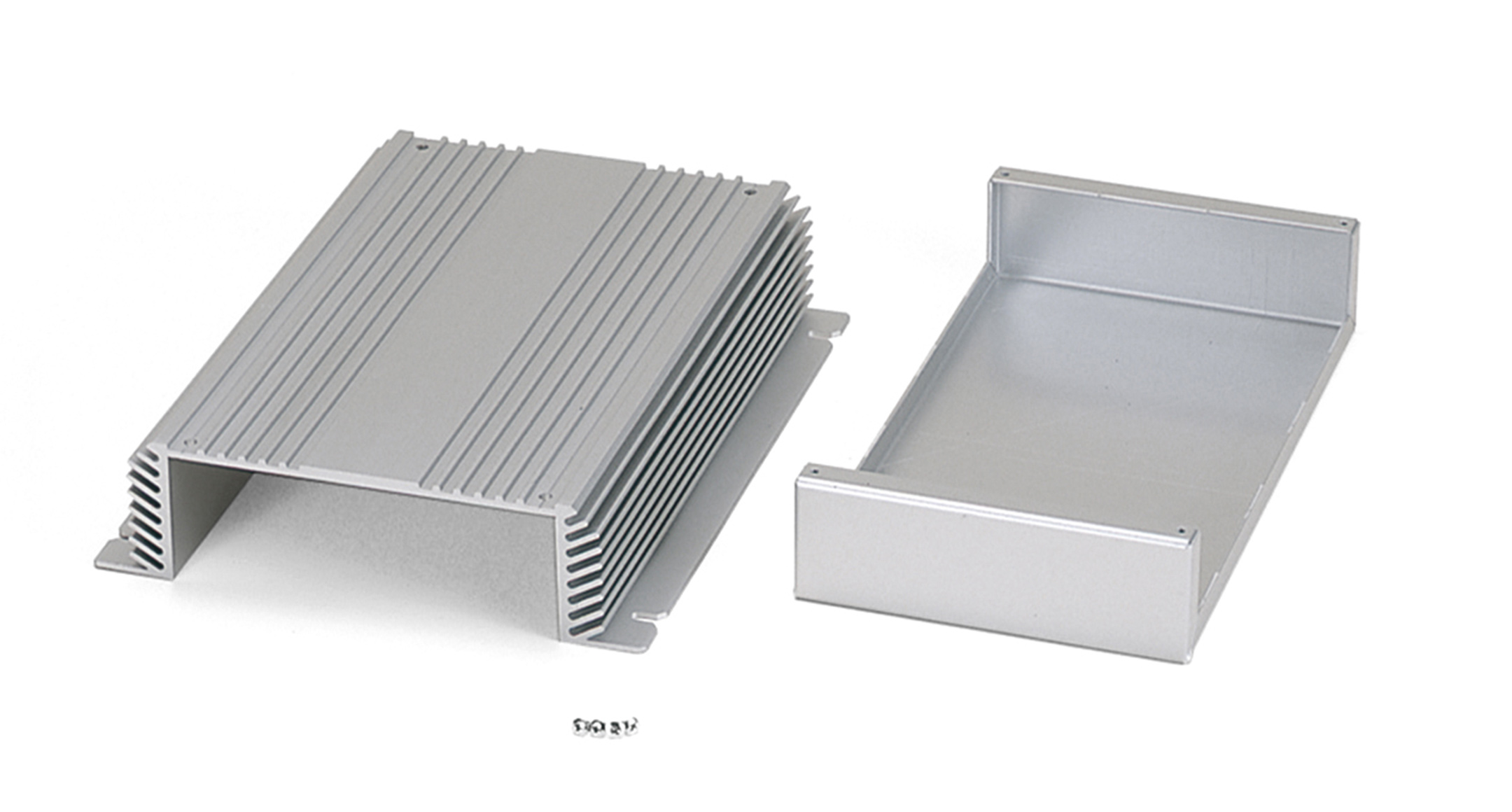

Aluminium case with heat dissipating heat-sink cover for superior cooling effect.
Manufactured with mounting flange for easy attachment onto walls and other surfaces.
Suitable for audio amplifiers, power supply units, or embedded systems, etc.

3 different sizes in silver and black are available.

PRODUCT NO. / DIMENSIONS

Product No. External dimensions Internal dimensions Color Weight (g) PDF DXF DWG
W H D w h d
HS16-5-16S 160 50.5 160 127.1 42 156.4 Silver 720 PDF DXF DWG
HS16-5-16B 160 50.5 160 127.1 42 156.4 Black 720 PDF DXF DWG
HS16-5-23S 160 50.5 230 127.1 42 226.4 Silver 1000 PDF DXF DWG
HS16-5-23B 160 50.5 230 127.1 42 226.4 Black 1000 PDF DXF DWG
HS16-5-30S 160 50.5 300 127.1 42 296.4 Silver 1290 PDF DXF DWG
HS16-5-30B 160 50.5 300 127.1 42 296.4 Black 1290 PDF DXF DWG

OPTIONAL PARTS

1
SLOTTED RAISED COUNTERSUNK TORX SCREW - MR3-5Z
DETAILS

SIMILAR PRODUCT

1
FLANGED HEATSINK ENCLOSURE - EXHF series
DETAILS
1
HEATSINK ALUMINIUM ENCLOSURE - EXH series
DETAILS
1
IP67 FLANGED ALUMINUM ENCLOSURE - AW series
DETAILS
1
FLANGED EXTRUDED ALUMINUM ENCLOSURE - EXPF series
DETAILS
1
HEATSINK ALUMINUM CASE - HEN series
DETAILS
1
HEATSINK ALUMINUM CASE - HIT series
DETAILS
